JET 25-50 Drum Sander, JWDS-2550 Drum Sander With Stand
Are you dealing with burn marks, uneven sanding, or inconsistent finishes on wide panels and glued workpieces?
What if you could achieve a smooth, consistent surface while reducing heat buildup and abrasive wear during sanding?
Meet the JET JWDS-2550 Drum Sander with Stand, designed for controlled, even sanding across wider stock.
With a controlled feed system and precision drum, it maintains consistent sanding under load.
When feed rate stays balanced and scratch patterns are minimized, your work comes off the sander cleaner and closer to final finish.
JET JWDS-2550 for Wide Panel Sanding Work

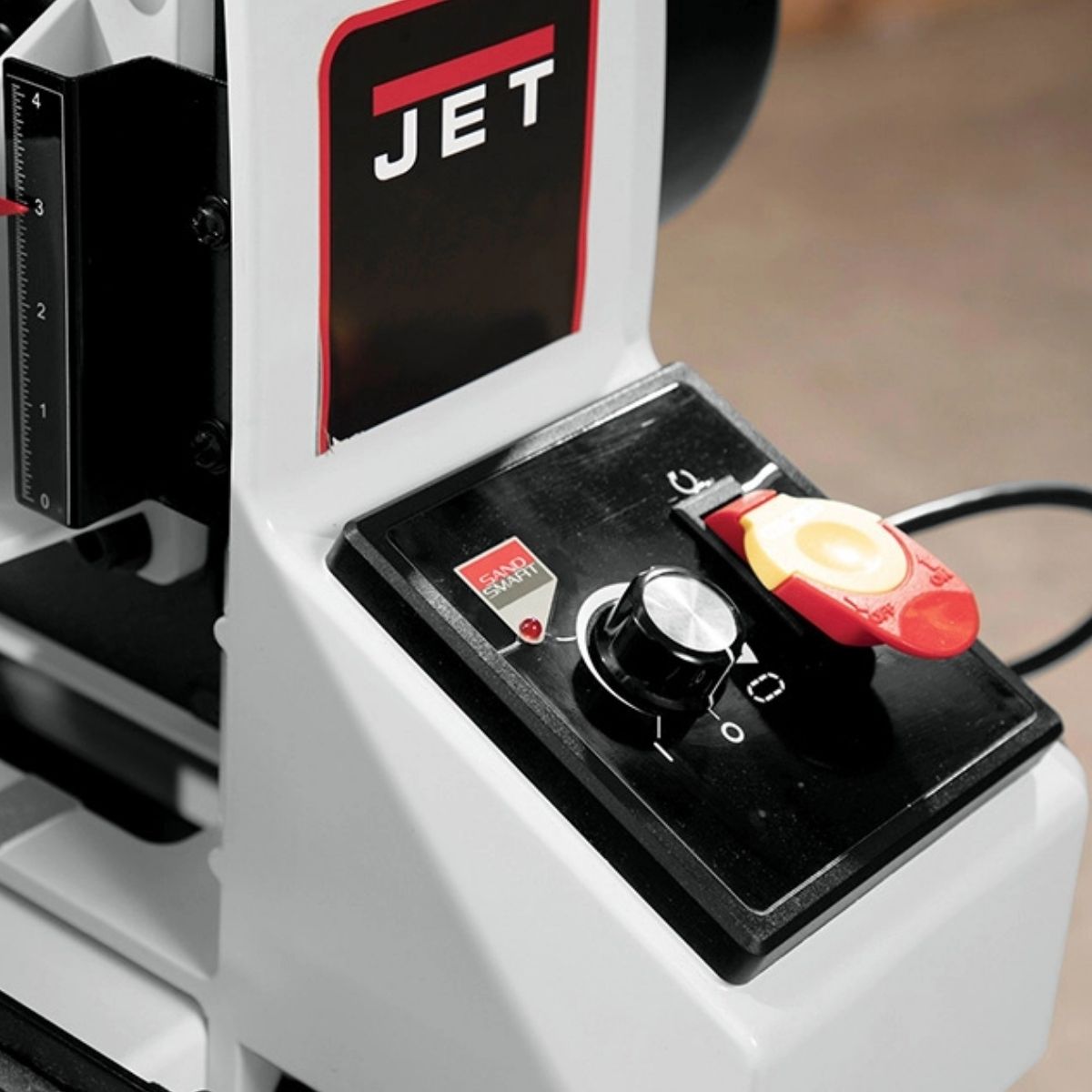

Sandsmart™ Feed System Maintains Consistent Load
The Sandsmart™ system continuously monitors the load on the drum motor and adjusts conveyor speed automatically. This prevents overloading and keeps the sanding process steady. It allows you to run wider or denser material without constant manual adjustment.

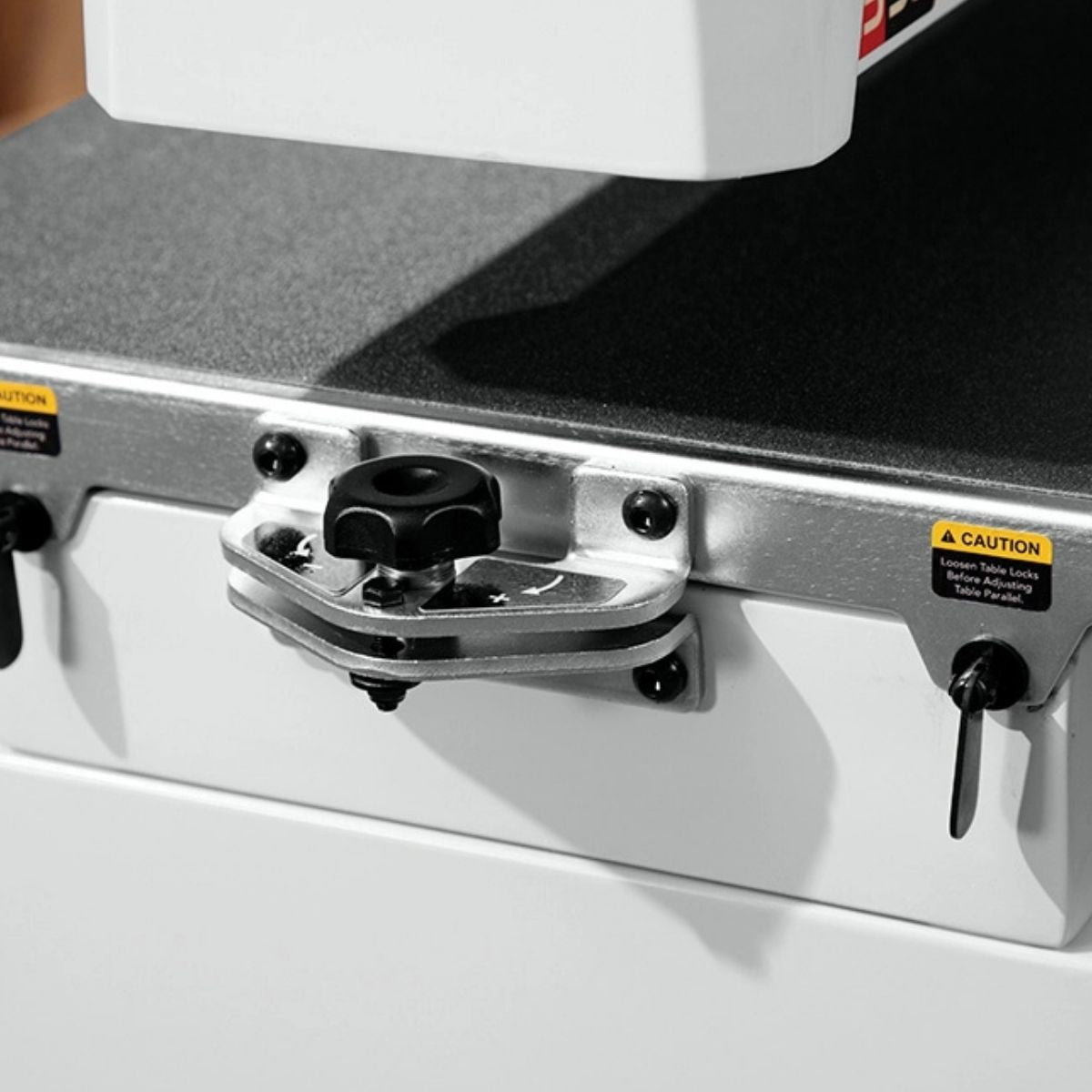

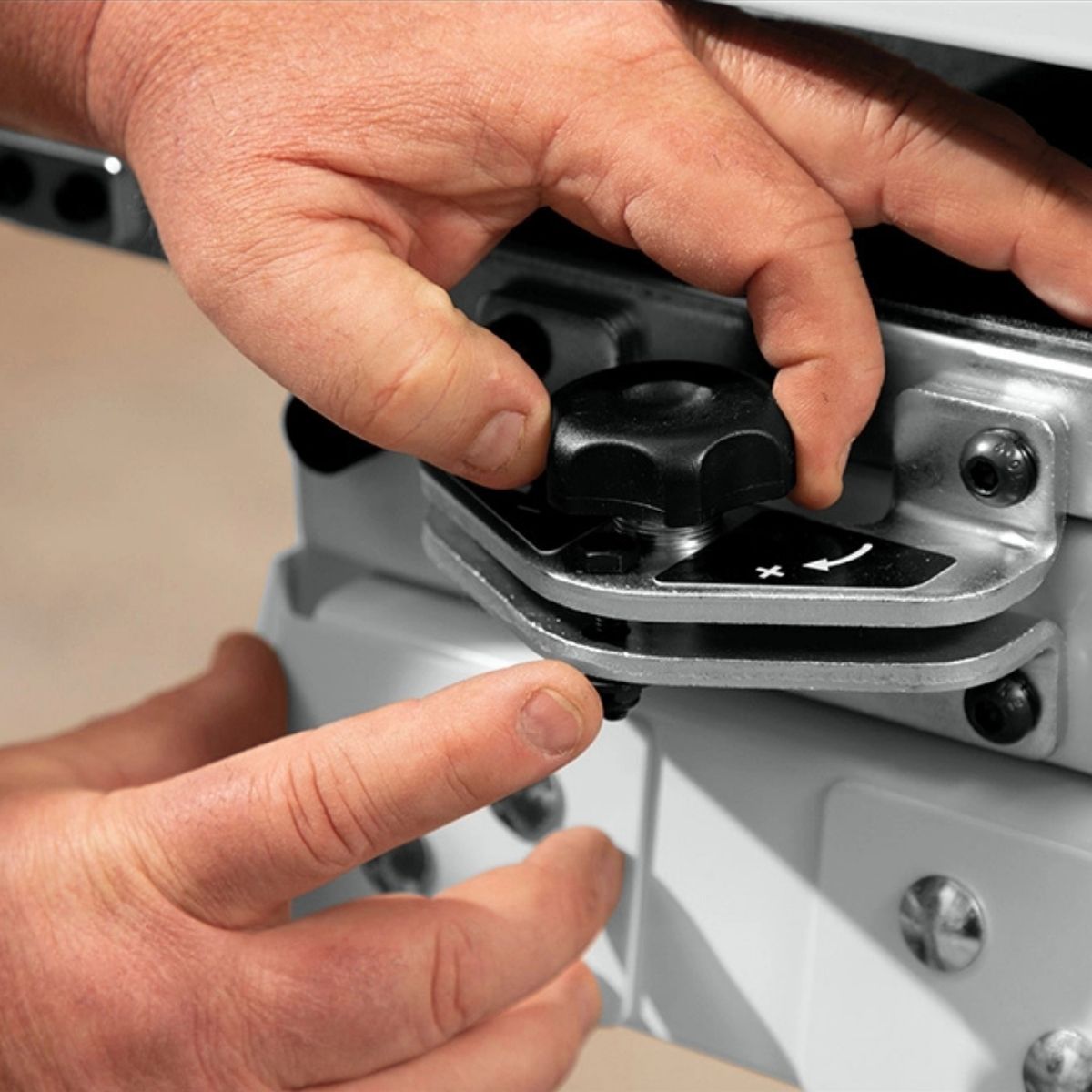

Parallelism Dial Enables Fast Table Adjustment
The tool-less parallelism system allows the conveyor bed to be adjusted quickly using an external dial. This simplifies setup and helps maintain even sanding thickness across the full width. The stop feature allows quick return to a flat reference position.
Extruded Aluminum Drum Improves Heat Control
The precision-machined aluminum drum is dynamically balanced for smooth operation. Its design helps dissipate heat during sanding, reducing the risk of surface damage. This supports longer abrasive life and more consistent finishes.
Independent Motors Improve Sanding Control
Separate motors for the drum and conveyor allow better control over feed rate and sanding action. This makes it easier to match machine settings to different materials. It helps balance material removal with surface quality.
What’s Included
What’s Included? JET JWDS-2550 Drum Sander
-

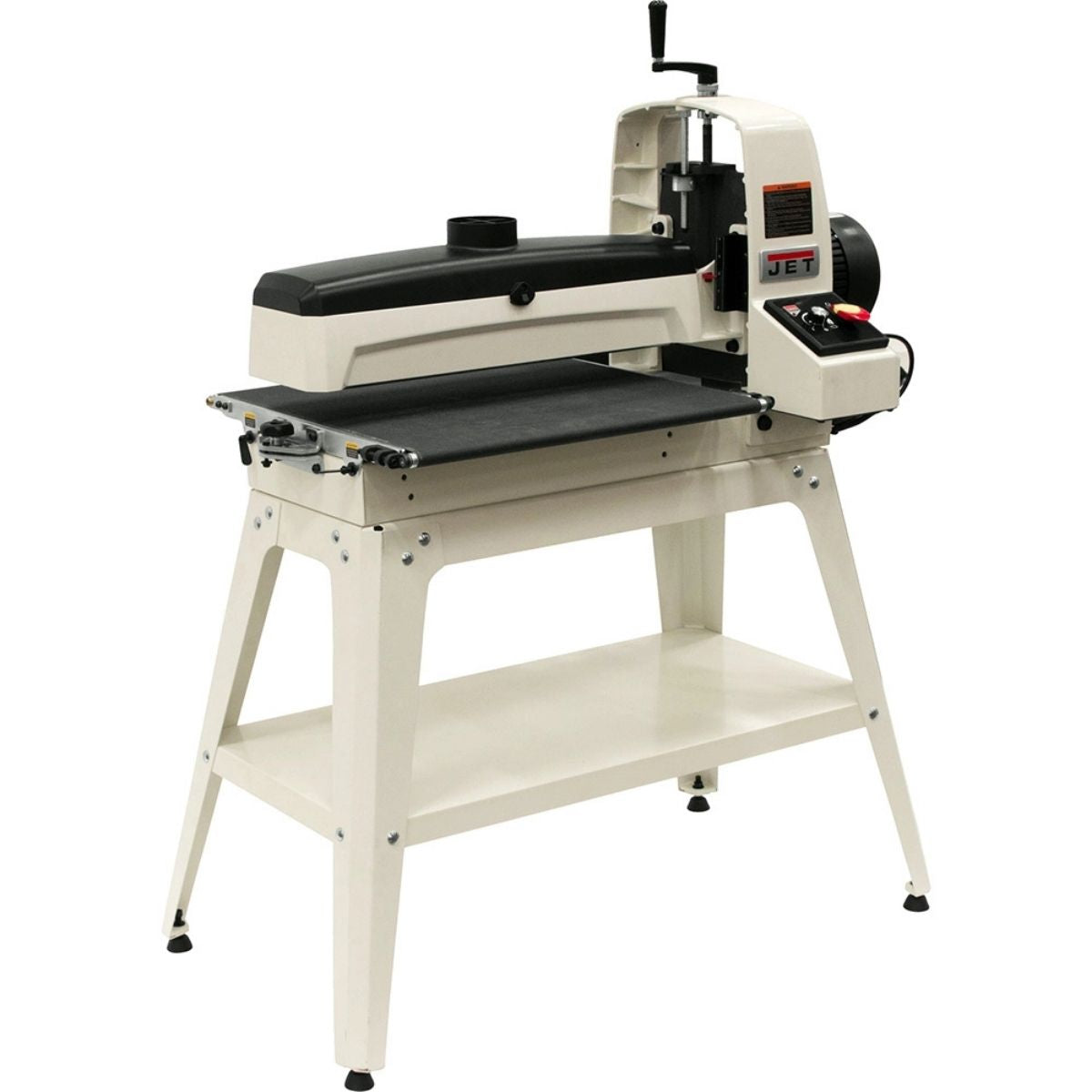

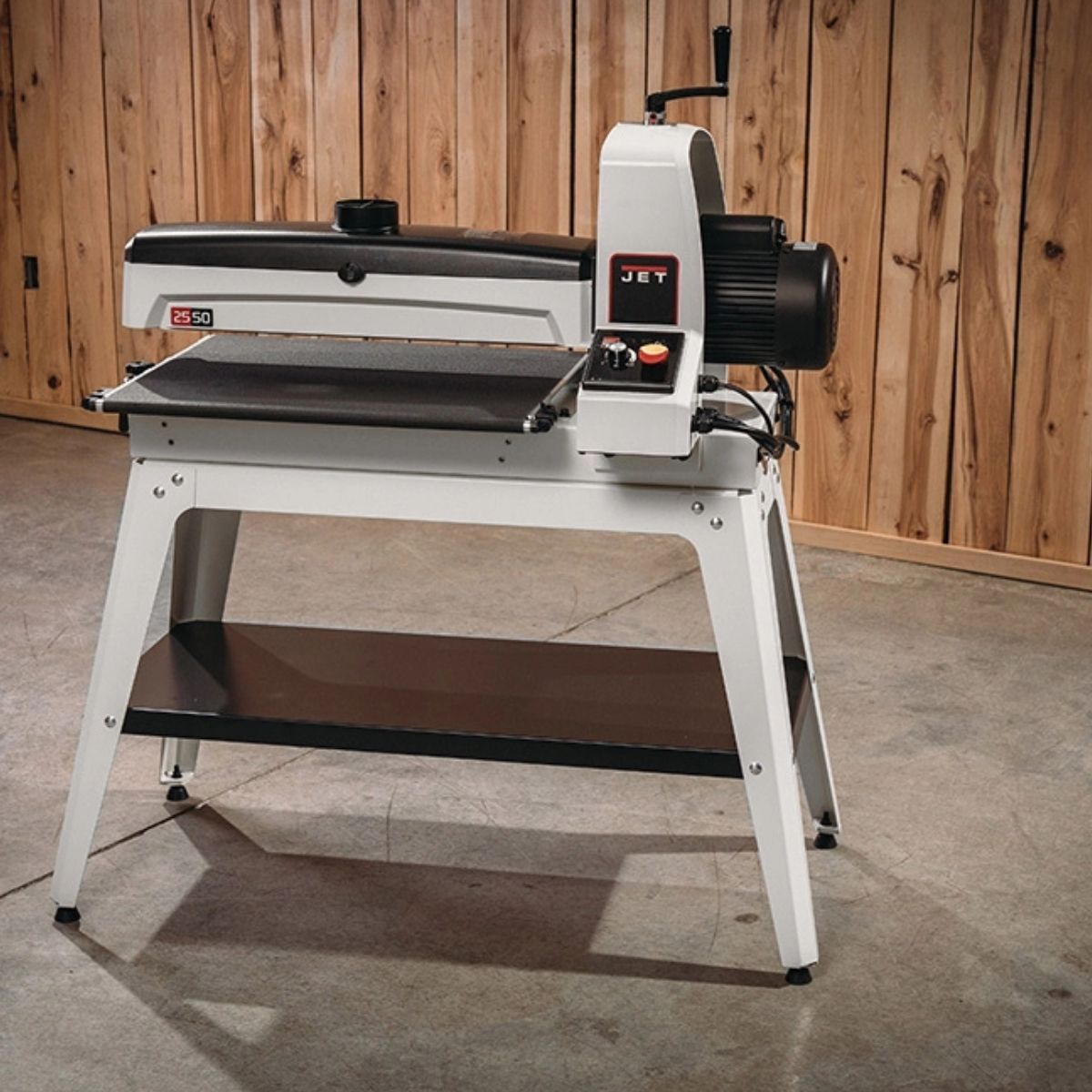

JWDS-2550 Drum Sander (Open Stand) – Floor-standing unit with open base and storage shelf for accessible shop use.
-

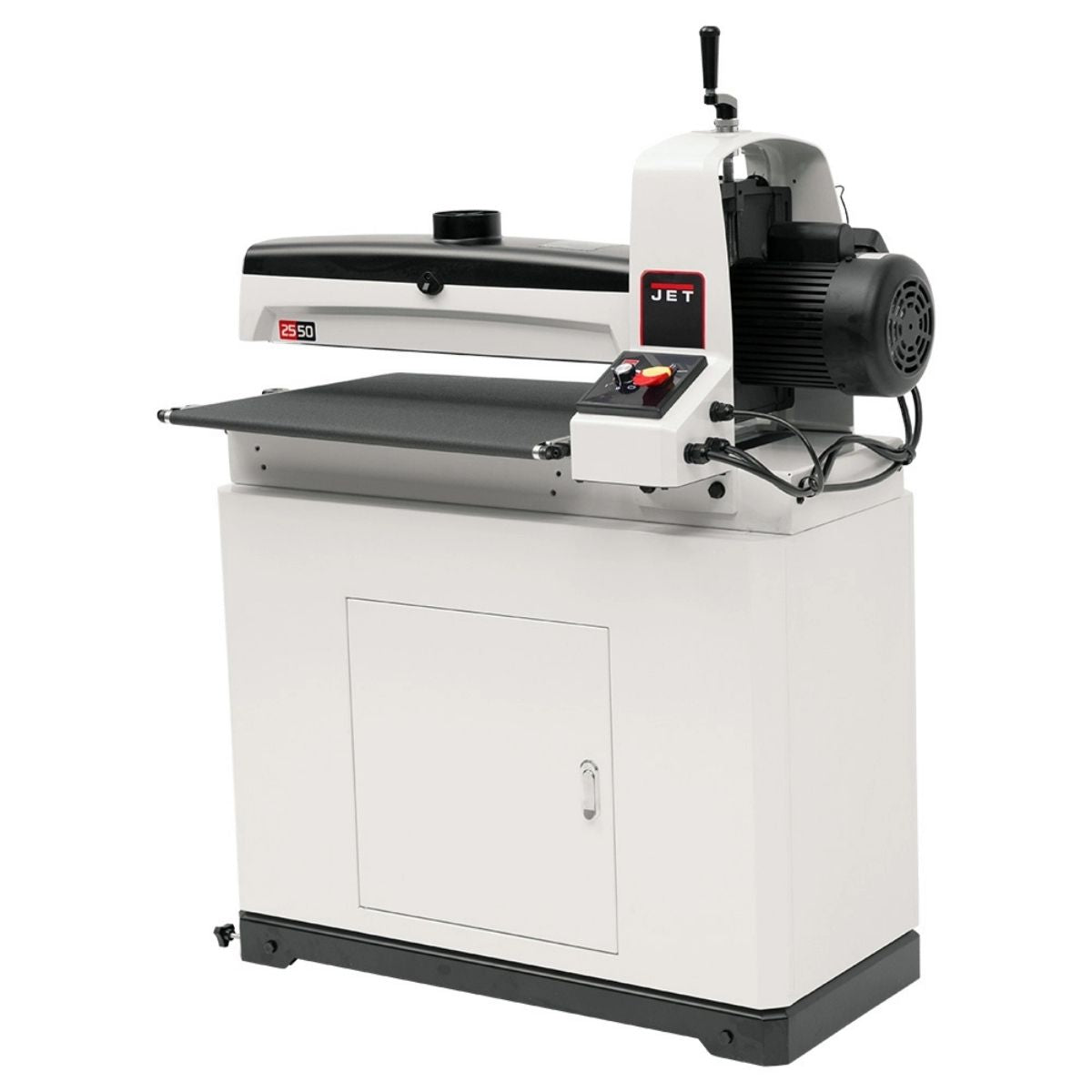

JWDS-2550 Drum Sander (Closed Stand) – Floor-standing unit with enclosed cabinet for added storage and dust containment.
-
Integrated Conveyor System – Feeds material evenly through the drum for controlled sanding passes.
-
Dust Hood with 4" Port – Connects to dust collection to keep the sanding area clear.
Specs
JET JWDS-2550 Specifications
- Open Stand (JT9-723550OSK)
- Drum Diameter: 5"
- Drum Length: 25"
- Dust Port Diameter: 4"
- Maximum Board Thickness: 4"
- Minimum Board Thickness: 1/32"
- Minimum Board Length: 2-3/8"
- Motor Power: 1-3/4 HP
- Motor Amps: 15
- Style: Floor standing model
- Net Weight: 234 lbs
- Gross Weight: 260 lbs
- Warranty: 5 Year
- Closed Stand (JT9-723544CSK)
- Drum Diameter: 5"
- Drum Length: 25"
- Dust Port Diameter: 4"
- Maximum Board Thickness: 4"
- Minimum Board Thickness: 1/32"
- Minimum Board Length: 2-3/8"
- Motor Power: 1-3/4 HP
- Motor Amps: 15
- Style: Floor standing model
- Net Weight: 270 lbs
- Gross Weight: 302 lbs
- Warranty: 5 Year
