JET 20" JWBS-20 Bandsaw
Are you tackling larger boards or more intricate cuts but your current bandsaw lacks the power or capacity?
Imagine a bandsaw with the throat depth, resaw height, and steady blade control to handle bigger stock and precision work.

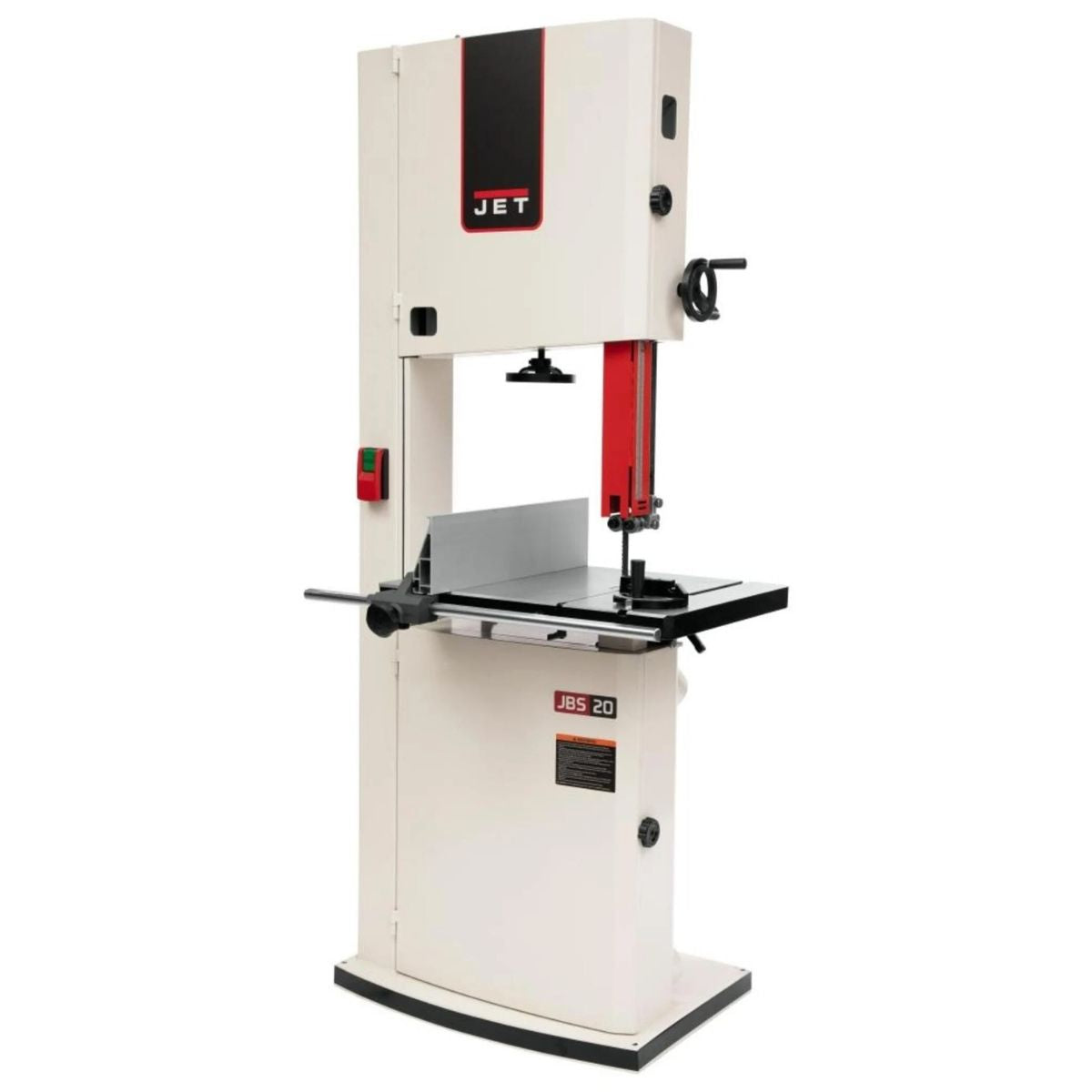

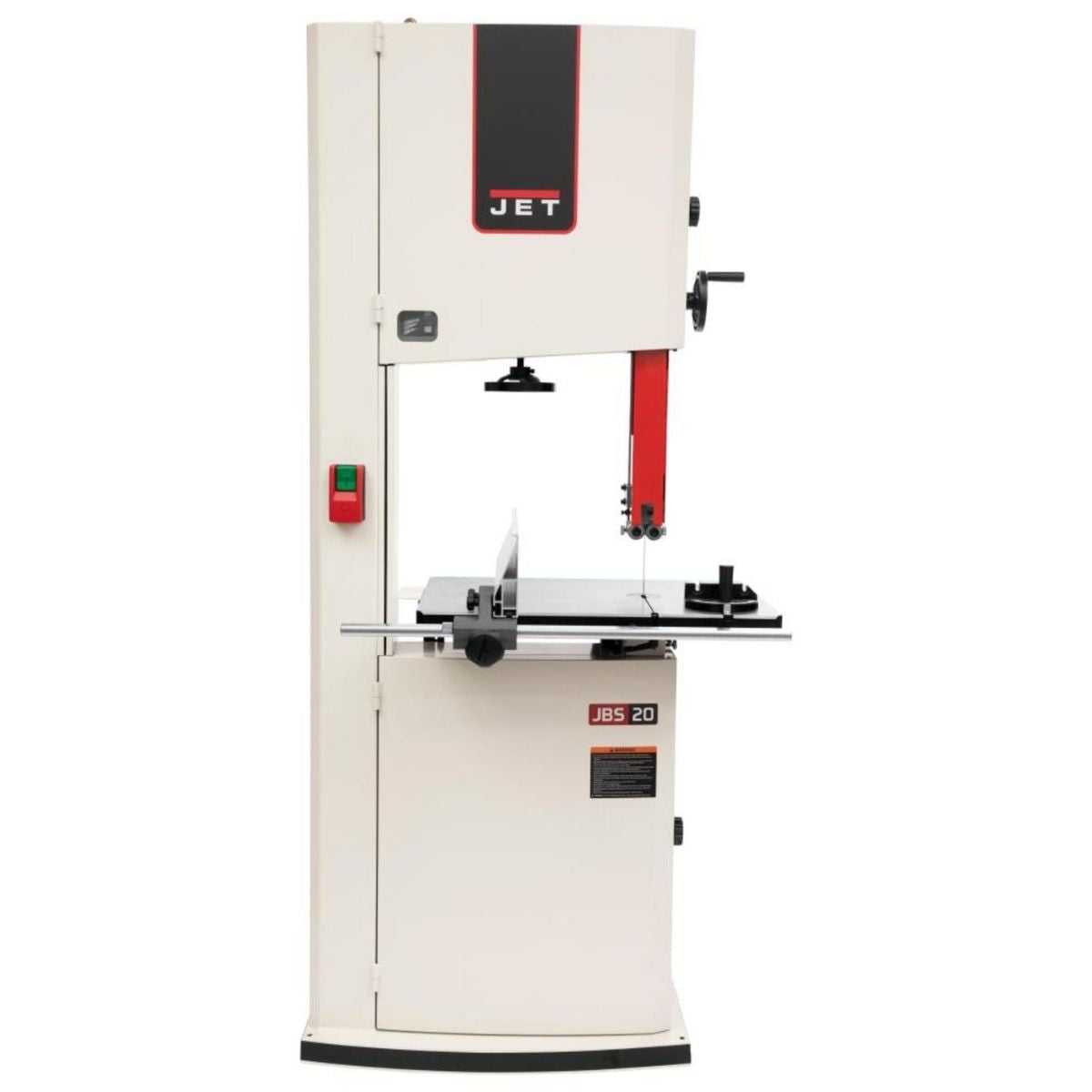

Meet the JET 20" JWBS-20 Bandsaw, a steel frame woodworking machine built for smooth cutting, dependable tracking, and reliable shop performance.
Available with a 3 HP or 5 HP motor, rigid guide post system, and heavy cast iron table and fence, this bandsaw delivers the stability needed for demanding cuts.
When the saw runs smoothly and adjustments stay predictable, your focus stays on the cut—and your finished work reflects the results.
JET JWBS-20 for Resawing and Precision Bandsaw Work

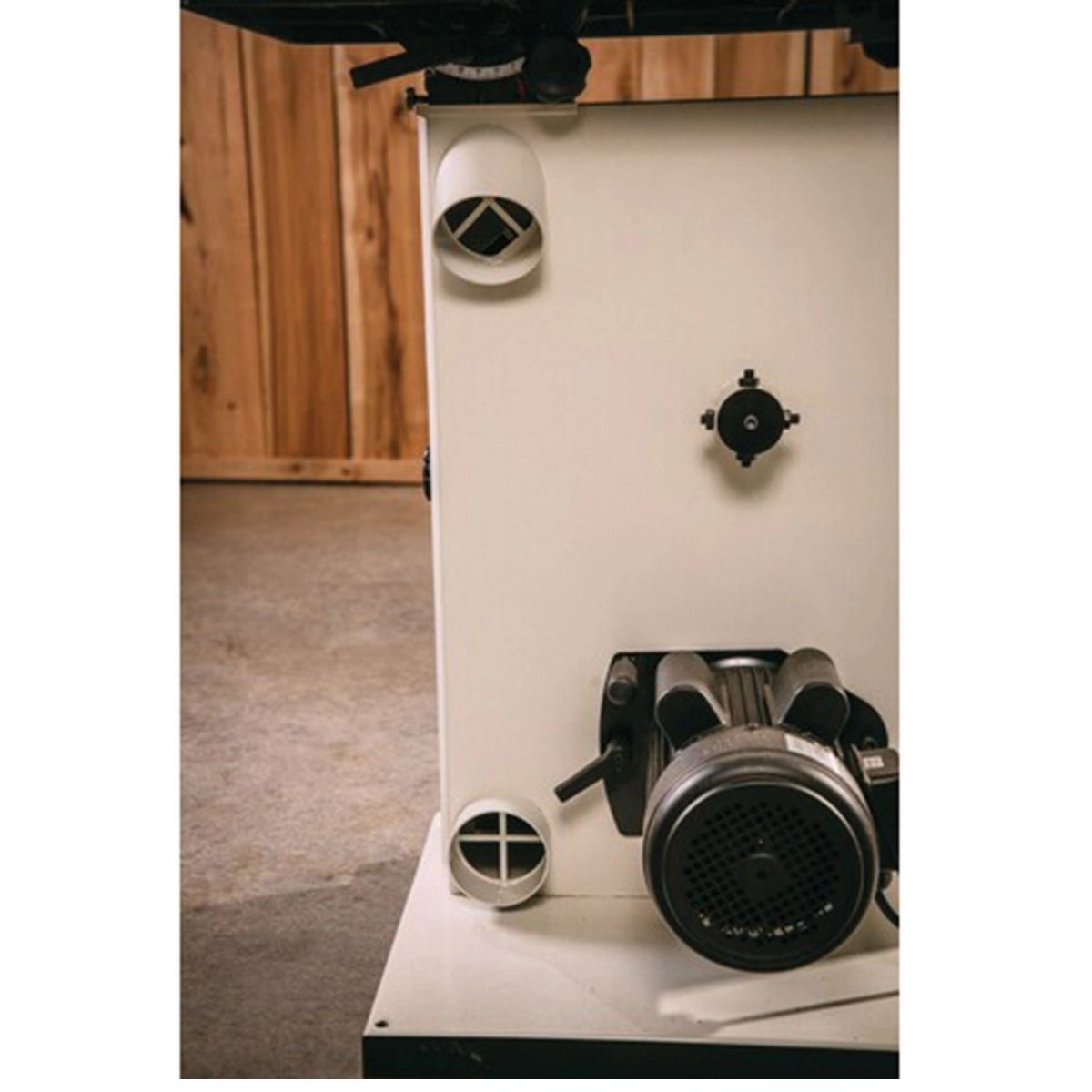

Motor Maintains Steady Cutting Power
The JWBS-20 uses a 3 HP or 5 HP motor designed for consistent cutting through hardwoods and thicker stock. Blade speed remains smooth without slowing under load, reducing burning and improving edge quality during resawing or curved cuts.

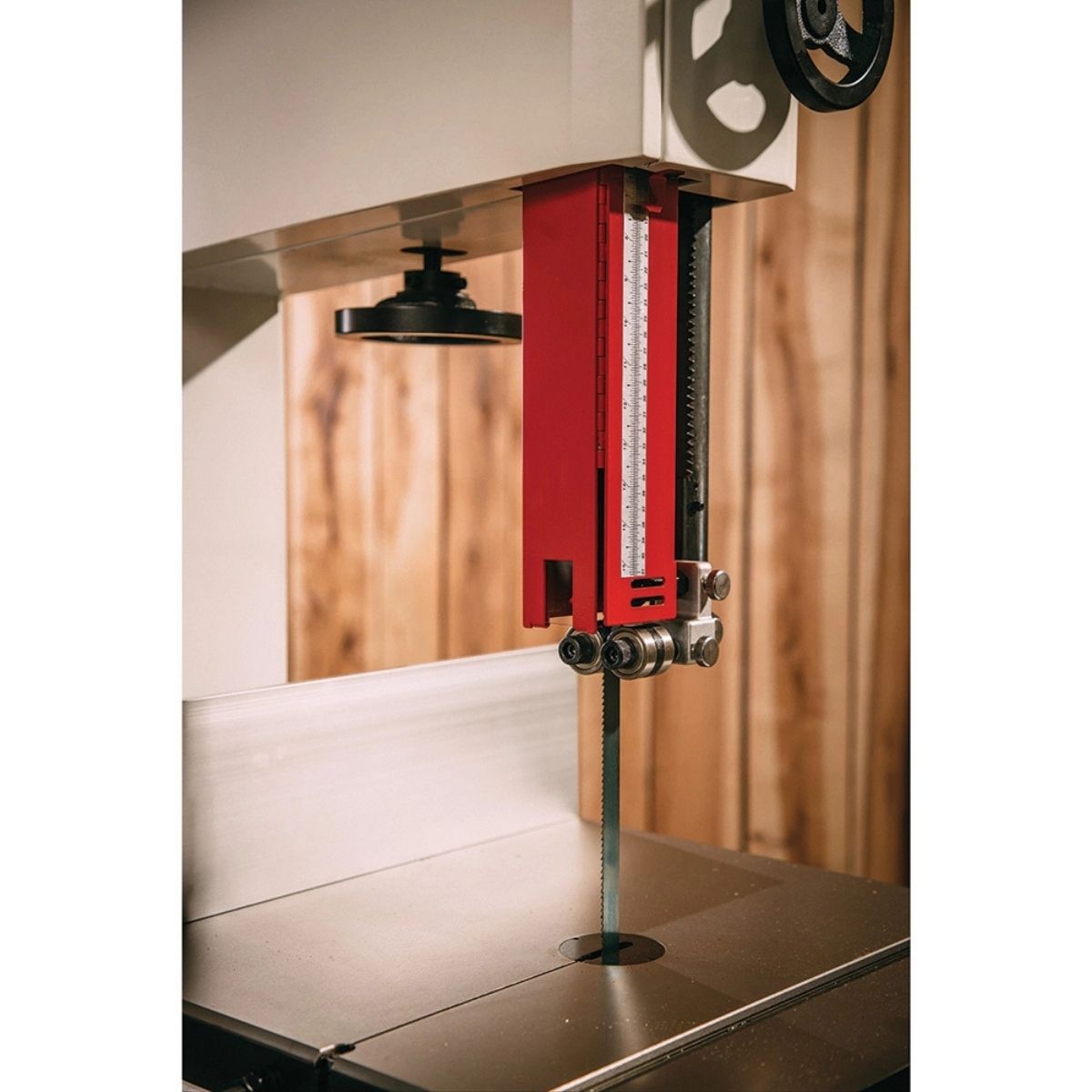

Rigid Four-Sided Guide Post Improves Blade Support
The guide post system supports the blade from four sides for stable tracking during demanding cuts. Rack and pinion adjustment makes height changes controlled and predictable, keeping the blade properly supported as material thickness changes.

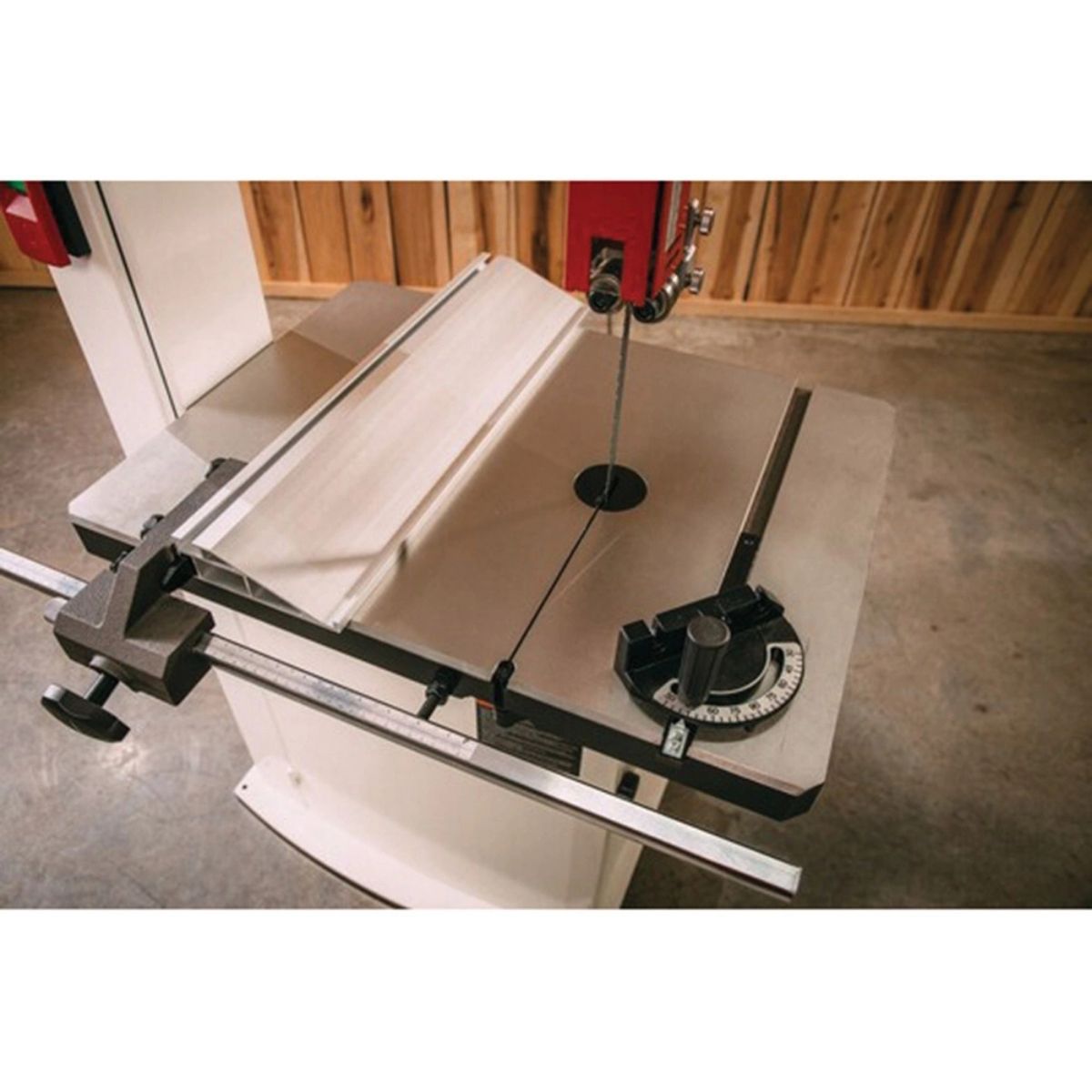

Cast Iron Table and Fence Support Straight Cuts
The heavy-duty cast iron table and fence provide firm support for boards and resaw work. Micro-adjust dials allow precise positioning so cuts stay accurate, keeping workpieces stable as they move through the blade.

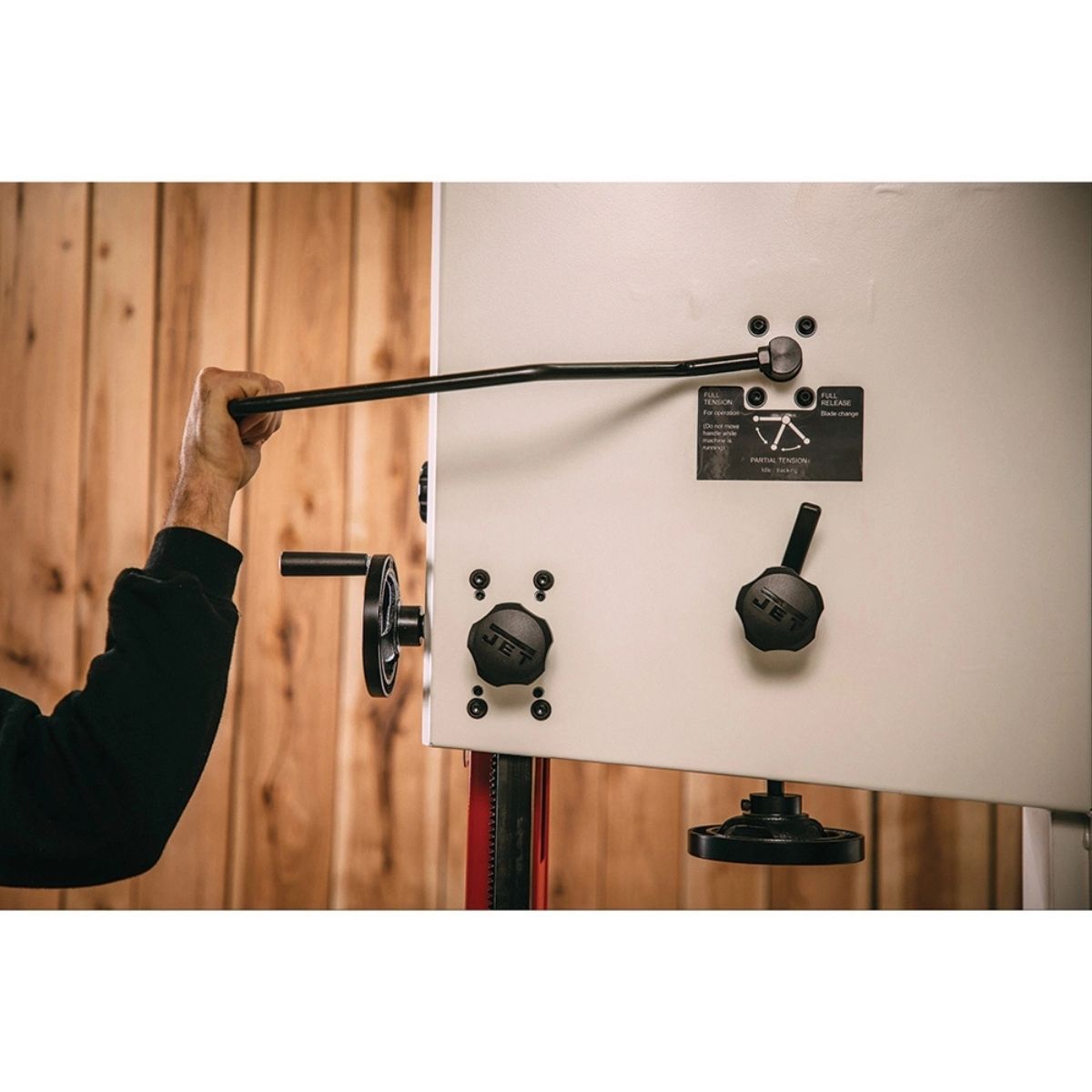

Quick Release Tensioning Simplifies Blade Changes
The tensioning system includes full tension, partial tension, and full release settings. This allows the blade to be relaxed between uses and tightened quickly for cutting. Blade tracking window and easy access doors make adjustments faster and more predictable.
What’s Included
What’s Included? JET 20" JWBS-20 Bandsaw
-
JWBS-20 Bandsaw – 20-inch steel frame woodworking bandsaw designed for resawing, curved cutting, and general shop work.
-
Cast Iron Table and Fence – Provides stable support and micro-adjust positioning for accurate straight cuts.
-
Round Table Insert – Replaceable insert with leveling screws to keep the table surface aligned with the blade opening.
-
Bandsaw Blade – High-quality blade included.
-
Owner's Manual – Complete setup and operating instructions.
Specs
JWBS-20-3 3 HP – 230V Specifications
- Stock Number: JT9-714800
- Model Number: JWBS-20-3
- Motor Power: 3 HP
- Prewired Voltage: 230V
- Recommended Circuit Size: 30 Amps
- Motor Amps: 12
- Band Saw Size / Wheel Diameter: 20-1/4 in
- Minimum Saw Blade Width: 1/8 in
- Cutting Capacity Height: 16 in
- Cutting Capacity Width: 20 in
- Dust Collection Minimum CFM: 400
- Table Size (L x W): 27-1/4 x 20 x 1-5/8 in
- Table Height from Floor: 37 in
- Net Weight: 588 lbs
- Gross Weight: 660 lbs
- Warranty: 5 Year
- Manual: Product manual available for download (5.67 MB)
JWBS-20-5 5 HP – 230V Specifications
- Stock Number: JT9-714850
- Model Number: JWBS-20-5
- Motor Power: 5 HP
- Prewired Voltage: 230V
- Recommended Circuit Size: 40 Amps
- Motor Amps: 22
- Band Saw Size / Wheel Diameter: 20-1/4 in
- Minimum Saw Blade Width: 1/8 in
- Cutting Capacity Height: 16 in
- Cutting Capacity Width: 20 in
- Dust Collection Minimum CFM: 400
- Table Size (L x W): 27-1/4 x 20 x 1-5/8 in
- Table Height from Floor: 37 in
- Net Weight: 616 lbs
- Gross Weight: 688 lbs
- Warranty: 5 Year
- Manual: Product manual available for download (5.67 MB)
