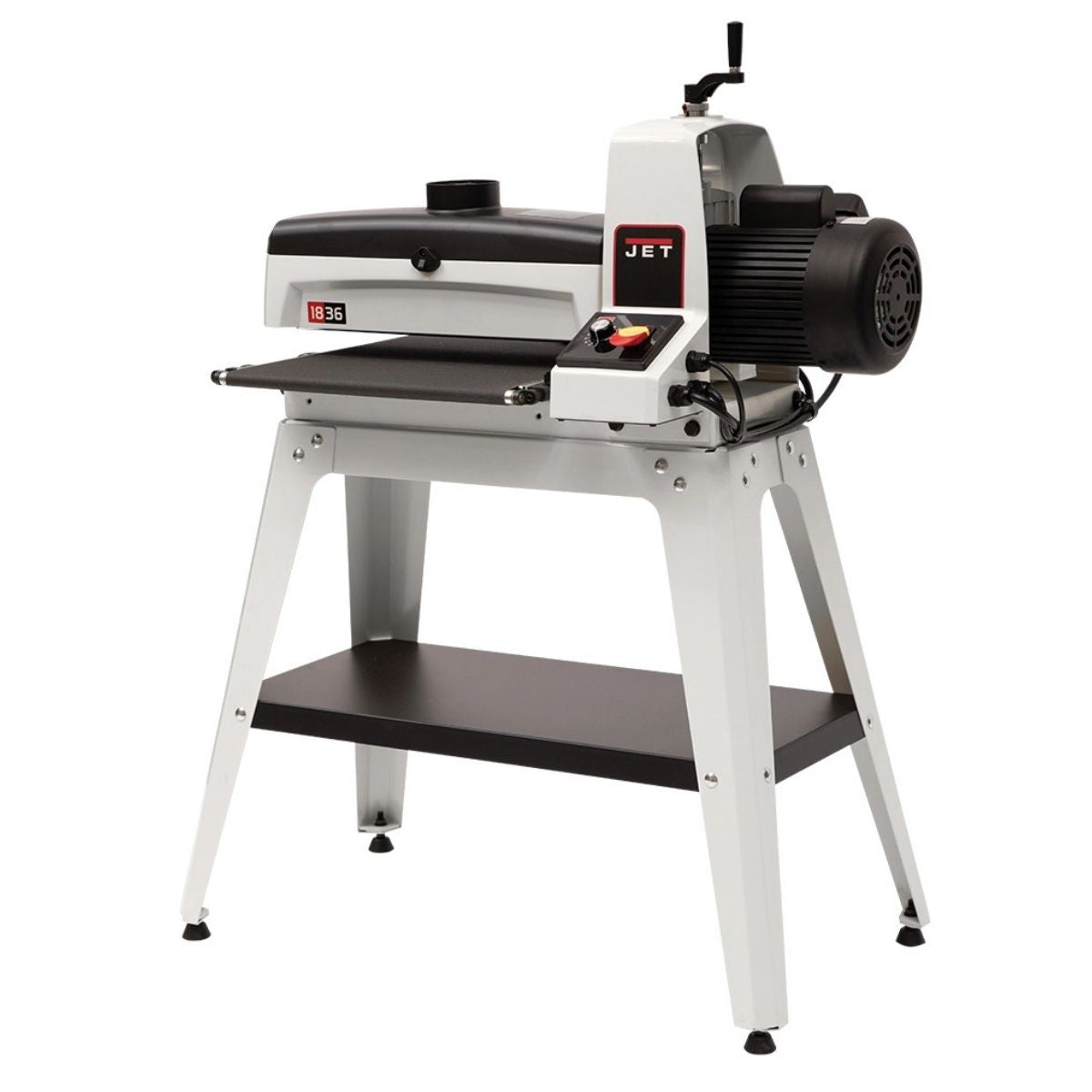

JET 18-36 Drum Sander,
JWDS-1836 Drum Sander with Stand
Are you struggling to maintain consistent thickness when sanding wider panels and larger stock?
What if you could run longer boards through with controlled feed and reliable surface results?
Meet the JET JWDS-1836 Drum Sander with Stand, built for steady sanding across larger workpieces.
With a 1-3/4 HP motor, Sandsmart control, and variable feed speed, it adapts to changing load conditions.
When feed rate and alignment stay consistent, boards come off flat and ready for finishing work.
JET JWDS-1836 Drum Sander for Wide Panel Sanding

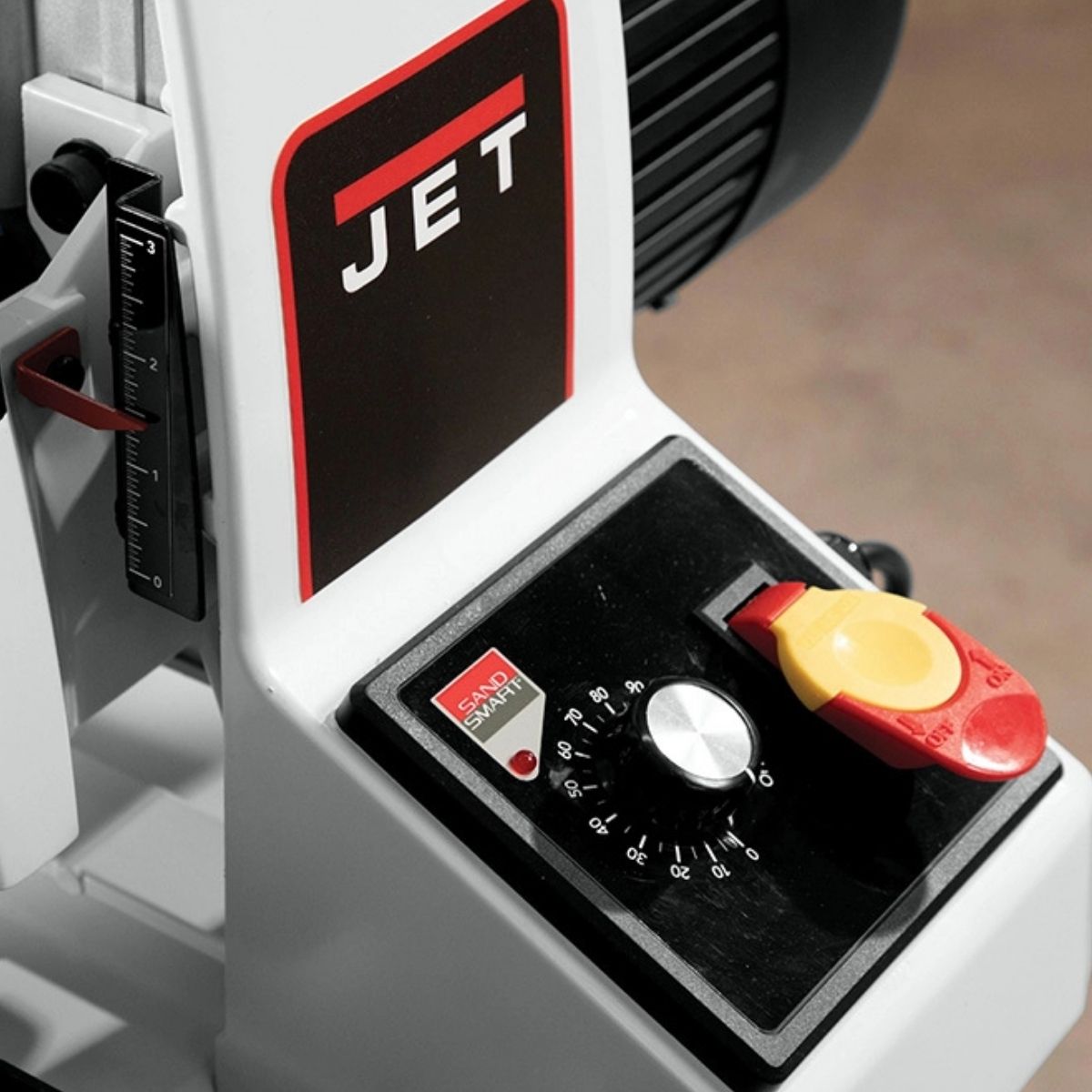

Sandsmart Load Monitoring Maintains Feed Rate
Sandsmart technology continuously monitors the load on the drum motor during operation. It adjusts the conveyor speed to prevent overload while maintaining productivity. This allows consistent sanding without frequent manual intervention.
Variable Speed Conveyor Matches Material
The variable-speed conveyor lets the operator adjust feed rate based on wood type and sanding requirements. Slower speeds help achieve finer finishes, while faster settings improve throughput. This flexibility supports a wide range of shop tasks.

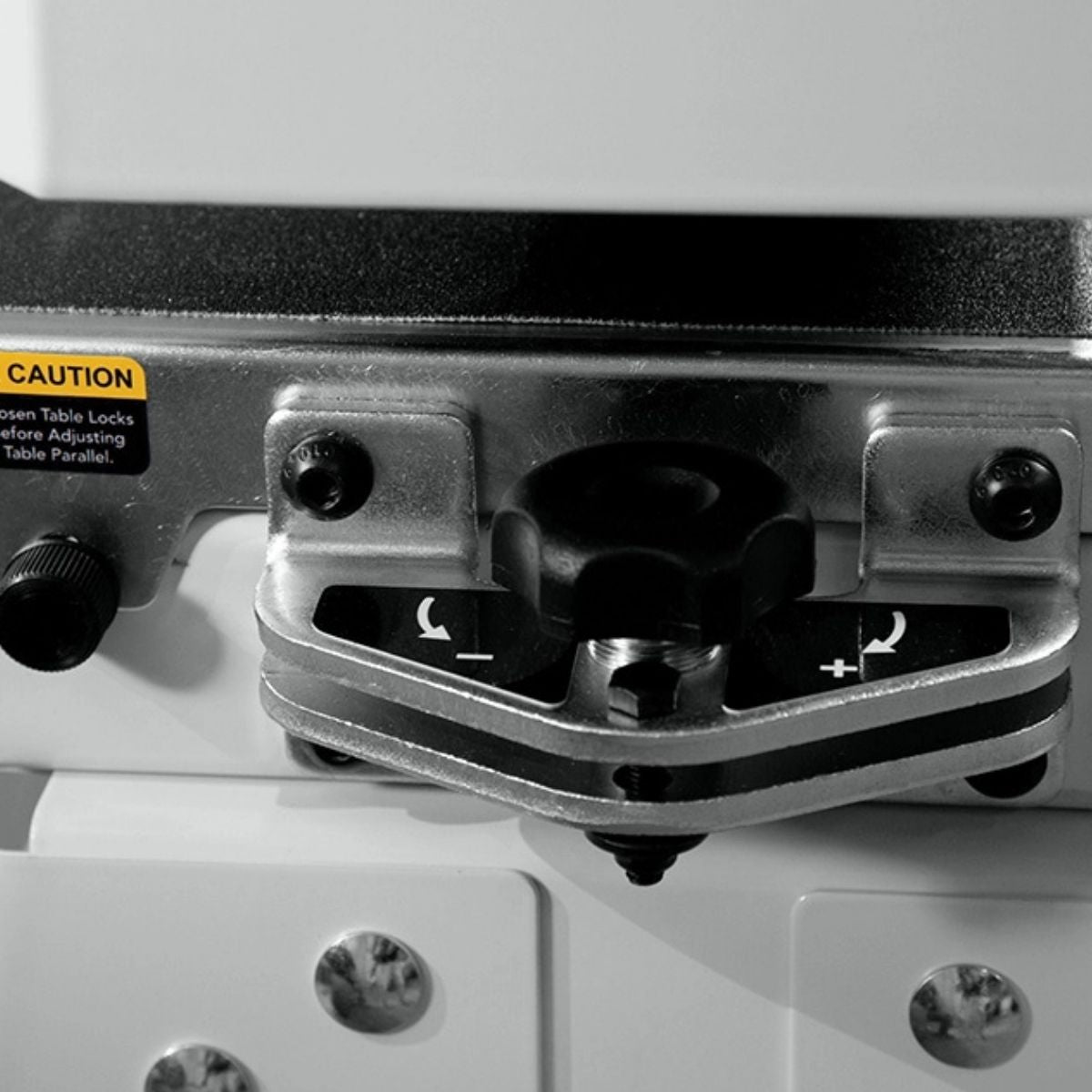

Toolless Parallelism System Simplifies Alignment

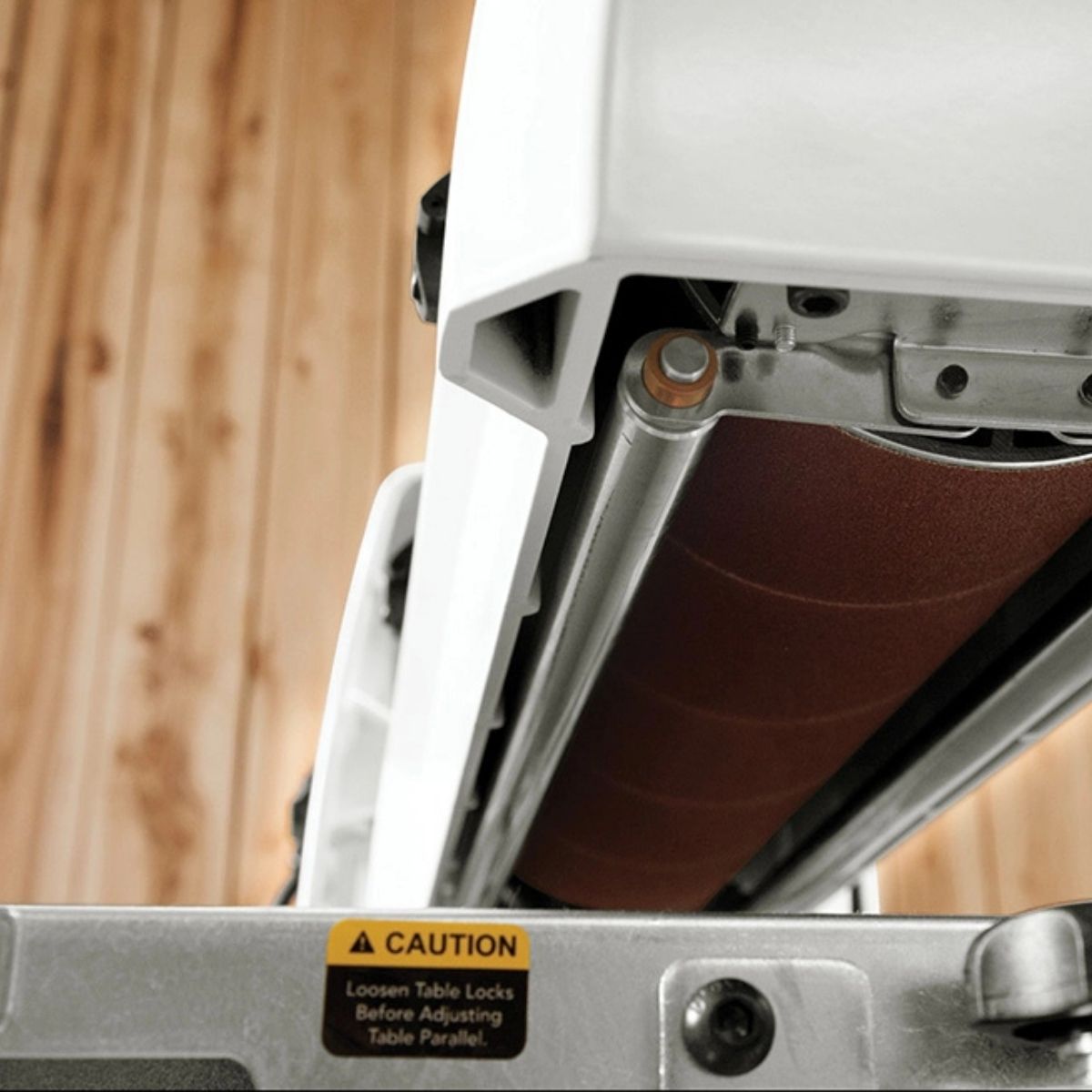

The parallelism dial allows quick adjustment of the conveyor bed without tools. This makes it easier to keep the table aligned with the drum. Proper alignment helps ensure even sanding across the full width of the board.
Reinforced Conveyor Bed Supports Consistent Passes
The precision-flattened reinforced steel conveyor bed provides stable support for material. This reduces movement during sanding and maintains even contact with the drum. The result is improved thickness consistency and reduced surface variation.
What’s Included
What’s Included? JET 18-36 Drum Sander,
JWDS-1836 Drum Sander with Stand
-
JWDS-1836 Drum Sander Main sanding unit for panel flattening and thickness control
-
Stand Provides stable base with working height and support
Specs
JET 18-36 Drum Sander, JWDS-1836 Drum Sander with Stand Specifications
- Stock Number: JT9-723530K
- Model Number: JWDS-1836
- Motor Power: 1-3/4 HP
- Motor Amps: 15

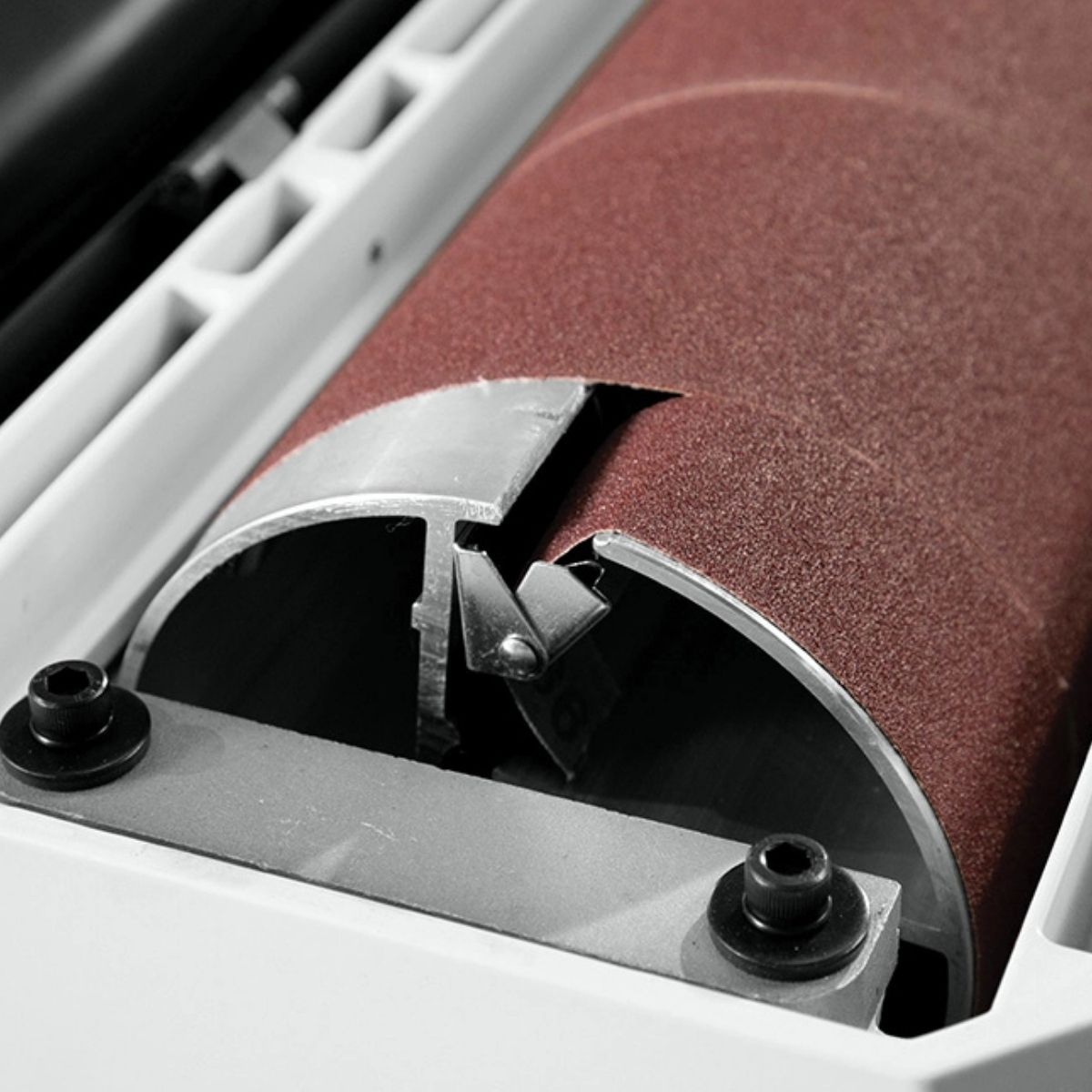

- Drum Diameter: 5 in.
- Dust Port Outside Diameter: 4 in.
- Dust Collection Minimum CFM Required: 500 CFM
- Maximum Board Thickness: 3 in.
- Minimum Board Thickness: 1/32 in.
- Minimum Board Length: 2-3/8 in.
- Number of Sanding Drums: 1
- Recommended Circuit Size: 20 amps
- Warranty: 5 Year
- Gross Weight: 190 lbs
- Net Weight: 164 lbs
