JET 17" JDP-17 Floorstanding Drill Press
Are you limited by shallow spindle travel when drilling thicker materials or stacked parts?
What if your drill press offered deeper travel, a larger work table, and steady control for demanding drilling work?

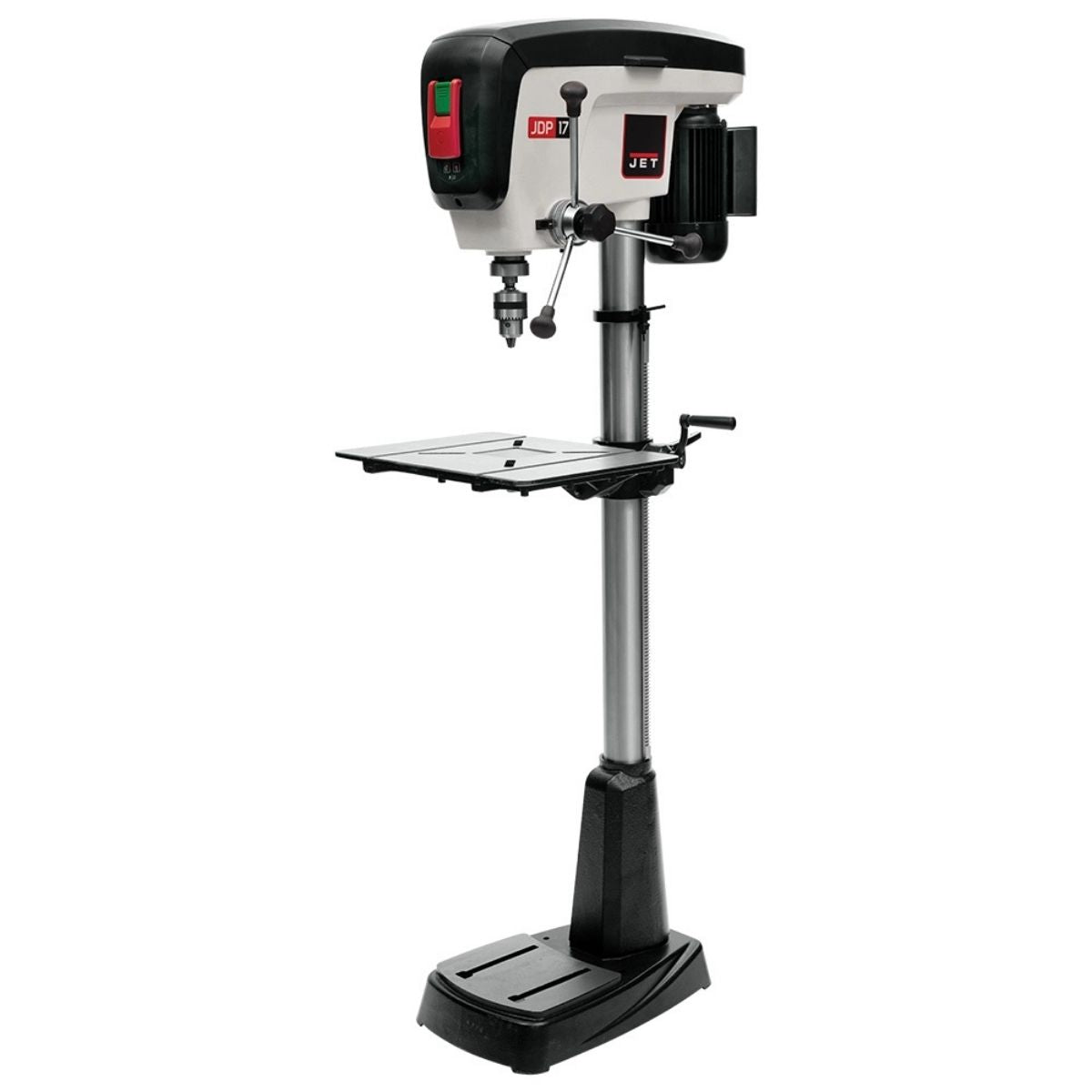

Meet the JET 17" JDP-17 Floorstanding Drill Press, a full size shop drill press built for accurate drilling and greater capacity.
With a 3/4 HP motor, a poly-v belt drive system, and a full 5 inches of spindle travel, it provides the depth and control needed for larger drilling tasks.
When your drill press has the travel, stability, and adjustment range to match the job, drilling operations stay consistent from setup to setup.
JET JDP-17 for Deep Capacity Drilling Work
5 Inch Spindle Travel Handles Deep Drilling
The extended 5 inch spindle travel allows deeper drilling without repositioning the workpiece. This makes it easier to work with thicker materials or stacked components. Fewer resets help maintain accuracy and improve efficiency during drilling operations.

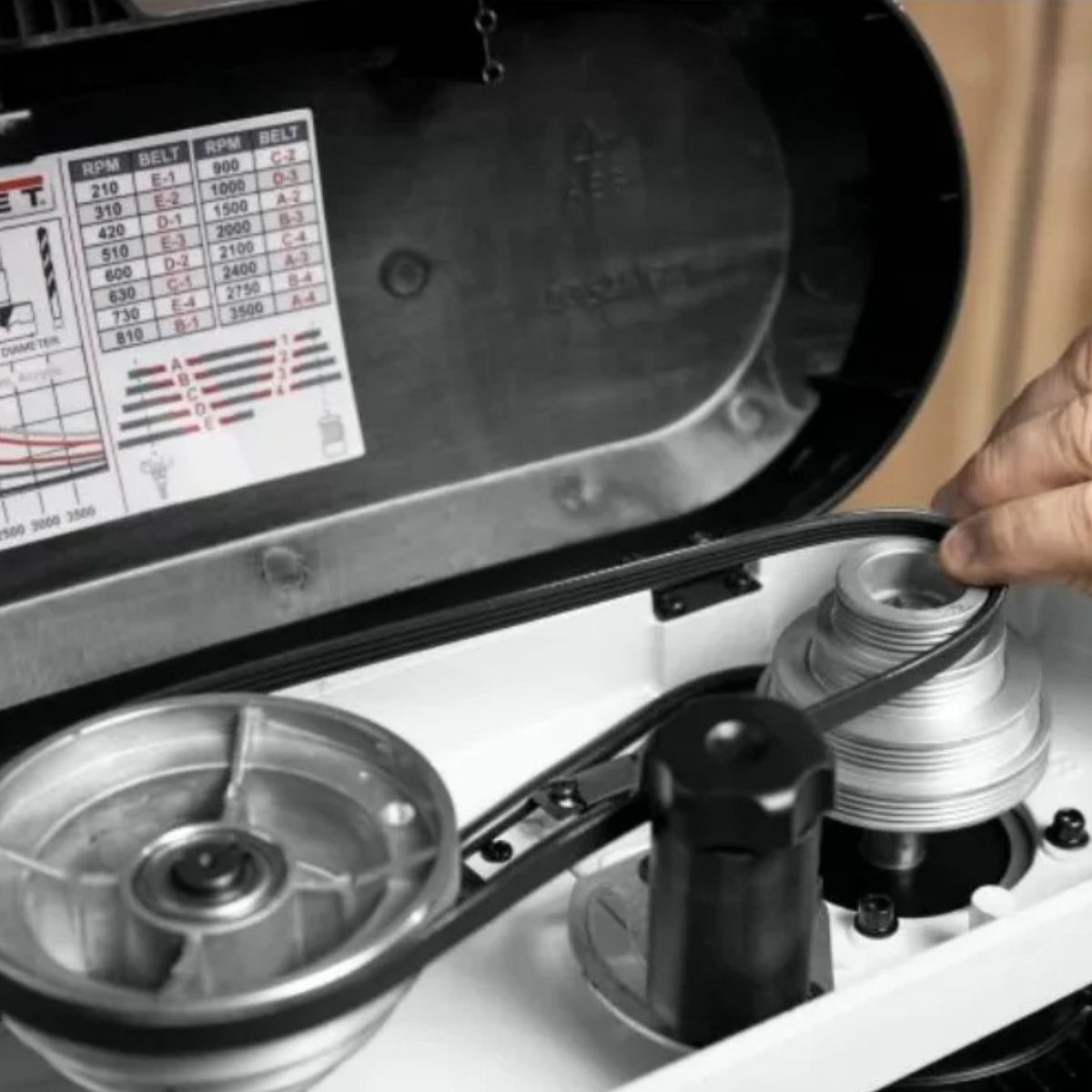

Poly-V Belt Drive Maintains Smooth Power
The poly-v belt drive transfers power from the motor to the spindle efficiently. This system helps reduce vibration while maintaining steady torque during drilling. Smooth power delivery supports cleaner holes and more controlled cutting.

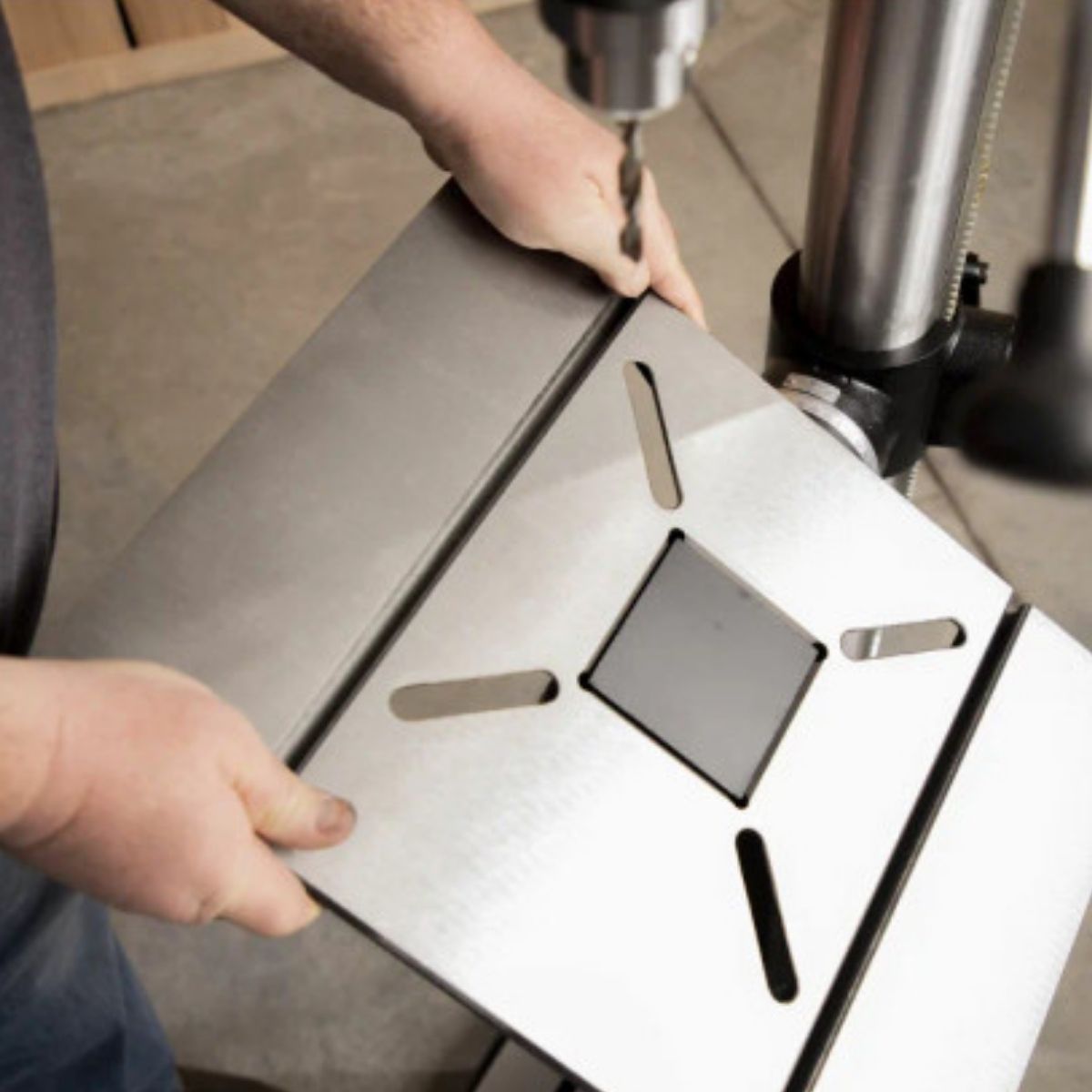

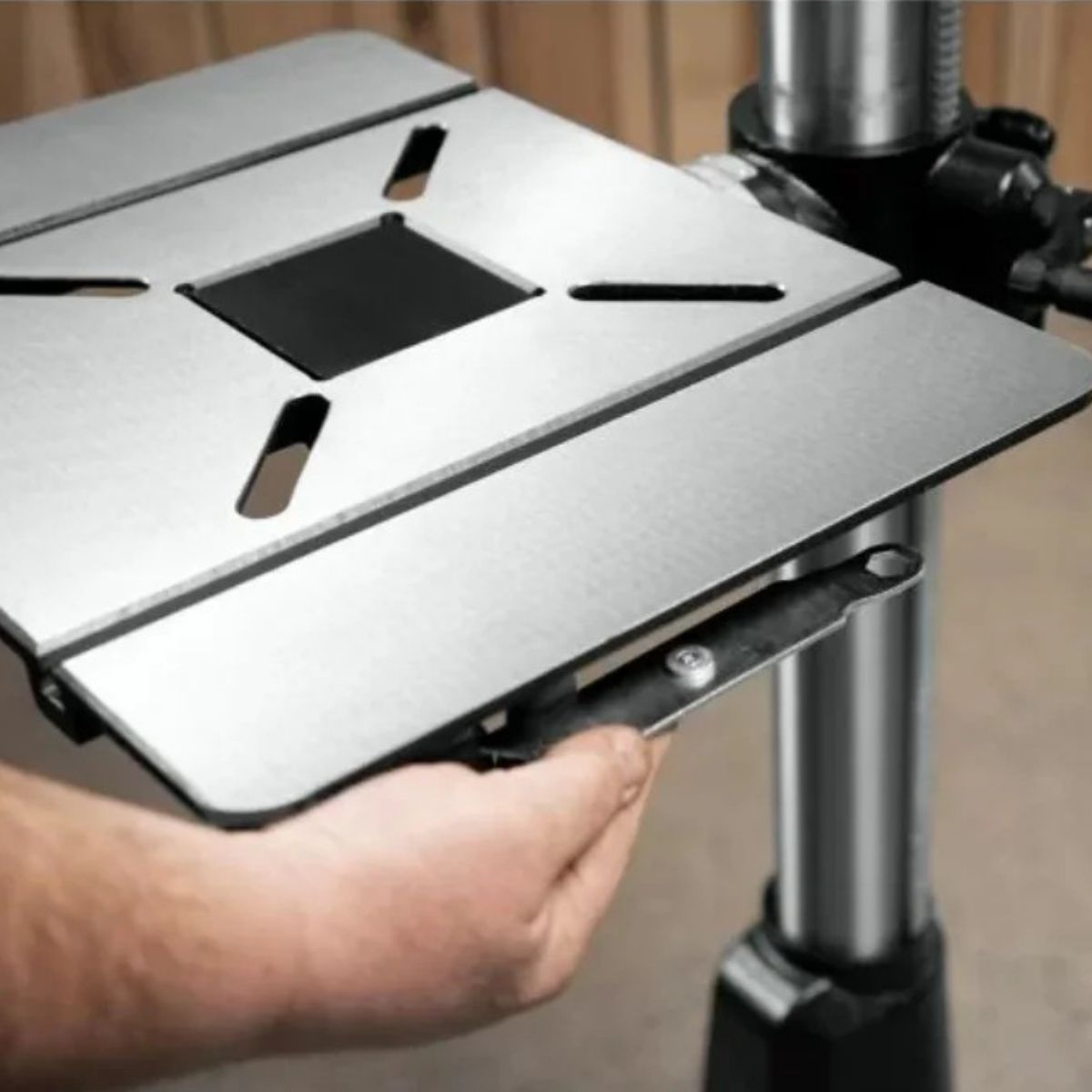

Large Cast Iron Table Supports Larger Workpieces
The 14 x 19 inch work table provides solid support for larger materials and fixtures. The table edge lip makes it easier to secure clamps when positioning the workpiece. This added support helps keep drilling setups stable and accurate.

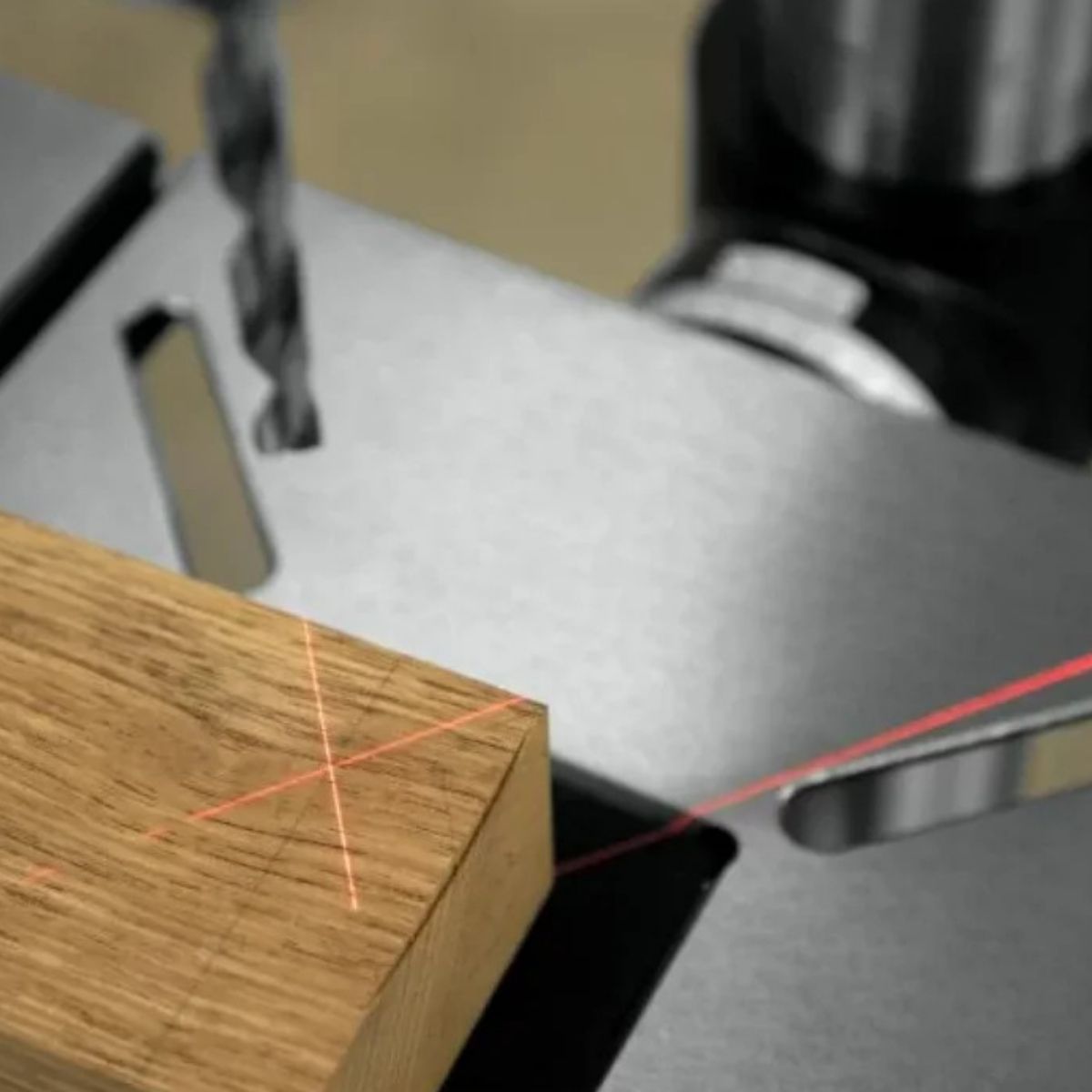

XACTA-X Laser System Guides Hole Positioning
The XACTA-X laser projects clear crosshair lines onto the material surface. This reference point helps align the drill bit before drilling begins. It improves hole placement when layout lines are difficult to see.
What’s Included
What’s Included? JET 17" JDP-17 Floorstanding Drill Press
-
JET JDP-17 Drill Press – Full height drilling machine designed for accurate shop drilling.
-
5/8 in. Chuck – Holds a wide range of drill bits for wood and metal drilling tasks.
-
XACTA-X Laser Alignment System – Projects crosshair lines to help position holes accurately.
-
LED Work Light – Provides direct lighting at the drilling point for improved visibility.
-
MDF Table Insert – Replaceable insert protects the table surface during drilling operations.
Specs
JET 17" JDP-17 Floorstanding Drill Press Specifications
- Stock Number: JT9-716300
- Model Number: JDP-17
- Style: Floor standing model
- Swing: 16-7/8 in.
- Chuck Size: 5/8 in.
- Motor Power: 3/4 HP
- Number of Spindle Speeds: 16
- Column Diameter: 3-5/32 in.
- Spindle Travel: 5 in.
- Spindle Distance to Table (Max.): 30 in.
- Spindle Distance to Base: 46-1/2 in.
- Chuck Distance to Table: 25-7/8 in.
- Chuck Distance to Base: 42-7/8 in.
- Table Size: 14 x 19 in.
- Assembled Machine Dimensions: 28-1/2 x 19 x 65 in.
- Recommended Circuit Size: 15 Amps
- Net Weight: 187 lb
- Gross Weight: 198 lb
- Warranty: 5 Year
- Prop 65: Cancer and Reproductive Harm
