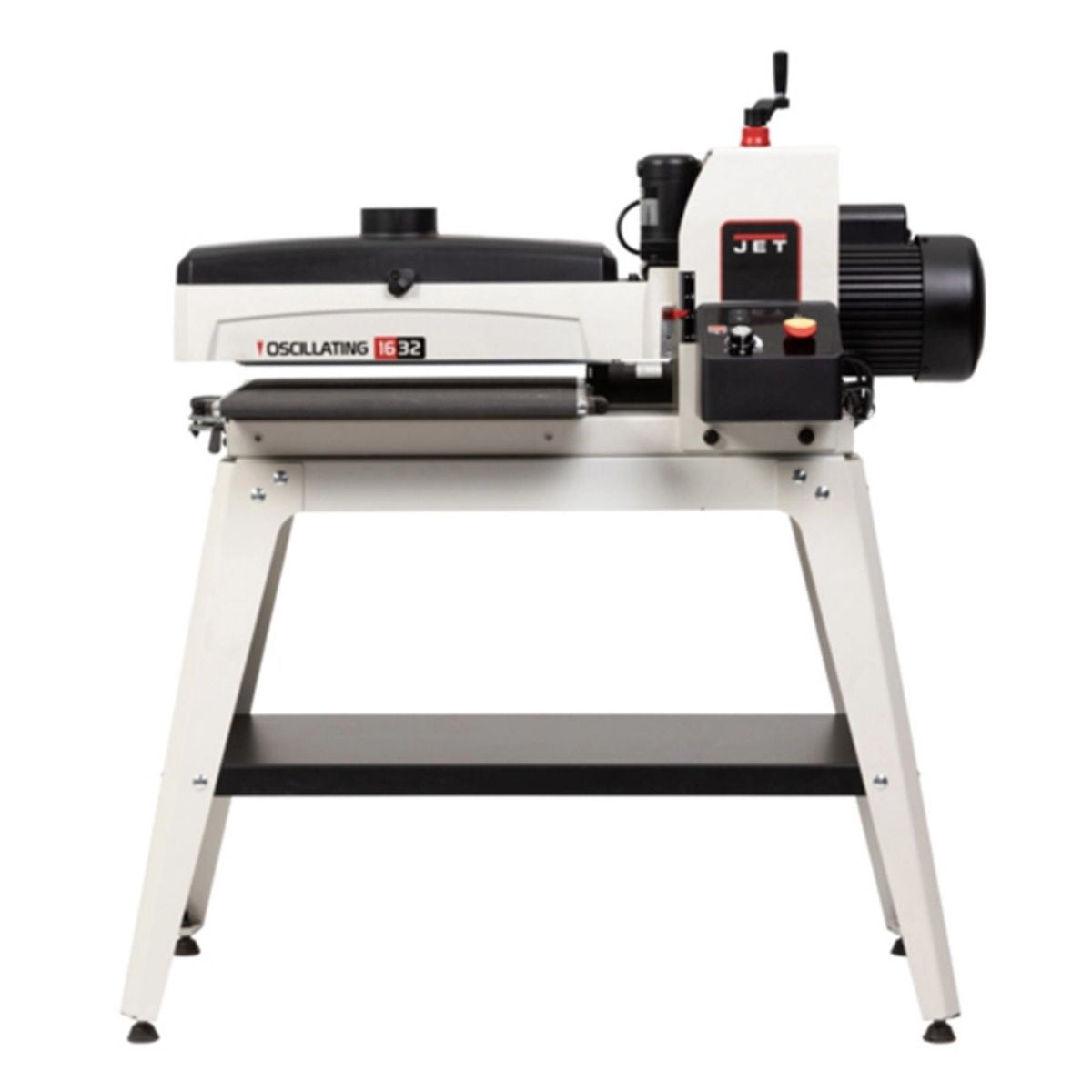

JET 16-32 Oscillating Drum Sander, JWDS-1632OSC Drum Sander with Stand
Are you seeing visible scratch patterns or uneven sanding across wide panels?
What if you could reduce sanding marks while extending abrasive life on every pass?
Meet the JET JWDS-1632OSC Drum Sander with Stand, built for controlled, consistent surface finishing.
With oscillating drum movement and Sandsmart feed control, it helps maintain surface quality under load.
When scratch patterns are minimized and feed stays consistent, surfaces come off the machine ready for finishing.
JET JWDS-1632OSC for Fine Surface Sanding Work

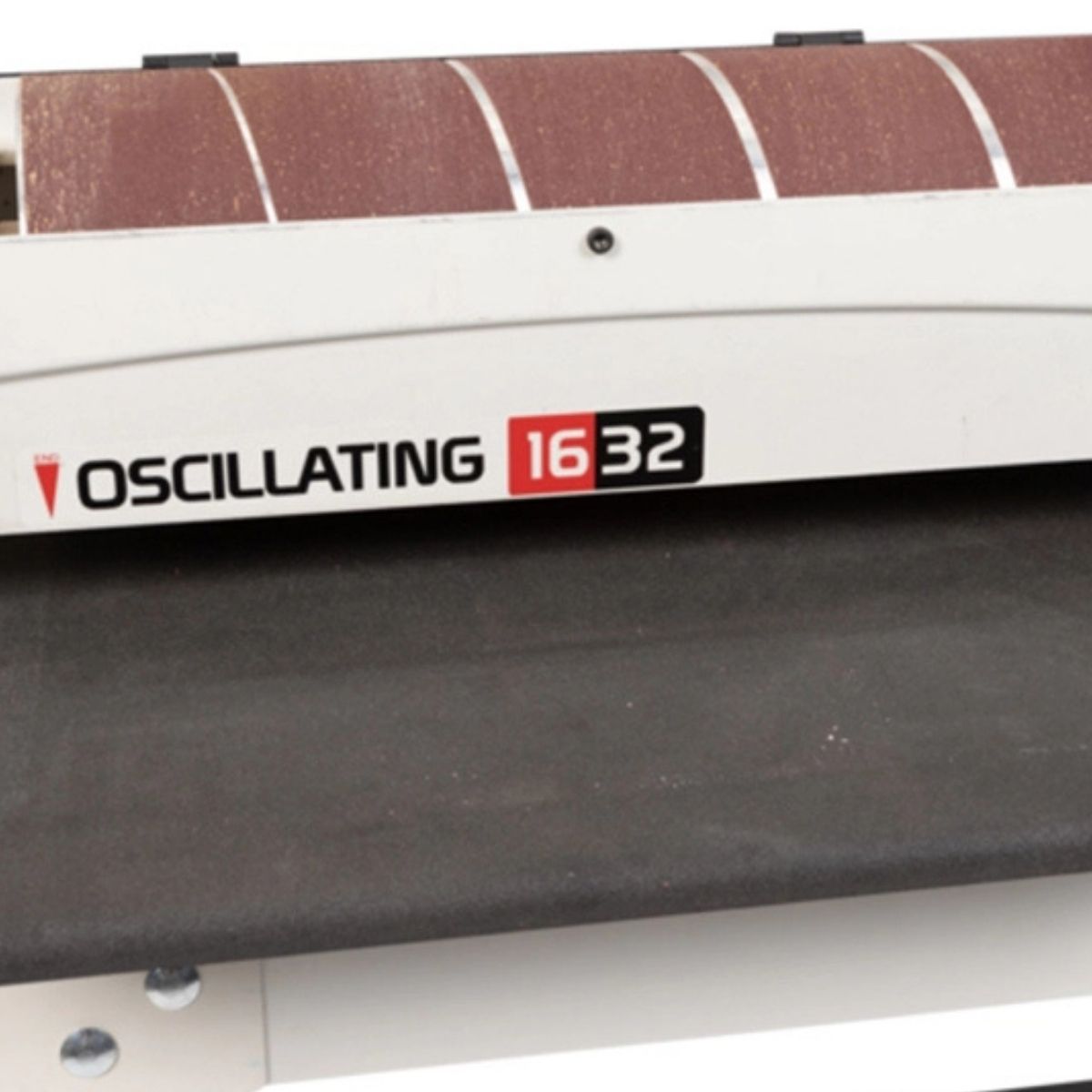

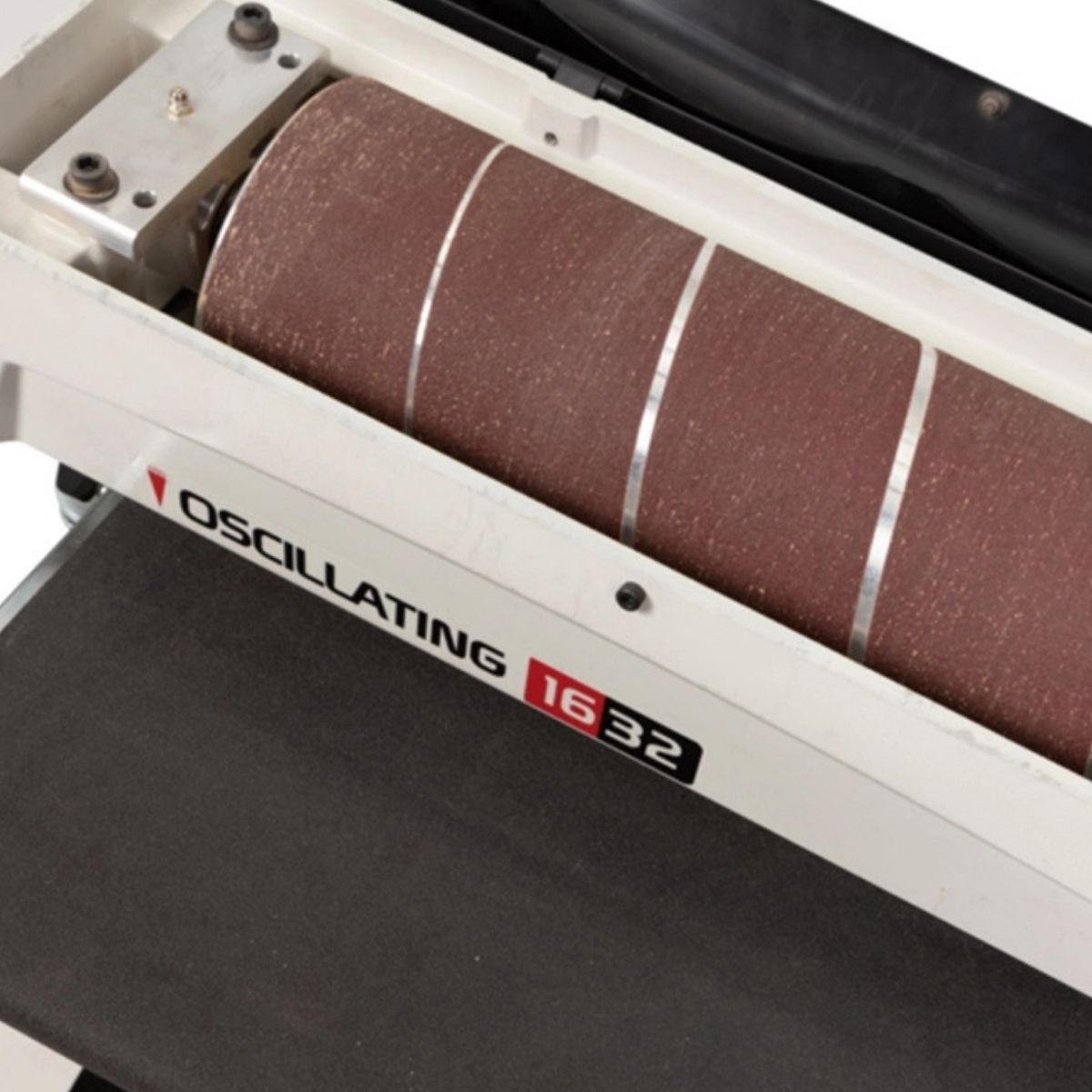

Oscillating Drum Motion Reduces Scratch Patterns
The oscillating drum moves side to side during operation, spreading abrasive wear across the drum surface. This reduces visible scratch lines on the workpiece. The motion also helps extend abrasive life, improving efficiency during longer sanding sessions.

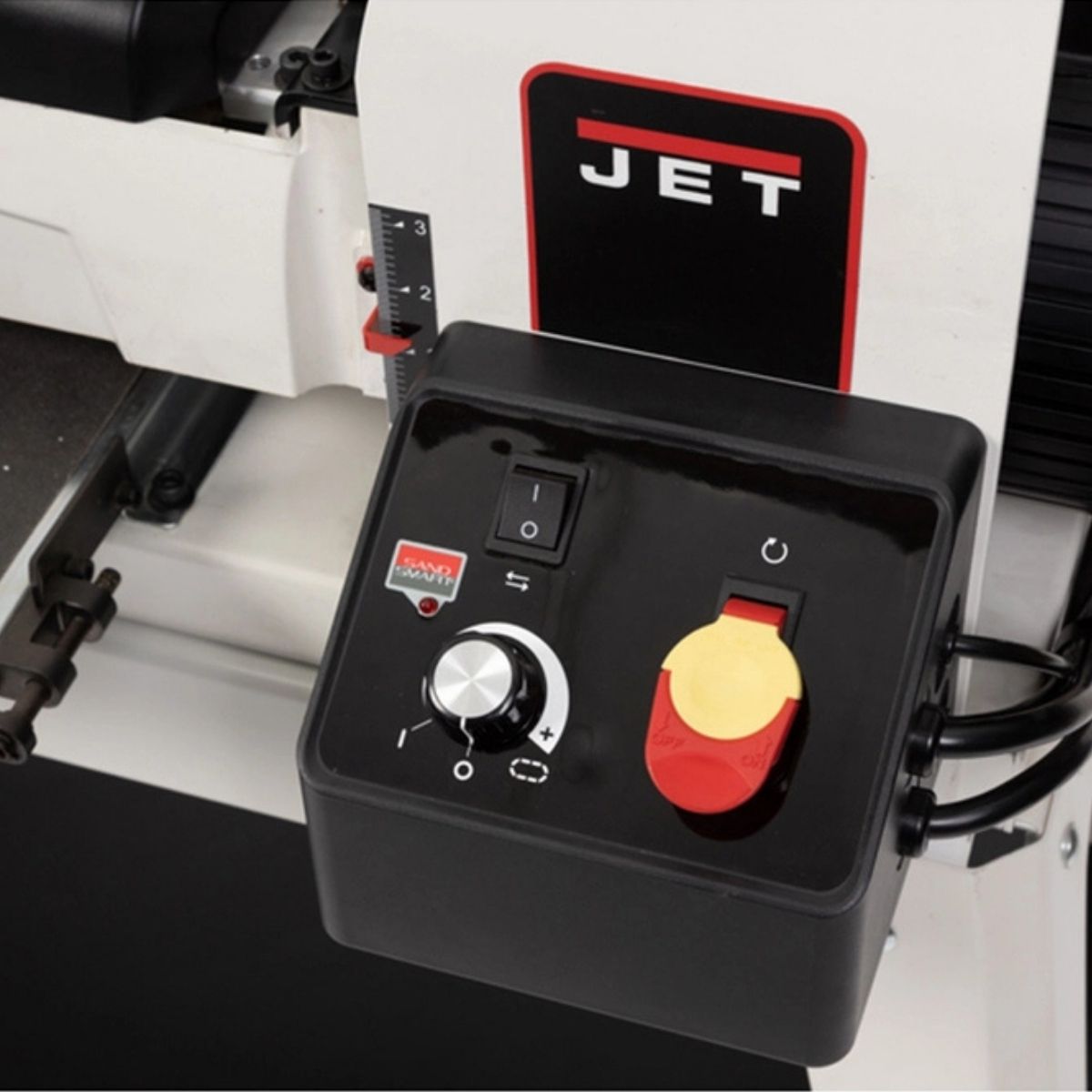

Sandsmart Feed Control Maintains Consistent Load
Sandsmart technology monitors drum load and automatically adjusts conveyor speed. This helps prevent overload while maintaining the highest possible feed rate. The result is more consistent sanding without frequent manual adjustments.

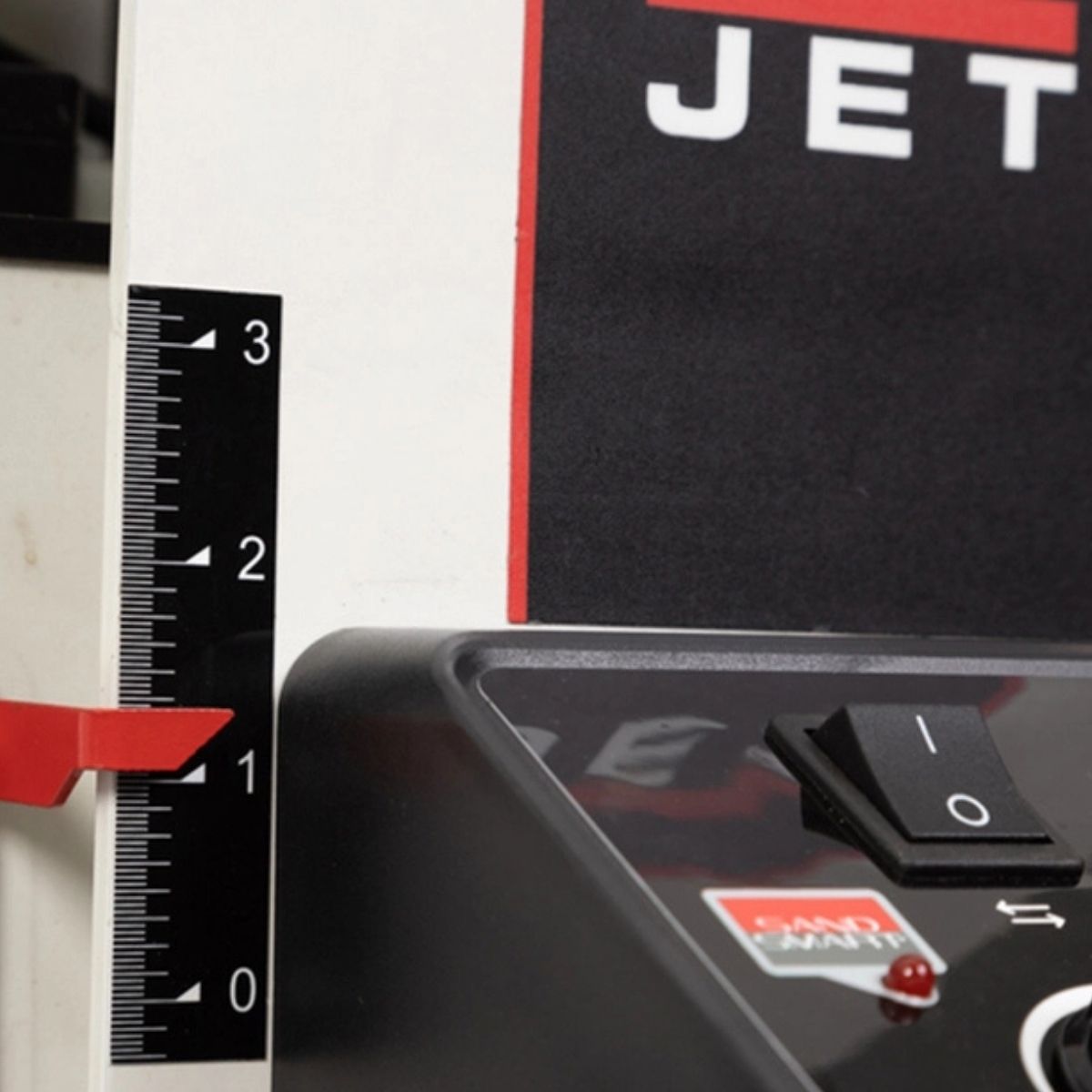

Toolless Parallelism Dial Simplifies Table Alignment
The parallelism system allows the conveyor bed to be adjusted quickly using an external dial. This eliminates the need for tools during setup. It helps keep the table aligned with the drum for even sanding across the full width of the board.
Integrated Dust Hood Improves Chip Extraction
The dust hood is shaped to follow the contour of the drum, directing debris toward the 4-inch port. This improves dust collection efficiency during operation. Cleaner airflow helps maintain surface quality and reduces buildup between the drum and workpiece.
What’s Included
What’s Included? JET 16-32 Oscillating Drum Sander, JWDS-1632OSC Drum Sander with Stand
-
JWDS-1632OSC Drum Sander Main sanding unit for controlled panel sanding and finishing
-
Steel Stand Provides stable support and working height for the machine
Specs
JET 16-32 Oscillating Drum Sander, JWDS-1632OSC Drum Sander with Stand Specifications
- Stock Number: JT9-723525
- Model Number: JWDS-1632OSC
- Motor Power: 1-1/2 HP
- Motor Amps: 14
- Drum Diameter: 5 in.
- Drum Length: 16 in.
- Drum Speed: 1725 RPM
- Conveyor Speed: 0–10 FPM
- Dust Port Outside Diameter: 4 in.
- Maximum Board Width: 16 in.
- Maximum Board Thickness: 3 in.
- Minimum Board Thickness: 1/32 in.
- Minimum Board Length: 2-3/8 in.
- Recommended Circuit Size: 20 amps
- Warranty: 5 Year
- Gross Weight: 227 lbs
- Net Weight: 227 lbs
