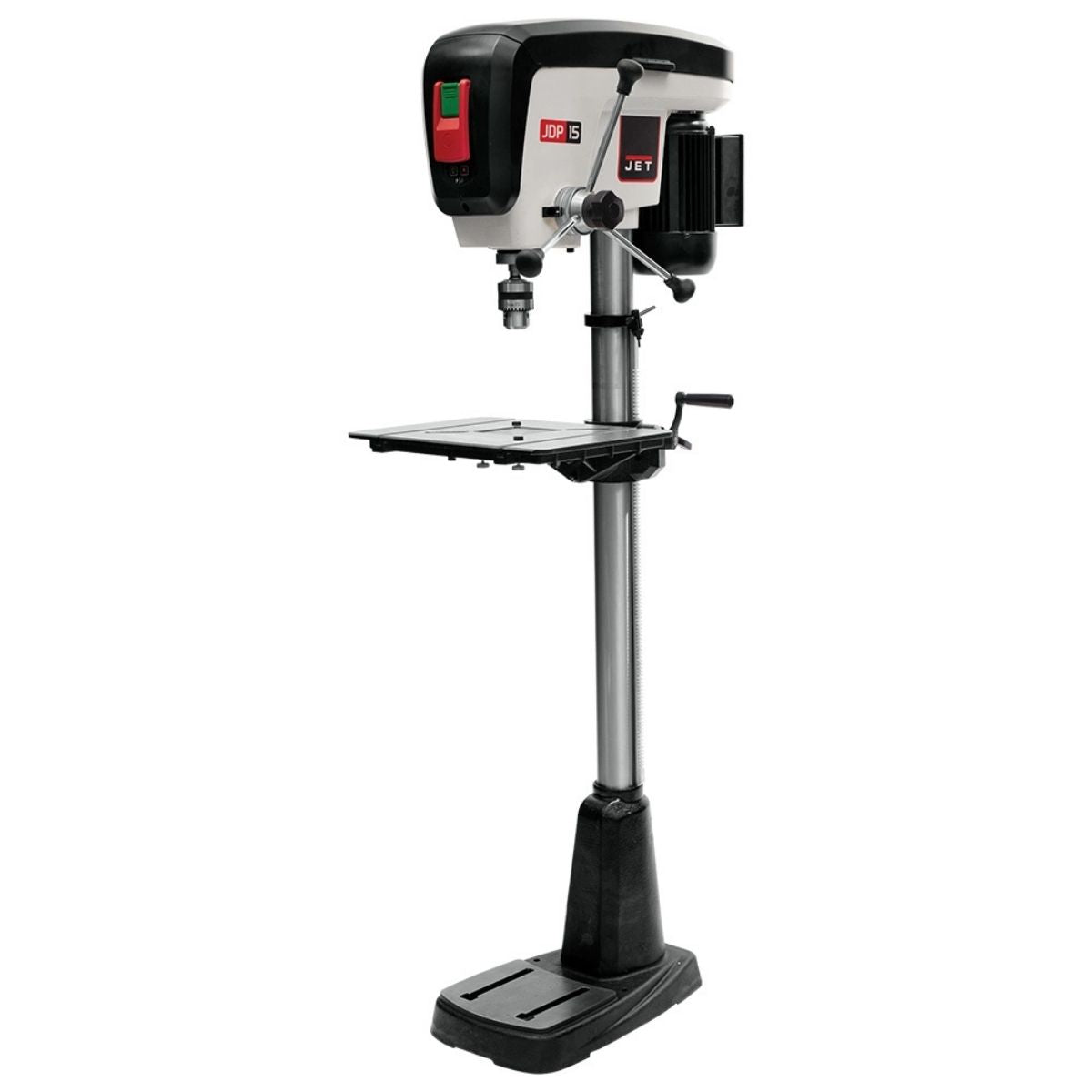

JET 15" JDP-15F Floorstanding Drill Press
Are you limited by the height and capacity of a benchtop drill press when working with larger or taller parts?
What if your drill press offered the same accurate control but with the space and stability of a full floorstanding machine?
Meet the JET 15" JDP-15F Floorstanding Drill Press, a shop-ready drilling machine designed for reliable performance and larger work capacity.
With a 3/4 HP TEFC motor, 16 spindle speeds, and over 3-1/8 inches of spindle travel, it provides the control needed for accurate drilling across a wide range of materials.
When your drill press has the height, stability, and adjustment range to match the work, drilling operations stay steady and predictable.
JET JDP-15F for Full Height Drilling Capacity
Floorstanding Column Expands Work Capacity
The full height column provides greater clearance between the spindle and base. This allows the machine to handle taller parts and larger fixtures that would not fit on a benchtop model. The extra space gives you more flexibility when setting up drilling operations.
Poly-V Belt Drive Delivers Smooth Power
The poly-v belt drive system transfers power from the motor to the spindle efficiently. This design helps reduce vibration while maintaining steady torque during drilling. The result is smoother operation and more consistent hole quality.
One-Handed Belt Tensioning Speeds Adjustments
The belt tensioning system allows quick speed adjustments with one hand. This makes it easier to match the spindle speed to the bit size and material. Faster adjustments help keep drilling work moving without long setup changes.
XACTA-X Laser System Guides Hole Placement
The built-in XACTA-X laser projects clear crosshair lines onto the workpiece. This helps identify the drilling center before the bit touches the material. The visual reference makes layout work easier when accurate hole placement matters.
What’s Included
What’s Included? JET 15" JDP-15F Floorstanding Drill Press
-
JET JDP-15F Drill Press – Floorstanding drilling machine designed for accurate shop drilling with greater capacity.
-
5/8 in. Chuck – Holds a wide range of drill bits for wood and metal drilling applications.
-
XACTA-X Laser Alignment System – Projects crosshair lines to help position holes accurately.
-
LED Work Light – Provides direct lighting at the drilling point to improve visibility.
-
MDF Table Insert – Replaceable insert that protects the work table during drilling operations.
Specs
JET 15" JDP-15F Floorstanding Drill Press Specifications
- Stock Number: JT9-716250
- Model Number: JDP-15F
- Style: Floor standing model
- Swing: 15 in.
- Chuck Size: 5/8 in.
- Motor Power: 3/4 HP
- Motor Voltage: 115 V
- Prewired Voltage: 115 V
- Number of Spindle Speeds: 16
- Column Diameter: 2-3/4 in.
- Spindle Travel: 3-1/8 in.
- Spindle Distance to Table (Max.): 30-1/2 in.
- Spindle Distance to Base: 46-1/2 in.
- Table Size: 12-1/2 x 17 in.
- Assembled Machine Dimensions: 27 x 17 x 63-1/4 in.
- Net Weight: 172 lb
- Gross Weight: 183 lb
- Warranty: 5 Year
- Prop 65: Cancer and Reproductive Harm
