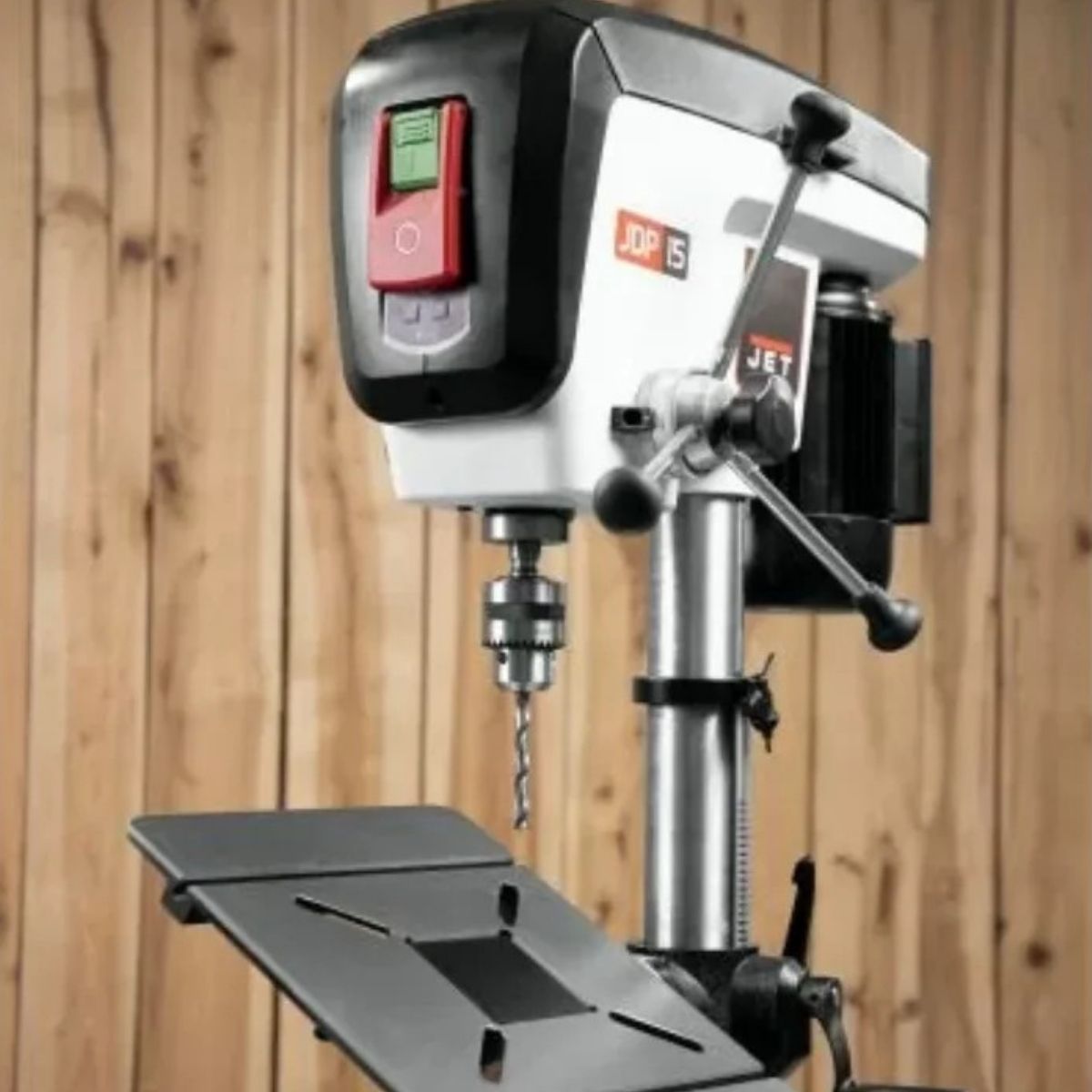

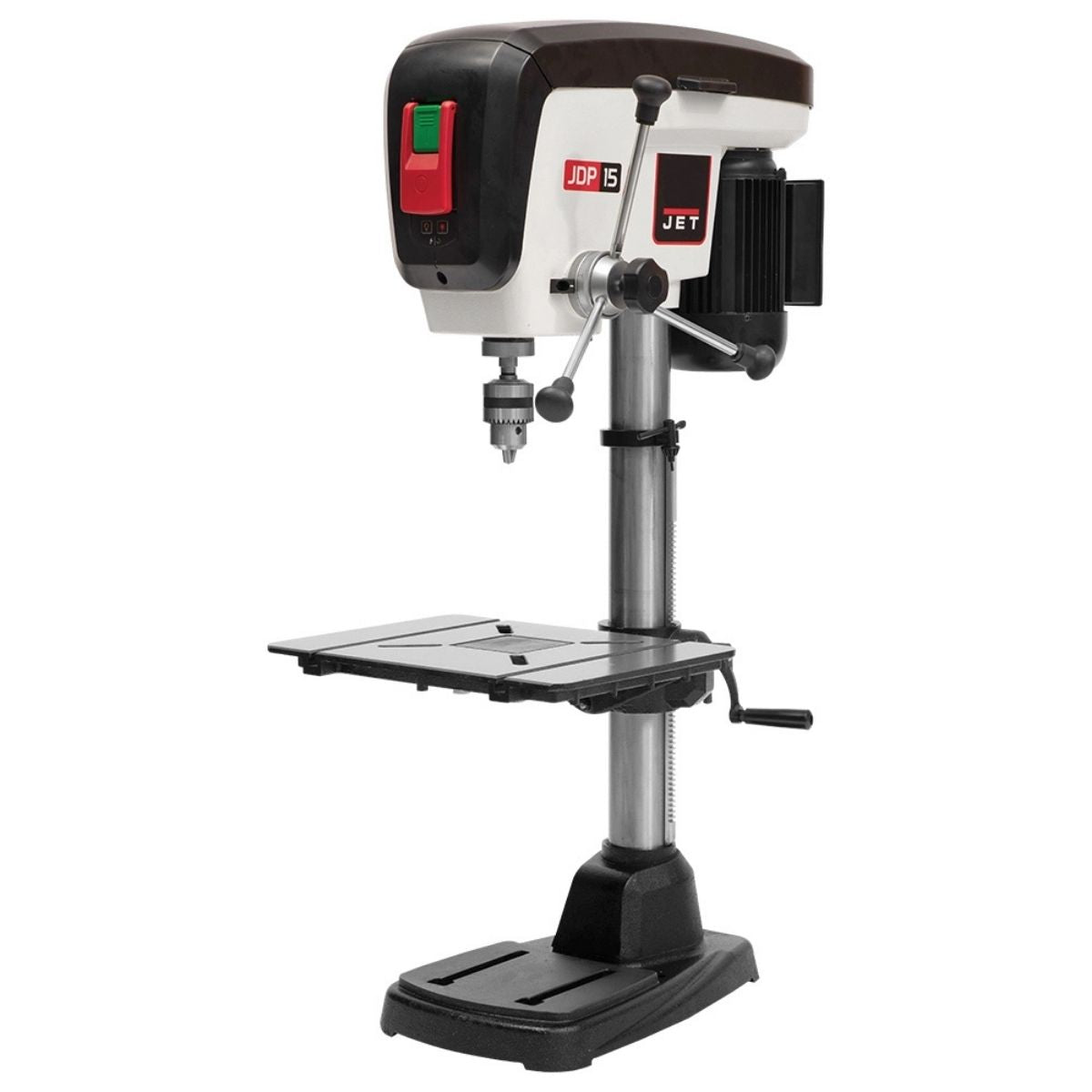

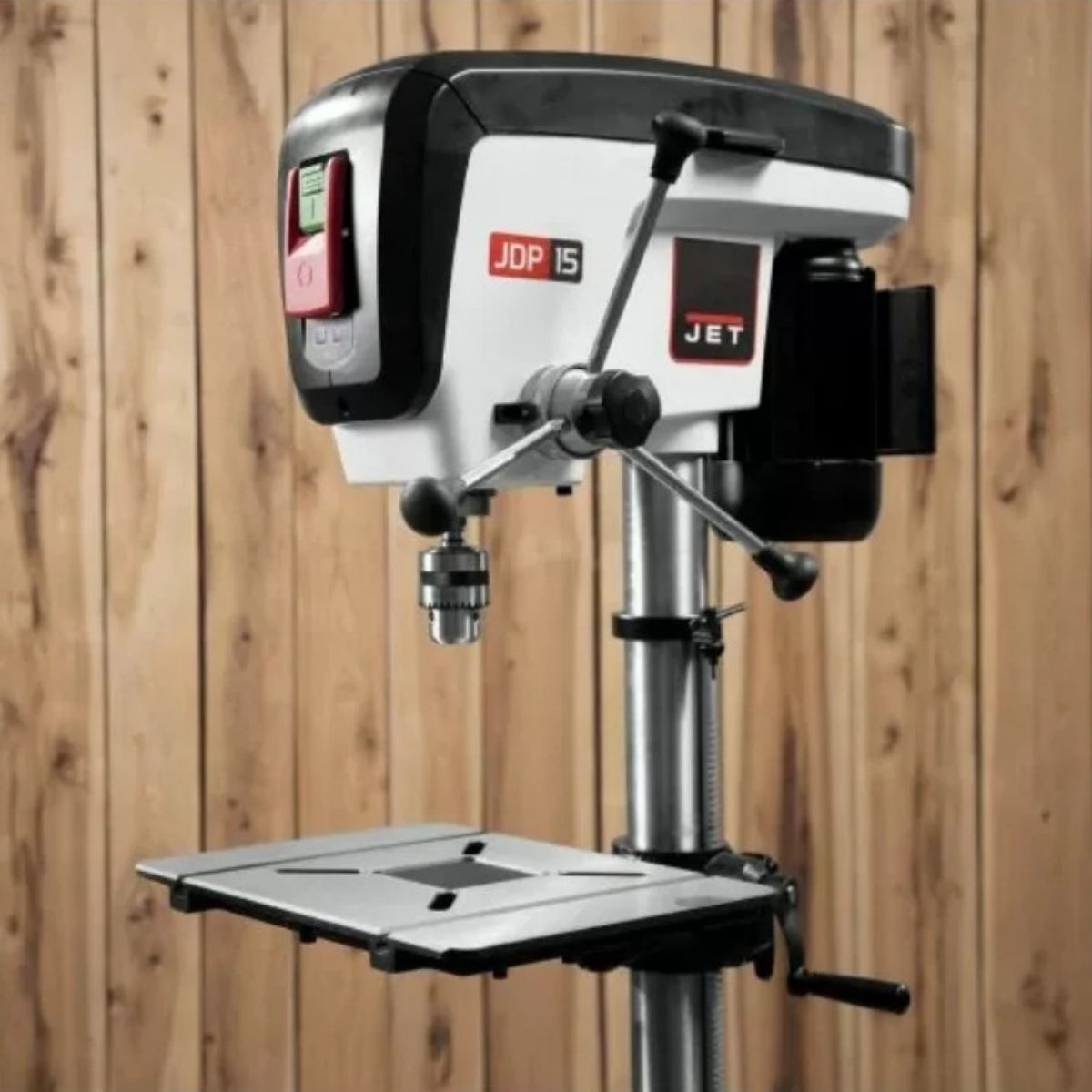

JET 15" JDP-15B Benchtop Drill Press
Are you pushing a small drill press beyond its limits when drilling larger parts or thicker material?
What if your benchtop drill press offered more swing, stronger power, and reliable depth control for everyday shop drilling?
Meet the JET 15" JDP-15B Benchtop Drill Press, a larger benchtop machine designed for accurate drilling in wood, metal, and shop fixtures.
With a 3/4 HP motor, 16 spindle speeds, and over 3-1/8 inches of spindle travel, it provides the capacity and control needed for steady shop work.
When your drill press holds alignment and adjusts quickly, drilling operations stay consistent from one setup to the next.
JET JDP-15B for Larger Benchtop Drilling Work
Poly-V Belt Drive Transfers Power Efficiently
The poly-v belt drive system delivers smooth and reliable power from the motor to the spindle. This design helps reduce vibration while maintaining steady torque during drilling. The result is cleaner holes and more stable operation when working with larger bits.

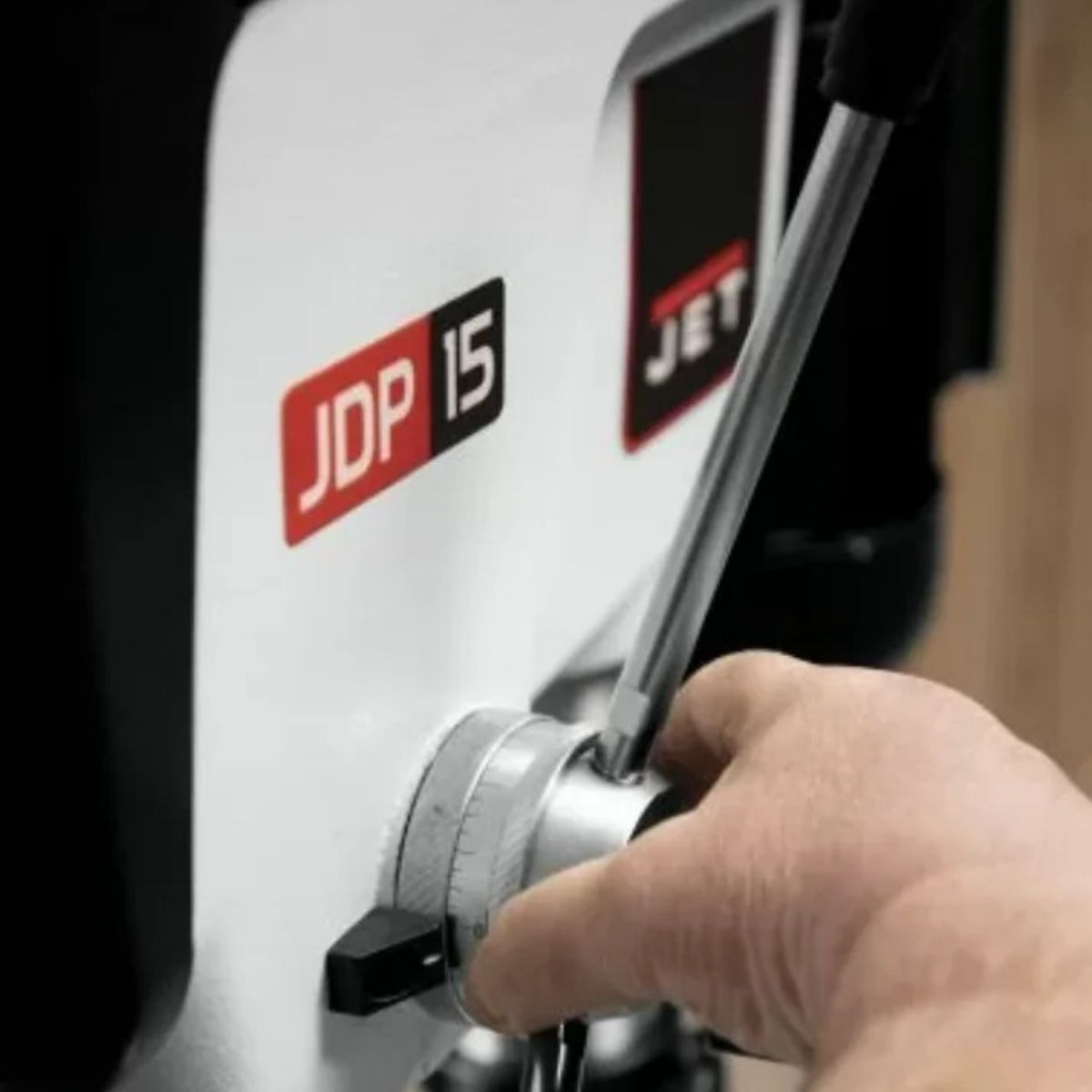

One-Handed Belt Tensioning Speeds Adjustments
The belt tensioning system allows you to change speeds using one hand. This simplifies adjustments when switching between materials or bit sizes. Faster speed changes help keep drilling operations moving without interrupting the workflow.
XACTA-X Laser System Improves Hole Positioning
The XACTA-X laser projects crosshair lines directly onto the workpiece. This visual guide helps confirm the drilling point before the bit contacts the material. It makes layout work easier when precision placement matters.
Cast Iron Base and Table Maintain Stability
The large cast iron base and work table provide solid support during drilling. The rigid construction helps reduce movement while the machine is running. This stability helps maintain accuracy, especially when drilling heavier workpieces.
What’s Included
What’s Included? JET 15" JDP-15B Benchtop Drill Press
-
JET JDP-15B Drill Press – Benchtop drilling machine designed for accurate shop drilling.
-
5/8 in. Chuck – Holds a wide range of drill bits for wood and metal applications.
-
XACTA-X Laser Alignment System – Projects crosshair lines to help position holes accurately.
-
LED Work Light – Provides direct lighting to improve visibility at the drilling point.
-
MDF Table Insert – Replaceable insert protects the table surface during drilling.
Specs
JET 15" JDP-15B Benchtop Drill Press Specifications
- Stock Number: JT9-716200
- Model Number: JDP-15B
- Style: Benchtop
- Swing: 15 in.
- Chuck Size: 5/8 in.
- Motor Power: 3/4 HP
- Motor Voltage: 115 V
- Number of Spindle Speeds: 16
- Column Diameter: 2-3/4 in.
- Spindle Travel: 3-1/8 in.
- Spindle Distance to Table (Max.): 18-5/16 in.
- Spindle Distance to Base: 26-3/4 in.
- Table Size: 12-1/2 x 17 in.
- Assembled Machine Dimensions: 27 x 17 x 43-7/8 in.
- Net Weight: 154 lb
- Gross Weight: 165.5 lb
- Warranty: 5 Year
- Prop 65: Cancer and Reproductive Harm
