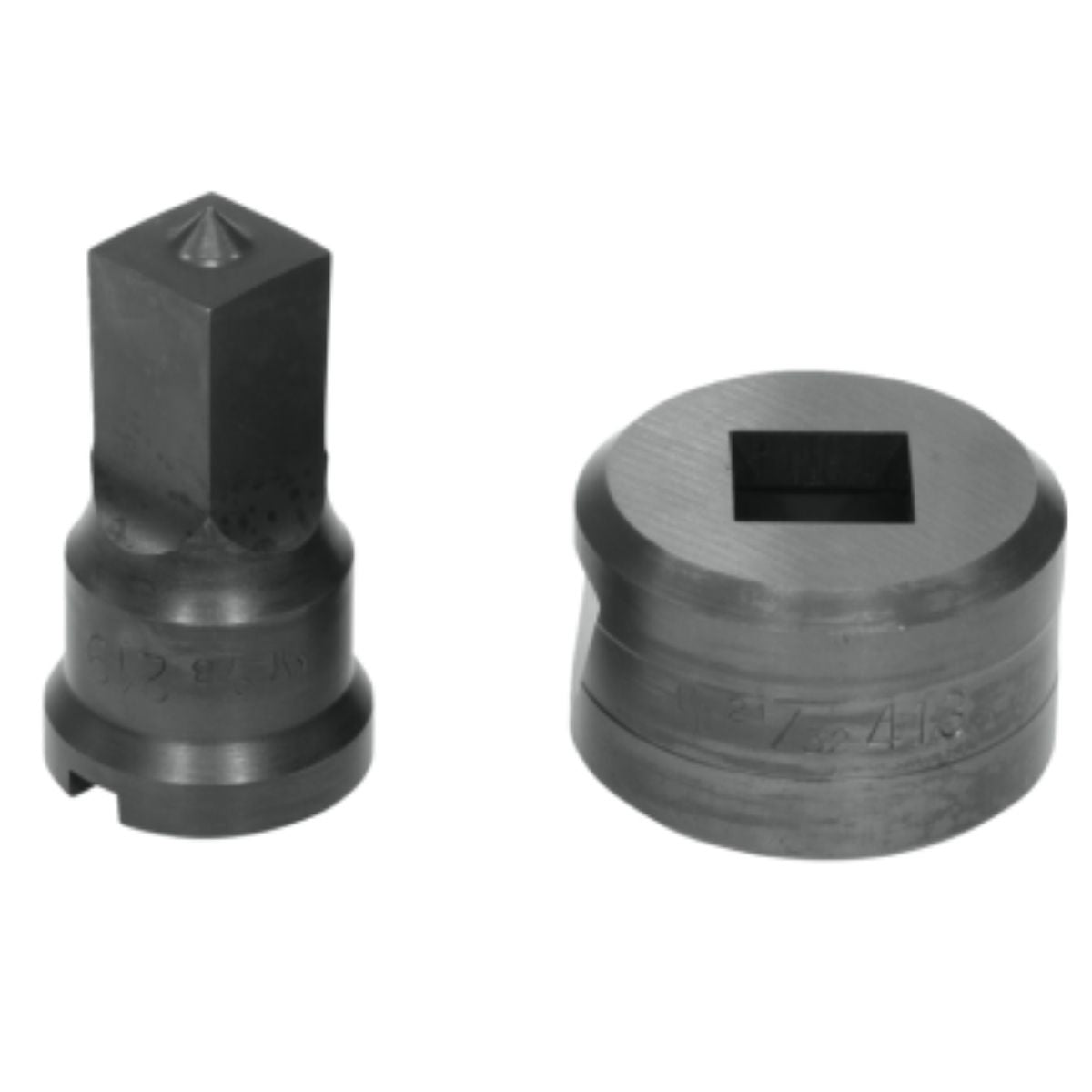

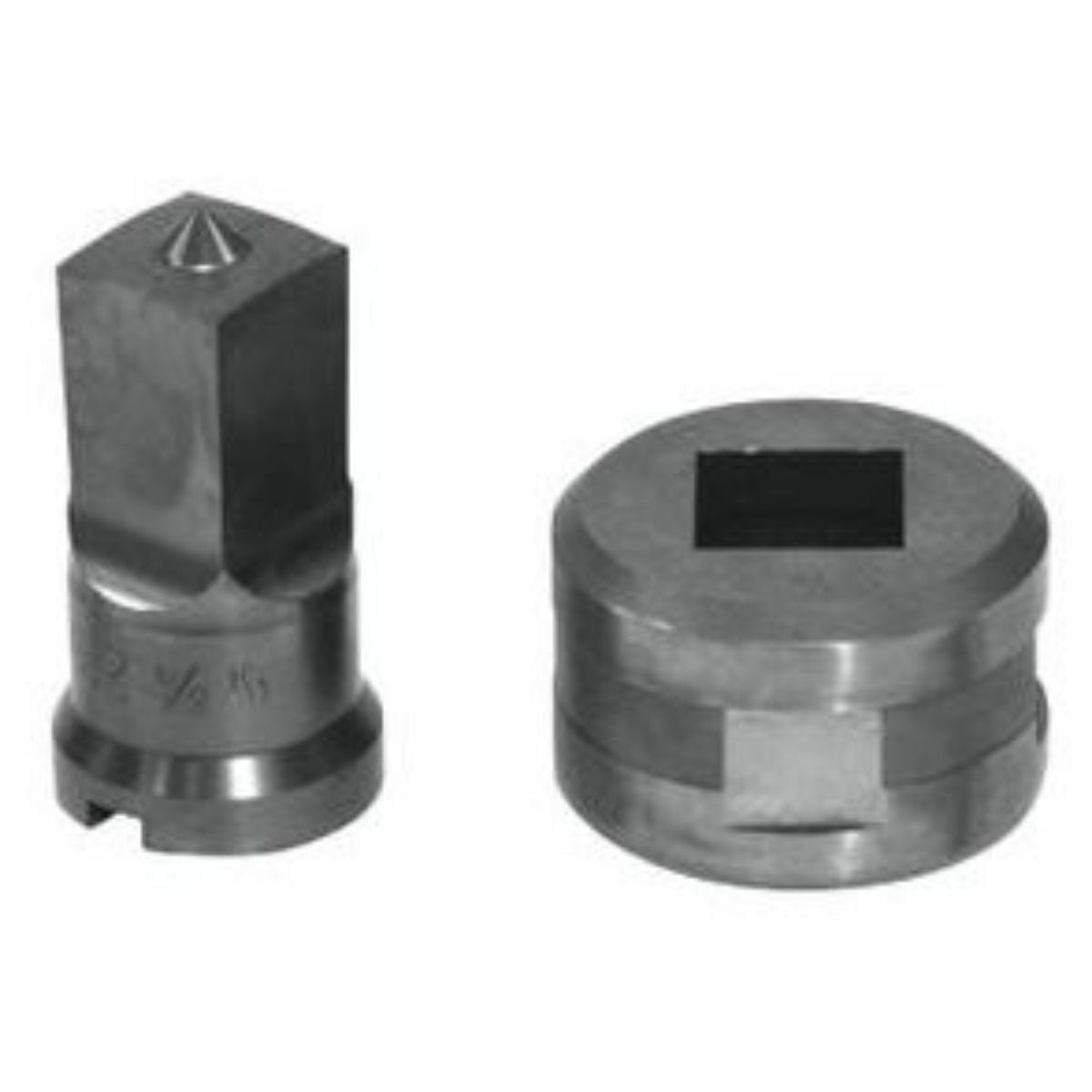

Edwards Standard Square Punch & Die Set for Ironworkers

Edwards Standard Square Punch & Die Set for Ironworkers

The Edwards Standard Square Punch & Die Set is made for Edwards ironworkers and fits the standard Pedestal Die Table. The tool steel construction holds up to repeated use and keeps edges clean and accurate across a range of square hole sizes.

• Made from durable tool steel for long service life
• Compatible with the standard Edwards Pedestal Die Table
• Available in 18 sizes from 1/4" to 25/32"
• Includes key-way on select sizes for precise positioning

Important: The smallest dimension on the punch must meet or exceed the thickness of your material. The 13/16" and 25/32" sets require a Notched Coupling Nut (PD0222), sold separately.

Specs

Edwards Standard Square Punch & Die Set for Ironworkers Specifications

• Compatible Machine: Edwards Ironworkers with standard Pedestal Die Table
• Material: Tool steel
• Net Weight: 2.0 lb (most sizes) / 3.0 lb (13/16" and 25/32")

Specs by Size

• 1/4" — Stock No. ED9-PDSQ1/4 — Square Punch & Die Set with Key-Way

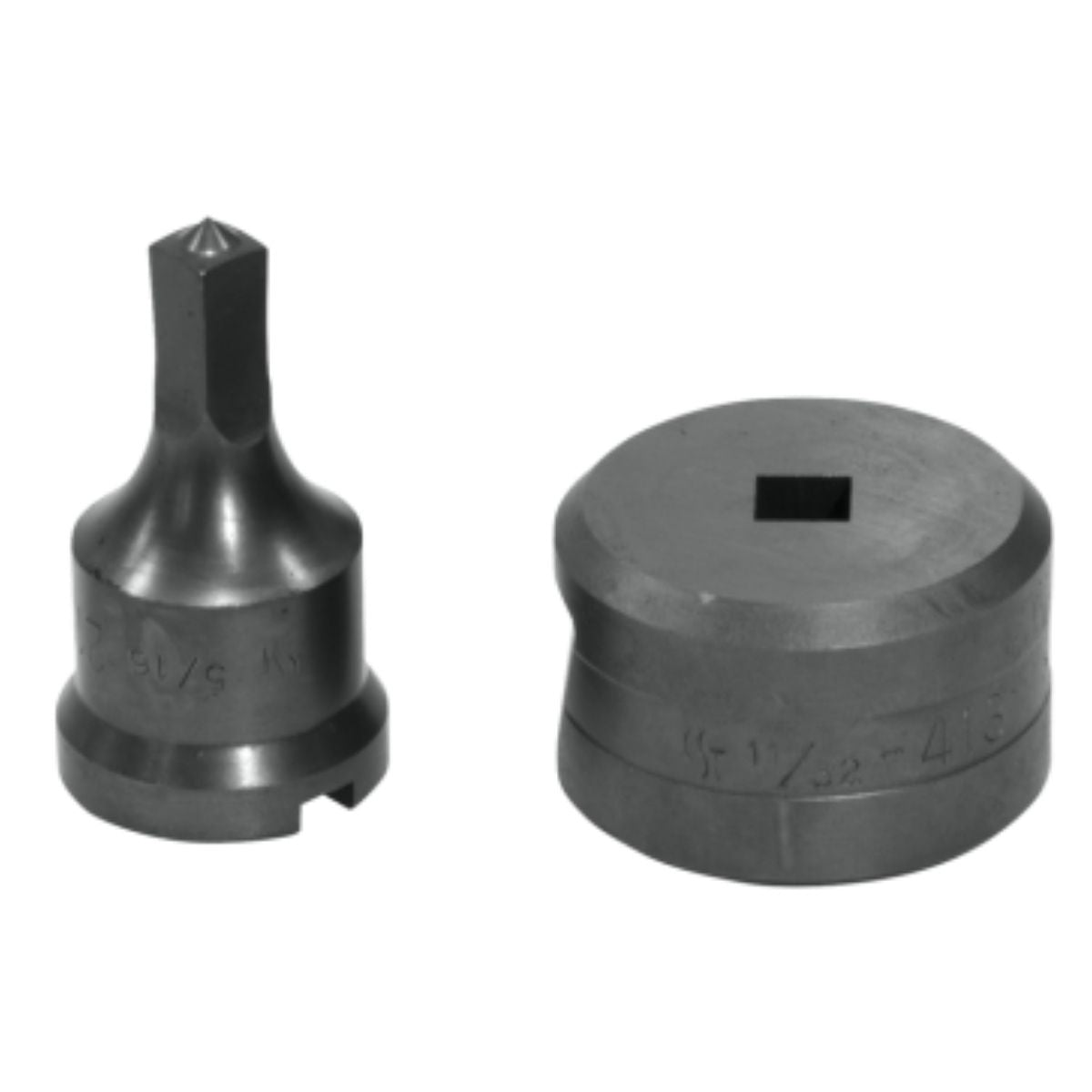

• 5/16" — Stock No. ED9-PDSQ5/16 — Square Punch & Die Set with Key-Way

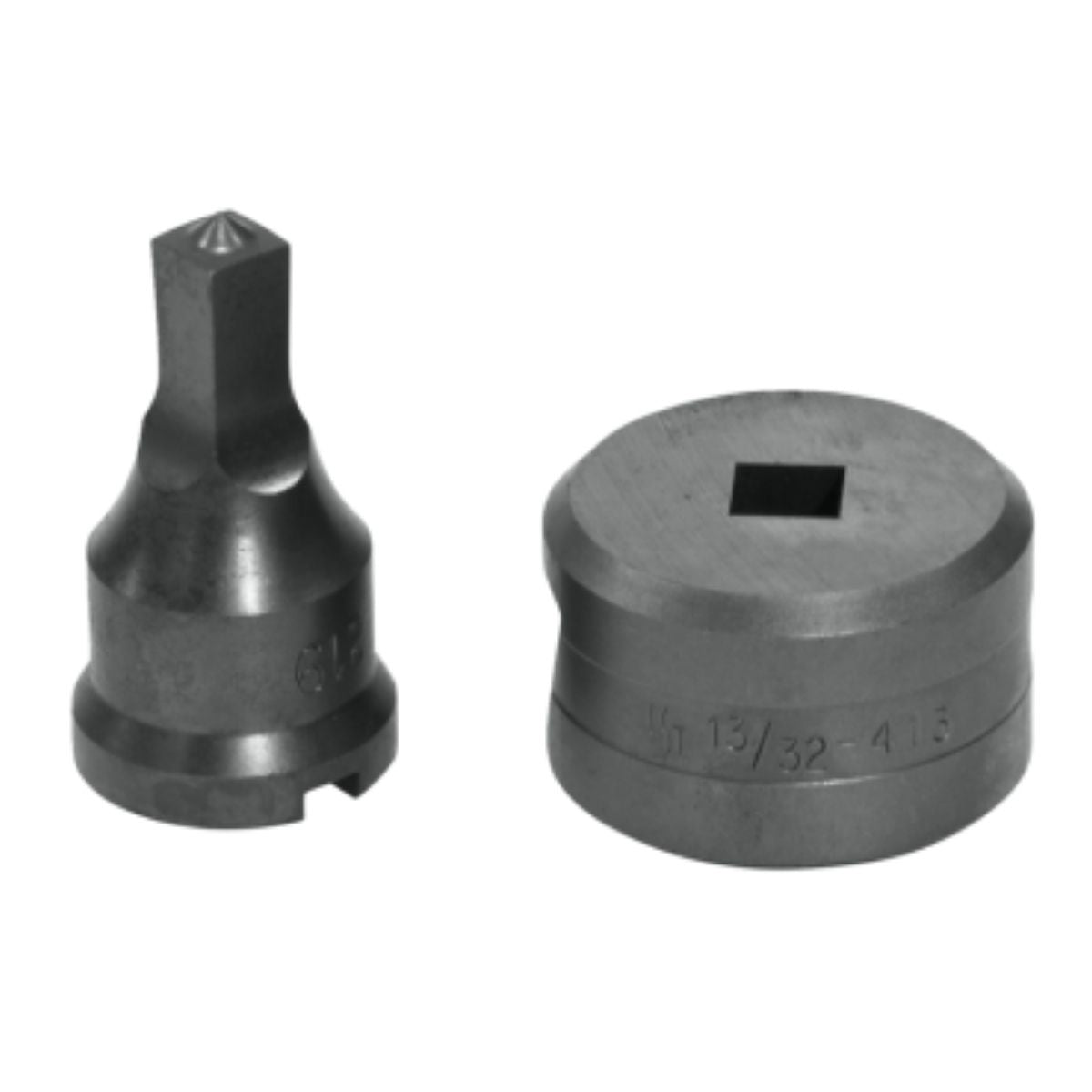

• 3/8" — Stock No. ED9-PDSQ3/8 — Square Punch & Die Set with Key-Way

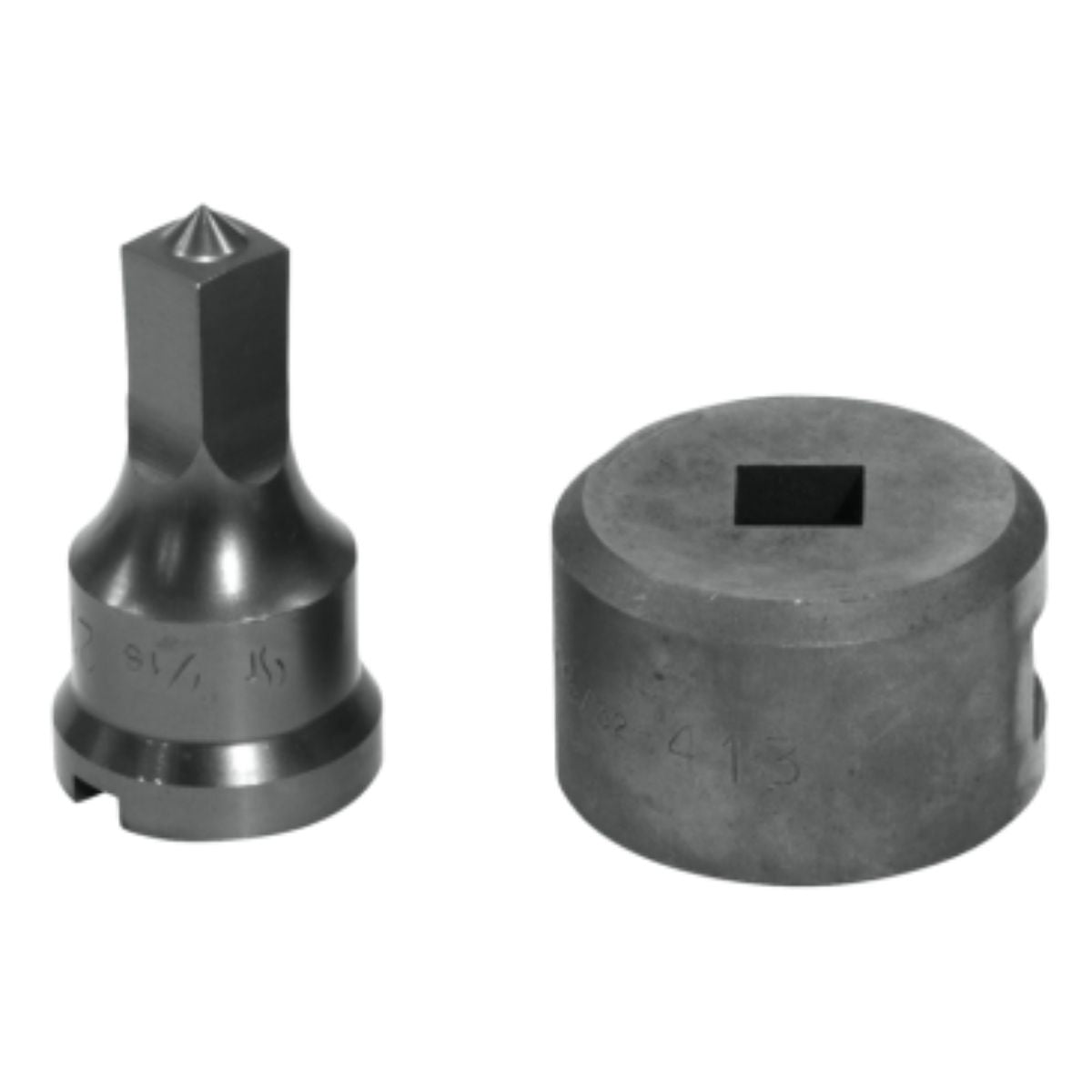

• 7/16" — Stock No. ED9-PDSQ7/16 — Square Punch & Die Set with Key-Way
• 1/2" — Stock No. ED9-PDSQ1/2 — Square Punch & Die Set with Key-Way

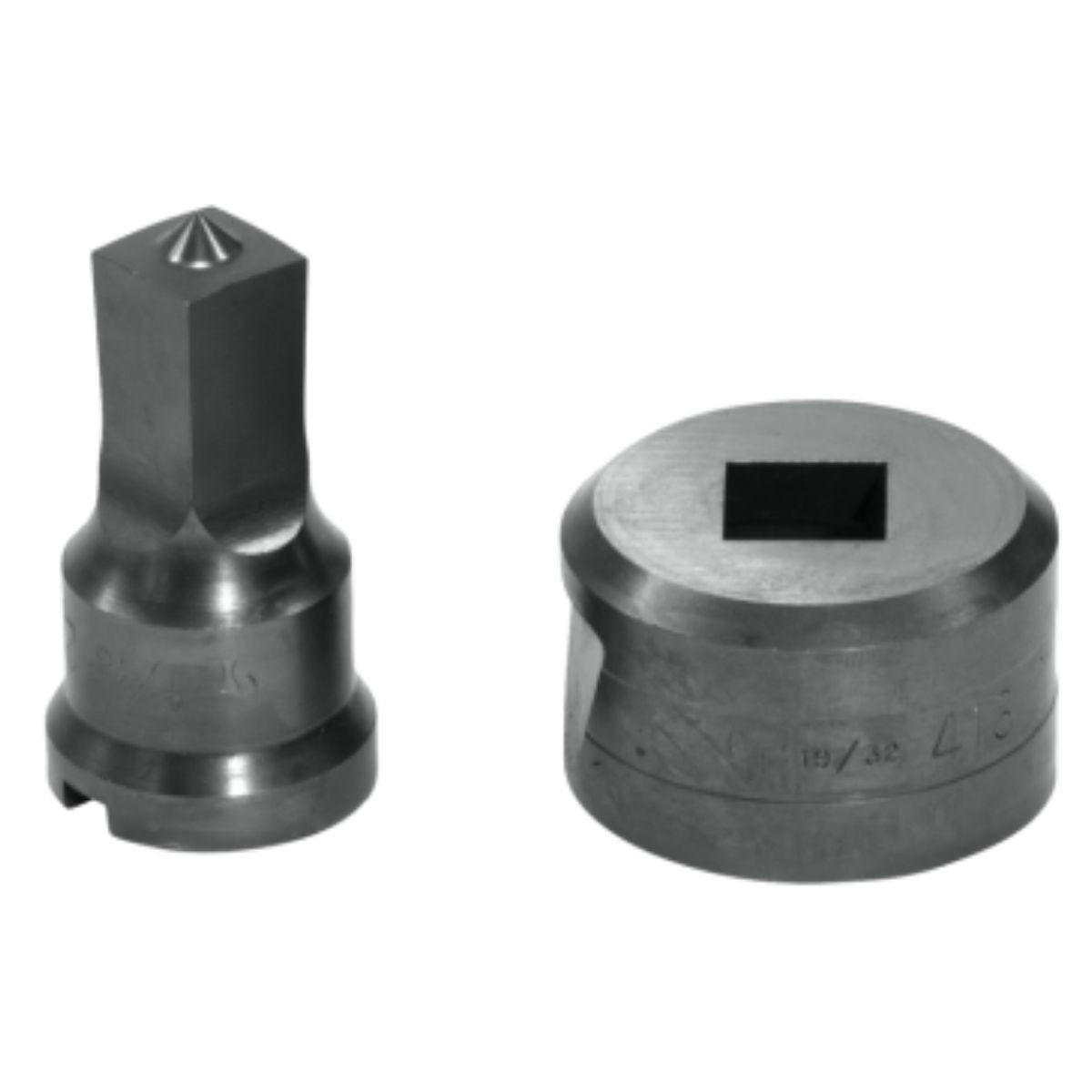

• 9/16" — Stock No. ED9-PDSQ9/16 — Square Punch & Die Set with Key-Way
• 5/8" — Stock No. ED9-PDSQ5/8 — Square Punch & Die Set with Key-Way

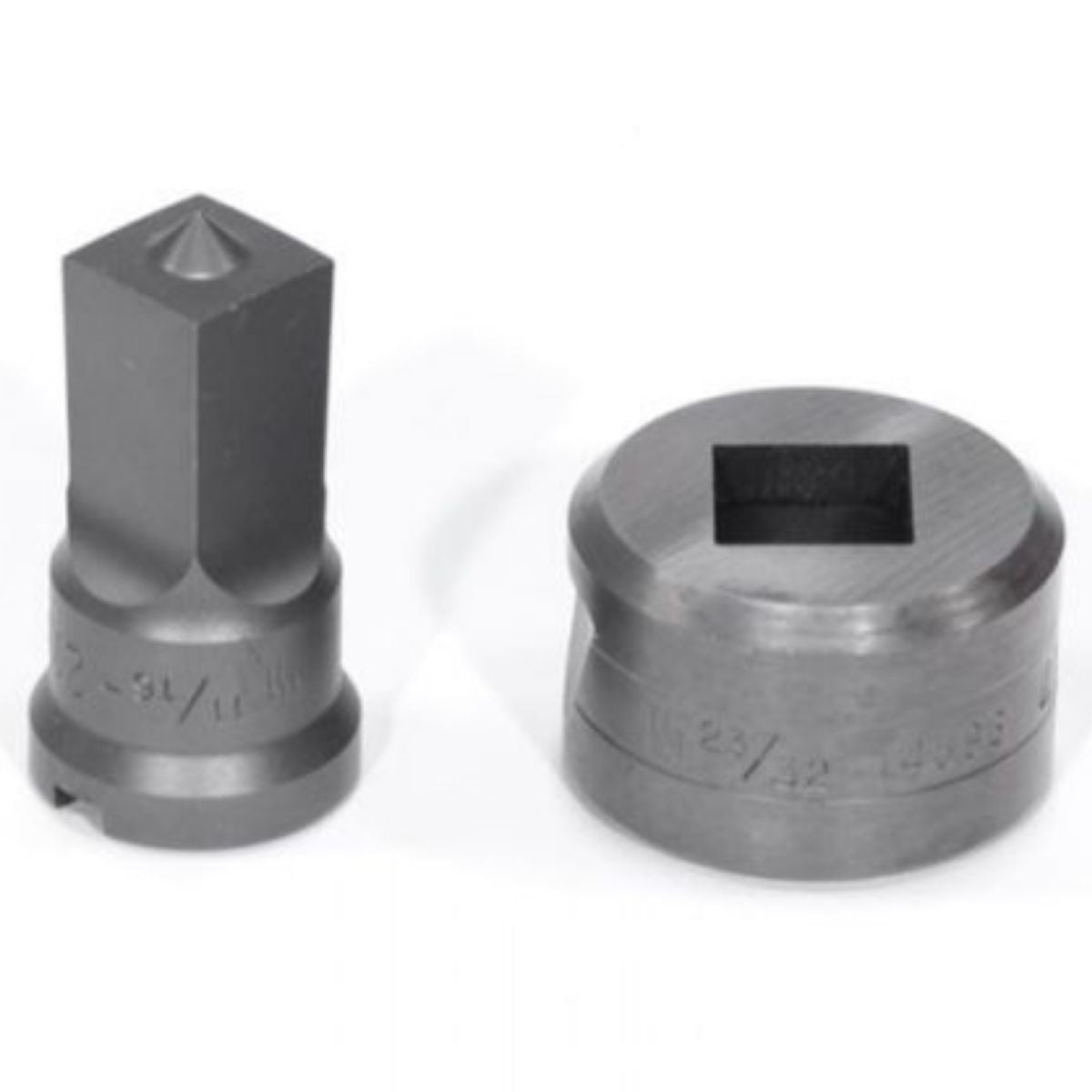

• 11/16" — Stock No. ED9-PDSQ11/16 — Square Punch & Die Set

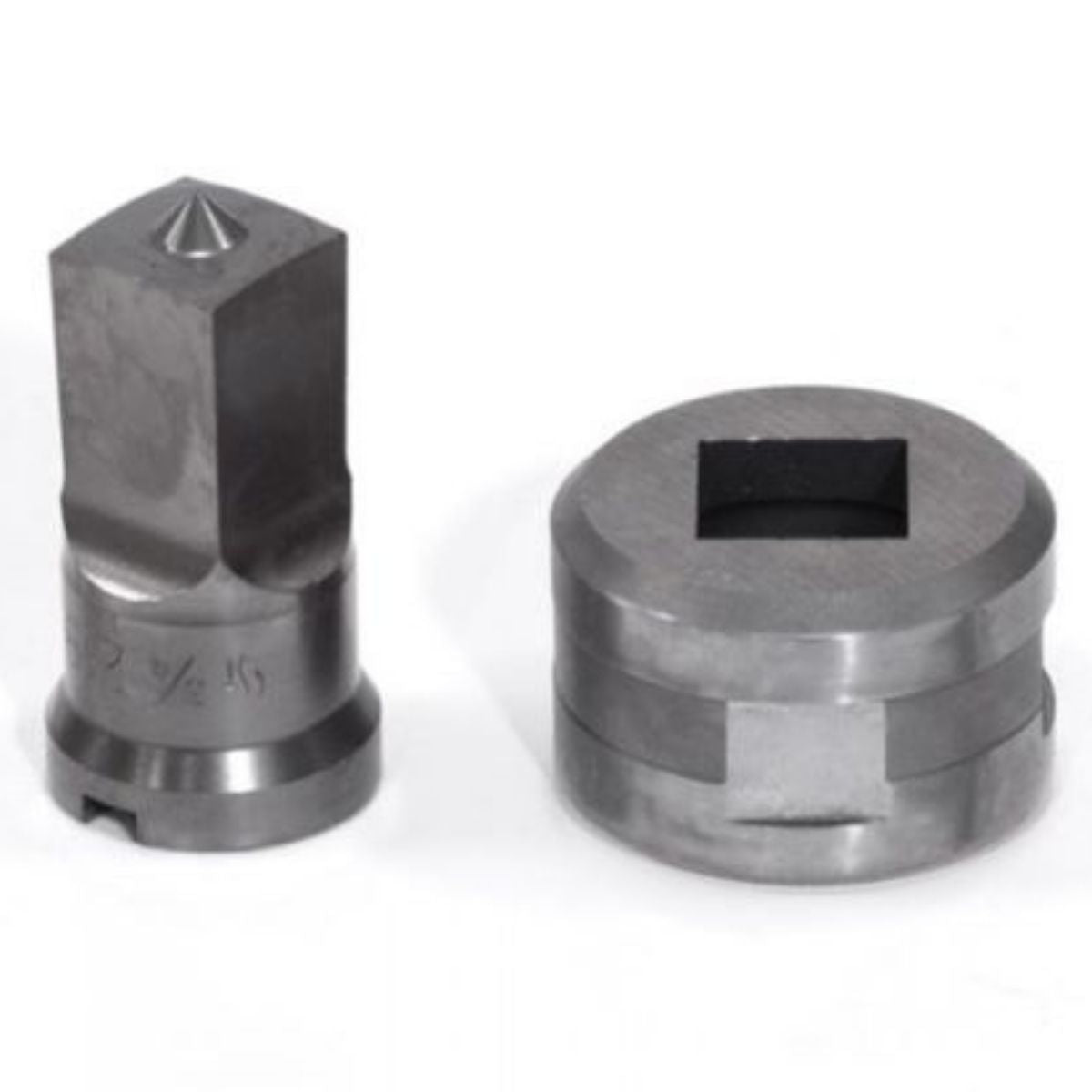

• 3/4" — Stock No. ED9-PDSQ3/4 — Square Punch & Die Set with Key-Way

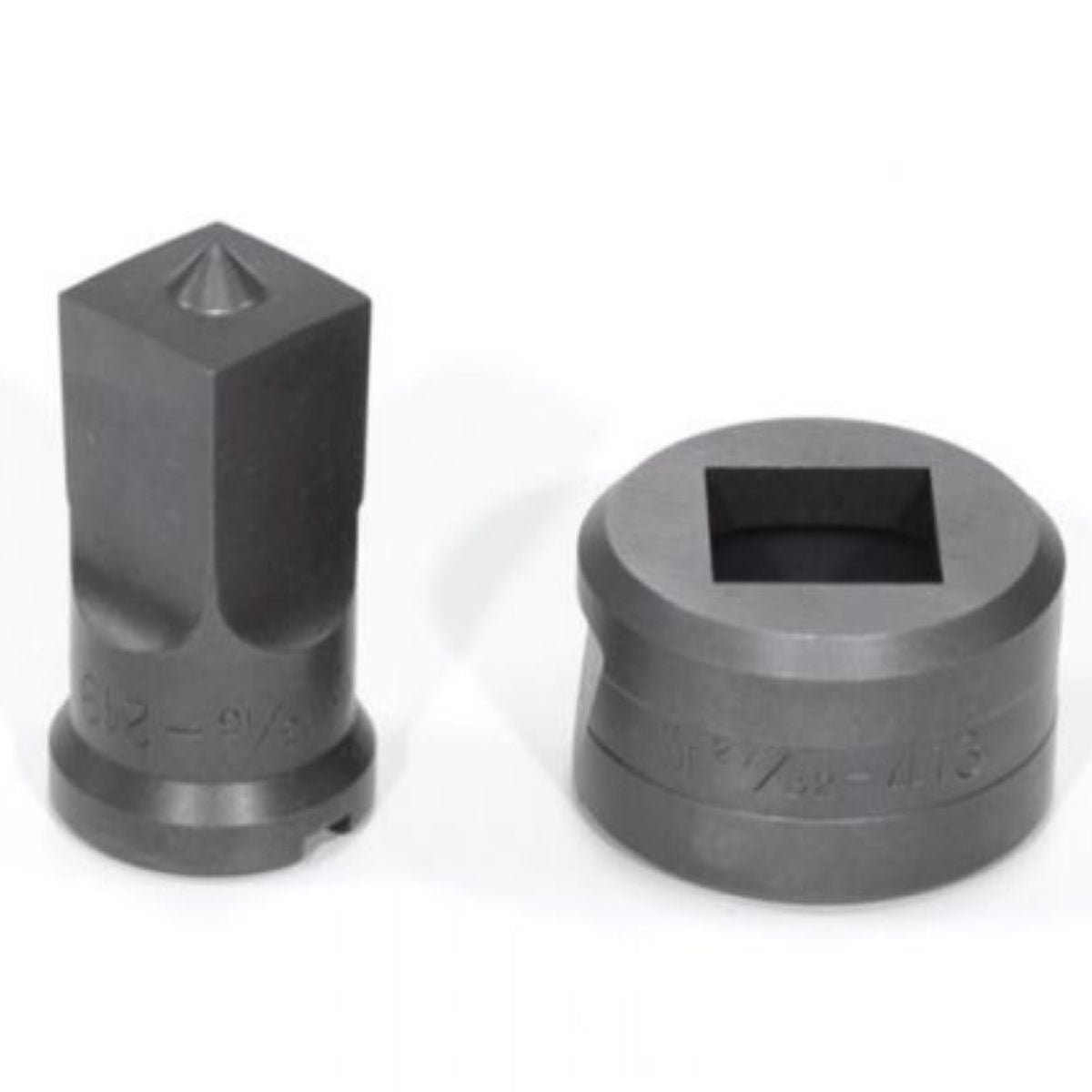

• 13/16" — Stock No. ED9-PDSQ13/16 — Square Punch & Die Set — Requires Notched Coupling Nut (PD0222)

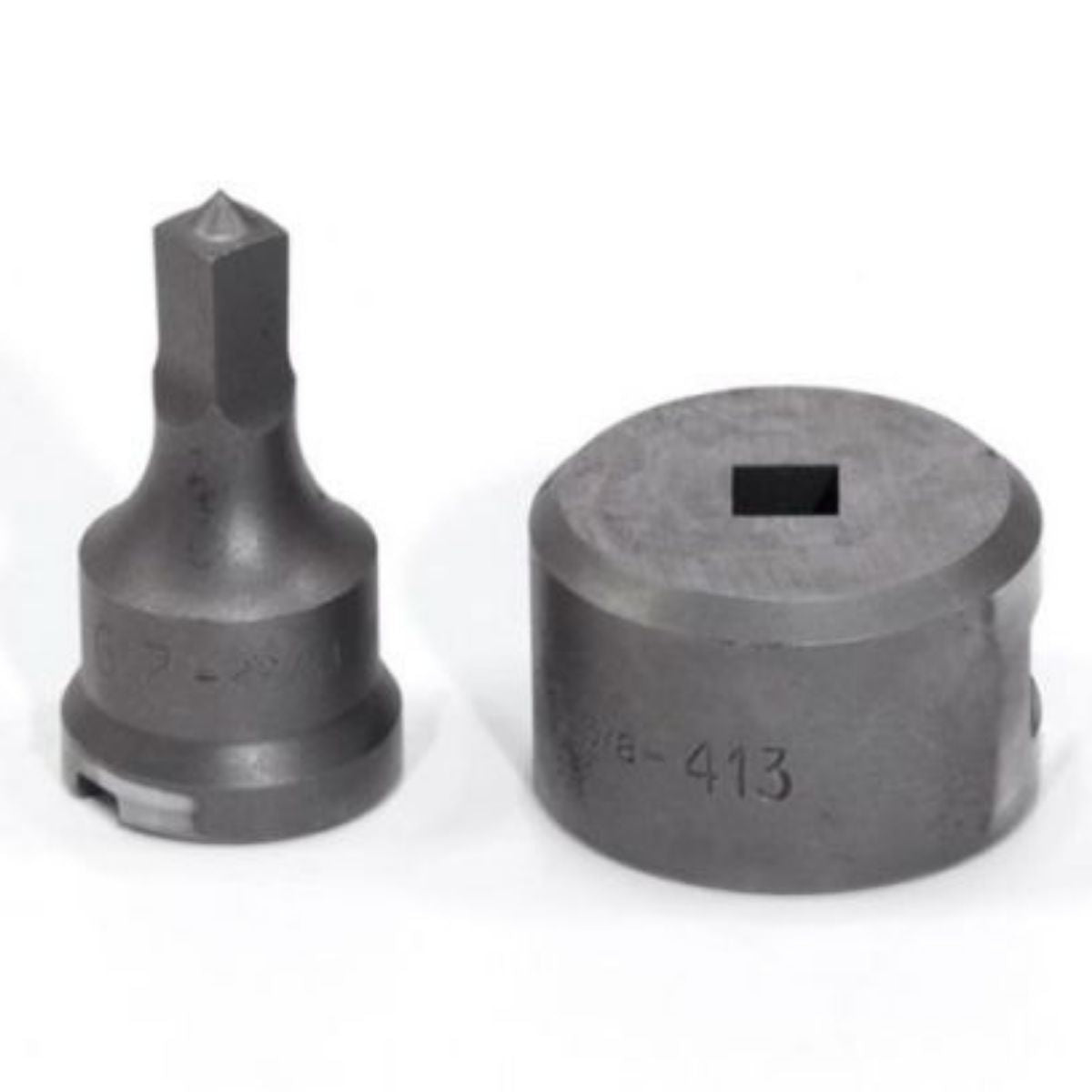

• 11/32" — Stock No. ED9-PDSQ11/32 — Square Punch & Die Set

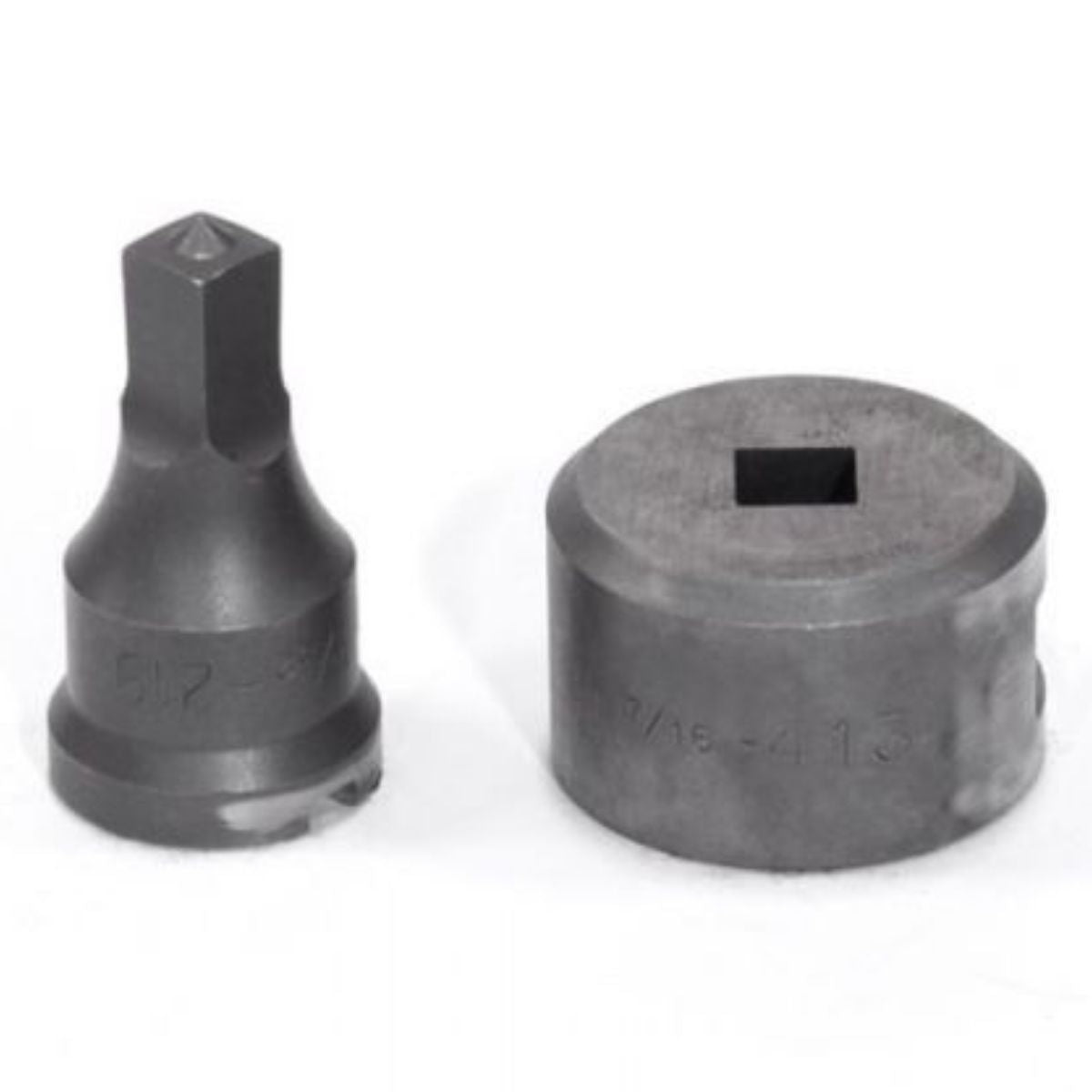

• 13/32" — Stock No. ED9-PDSQ13/32 — Square Punch & Die Set

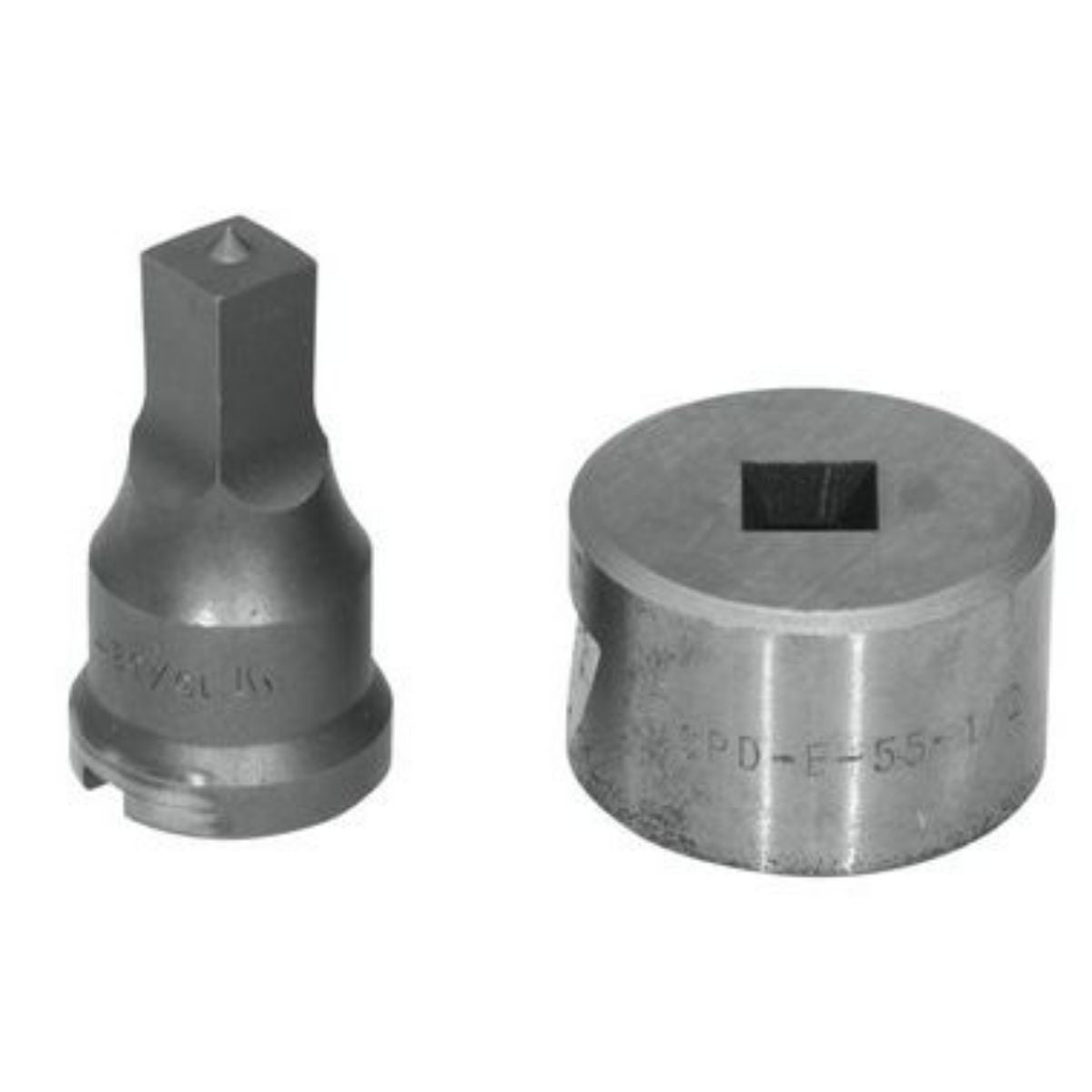

• 15/32" — Stock No. ED9-PDSQ15/32 — Square Punch & Die Set

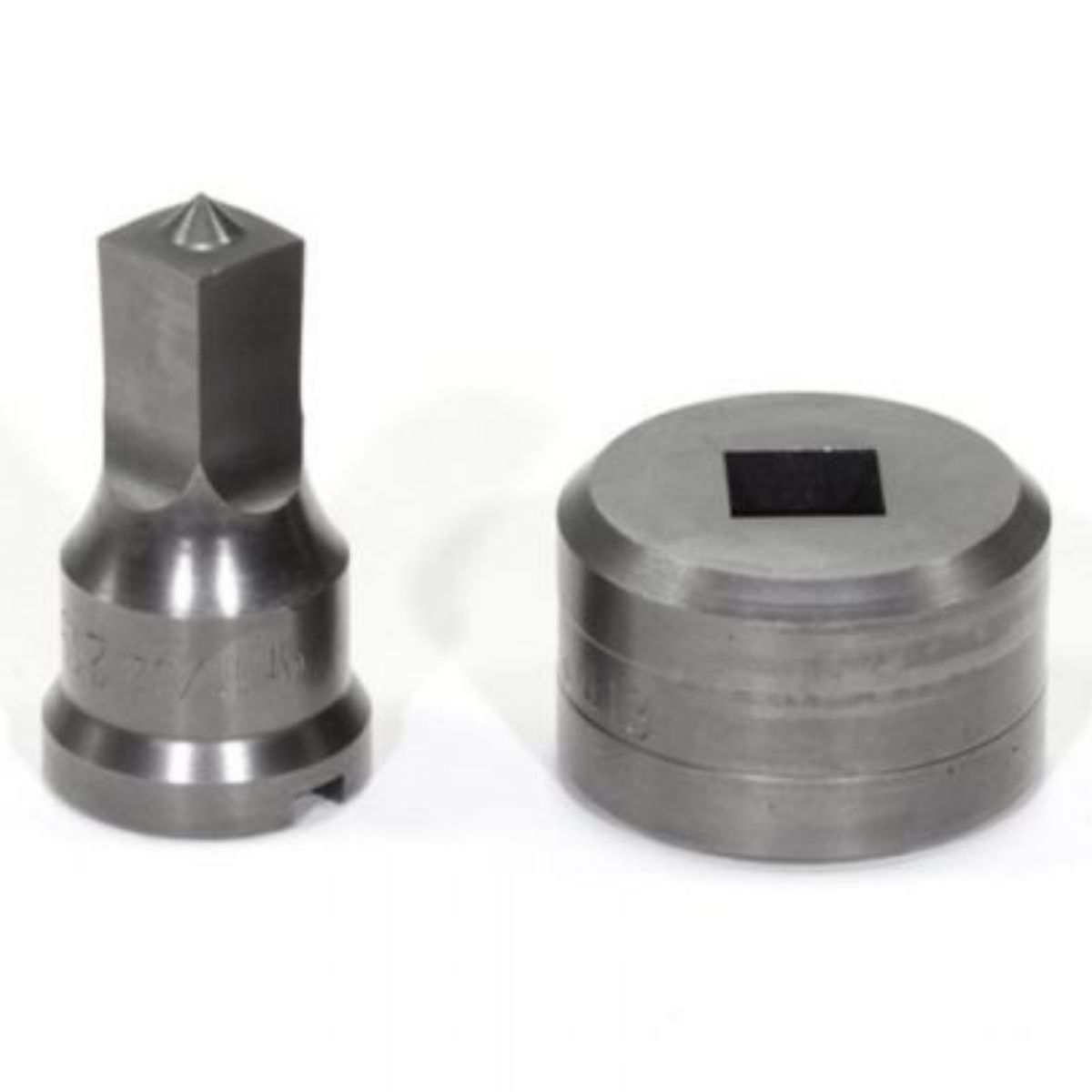

• 17/32" — Stock No. ED9-PDSQ17/32 — Square Punch & Die Set

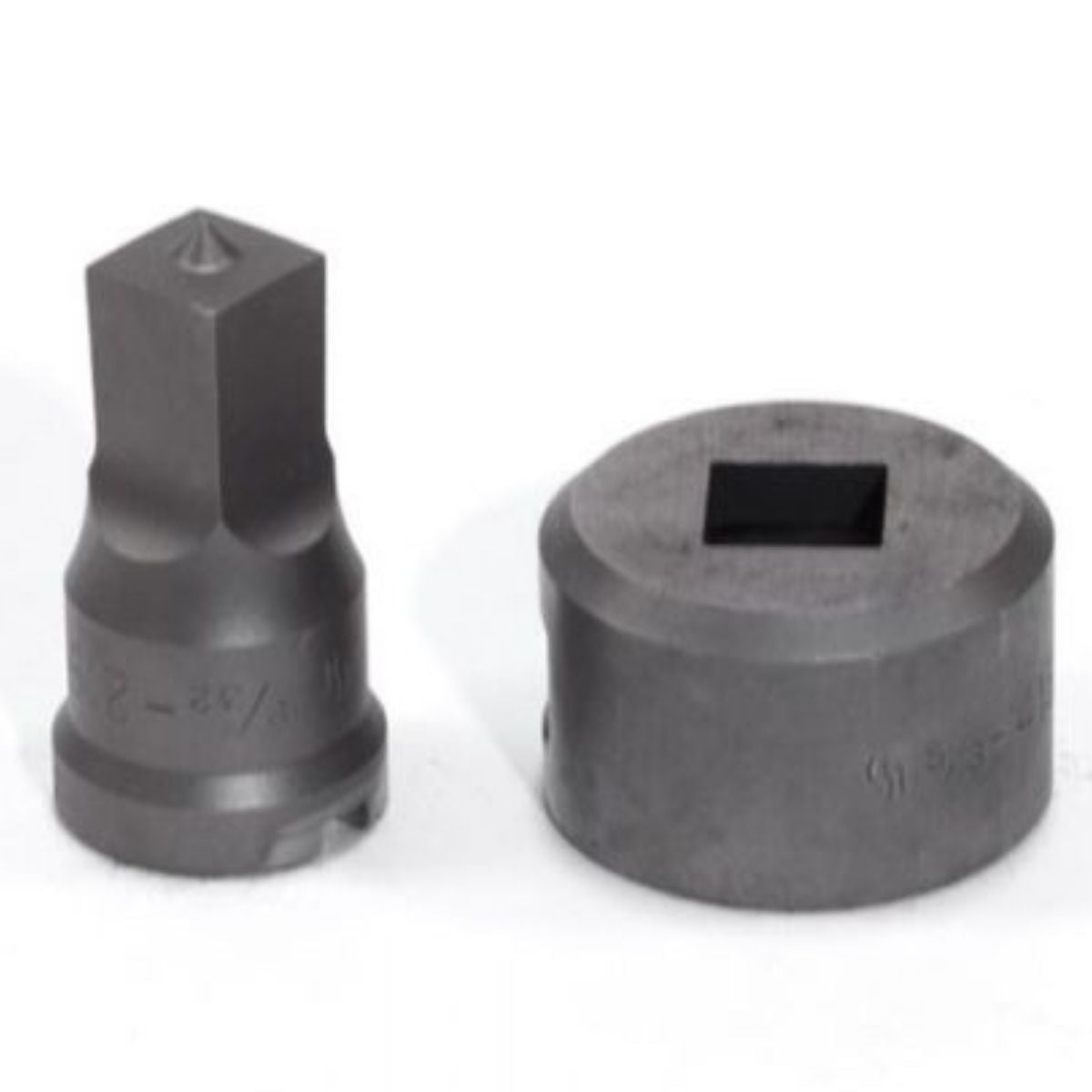

• 19/32" — Stock No. ED9-PDSQ19/32 — Square Punch & Die Set

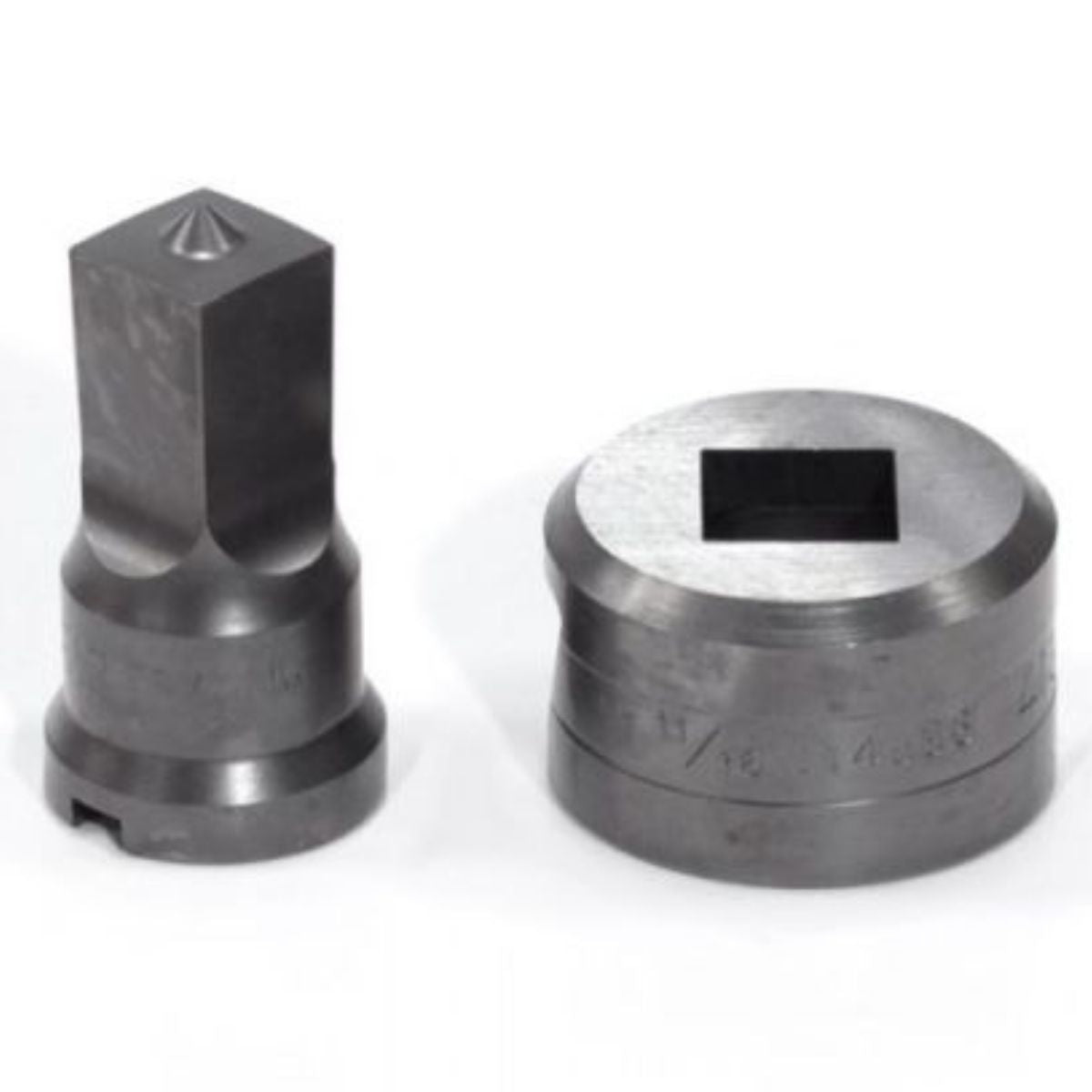

• 21/32" — Stock No. ED9-PDSQ21/32 — Square Punch & Die Set

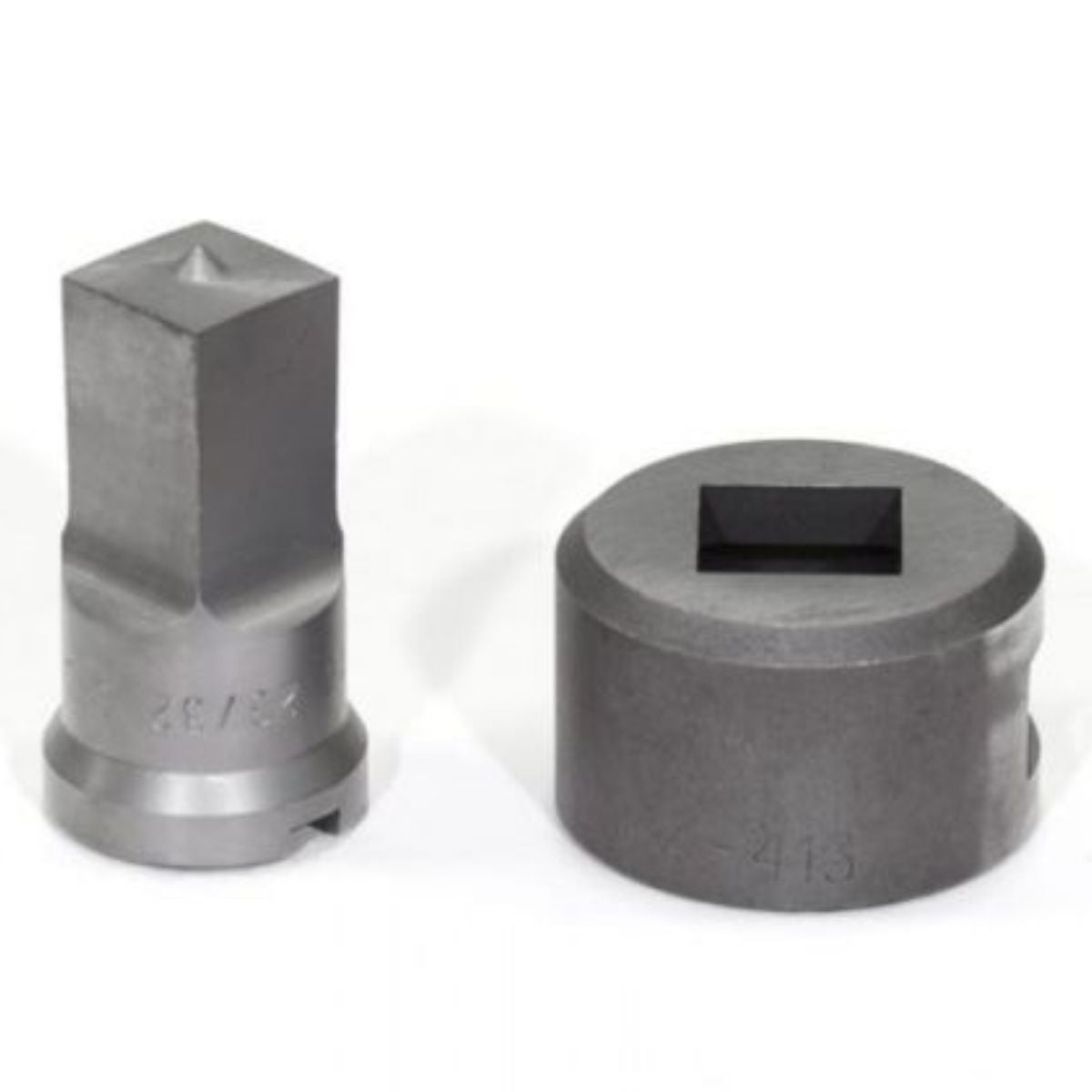

• 23/32" — Stock No. ED9-PDSQ23/32 — Square Punch & Die Set

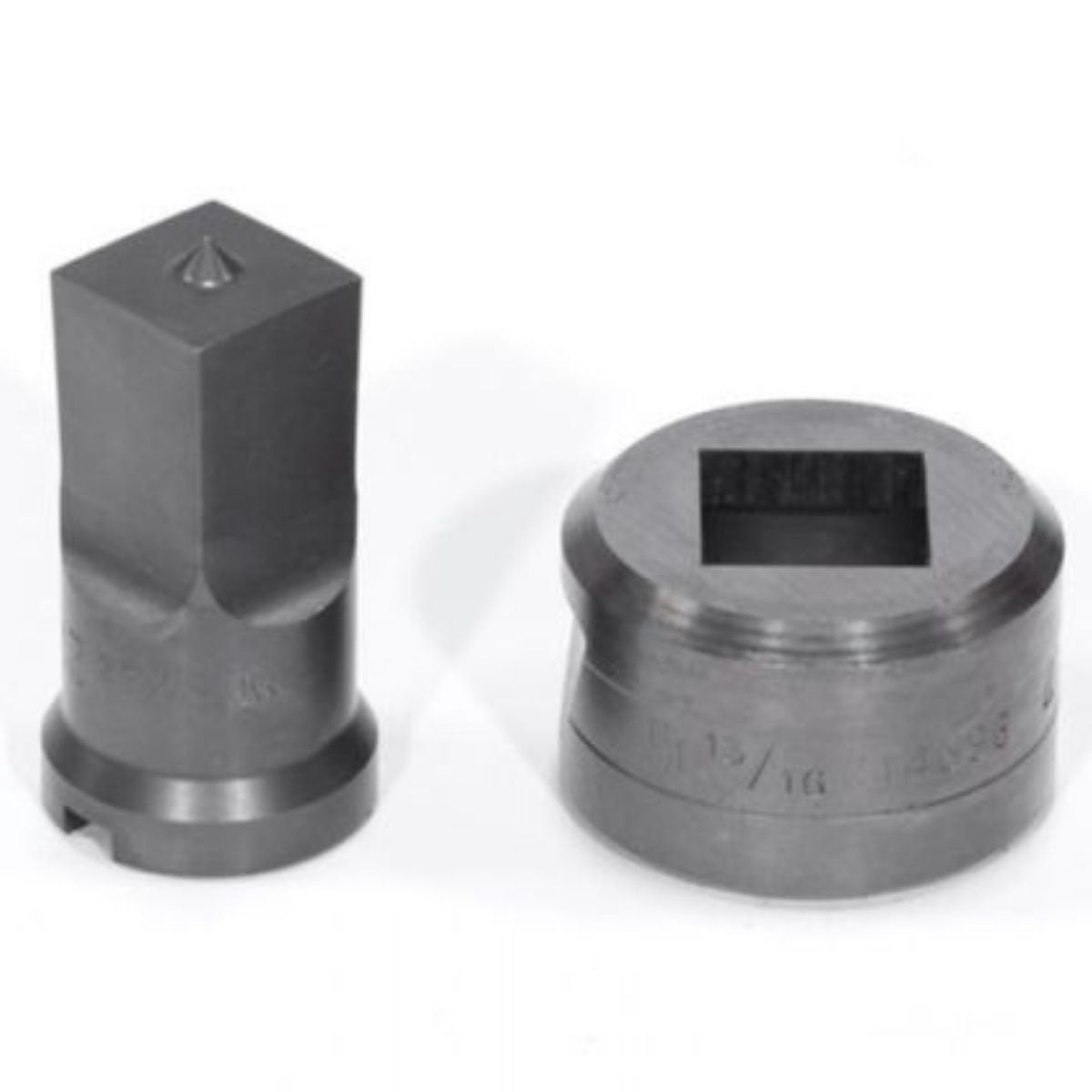

• 25/32" — Stock No. ED9-PDSQ25/32 — Square Punch & Die Set — Requires Notched Coupling Nut (PD0222)
