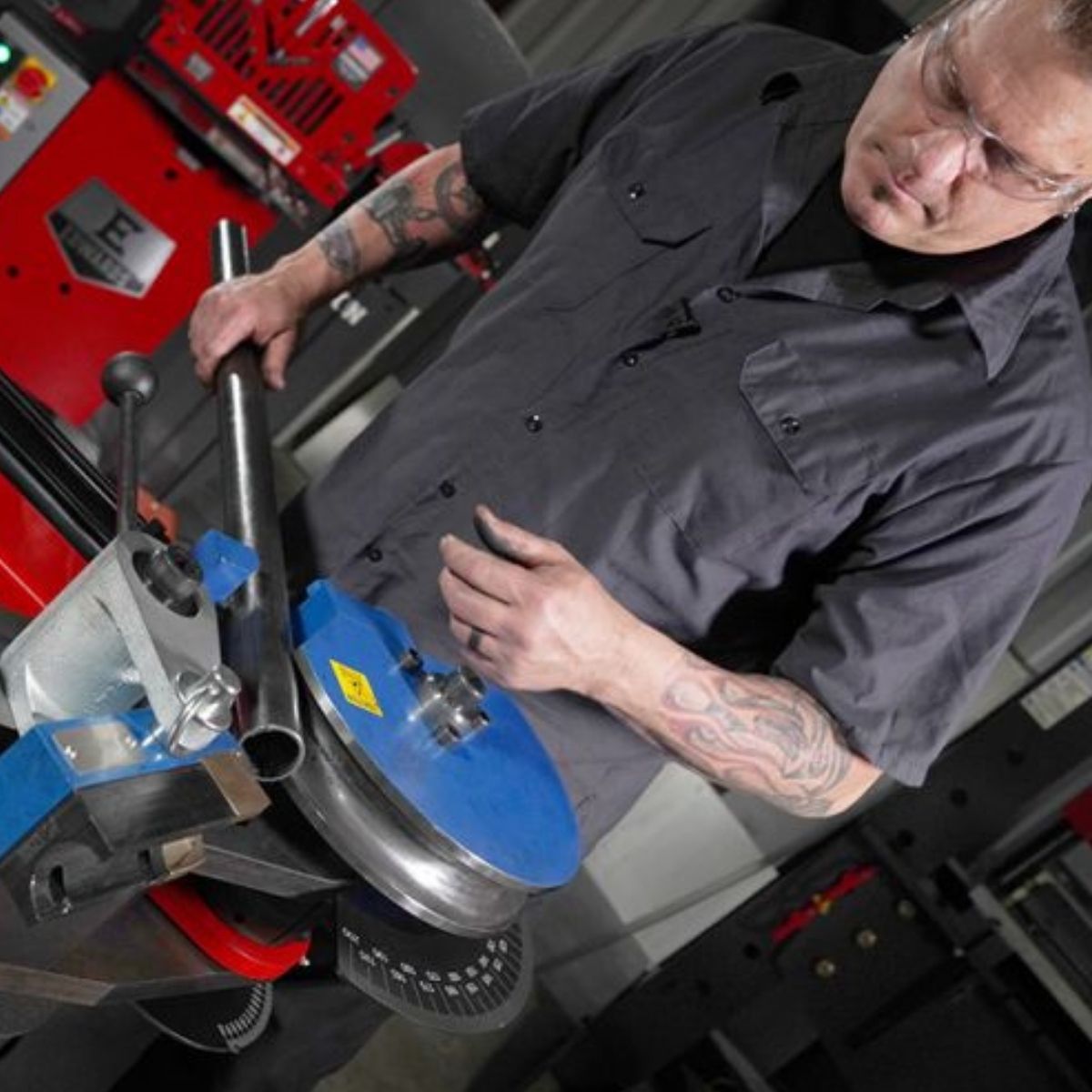

Edwards HAT2375 Rotary Draw Bender

Edwards HAT2375 Rotary Draw Bender

Edwards HAT2375 for Tube and Pipe Bending Work

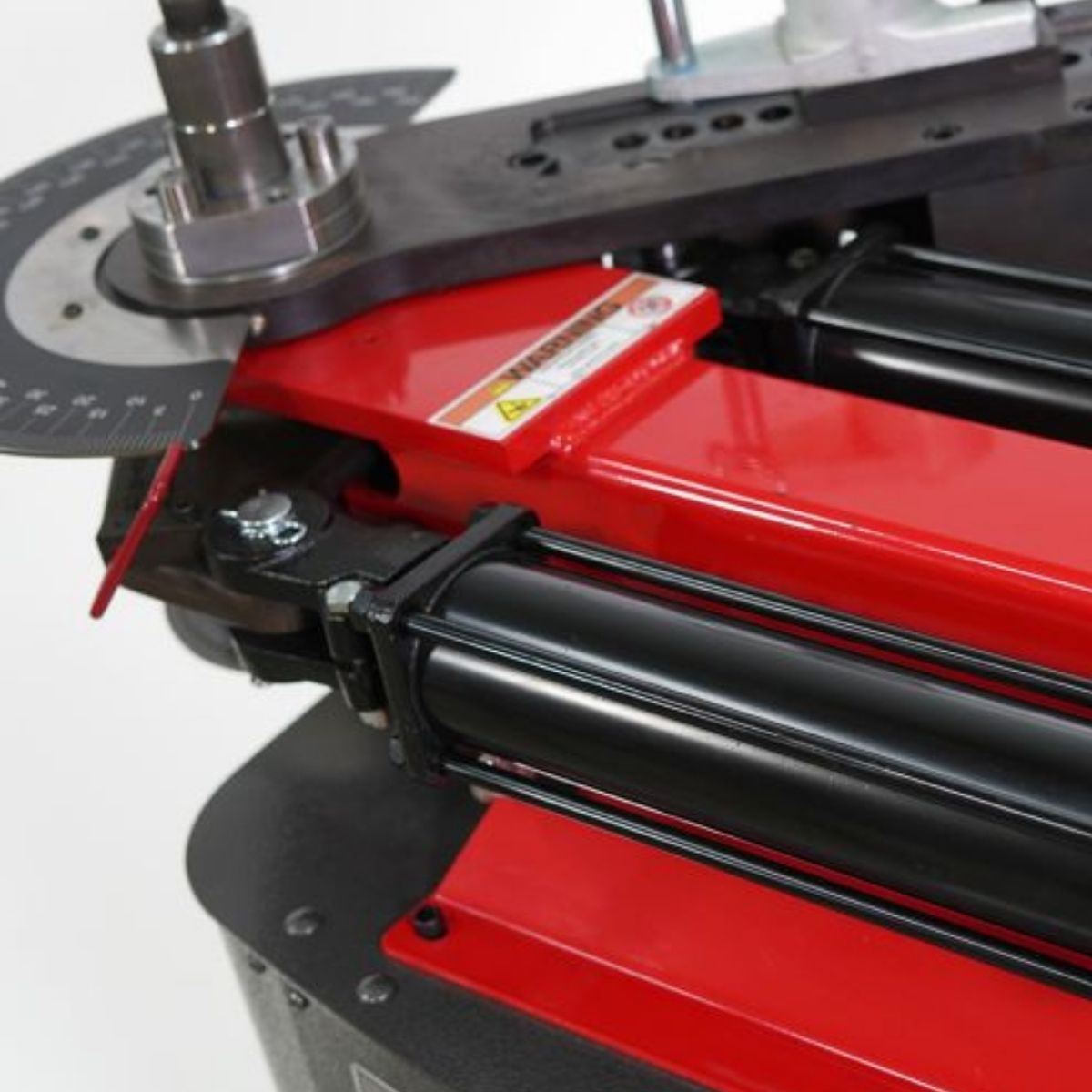

Dual Cylinders Produce Full 180° Bends

Two cylinders work together to drive the bend through a complete 180 degree stroke. This removes the need to reset or re-pin the die partway through a bend.

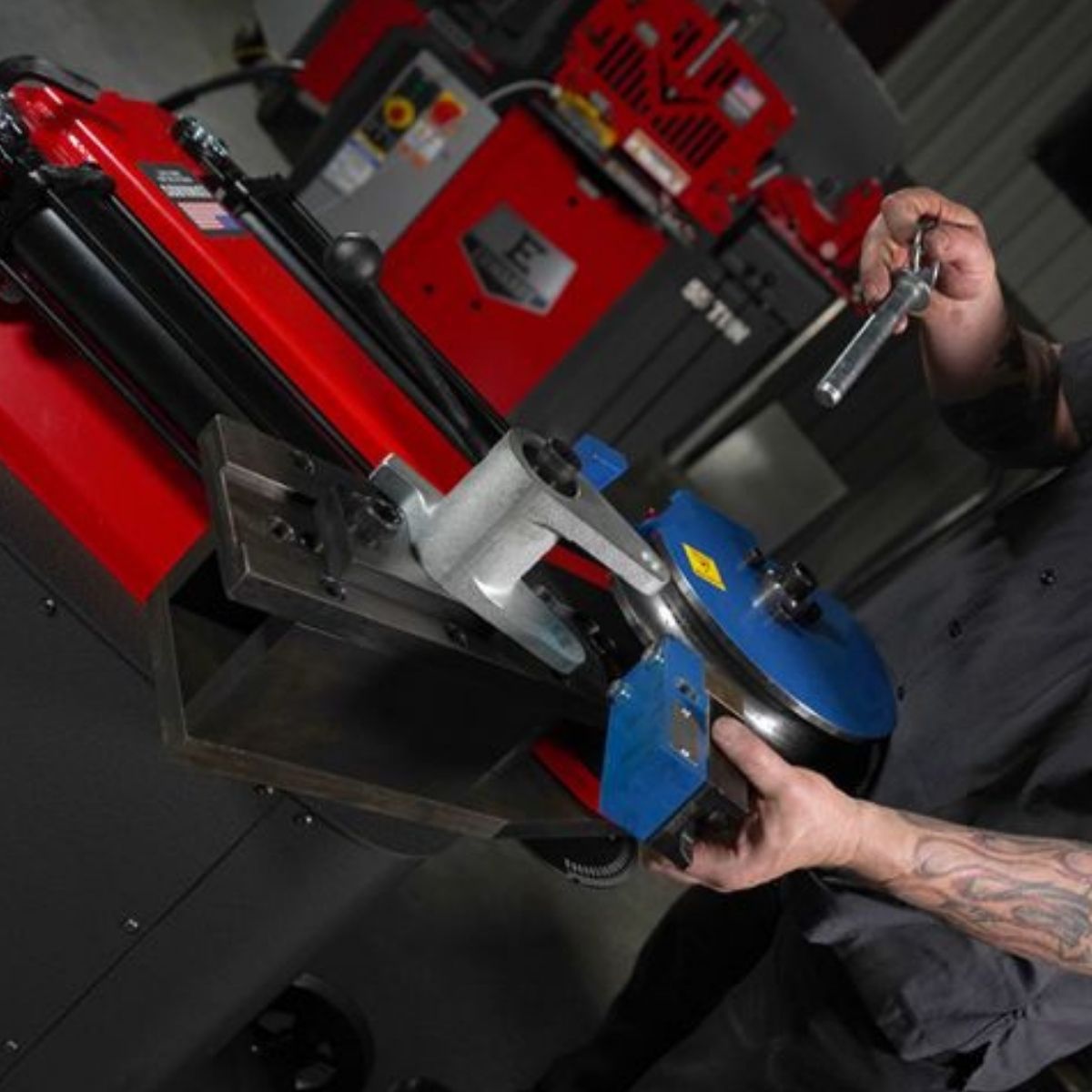

Open Style Drop On Tooling Speeds Die Changes

The drop on tooling design lets you swap dies without extra setup steps. Faster die changes mean less downtime between different bend jobs.

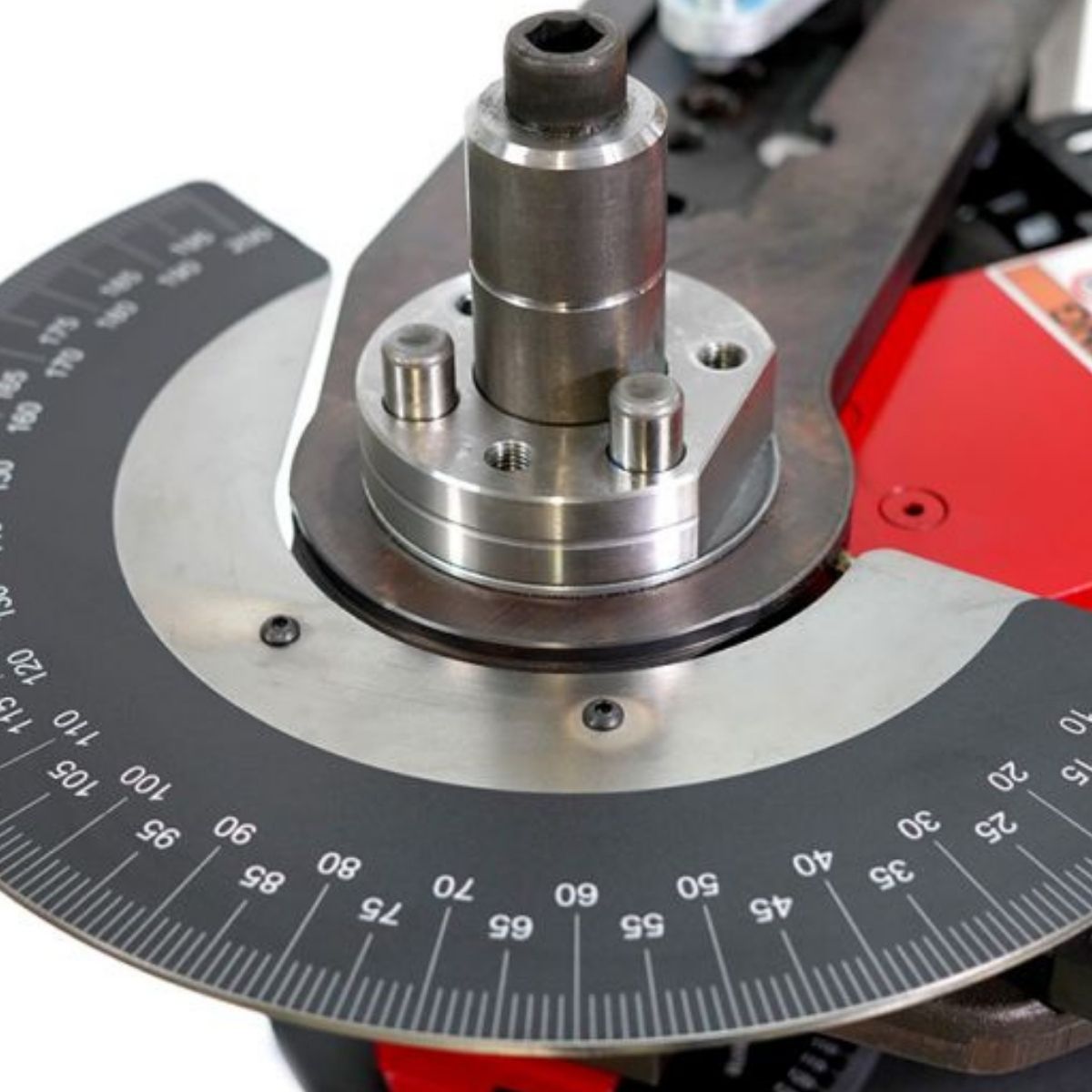

Adjustable Auto Stop Improves Bend Accuracy

The auto stop feature can be set to a desired bend angle and will stop the cycle there every time. This keeps repeat bends consistent across a full production run.

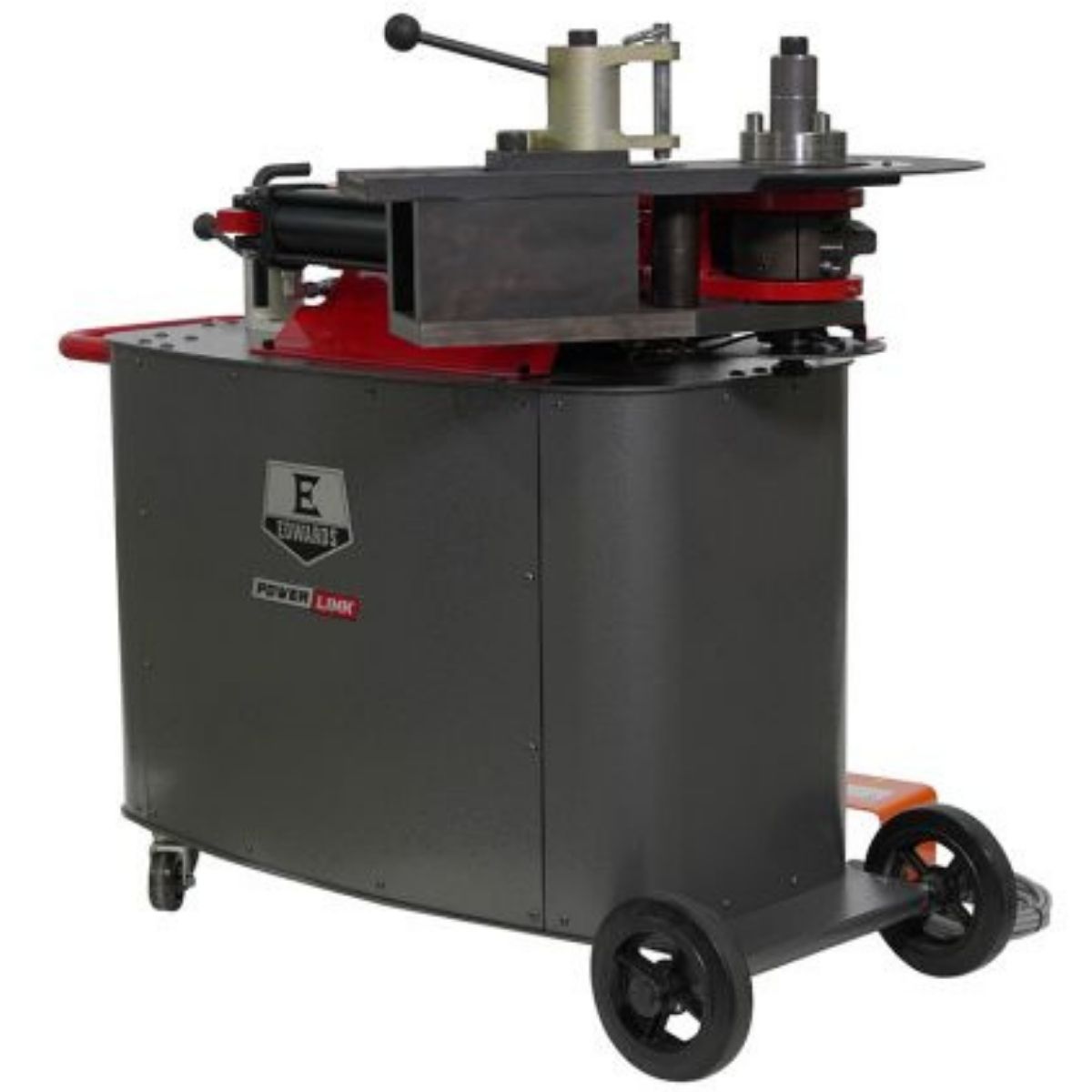

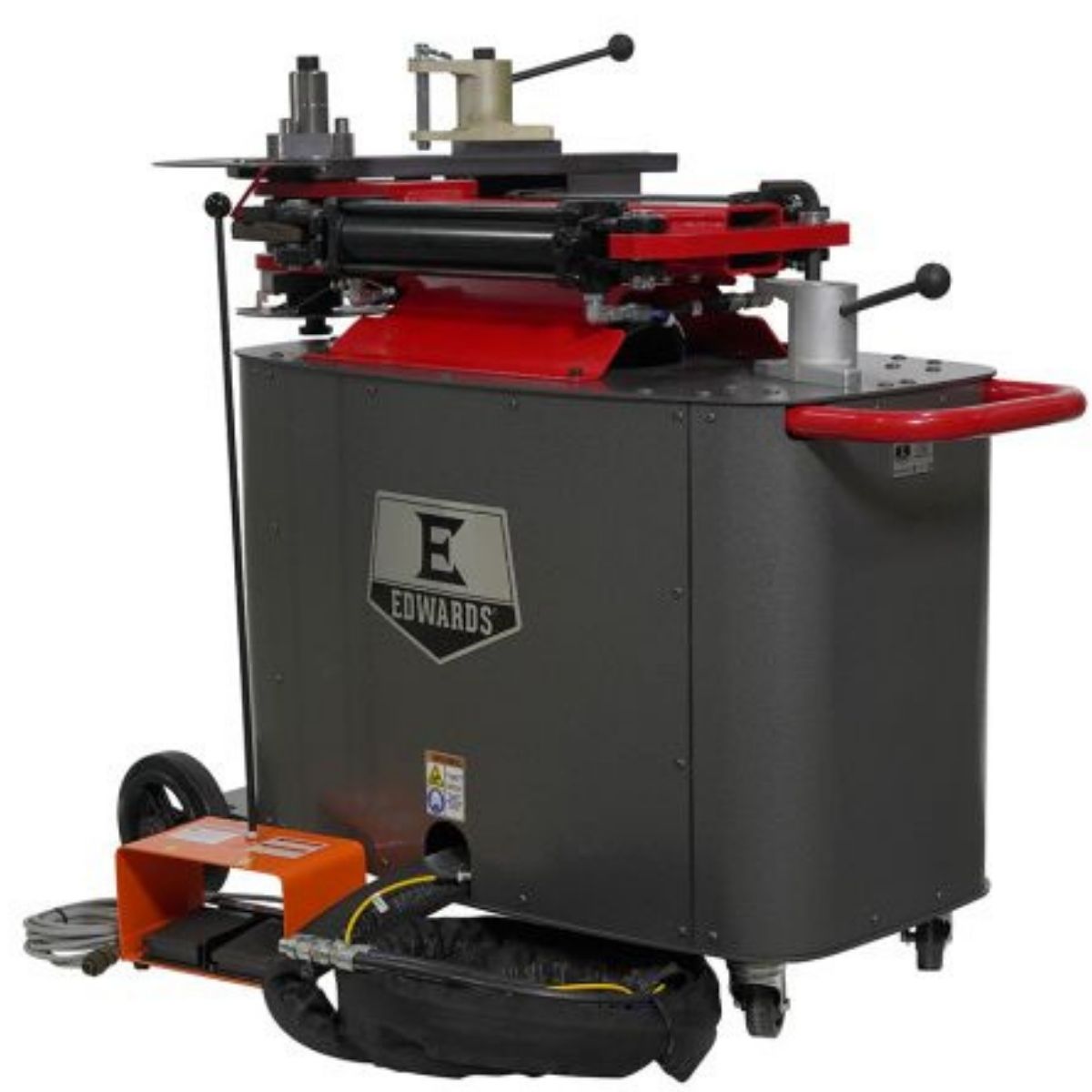

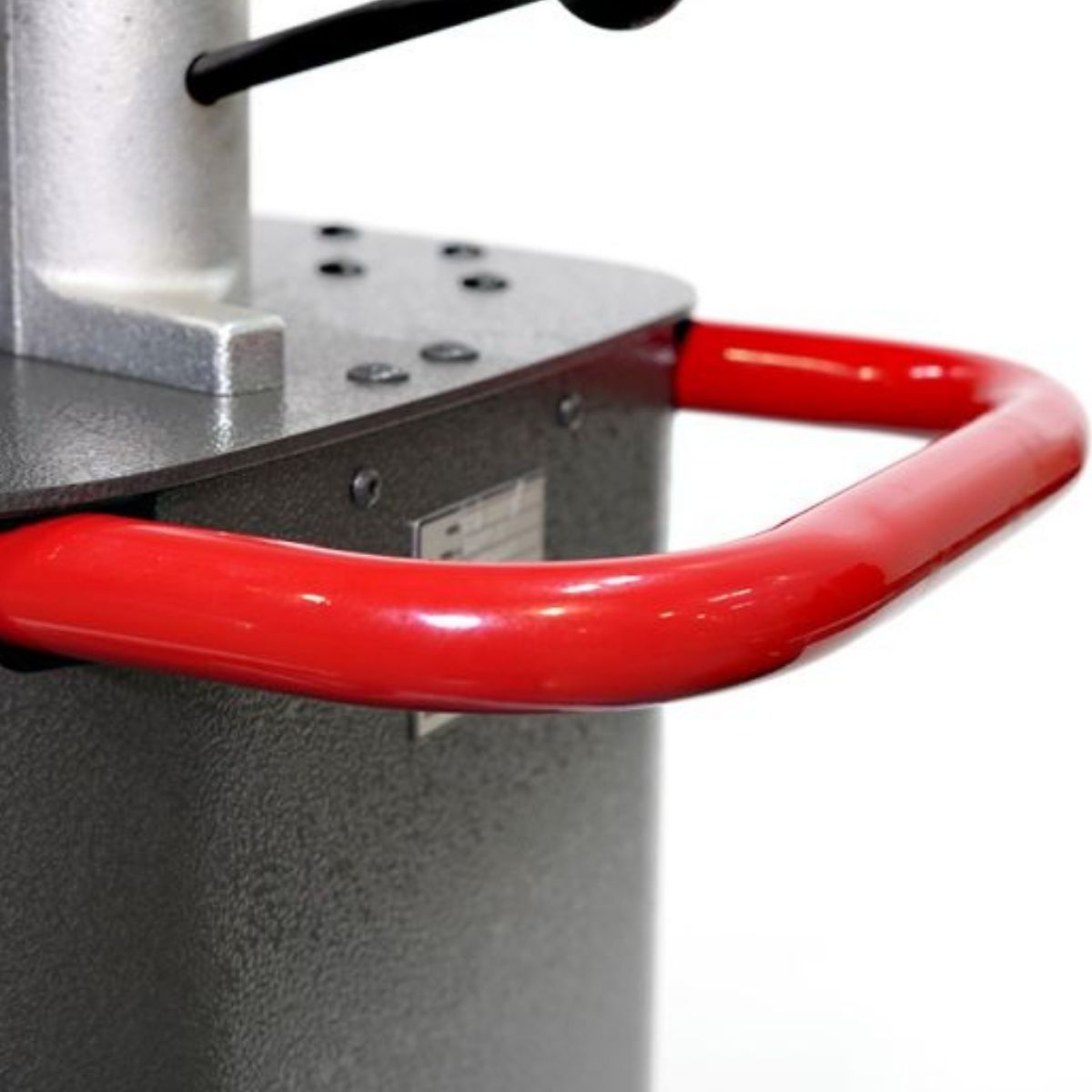

Heavy Duty Mobile Cart Eases Shop Movement

The bender mounts to a heavy duty cart so it can be rolled to where the work is. This makes it easier to position the bender and store it out of the way when not in use.

What's Included

What's Included? Edwards HAT2375 Rotary Draw Bender

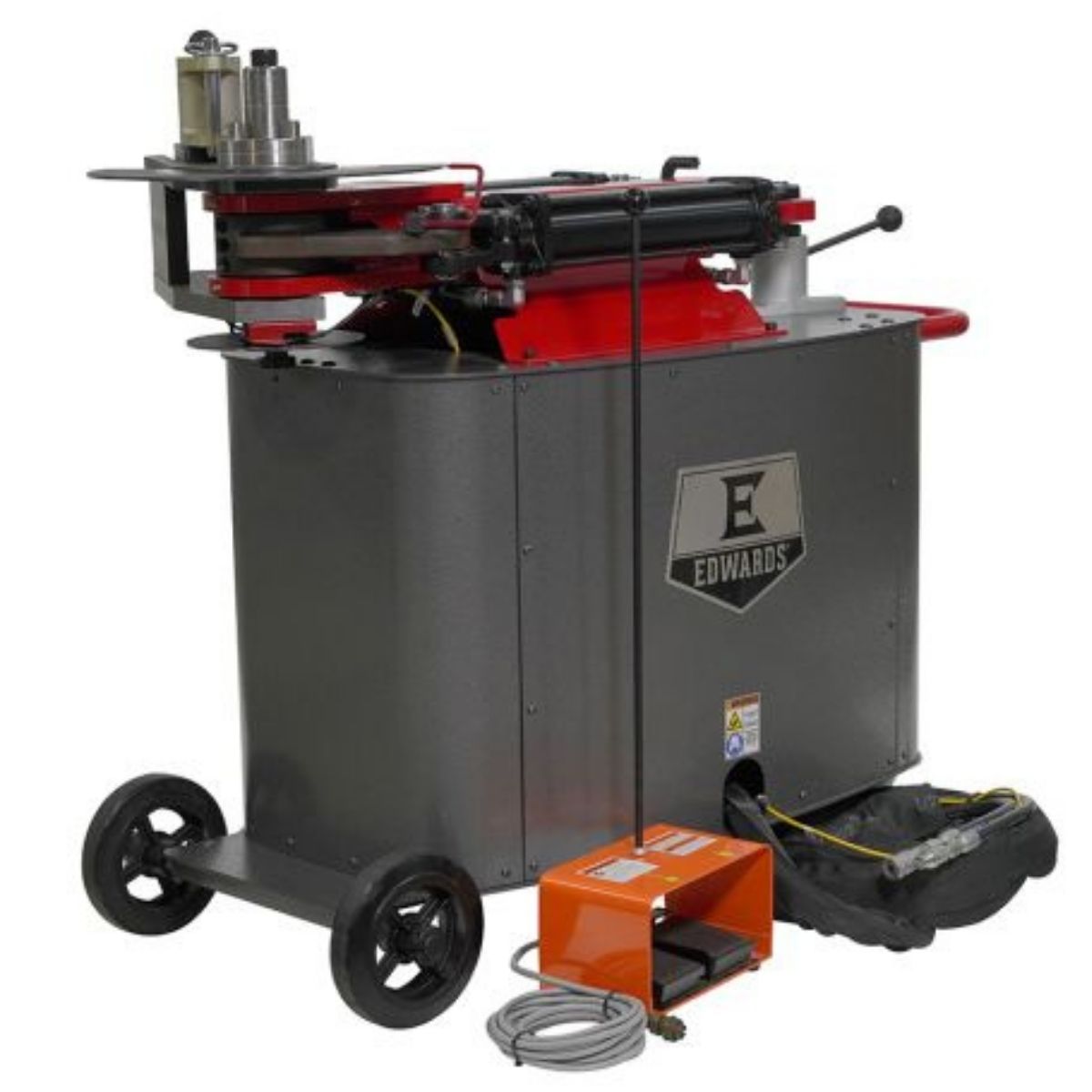

• Edwards HAT2375 Rotary Draw Bender — Provides a dual cylinder rotary draw bending platform for tube and pipe work.
• Heavy Duty Mobile Cart — Lets you move the bender around your shop and store it easily when not in use.
• 20' Quick-Connect Hoses — Connects the bender to your power source for simple setup.

Specs

Edwards HAT2375 Rotary Draw Bender Specifications

• Stock Number: ED1-61
• Model Number: HAT2375
• Aluminum Pipe Schedule 40: 2-1/2" (.156")
• Center Line Radius: 8 in
• Chromoly Round Tube Wall: 2" (1/8")
• Minimum Center Line Radius: 1/2"
• Minimum OD: 0.25 in
• Round Capacity (Mild Steel): 1 in
• Round Pipe Sch. 40 Capacity: 2 in
• Round Tube Capacity: 2-1/2 in
• Square Tube Capacity: 2" (.125)
• Degree of Bend: 180°
• Net Weight: 590 lb
• Gross Weight: 590 lb
• Warranty: 1 Year
