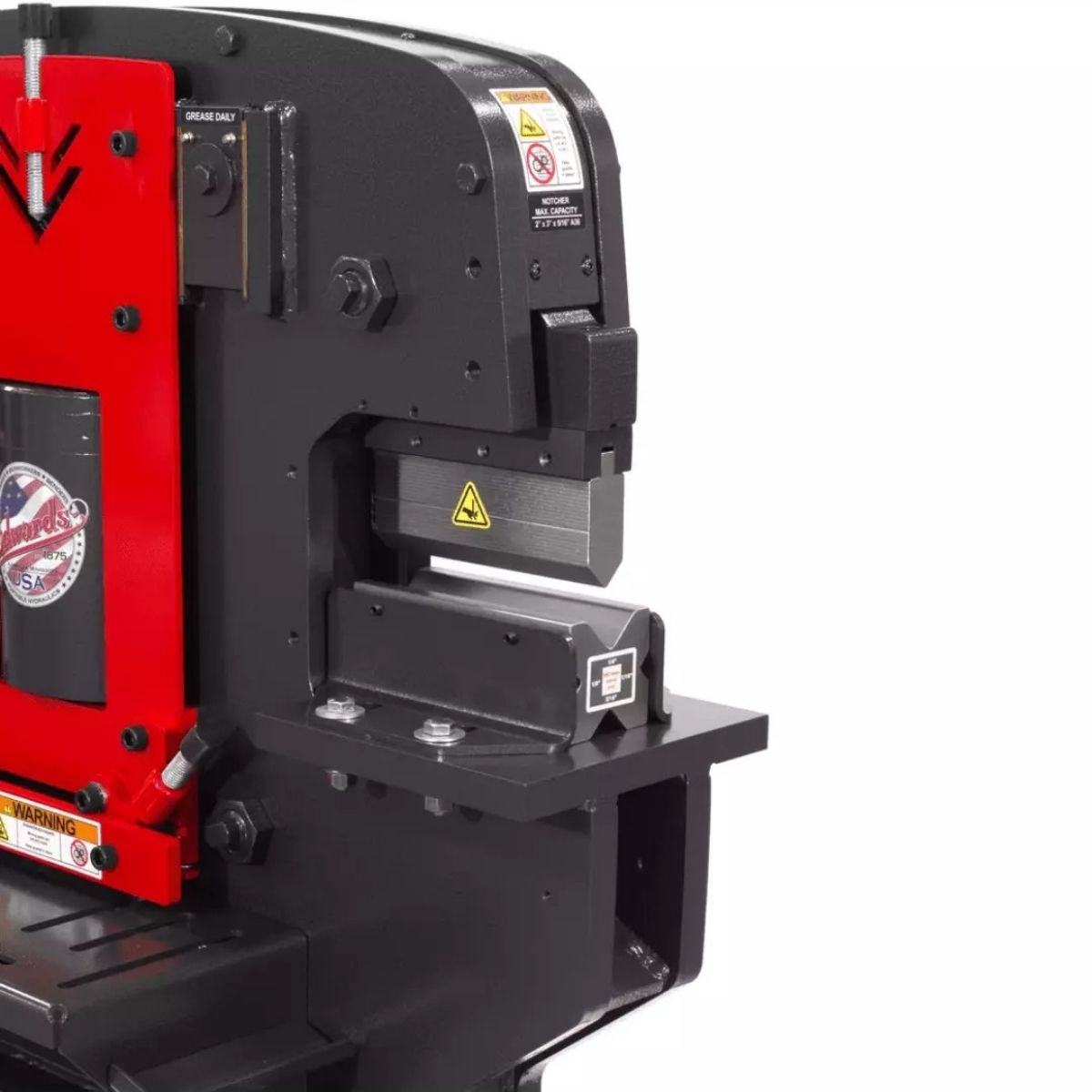

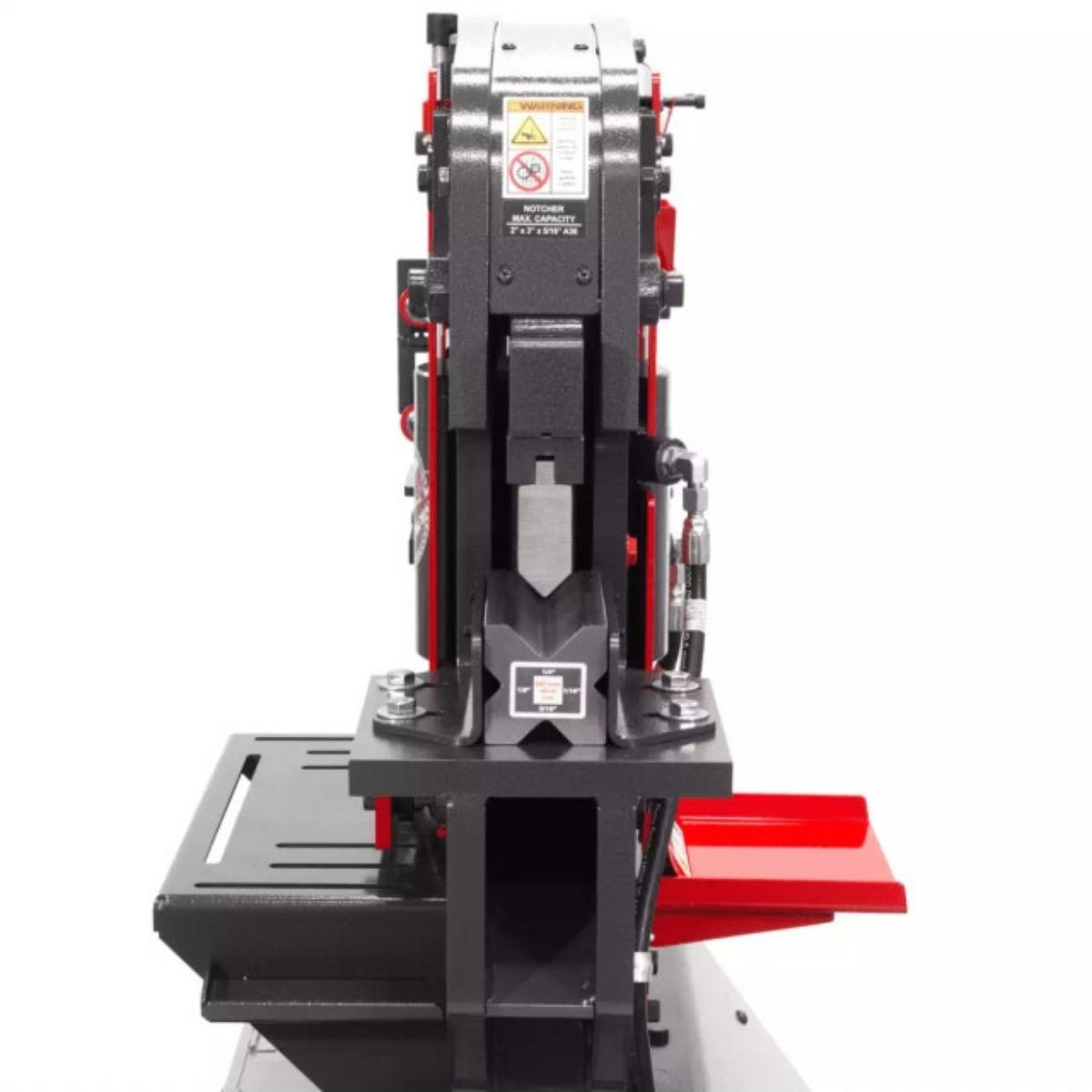

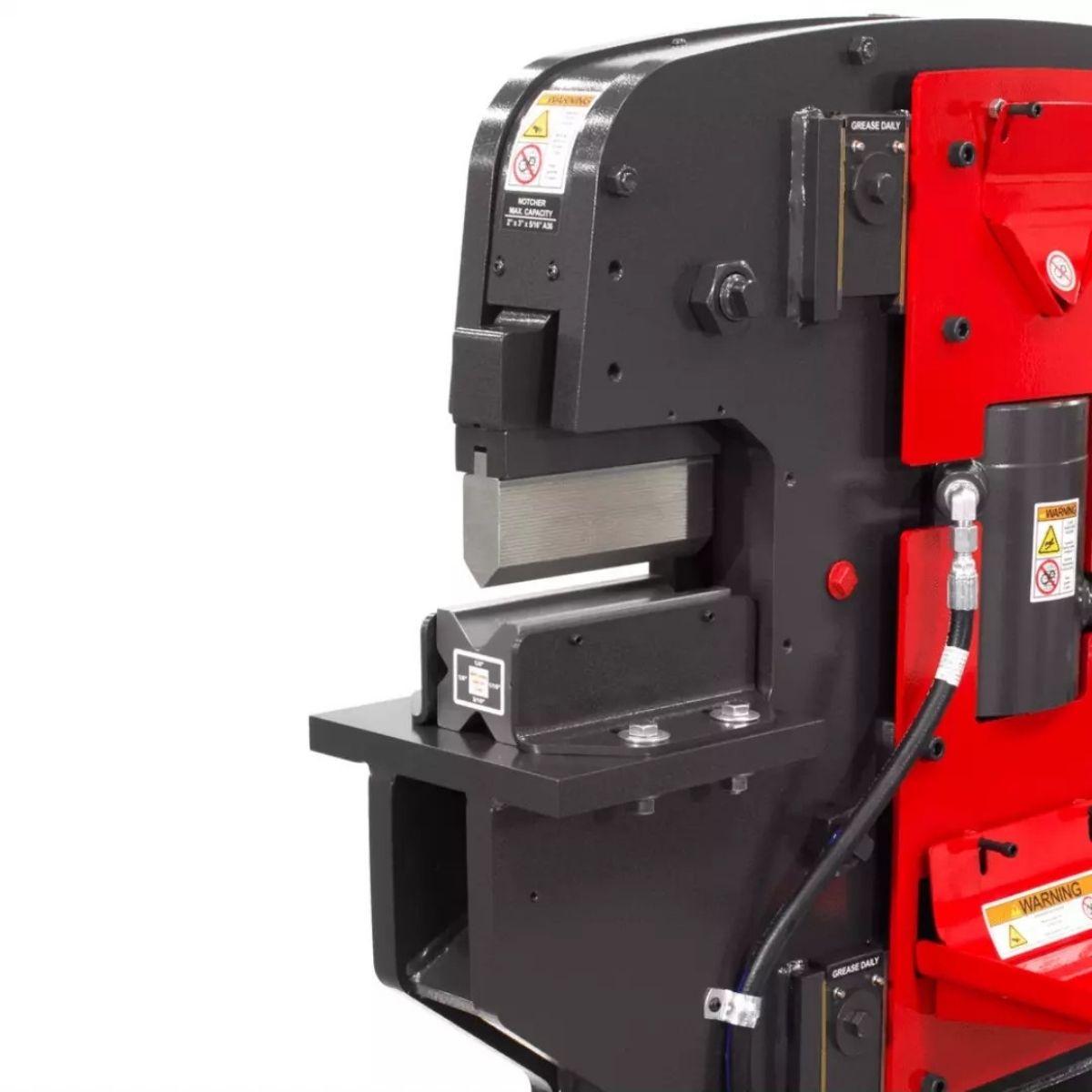

Edwards 8" Brake with 4-Way Die for Ironworkers

Edwards 8" Brake with 4-Way Die for Ironworkers

The Edwards 8" Brake with 4-Way Die lets you form brackets, frames, pans, and tanks directly on your ironworker. It accepts 1/16", 1/8", 3/16", and 1/4" material and bends each to a clean 90° angle. Pair it with the Press Brake Back Gauge for repeatable bends job after job.

• Forms 1/16", 1/8", 3/16", and 1/4" material to 90°
• Handles brackets, frames, pans, and tanks
• Compatible with the Edwards Press Brake Back Gauge for repeatable bends

Specs

Edwards 8" Brake with 4-Way Die for Ironworkers Specifications

• Stock Number: ED9-AC1034
• Model Number: AC1034
• Net Weight: 46.0 lbs
• Gross Weight: 47.0 lbs
• Material Capacity: 1/16", 1/8", 3/16", 1/4"
• Bend Angle: 90°
