Edwards 65-Ton Ironworker — IW65
Are you looking for a mid-range ironworker that handles punching, shearing, notching, and bending without switching machines?
What if one machine covered every fabrication operation your shop runs, with fast transitions and consistent results across all of them?

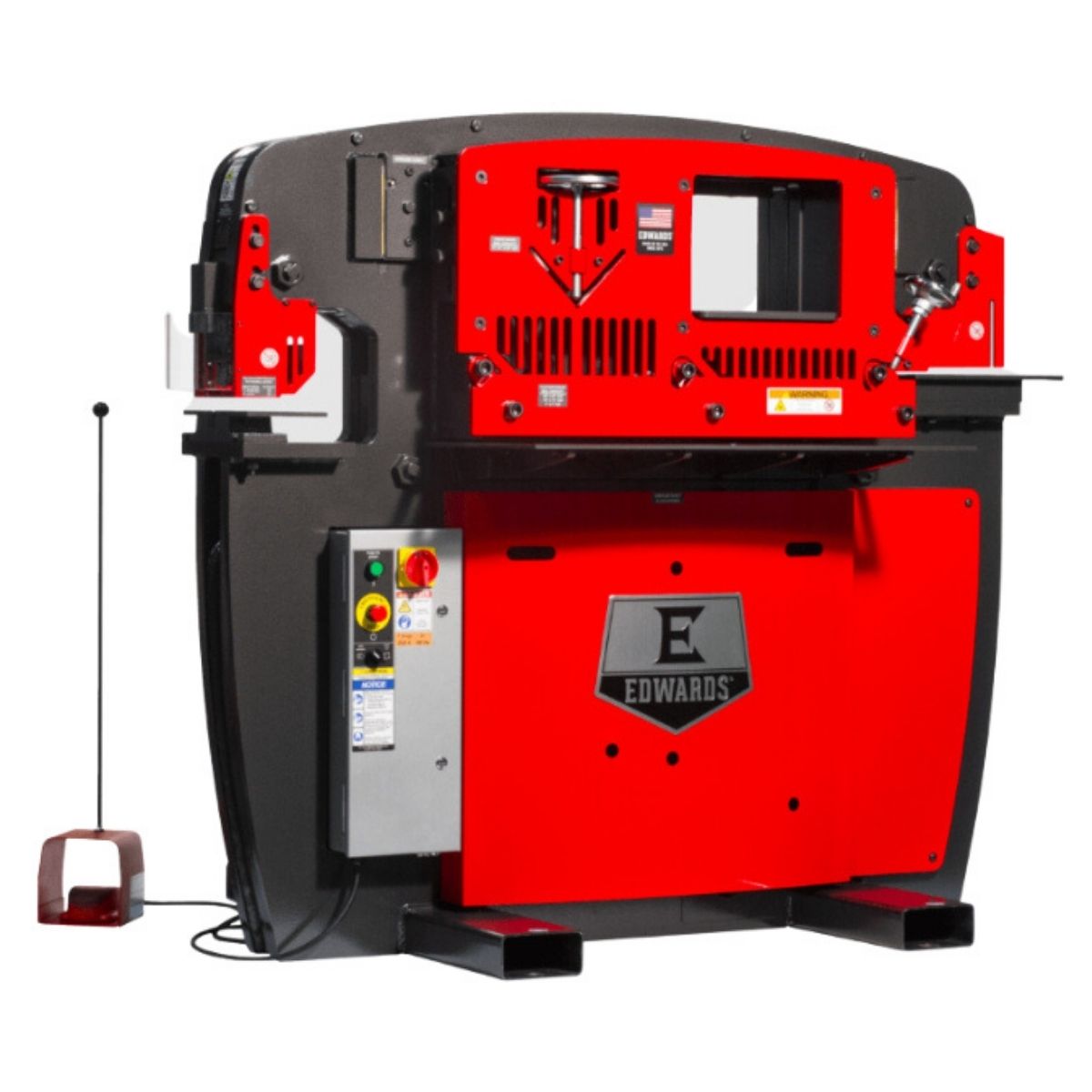

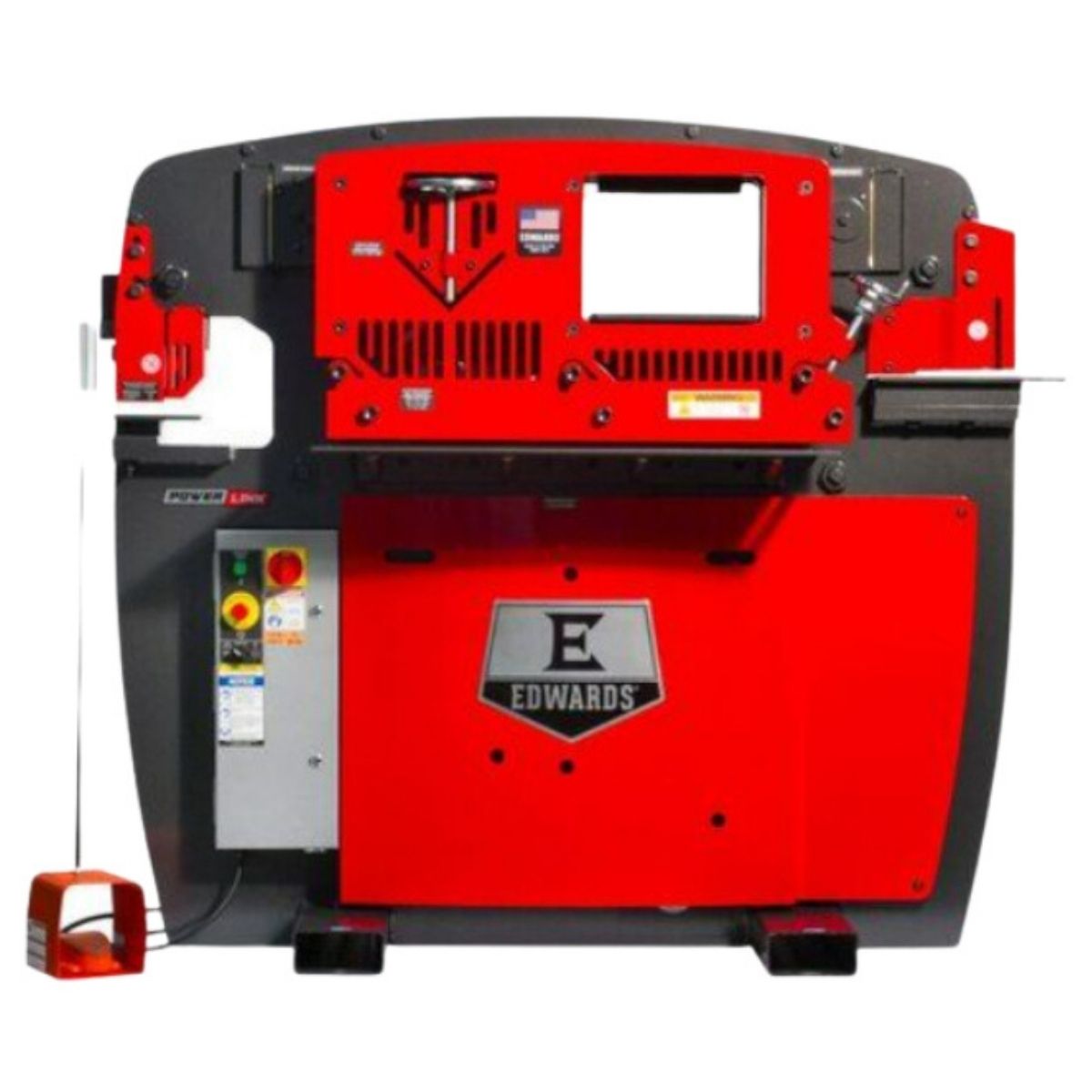

Meet the Edwards 65-Ton Ironworker — IW65, a five-workstation ironworker built for shops that need real versatility and dependable cutting force.
Available in single and three-phase configurations from 208V to 575V, the IW65 fits a wide range of shop power setups without giving up capacity.
When the machine handles punch, shear, notch, bend, and cope in one place, your crew spends more time working and less time moving between stations.
Edwards IW65 for Heavy Fabrication Work

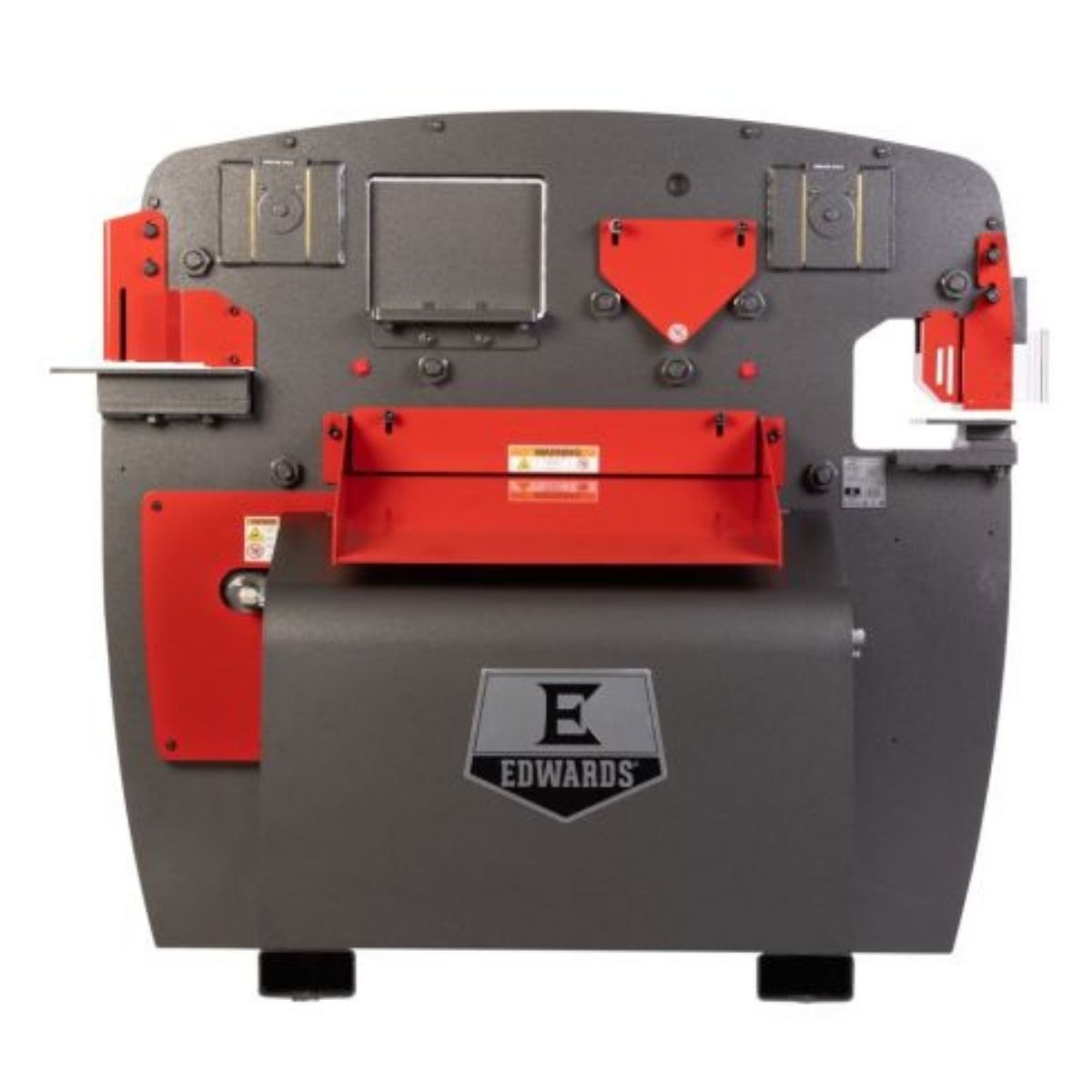

Five Workstations Handle the Full Range of Fabrication
The IW65 runs four standard workstations — punch, flat bar shear, angle shear, and coper notcher — plus one open cavity station that accepts optional attachments including a brake, rod shear, multi-shear, or pipe notcher. That setup lets a shop run a full range of fabrication operations from a single machine without rearranging the floor.
65-Ton Hydraulic System Delivers Consistent Cutting Force
A 7.5 HP motor drives a hydraulic system rated at 3,500 PSI with a 10-1/2 GPM pump and 17-gallon reservoir. Vertical ram movement applies even pressure across punch and shear operations, which reduces distortion and extends tooling life.
Tool Steel Blades and Changeable Punches Hold Up to Daily Use

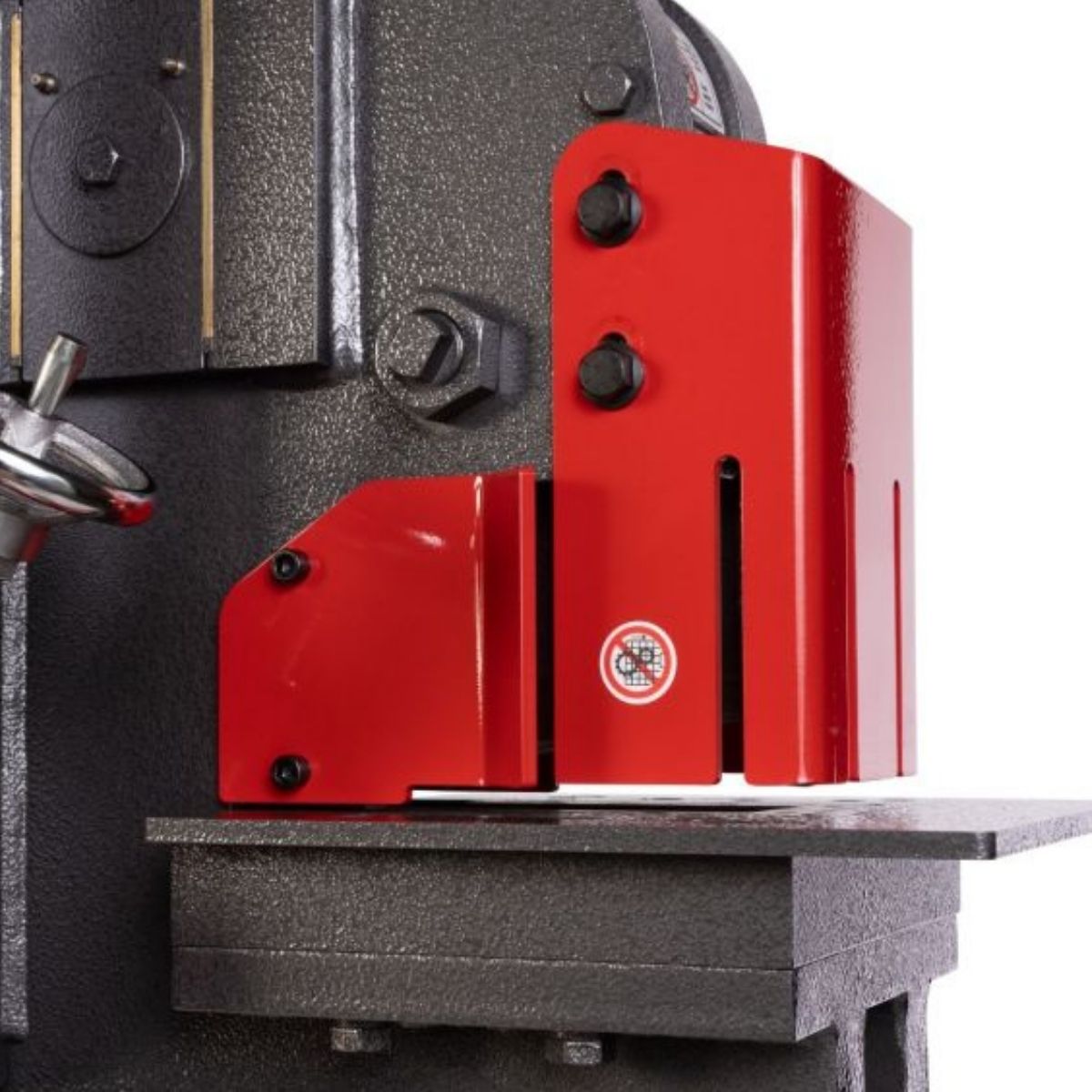

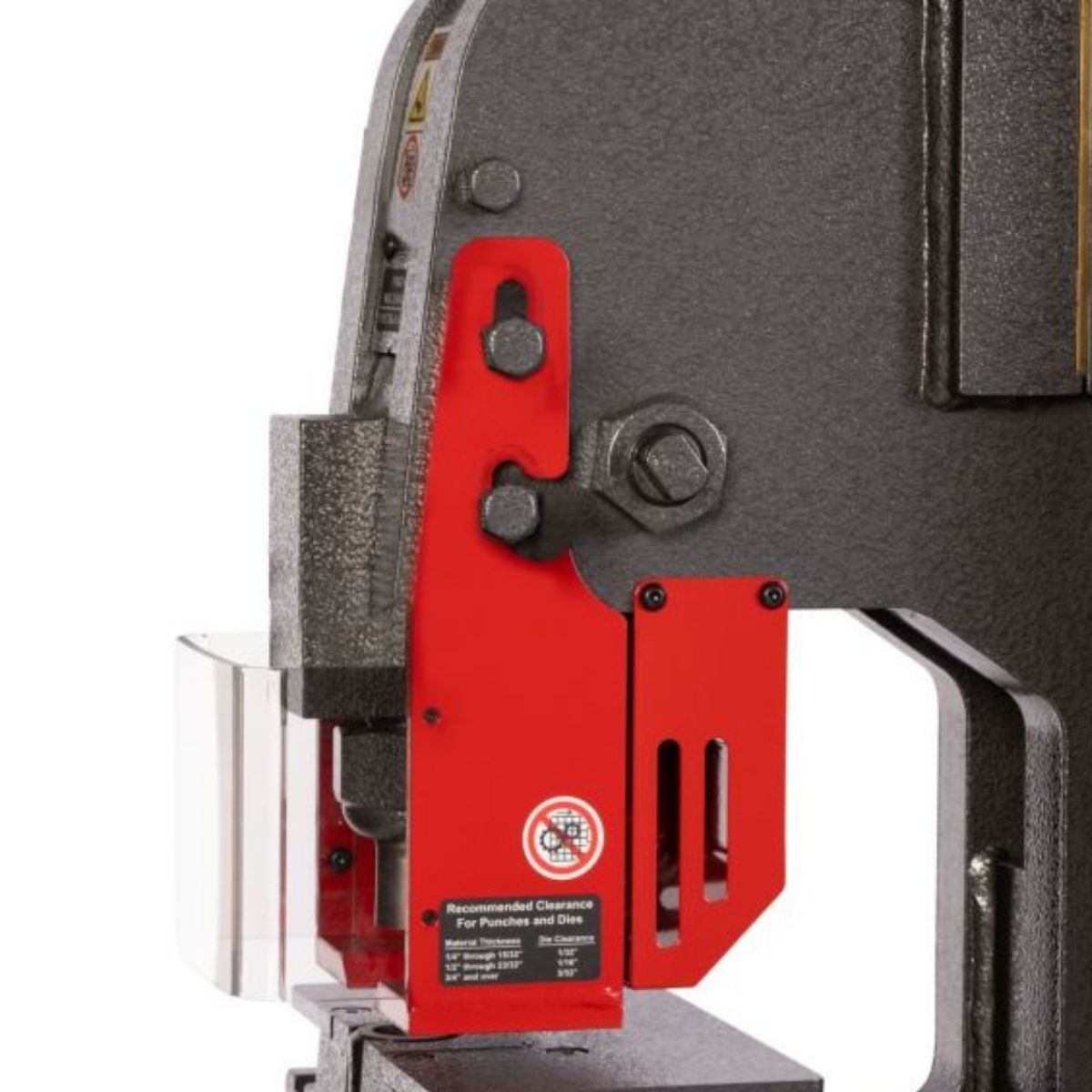

Flat bar shear blades are precision machined from high-quality tool steel with four cutting edges for extended service life. Angle shear blades offer two corner radii for thin and thick material, and punches are available from 1/8" to 4" in round, square, oblong, hex, metric, and custom shapes.

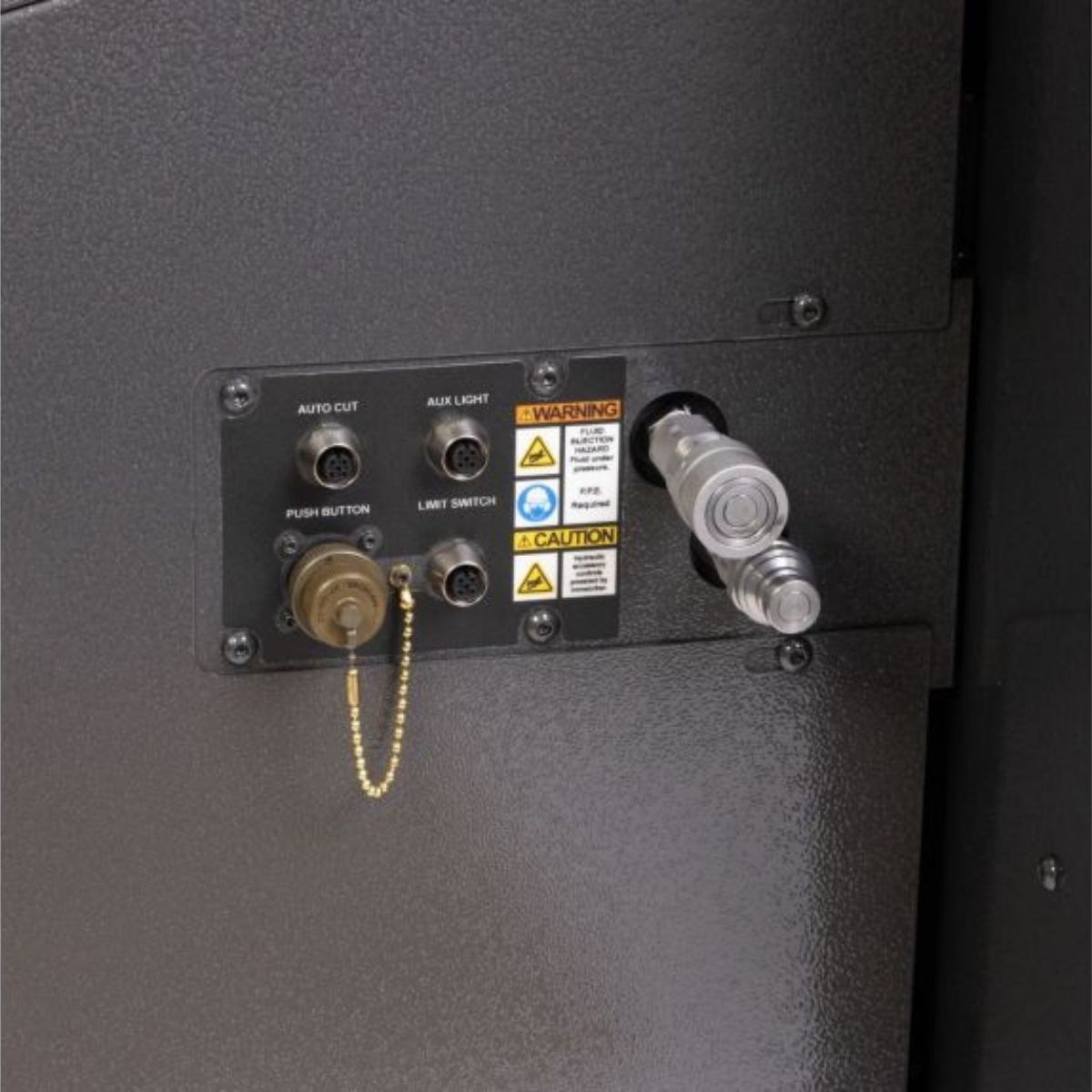

PowerLink Turns the IW65 into a Hydraulic Power Source
PowerLink connects the IW65 to Edwards' line of hydraulic tools, accepting 14 interchangeable attachments and 17 accessories. It extends what the machine can do beyond its five workstations and allows one power unit to serve multiple tools in the shop.
What's Included
What's Included? Edwards 65-Ton Ironworker — IW65
-
Edwards 65-Ton Ironworker — IW65 — Provides a five-workstation hydraulic ironworker platform for punching, shearing, notching, bending, and coping operations.
-
PowerLink System — Connects the IW65 to Edwards hydraulic tools and accepts up to 14 interchangeable attachments and 17 accessories.
-

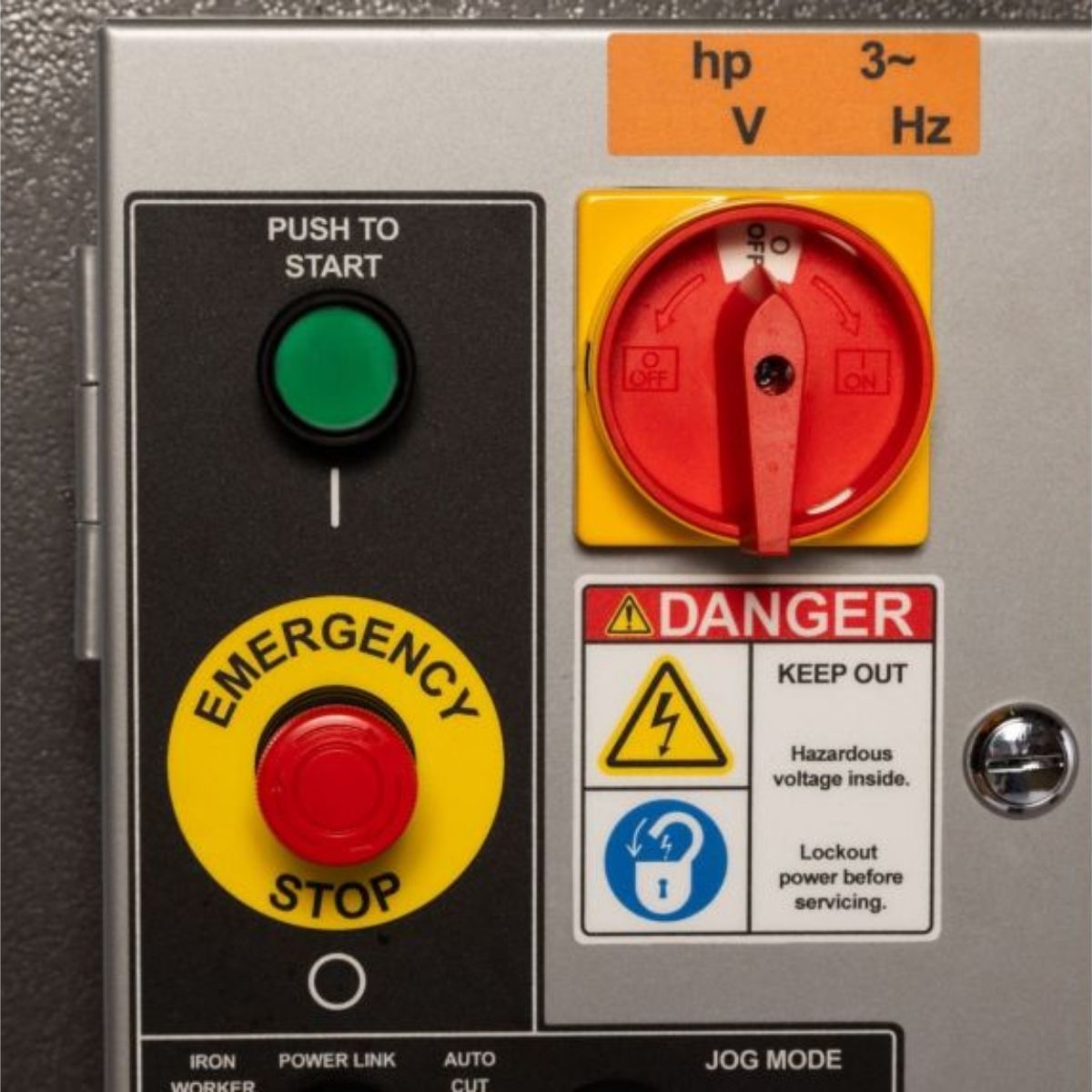

Electric Foot Pedal with Jog Control — Allows hands-free cycle activation with integrated jog control for precise positioning.
Specs
Edwards 65-Ton Ironworker — IW65 Specifications
- Rating: 65 Ton
- Motor: 7.5 HP
- Motor Speed: 1,765–1,770 RPM
- Hydraulic Pump: 10-1/2 GPM
- Hydraulic Pressure: 3,500 PSI
- Hydraulic Reservoir: 17 Gal.
- Punch Capacity: 1-1/16" diameter in 3/4" mild steel
- Punch Rating: 65 Ton
- Punch Stroke: 1-13/16"
- Punch Open Height: 8-3/4"
- Punch Shut Height: 6-15/16"
- Punch Work Height: 36-9/16"
- Flat Bar Shear Capacity: 3/8" x 24", 1/2" x 14", 1" x 4"
- Flat Bar Shear Max Round: 1"
- Flat Bar Shear Max Square: 1"
- Flat Bar Shear Rating: 65 Ton
- Flat Bar Shear Work Height: 34-1/2"
- Angle Shear Capacity: 5" x 5" x 3/8"
- Angle Shear Work Height: 43-1/2"
- Coper Notcher Capacity: 2-1/2" x 5" x 3/8"
- Coper Notcher Work Height: 39-1/2"
- Overall Dimensions (L x W x H): 45" x 62-1/8" x 57"
- Weight: 4,750 lb
Specs by Configuration
- 1 Phase 230V with PowerLink (ED9-IW65-1P230-A) — 36A
- 3 Phase 208V with PowerLink (ED9-IW65-3P208-A) — 22A
- 3 Phase 230V with PowerLink (ED9-IW65-3P230-A) — 22A
- 3 Phase 460V with PowerLink (ED9-IW65-3P460-A) — 11A
- 3 Phase 575V with PowerLink (ED9-IW65-3P575-A) — 8A
