Edwards 60-Ton Shop Press with PowerLink Hydraulic Tool
Are you looking for a shop press that handles bearing work, metal bending, and part straightening without limiting the size of your material?
What if your ironworker could also power a 60-ton press with the same quick-connect hookup you already use?

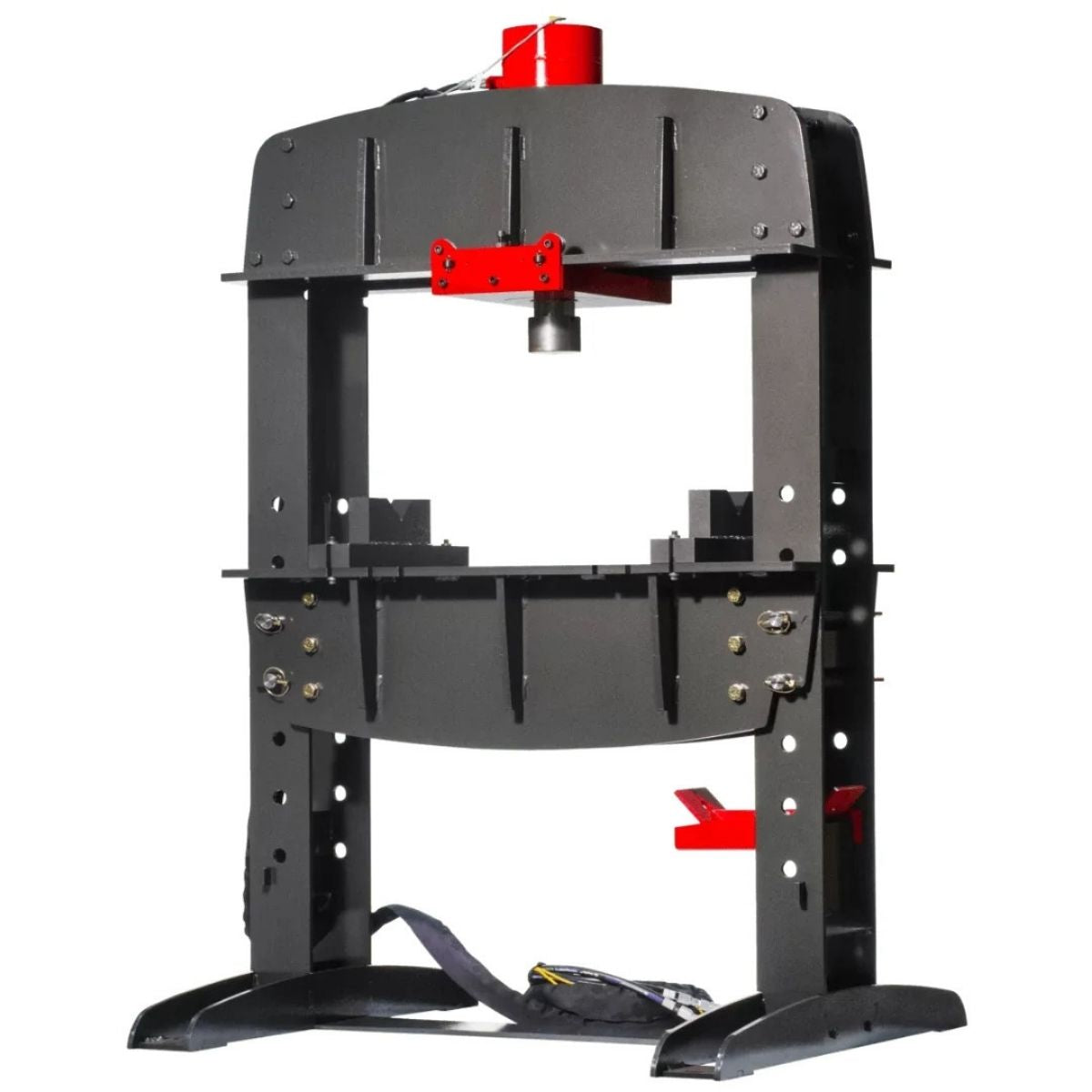

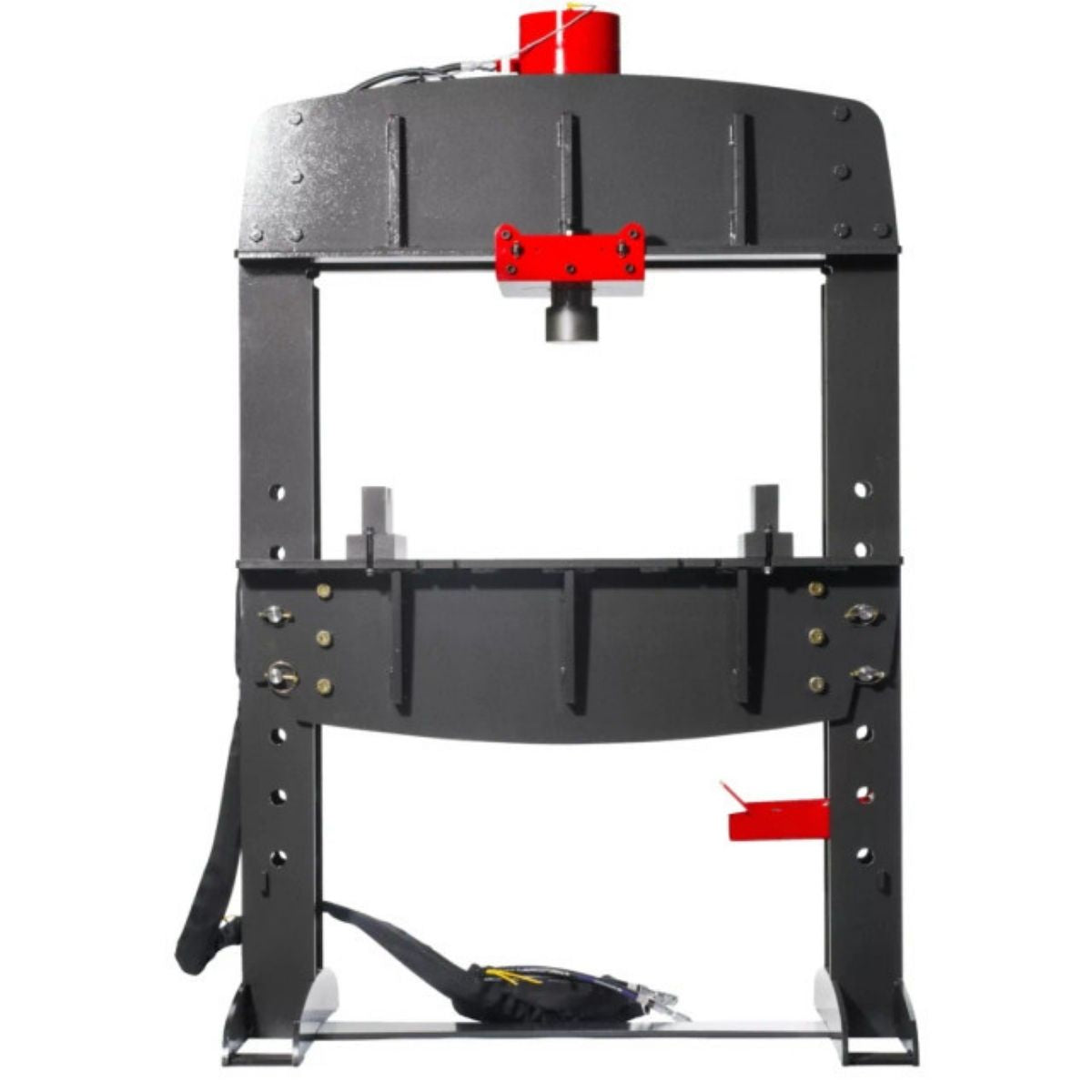

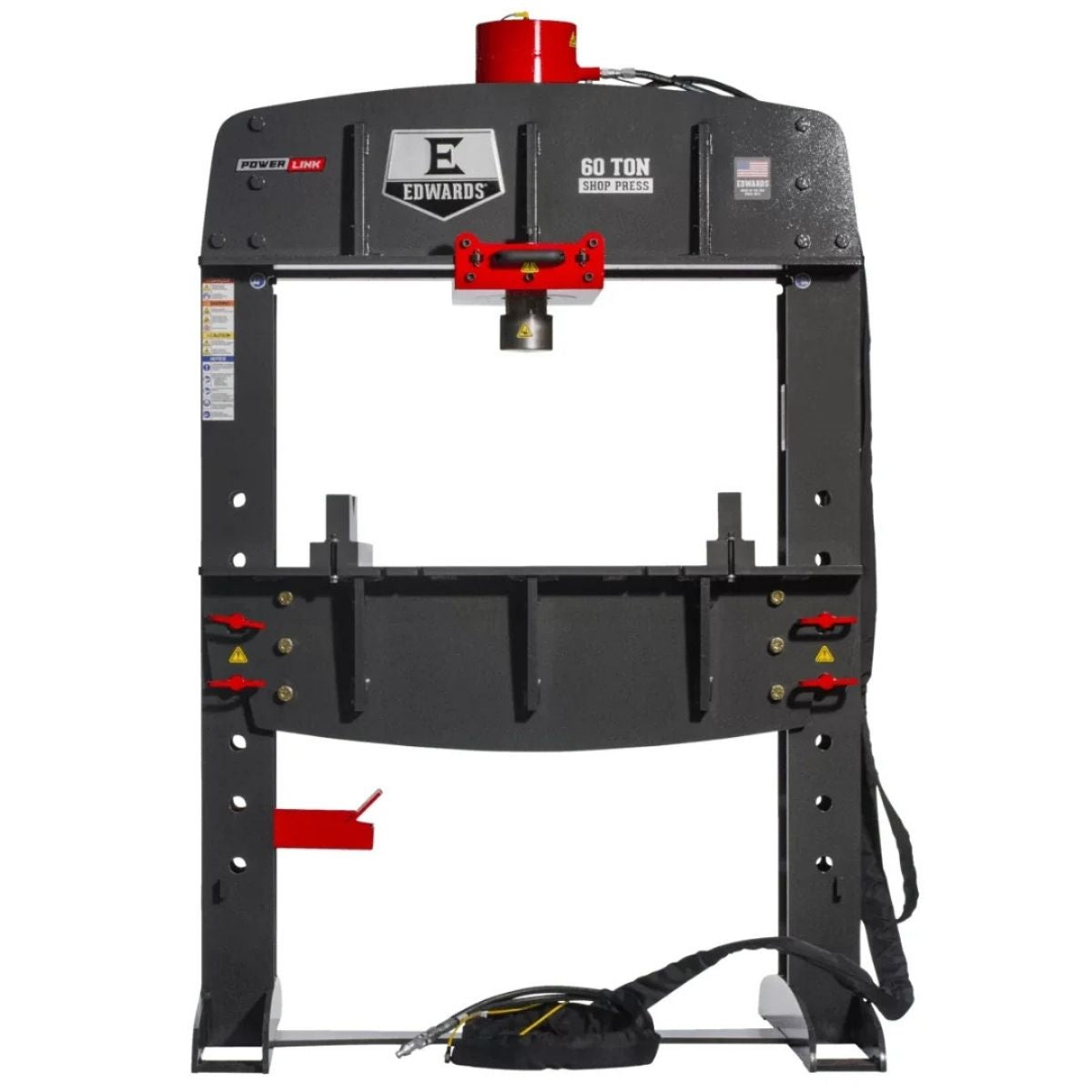

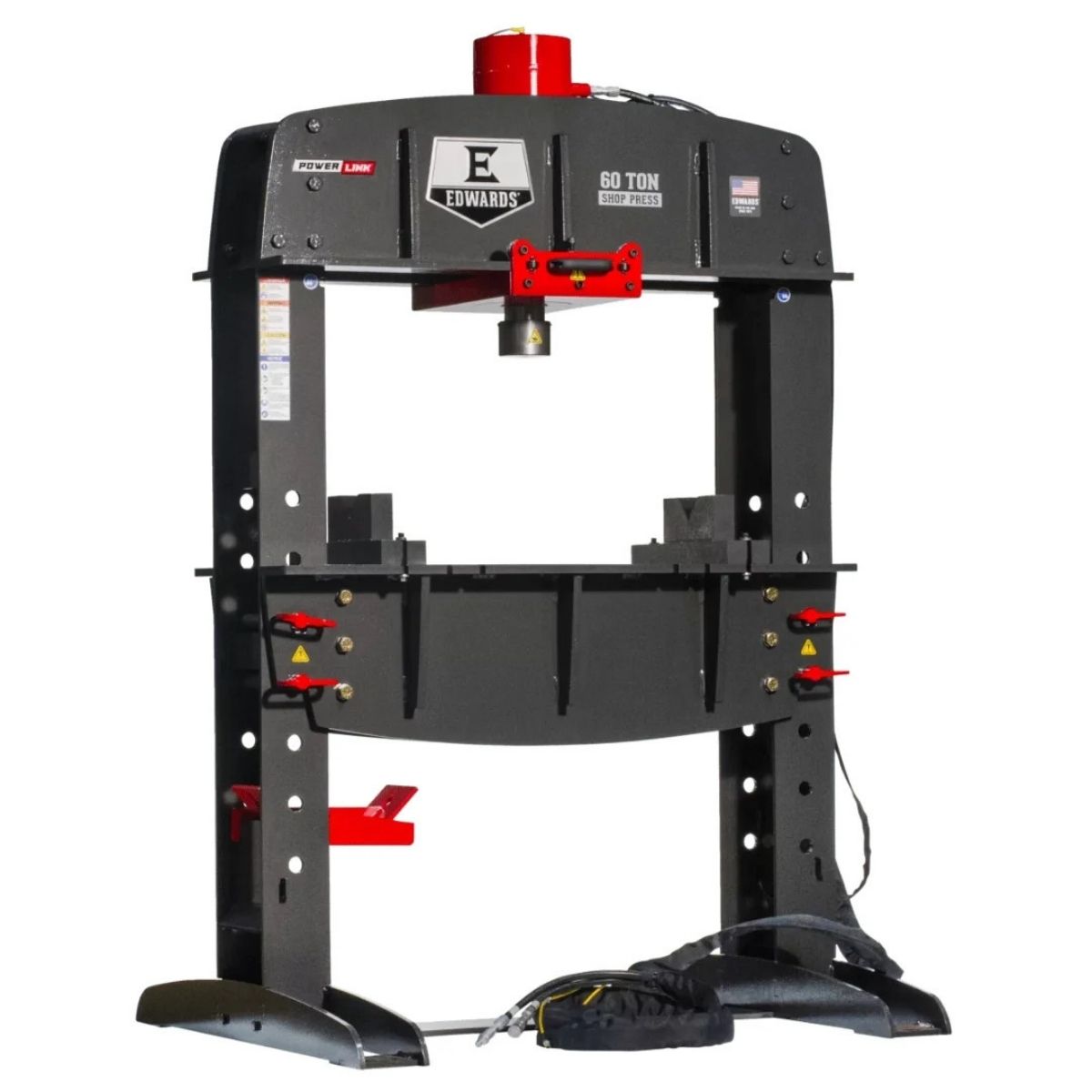

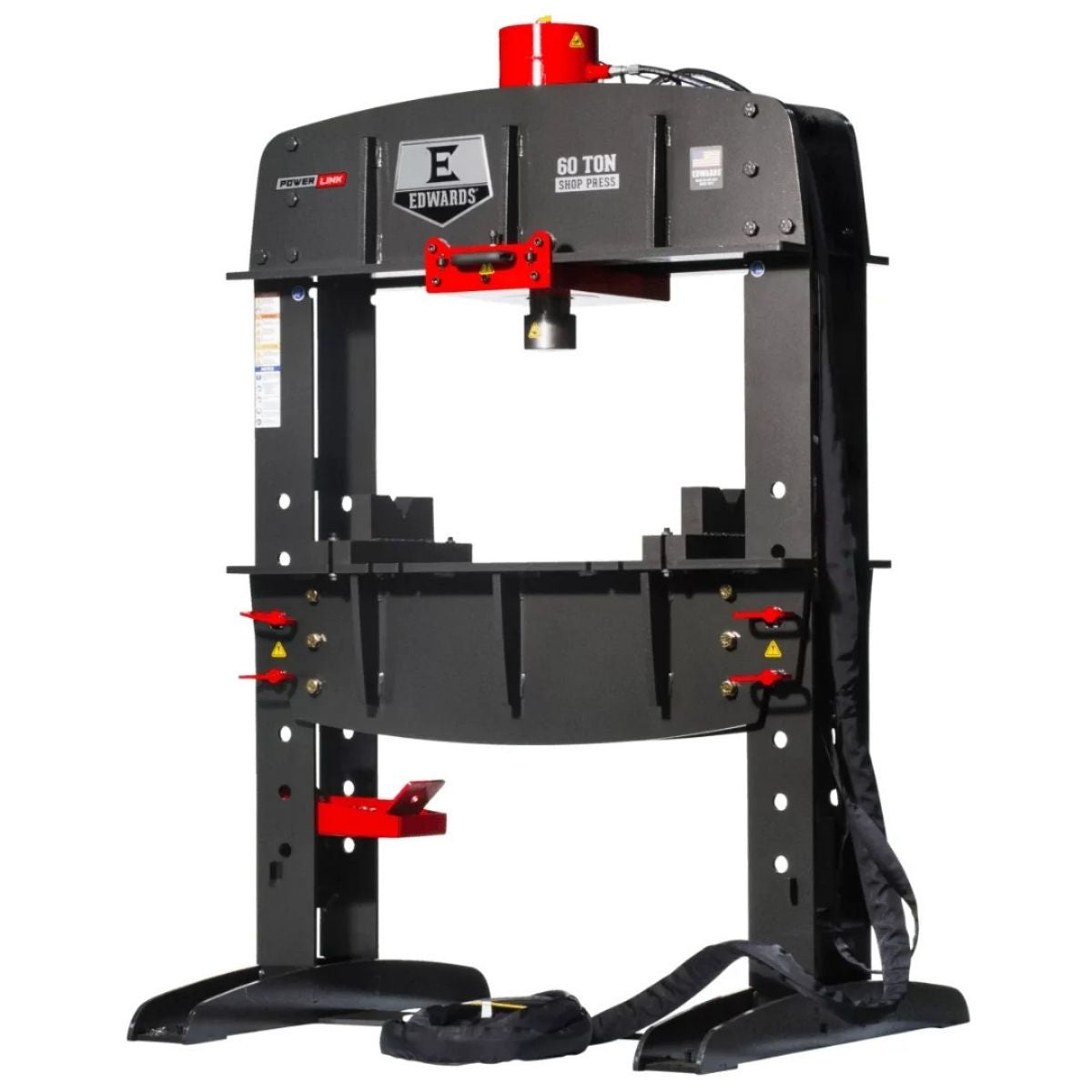

Meet the Edwards 60-Ton Shop Press with PowerLink Hydraulic Tool, a heavy-duty open-sided press built to run off an Edwards Ironworker with PowerLink or a compatible Portable Power Unit.
With a rolling cylinder, hydraulic-assist work table, electric foot pedal, and a 39-1/4 by 42 inch table surface, the press handles both standard and custom tooling across a wide range of shop jobs.
When the press fits your power source and your workflow, you get consistent, repeatable results with less setup time and more control.
Edwards HAT8000 for Heavy-Duty Pressing and Bending Work
Open-Sided Frame Accommodates Longer Material
The open-sided steel frame design lets longer stock pass through without hitting the press structure. This allows you to press, bend, or straighten parts that would not fit in a standard closed-frame press.
Rolling Cylinder Increases Tooling Flexibility
The rolling cylinder moves across the work table to position force exactly where the job requires it. This adaptability makes the press useful for a wider variety of standard and custom tooling setups without repositioning the part.
Hydraulic-Assist Work Table Improves Setup Safety
The adjustable work table uses hydraulic assist with lift chains and a bracket to raise and lower it safely between setups. This reduces the physical effort of adjusting table height and keeps the operator in a stable, controlled position.
Electric Foot Pedal with Jog Control Keeps Hands Free
The integrated electric foot pedal operates the press and includes a jog control for precise incremental movement. This lets the operator guide the workpiece with both hands while maintaining full control of the ram.
What's Included
What's Included? Edwards 60-Ton Shop Press with PowerLink Hydraulic Tool
-
Edwards 60-Ton Shop Press with PowerLink Hydraulic Tool — Provides a 60-ton open-sided press platform for bearing, bending, and straightening work in the shop.
-
20' Quick-Connect Hoses — Allow simple plug-and-play connection to a compatible Edwards PowerLink Ironworker or Portable Power Unit.
-
Electric Foot Pedal — Controls press operation and includes integrated jog control for precise ram movement.
-
Lift Chains and Bracket — Support the hydraulic-assist adjustable work table during height changes.
-
Pressure Gauge — Displays pressing force so you can produce accurate, repeatable parts.
Specs
Edwards 60-Ton Shop Press with PowerLink Hydraulic Tool Specifications
- Model: HAT8000
- Stock Number: ED9-HAT8000
- Rating: 60 Ton
- Stroke: 12-1/4 in
- Work Table: 39-1/4 in x 42 in
- Product Dimensions: 48 in x 54 in x 86 in
- Steel Frame Thickness: 1/2 in
- Minimum Ram Speed: 0.330 in/sec
- Minimum Return Speed: 0.456 in/sec
- Net Weight: 1,900 lb
- Power Source: Requires Edwards Ironworker with PowerLink System or compatible Portable Power Unit (sold separately)
- Warranty: 1 Year
