Edwards 60-Ton Shop Press with Portable Power Unit

Edwards 60-Ton Shop Press with Portable Power Unit

Edwards 60-Ton Shop Press for Heavy Metal Fabrication

Open-Sided Frame Handles Long Material

The open-sided design lets longer stock pass through the frame without restriction. This keeps more material in the press zone and reduces the need to reposition parts mid-job.

Hydraulic-Assist Table Supports Safe Setup

The work table adjusts with hydraulic assist and includes lift chains and a bracket for positioning. This lets operators set the right working height for each job without manual lifting.

Electric Foot Pedal Keeps Both Hands Free

The electric foot pedal includes integrated jog control so you can manage the ram while holding the workpiece steady. This gives you direct control over press speed and position throughout each cycle.

Pressure Gauge Supports Repeatable Results

The built-in pressure gauge shows exact tonnage during every press cycle. Accurate pressure readings help you hit the same result from part to part without guessing.

What's Included

What's Included? Edwards 60-Ton Shop Press with Portable Power Unit

• Edwards 60-Ton Shop Press — Provides 60 tons of hydraulic pressing force for bearing work, metal bending, and part straightening.

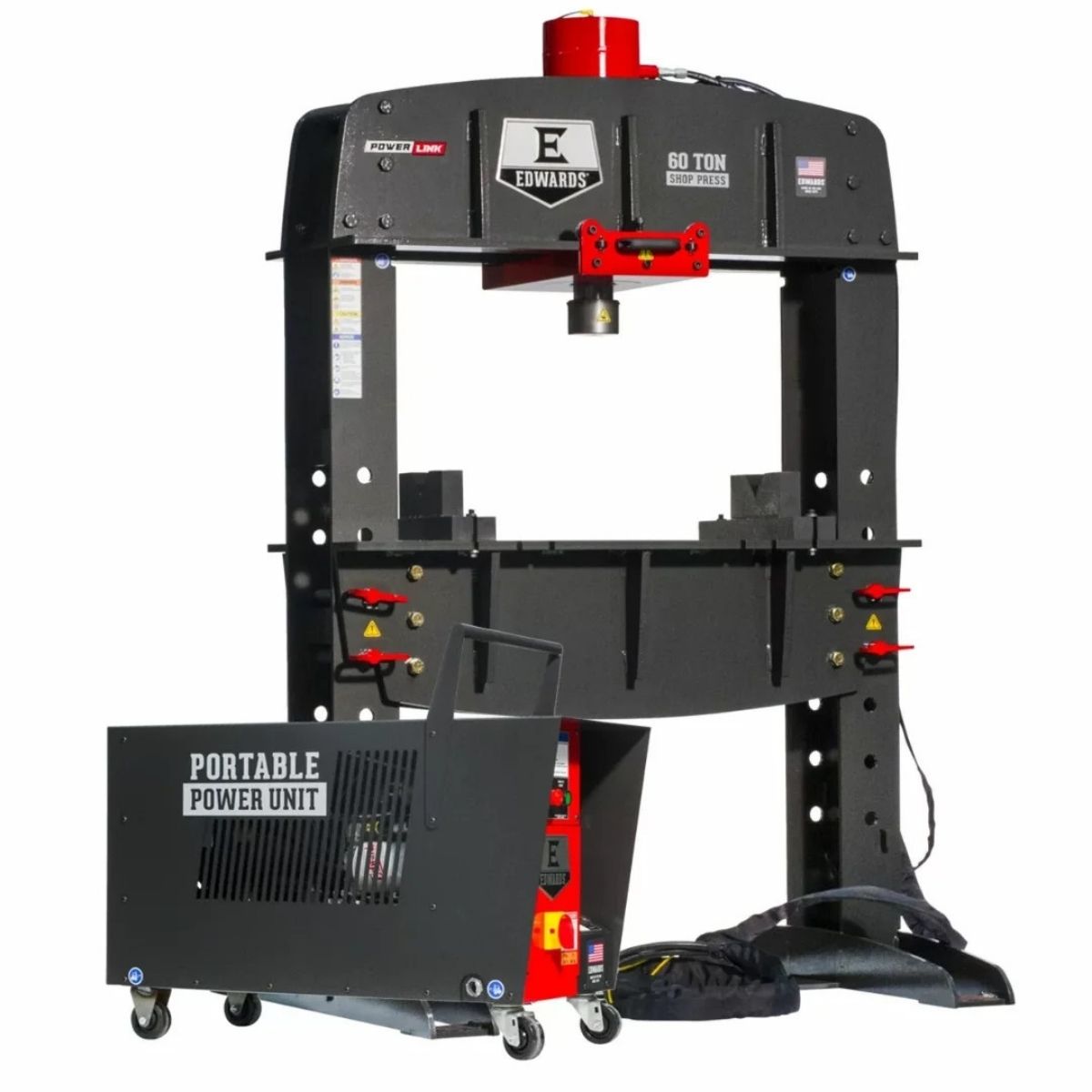

• Portable Power Unit — Powers the press hydraulics and connects via 20-foot quick-connect hoses for simple plug-in operation.
• Lift Chains and Bracket — Support hydraulic-assist work table height adjustment for safe operator positioning.

Specs

Edwards 60-Ton Shop Press with Portable Power Unit Specifications

• Rating: 60 Ton
• Stroke: 12-1/4 in
• Work Table: 39-1/4 in x 42 in
• Product Dimensions: 48 in x 54 in x 86 in
• Minimum Ram Speed: .330 in/sec
• Minimum Return Speed: .456 in/sec
• Net Weight: 2,300 lb
• Warranty: 1 Year

Specs by Configuration

• 230V, 1 Phase — Stock Number: ED9-HAT8010 | Model: HAT8010
• 230V, 3 Phase — Stock Number: ED9-HAT8020 | Model: HAT8020
• 460V, 3 Phase — Stock Number: ED9-HAT8030 | Model: HAT8030
