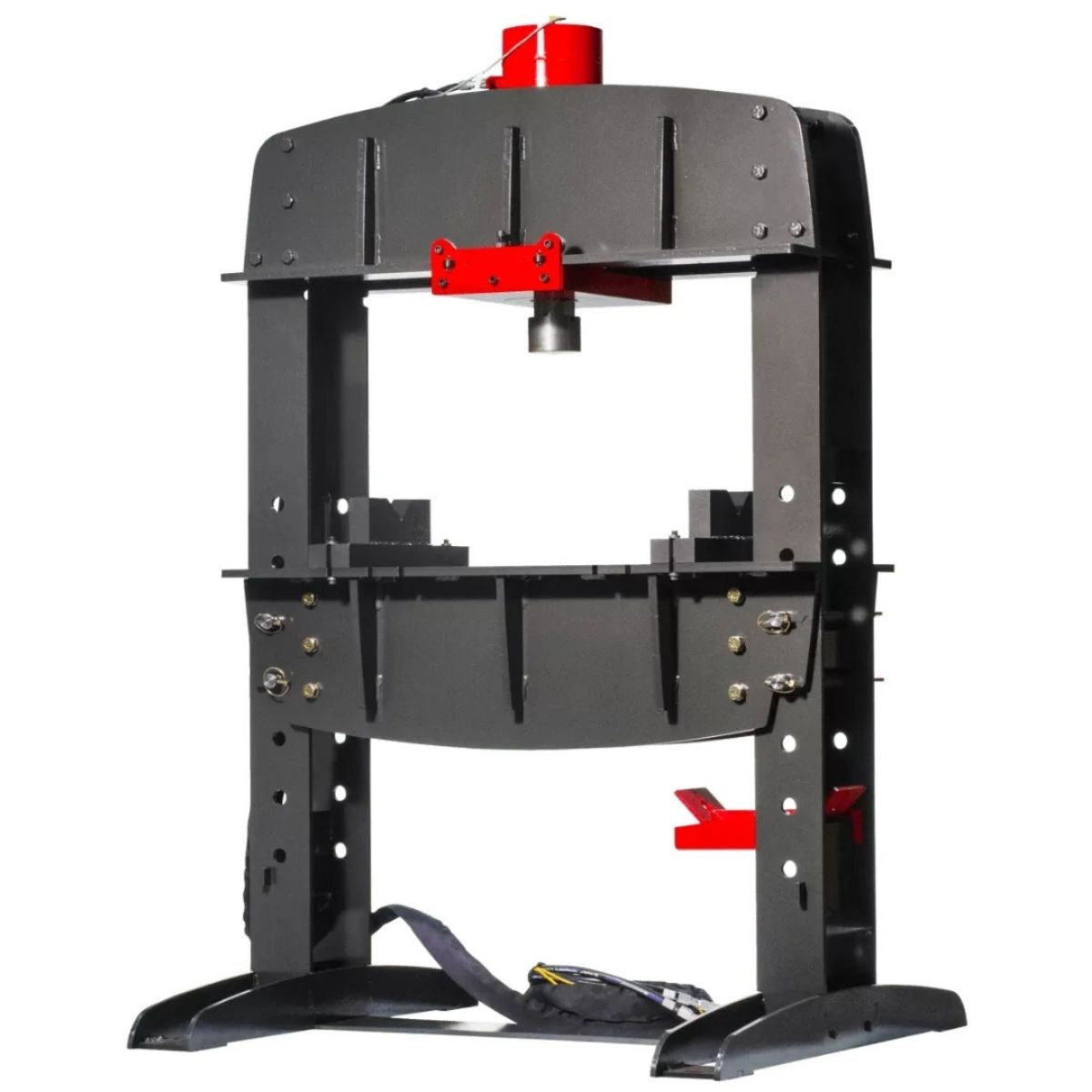

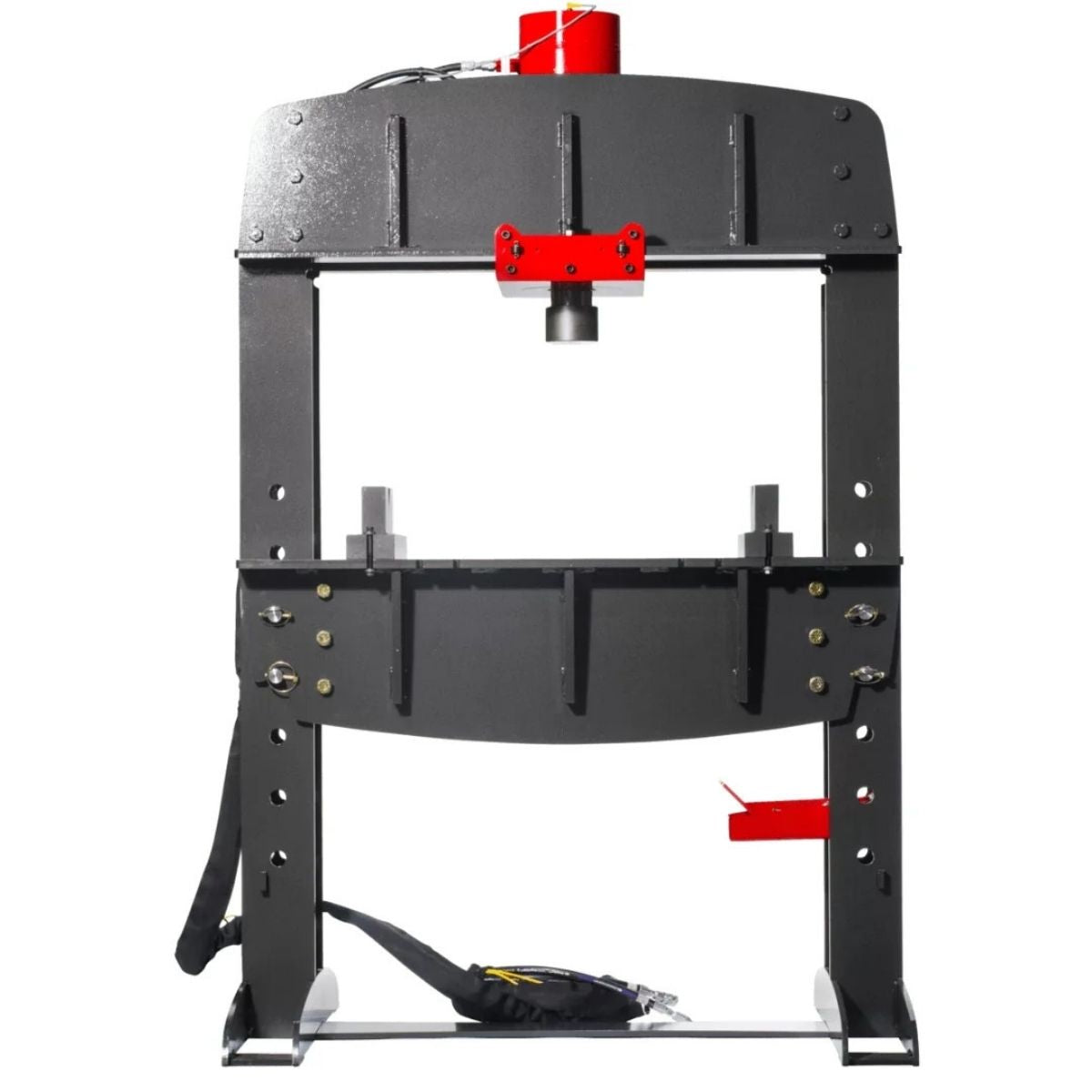

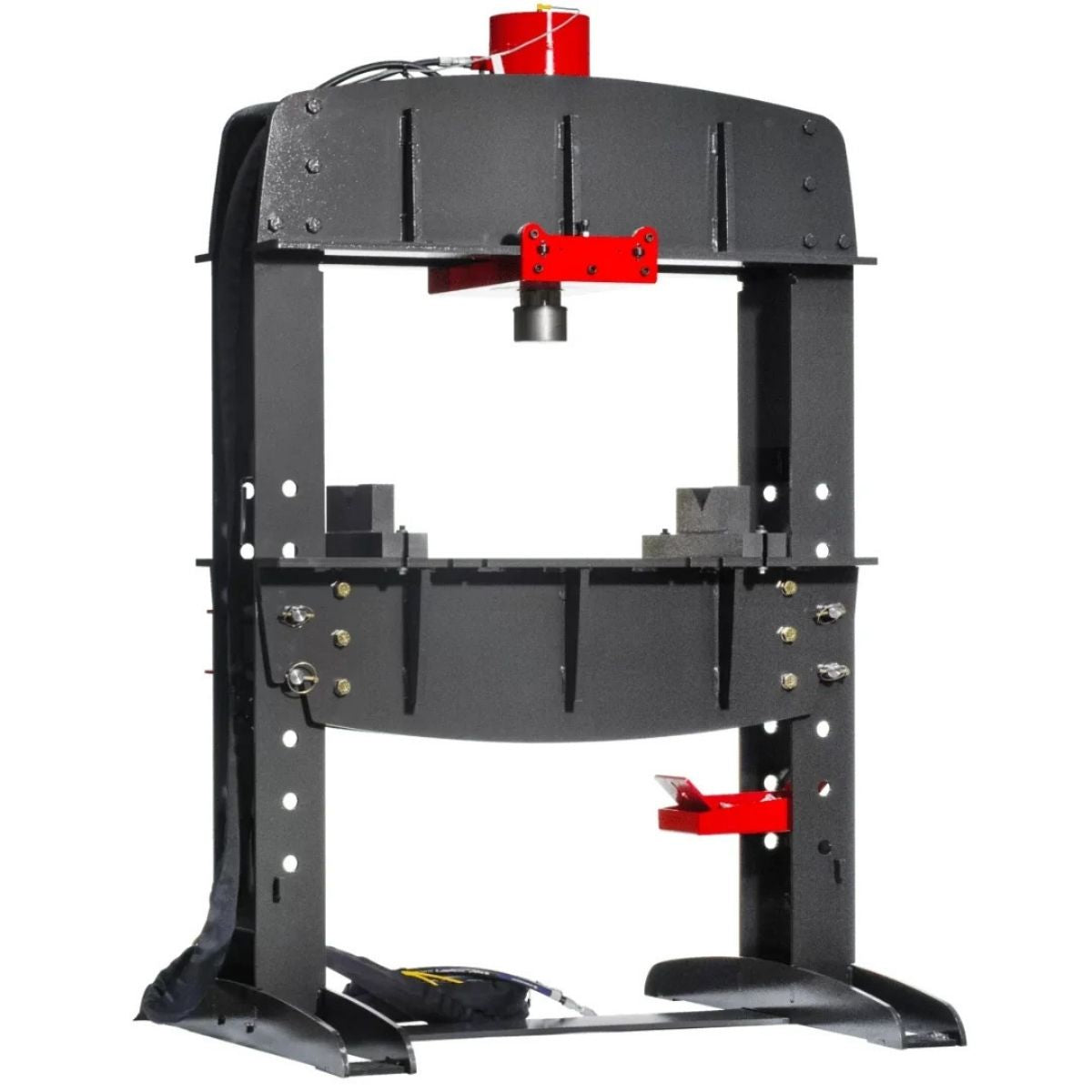

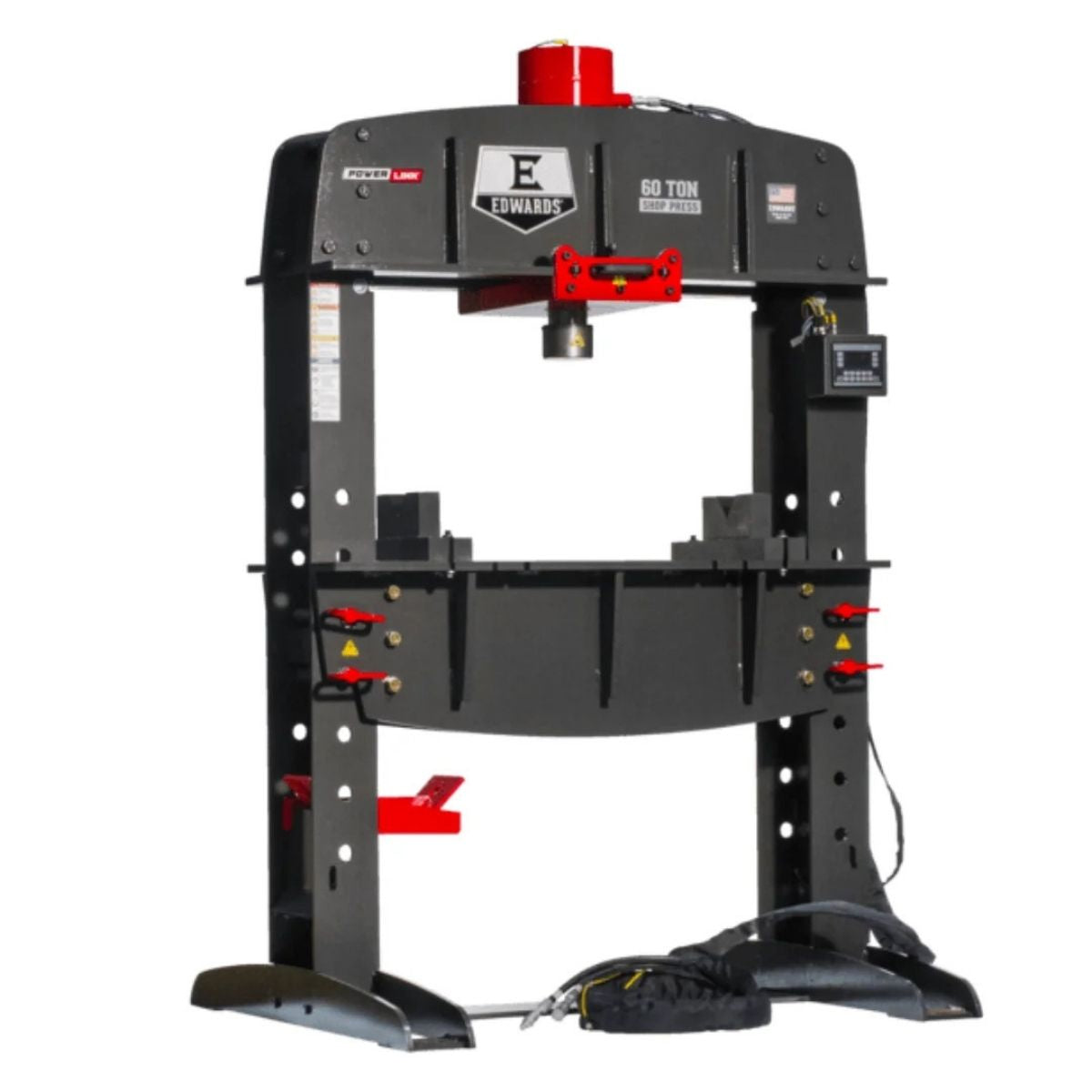

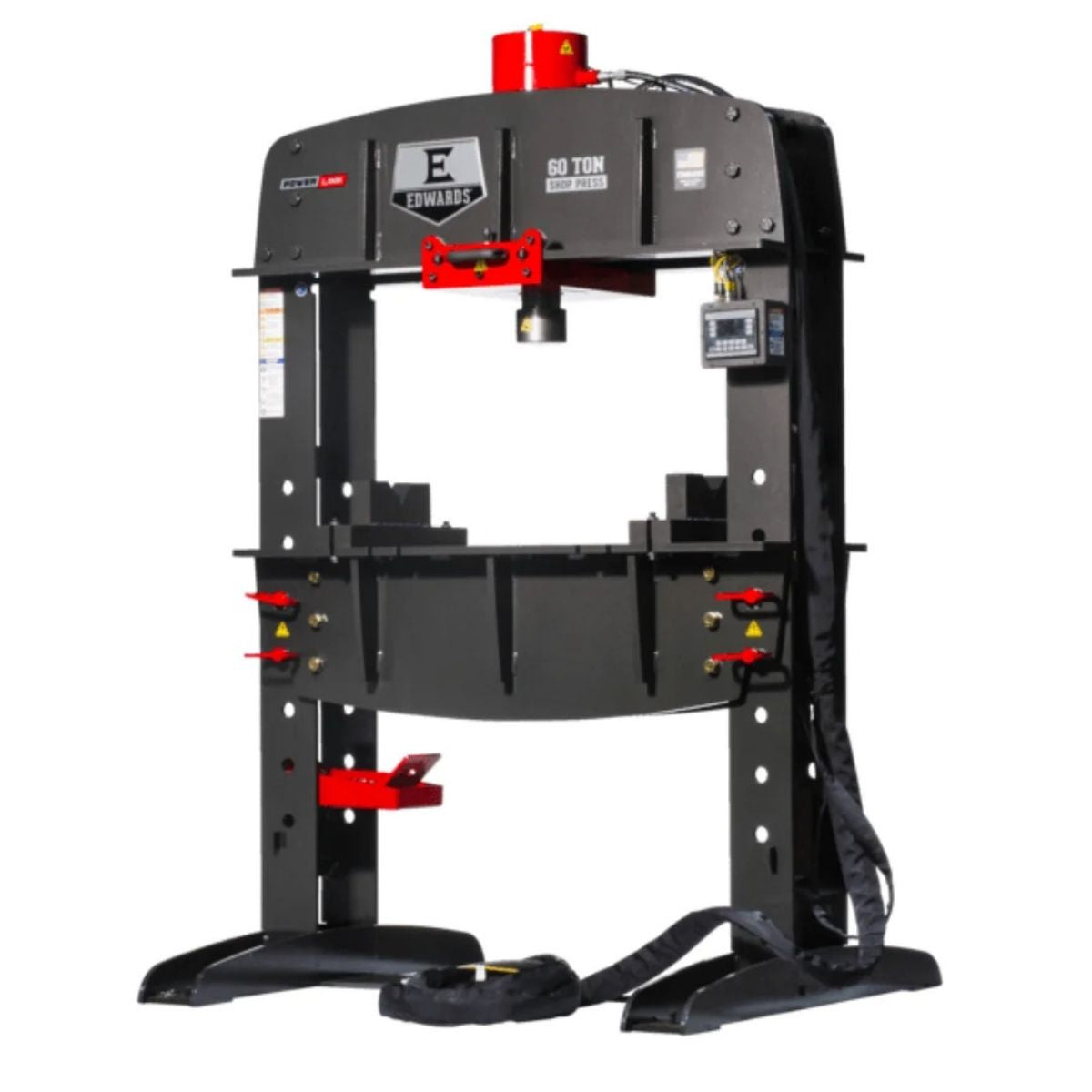

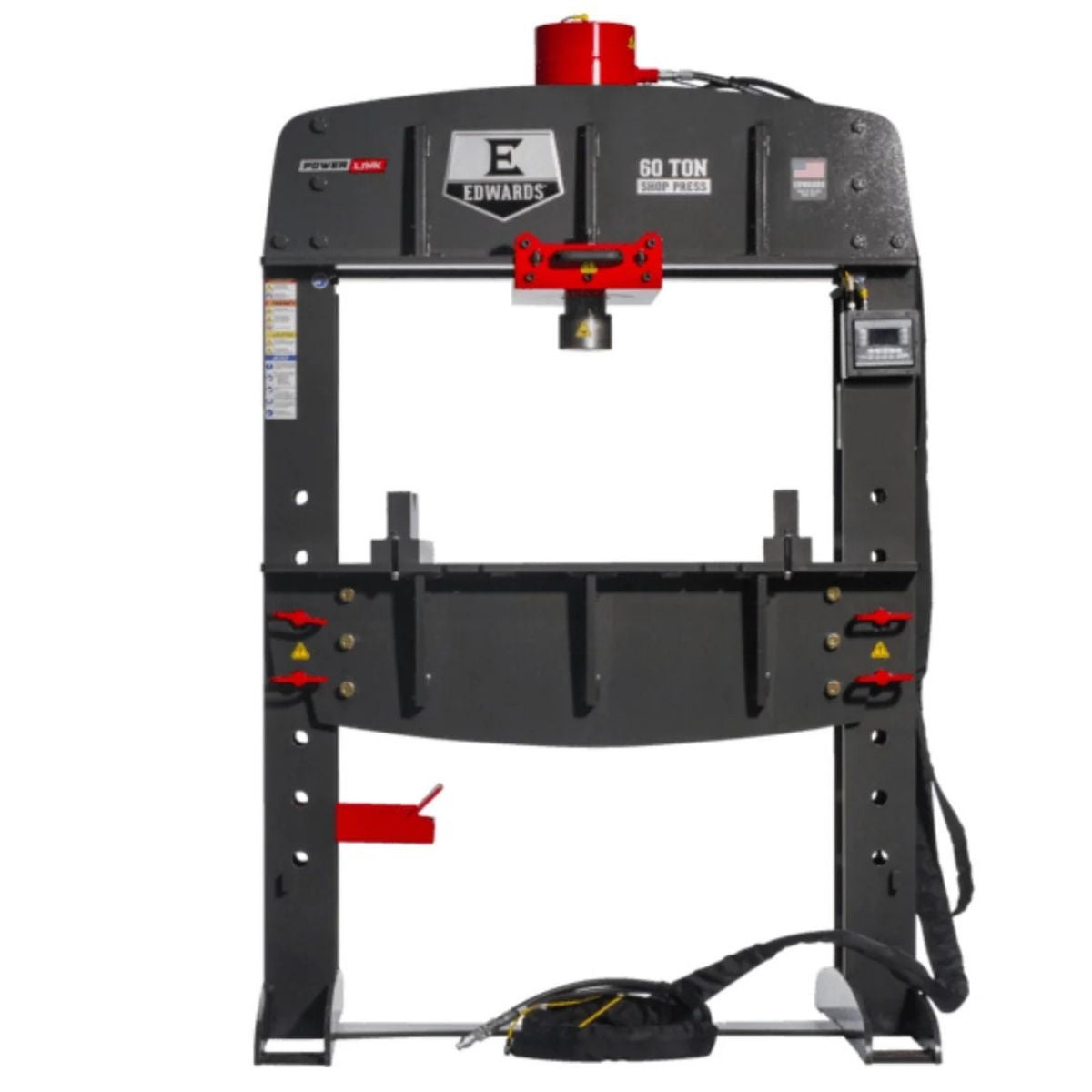

Edwards 60-Ton Shop Press with PLC and PowerLink Hydraulic Tool
Are you spending too much time repeating the same press cycle by hand on every part?
What if your shop press could remember the cycle settings and run them the same way every time?
Meet the Edwards 60-Ton Shop Press with PLC and PowerLink Hydraulic Tool, a programmable hydraulic press built for shops that need consistent and repeatable results.
With a magnetic PLC control box, electric foot pedal, rolling cylinder, and hydraulic-assist adjustable work table, this press is built for steady production work.
When the press repeats the same stroke every time, you can focus on the work rather than managing the machine.
Edwards HAT8050 for Repeatable Production Pressing
Programmable Logic Control Reduces Cycle Time
The PLC lets you program repeatable press actions and run them consistently across a full production run. Adjustable up and down stroke control delivers up to 50% time savings compared to manual cycling.
Adjustable PSI Control Sets Accurate Pressure
The PLC allows you to dial in the exact pressure needed for each job and hold it there. This keeps force consistent from part to part without manual adjustment between cycles.
Rolling Cylinder and Open Frame Allow Longer Stock
The rolling cylinder moves to accept a wide range of tooling setups and part positions. The open-sided frame lets longer material pass through without obstruction.
Hydraulic-Assist Work Table Improves Operator Safety
The work table adjusts to multiple heights with hydraulic assist, reducing strain when positioning heavy parts. Lift chains and a bracket are included to support safe table adjustment during setup.
What's Included
What's Included? Edwards 60-Ton Shop Press with PLC and PowerLink Hydraulic Tool
-
Edwards 60-Ton Shop Press with PLC and PowerLink Hydraulic Tool — Provides the full press platform with PLC control, rolling cylinder, and hydraulic-assist work table for repeatable production pressing.
-
Electric Foot Pedal with Integrated Jog Control — Allows hands-free cycle activation and fine positioning control during pressing operations.
-
20' Quick-Connect Hoses — Connect to a compatible Edwards Ironworker with PowerLink or Portable Power Unit for simple plug-and-play hydraulic hookup.
-
Lift Chains and Bracket — Support safe work table height adjustment during setup.
Specs
Edwards 60-Ton Shop Press with PLC and PowerLink Hydraulic Tool Specifications
- Stock Number: ED9-HAT8050
- Model Number: HAT8050
- Rating: 60 Ton
- Stroke: 12-1/4 in
- Work Table: 39-1/4 in x 42 in
- Product Dimensions: 48 x 54 x 86 in
- Minimum Ram Speed: 0.330 in/sec
- Minimum Return Speed: 0.456 in/sec
- Net Weight: 1,900 lb
- Power Requirement: Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit
- Warranty: 1 Year
