Edwards 60 Ton Shop Press, Frame Only (ED9-HAT8000-UU)
Are you looking for a heavy-duty shop press that works with tooling you already have and handles a wide range of pressing jobs?
What if your shop had a 60-ton press with an open-sided frame that lets long material pass straight through without stopping the work?

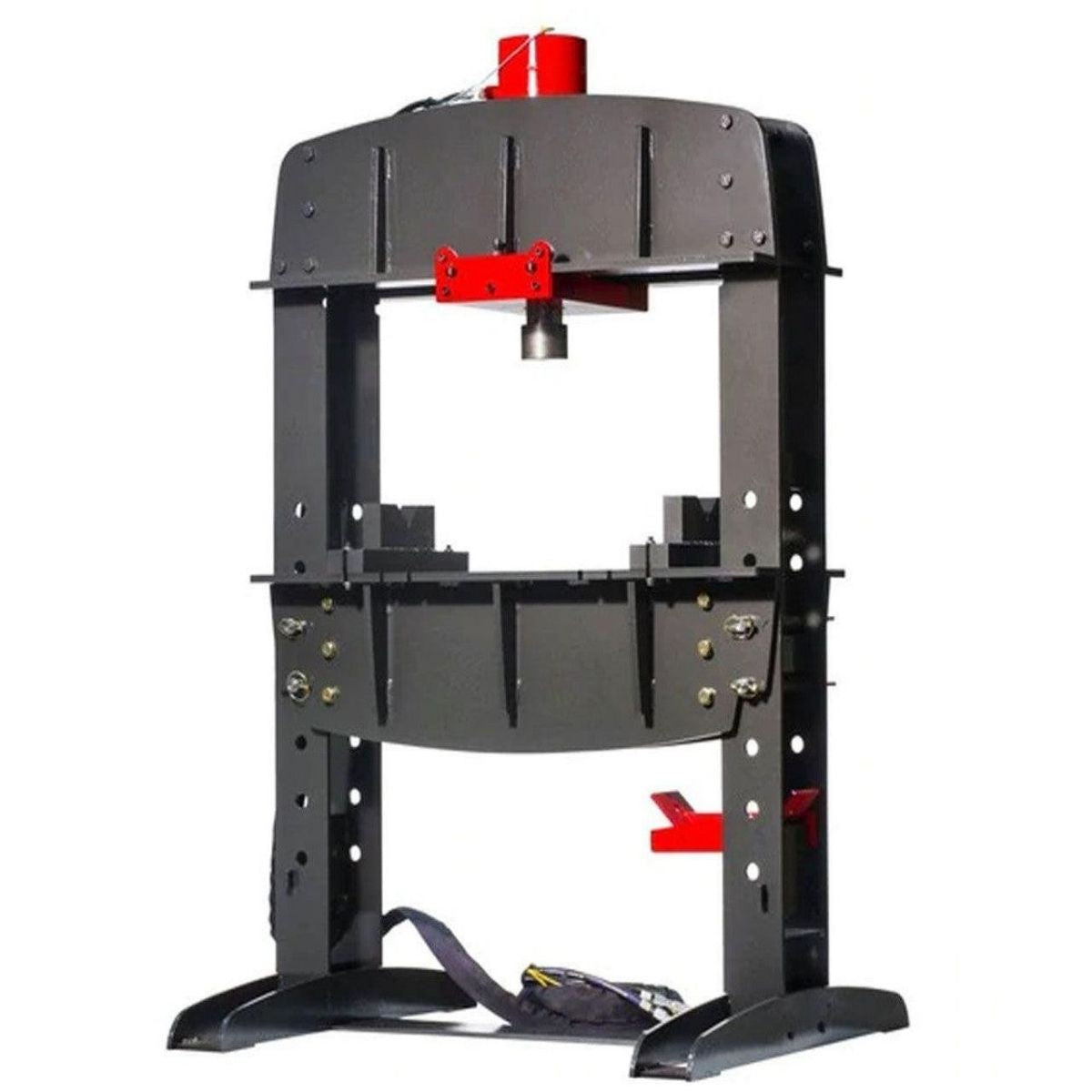

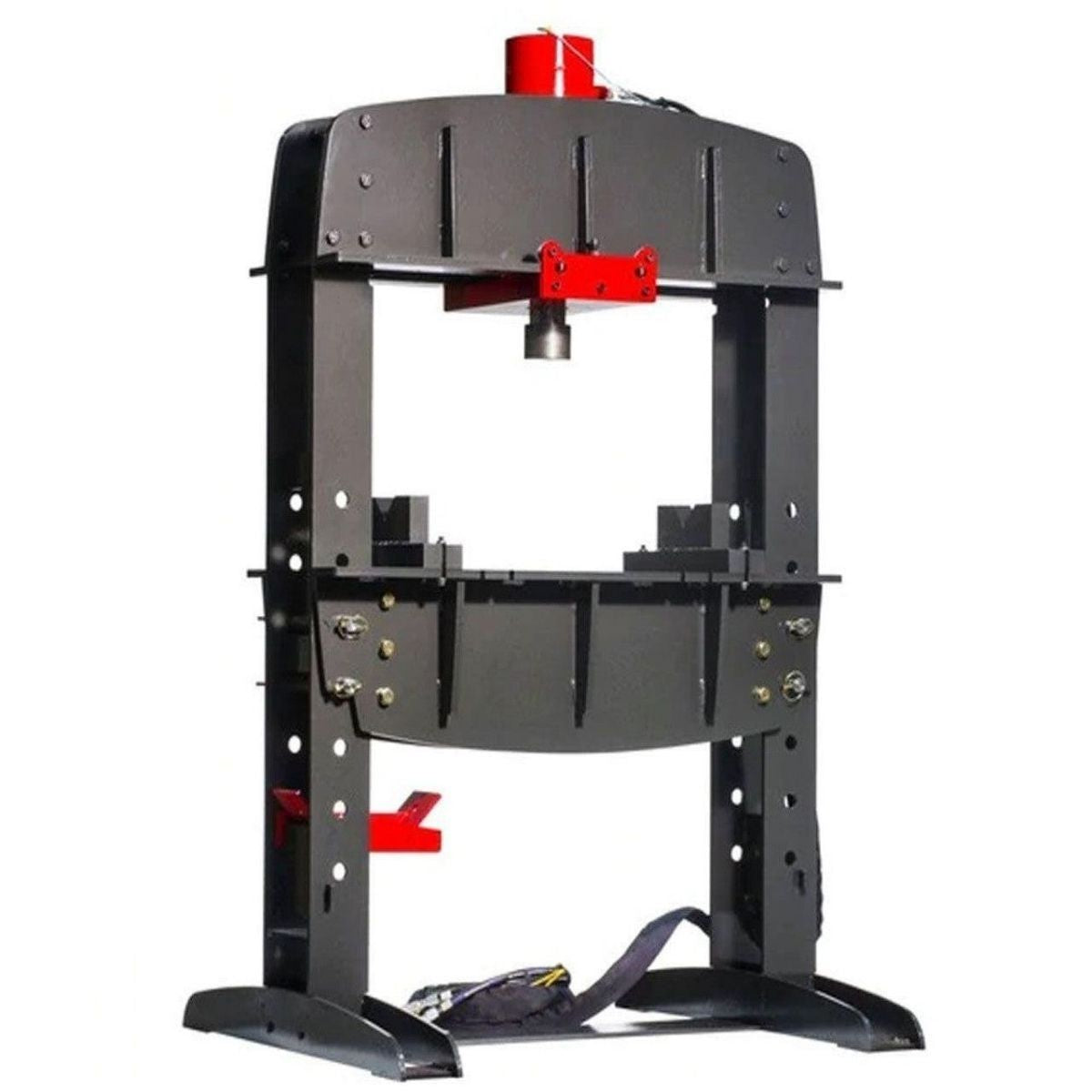

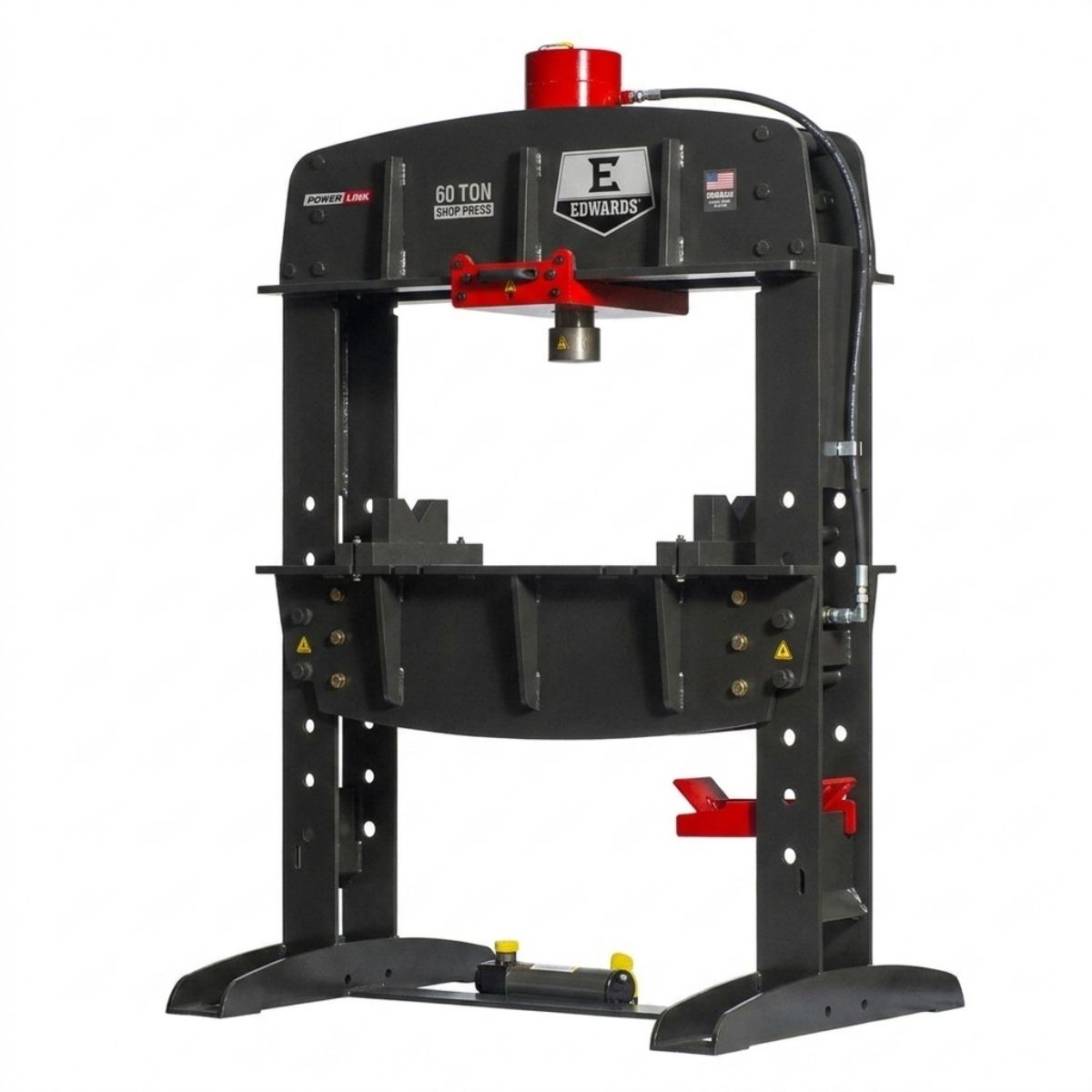

Meet the Edwards 60 Ton Shop Press, Frame Only (ED9-HAT8000-UU), a hydraulic shop press built for pressing, bending, and straightening in a flexible open-frame design.
With a rolling cylinder, hydraulic-assist adjustable work table, electric foot pedal, and 20-foot quick-connect hoses, the press connects directly to a compatible Edwards Ironworker with PowerLink or a Portable Power Unit.
When the press holds firm at full tonnage and the table adjusts quickly, you can move through repeat jobs with steady, predictable results.
Edwards 60 Ton Shop Press for Heavy Pressing, Bending, and Straightening
Rolling Cylinder Increases Positioning Flexibility
The rolling cylinder moves across the press frame to position force exactly where the work requires it. This gives you the flexibility to handle a wide variety of part sizes and pressing tasks without repositioning the workpiece.
Open-Sided Frame Handles Longer Material
The open-sided design lets longer stock pass through the frame during pressing or straightening operations. You are not limited by material length, which keeps more jobs within reach of a single setup.
Hydraulic-Assist Table Adjustment Supports Safe Setup
The work table adjusts hydraulically with lift chains and a bracket, reducing the effort required to reposition the table for different job heights. The large 39-1/4" x 42" table surface gives you a stable platform for wide and heavy parts.
Pressure Gauge and Foot Pedal Support Repeatable Results
The pressure gauge shows accurate tonnage readings so you can dial in the same force from part to part. The electric foot pedal with integrated jog control keeps both hands free to manage the workpiece throughout the press cycle.
What's Included
What's Included? Edwards 60 Ton Shop Press, Frame Only (ED9-HAT8000-UU)
-
Edwards 60 Ton Shop Press Frame — Provides the open-sided press structure, rolling cylinder, adjustable work table, and foot pedal control for pressing, bending, and straightening operations.
-
20' Quick-Connect Hoses — Allow fast connection to a compatible Edwards Ironworker with PowerLink System or a Portable Power Unit for hydraulic power.
-
Lift Chains and Bracket — Support hydraulic-assist work table height adjustment for safer part handling and setup changes.
Specs
Edwards 60 Ton Shop Press, Frame Only (ED9-HAT8000-UU) Specifications
- Model: ED9-HAT8000-UU
- Rating: 60 Ton
- Cylinder: 4 in
- Stroke: 12-1/4 in
- Minimum Ram Speed: .330 in/sec
- Minimum Return Speed: .456 in/sec
- Work Table: 39-1/4 in x 42 in
- Steel Frame Thickness: 1/2 in
- Product Dimensions: 48 in x 54 in x 86 in
- Shipping Dimensions: 48 in x 54 in x 90 in
- Weight: 1,900 lb
- Power Source: Requires Edwards Ironworker with PowerLink System or Edwards Portable Power Unit (sold separately)
