Edwards 55-Ton Ironworker with 10" Brake — IW55
Are you running a shop where punch, shear, notch, bend, and cope operations slow you down because each one requires a different machine?
What if one compact machine handled all five fabrication operations without giving up capacity or precision?

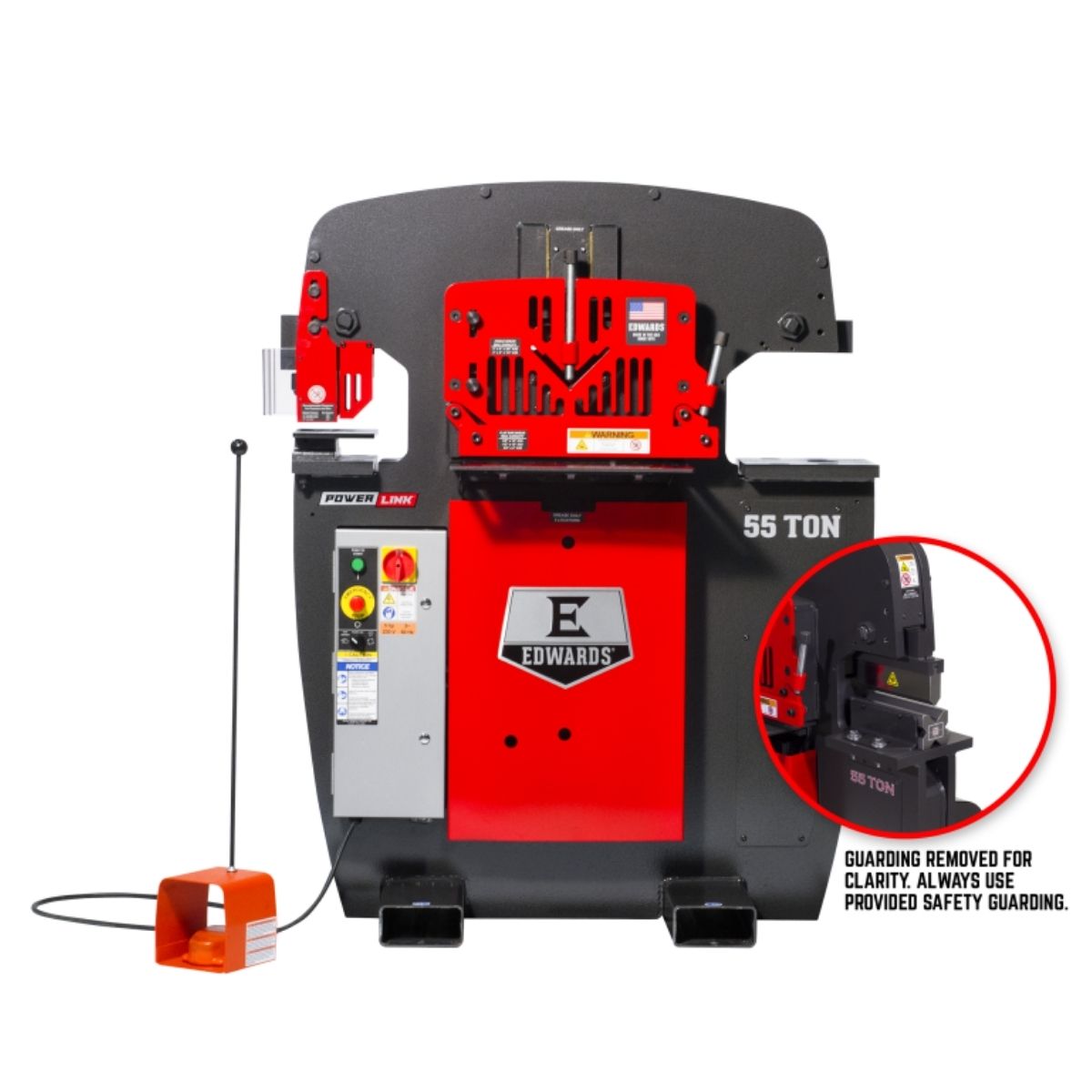

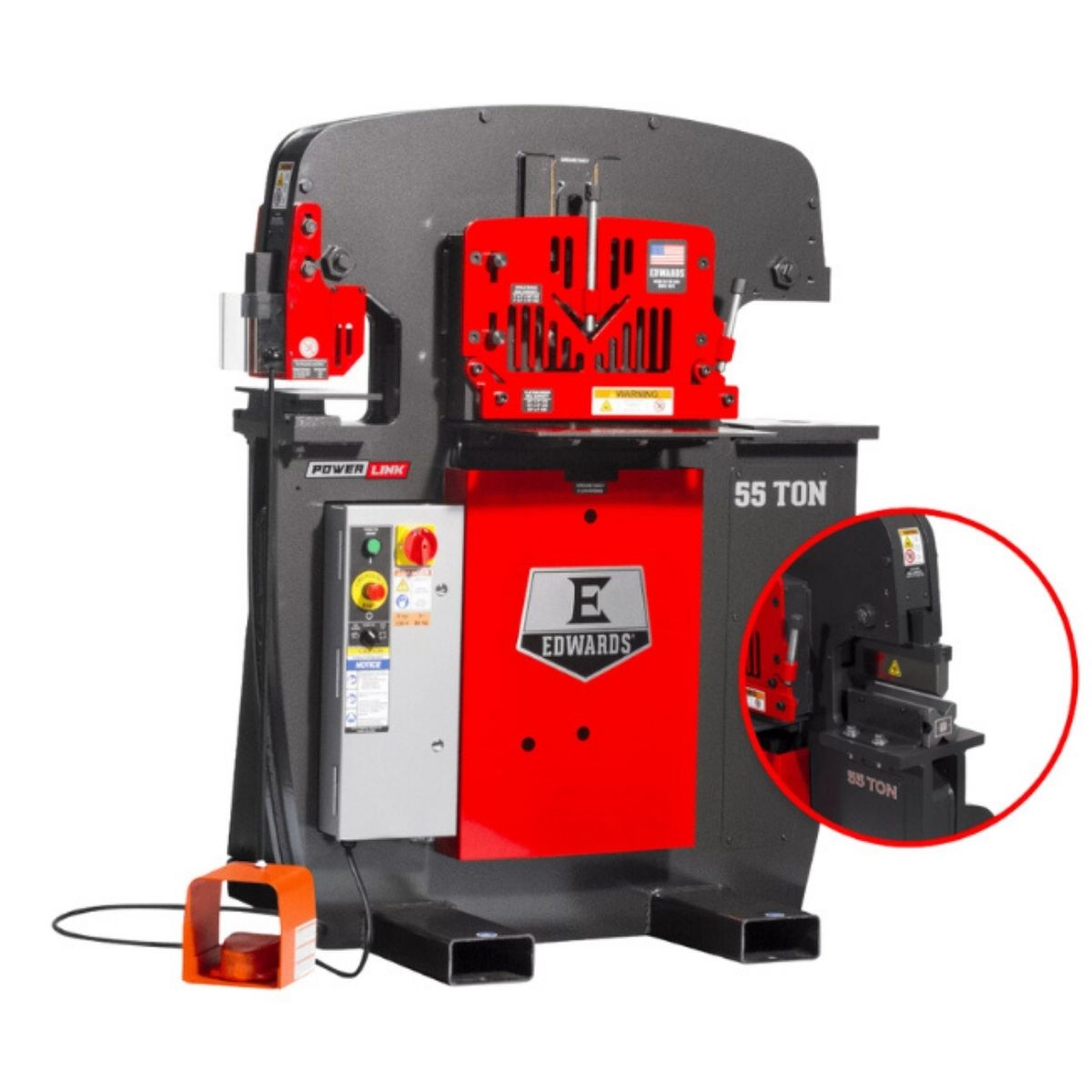

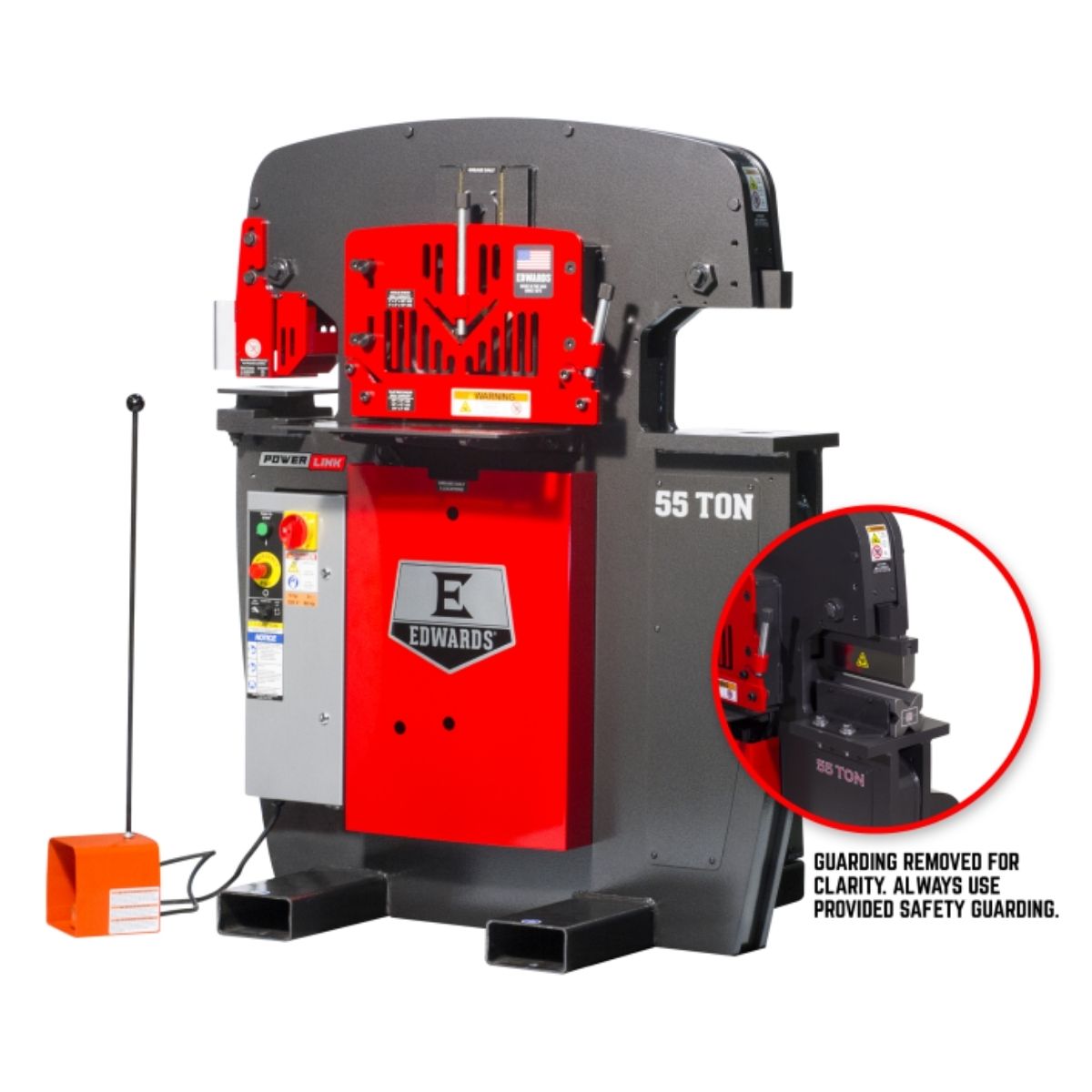

Meet the Edwards 55-Ton Ironworker with 10" Brake — IW55, a heavy-duty American-built ironworker designed for medium shops through full factory maintenance departments.
Available in single and three-phase configurations from 208V to 230V, the IW55 fits a range of shop power setups without compromising punching or shearing force.
When your ironworker handles every fabrication operation at one station, you move through production work with fewer setups and more confidence.
Edwards IW55 for Heavy Fabrication Work
55-Ton Punch Capacity Handles Thick Mild Steel
The IW55 punches up to 1-1/16" diameter holes in 5/8" mild steel with a 7-1/2" throat depth and 1-1/4" stroke. Vertical ram movement delivers even pressure through each punch cycle, which reduces distortion and extends tooling life.
Four Workstations Support Fast Transition Between Operations
The machine runs four workstations — punch, flat bar shear, angle shear, and an open station — so you move between operations without switching machines. The open station accepts 11 interchangeable attachments to match your workload.
Precision Tool Steel Blades Stay Sharp Through Production Use
Flat bar shear blades are machined from high-quality tool steel with four cutting edges for long service life. Angle shear blades include two corner radii and two cutting edges for clean cuts through structural angle.
Optional PowerLink Connects Hydraulic Tools to the IW55
PowerLink turns the IW55 into a power source for Edwards hydraulic tools, expanding what the machine can do beyond its built-in workstations. It is available as an optional upgrade on select configurations for shops that want more from their hydraulic capacity.
What's Included
What's Included? Edwards 55-Ton Ironworker with 10" Brake — IW55
-
Edwards 55-Ton Ironworker with 10" Brake — IW55 — Provides a 55-ton ironworker platform with punch, shear, notch, bend, and cope capability in one machine.
-
10" Brake — Allows you to make precise bends at the machine without a separate press brake.
Note to builder: Confirm with Edwards whether the coper notcher is also included as standard equipment on all configurations. The supplier data references it on non-PowerLink variants only. Update this section before publishing if confirmed.
Specs
Edwards 55-Ton Ironworker with 10" Brake — IW55 Specifications
- Punch Rating: 55 Ton
- Punch Max Capacity: 1-1/16" diameter in 5/8" mild steel
- Punch Stroke: 1-1/4"
- Punch Throat Depth: 7-1/2"
- Punch Open Height: 8-1/8"
- Punch Shut Height: 6-7/8"
- Punch Work Height: 36-9/16"
- Flat Bar Shear Max Capacity: 3/8" x 14", 1/2" x 12", 3/4" x 4"
- Flat Bar Shear Max Round Capacity: 7/8"
- Flat Bar Shear Max Square Capacity: 7/8"
- Flat Bar Shear Work Height: 34-1/2"
- Angle Shear Work Height: 39-7/8"
- Open Workstation Throat Depth: 11-3/16"
- Open Workstation Work Height: 34-1/2"
- Coper Notcher Work Height: 39-1/2"
- Cylinder: 2-1/2" Ram
- Hydraulics: 2500 PSI / 3-1/2 GPM
- Valve Pressure: 2750 PSI
- Reservoir: 7 Gal.
- Product Dimensions: 36-1/8" x 44-3/8" x 55-1/4"
- Shipping Dimensions: 45" x 51" x 62"
- Weight: 2,480 lbs.
- Made in USA
- ETL Certified Controls
- ANSI B11.5-1988(02) Compliant Guarding
- Warranty: Verify with Edwards before publishing
Specs by Configuration
- 1 Phase 230V (ED9-55231022) — Amps: 23A
- 1 Phase 230V with PowerLink (ED9-55231522) — Amps: 23A
- 3 Phase 208V (ED9-55203022) — Amps: 14A
- 3 Phase 208V with PowerLink (ED9-55203522) — Amps: 14A
- 3 Phase 230V with PowerLink (ED9-55233522) — Amps: 14A, Motor: 5HP @ 1725 RPM
