Edwards 55-Ton Ironworker - IW55
Are you spending too much time switching between machines just to punch, shear, notch, and bend mild steel?
What if your shop had one machine that handled all four operations from a single footprint without giving up cutting force?

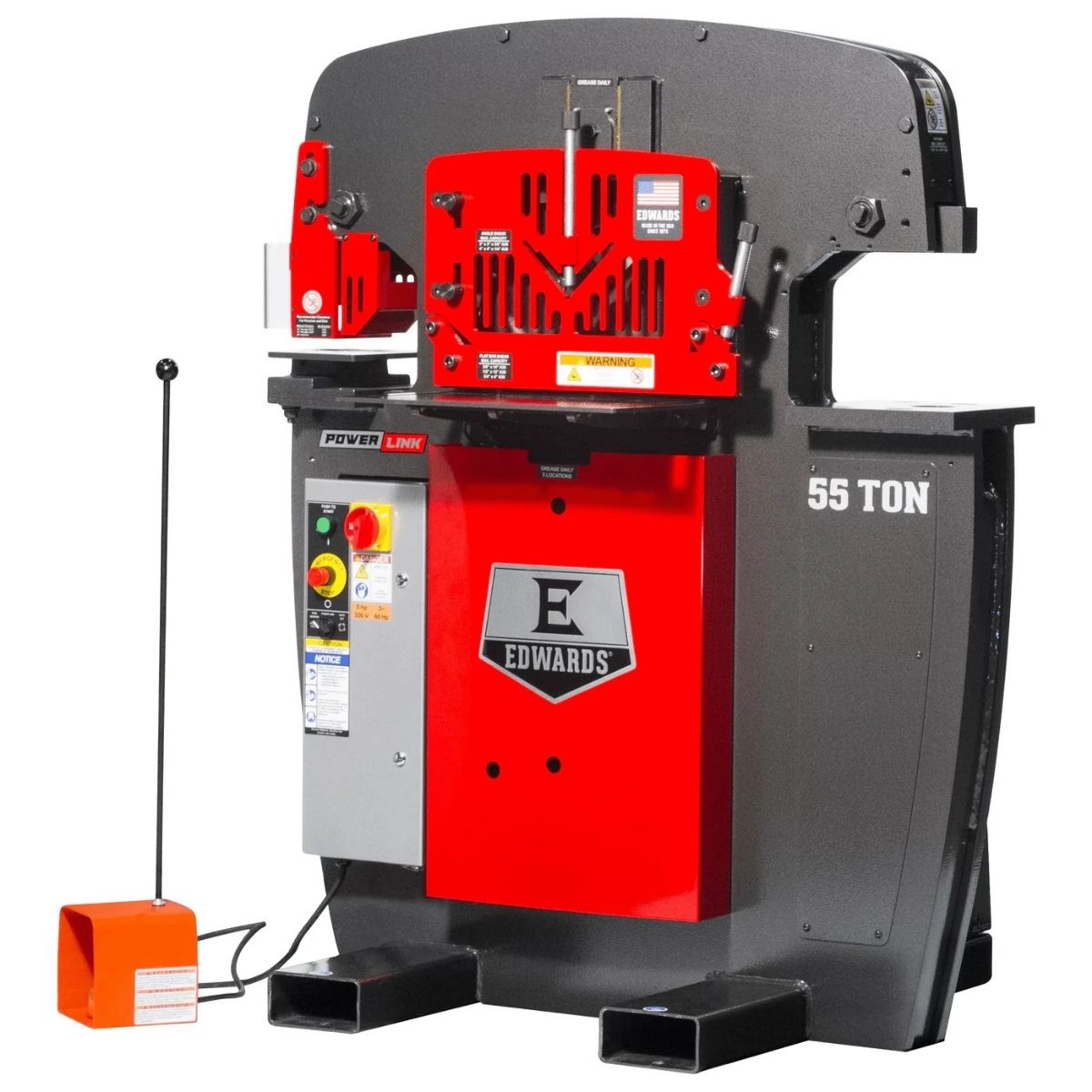

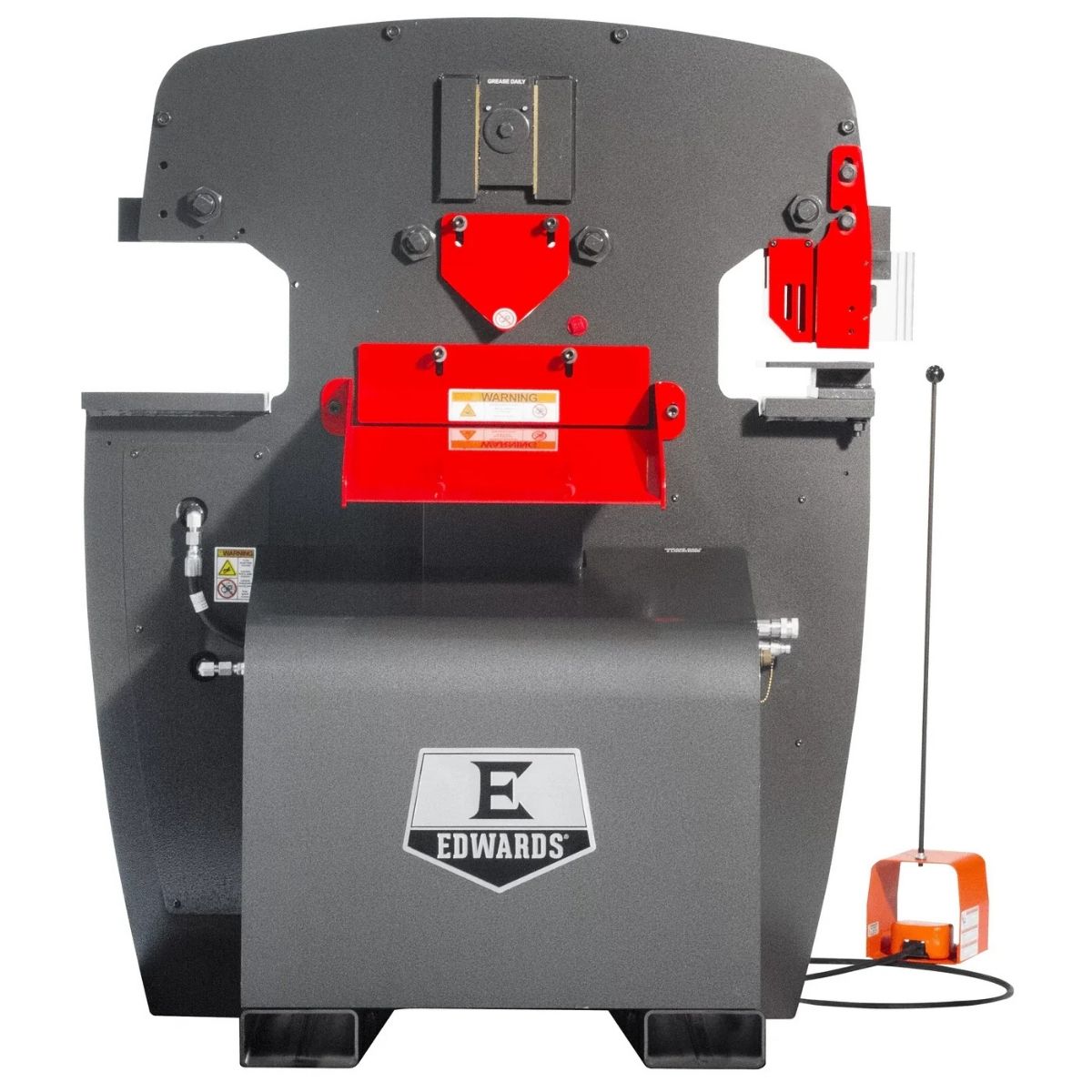

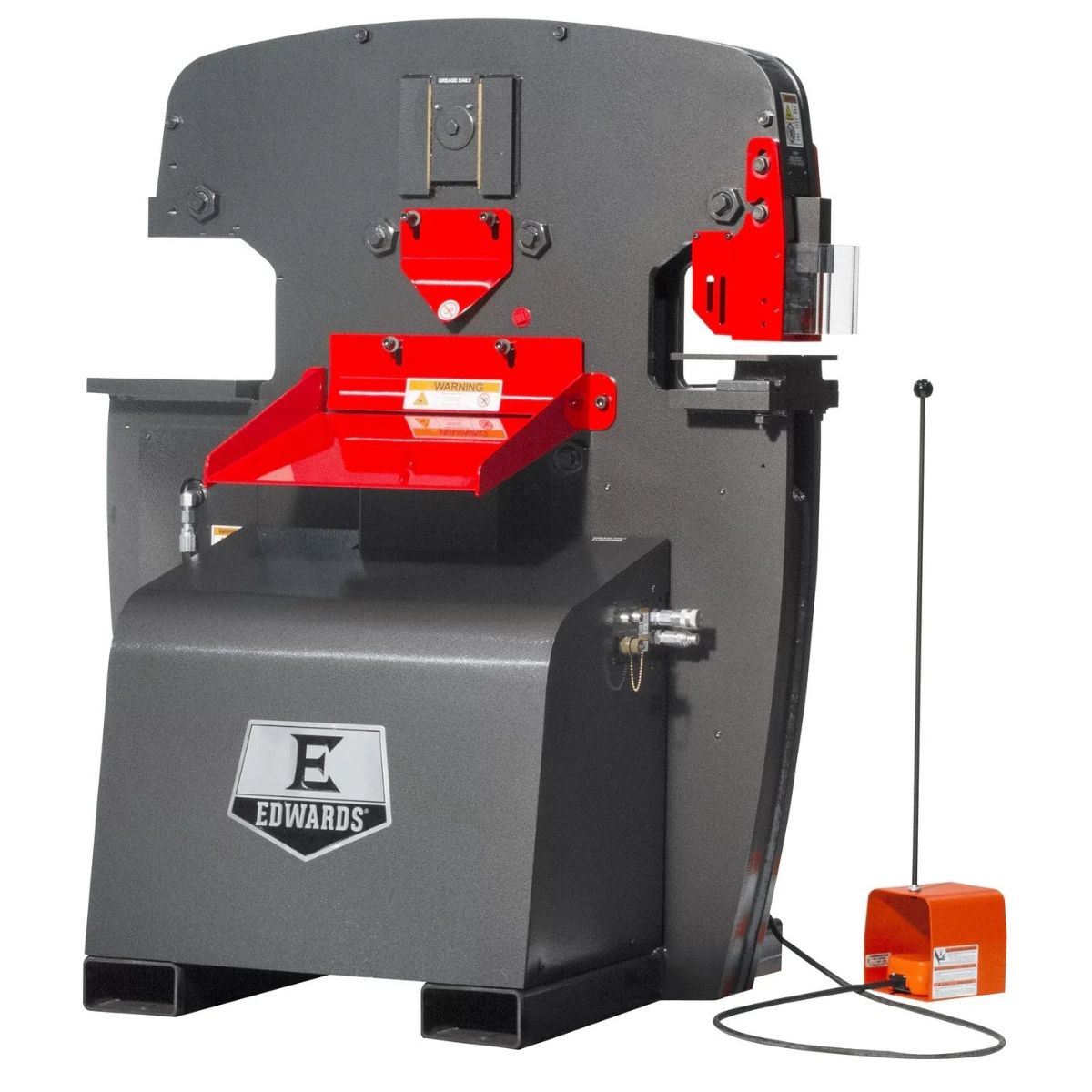

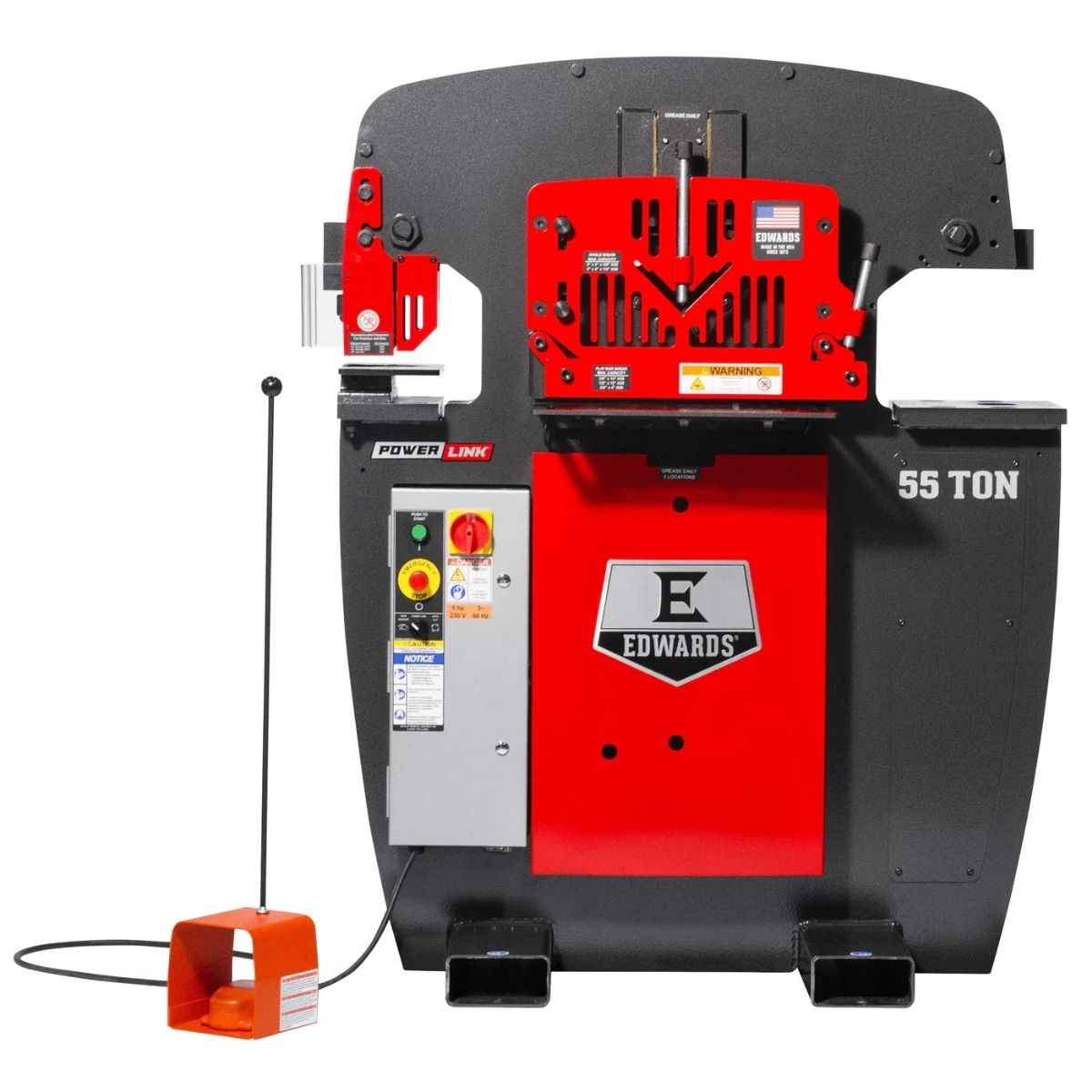

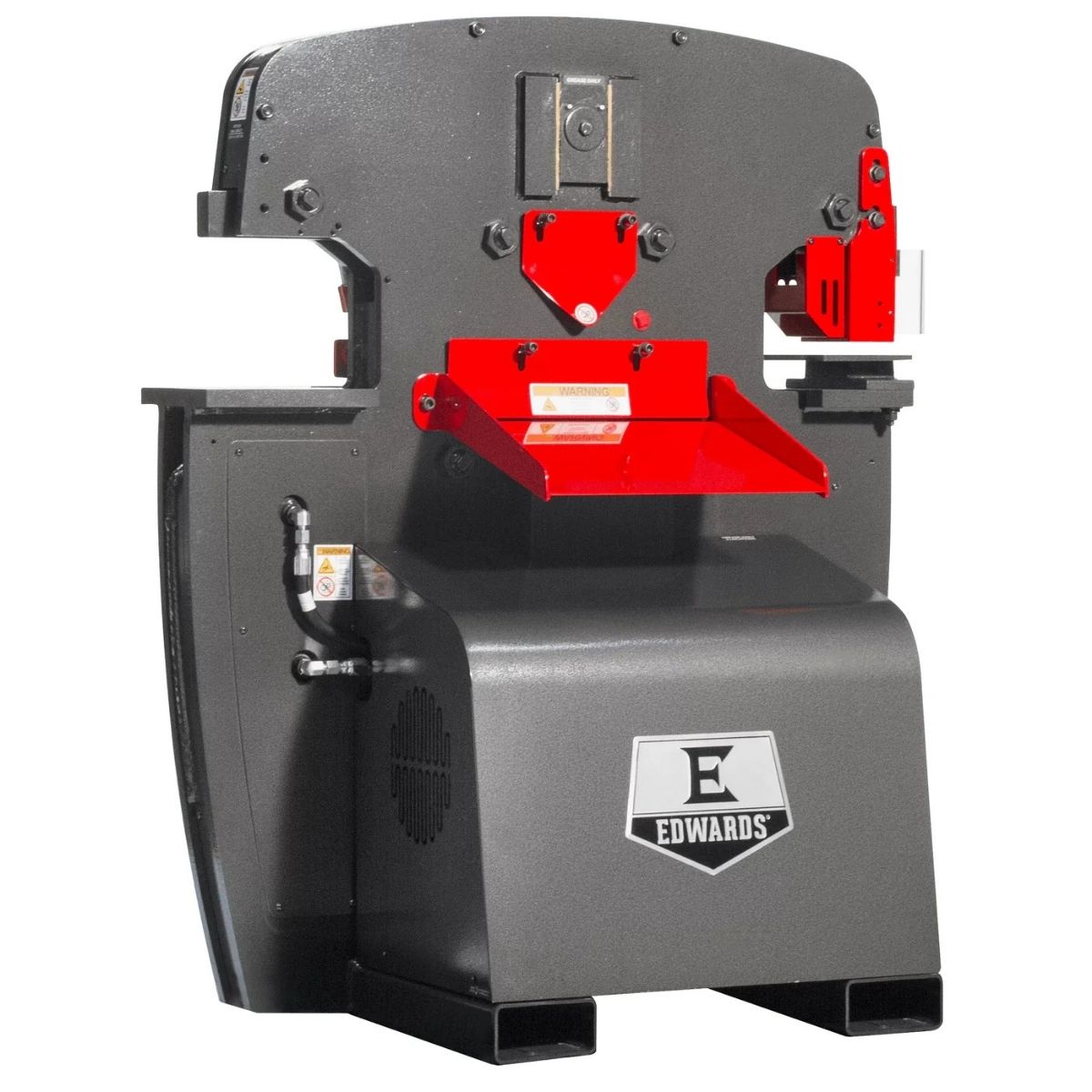

Meet the Edwards 55-Ton Ironworker - IW55, a hydraulic ironworker built for medium to large shops that need reliable fabrication capacity every day.
Available in single and three-phase configurations from 208V to 575V, the IW55 fits a range of shop power setups without compromising cutting force.
When your ironworker handles punch, shear, notch, and bend in one place, you move through fabrication work with less setup and more confidence.
Edwards IW55 for Heavy-Duty Punching, Shearing, and Notching
55-Ton Hydraulic Force Handles Thick Mild Steel
The IW55 delivers 55 tons of hydraulic force through a 5HP motor running at 3,500 PSI valve pressure. That force moves through a simple vertical stroke, which keeps pressure even across the punch, shear, and notch stations and reduces distortion in the finished cut.
Four Workstations Cover Punch, Shear, Notch, and Bend
The IW55 runs four stations — punch, flat bar shear, angle shear, and an open station — from a single hydraulic center. The open station accepts a wide range of optional tooling including notchers, brakes, rod shears, and pipe notchers, so the machine adapts to the work at hand.
Electric Stroke Control Speeds Production Cycling
The adjustable electric stroke control lets you shorten the up and down stroke to match the material and operation. This reduces cycle time on repeat punching, shearing, and notching runs without sacrificing cut quality.

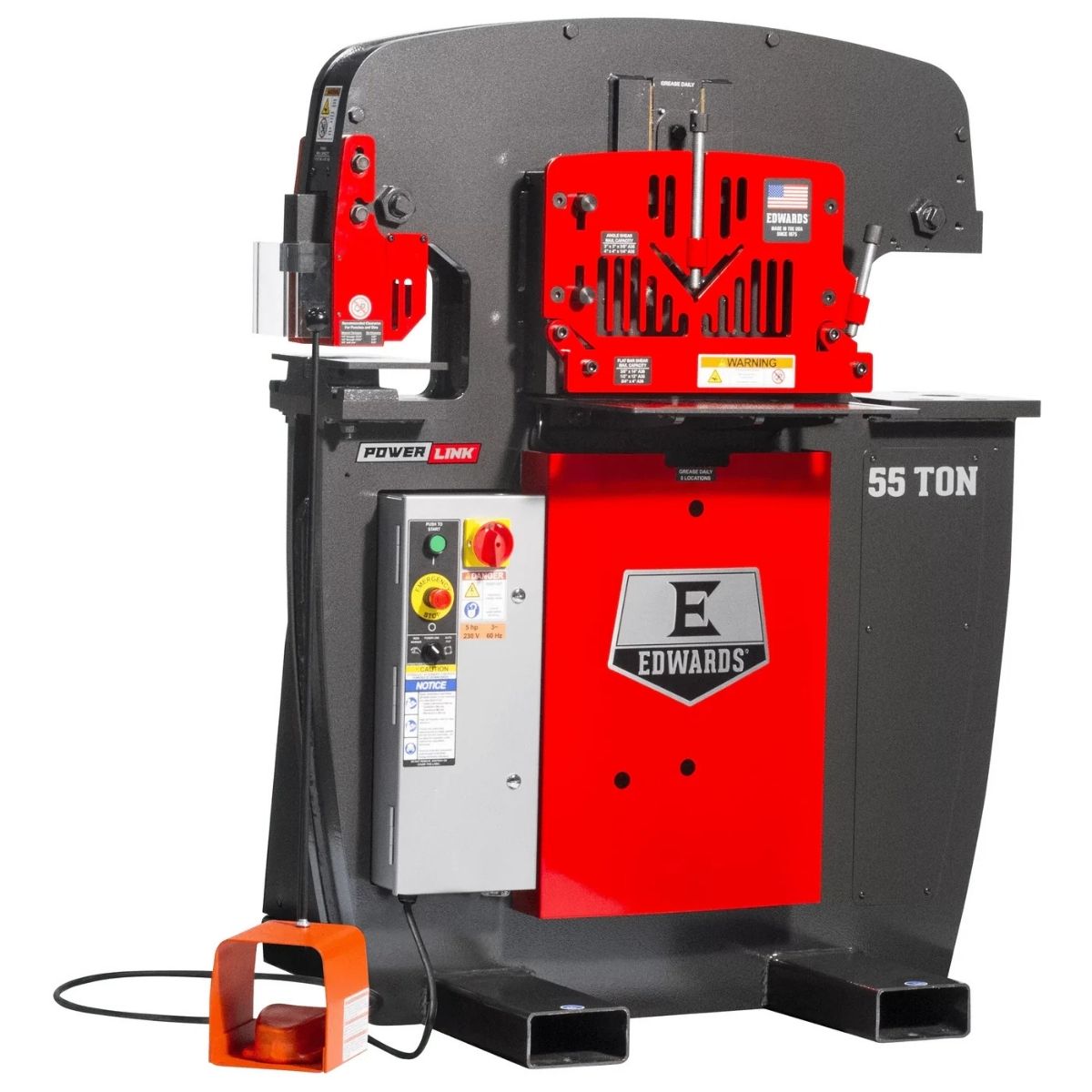

Optional PowerLink Connects Hydraulic Accessory Tools
PowerLink turns the IW55 into a power source for Edwards hydraulic accessory tools, connecting through quick-disconnect hydraulic fittings and M12 controls on the machine. It is available as an optional upgrade on select configurations for shops that run hydraulic accessory work alongside standard ironworker operations.
What's Included
What's Included? Edwards 55-Ton Ironworker - IW55
-
Edwards 55-Ton Ironworker - IW55 — Provides a four-station hydraulic ironworker platform for punching, shearing, notching, and bending mild steel.
-
Punch and Die (installed) — Allows punching operations to begin immediately out of the box.
-
Electric Foot Pedal with Jog Control — Allows the operator to cycle the machine or inch the ram down for tooling setup.
Specs
Edwards 55-Ton Ironworker - IW55 Specifications
- Ironworker Capacity: 55 Ton
- Motor: 5 HP
- Motor Speed: 1725 RPM
- Hydraulic Pump: 3-1/2 GPM
- Hydraulic Pressure: 2,500 PSI
- Valve Pressure: 2,750 PSI
- Reservoir: 7 Gal.
- Punch Max Capacity: 1-1/16" diameter in 5/8" mild steel
- Punch Throat Depth: 7-1/2 in
- Punch Stroke: 1-1/4 in
- Punch Open Height: 8-1/8 in
- Punch Shut Height: 6-7/8 in
- Punch Work Height: 36-9/16 in
- Flat Bar Shear Max Capacity: 3/8" x 14", 1/2" x 12", 3/4" x 4"
- Flat Bar Shear Max Round: 7/8 in
- Flat Bar Shear Max Square: 7/8 in
- Flat Bar Shear Work Height: 34-1/2 in
- Angle Shear Max Capacity: 4" x 4" (1/4", 3/8", 1/2")
- Angle Shear Work Height: 39-7/8 in
- Open Station Throat Depth: 11-3/16 in
- Open Station Stroke: 1-1/4 in
- Open Station Open Height: 8-1/8 in
- Open Station Shut Height: 6-7/8 in
- Open Station Work Height: 34-1/2 in
- Overall Dimensions (L x W x H): 36-1/8" x 44-3/8" x 55-1/4"
- Weight: 2,480 lb
- Warranty: 1 Year
Specs by Configuration
- 1 Phase 230V — Phase: 1~, Voltage: 230V, Amperage: 23A
- 1 Phase 230V with PowerLink — Phase: 1~, Voltage: 230V, Amperage: 23A
- 3 Phase 208V — Phase: 3~, Voltage: 208V, Amperage: 14A*
- 3 Phase 208V with PowerLink — Phase: 3~, Voltage: 208V, Amperage: 14A*
- 3 Phase 230V — Phase: 3~, Voltage: 230V, Amperage: 14A
- 3 Phase 230V with PowerLink — Phase: 3~, Voltage: 230V, Amperage: 14A
- 3 Phase 460V — Phase: 3~, Voltage: 460V, Amperage: 7A
- 3 Phase 460V with PowerLink — Phase: 3~, Voltage: 460V, Amperage: 7A
- 3 Phase 575V with PowerLink — Phase: 3~, Voltage: 575V
