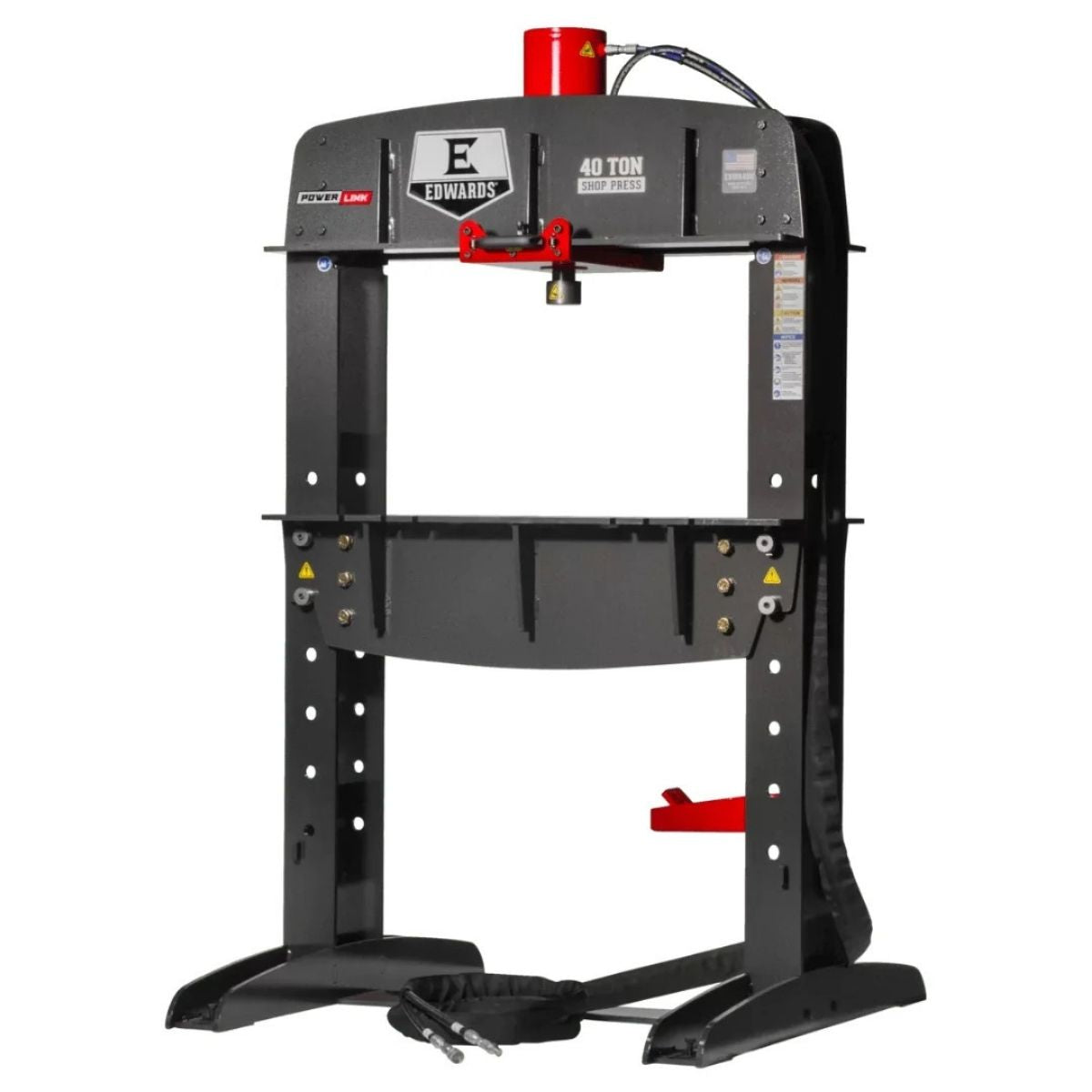

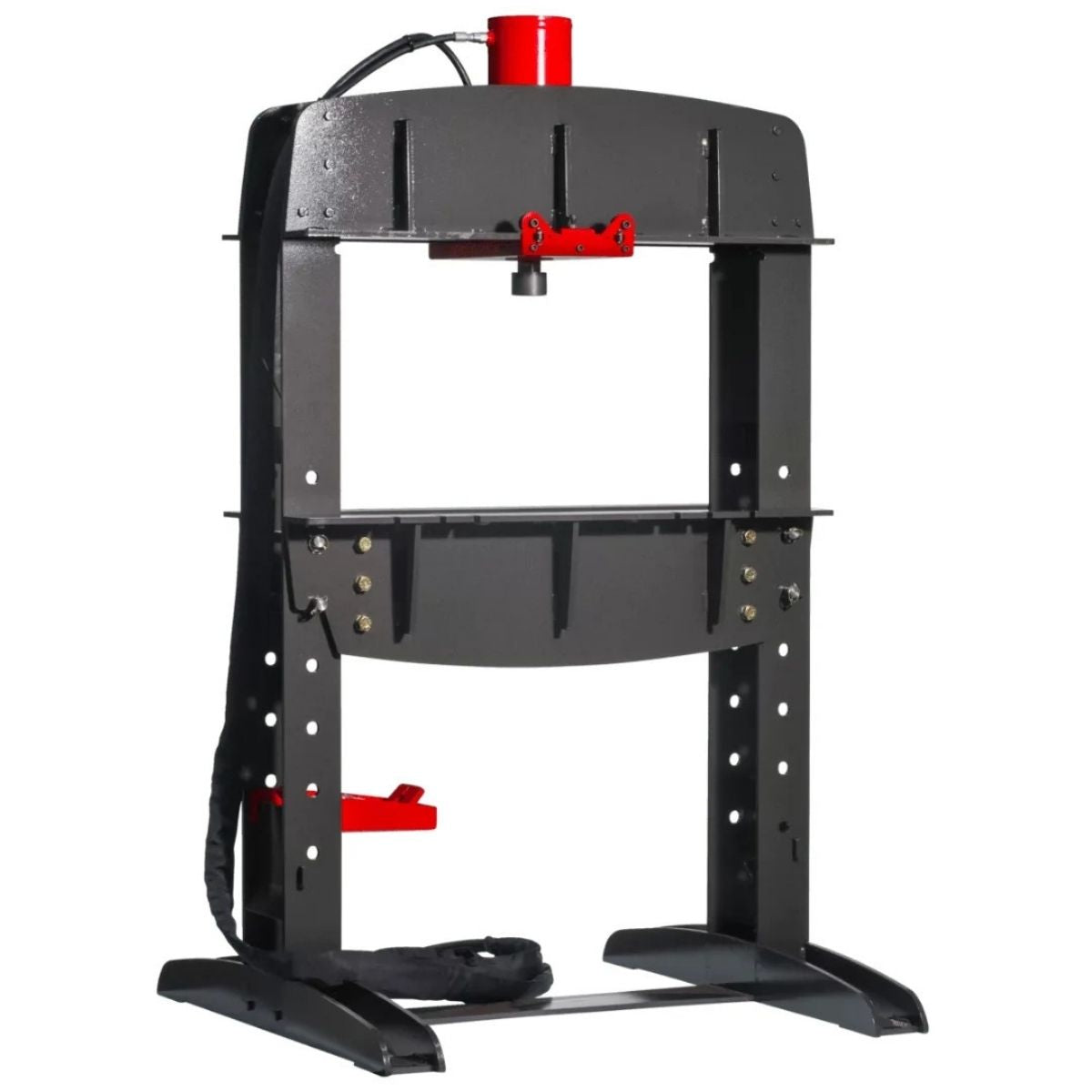

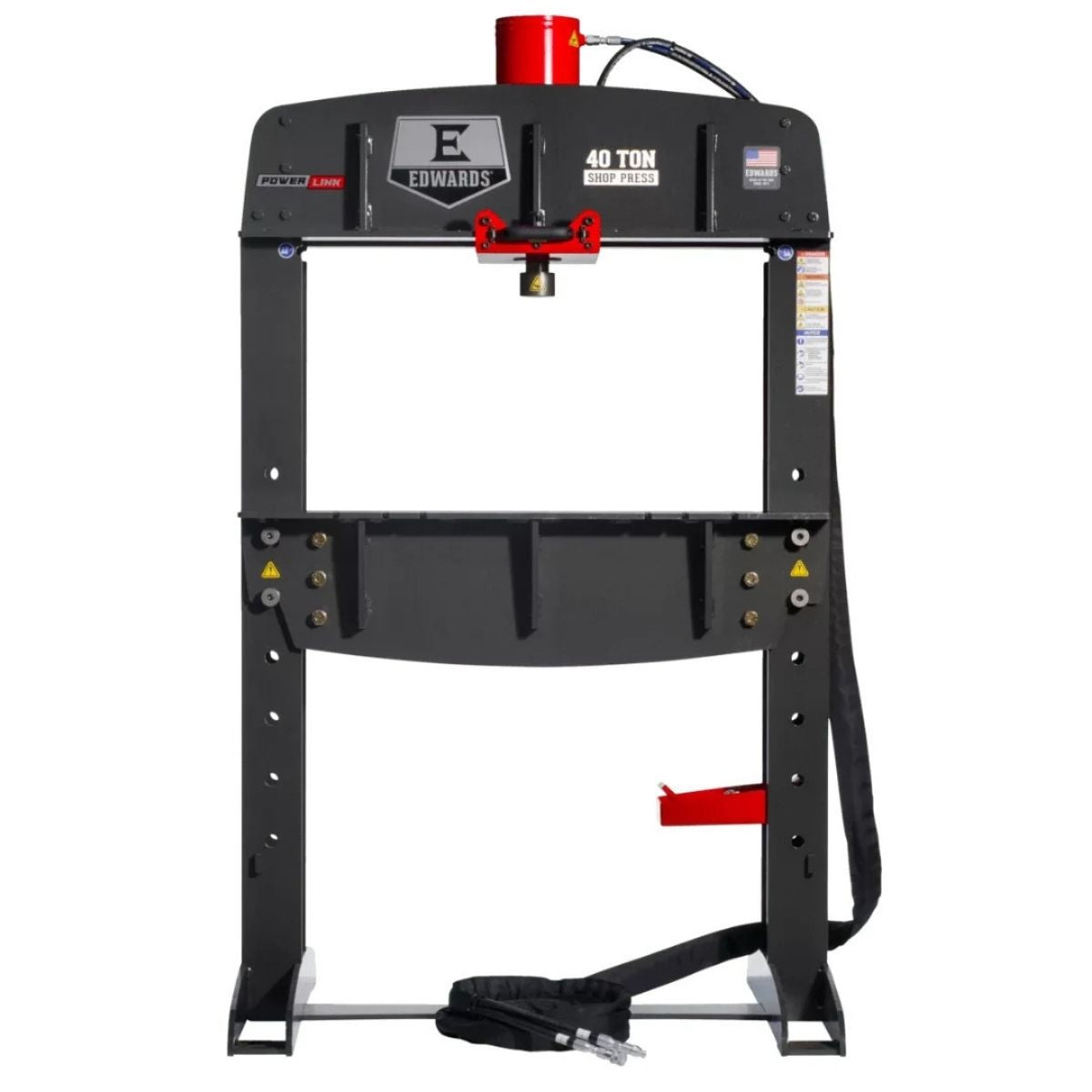

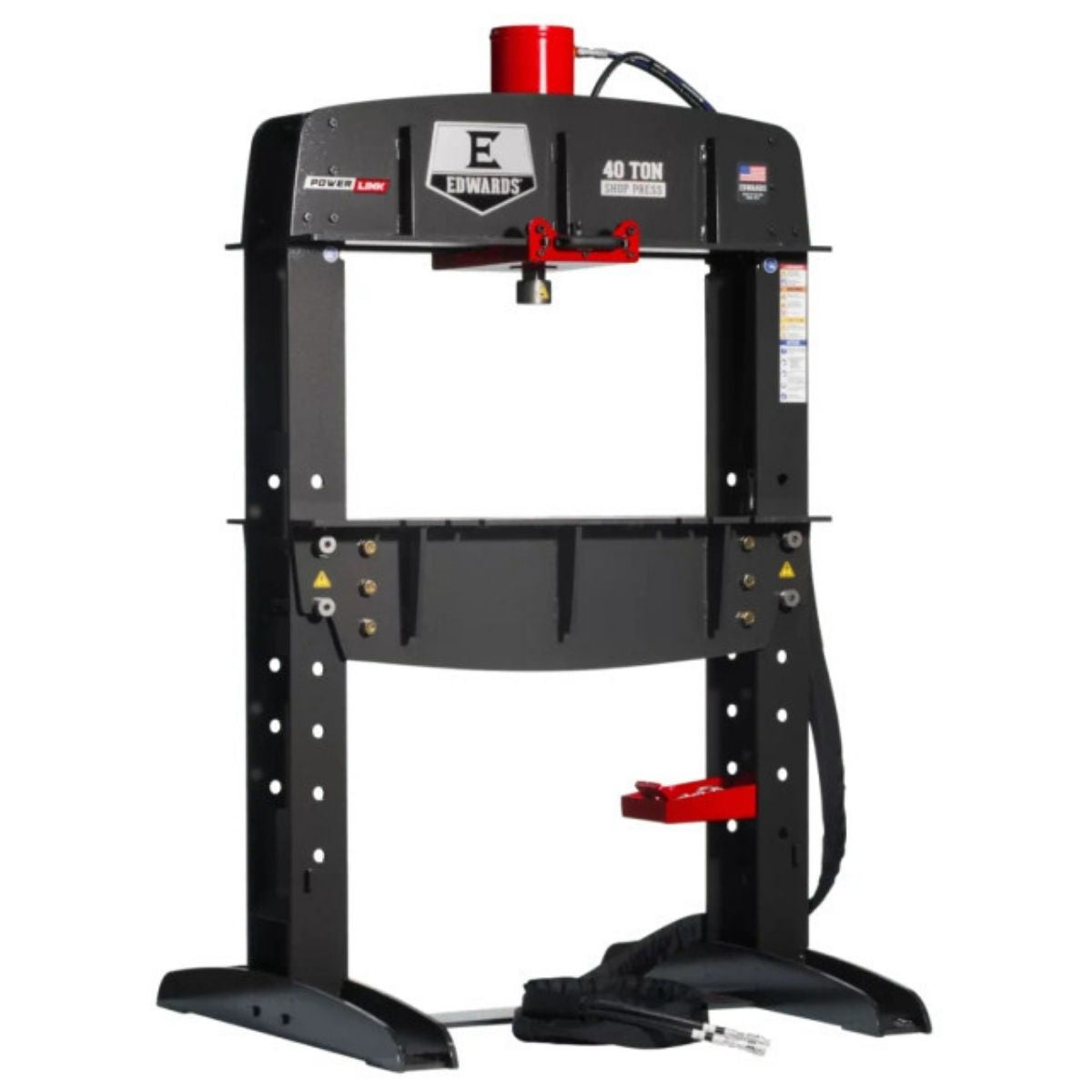

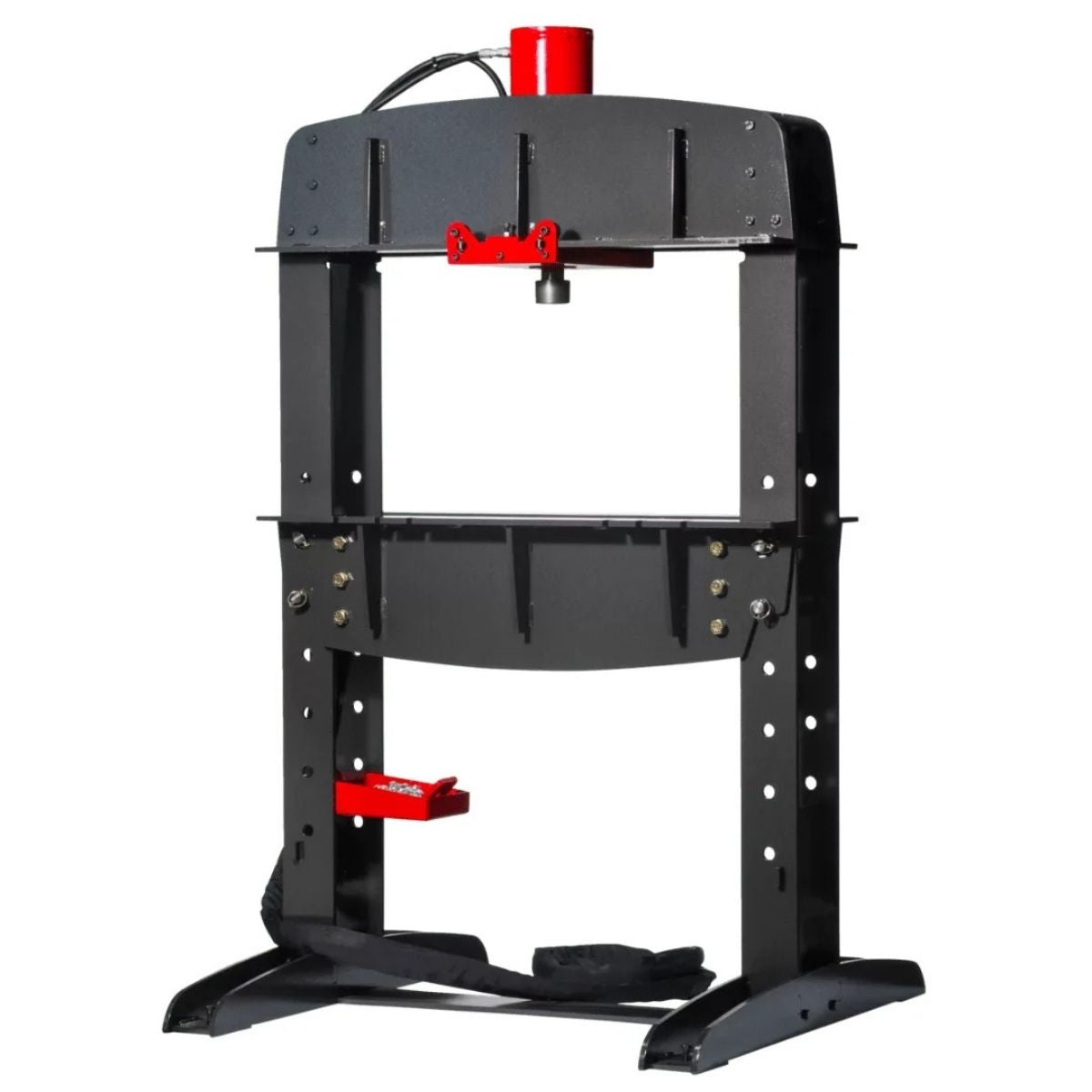

Edwards 40-Ton Shop Press with PowerLink Hydraulic Tool
Are you looking for a powerful shop press that fits into a production workflow without requiring a dedicated hydraulic power source?
What if your shop had a 40-ton press that connects directly to your Edwards PowerLink ironworker or portable power unit with a simple plug-and-play hose connection?
Meet the Edwards 40-Ton Shop Press with PowerLink Hydraulic Tool, a rugged open-sided press built for shops that already run Edwards PowerLink equipment.
With a rolling cylinder, hydraulic-assist table height adjustment, and hand/jog controls with an integrated E-Stop, the press gives you smooth and repeatable pressing force across standard and custom tooling.
When the press holds steady through a job and connects without fuss, you can move through pressing work with confidence.
Edwards HAT4000 for Precise Shop Pressing Work
Rolling Cylinder Provides Maximum Pressing Adaptability
The 40-ton hydraulic cylinder rolls across the press frame so you can position pressing force where the work requires it. This adaptability lets you handle a wider range of part sizes and tooling setups without repositioning the workpiece.
Open-Sided Frame Handles Longer Material
The open-sided design allows longer stock to pass through the frame without restriction. A half-inch steel frame construction provides the rigidity needed to hold up under full pressing load.
Hydraulic-Assist Table Adjustment Supports Safe Setup
The work table adjusts with hydraulic assist and includes lift chains and a bracket to maximize operator safety during setup. The 38 x 40-1/2 inch table surface provides a stable platform for a range of tooling and workpiece sizes.
Hand/Jog Controls Deliver Smooth and Precise Pressure
Hand and jog controls give you direct command over pressing speed and stroke during operation. An integrated E-Stop is built into the control for fast shutdown when needed.
What's Included
What's Included? Edwards 40-Ton Shop Press with PowerLink Hydraulic Tool
-
Edwards HAT4000 40-Ton Shop Press — Provides the main press frame, rolling cylinder, and work table for hydraulic pressing operations.
-
20' Quick-Connect Hoses — Allow simple plug-and-play connection to an Edwards PowerLink ironworker or portable power unit.
-
Lift Chains and Bracket — Support hydraulic-assist table height adjustment for safe operator setup.
Specs
Edwards 40-Ton Shop Press with PowerLink Hydraulic Tool Specifications
- Model: HAT4000
- Stock Number: ED9-HAT4000
- Rating: 40 Ton
- Stroke: 12-1/4 in
- Minimum Ram Speed: .517 in/sec
- Work Table: 38 x 40-1/2 in
- Product Dimensions: 48 x 48 x 79 in
- Steel Frame Thickness: 1/2 in
- Net Weight: 1,401 lb
- Gross Weight: 1,430 lb
- Power Source: Requires Edwards PowerLink Ironworker or Edwards Portable Power Unit (not included)
- Hose Connection: 20 ft quick-connect hoses included
- Warranty: 1 Year
