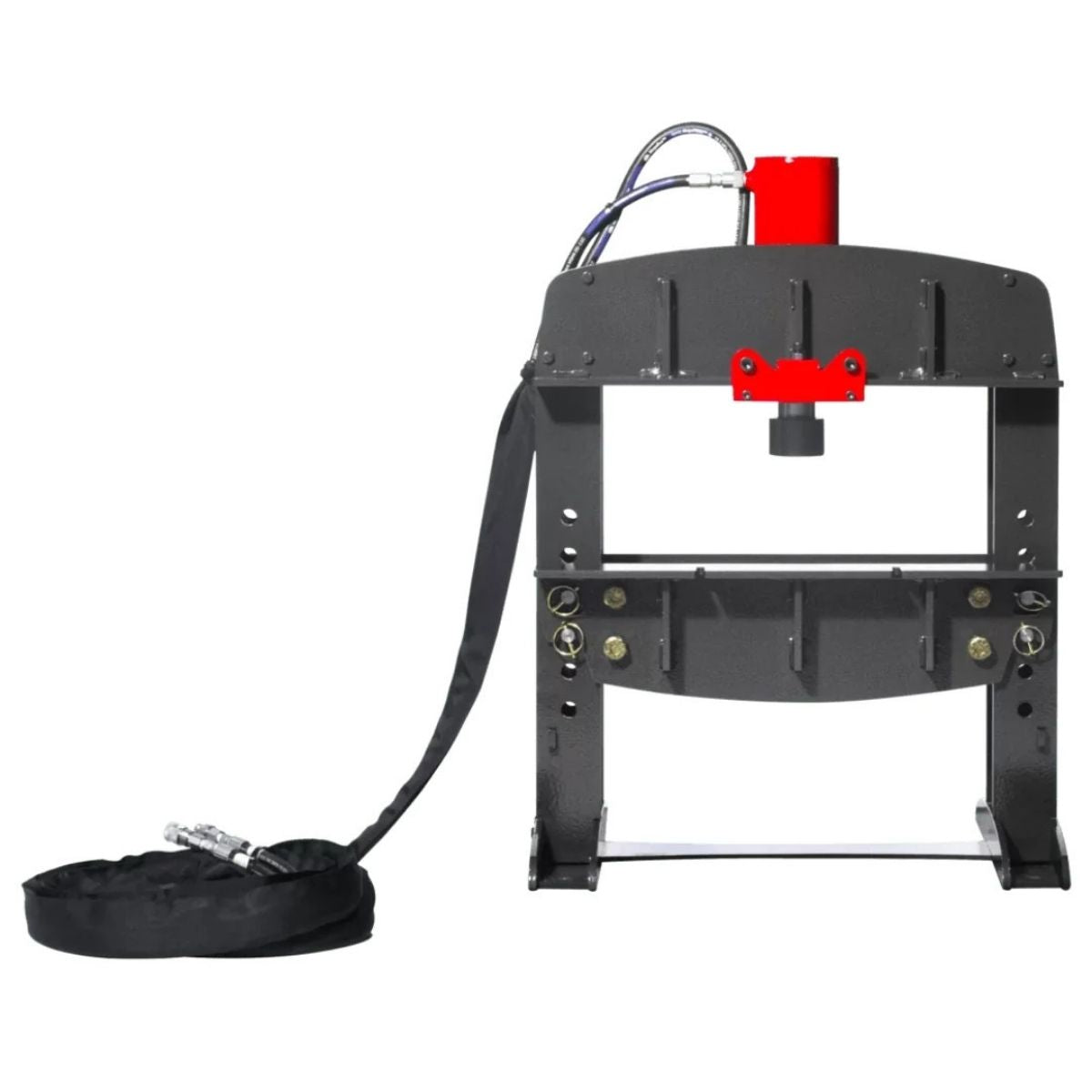

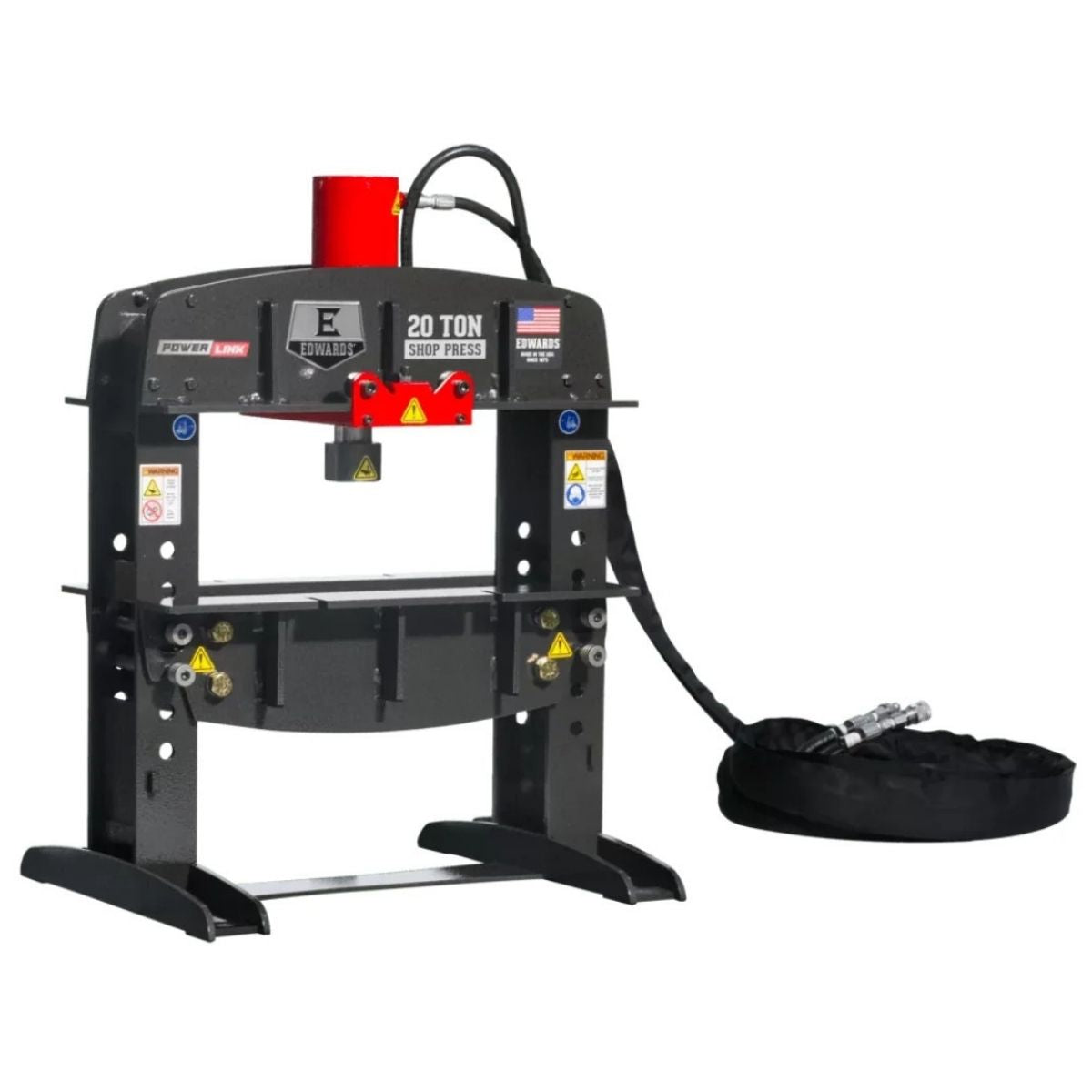

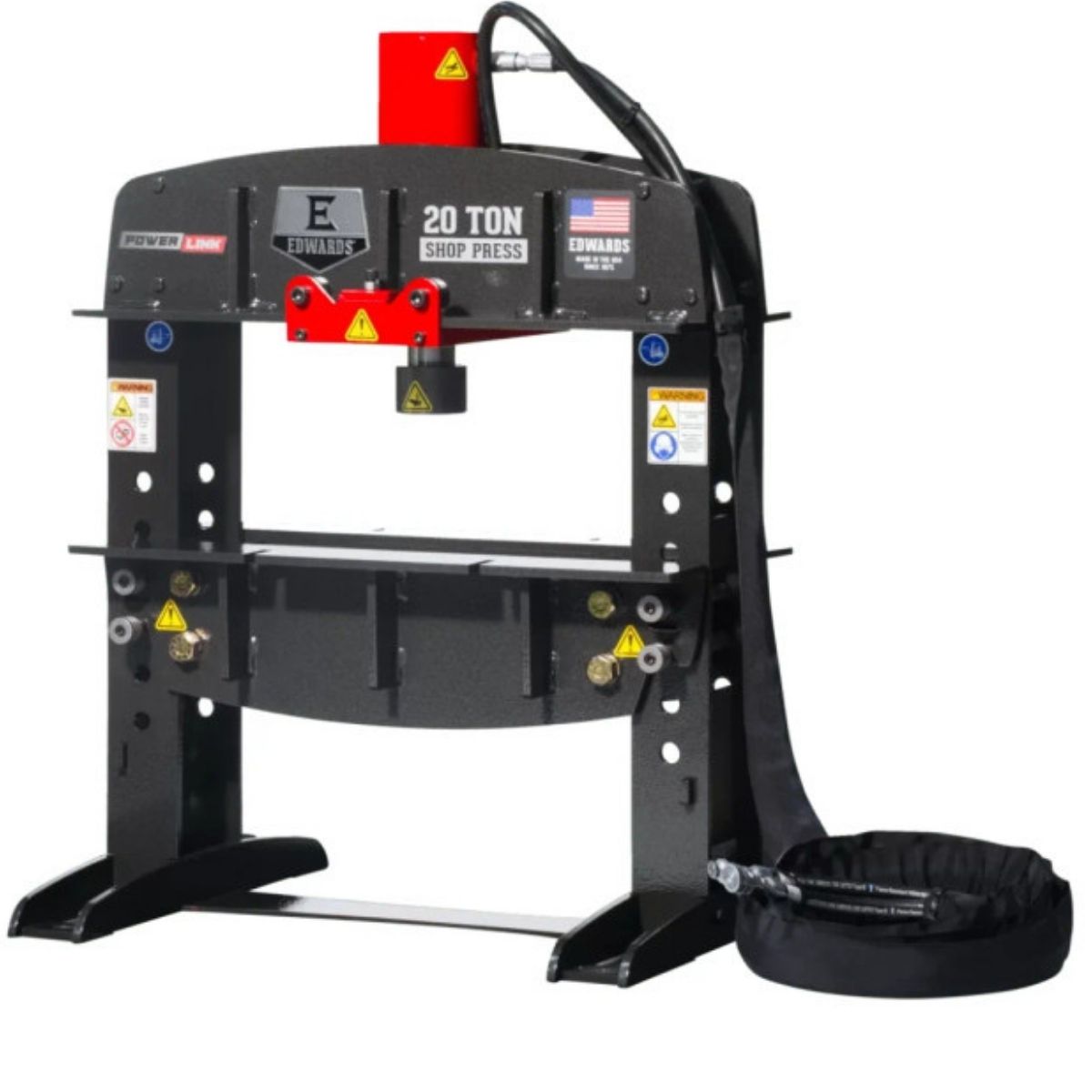

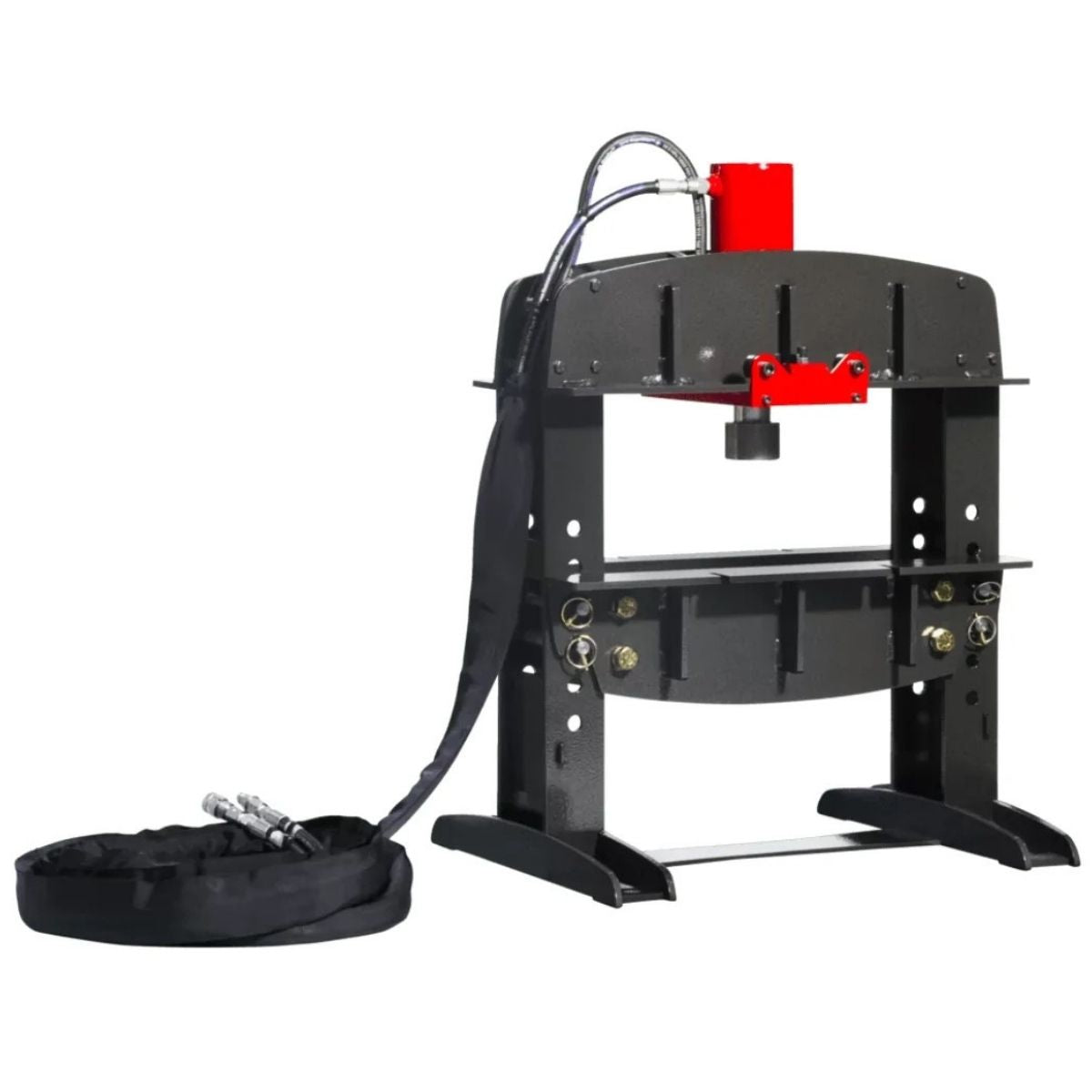

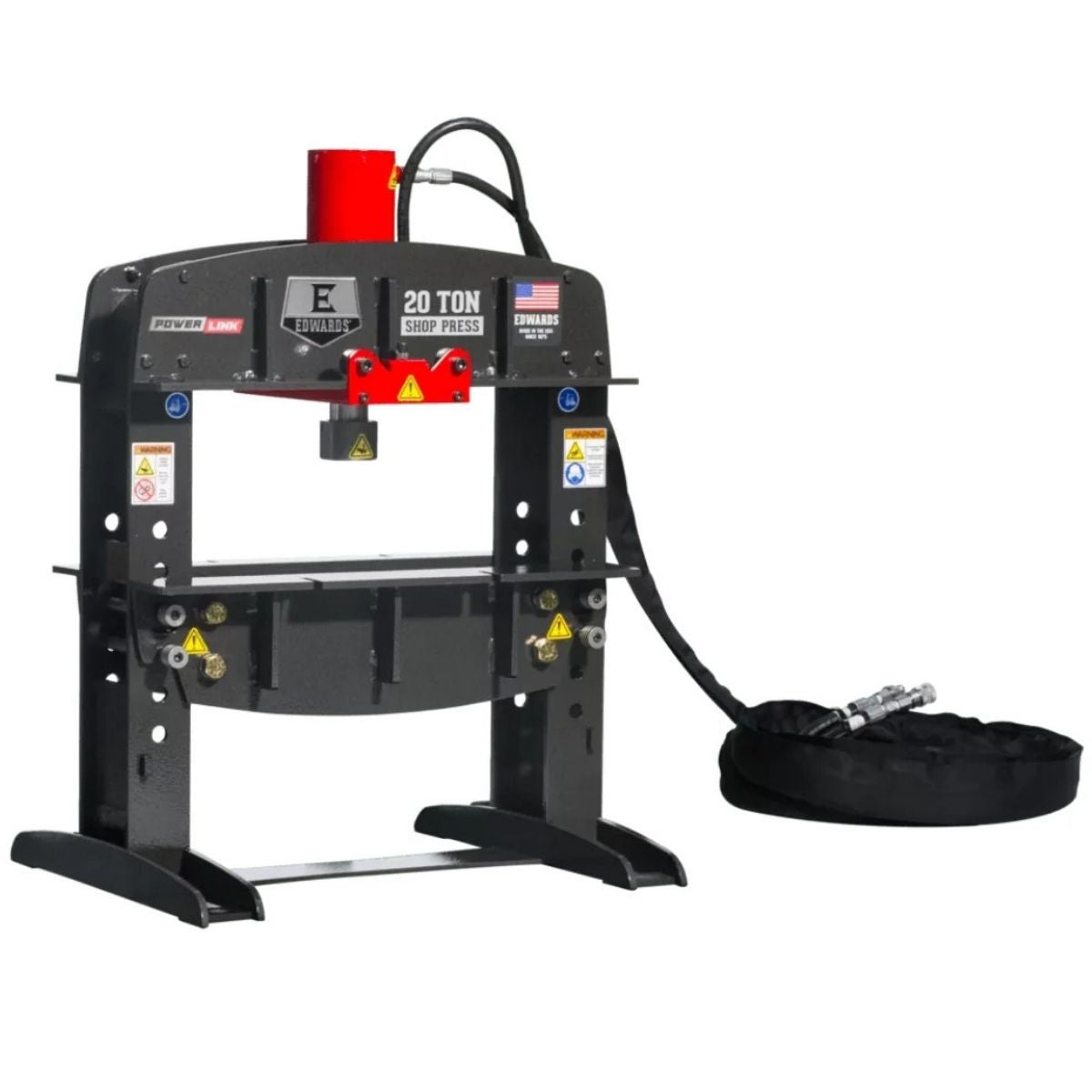

Edwards 20-Ton Shop Press with PowerLink Hydraulic Tool
Are you pressing bearings, bending stock, or straightening parts with tools that slow you down?
What if your shop had a compact press that connects directly to your existing Edwards power source and gets to work without a dedicated hydraulic setup?
Meet the Edwards 20-Ton Shop Press with PowerLink Hydraulic Tool, a benchtop press built for shops that already run an Edwards Ironworker with PowerLink or a Portable Power Unit.
With quick-connect hoses, a rolling cylinder, and an open-sided frame, the press handles a wide range of jobs without restricting the work.
When the press locks onto a bearing or bends a piece of flat stock cleanly, you move through the job with confidence and less setup time.
Edwards HAT2000 for Pressing, Bending, and Straightening Work
Quick-Connect Hoses Speed Setup
The press ships with 20-foot quick-connect hoses for direct plug-and-play connection to a compatible Edwards power source. No hydraulic plumbing is required, so the press is ready to run as soon as it is connected.
Open-Sided Frame Handles Longer Material
The open-sided design lets longer stock pass through the frame without hitting an obstruction. This keeps the press useful for a wider range of part sizes without requiring additional clearance fixtures.
Rolling Cylinder Increases Tooling Flexibility
The rolling cylinder moves to adapt to different tooling setups and part positions. This gives the press more versatility across pressing, bending, and straightening tasks without changing the frame.
Hydraulic-Assist Table Supports Safe Positioning
The work table adjusts to multiple heights with hydraulic assist, reducing manual lifting when positioning heavy parts. Lift chains and a bracket are included to support the table through each height adjustment.
What's Included
What's Included? Edwards 20-Ton Shop Press with PowerLink Hydraulic Tool
-
Edwards 20-Ton Shop Press with PowerLink Hydraulic Tool — Provides a compact benchtop press platform for pressing, bending, and straightening work when connected to a compatible Edwards power source.
-
20' Quick-Connect Hoses — Allow direct plug-and-play connection to an Edwards Ironworker with PowerLink or a Portable Power Unit.
-
Lift Chains and Bracket — Support the hydraulic-assist adjustable work table through height changes.
Specs
Edwards 20-Ton Shop Press with PowerLink Hydraulic Tool Specifications
- Model: HAT2000
- Stock Number: ED9-HAT2000
- Rating: 20 Ton
- Stroke: 6-1/4 in
- Minimum Return Speed: 1.667 in/sec
- Product Dimensions: 24 x 27 x 37 in
- Steel Frame Thickness: 3/8 in
- Net Weight: 392 lb
- Gross Weight: 400 lb
- Requires: Edwards Ironworker with PowerLink System or Edwards Portable Power Unit
- Warranty: 1 Year
