Edwards 20-Ton Horizontal Press with PowerLink Hydraulic Tool
Are you looking for a reliable way to form, break, and straighten mild steel with consistent results across repeated runs?
What if your shop had a horizontal press that accepts a wide range of tooling and delivers precise, repeatable strokes without manual guesswork?

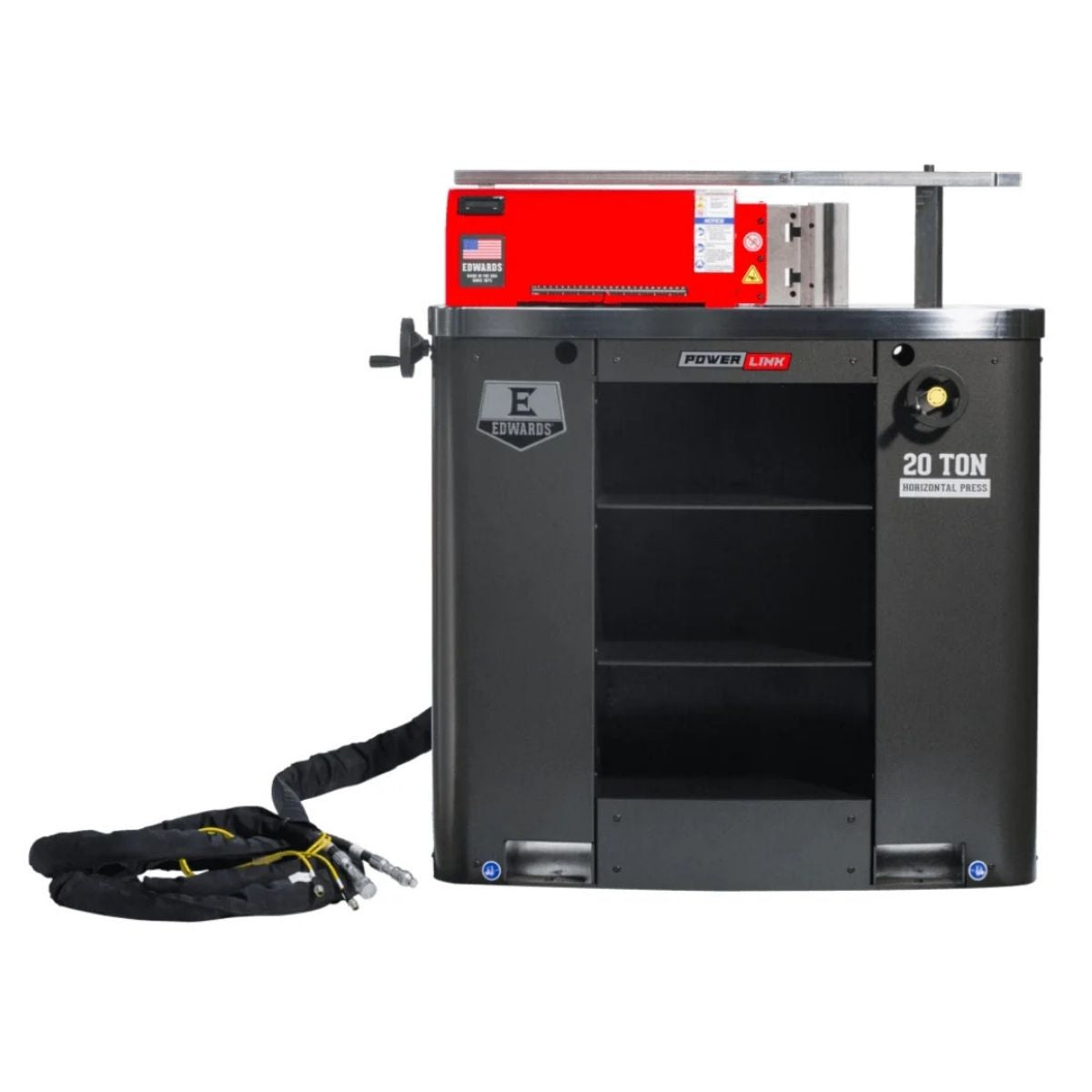

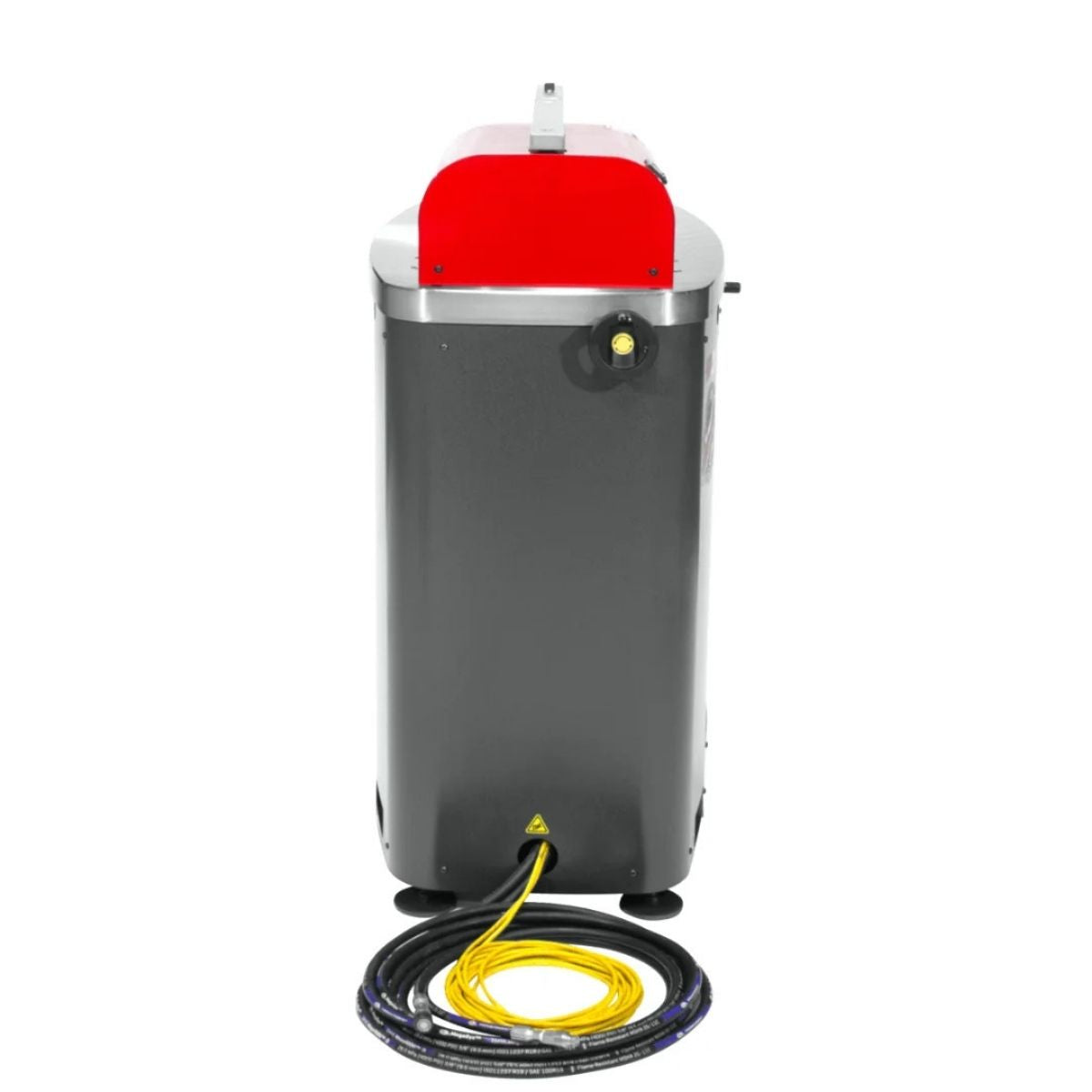

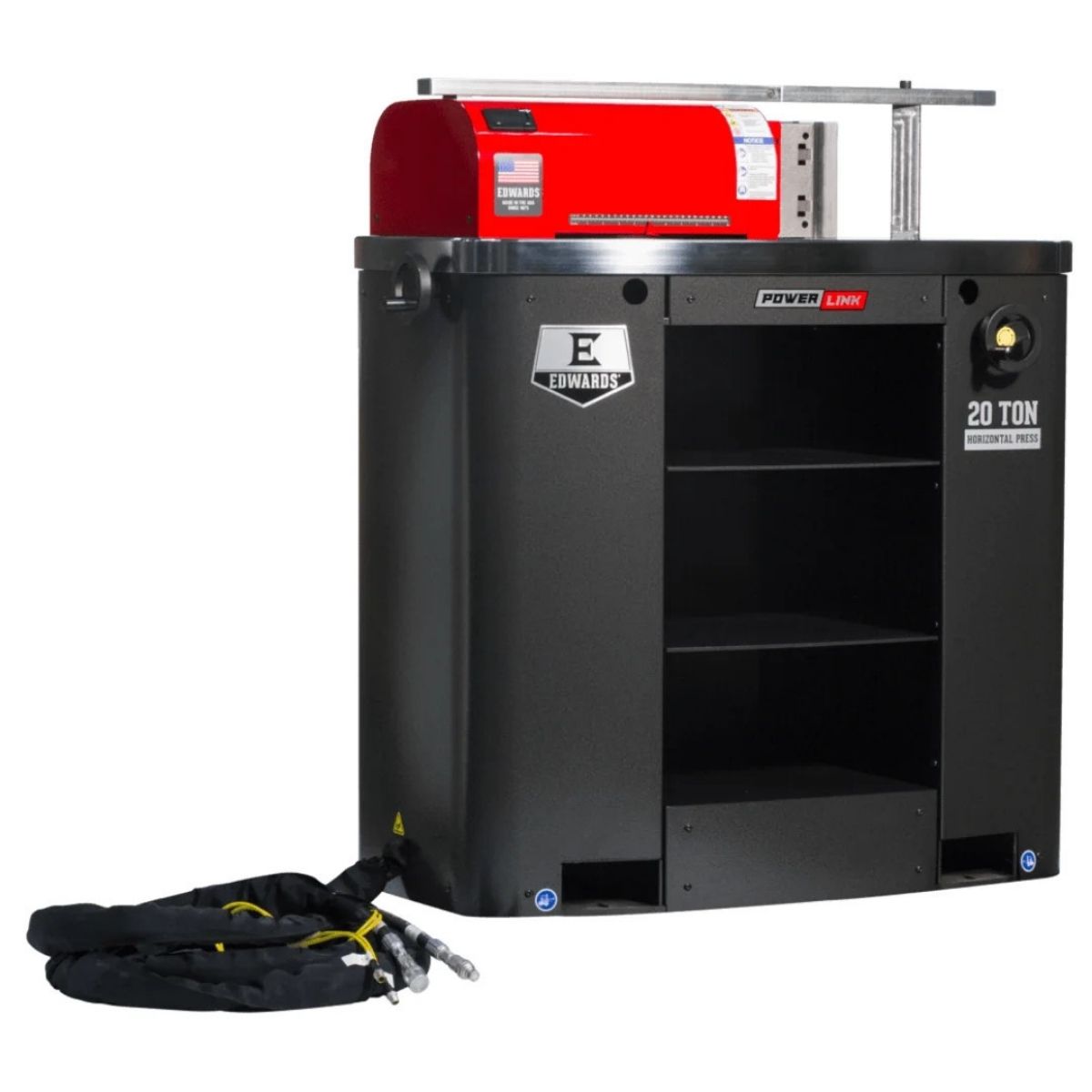

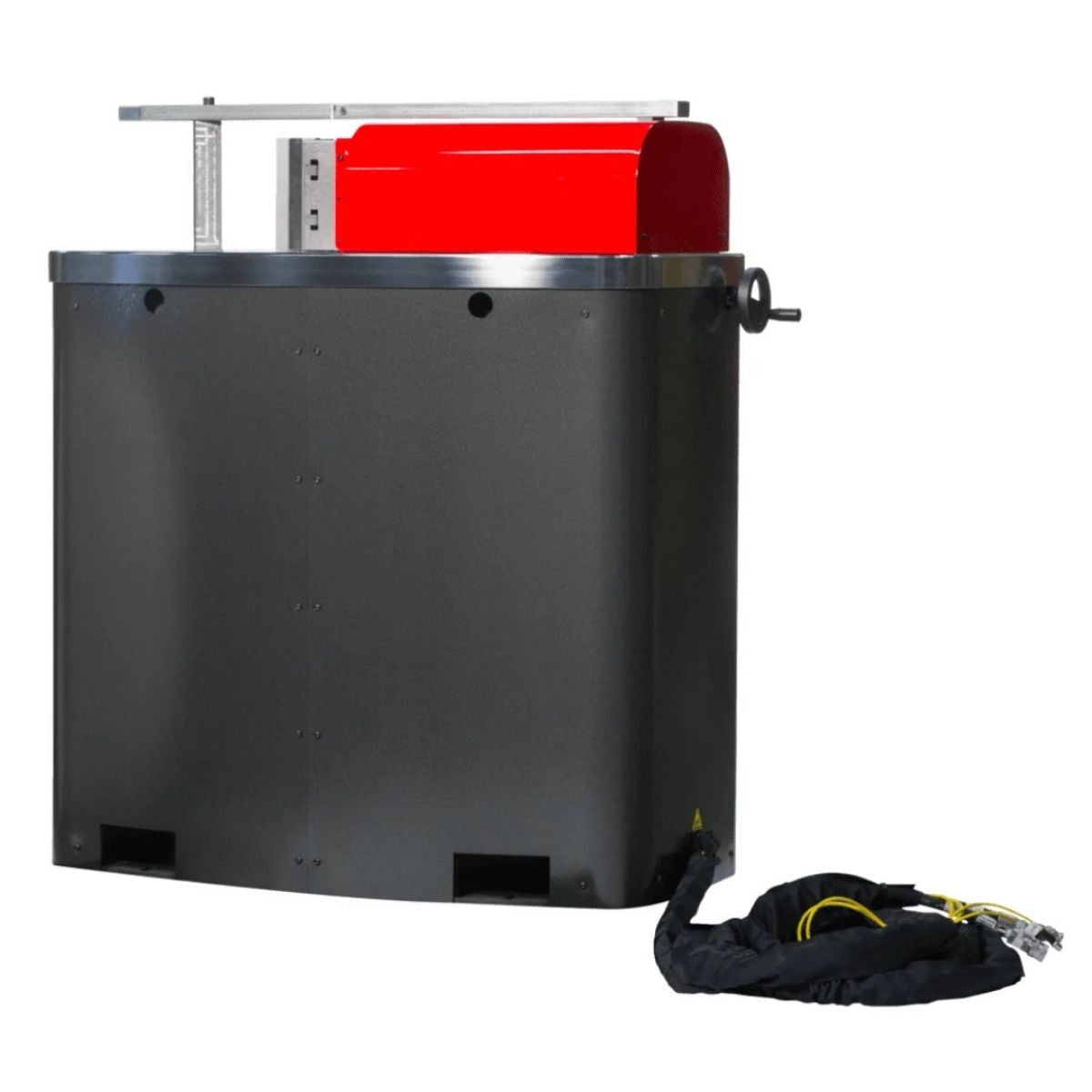

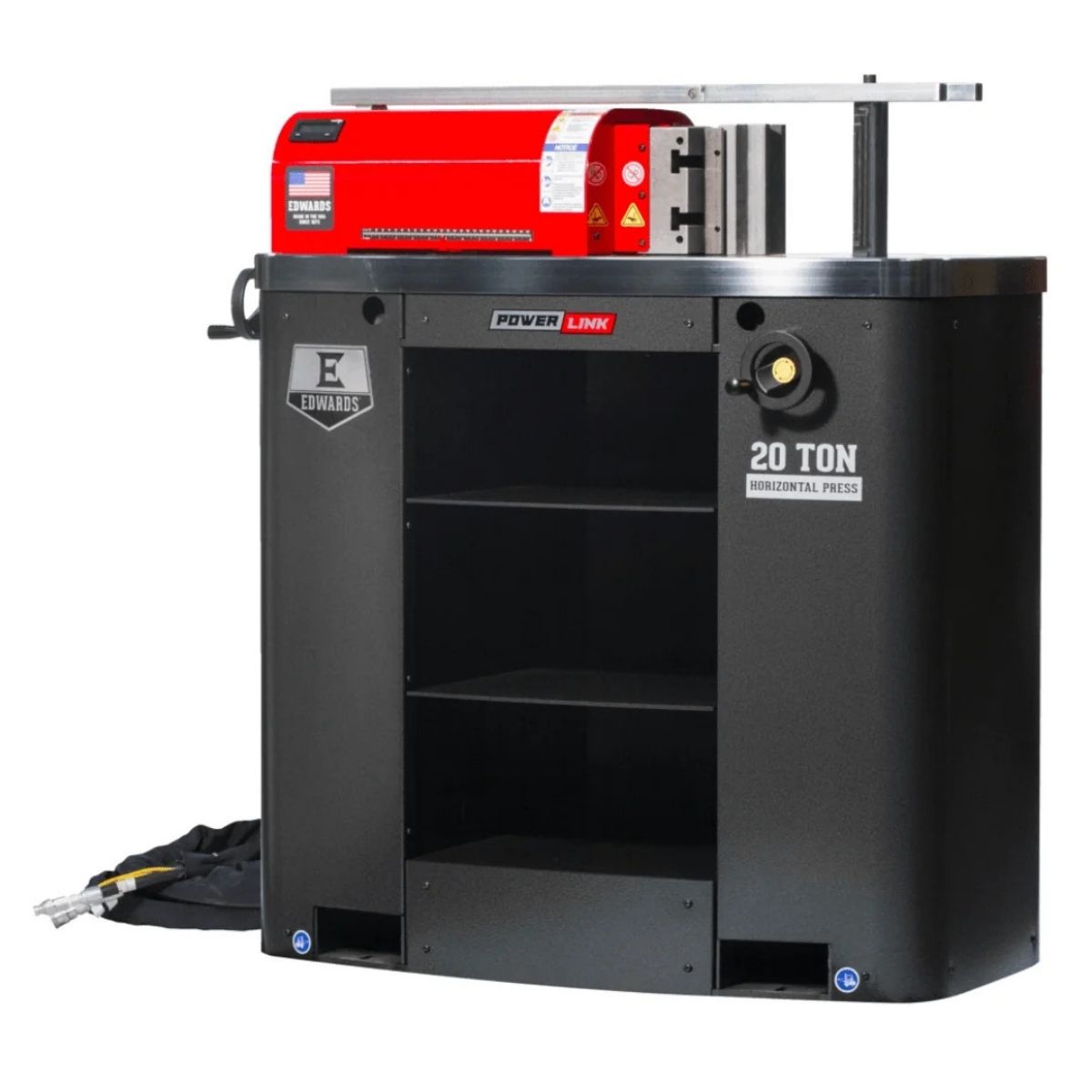

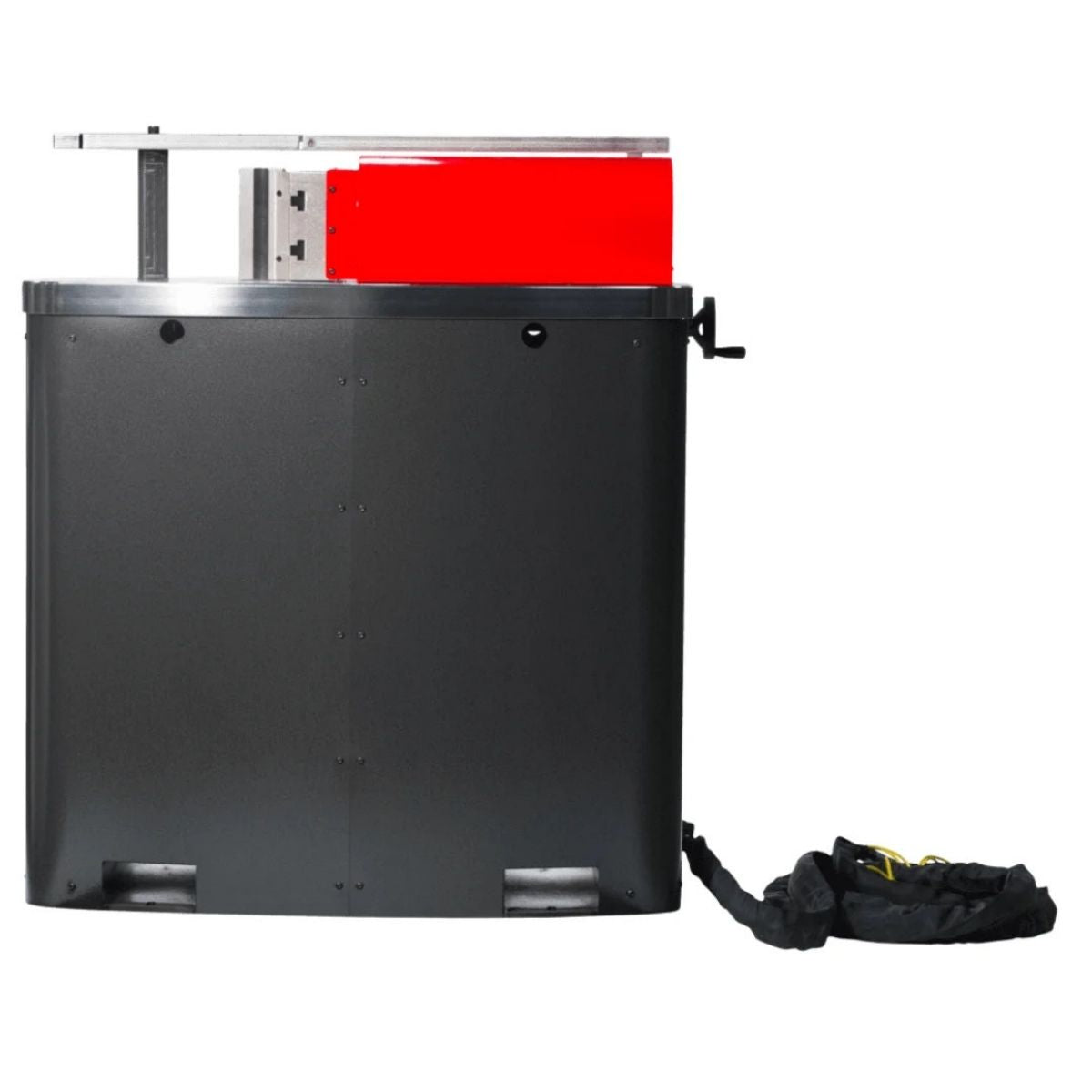

Meet the Edwards 20-Ton Horizontal Press with PowerLink Hydraulic Tool, a robust hydraulic press built for flexible fabrication work.
With a digital encoder, 4-pin tool mounting, and quick-connect hoses, the press connects directly to a compatible Edwards Ironworker with PowerLink or a Portable Power Unit for consistent hydraulic power.
When the press holds its position accurately and repeats the same stroke every time, you can work through a run of parts with confidence.
Edwards HAT6000 for Forming, Breaking, and Straightening Steel
Digital Encoder Delivers Precise Stroke Repeatability
The digital encoder tracks ram position and feeds it to the readout so you can set a depth and hit it the same way across every part in a run. This takes the guesswork out of repetitive forming work and keeps results consistent from the first piece to the last.
Four-Pin Tool Mount Accepts Wide Range of Tooling
The four-pin mounting system gives you flexibility to run standard tooling or configure the press for custom fabrication needs. Swapping tooling is straightforward, which keeps setup time low when you are moving between jobs.
Quick-Connect Hoses Simplify Hookup to Power Source
The 20-foot quick-connect hoses plug directly into a compatible Edwards Ironworker with PowerLink or a Portable Power Unit with no complex plumbing. The press is ready to work as soon as the connection is made.
Heavy-Duty Table and Storage Keep Work Organized
The 2-inch machine table provides a solid, stable work surface for forming operations. Built-in storage shelves keep additional tooling within reach so you are not hunting for dies mid-job.
What's Included
What's Included? Edwards 20-Ton Horizontal Press with PowerLink Hydraulic Tool
-
Edwards 20-Ton Horizontal Press with PowerLink Hydraulic Tool — Provides a 20-ton hydraulic press platform for forming, breaking, and straightening mild steel.
-
20' Quick-Connect Hoses — Allow direct plug-and-play connection to a compatible Edwards Ironworker with PowerLink or Portable Power Unit.
-
6" Brake with 4-Way Die — Ships standard and allows you to create clips, brackets, hangers, and similar formed parts immediately.
Specs
Edwards 20-Ton Horizontal Press with PowerLink Hydraulic Tool Specifications
- Stock Number: ED9-HAT6000
- Model Number: HAT6000
- Rating: 20 Ton
- Ram: 2-1/4" Cylinder
- Stroke: 10 in
- Table Dimensions: 24 x 42 in
- Overall Dimensions (L x W x H): 30 x 48 x 60 in
- Product Dimensions (L x W x H): 26 x 43 x 49 in
- Net Weight: 1,500 lb
- Warranty: 1 Year
- Power Requirement: Requires Edwards Ironworker with PowerLink System or Edwards Portable Power Unit
