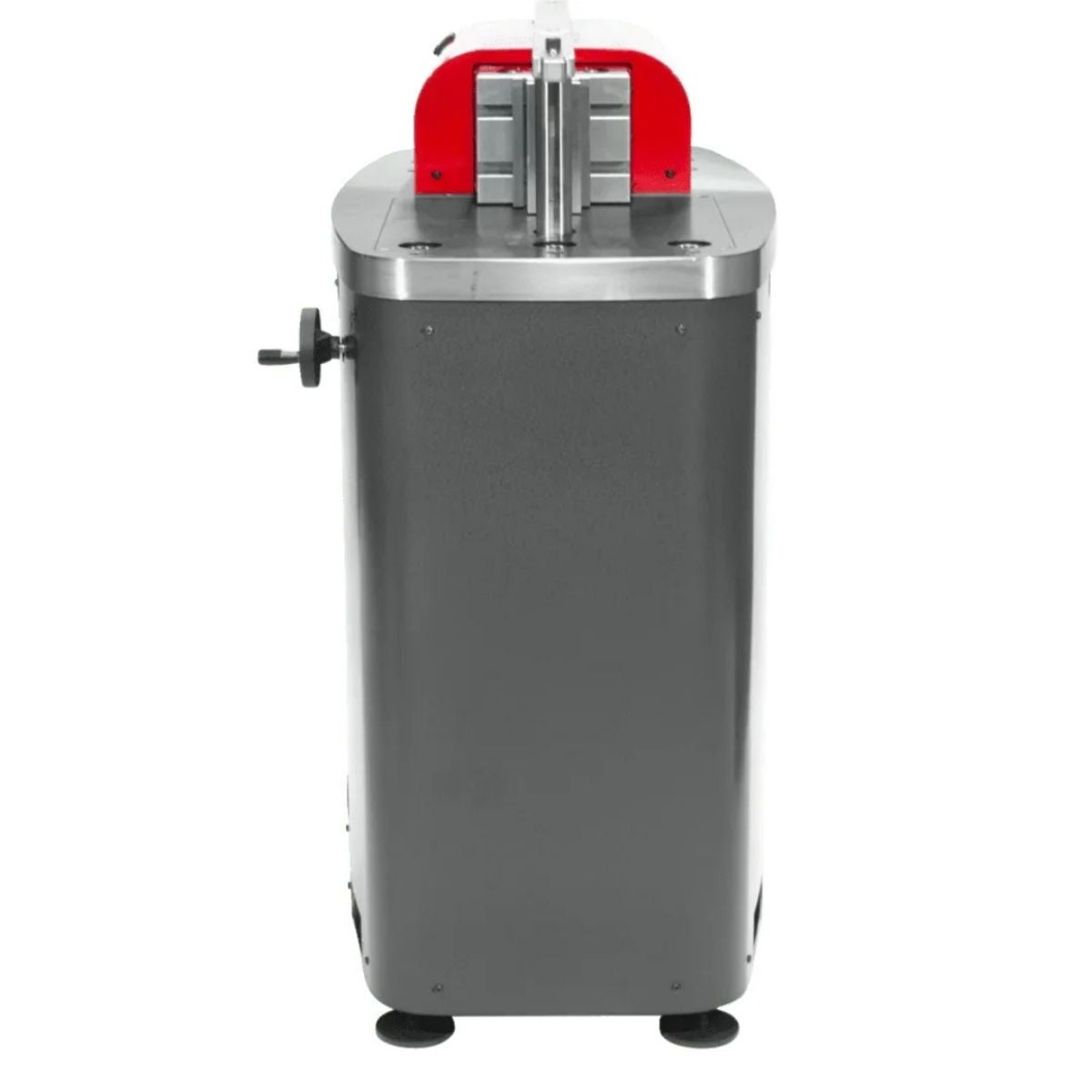

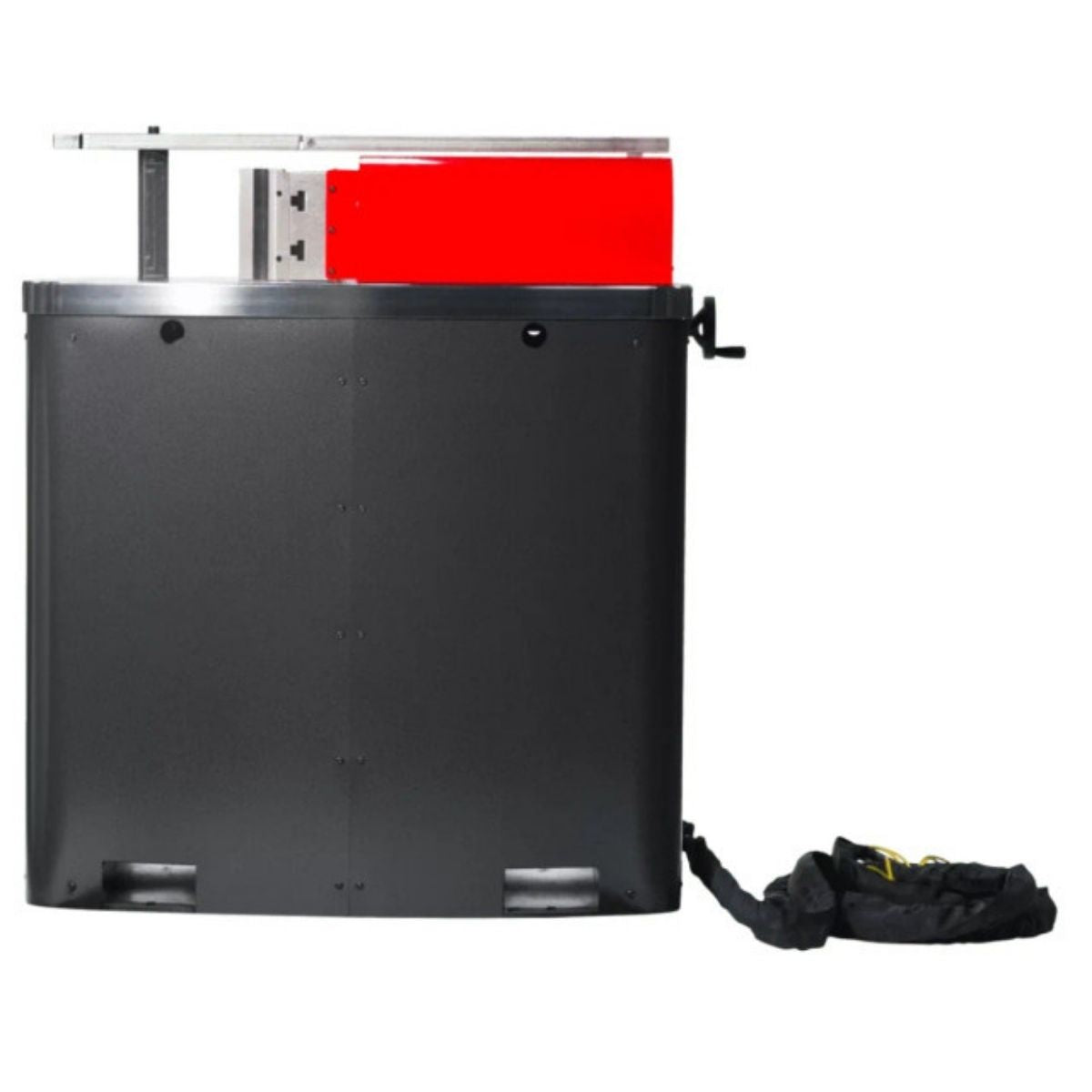

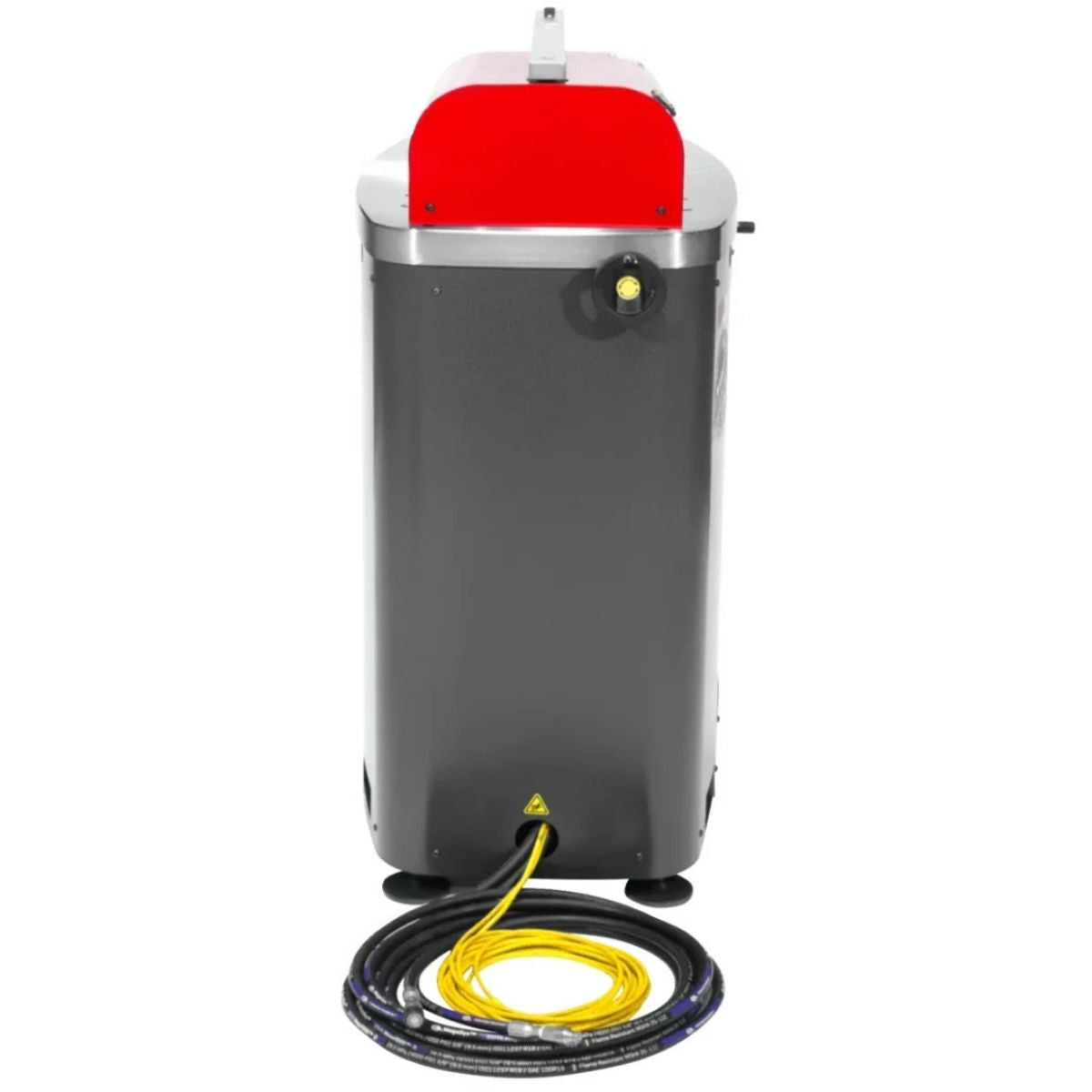

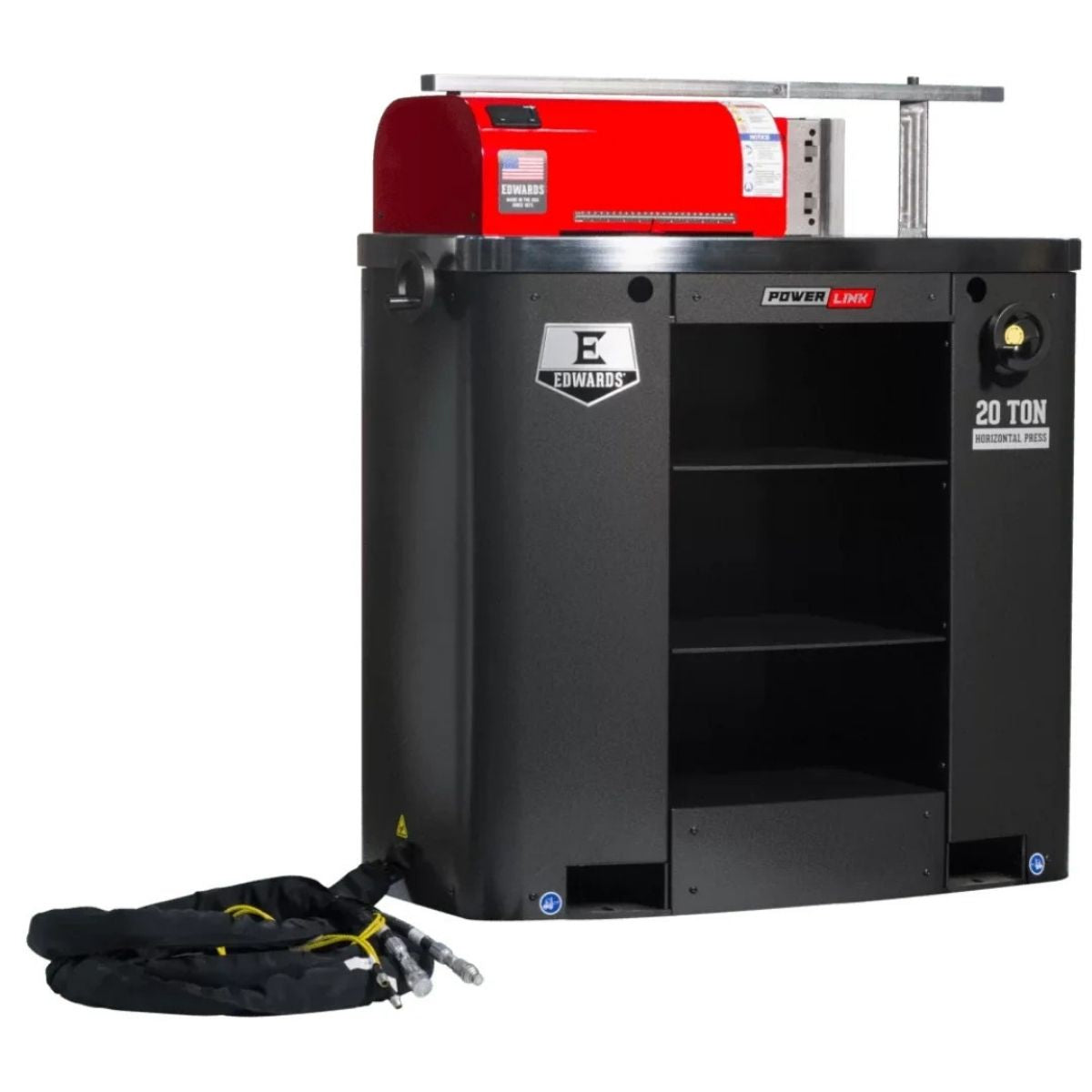

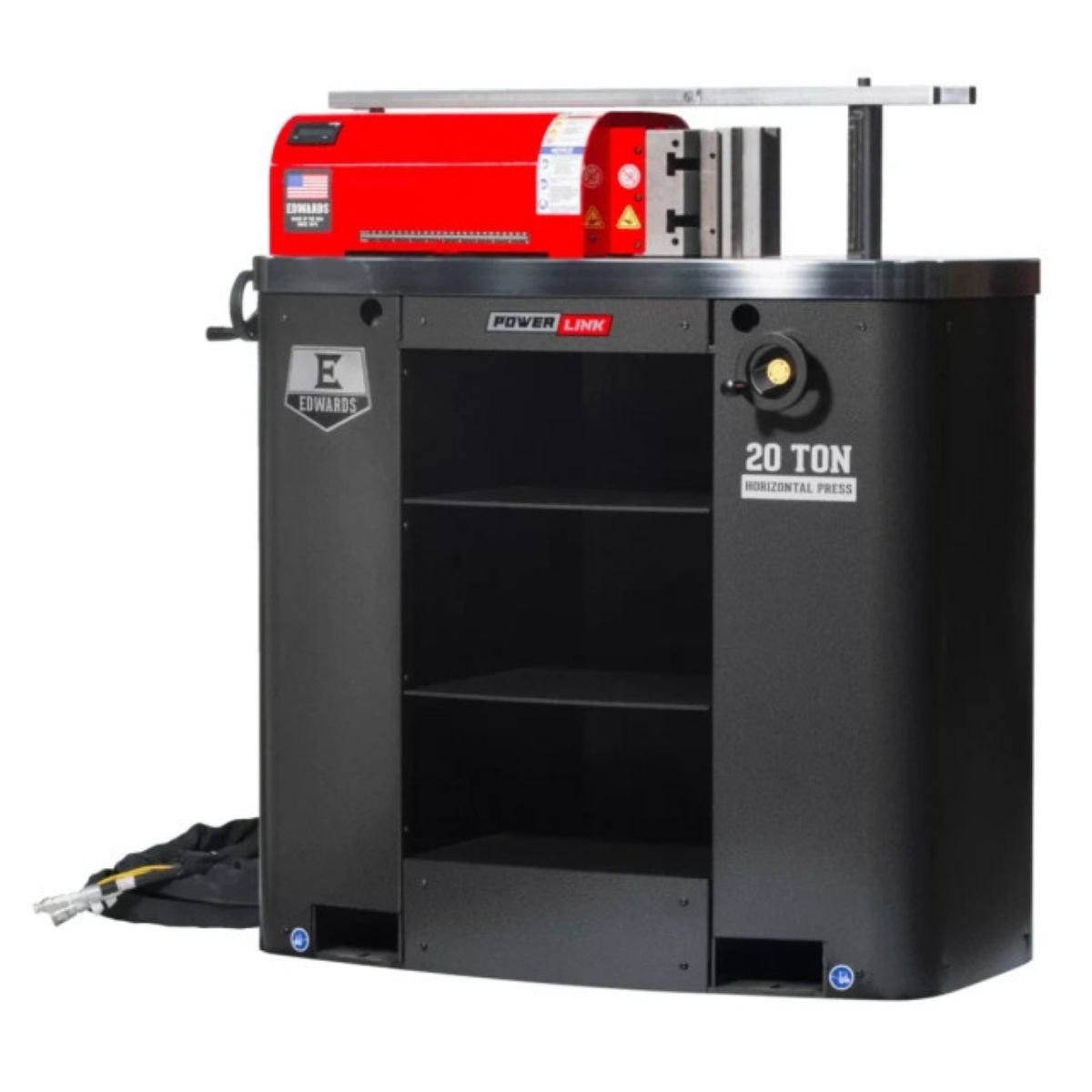

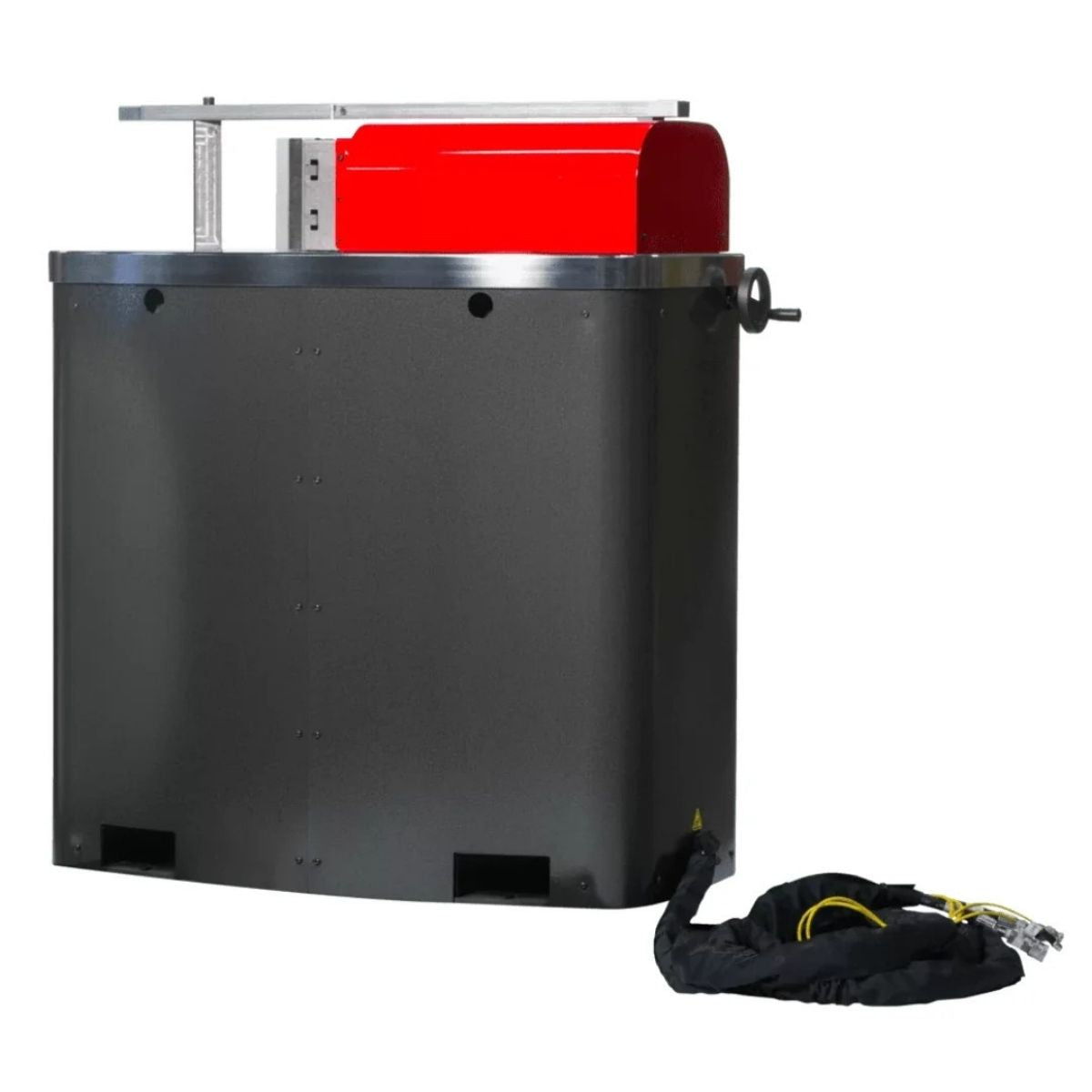

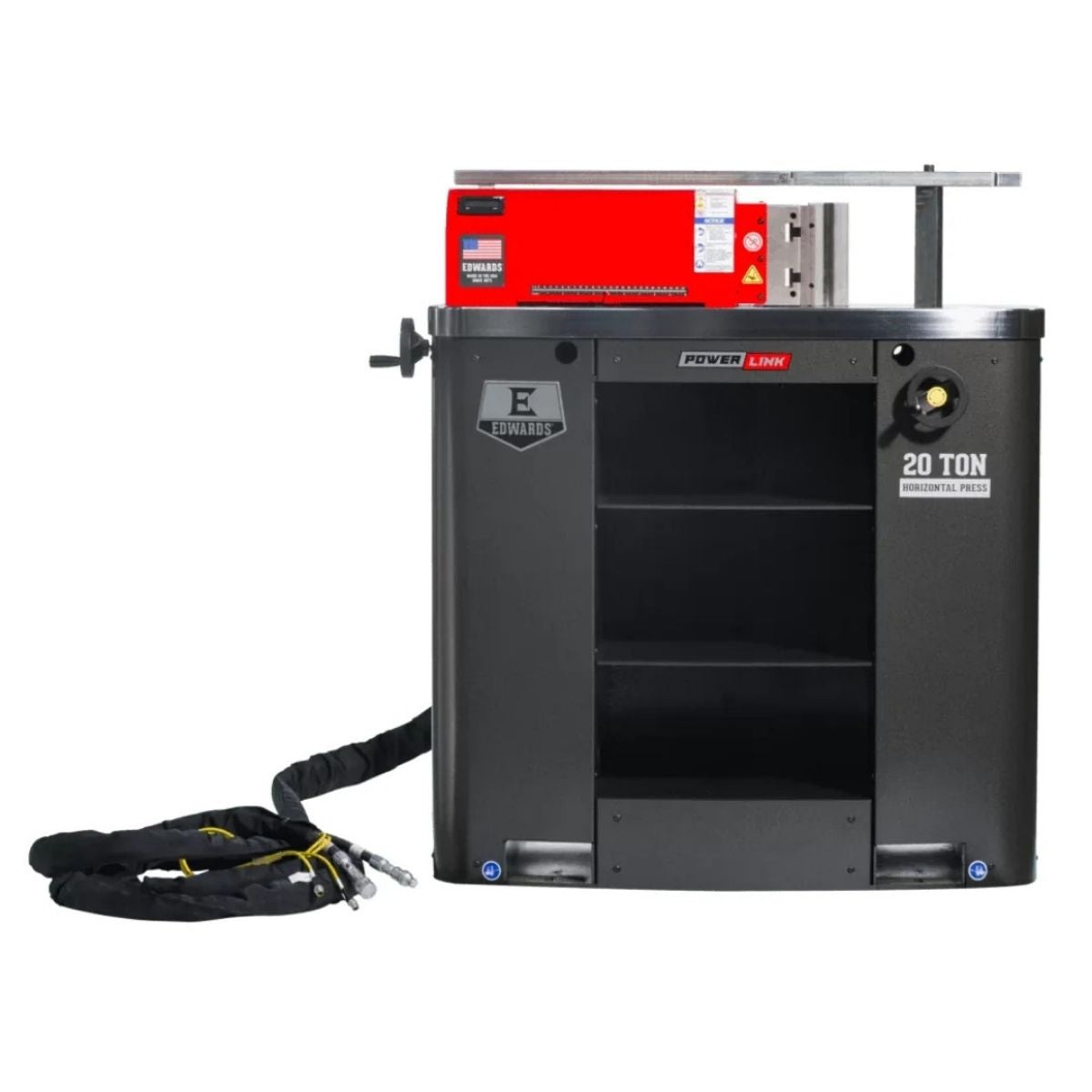

Edwards 20-Ton Horizontal Press with Portable Power Unit
Are you looking for a horizontal press that forms, bends, and straightens mild steel with consistent force and repeatable results?
What if your shop had a press that connected to your power source quickly and held tooling securely through every cycle?
Meet the Edwards 20-Ton Horizontal Press with Portable Power Unit, a hydraulic press built for fabrication shops that need reliable forming capacity.
Available in single and three-phase configurations from 230V to 575V, this press fits a range of shop power setups without compromising force or repeatability.
When the press holds position and repeats accurately, you can move through a run of parts with confidence.
Edwards HAT6010 for Shop Forming, Bending, and Straightening
Digital Encoder Delivers Accurate Repeatability
The digital encoder reads positive stop so the press returns to the same position on every cycle. This makes repetitive work — clips, brackets, and hangers — faster and more consistent across a full production run.
Four Pin Locations Accept a Wide Range of Tooling
Four pin locations lock tooling in place with a simple crank for inboard tool squaring. The open design accepts standard and custom tooling so the press adapts to the work your shop needs to do.
Quick-Connect Hoses Simplify Setup
Twenty-foot quick-connect hoses allow the press to plug directly into the included Portable Power Unit without additional hydraulic plumbing. The press is ready to run as soon as it is connected.
Heavy-Duty Table Supports Solid Workholding
The 2" machine heavy-duty table provides a stable work surface for forming and straightening operations. Built-in storage shelves keep additional tooling close at hand during a run.
What's Included
What's Included? Edwards 20-Ton Horizontal Press with Portable Power Unit
-
Edwards 20-Ton Horizontal Press — Provides 20 tons of hydraulic forming force for bending, straightening, and shaping mild steel.
-
Portable Power Unit — Powers the press directly so the machine is ready to run without an Edwards Ironworker with PowerLink.
-
6" Brake with 4-Way Die — Ships standard with the press to create clips, brackets, hangers, and more right out of the box.
-
20' Quick-Connect Hoses — Connect the press to the power unit quickly for simple plug-and-play operation.
Specs
Edwards 20-Ton Horizontal Press with Portable Power Unit Specifications
- Model: HAT6010 / HAT6020 / HAT6030 / HAT6005
- Rating: 20 Ton
- Cylinder: 2-1/4" Ram
- Stroke: 10"
- Table Dimensions: 24" x 42"
- Product Dimensions (L x W x H): 26" x 43" x 49"
- Overall Dimensions (L x W x H): 54" x 96" x 97"
- Net Weight: 1,862 lb
- Certifications: CSA Certified
- Warranty: 1 Year
Specs by Configuration
- 1 Phase 230V — Model: HAT6010, Stock Number: ED9-HAT6010
- 3 Phase 230V — Model: HAT6020, Stock Number: ED9-HAT6020
- 3 Phase 460V — Model: HAT6030, Stock Number: ED9-HAT6030
- 3 Phase 575V — Model: HAT6005, Stock Number: ED9-HAT6005
