Edwards 2" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 2" Tube Bender Die for 10-Ton Tube & Pipe Bender

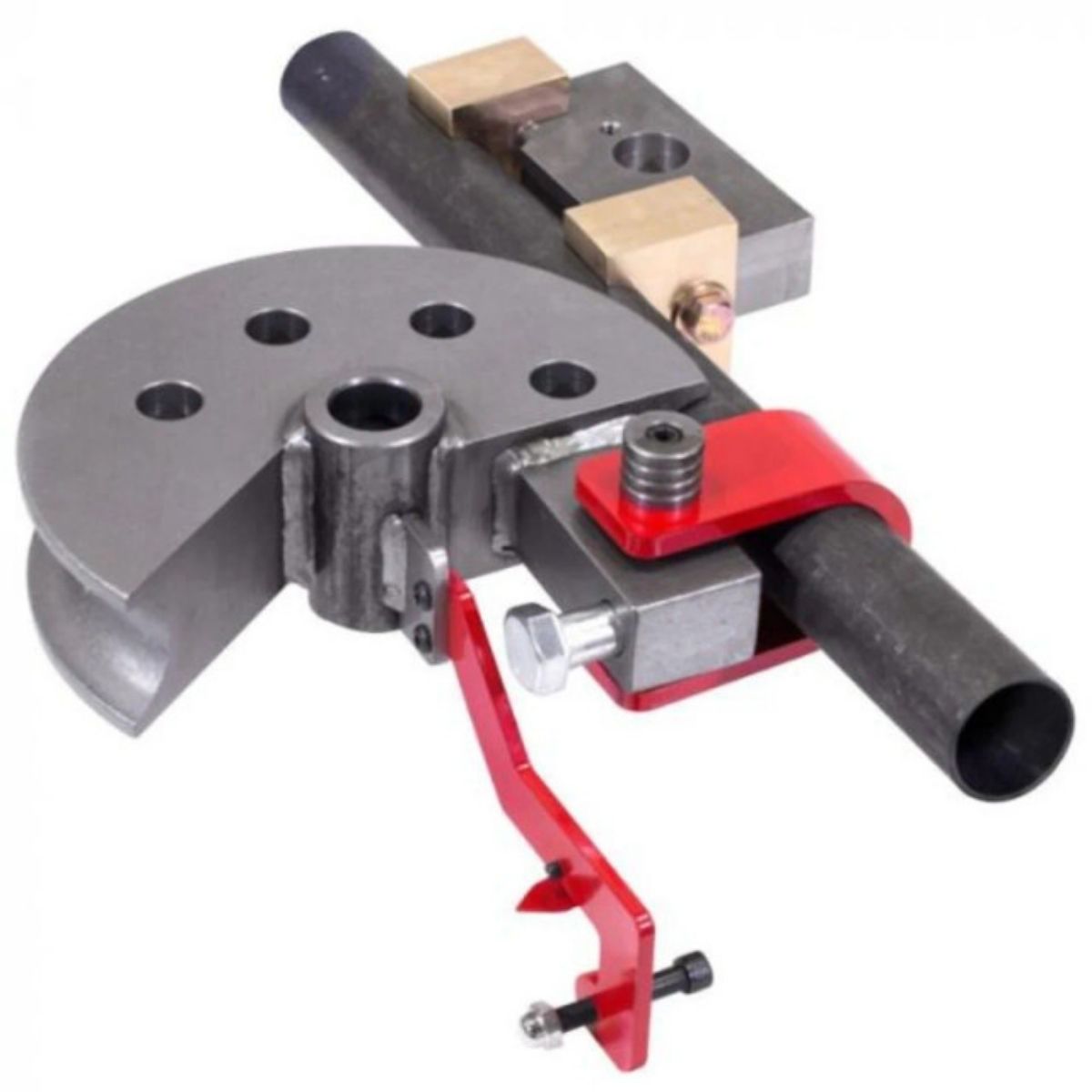

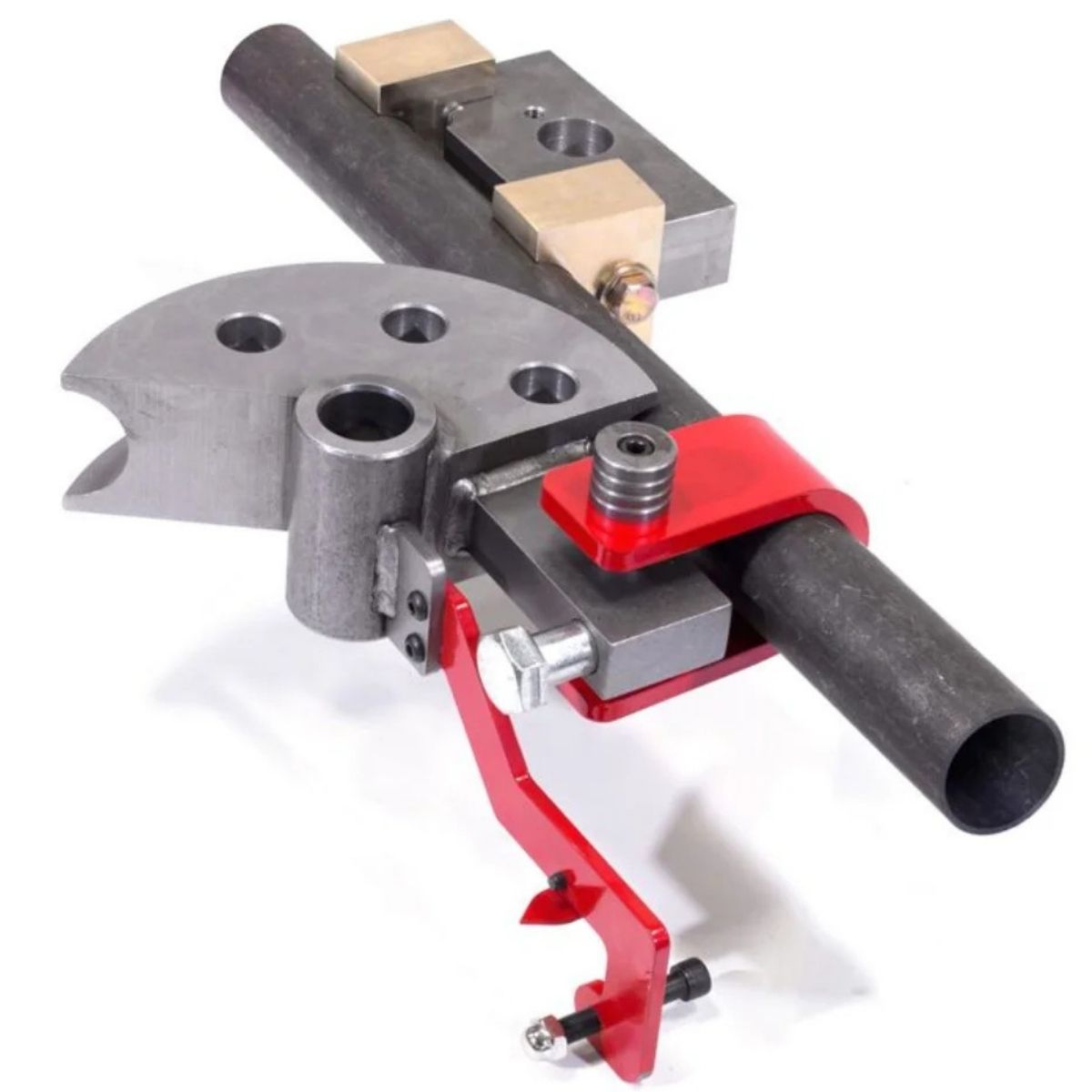

The Edwards 2" Tube Bender Die is built for the Edwards 10-Ton Bender running off an Edwards Ironworker with the PowerLink System. It bends 2" OD tube up to 180 degrees while keeping the curve smooth and even. A brass follower rides against the die to protect it from wear during repeated use.

• Bends 2" OD tube up to 180°
• Brass follower extends die life
• Fits Edwards 10-Ton Bender with PowerLink
• Precision machined for consistent, repeatable bends
• Available in multiple radius and bend angle options

Specs

Edwards 2" Tube Bender Die Specifications

• Material Dimension: 2" (Tube OD)
• For Use With: Edwards 10-Ton Bender (PowerLink Ironworker)
• Follower: Brass
• Warranty: 1 Year Parts
• Prop 65 Warning: Cancer

Specs by Radius & Bend Angle

• 5-1/4" Radius, 180° — SKU ED9-TD180/2X5.25, 64 lb
• 5-1/2" Radius, 90° — SKU ED9-TD90/2X5.5, 48 lb
• 6" Radius, 180° — SKU ED9-TD180/2X6, 64 lb
• 6" Radius, 90° — SKU ED9-TD90/2X6.5, 51 lb
• 6-1/2" Radius, 90° — SKU ED9-TD90/2X6.5, 51 lb
• 6-1/2" Radius, 180° — SKU ED9-TD180/2X6.5, 67 lb
• 7" Radius, 90° — SKU ED9-TD90/2X7, 54 lb
• 7" Radius, 180° — SKU ED9-TD180/2X7, 71 lb
• 7-1/2" Radius, 90° — SKU ED9-TD90/2X7.5, 56 lb
• 7-1/2" Radius, 180° — SKU ED9-TD180/2X7.5, 74 lb
