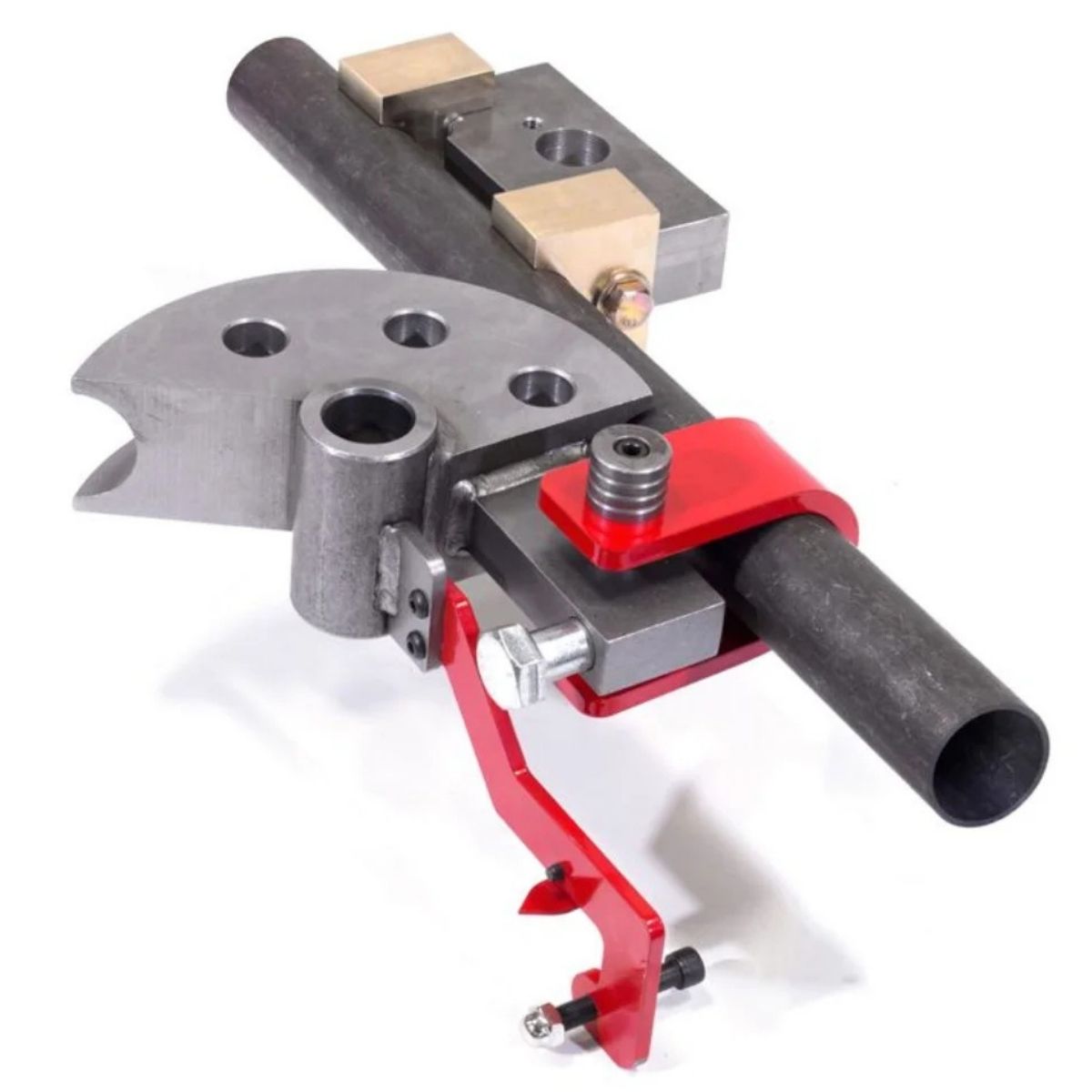

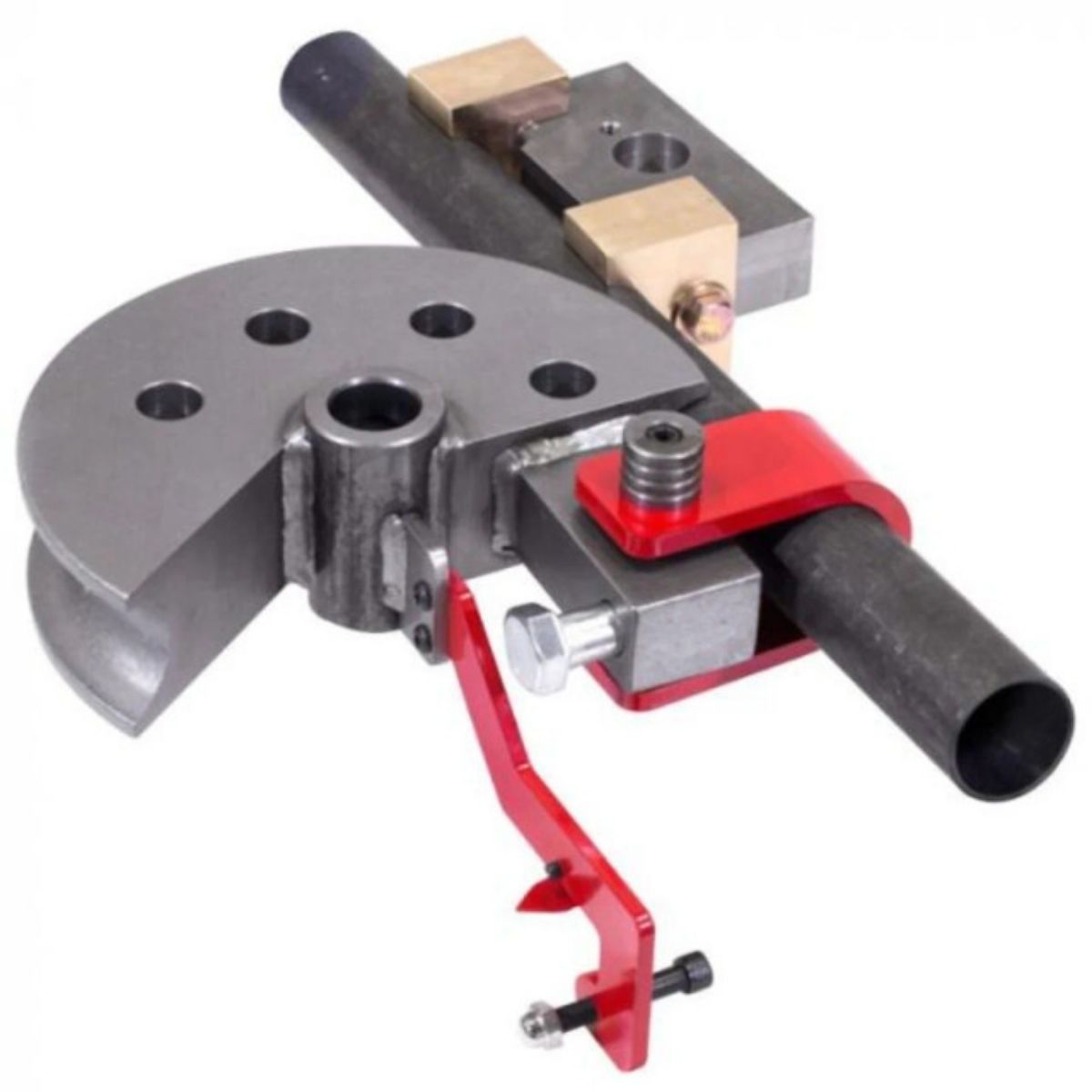

Edwards 2-3/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 2-3/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

The Edwards 2-3/8" Tube Bender Die fits the Edwards 10 Ton Tube & Pipe Bender, run off an Edwards Ironworker with the PowerLink System. A brass follower supports the tube through each bend and helps the die hold up over time. This die is available in two radius sizes with a choice of 90° or 180° maximum bend.

• Brass follower extends die life
• Precision machined for consistent bends
• Fits Edwards 10 Ton Bender with PowerLink System
• Available in two radius sizes
• Covered by Edwards 1 Year Parts Warranty

Specs

Edwards 2-3/8" Tube Bender Die Specifications

• Type: Tube Bender Die
• Material Dimension: 2-3/8 in (OD)
• Warranty: 1 Year
• Prop 65 Warning: Cancer

Specs by Radius and Bend Angle

• 6-1/2" Radius, 90° Bend: Model TD90/2.375X6.5, Stock No. ED9-TD90/2.375X6.5, Net Weight 65 lb
• 6-1/2" Radius, 180° Bend: Model TD180/2.375X6.5, Stock No. ED9-T180/2.375X6.5, Net Weight 85 lb
• 7-1/2" Radius, 90° Bend: Model TD90/2.375X7.5, Stock No. ED9-TD90/2.375X7.5, Net Weight 72 lb
• 7-1/2" Radius, 180° Bend: Model TD180/2.375X7.5, Stock No. ED9-T180/2.375X7.5, Net Weight 95 lb
