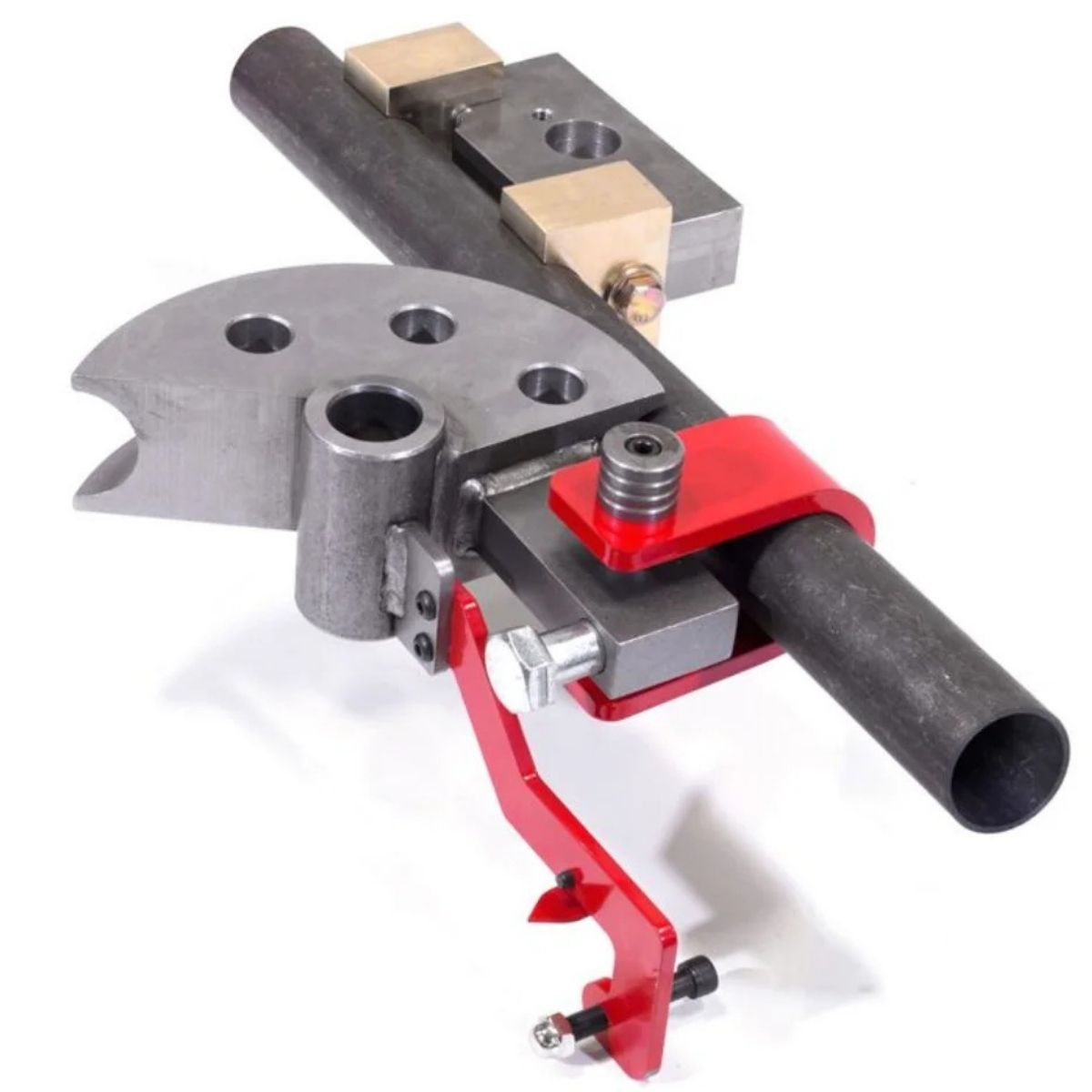

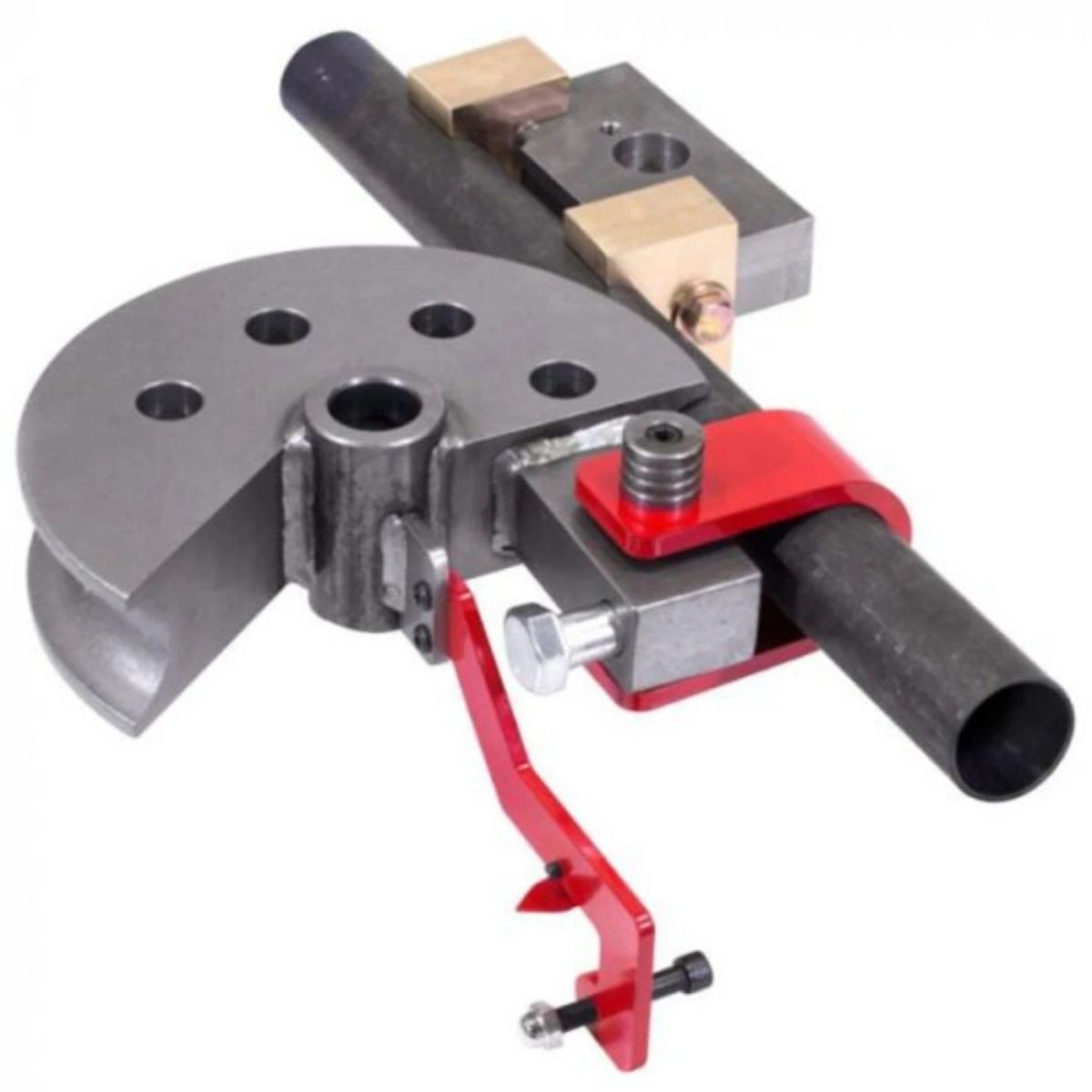

Edwards 2-1/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 2-1/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

The Edwards 2-1/8" Tube Bender Die bends tube up to 180° with a smooth, even curve. It fits the Edwards 10-Ton Tube & Pipe Bender running off an Edwards Ironworker with the PowerLink System. A durable brass follower keeps the die working longer under repeat use. This die comes in 6-1/2" and 7-1/2" centerline radius, each with a 90° or 180° max bend option.

• Bends tube (OD) up to 180°
• Brass follower extends die life
• Fits Edwards 10-Ton Bender with PowerLink
• Precision machined for consistent bends
• Available in 6-1/2" and 7-1/2" radius options

Specs

Edwards 2-1/8" Tube Bender Die Specifications

• Type: Tube Bender Die
• Fits: Edwards 10-Ton Tube & Pipe Bender with PowerLink System
• Follower Material: Brass
• Warranty: 1 Year

Specs by Configuration

• 6-1/2" Radius, 90° Bend — Stock Number ED9-TD90/2.125X6.5, Net Weight 52 lb
• 6-1/2" Radius, 180° Bend — Stock Number ED9-T180/2.125X6.5, Net Weight 69 lb
• 7-1/2" Radius, 90° Bend — Stock Number ED9-TD90/2.125X7.5, Net Weight 55 lb
• 7-1/2" Radius, 180° Bend — Stock Number ED9-T180/2.125X7.5, Net Weight 73 lb
