Edwards 2-1/4" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 2-1/4" Tube Bender Die for 10-Ton Tube & Pipe Bender

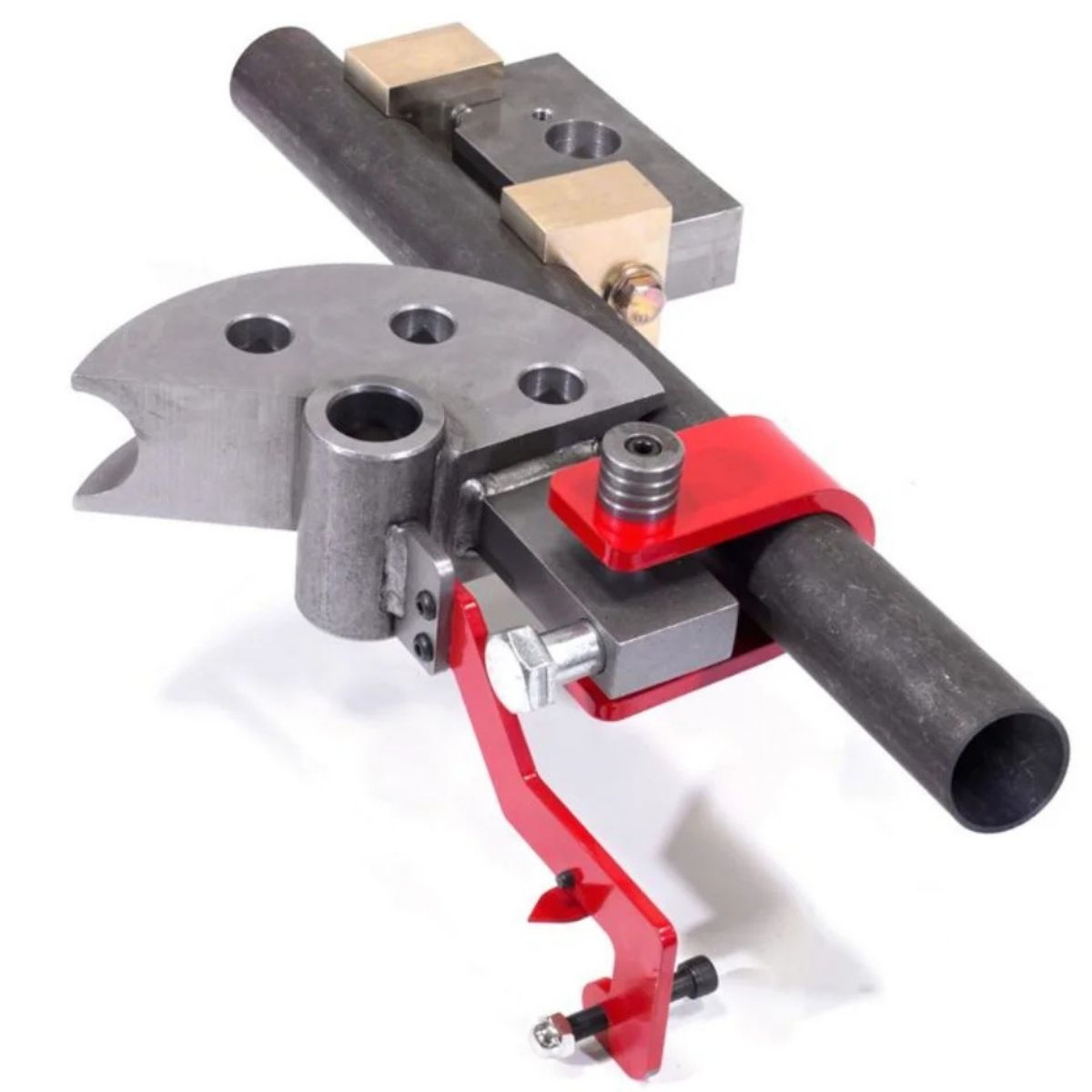

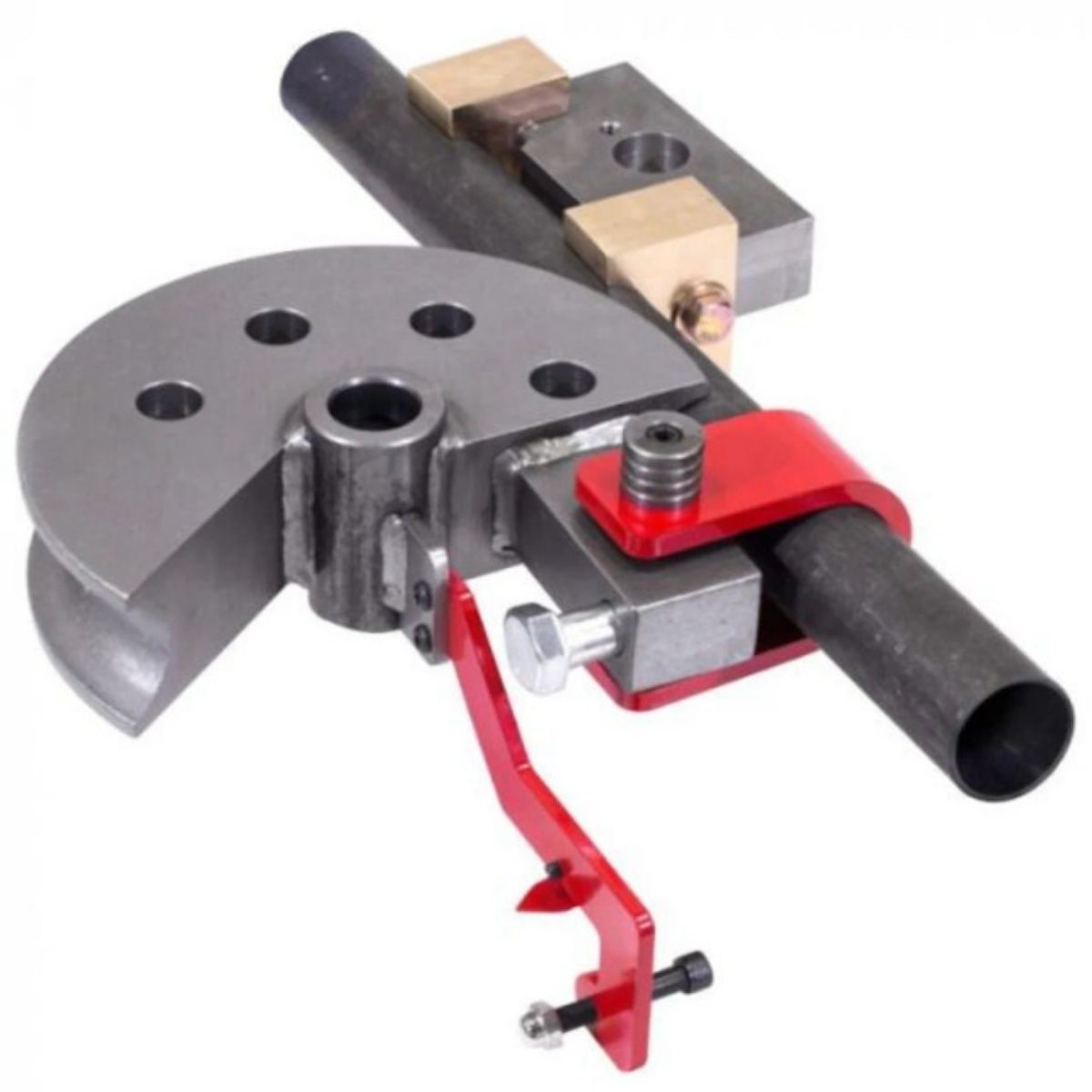

The Edwards 2-1/4" Tube Bender Die fits the Edwards 10-Ton Tube & Pipe Bender, run off an Edwards Ironworker with the PowerLink System. It produces smooth, even bends in tube stock without distorting the wall.

The die is available in multiple radius and bend angle options to match the bend you need.

• Designed for bending tube (OD)
• Brass follower adds long-term durability
• Precision machined for consistent bends
• Works with the Edwards 10-Ton Bender
• Covered by Edwards 1-Year Parts Warranty

Specs

Edwards 2-1/4" Tube Bender Die Specifications

• Material Dimension: 2-1/4 in
• Type: Tube Bender Die
• Follower Material: Brass
• Compatible With: Edwards 10-Ton Tube & Pipe Bender (PowerLink System)
• Warranty: 1 Year

Specs by Radius and Bend Angle

• 6-1/2" Radius, 90° Bend — Net Weight: 63 lb (ED9-TD90/2.25X6.5)
• 6-1/2" Radius, 180° Bend — Net Weight: 84 lb (ED9-TD180/2.25X6.5)
• 7-1/2" Radius, 90° Bend — Net Weight: 69 lb (ED9-TD90/2.25X7.5)
• 7-1/2" Radius, 180° Bend — Net Weight: 91 lb (ED9-TD180/2.25X7.5)
