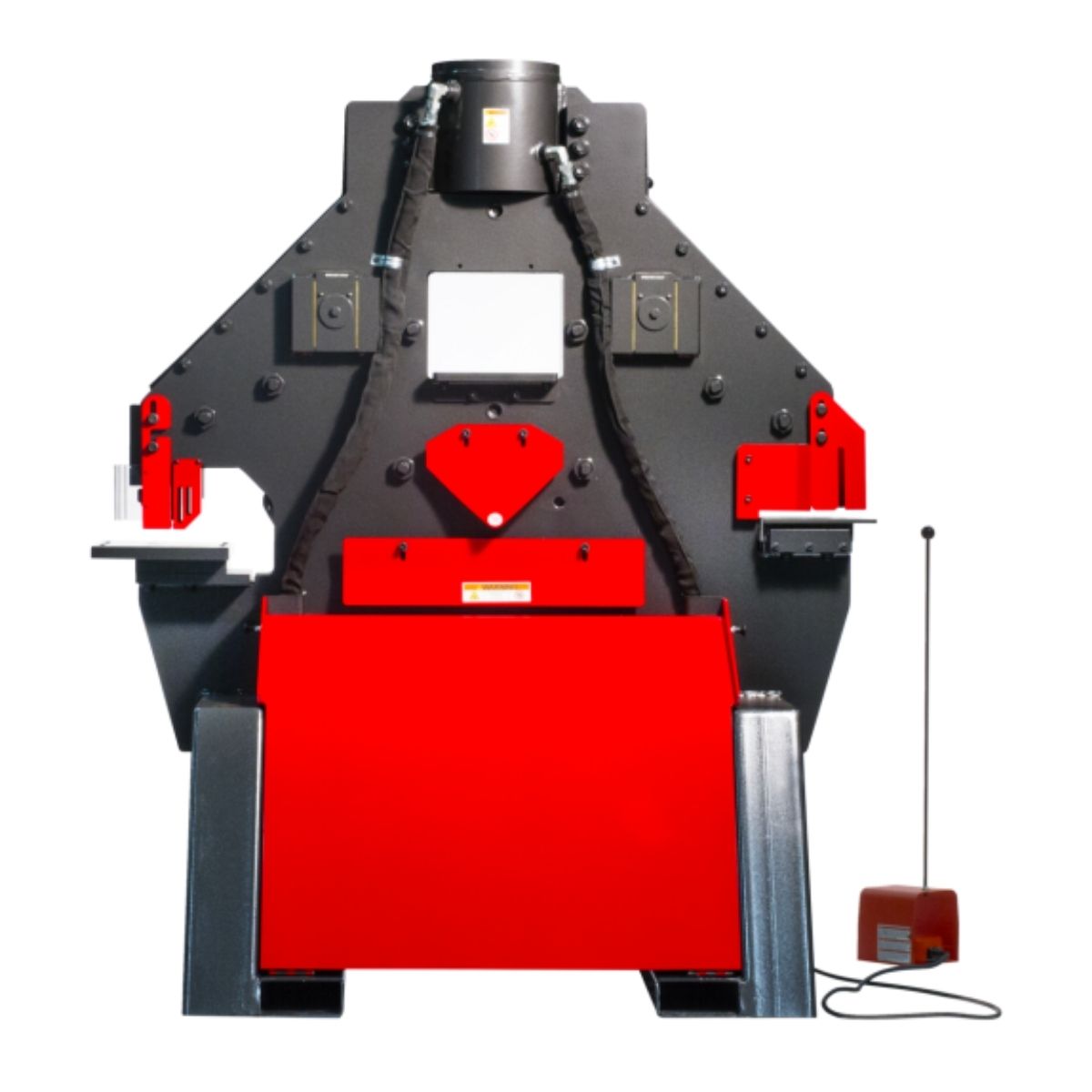

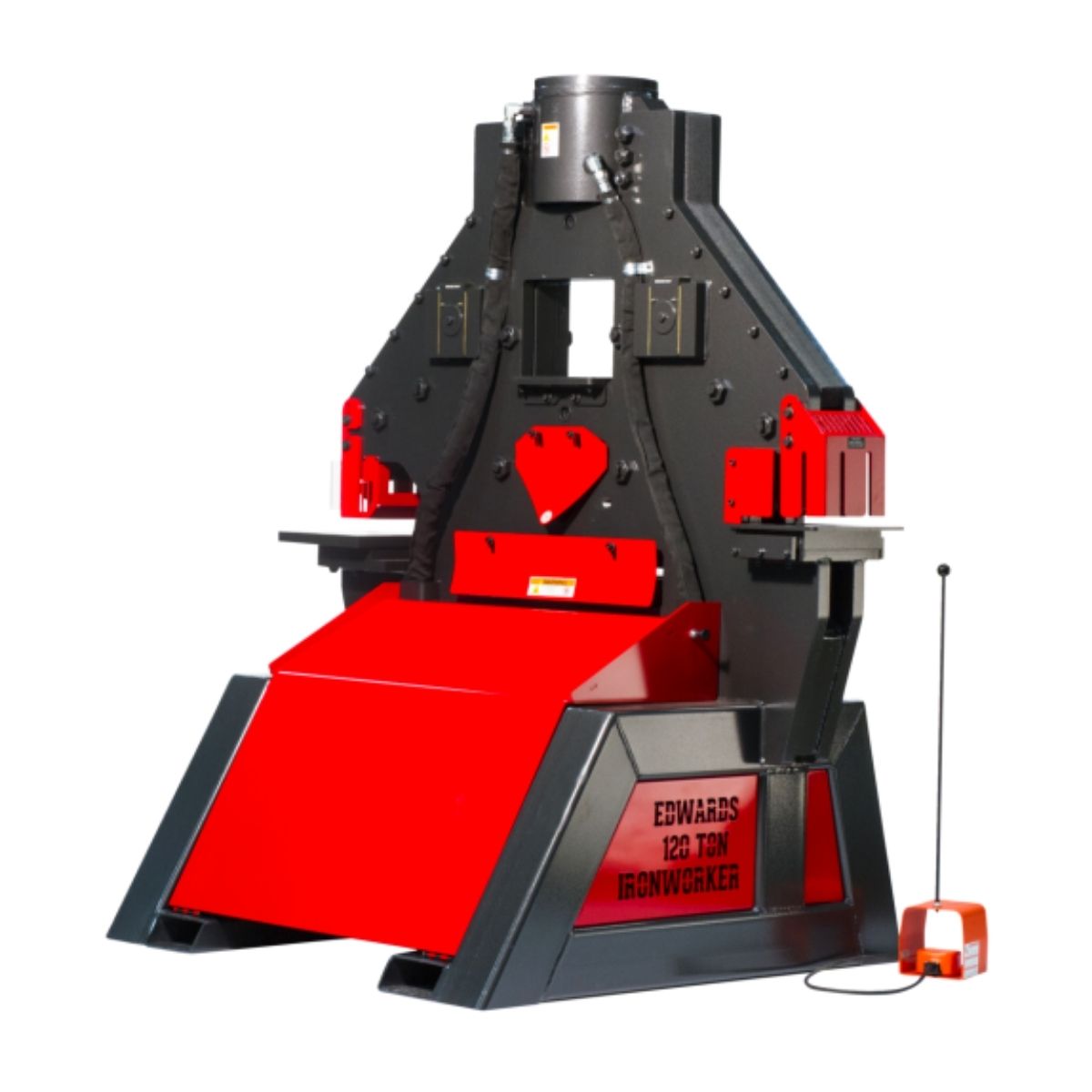

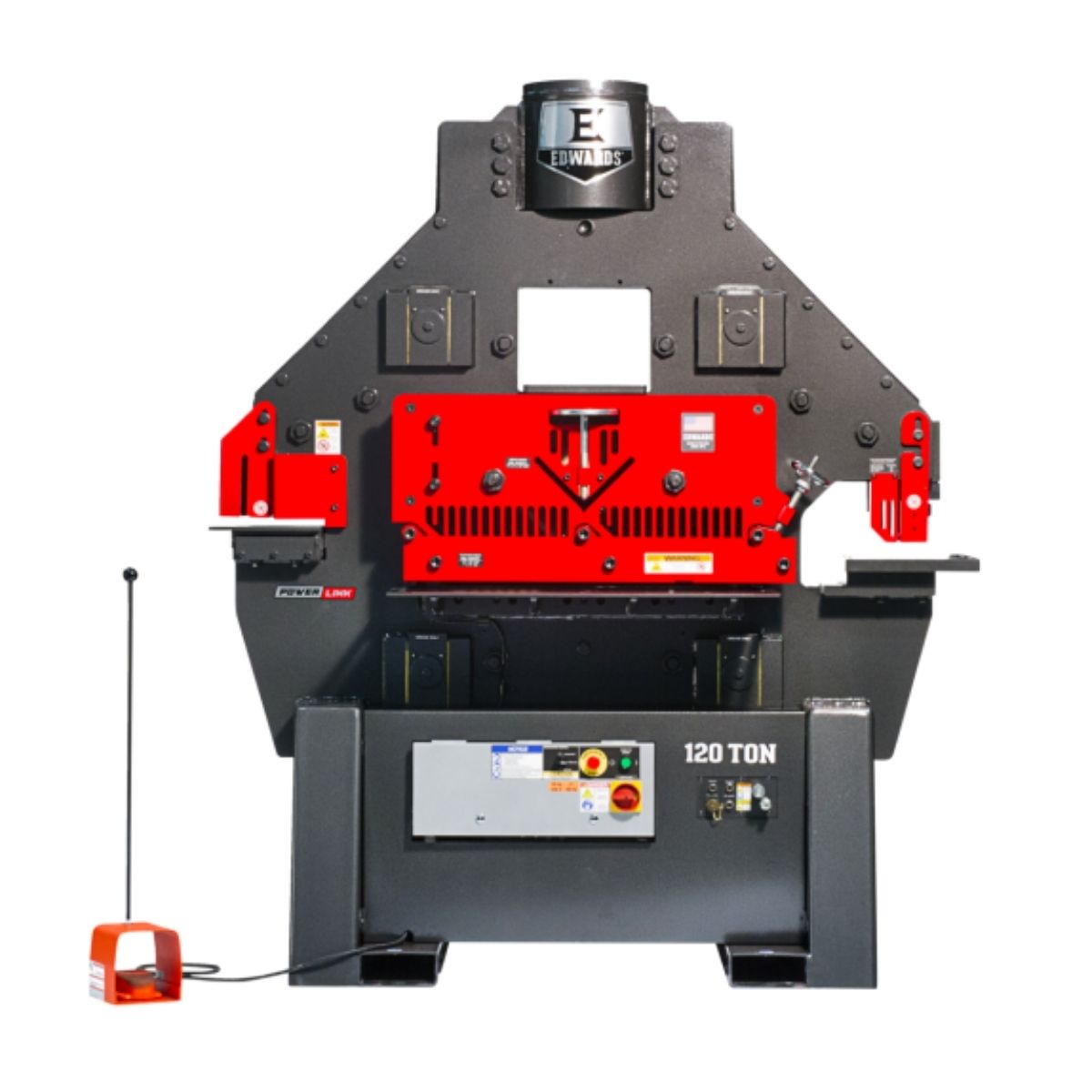

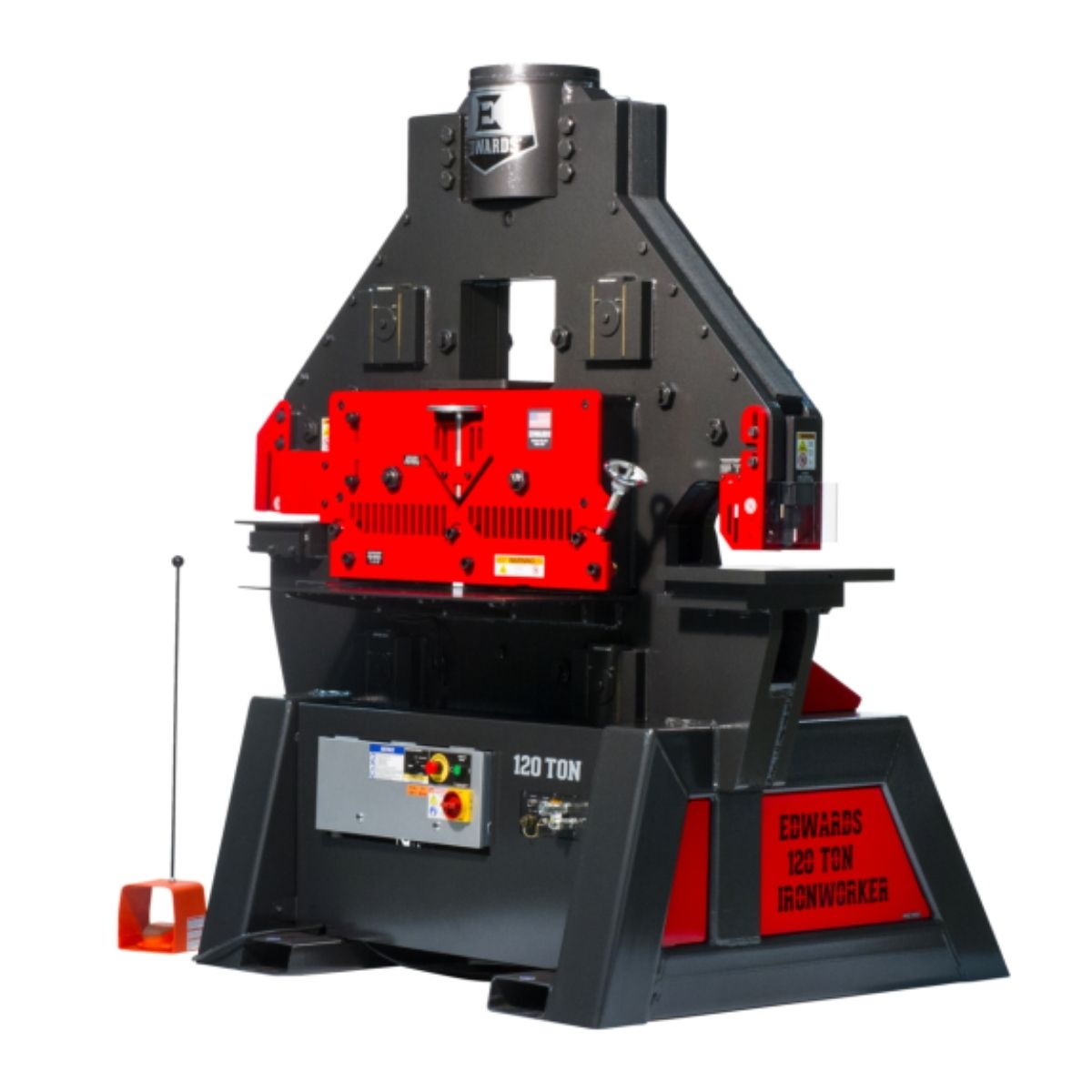

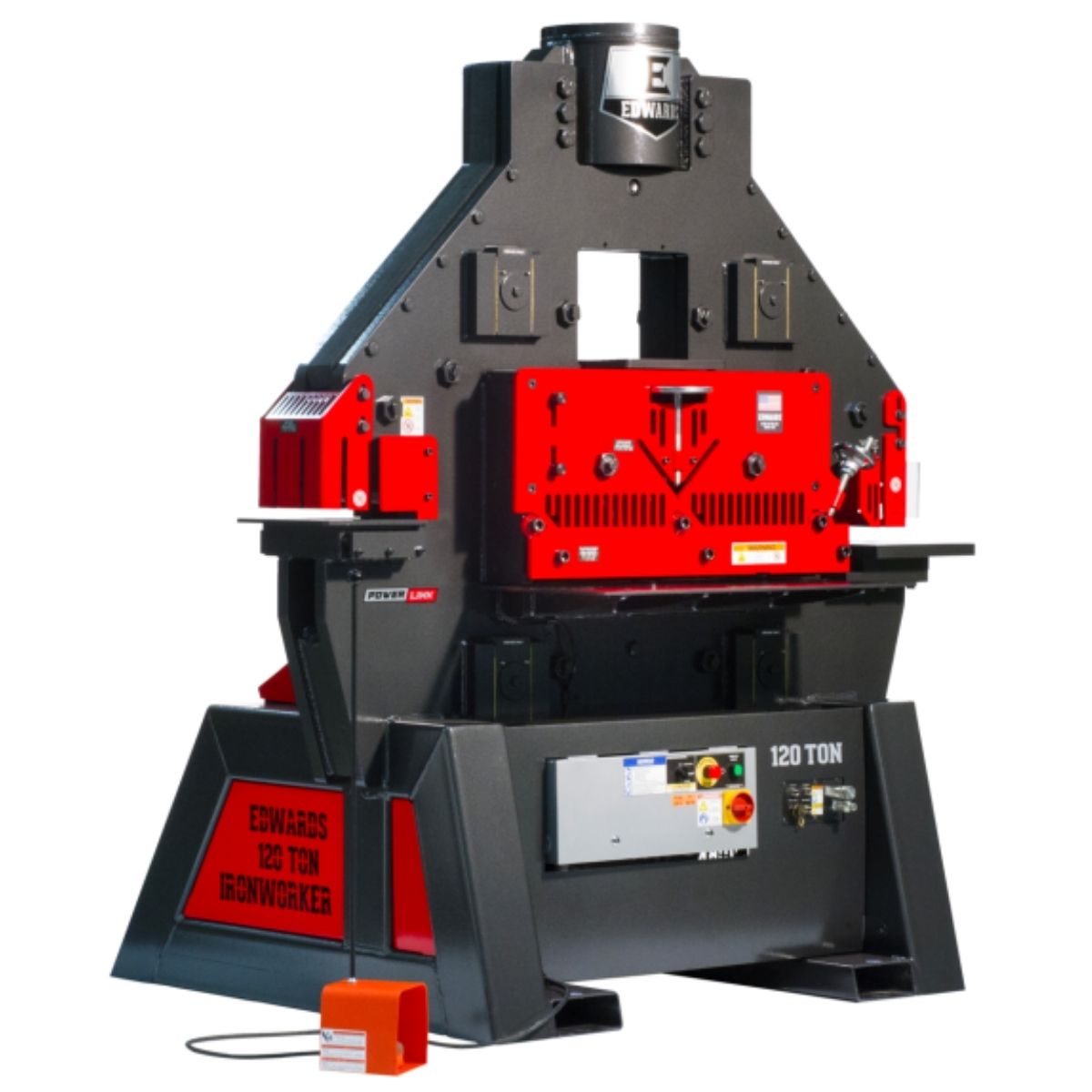

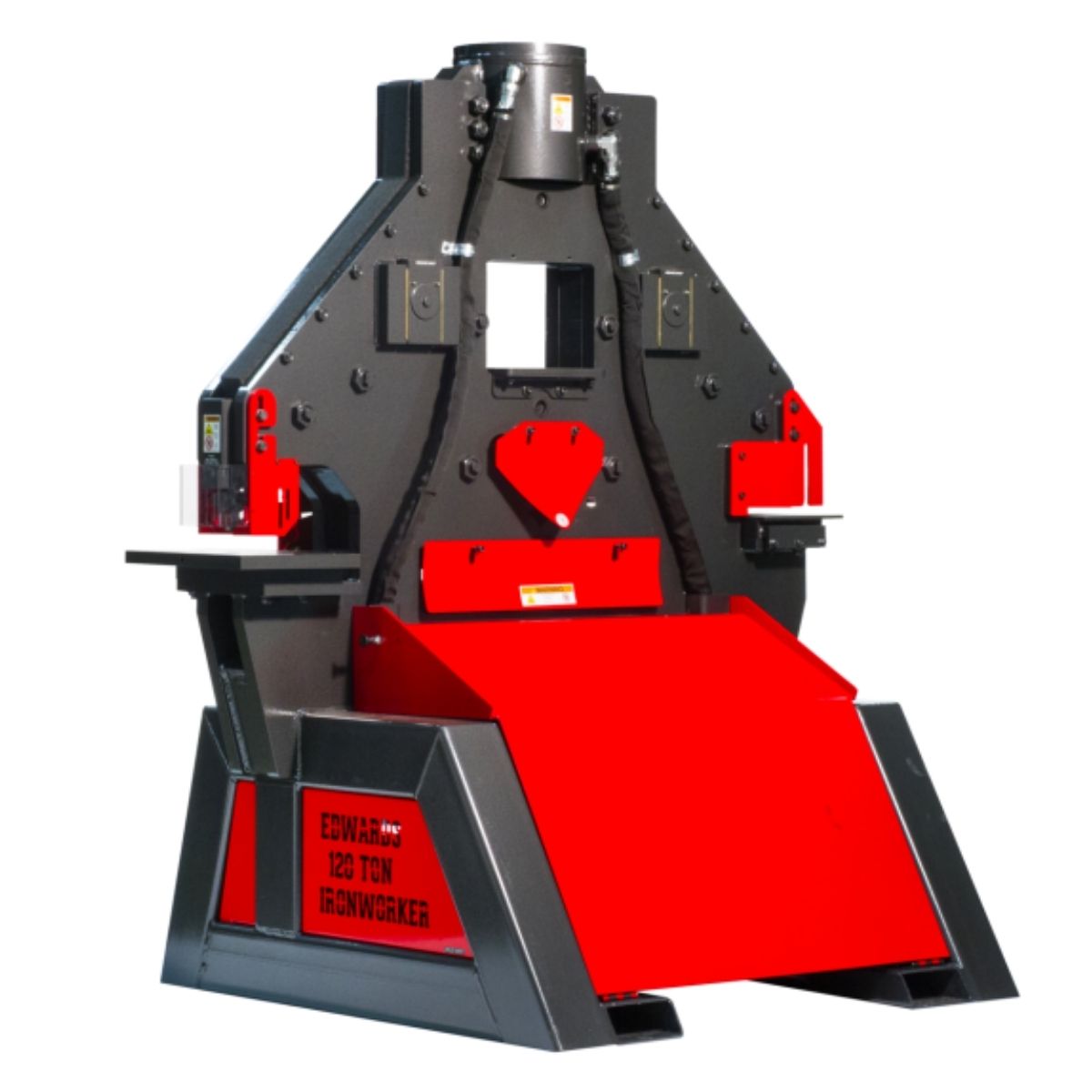

Edwards 120-Ton Ironworker — IW120
Are you running heavy fabrication work that pushes the limits of what your current ironworker can handle?
What if your shop had a single machine that could punch, shear, notch, and power your hydraulic tools without slowing down?
Meet the Edwards 120-Ton Ironworker — IW120, a USA-built ironworker built for the most demanding fabrication work.
Available in three-phase configurations from 208V to 575V, the IW120 fits a range of shop power setups without giving up any capacity.
When the machine handles your heaviest cuts without hesitation, you can move through the work with confidence and keep production on schedule.
Edwards IW120 for Heavy-Duty Fabrication Work
Five Workstations Handle Multiple Fabrication Operations
The IW120 includes a punch, flat bar shear, angle shear, coper notcher, and an open cavity workstation in a single compact footprint. Moving between operations is fast, which keeps the work moving without constant machine changes.
120-Ton Punch Capacity Handles Thick Mild Steel
The punch station delivers 120 tons of force with a 2-inch stroke for clean results through thick material. Punches are available from 1/8" to 4" in round, square, oblong, hex, metric, and custom shapes to cover a wide range of hole requirements.
Tool Steel Blades Extend Shear and Notch Life
Flat bar shear blades are precision machined from high-quality tool steel with four cutting edges for extended service life. Angle shear blades include two corner radii to handle both thin and thick material without swapping tooling.
PowerLink Turns the IW120 into a Hydraulic Power Source
PowerLink is built into every IW120 configuration and connects your ironworker to Edwards' line of hydraulic tools. This gives the machine a second role in the shop without adding a separate power unit.
What's Included
What's Included? Edwards 120-Ton Ironworker — IW120
-
Edwards 120-Ton Ironworker — IW120 — Provides a 120-ton five-workstation ironworker platform for heavy fabrication work.
Specs
Edwards 120-Ton Ironworker — IW120 Specifications
- Rating: 120 Ton
- Punch Capacity: 1-1/2" diameter in 1" mild steel
- Punch Stroke: 2"
- Punch Open Height: 9-1/8"
- Punch Shut Height: 7-1/8"
- Punch Work Height: 36-5/8"
- Flat Bar Shear Capacity (1/2"): 24"
- Flat Bar Shear Capacity (1"): 12"
- Flat Bar Shear Max Round: 1-1/4"
- Flat Bar Shear Max Square: 1-1/4"
- Flat Bar Shear Work Height: 33-1/4"
- Angle Shear Capacity (1/2"): 6" x 6"
- Angle Shear Work Height: 52-1/2"
- Coper Notcher Capacity: 3" x 6" x 1/2"
- Coper Notcher Work Height: 40"
- Motor: 10 HP, 3 Phase
- Motor Speed: 1,770 RPM
- Hydraulic Pump: 24 GPM
- Hydraulic Reservoir: 17 gal.
- Hydraulic Pressure: 3,800 PSI
- Overall Dimensions (L x W x H): 60" x 60" x 84"
- Net Weight: 5,856 lb
- Warranty: 1 Year
Specs by Configuration
- 3 Phase 208V with PowerLink (ED9-IW120-3P208-A) — Voltage: 208V, Amperage: 26A
- 3 Phase 230V with PowerLink (ED9-IW120-3P230-A) — Voltage: 230V, Amperage: 26A
- 3 Phase 460V with PowerLink (ED9-IW120-3P460-A) — Voltage: 460V, Amperage: 12A
- 3 Phase 575V with PowerLink (ED9-IW120-3P575-A) — Voltage: 575V, Amperage: 10A
