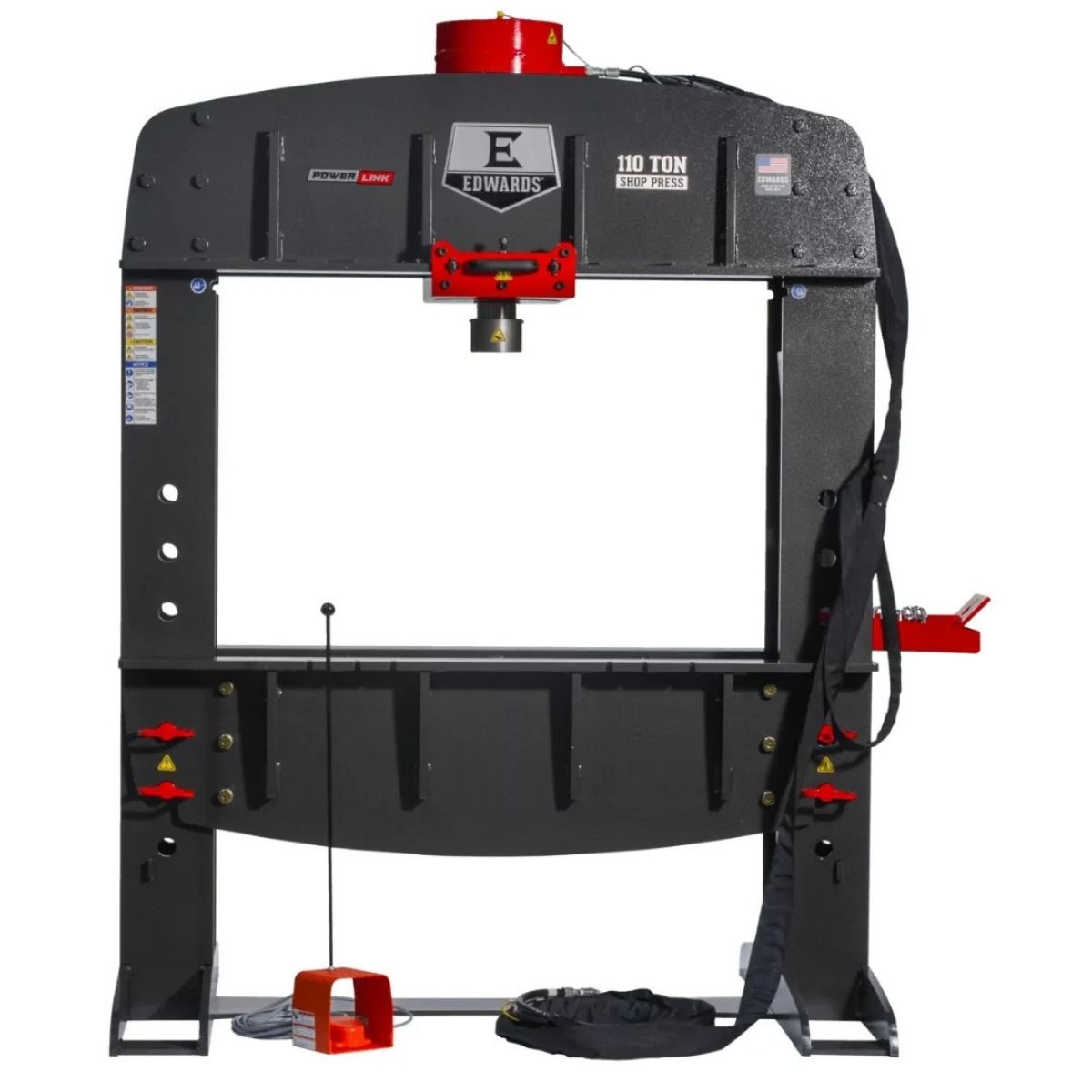

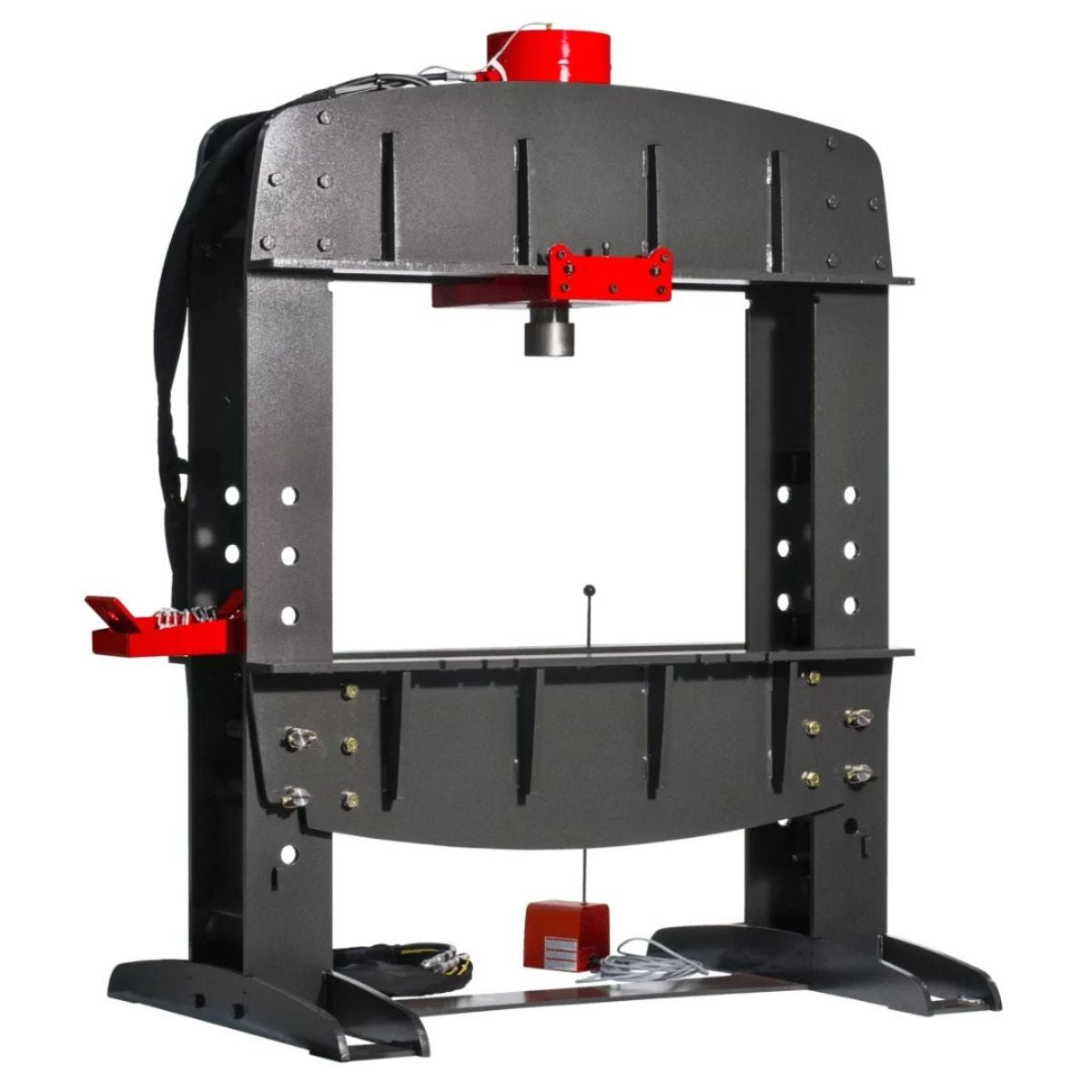

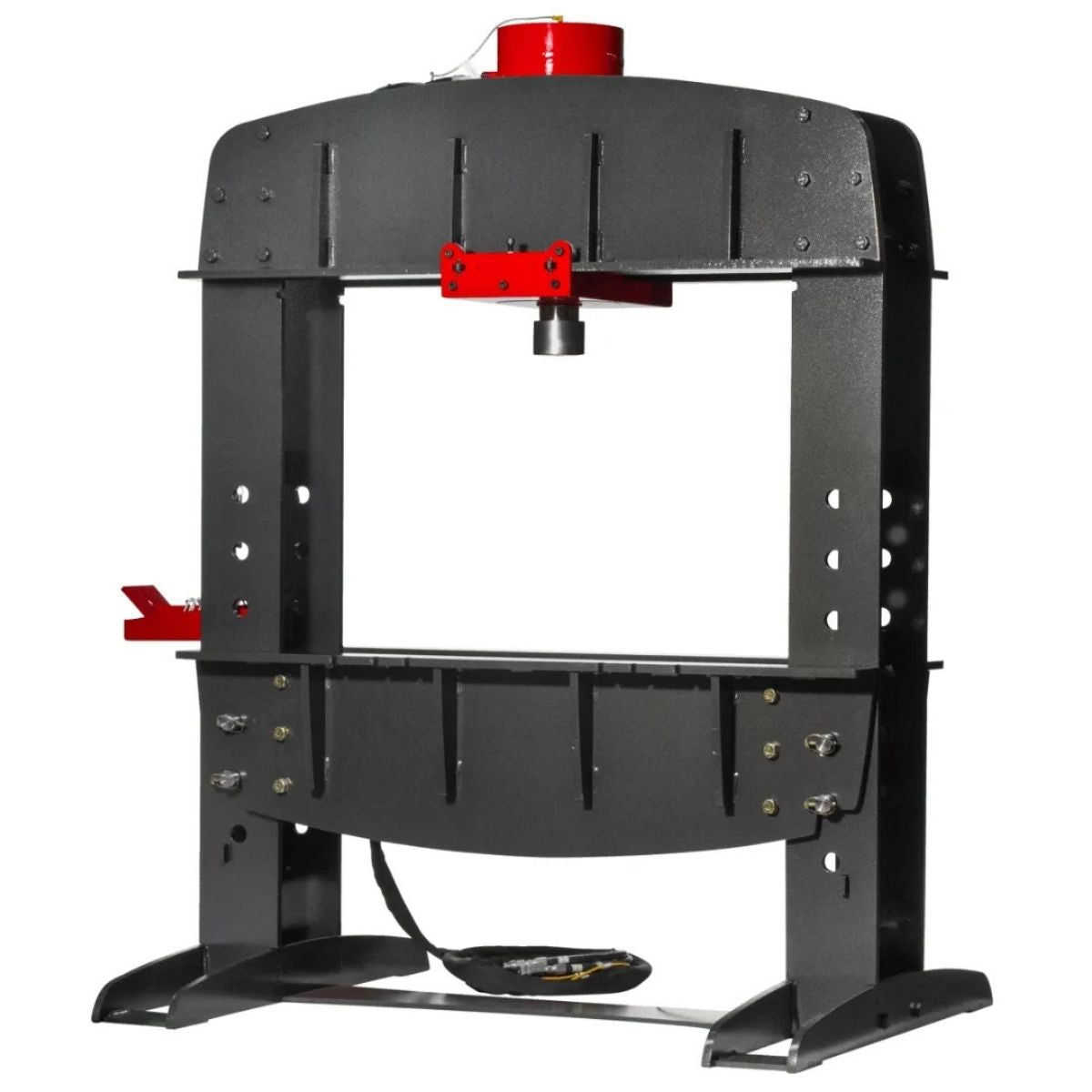

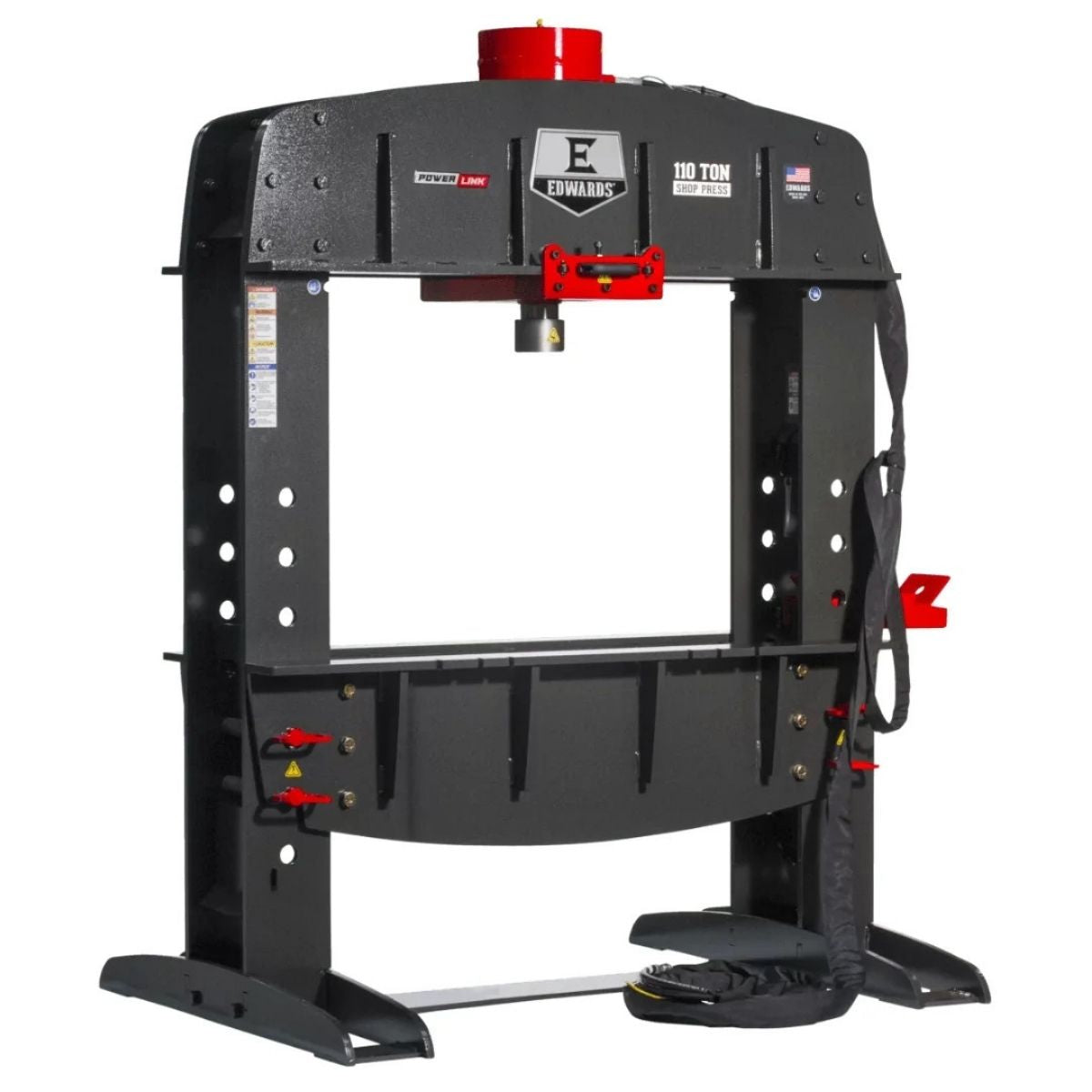

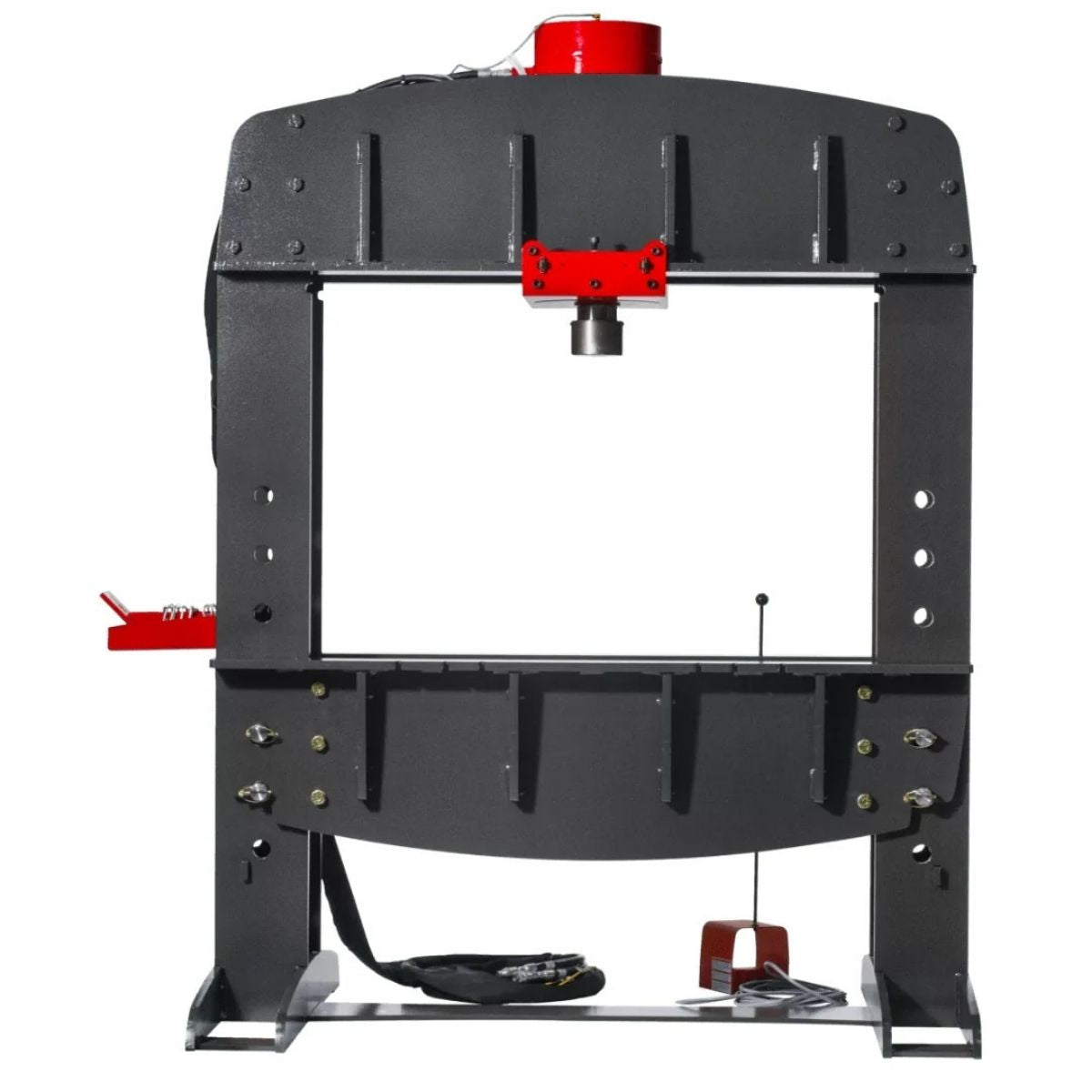

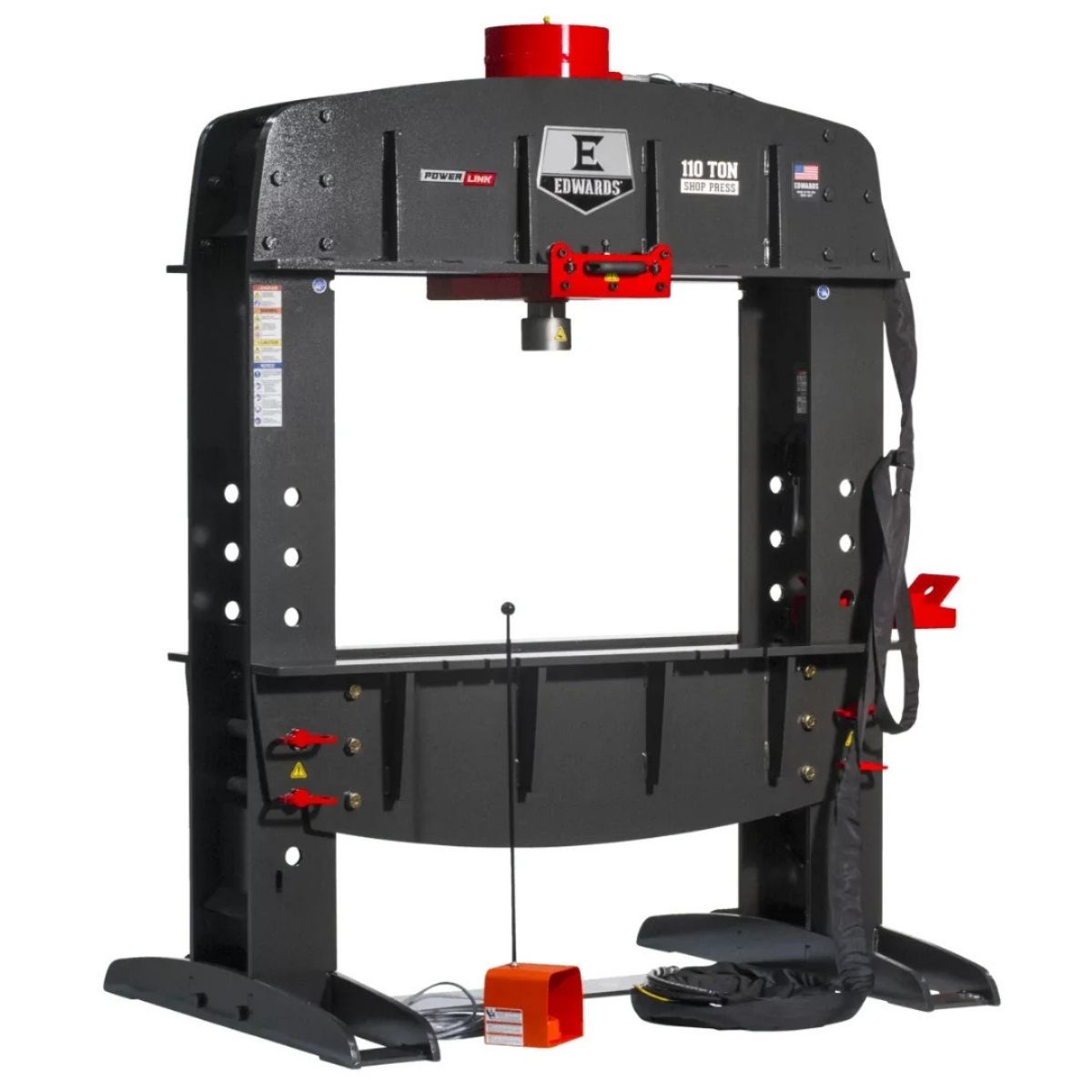

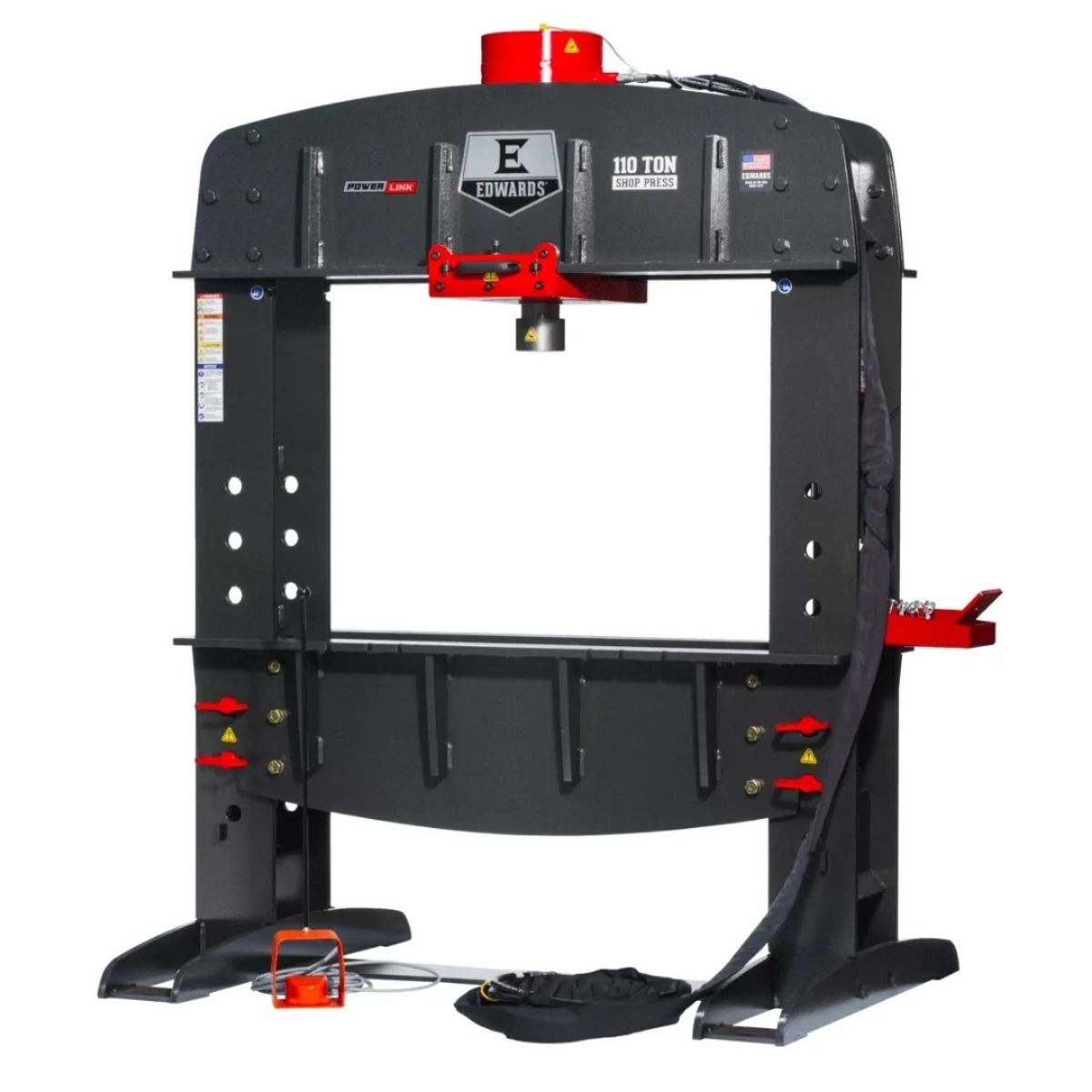

Edwards 110-Ton Shop Press with PowerLink Hydraulic Tool
Are you working with heavy fabrication jobs that need more pressing force than your current setup can deliver?
What if your shop had a 110-ton hydraulic press that connects directly to your Edwards Ironworker or Porta-Power and handles the full range of press, bend, and straightening work?
Meet the Edwards 110-Ton Shop Press with PowerLink Hydraulic Tool, the largest shop press in the Edwards hydraulic accessory lineup.
With a rolling cylinder, hydraulic-assist adjustable table, pressure gauge, and electric foot pedal, the press connects to your existing Edwards power source through 20-foot quick-connect hoses for fast, clean setup.
When the press is dialed in and the cylinder is locked over your work, you can move through heavy pressing jobs with steady, predictable force.
Edwards HAT9000 for Heavy-Duty Shop Press Work
Rolling Cylinder Positions Over Any Press Site
The 110-ton hydraulic cylinder rides on a rolling plate that moves side to side across the head assembly. Once aligned over your work, a retention bolt locks the cylinder in place for a stable, controlled press stroke.
Hydraulic-Assist Table Adjusts to Your Work
The press bed adjusts in height using the hydraulic ram, lift ring, and lift chains — no manual lifting required. Positioning the table close to your work reduces ram extension under load and keeps the stroke efficient.
Pressure Gauge Supports Repeatable Results
A pressure gauge mounted at the cylinder shows the force being applied through the ram. Reading pressure during the press cycle helps you repeat the same result from part to part without guessing.
Electric Foot Pedal Keeps Hands Clear
The electric foot pedal with integrated jog control operates the cylinder so both hands stay free to manage the workpiece. Releasing the pedal retracts the cylinder and returns the press to its neutral position.
What's Included
What's Included? Edwards 110-Ton Shop Press with PowerLink Hydraulic Tool
-
Edwards 110-Ton Shop Press with PowerLink Hydraulic Tool — Provides 110 tons of hydraulic pressing force for heavy fabrication work when connected to a compatible Edwards power source.
-
20-Foot Quick-Connect Hydraulic Hoses — Connect the press to an Edwards Ironworker or Porta-Power for simple plug-and-play setup.
-
Electric Foot Pedal with Jog Control — Controls cylinder extension and retraction, keeping both hands free during the press operation.
-
Lift Ring and Lift Chains — Used with the hydraulic ram to raise or lower the press bed to the correct working height.
-
Press Cup — Protects the machined ram end during pressing operations.
Specs
Edwards 110-Ton Shop Press with PowerLink Hydraulic Tool Specifications
- Model: HAT9000
- Stock Number: ED9-HAT9000
- Rating: 110 Ton
- Stroke: 12-1/4 in
- Minimum Ram Speed: 0.186 in/sec
- Minimum Return Speed: 0.220 in/sec
- Work Table: 37-7/16 in x 48 in
- Frame Thickness: 3/4 in steel
- Product Dimensions: 48 x 64 x 88 in
- Net Weight: 2,200 lb
- Power Source: Edwards Ironworker with PowerLink System or Edwards Porta-Power (5HP, 3000 PSI) — required, not included
- Warranty: 1 Year
- Manual: HAT9000
