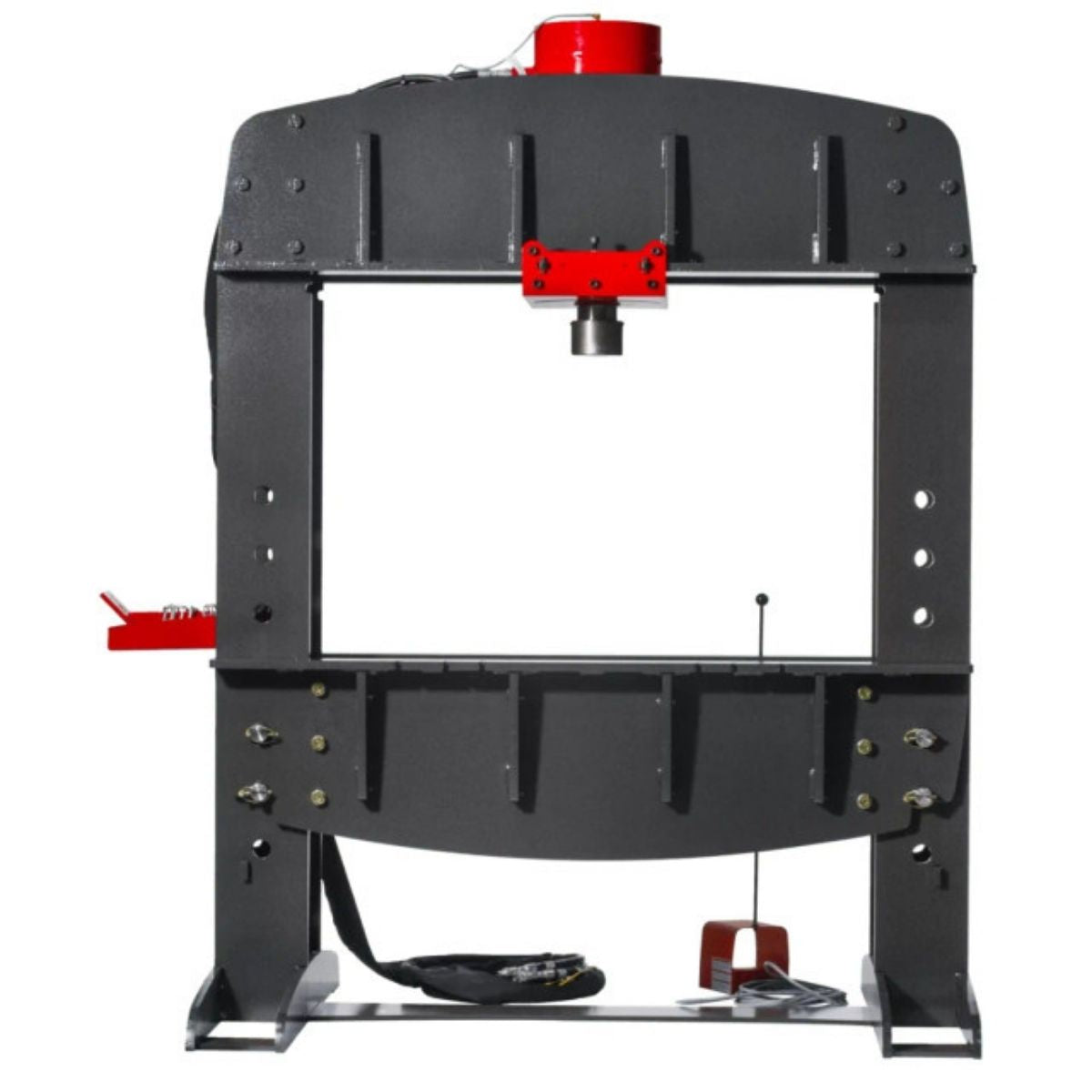

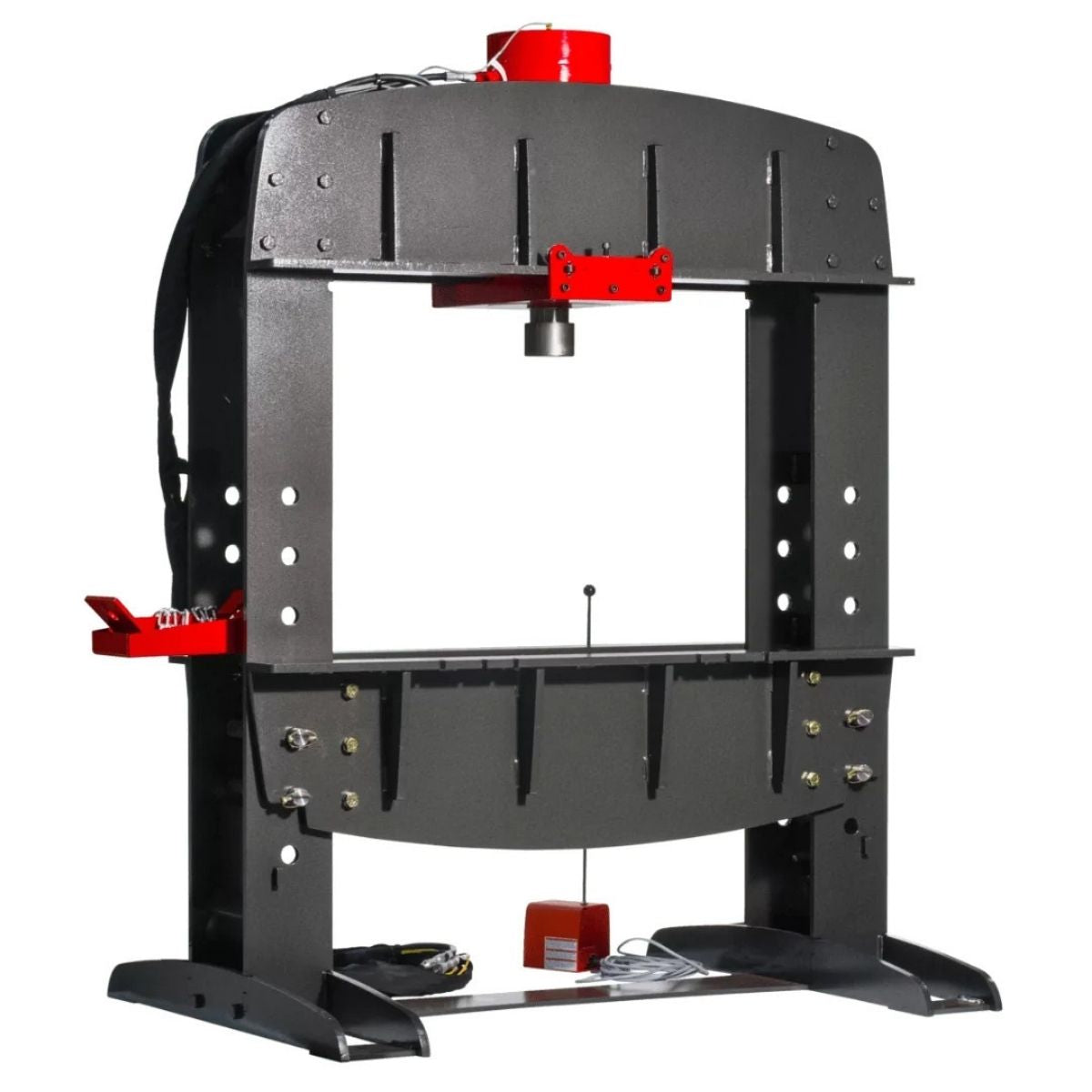

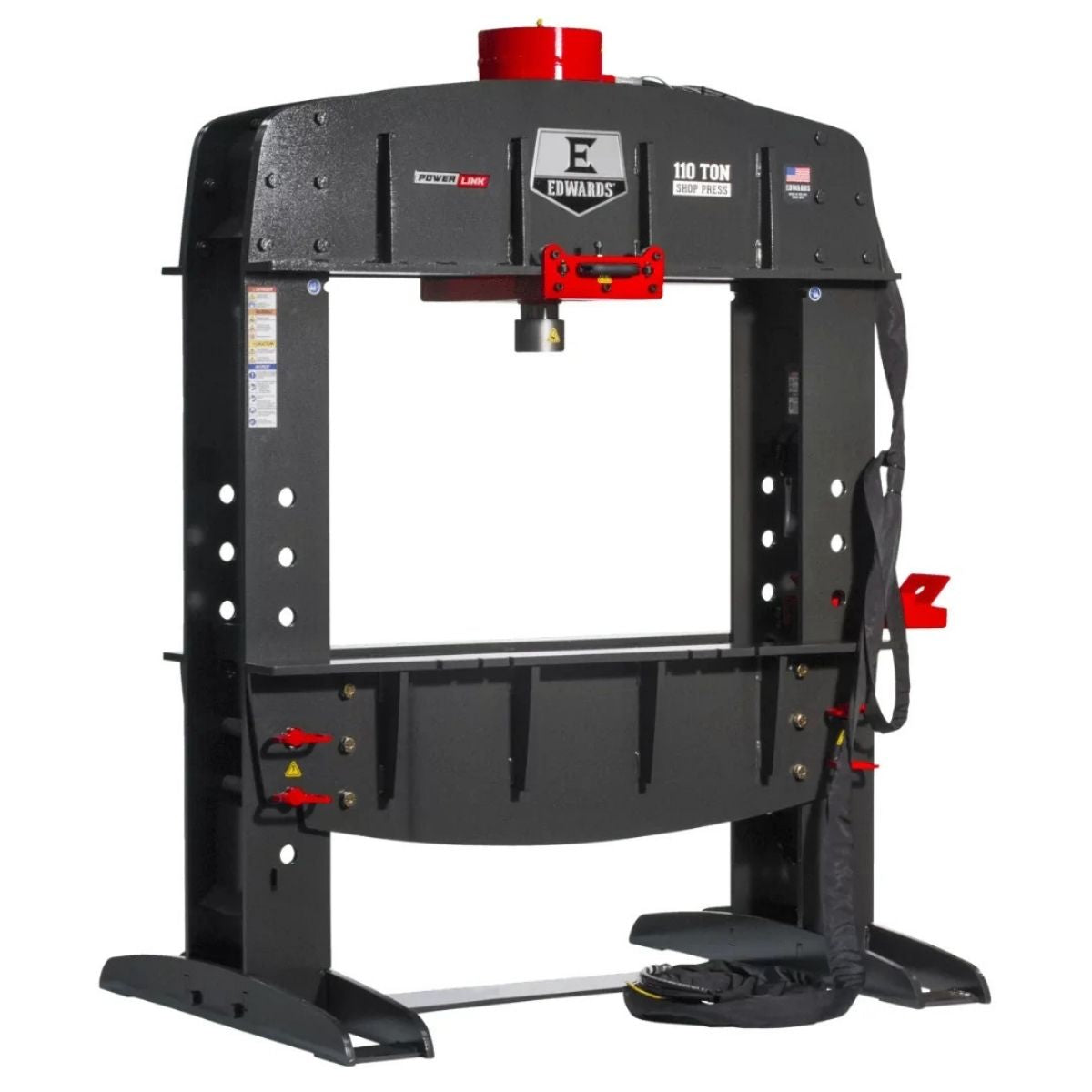

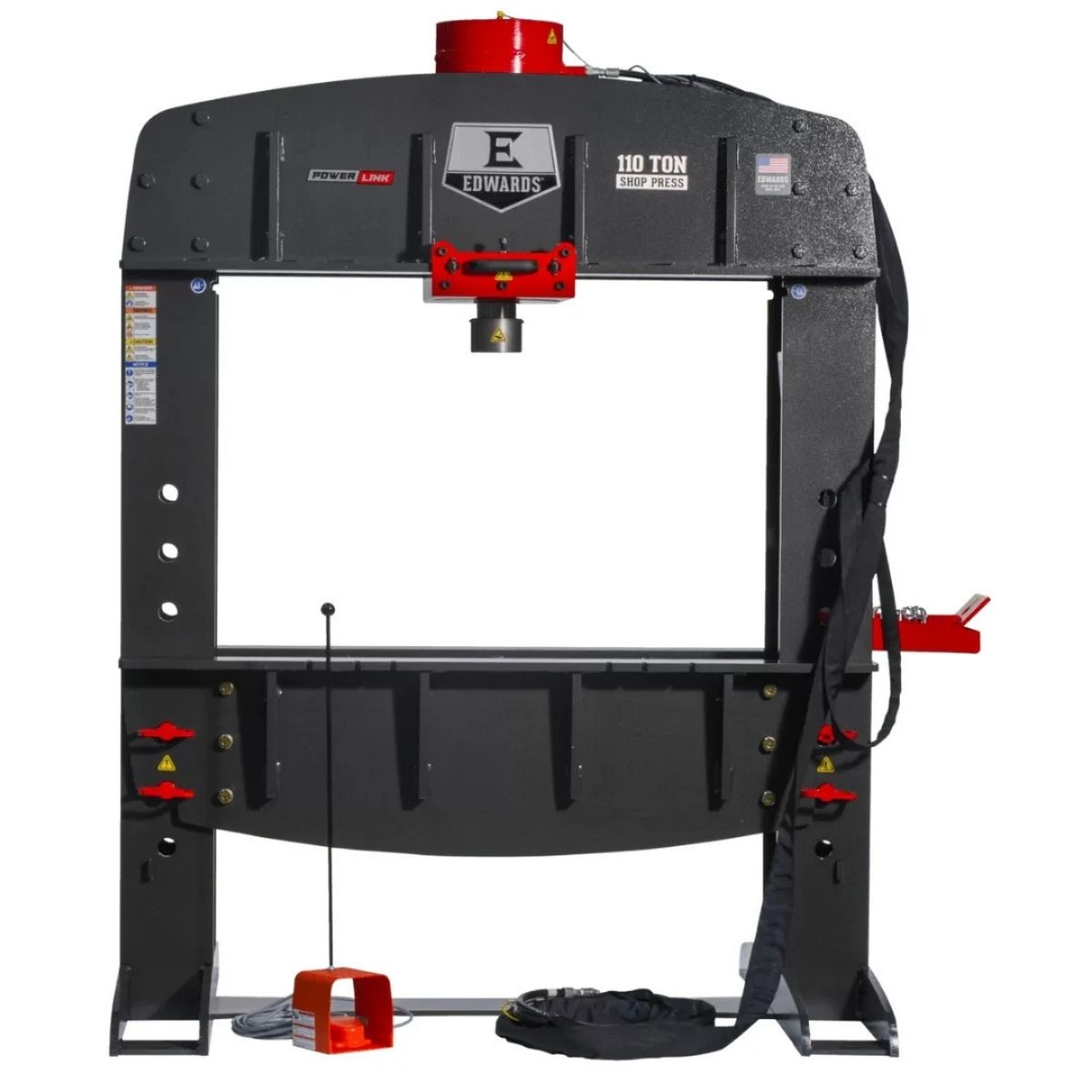

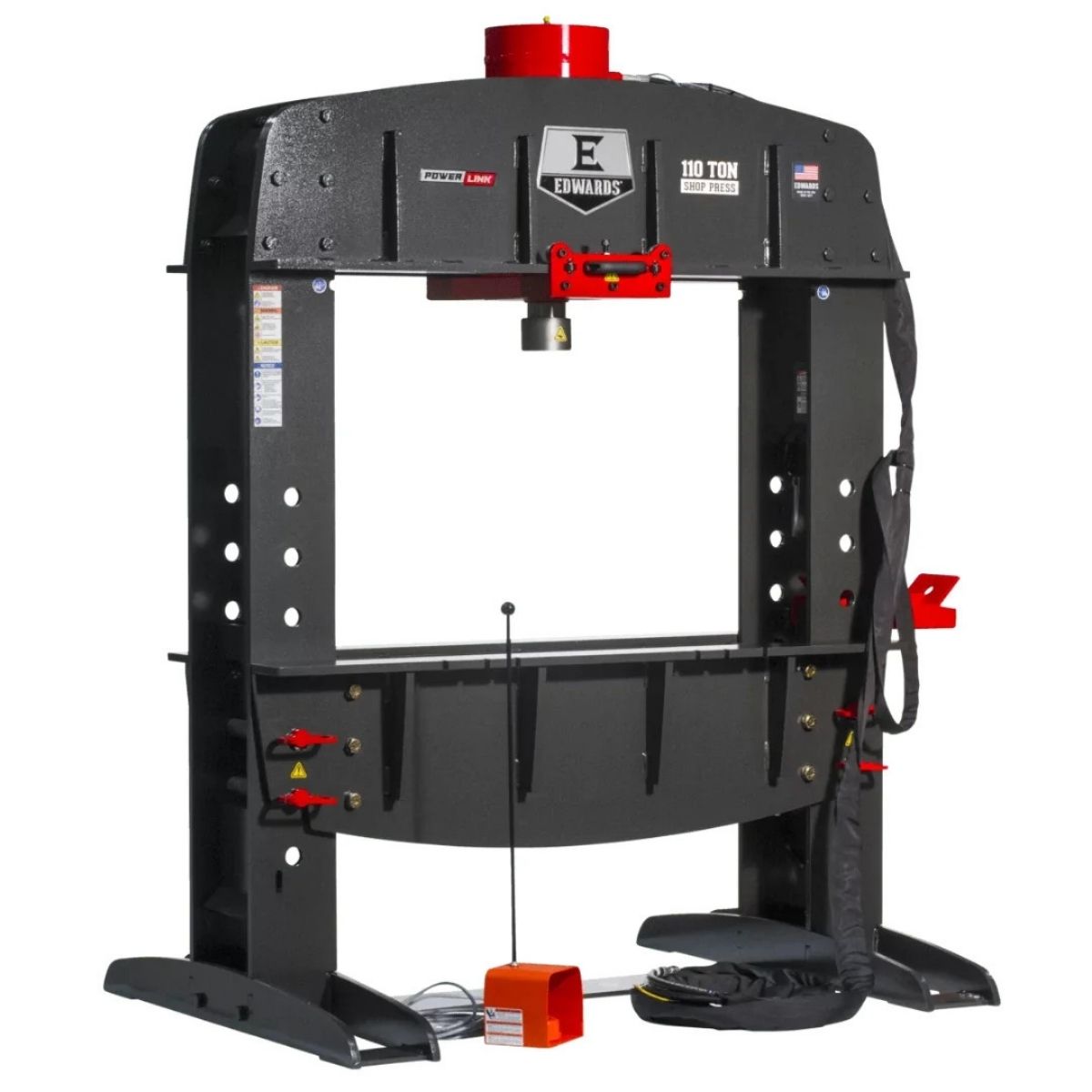

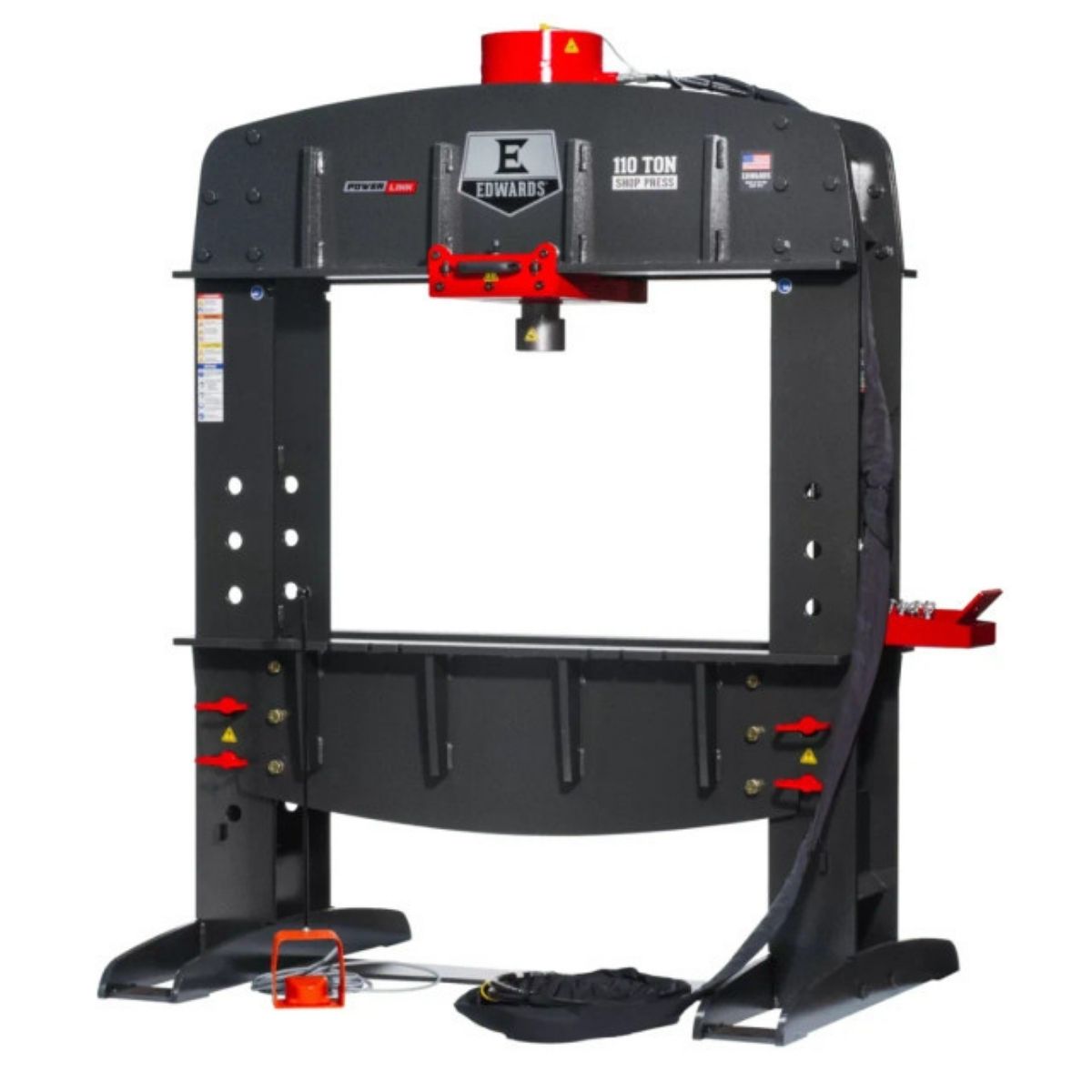

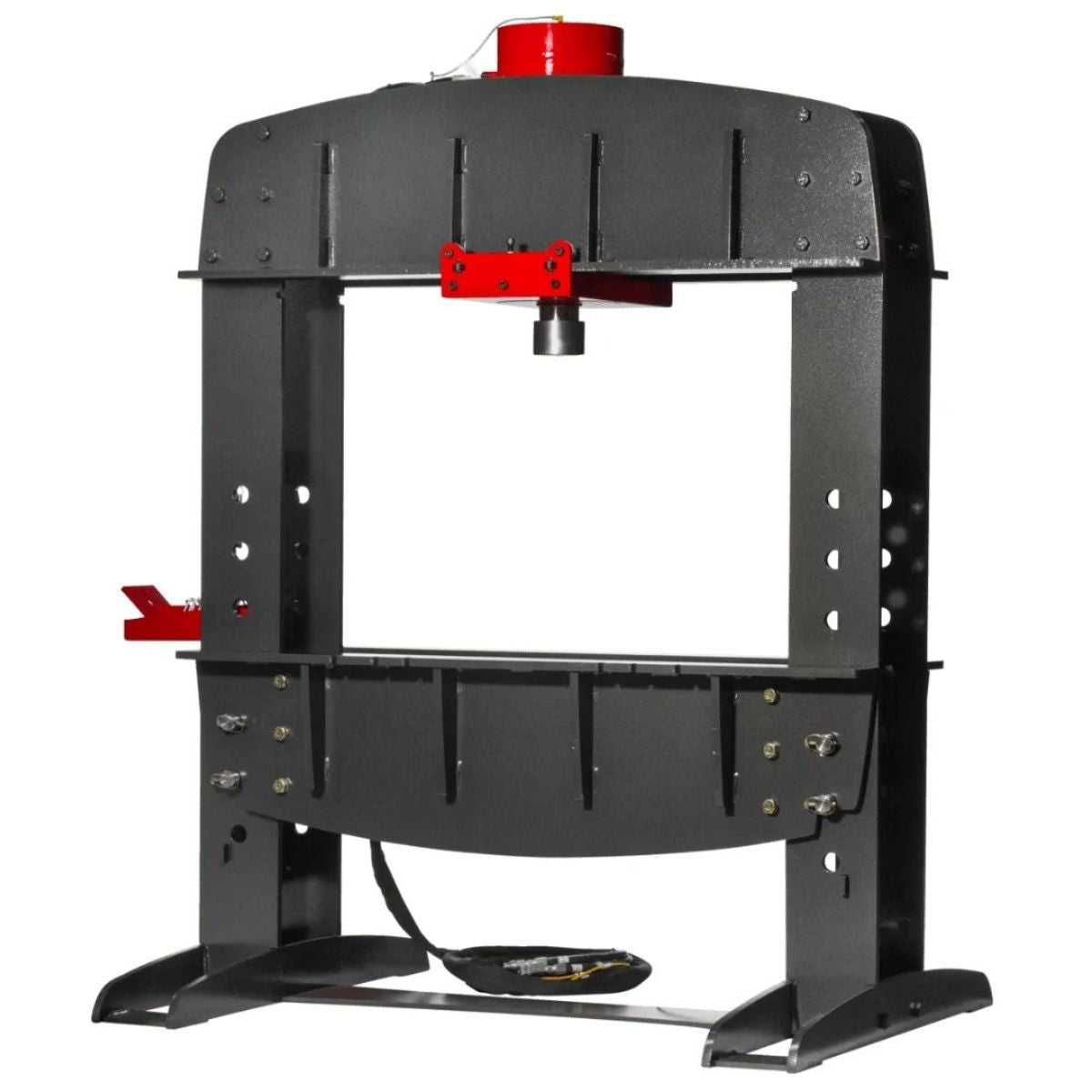

Edwards 110-Ton Shop Press with Portable Power Unit
Are you looking for a shop press that can handle your most demanding pressing, bending, and straightening work?
What if your shop had a 110-ton press that was ready to run the moment it arrived?
Meet the Edwards 110-Ton Shop Press with Portable Power Unit, a heavy-duty hydraulic press built for serious metal fabrication work.
Available in single and three-phase configurations from 230V to 460V, the press fits a range of shop power setups without compromising pressing force.
When the press holds steady through a demanding job, you can work with confidence and repeat the same result every time.
Edwards 110-Ton Shop Press for Heavy Fabrication and Production Work
110-Ton Rated Frame Handles the Widest Range of Work
The press frame is built from 3/4" steel and rated to 110 tons of pressing force. That capacity handles bearing pressing, metal bending, and part straightening across a wide range of tooling setups.
Rolling Cylinder Maximizes Positioning Flexibility
The rolling cylinder moves across the work area so you can position force exactly where the job requires. Combined with the open-sided frame design, longer material passes through without obstruction.
Hydraulic-Assist Work Table Supports Safe Setup
The work table adjusts with hydraulic assist and includes lift chains and a bracket for controlled positioning. The large 37-7/16" x 48" table surface accepts standard Edwards tooling as well as custom tooling setups.
Electric Foot Pedal Keeps Both Hands on the Work
The electric foot pedal includes an integrated jog control so you can advance the ram precisely without leaving your position. A pressure gauge provides accurate readings that support repeatable production results.
What's Included
What's Included? Edwards 110-Ton Shop Press with Portable Power Unit
-
Edwards 110-Ton Shop Press — Provides 110 tons of hydraulic pressing force for bearing work, bending, and straightening.
-
Portable Power Unit — Connects via 20' quick-connect hoses and powers the press without requiring a dedicated hydraulic system or Edwards Ironworker with PowerLink.
Specs
Edwards 110-Ton Shop Press with Portable Power Unit Specifications
- Rating: 110 Ton
- Stroke: 12-1/4"
- Work Table: 37-7/16" x 48"
- Steel Frame Thickness: 3/4"
- Product Dimensions: 48" x 64" x 88"
- Minimum Ram Speed: 0.186 in./sec
- Minimum Return Speed: 0.220 in./sec
- Net Weight: 2,600 lb
- Warranty: 1 Year
Specs by Configuration
- 230V, 1 Phase (ED9-HAT9010) — Voltage: 230V | Phase: 1Ph
- 230V, 3 Phase (ED9-HAT9020) — Voltage: 230V | Phase: 3Ph
- 460V, 3 Phase (ED9-HAT9030) — Voltage: 460V | Phase: 3Ph
