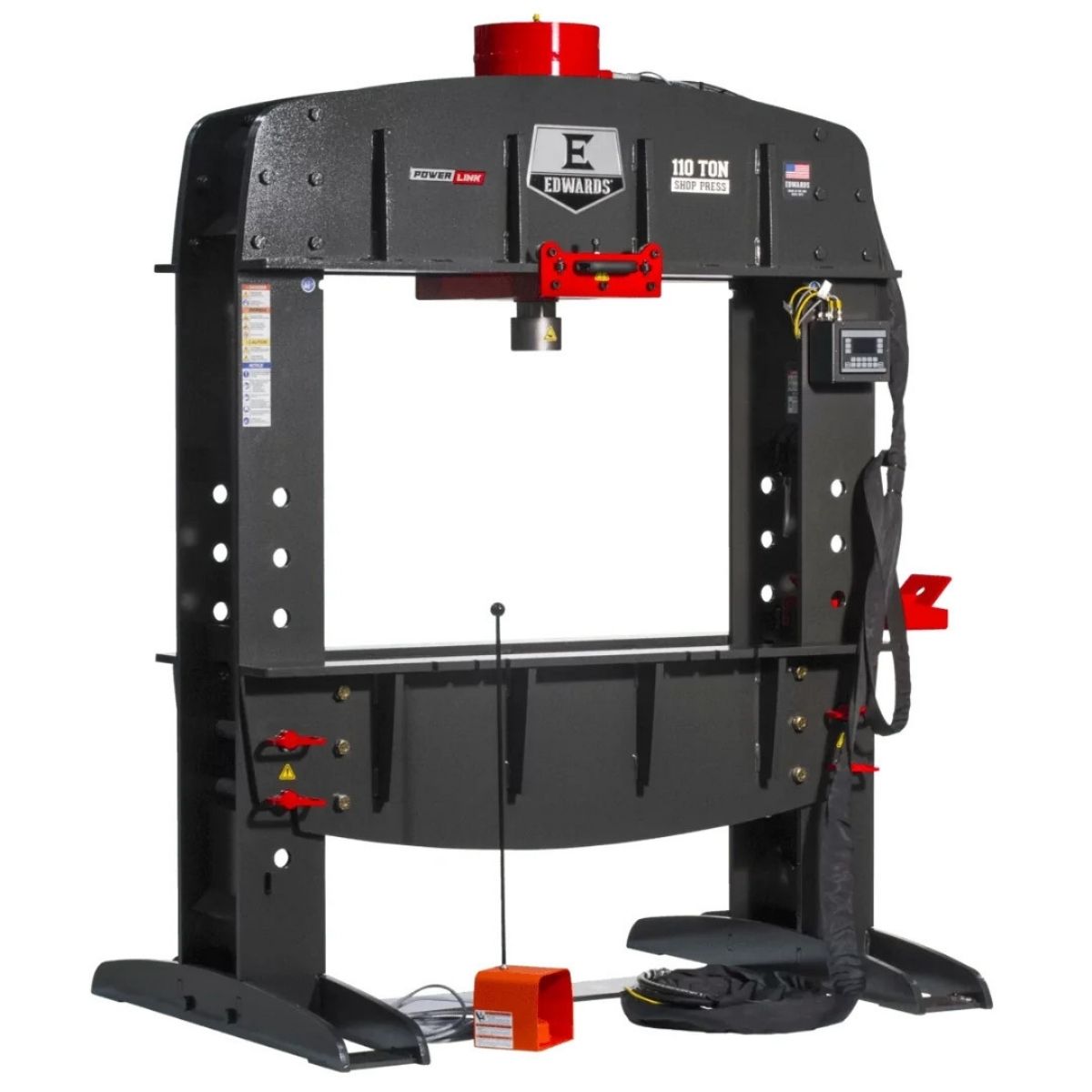

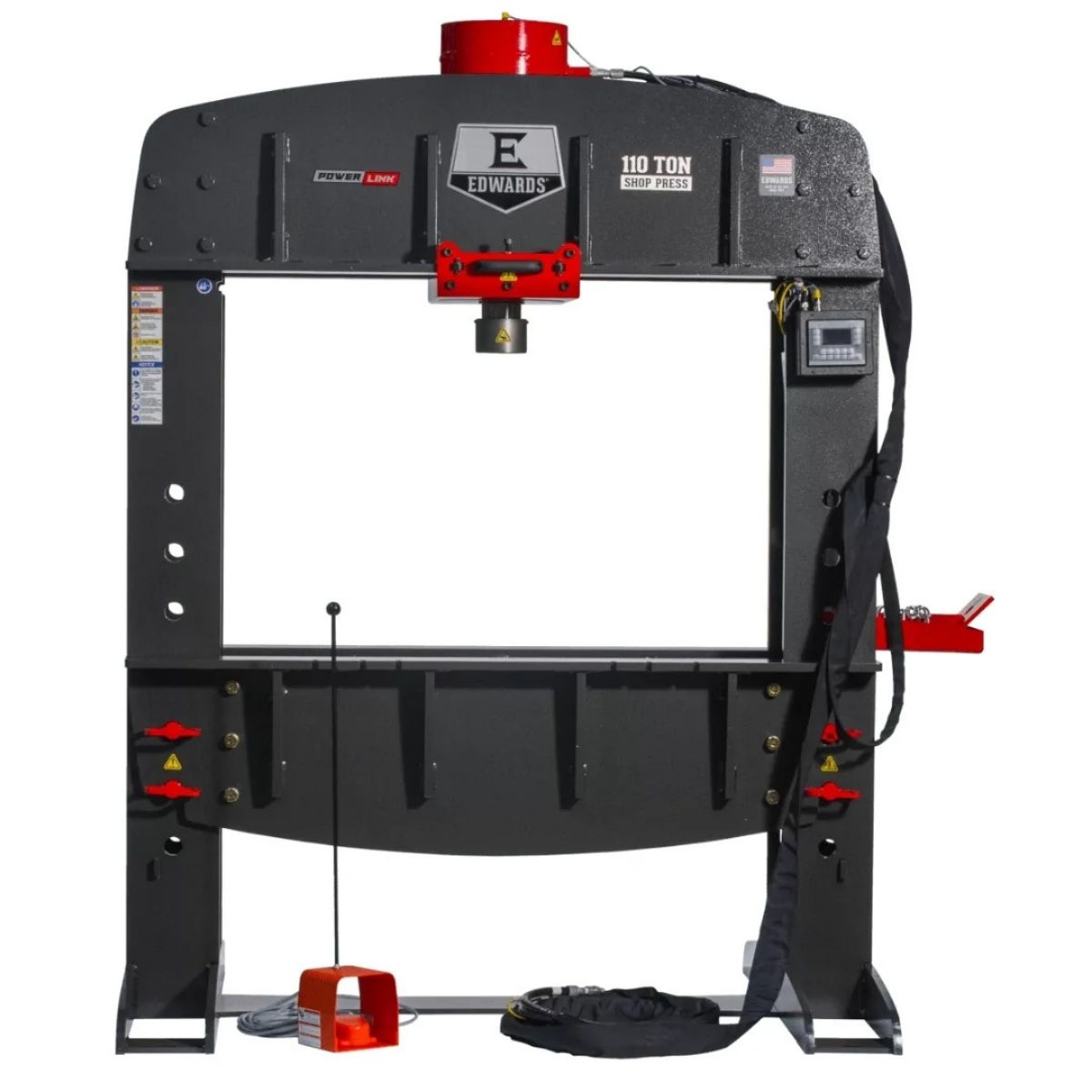

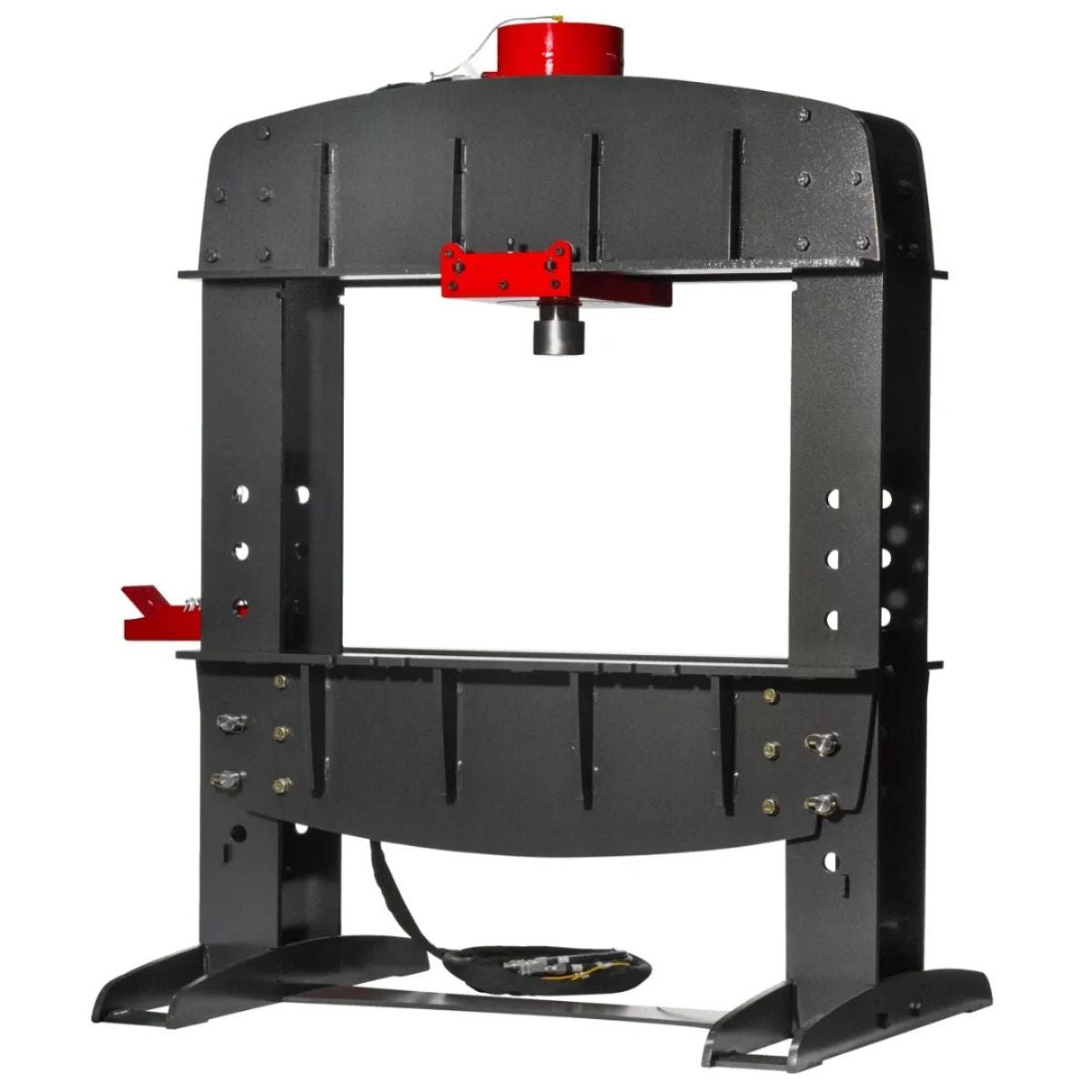

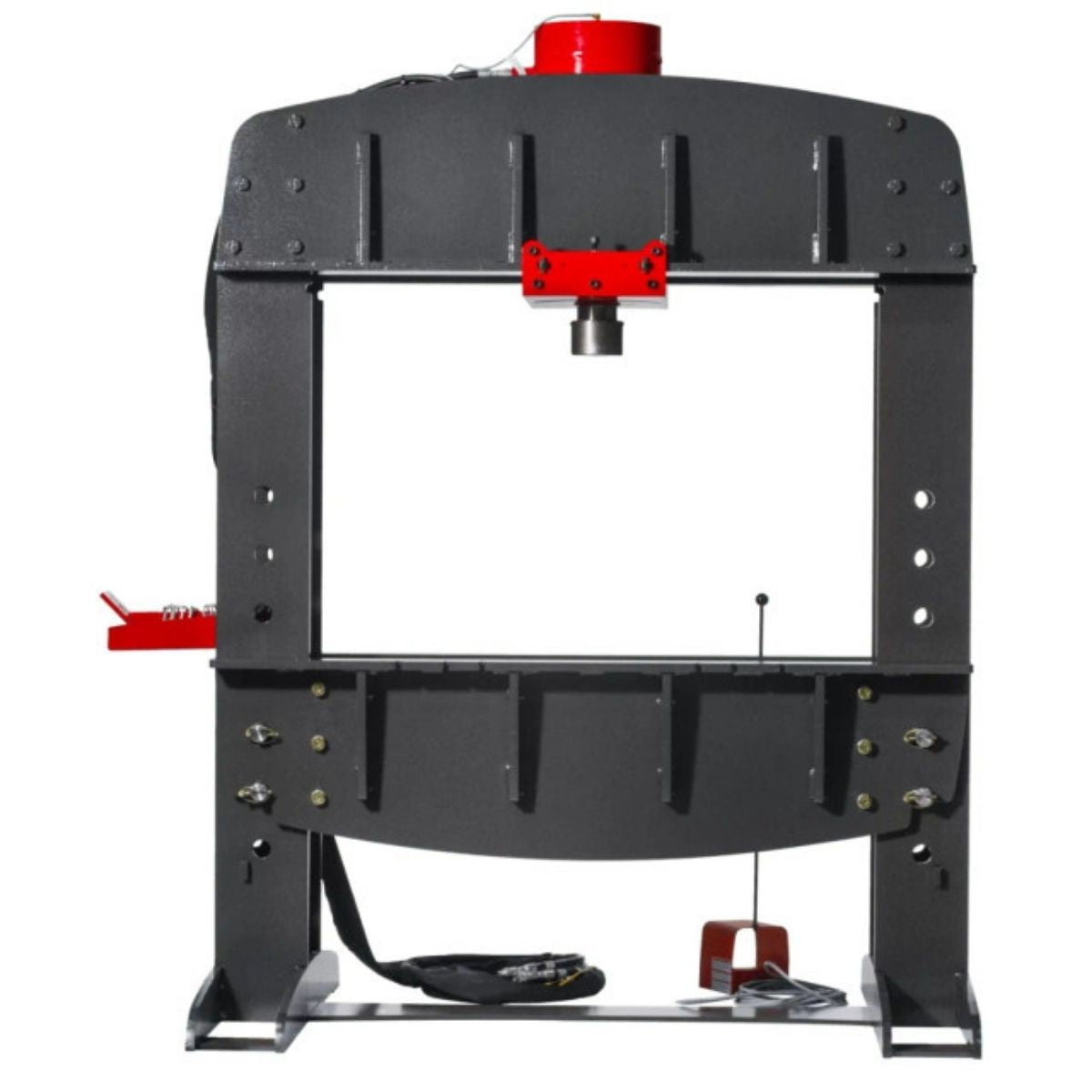

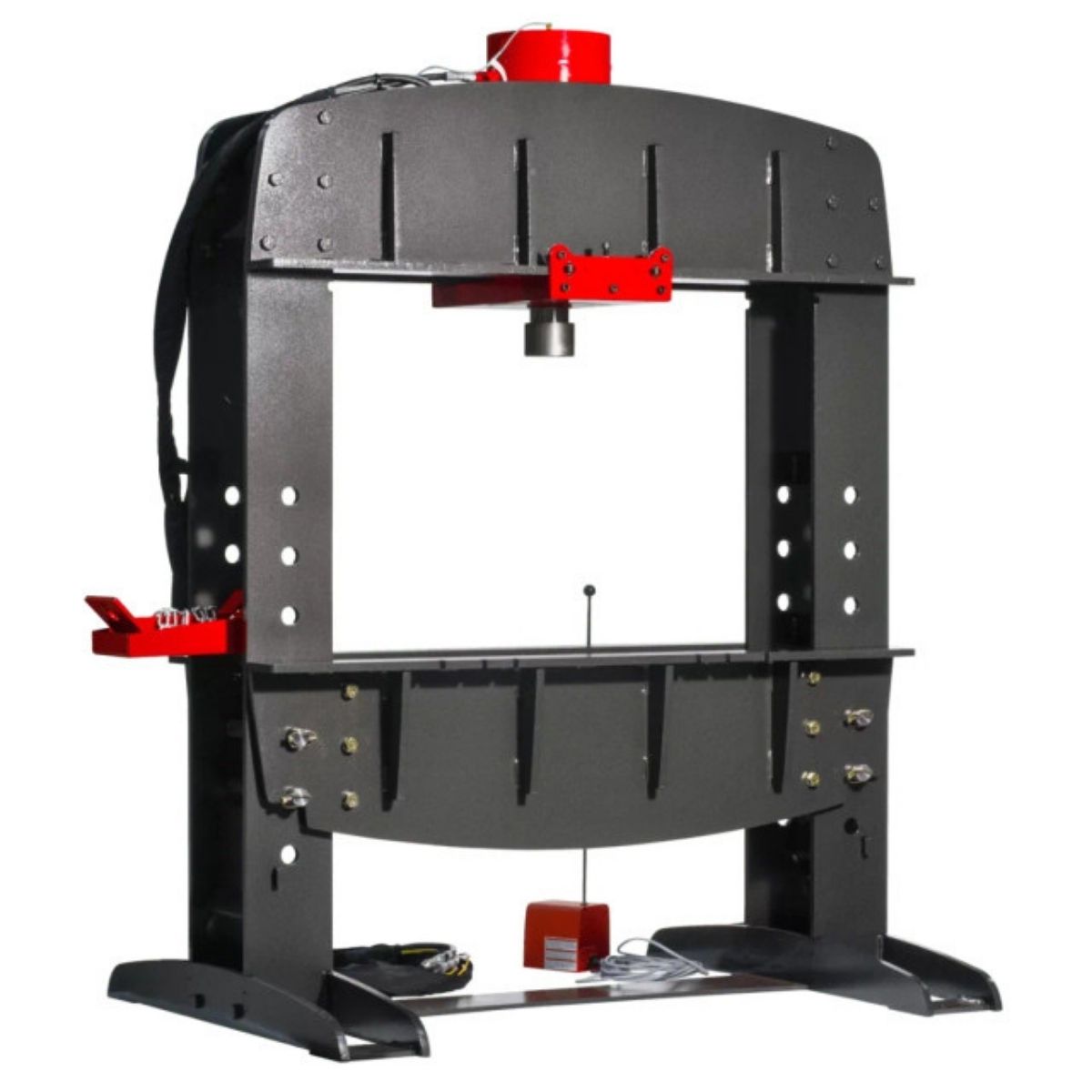

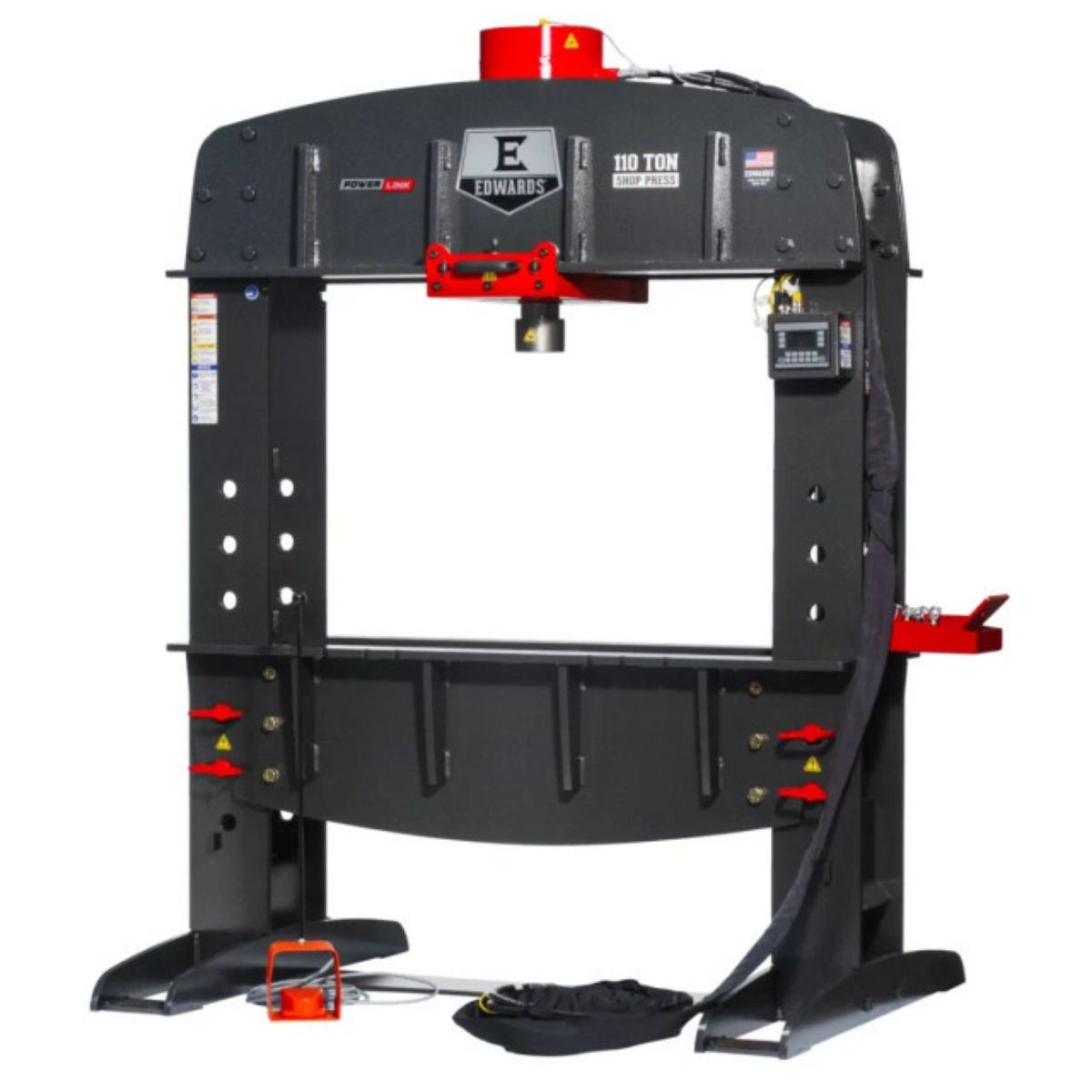

Edwards 110-Ton Shop Press with PLC and PowerLink Hydraulic Tool
Are you looking for a shop press that can handle heavy bearing work, metal bending, and part straightening at production scale?
What if your press could repeat the same stroke and pressure settings automatically, cutting cycle time in half?
Meet the Edwards 110-Ton Shop Press with PLC and PowerLink Hydraulic Tool, the most powerful press in the Edwards shop press lineup.
With a programmable logic control, electric foot pedal, rolling cylinder, and a large open-sided work table, the press handles a wide range of tooling and material lengths.
When the press holds your settings run after run, you move through production work with less setup and more confidence.
Edwards HAT9050 for Heavy-Duty Production Pressing
Programmable Logic Control Reduces Cycle Time
The PLC lets operators program repeatable press actions with set pressure and stroke parameters. Adjustable PSI and up/down stroke control deliver up to 50% time savings over manual press cycles.
Rolling Cylinder Expands Tooling and Material Options
The rolling cylinder moves across the work table to reach different positions without repositioning the part. Combined with the open-sided frame, the press accommodates longer material and a wide range of standard and custom tooling.
Hydraulic-Assist Work Table Improves Operator Safety
The adjustable work table uses hydraulic assist for height changes, reducing the effort needed to set up each job. Lift chains and a mounting bracket are included to support safe, controlled table positioning.
Electric Foot Pedal Keeps Both Hands Free
The electric foot pedal with integrated jog control lets the operator manage the press cycle without removing hands from the workpiece. The magnetic PLC control box mounts anywhere on the press frame for comfortable, accessible operation.
What's Included
What's Included? Edwards 110-Ton Shop Press with PLC and PowerLink Hydraulic Tool
-
Edwards 110-Ton Shop Press with PLC and PowerLink Hydraulic Tool — Provides a 110-ton open-sided press platform with PLC stroke and pressure control for production pressing work.
-
20' Quick-Connect Hoses — Allow plug-and-play connection to a compatible power source for fast setup.
-
Electric Foot Pedal — Enables hands-free cycle control with integrated jog function.
-
Lift Chains and Bracket — Support safe hydraulic-assist work table height adjustment.
Important: This press requires an Edwards Ironworker with PowerLink System or an Edwards Portable Power Unit to operate. It does not include an independent power unit.
Specs
Edwards 110-Ton Shop Press with PLC and PowerLink Hydraulic Tool Specifications
- Model: HAT9050
- Stock Number: ED9-HAT9050
- Rating: 110 Ton
- Stroke: 12-1/4 in
- Work Table: 37-7/16 in x 48 in
- Product Dimensions: 48 in x 64 in x 88 in
- Steel Frame Thickness: 3/4 in
- Minimum Ram Speed: 0.186 in/sec
- Minimum Return Speed: 0.220 in/sec
- Net Weight: 2,200 lb
- Warranty: 1 Year
