Edwards 110-Ton Shop Press with PLC and Portable Power Unit
Are you pressing bearings, bending metal, or straightening parts with a machine that slows you down between cycles?
What if your shop press could repeat the same action automatically, cutting cycle time in half without extra steps?

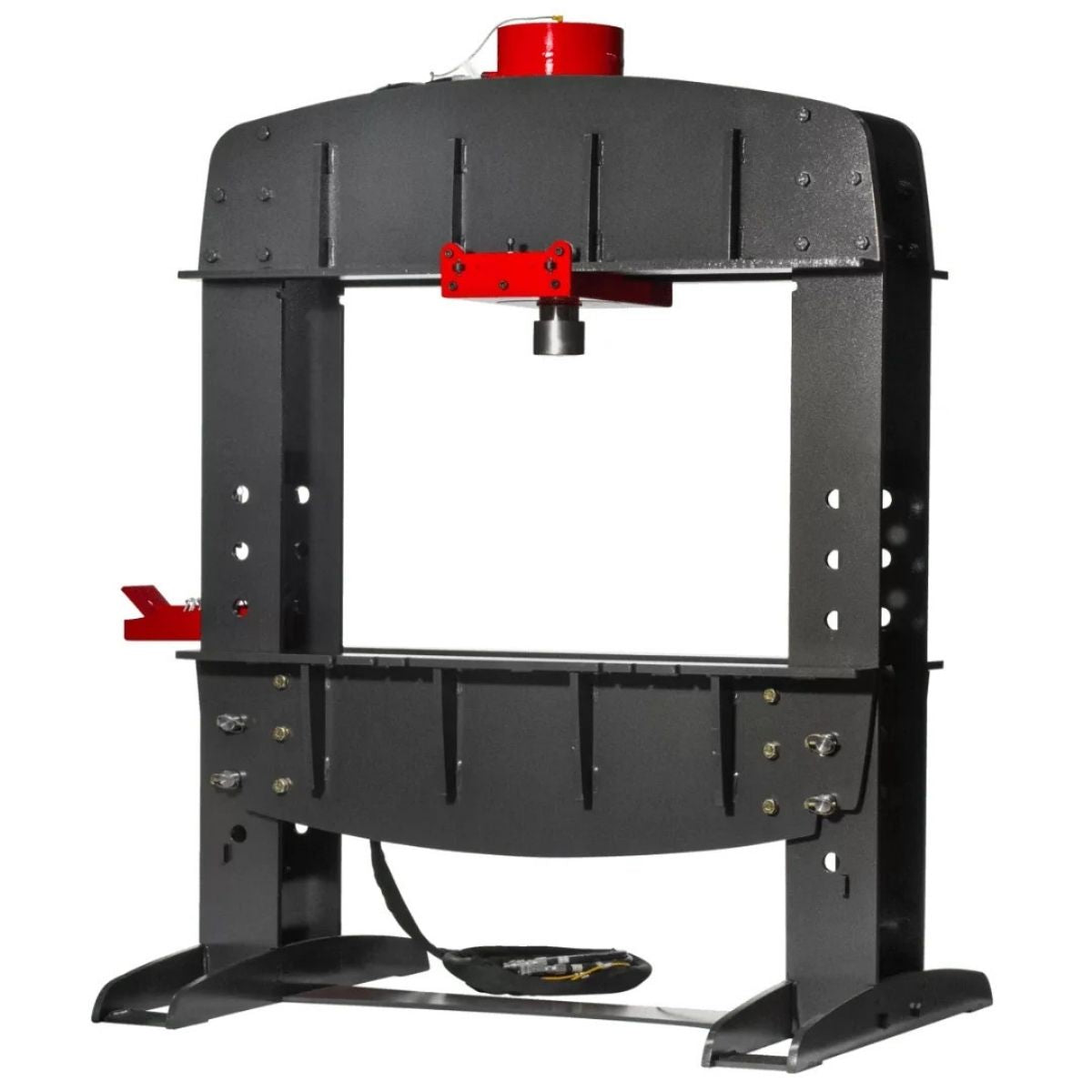

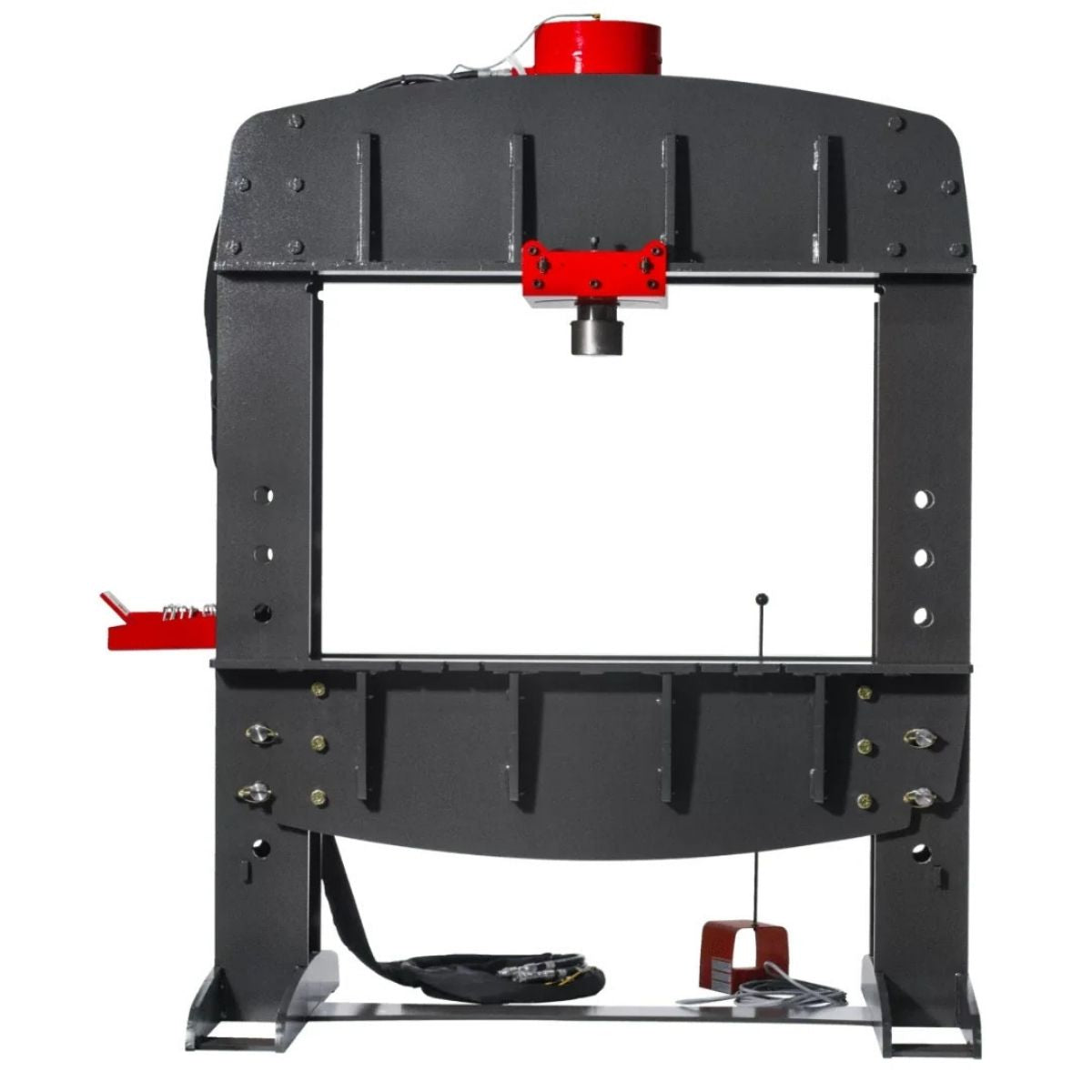

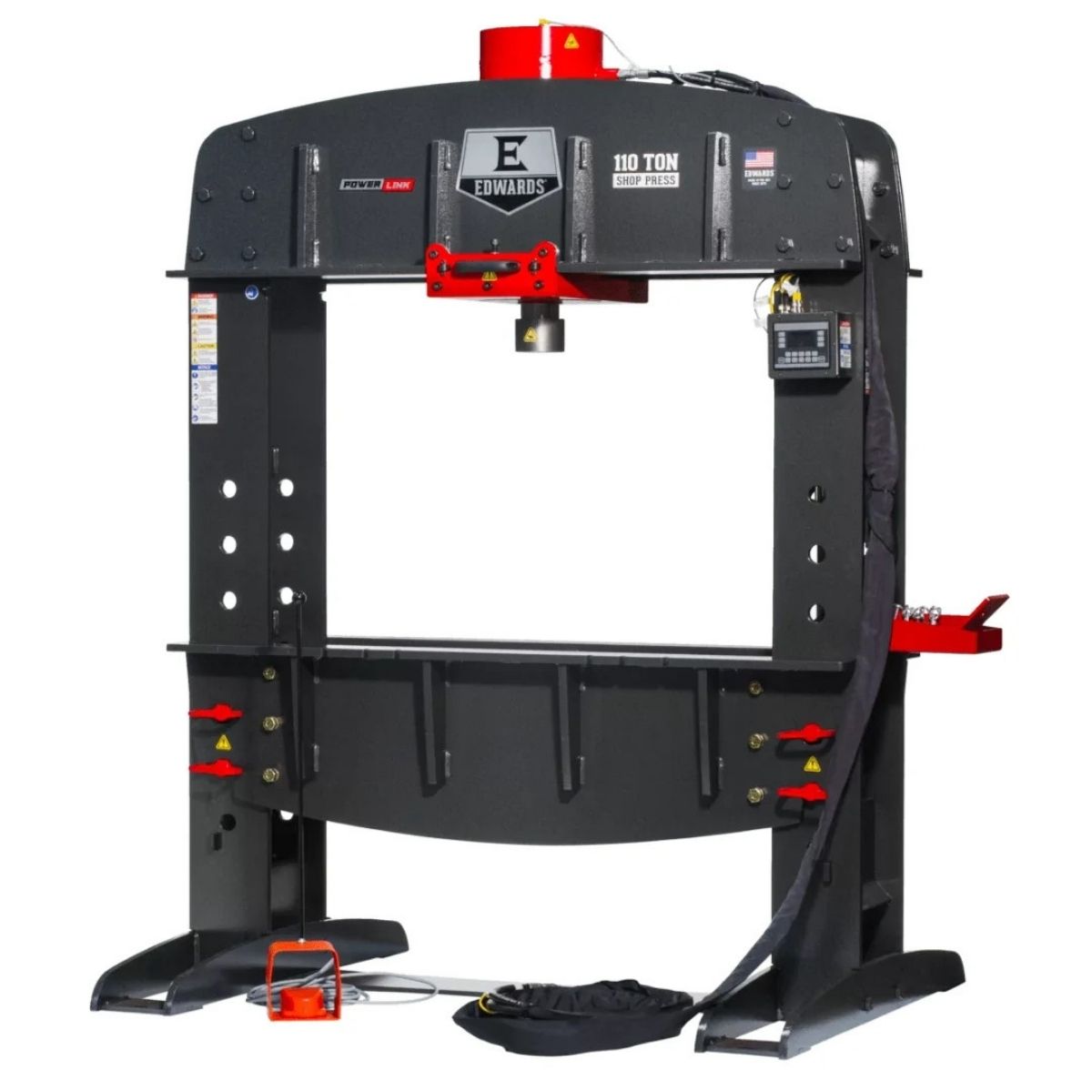

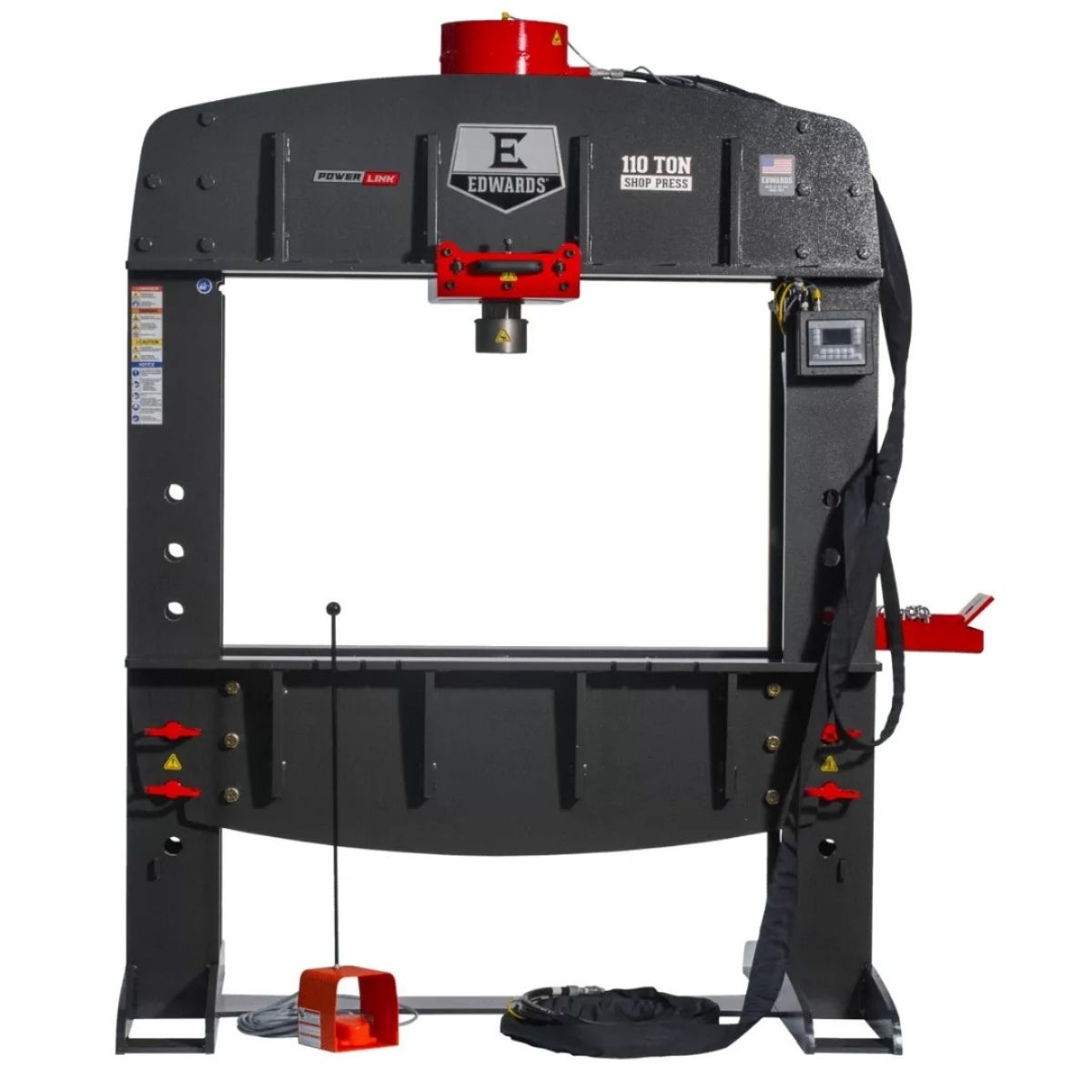

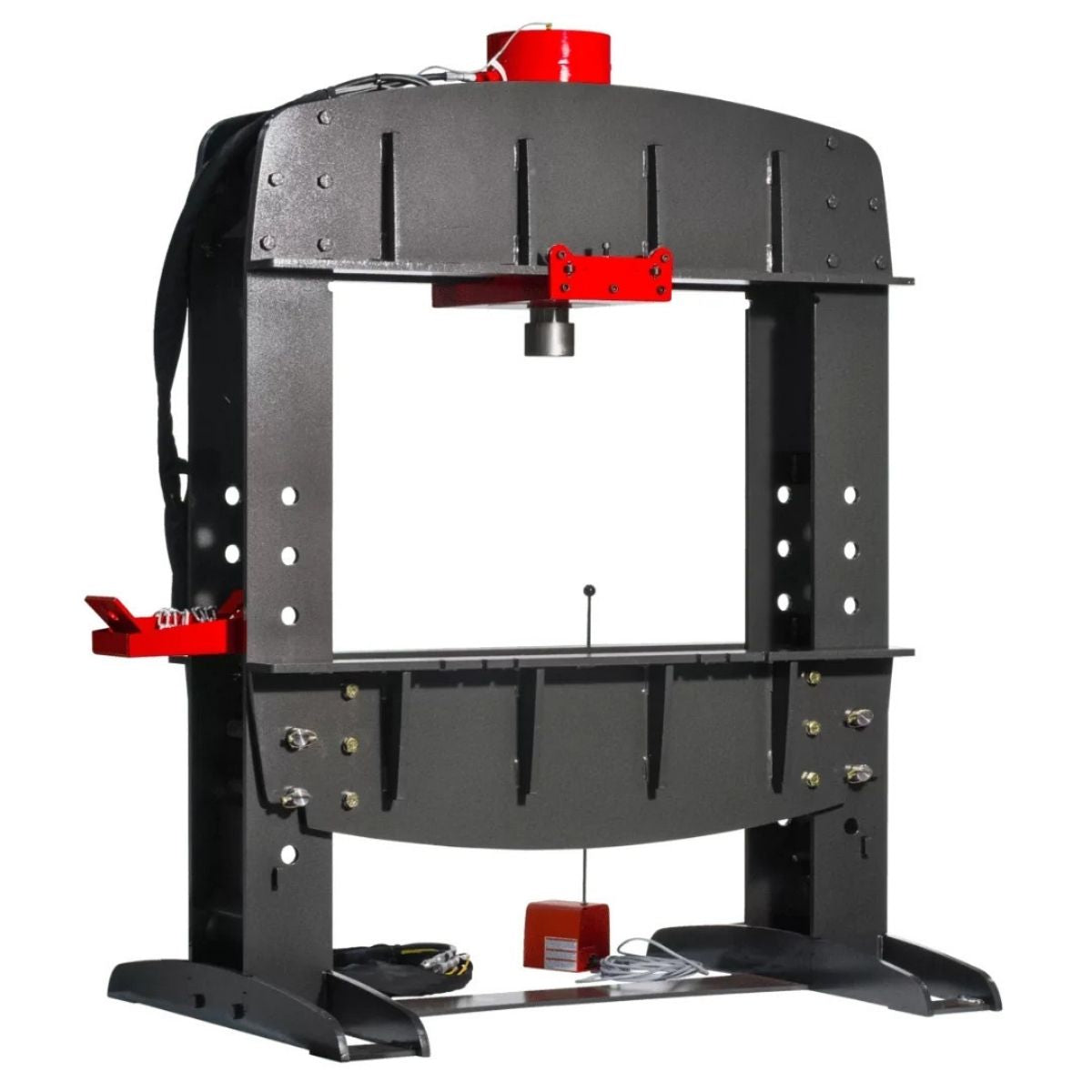

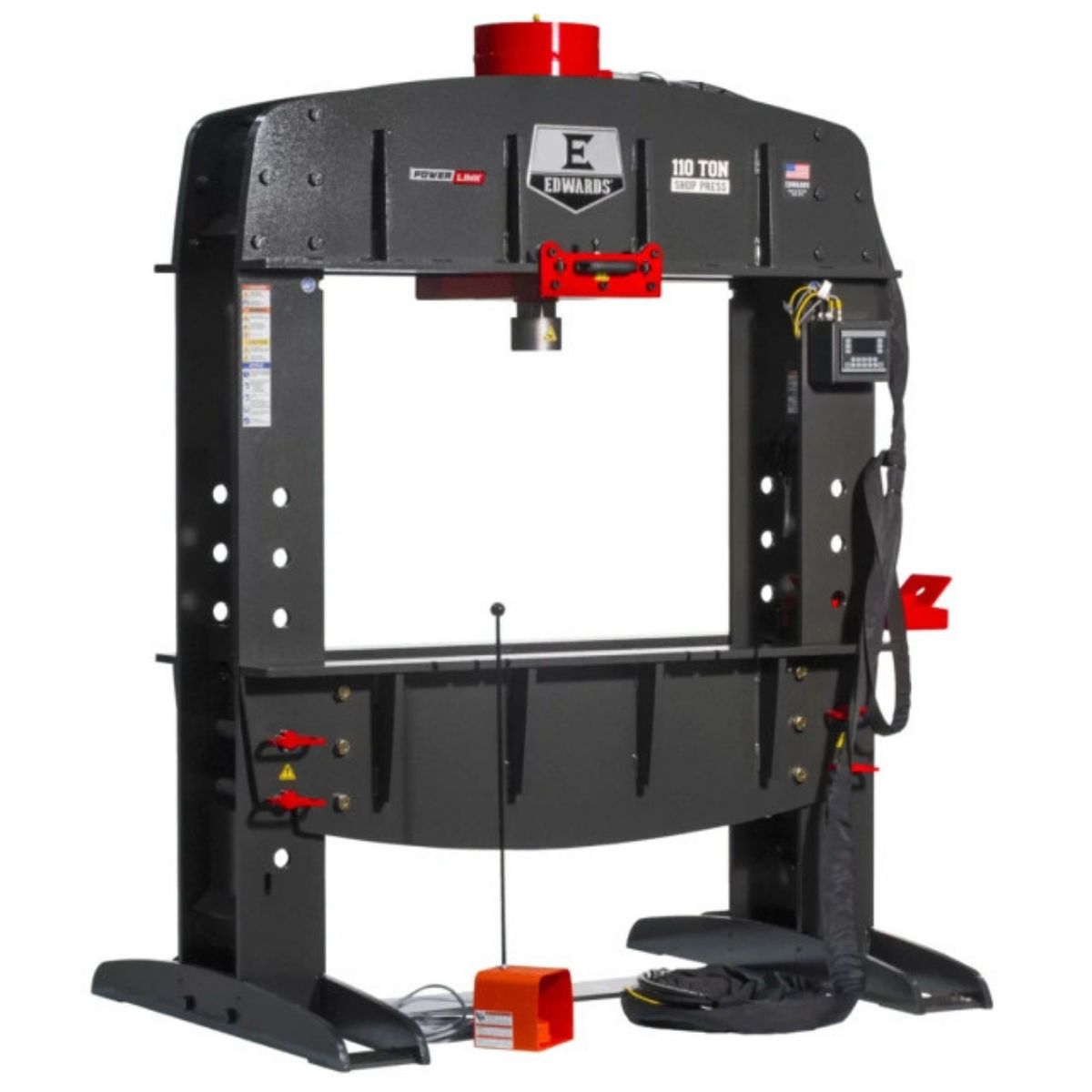

Meet the Edwards 110-Ton Shop Press with PLC and Portable Power Unit, a heavy-duty hydraulic press built for demanding production and fabrication work.
Available in single and three-phase configurations from 230V to 460V, the HAT series fits a range of shop power setups without compromising pressing force.
When the press repeats each cycle with the same force and travel, you move through production work with less effort and more confidence.
Edwards HAT9060 for Heavy Production Pressing and Fabrication
PLC Control Cuts Cycle Time and Builds Repeatability
The programmable logic control lets operators set a repeatable press action and run it consistently across a production run. According to Edwards, this reduces cycle times by more than 50 percent compared to manual press operation.
Rolling Cylinder Adapts to a Wide Range of Work
The rolling cylinder moves across the full width of the work table, so you can position the press force exactly where the part needs it. This lets the press handle a wide variety of jobs without repositioning the material.
Open-Sided Frame Accepts Long Material
The open-sided design allows longer stock to pass through the frame without interference. Combined with the large 37-7/16" x 48" work table, the press handles oversized parts that a closed-frame design cannot.
Hydraulic-Assist Table and Portable Power Unit Simplify Setup
The hydraulic-assist adjustable work table includes lift chains and a bracket to move heavy tooling safely at working height. The included Portable Power Unit connects via 20-foot quick-connect hoses, so the press is ready to run without additional hydraulic infrastructure.
What's Included
What's Included? Edwards 110-Ton Shop Press with PLC and Portable Power Unit
-
Edwards 110-Ton Shop Press with PLC — Provides 110 tons of pressing force with programmable cycle control for production and fabrication work.
-
Portable Power Unit — Supplies hydraulic power to the press via quick-connect hoses for plug-and-play operation.
-
Electric Foot Pedal with Integrated Jog Control — Allows hands-free cycle activation and incremental press movement during setup.
-
Magnetic PLC Control Box — Mounts anywhere on the press frame so the operator can position it for comfort and visibility.
Specs
Edwards 110-Ton Shop Press with PLC and Portable Power Unit Specifications
- Rating: 110 Ton
- Stroke: 12-1/4 in
- Work Table: 37-7/16 in x 48 in
- Steel Frame Thickness: 3/4 in
- Minimum Ram Speed: 0.186 in/sec
- Minimum Return Speed: 0.220 in/sec
- Product Dimensions: 48 in x 64 in x 88 in
- Net Weight: 2,600 lb
- Warranty: 1 Year
Specs by Configuration
- 230V, 1 Phase (ED9-HAT9060) — Voltage: 230V | Phase: 1Ph
- 230V, 3 Phase (ED9-HAT9070) — Voltage: 230V | Phase: 3Ph
- 460V, 3 Phase (ED9-HAT9080) — Voltage: 460V | Phase: 3Ph
