Edwards 100-Ton Ironworker with Coper Notcher — IW100
Are you running a fabrication shop where light-duty ironworkers can no longer keep up with the material you are moving through?
What if your shop had a 100-ton ironworker that punched, sheared, notched, and bent heavy steel — all from one machine?

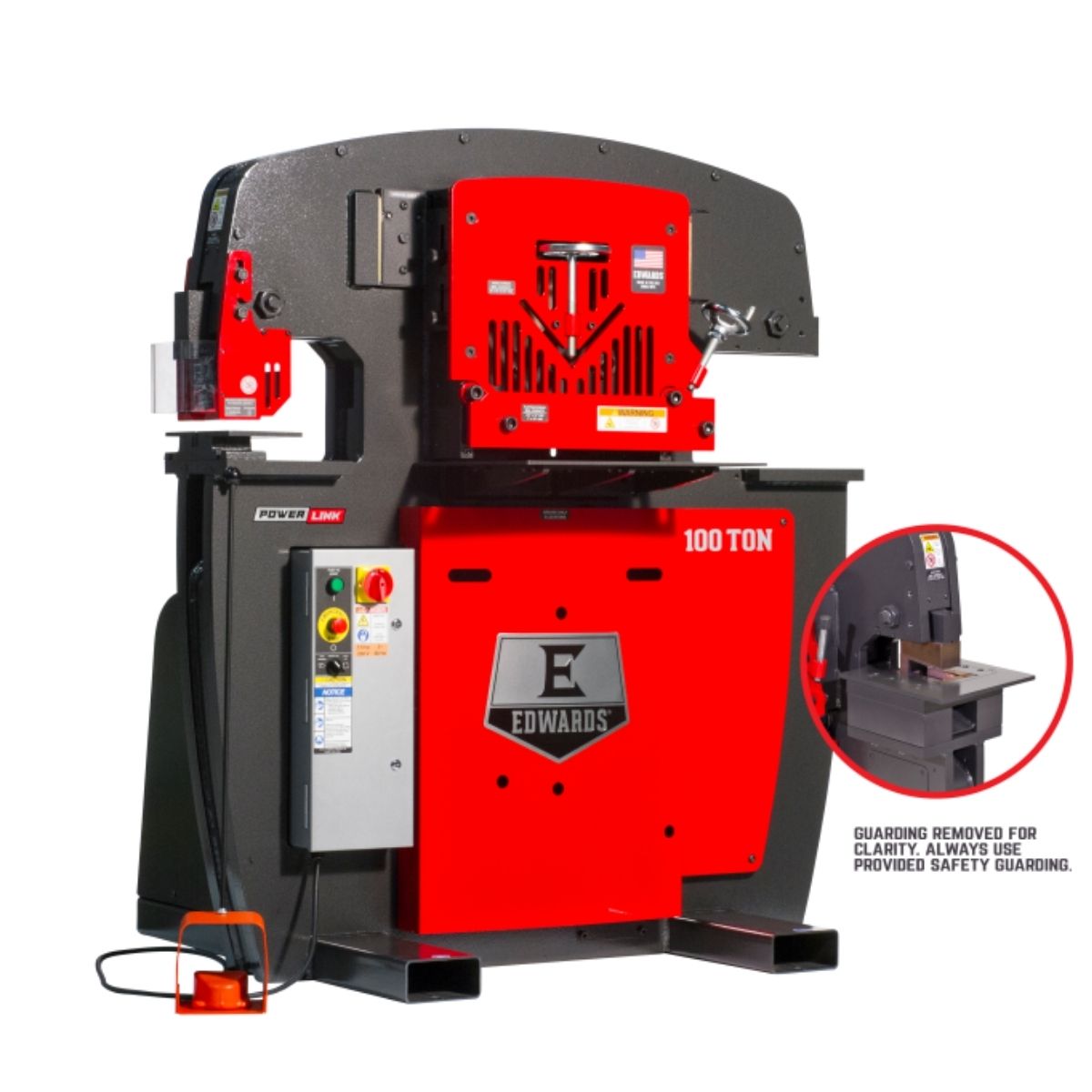

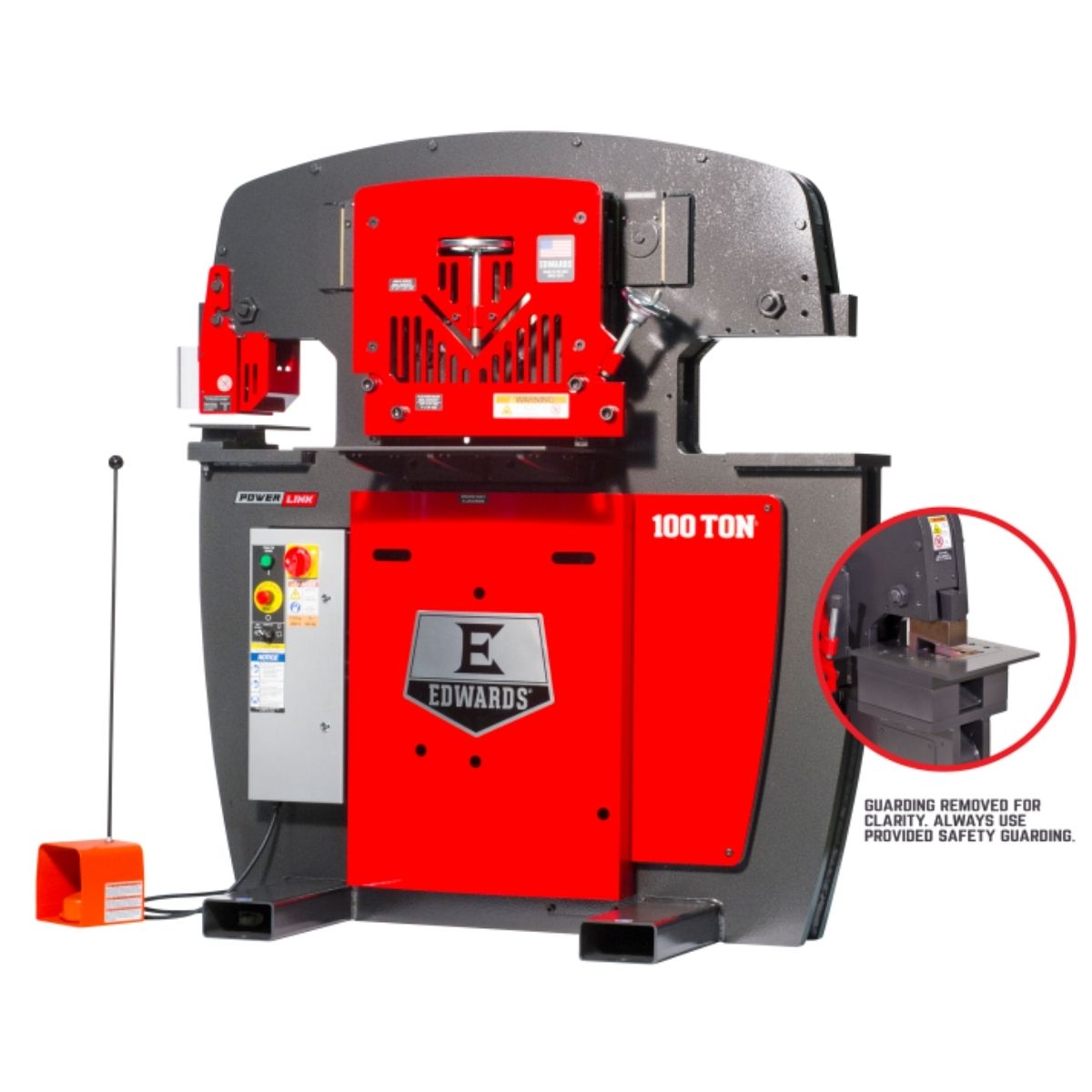

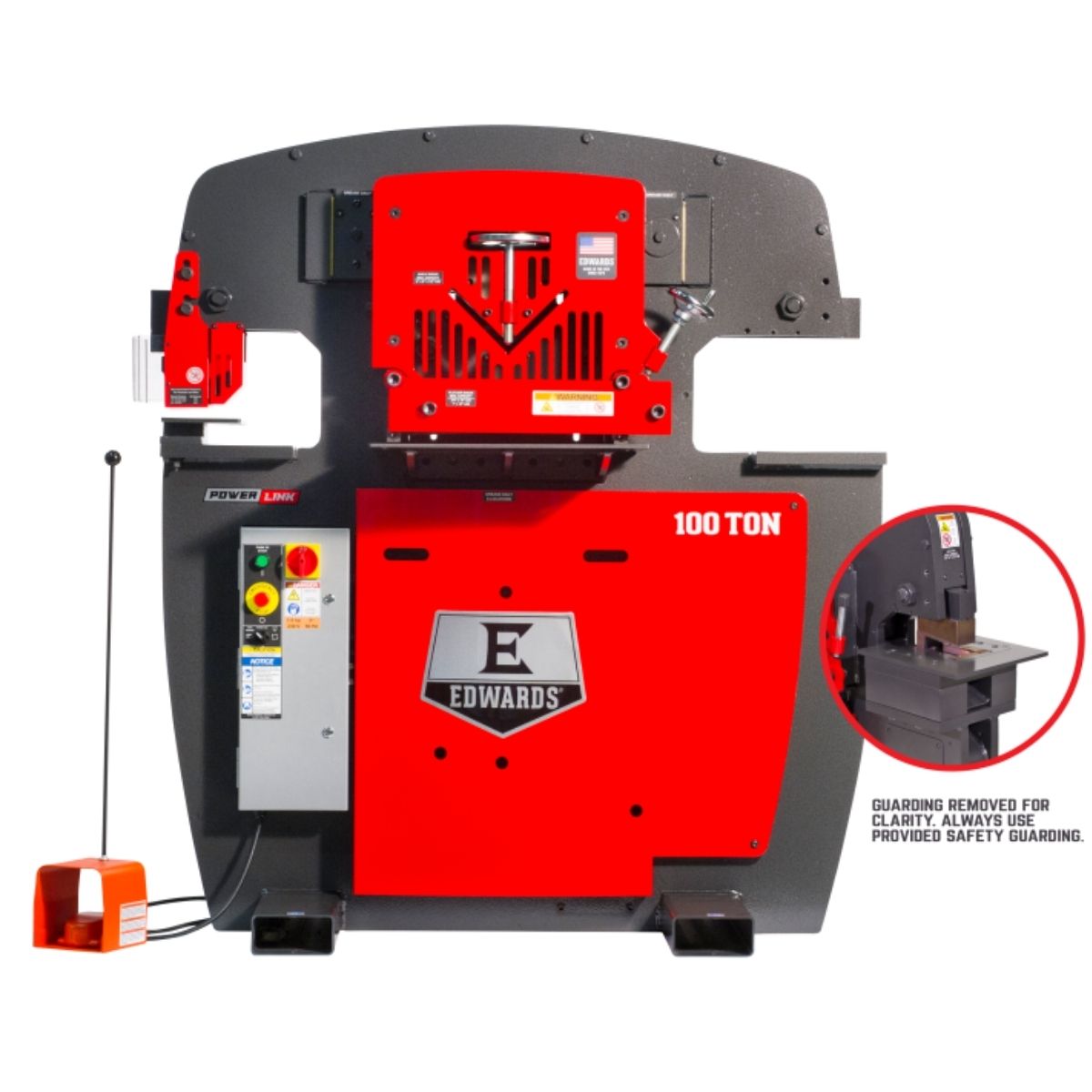

Meet the Edwards 100-Ton Ironworker with Coper Notcher — IW100, a heavy-duty American-built ironworker with four workstations ready to run.
Available in single-phase 230V and three-phase 208V configurations, the IW100 fits shops with different power setups without giving up cutting force.
When the machine handles your heaviest fabrication work without slowing down, you can keep your shop moving at the pace the job demands.
Edwards IW100 for Heavy Fabrication Shop Work
100-Ton Hydraulic Force Handles Heavy Material
The IW100 delivers 100 tons of hydraulic force at 3,500 PSI through vertical ram movement that produces even pressure across every punch and shear. That consistent force reduces distortion in the workpiece and extends tooling life across heavy daily use.
Four Workstations Cover Punching, Shearing, Bending, and Notching
The machine runs four workstations from a single power source: punch, flat bar shear, brake, and the factory-installed Coper Notcher. Each station is built into the frame so you can move between operations without repositioning the machine or changing setups.
Factory-Installed Coper Notcher Handles Structural Steel Work
The Coper Notcher comes installed at the factory and is ready to work from day one. It handles the notching cuts needed for structural and tube steel work, adding a capability that most shops would otherwise need a second machine to cover.
LED Lighting and Safety Controls Support Daily Shop Use
Two LED lights increase visibility at the workstations during cutting and punching operations. The integrated lockout/tagout system and multi-location E-stop — including a foot pedal and control panel — keep the machine safe to operate in a working shop environment.
Optional PowerLink Adds Programmable Stroke Control
PowerLink lets you set a precise punch depth and repeat it automatically across a run of parts. It is available as an optional upgrade on select configurations for shops where repeatable production punching is a regular part of the work.
What's Included
What's Included? Edwards 100-Ton Ironworker with Coper Notcher — IW100
-
Edwards 100-Ton Ironworker with Coper Notcher — IW100 — Provides a four-workstation heavy-duty ironworker platform with punch, shear, brake, and factory-installed Coper Notcher.
-
10" Brake with 4-Way Die — Allows material from 1/16" to 1/4" to be formed to a 90° angle at the bending station.
-
2 LED Work Lights — Improve visibility at the workstations during punching and shearing operations.
-
100 Ton Ironworker Manual — Provides setup, operation, and maintenance guidance for the machine.
Specs
Edwards 100-Ton Ironworker with Coper Notcher — IW100 Specifications
- Rating: 100 Ton
- Motor: 7.5 HP
- Motor Speed: 1,765 RPM
- Valve Pressure: 3,500 PSI
- Punch Max Capacity: 1-1/16" dia in 1" A36 steel
- Punch Throat Depth: 11"
- Punch Stroke: 1-13/16"
- Punch Open Height: 8-3/4"
- Punch Shut Height: 6-15/16"
- Punch Work Height: 39-1/16"
- Flat Bar Shear Max Capacity: 1" x 14"
- Flat Bar Shear Max Round: 1-1/4"
- Flat Bar Shear Max Square: 1-1/4"
- Flat Bar Shear Work Height: 37"
- Brake: 10" with 4-Way Die (1/16", 1/8", 3/16", 1/4" to 90°)
- Workstations: 4 (Punch, Flat Bar Shear, Brake, Coper Notcher)
- Net Weight: 4,735 lb
- Warranty: 1 Year
Specs by Configuration
- 230V, 1 Phase (ED9-10203512) — Amps: 36A | Reservoir: 7 gal | Hydraulic Pump: 10-1/2 GPM
- 208V, 3 Phase (ED9-10231512) — Amps: 22A | Reservoir: 17 gal | Hydraulic Pump: not confirmed in available data — verify with Edwards before publishing
