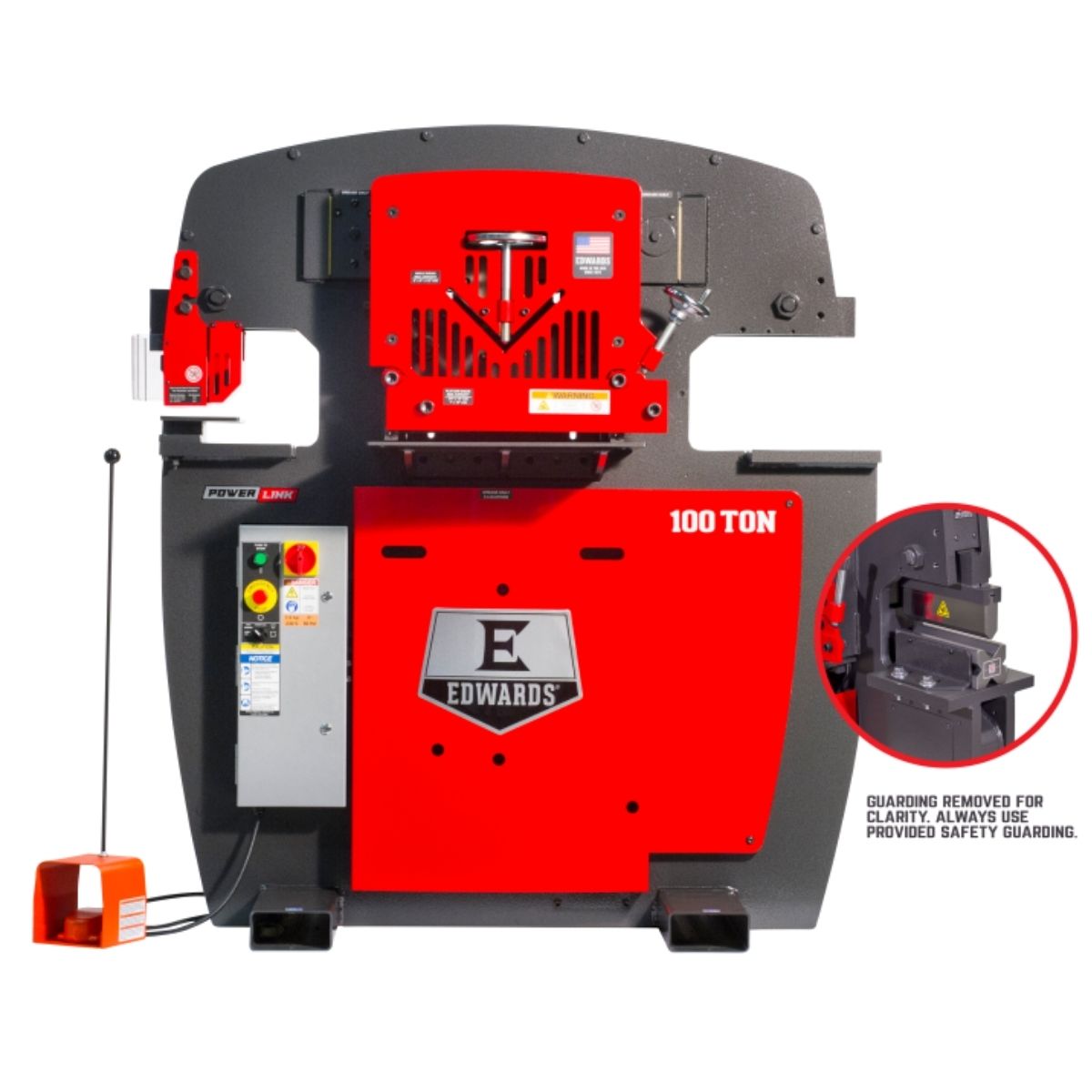

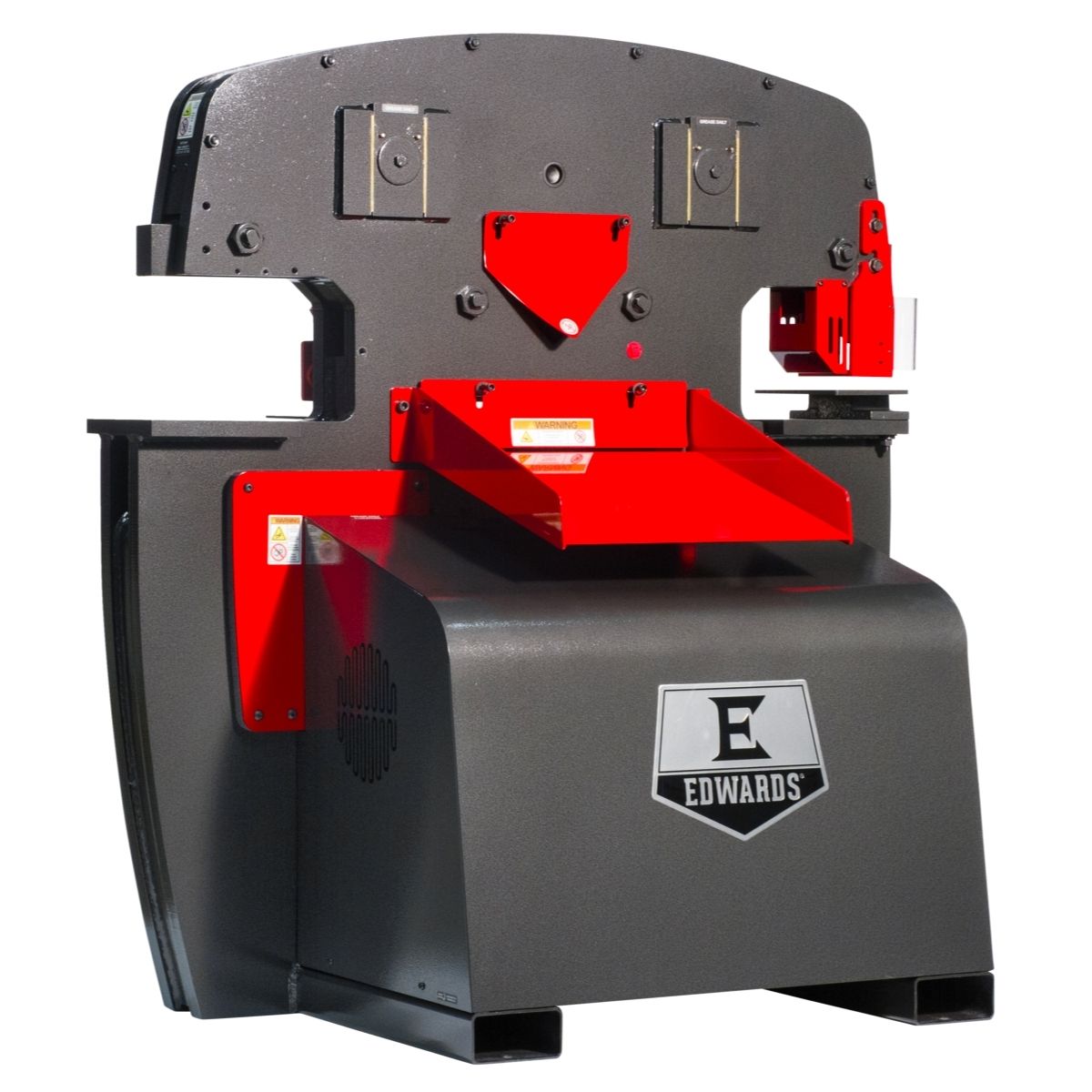

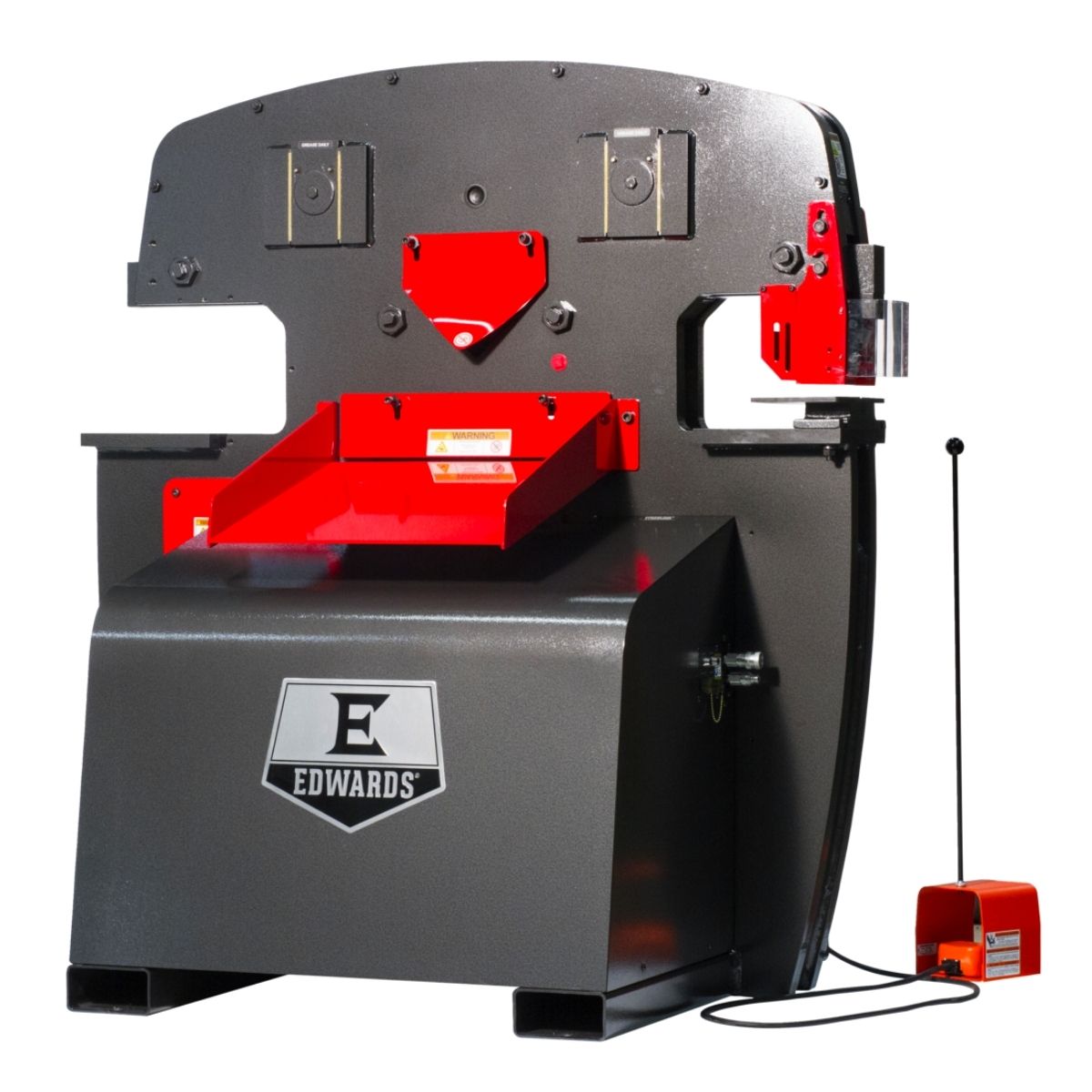

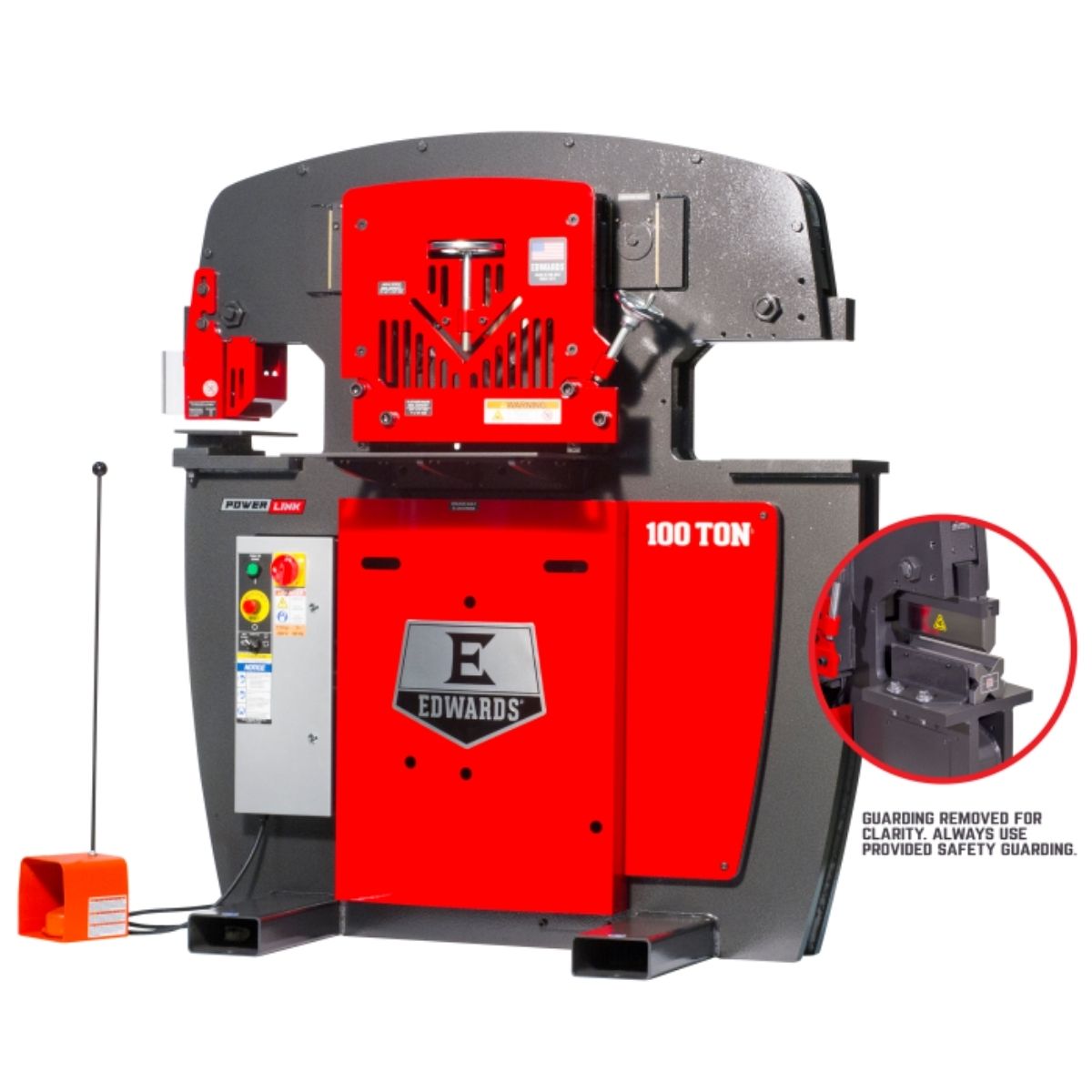

Edwards 100-Ton Ironworker with 10" Brake — IW100
Are you running a fabrication shop that needs to punch, shear, notch, and bend heavy steel without switching machines?
What if one machine could handle your full range of heavy fabrication work with the power and precision to match?
Meet the Edwards 100-Ton Ironworker with 10" Brake — IW100, a heavy-duty American-built ironworker designed for serious fabrication work.
Available in single and three-phase configurations at 208V and 230V, the IW100 fits a range of shop power setups without giving up capacity.
When the machine keeps up with your workload day after day, you can focus on the work instead of the equipment.
Edwards IW100 for Heavy Fabrication Work
100-Ton Hydraulic System Handles Heavy Steel
The IW100 delivers 100 tons of force through a vertical movement design that produces even pressure across the full stroke. That consistent force means cleaner cuts and punched holes with minimal distortion, which extends tooling life over time.
Four Workstations Keep Production Moving
Four dedicated workstations let you punch, shear, notch, and bend without reconfiguring the machine between operations. Optimized workstation heights reduce fatigue and keep workflow efficient through longer production runs.
Factory-Installed 10" Brake Forms Material to Shape
The included 10" brake with 4-way die bends material from 1/16" through 1/4" thick to a 90° angle. Having the brake factory-installed means the machine arrives ready to work without additional setup or tooling sourcing.
PowerLink Stroke Control Supports Repeatable Production Work
PowerLink lets you set a precise punch depth and repeat it consistently across a production run. It is included on all IW100 configurations for shops where repeatable punching accuracy is a regular part of the work.
What's Included
What's Included? Edwards 100-Ton Ironworker with 10" Brake — IW100
-
Edwards 100-Ton Ironworker with 10" Brake — IW100 — Provides a four-station heavy fabrication platform with punch, shear, notch, and bend capability.
-
Factory-Installed 10" Brake with 4-Way Die — Allows bending of 1/16", 1/8", 3/16", and 1/4" material to a 90° angle right out of the box.
Specs
Edwards 100-Ton Ironworker with 10" Brake — IW100 Specifications
- Rating: 100 Ton
- Motor: 7.5 HP
- Motor Speed: 1765 RPM
- Hydraulic Pump: 10-1/2 GPM
- Valve Pressure: 3500 PSI
- Reservoir: 17 Gal.
- Punch Max Capacity: 1-1/16" dia. in 1" A36 steel
- Punch Throat Depth: 11"
- Punch Open Height: 8-3/4"
- Punch Shut Height: 6-15/16"
- Punch Stroke: 1-13/16"
- Punch Work Height: 39-1/16"
- Flat Bar Shear Max Capacity: 14" wide x 1" thick
- Flat Bar Shear Max Round: 1-1/4"
- Flat Bar Shear Max Square: 1-1/4"
- Flat Bar Shear Work Height: 37"
- Workstations: 4
- Brake: 10" with 4-Way Die (factory installed)
- Brake Capacity: 1/16", 1/8", 3/16", 1/4" to 90°
- Net Weight: 4,704 lb
- Warranty: 1 Year
Specs by Configuration
- 1 Phase 230V with PowerLink — Stock: ED9-10231522
- 1 Phase 208V with PowerLink — Stock: ED9-10203522
- 3 Phase 208V with PowerLink — Stock: ED9-10203022
- 3 Phase 230V with PowerLink — Stock: ED9-10233022
- 3 Phase 230V with PowerLink — Stock: ED9-10233522
