Edwards 100-Ton Ironworker — IW100
Are you running a fabrication shop where heavy steel work demands a machine that can keep up without slowing you down?
What if one compact machine handled your punching, shearing, notching, bending, and coping without constant tool changes?

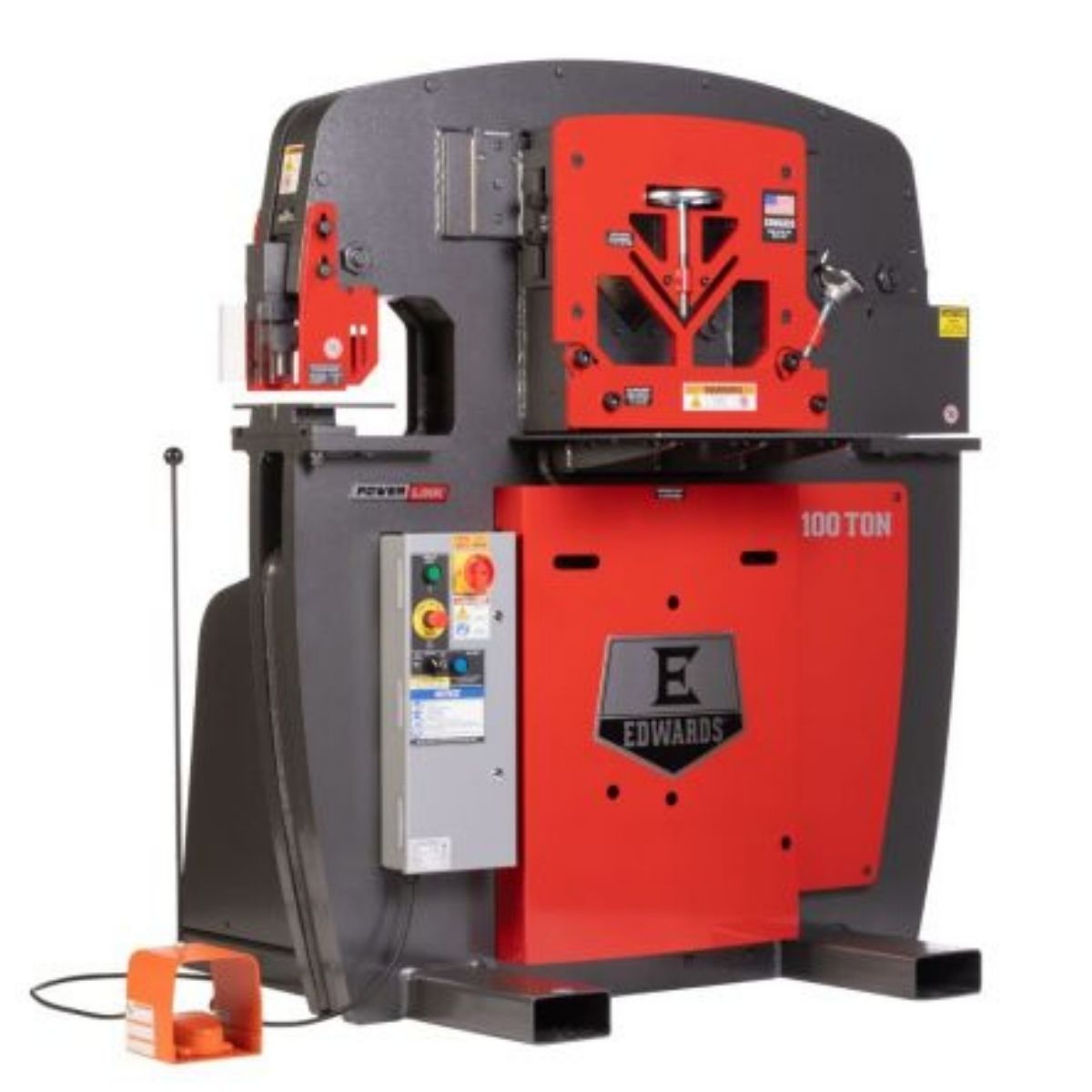

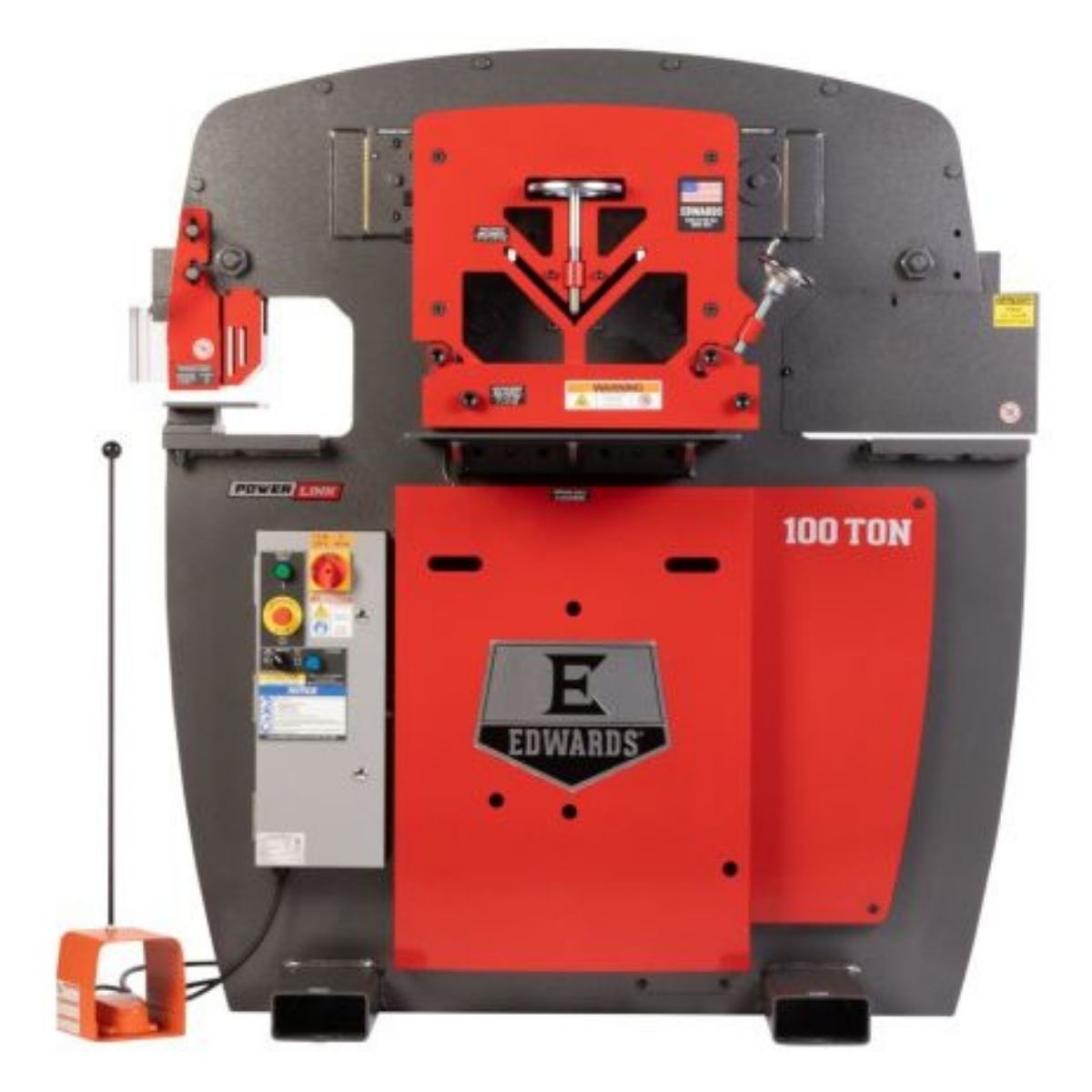

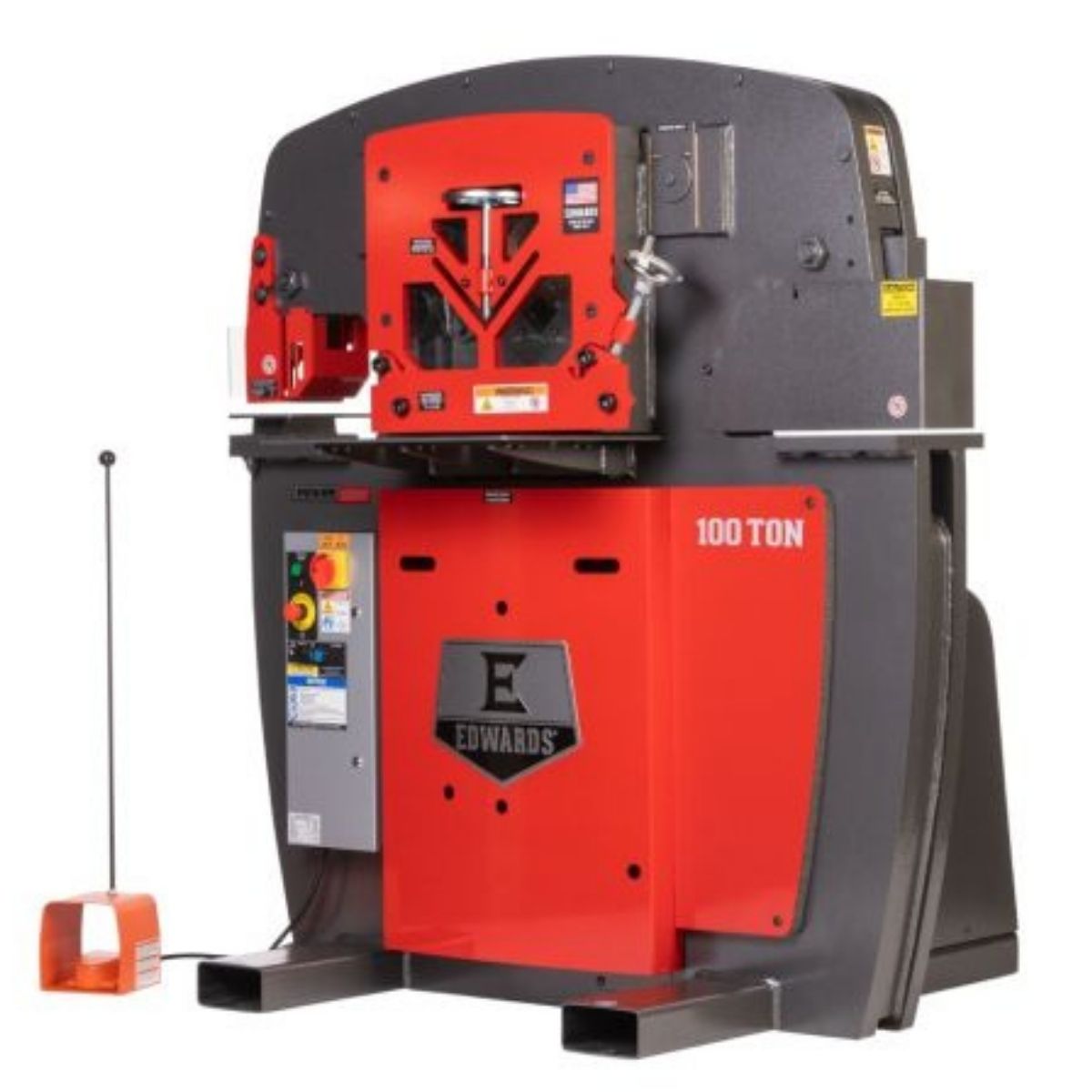

Meet the Edwards 100-Ton Ironworker — IW100, a four-workstation fabrication machine built for heavy daily shop use.
Available in single and three-phase configurations from 208V to 575V, the IW100 fits a range of shop power setups without compromising cutting force.
When the machine handles your heaviest steel work without hesitation, you stay focused on moving the job forward.
Edwards IW100 for Heavy Fabrication Shop Work
Four Workstations Handle Multiple Fabrication Operations
The IW100 runs punch, shear, notch, bend, and cope operations from a single machine with four dedicated workstations. Optimized work heights at each station let you move between operations without rebuilding your setup from scratch.
100-Ton Hydraulic System Drives Clean Cuts Through Heavy Steel
The 7.5HP motor powers a hydraulic system running at 3,500 PSI with a 10-1/2 GPM pump and 17-gallon reservoir. That force drives the punch and shear through thick mild steel with vertical movement that produces even pressure and minimal distortion.

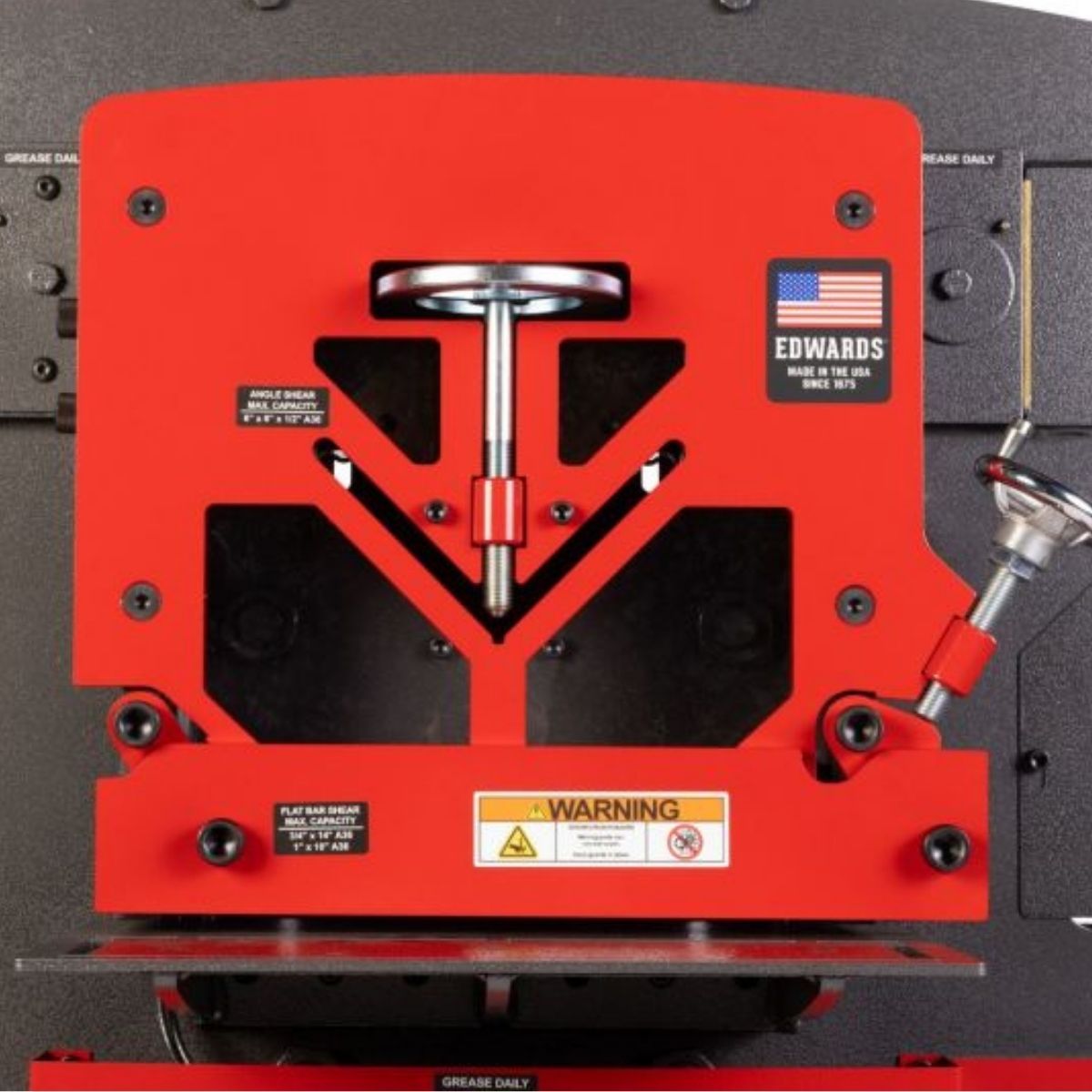

Precision Tool Steel Blades Extend Cutting Life
The angle shear blades are made from precision tool steel with two corner radii and two cutting edges. Flat bar shear blades are precision machined from high-quality tool steel with four cutting edges for longer service between changes.

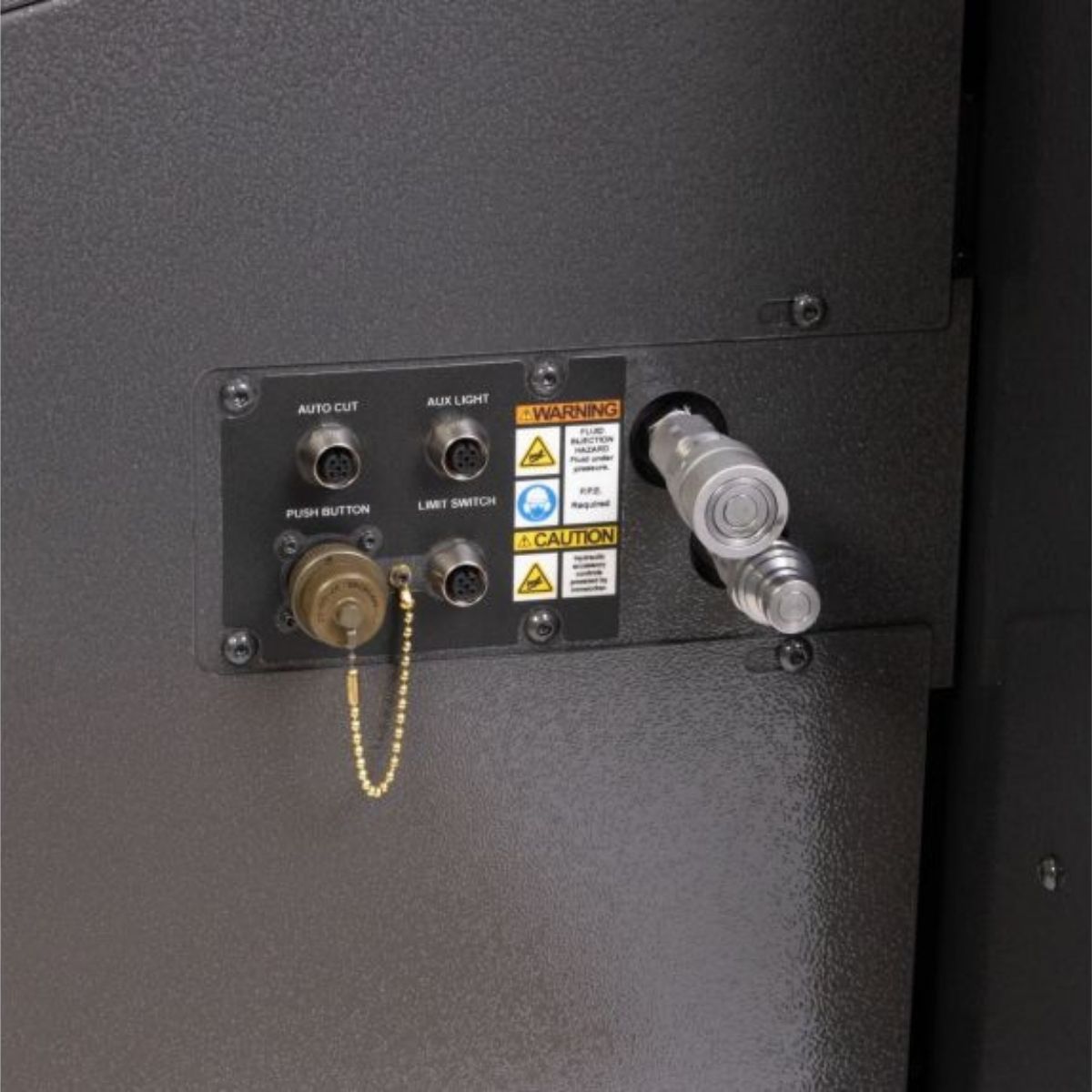

PowerLink Turns the IW100 into a Hydraulic Power Source
PowerLink is built into every IW100 configuration, allowing the machine to power Edwards hydraulic tools directly. This extends what your ironworker can do beyond its four workstations without adding a separate power unit to the shop.
What's Included
What's Included? Edwards 100-Ton Ironworker — IW100
-
Edwards 100-Ton Ironworker — IW100 — Provides a four-workstation heavy fabrication platform for punch, shear, notch, bend, and cope operations.
-
PowerLink System — Allows the ironworker to serve as a hydraulic power source for compatible Edwards hydraulic tools.
-

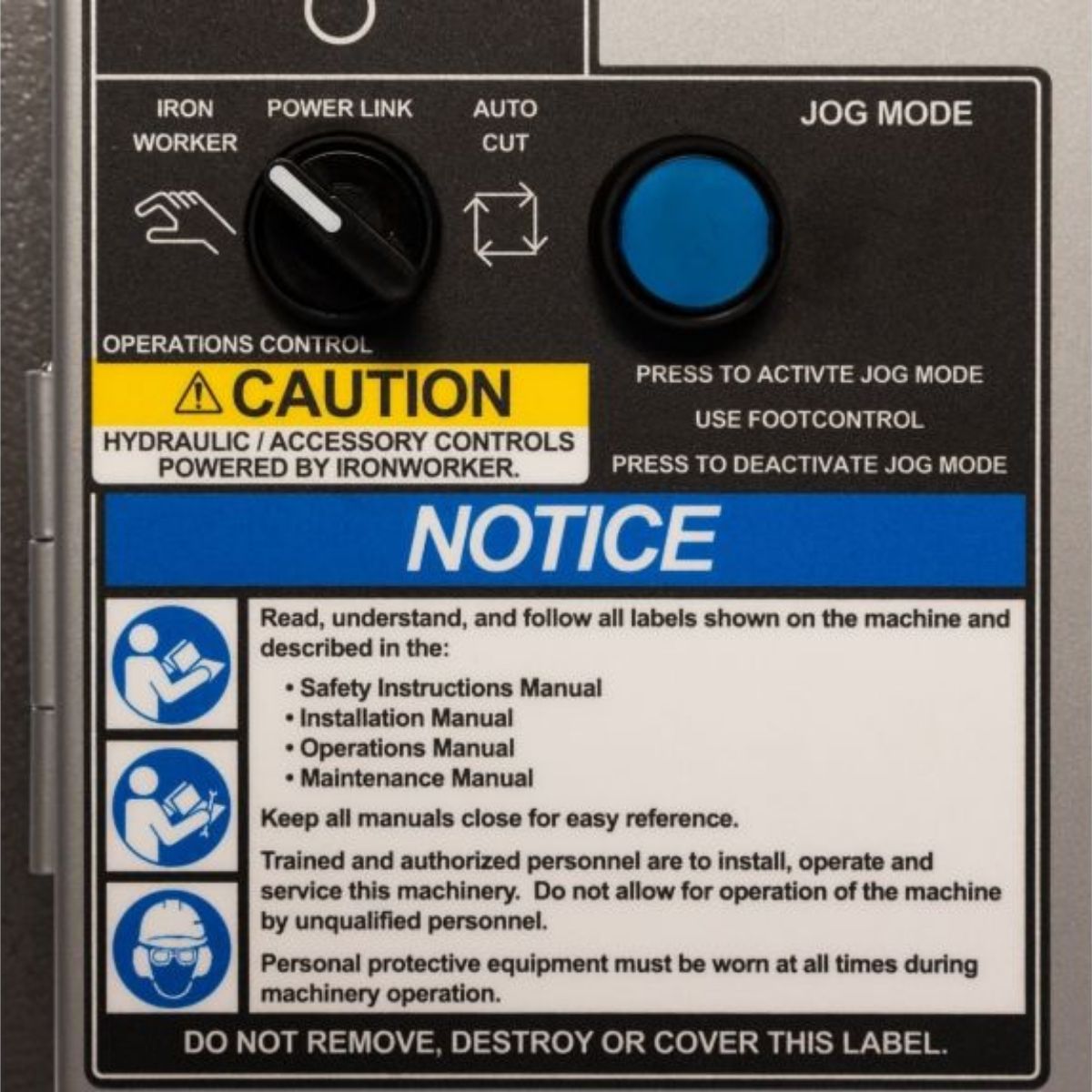

Electric Foot Pedal with Jog Control — Gives you hands-free cycle control and integrated jog function at the workstation.
Specs
Edwards 100-Ton Ironworker — IW100 Specifications
- Rating: 100 Ton
- Motor: 7.5 HP
- Motor Speed: 1,765 RPM
- Hydraulic Pressure: 3,500 PSI
- Hydraulic Pump: 10-1/2 GPM
- Hydraulic Reservoir: 17 Gal.
- Punch Capacity: 1-1/16" diameter in 1" mild steel
- Punch Rating: 100 Ton
- Punch Stroke: 1-13/16"
- Punch Open Height: 8-3/4"
- Punch Shut Height: 6-15/16"
- Punch Work Height: 39-1/16"
- Flat Bar Shear Capacity: 3/4" x 14", 1" x 10"
- Flat Bar Shear Max Round: 1-1/4"
- Flat Bar Shear Max Square: 1-1/4"
- Flat Bar Shear Rating: 100 Ton
- Flat Bar Shear Work Height: 37"
- Angle Shear Capacity: 6" x 6" x 1/2"
- Angle Shear Work Height: 43-15/16"
- Coper Notcher Capacity: 2-1/2" x 6" x 1/2"
- Coper Notcher Work Height: 42"
- Open Workstation Throat Depth: 14-3/4"
- Open Workstation Work Height: 37"
- Overall Dimensions (L x W x H): 45" x 56-1/8" x 61-11/16"
- Net Weight: 4,557 lb
- Warranty: 1 Year
Specs by Configuration
- 1 Phase 230V with PowerLink (ED9-IW100-1P230-A) — Motor: 7.5 HP 1~ 230V, Amperage: 36A
- 3 Phase 208V with PowerLink (ED9-IW100-3P208-A) — Motor: 7.5 HP 3~ 208V, Amperage: 22A
- 3 Phase 230V with PowerLink (ED9-IW100-3P230-A) — Motor: 7.5 HP 3~ 230V, Amperage: 22A
- 3 Phase 460V with PowerLink (ED9-IW100-3P460-A) — Motor: 7.5 HP 3~ 460V, Amperage: 11A
- 3 Phase 575V with PowerLink (ED9-IW100-3P575-A) — Motor: 7.5 HP 3~ 575V, Amperage: 8A
