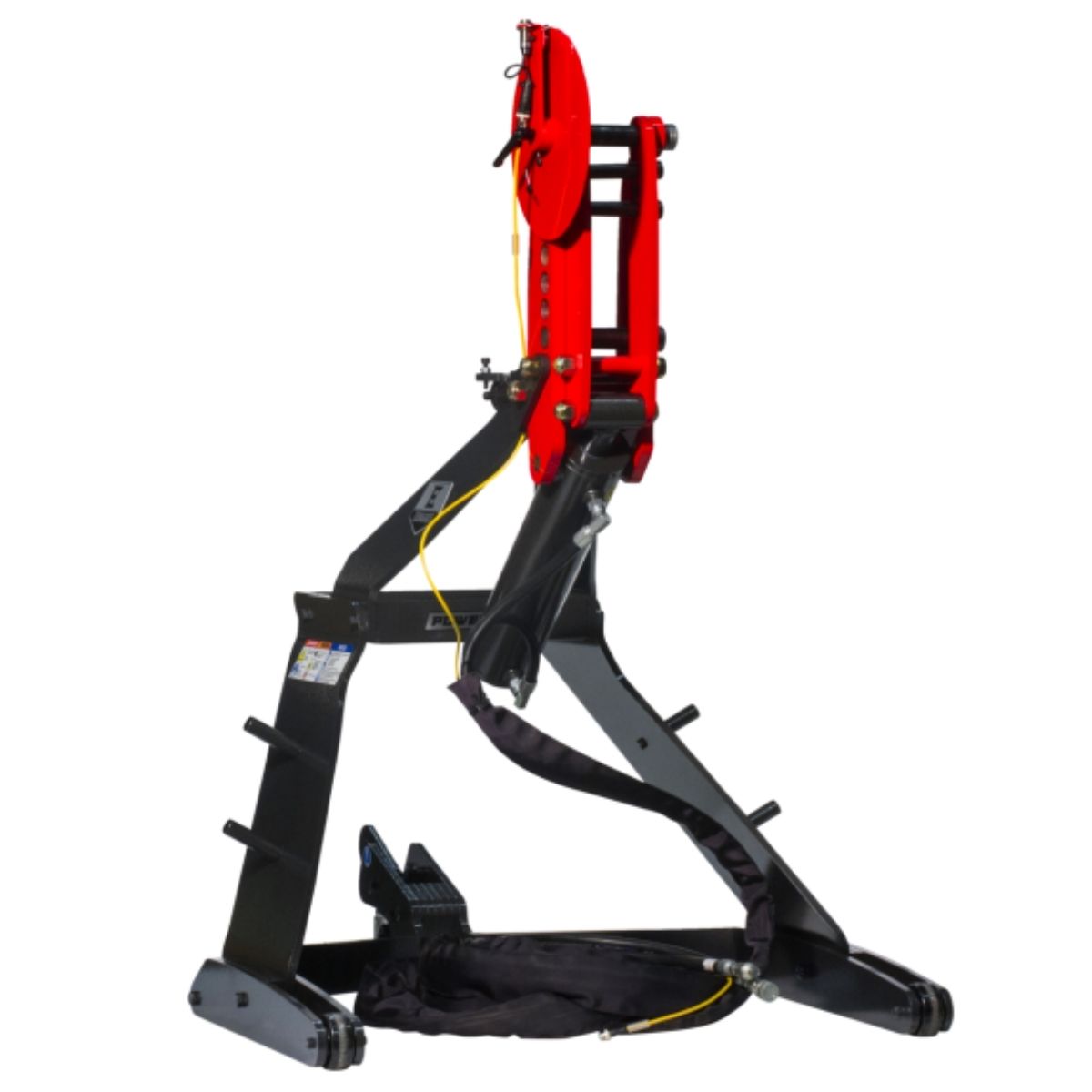

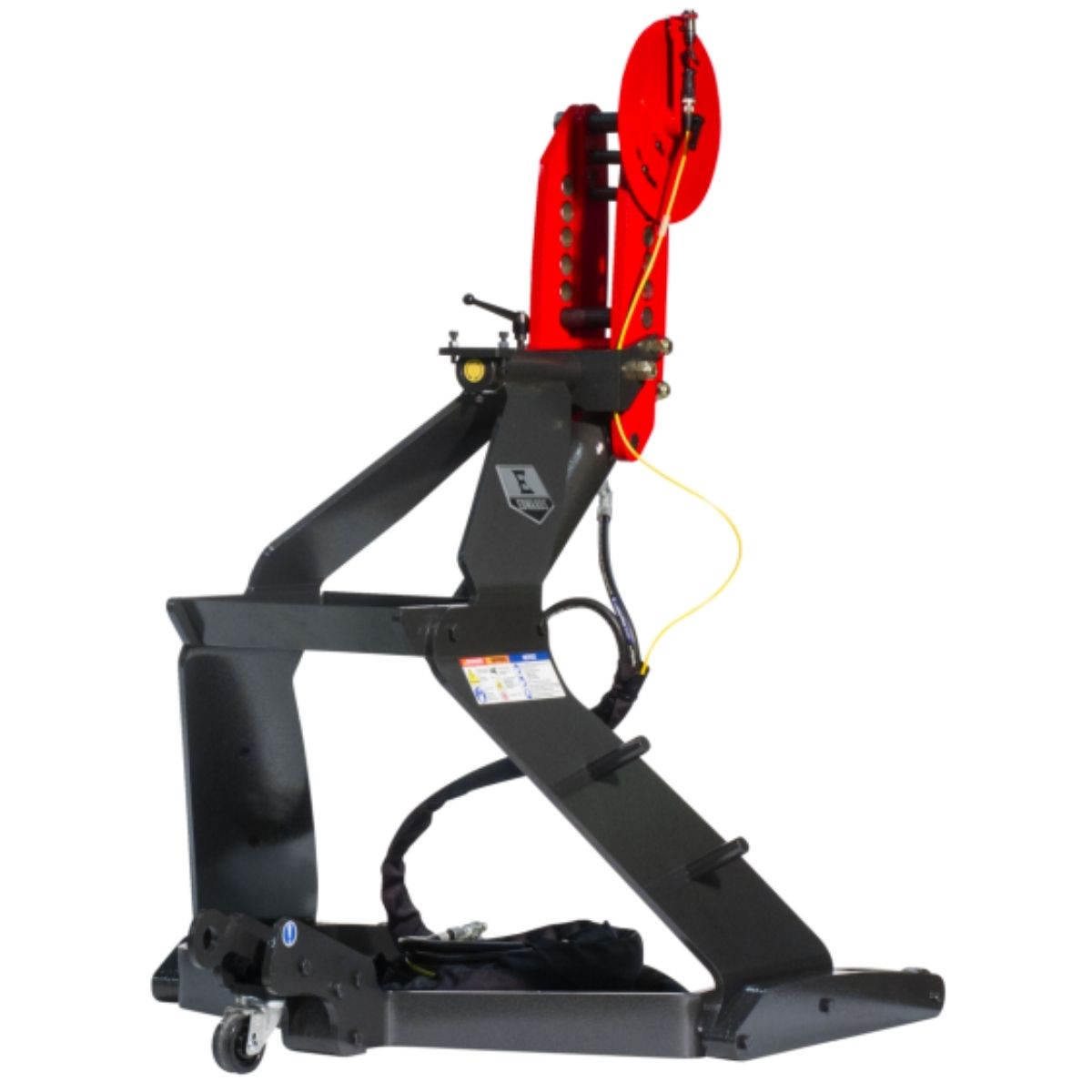

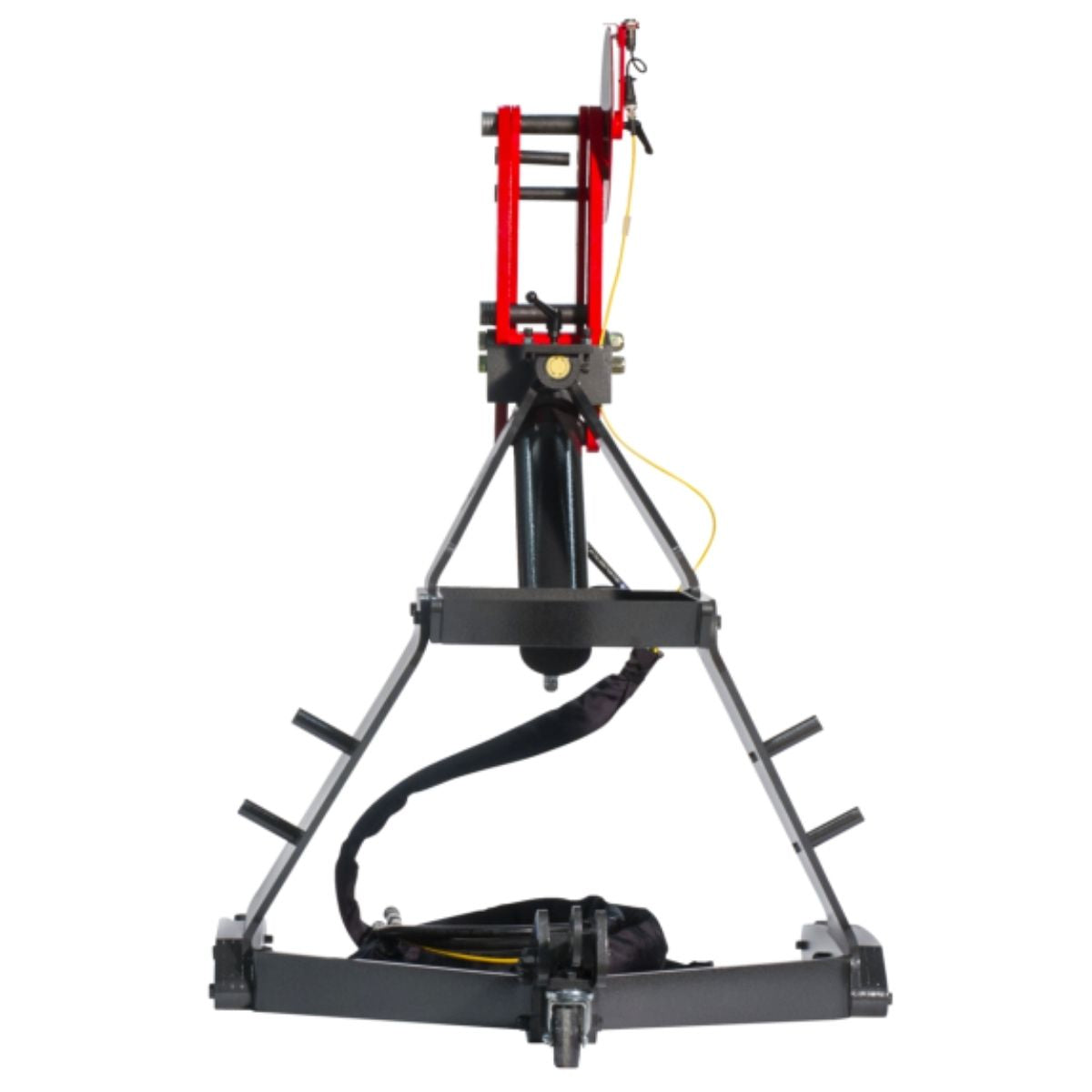

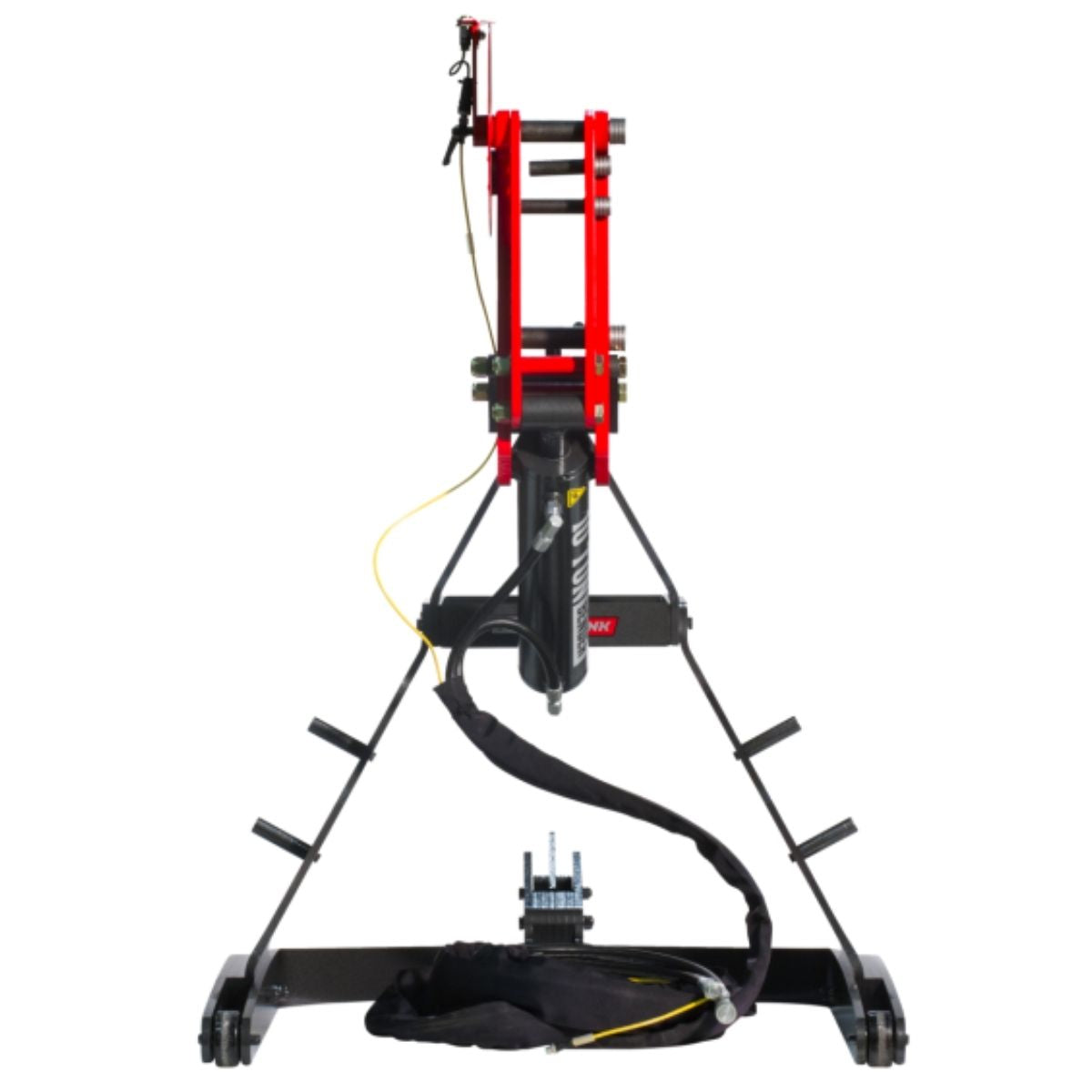

Edwards 10-Ton Tube & Pipe Bender with PowerLink Hydraulic Tool
Are you looking for a hydraulic pipe bender that handles a wide range of tube and pipe work without a separate dedicated power unit?
What if your shop had a bender that plugs directly into the hydraulic system you already own and gets right to work?
Meet the Edwards 10-Ton Tube & Pipe Bender with PowerLink Hydraulic Tool, a shop bender built for fabricators who need dependable bending capacity across round pipe, tube, and square tube.
With 20-foot quick-connect hoses, horizontal and vertical operation, and over 300 die options available, the bender fits a range of jobs and connects to compatible Edwards Ironworkers or Porta-Power units.
When the bender is set up and running steady, you can focus on the work and trust the results to hold up from part to part.
Edwards HAT1000 for Hydraulic Tube and Pipe Bending
Quick-Connect Hoses Simplify Setup
The bender ships with 20-foot quick-connect hydraulic hoses for straightforward connection to a compatible Edwards Ironworker or Porta-Power unit. Male and female fittings seat securely with a detent ball setting, so the connection is solid before you start.
Tilting Head Frame Adapts to the Job
The head frame mounts on a yoke and pin assembly with positive stops at 0 and 90 degrees, letting you run the bender in either a horizontal or vertical position. This flexibility is useful when working with complex bend shapes or longer material setups.
Protractor and Auto-Stop Enable Repeatable Bends
The built-in protractor wheel helps you dial in the bend angle on each setup. The Auto-Stop control uses a proximity sensor to hold your set angle and repeat it across successive pieces, which keeps production work consistent without re-measuring each time.
Rolling Base Keeps the Bender Mobile
The heavy-duty formed steel base rolls on three wheels with a kickstand at the rear. Push the kickstand down to move the bender to your work station, then flip it up to lock the bender in place and stabilize it on the floor.
What's Included
What's Included? Edwards 10-Ton Tube & Pipe Bender with PowerLink Hydraulic Tool
-
Edwards 10-Ton Tube & Pipe Bender with PowerLink Hydraulic Tool — Provides a 10-ton hydraulic bending platform for round pipe, tube, square tube, and d.o.m. tubing up to 180 degrees.
-
20' Quick-Connect Hydraulic Hoses — Connects the bender to a compatible Edwards Ironworker or Porta-Power unit for hydraulic power.
-
Hand/Jog Control with Integrated E-Stop — Allows the operator to control cylinder extension and retraction from a safe distance with a built-in emergency stop.
Specs
Edwards 10-Ton Tube & Pipe Bender with PowerLink Hydraulic Tool Specifications
- Model: HAT1000
- Stock Number: ED9-HAT1000
- Rating: 10 Ton
- Max Bend: 180°
- Round Pipe Schedule 40 Capacity: 2" ID
- Round Tube Capacity: 2-1/2" OD x .095 wall
- Square Tube Capacity: 2" OD x .25 wall
- Cylinder Ram: 1-3/4"
- Cylinder Stroke: 14"
- Hydraulics: 3-1/2 GPM
- Valve Pressure: 2,750 PSI
- Product Dimensions (L x W x H): 40-1/2" x 36-1/2" x 42"
- Overall Dimensions (L x W x H): 42" x 45" x 63"
- Net Weight: 588 lb
- Warranty: 1 Year
- Note: Requires compatible Edwards Ironworker with Hydraulic Accessory Control Package or Edwards Porta-Power unit for operation. See manual included with purchase.
