Edwards 10" Brake with 4-Way Die for Open Cavity — 65 to 120 Ton

Edwards 10" Brake with 4-Way Die for Open Cavity — 65 to 120 Ton

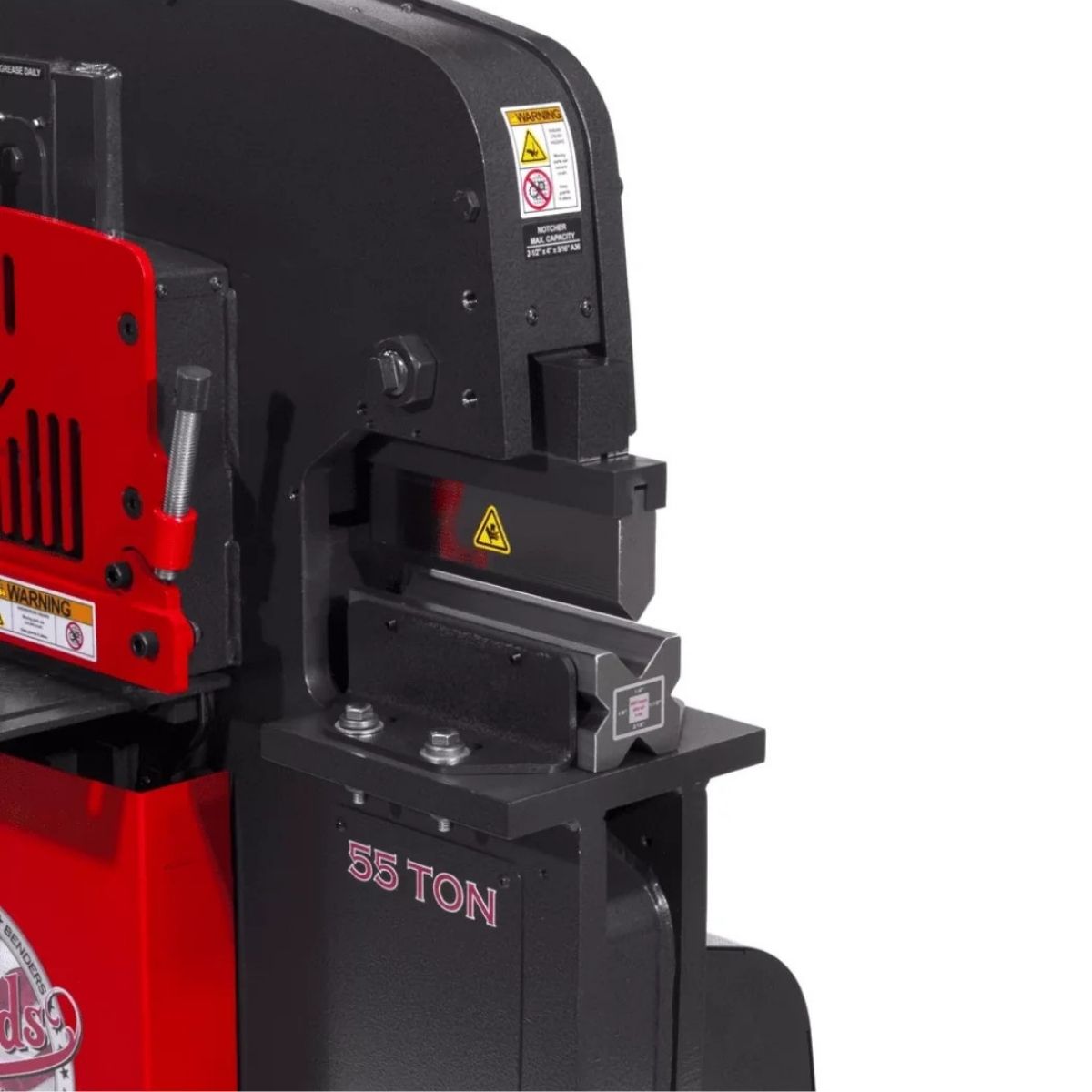

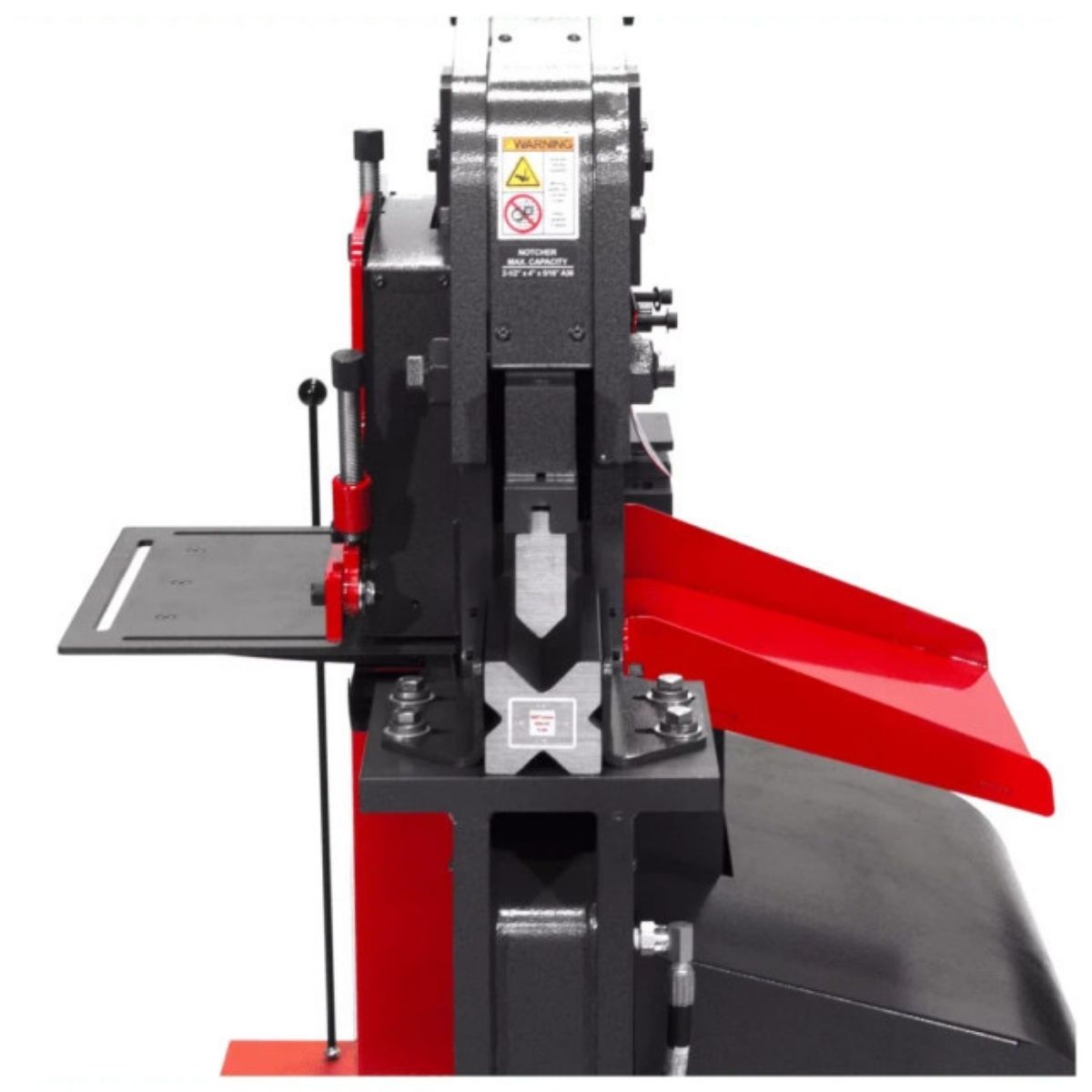

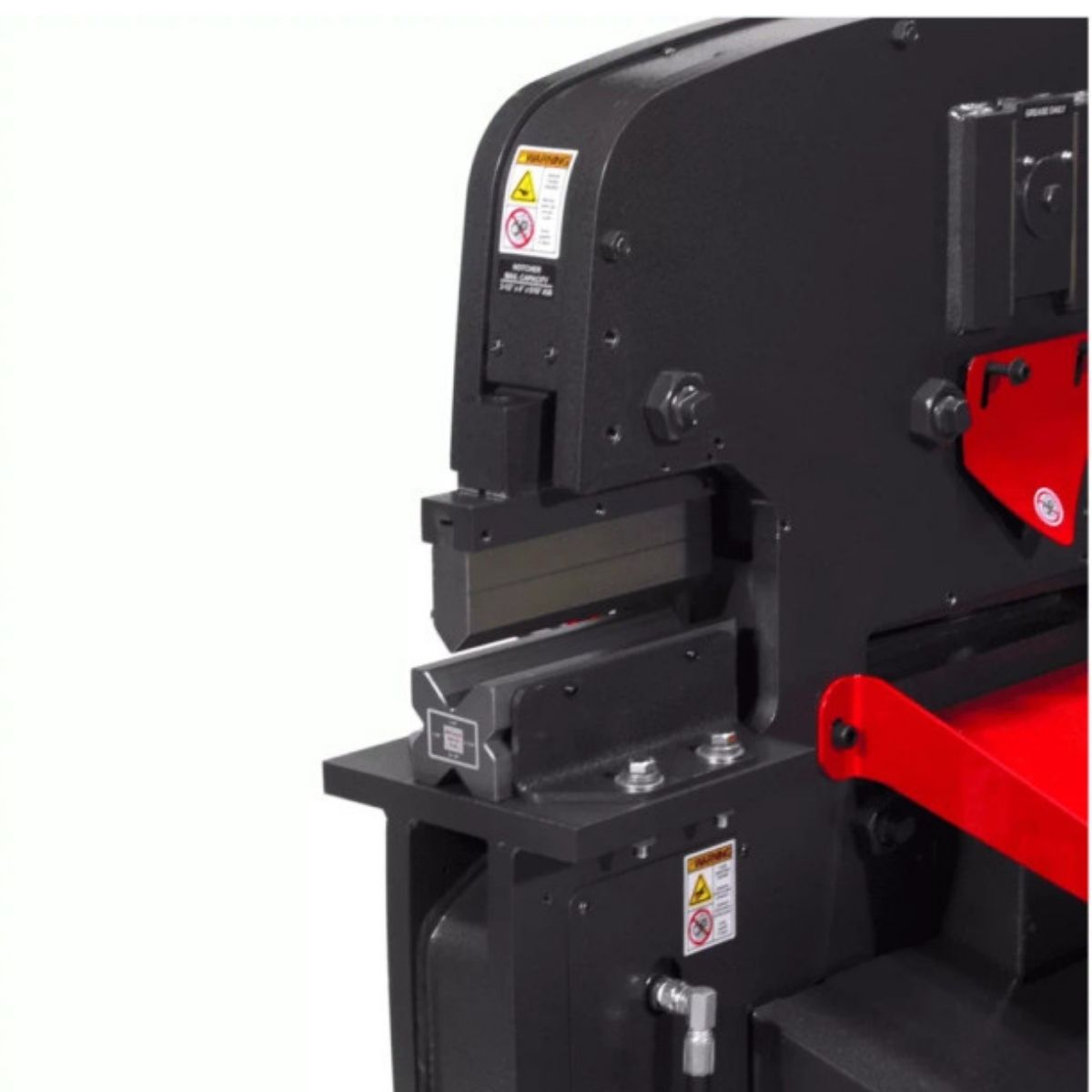

The Edwards 10" Brake with 4-Way Die gives you the ability to form brackets, frames, pans, and tanks directly on your ironworker. It accepts material from 1/16" to 1/4" thick and bends each piece to a clean 90° angle using the included standard punch. The 4-way die gives you four usable forming edges from a single tool, reducing the need to swap out tooling between jobs.

• Forms 1/16", 1/8", 3/16", and 1/4" material to a 90° angle
• Compatible with 65 Ton, 120 Ton, and Elite 110/65 Ton Edwards Ironworkers
• 4-way die design provides four forming edges in one tool
• Pair with the Press Brake Back Gauge for repeatable bends

Specs

Edwards 10" Brake with 4-Way Die for Open Cavity — 65 to 120 Ton Specifications

• Stock Number: ED9-AC1052
• Model Number: AC1052
• Net Weight: 53.0 lbs
• Gross Weight: 54.0 lbs
• Compatible Machines: Edwards 65 Ton, 120 Ton, and Elite 110/65 Ton Ironworkers
• Material Capacity: 1/16", 1/8", 3/16", 1/4"
• Bend Angle: 90°
