Edwards 1" Square Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1" Square Tube Bender Die for 10-Ton Tube & Pipe Bender

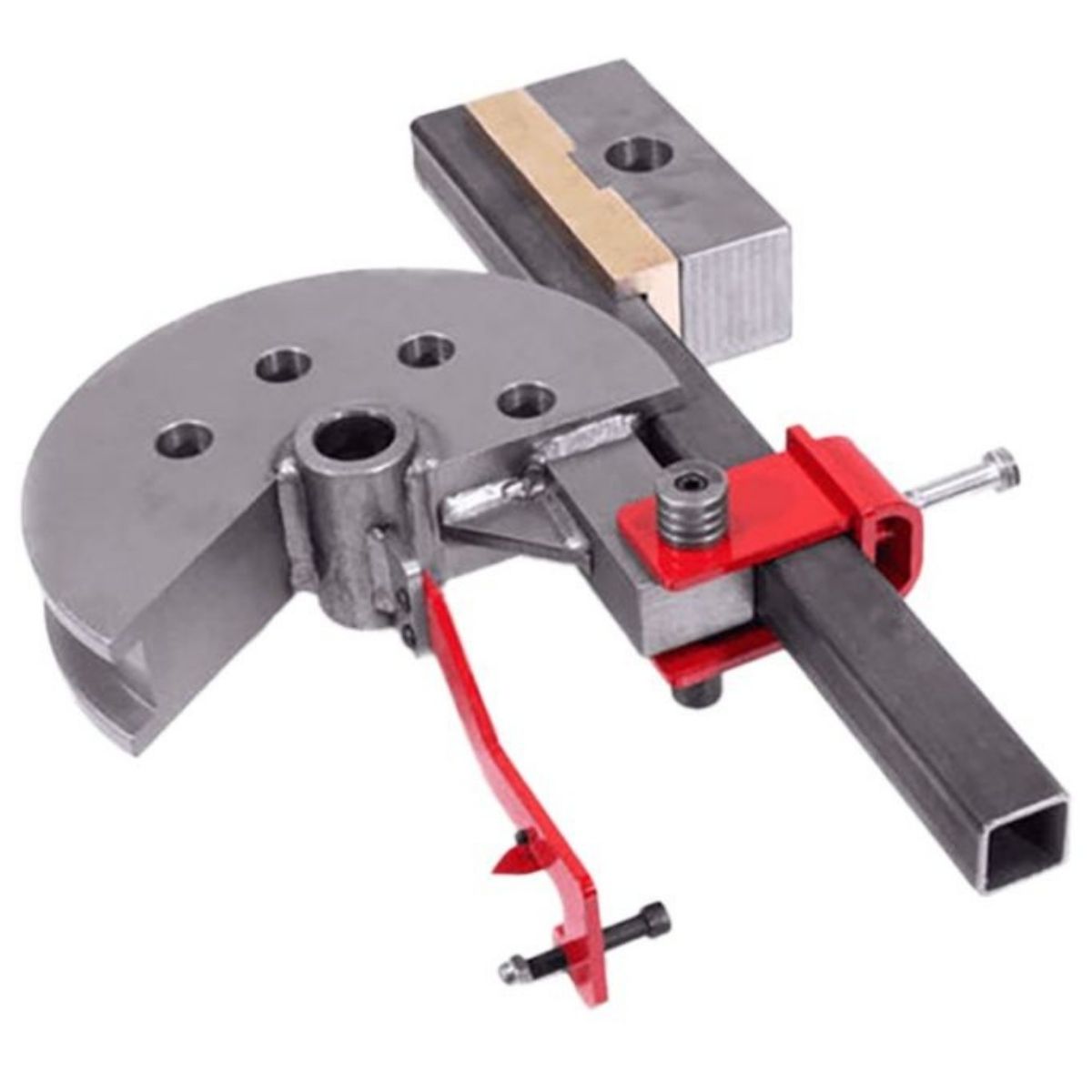

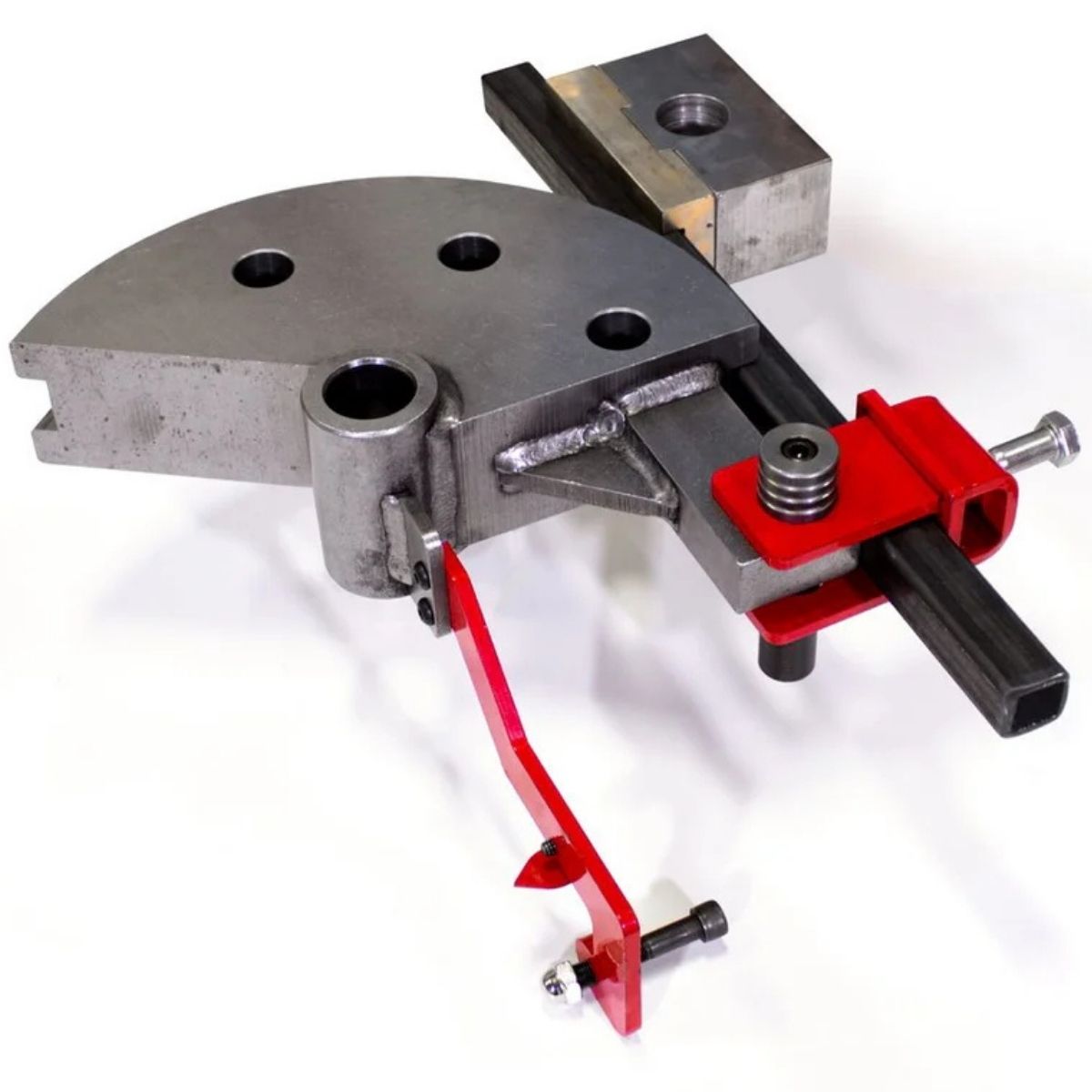

The Edwards 1" Square Tube Bender Die fits the Edwards 10 Ton Bender when run off an Edwards Ironworker with the PowerLink System. It produces smooth, even bends in square tube up to 180 degrees. A brass follower supports the die and extends its working life.

• Bends 1" square tube with a smooth, even curve
• Brass follower adds extra service life
• Precision machined for consistent bend quality
• Built for the Edwards 10 Ton Bender with PowerLink
• Backed by Edwards 1 year parts warranty

Available in radius sizes from 3" to 6-1/2", each offered in a 90° or 180° bend angle.

Specs

Edwards 1" Square Tube Bender Die Specifications

• Material Dimension: 1" square tube
• Type: Square Bender Die
• For Use With: Edwards 10 Ton Bender (PowerLink System)
• Warranty: 1 Year

Specs by Radius and Bend Angle

• 3" Radius, 90° Bend (ED9-SD90/1X3): 1 lb net weight
• 3" Radius, 180° Bend (ED9-SD180/1X3): 1 lb net weight
• 3-1/2" Radius, 90° Bend (ED9-SD90/1X3.5): 18 lb net weight
• 3-1/2" Radius, 180° Bend (ED9-SD180/1X3.5): 23 lb net weight
• 4" Radius, 90° Bend (ED9-SD90/1X4): 25 lb net weight
• 4" Radius, 180° Bend (ED9-SD180/1X4): 32 lb net weight
• 4-1/2" Radius, 90° Bend (ED9-SD90/1X4.5): 30 lb net weight
• 4-1/2" Radius, 180° Bend (ED9-SD180/1X4.5): 40 lb net weight
• 5" Radius, 90° Bend (ED9-SD90/1X5): 33 lb net weight
• 5" Radius, 180° Bend (ED9-SD180/1X5): 43 lb net weight
• 5-1/2" Radius, 90° Bend (ED9-SD90/1X5.5): 35 lb net weight
• 5-1/2" Radius, 180° Bend (ED9-SD180/1X5.5): 46 lb net weight
• 6" Radius, 90° Bend (ED9-SD90/1X6): 38 lb net weight
• 6" Radius, 180° Bend (ED9-SD180/1X6): 51 lb net weight
• 6-1/2" Radius, 90° Bend (ED9-SD90/1X6.5): 41 lb net weight
• 6-1/2" Radius, 180° Bend (ED9-SD180/1X6.5): 55 lb net weight
