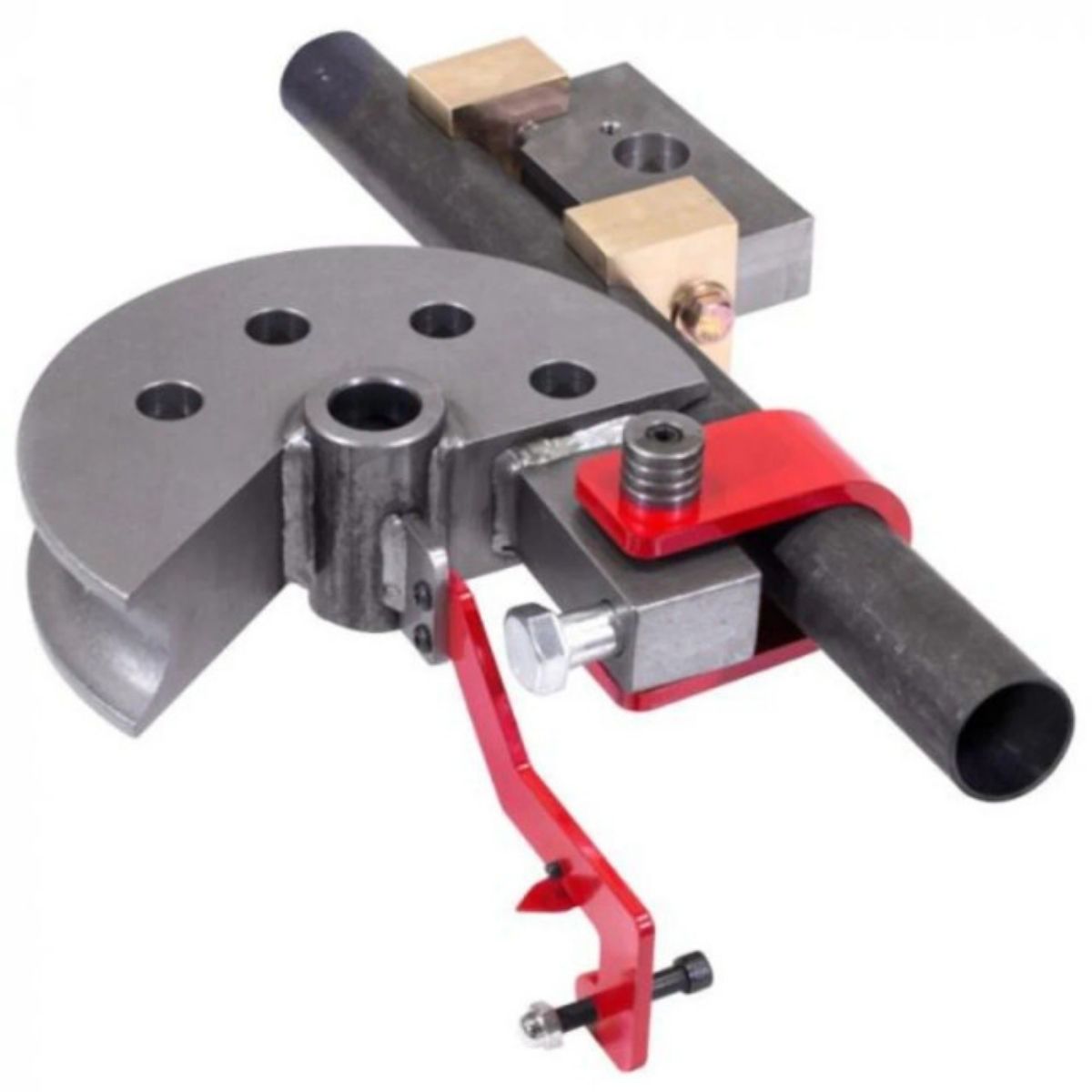

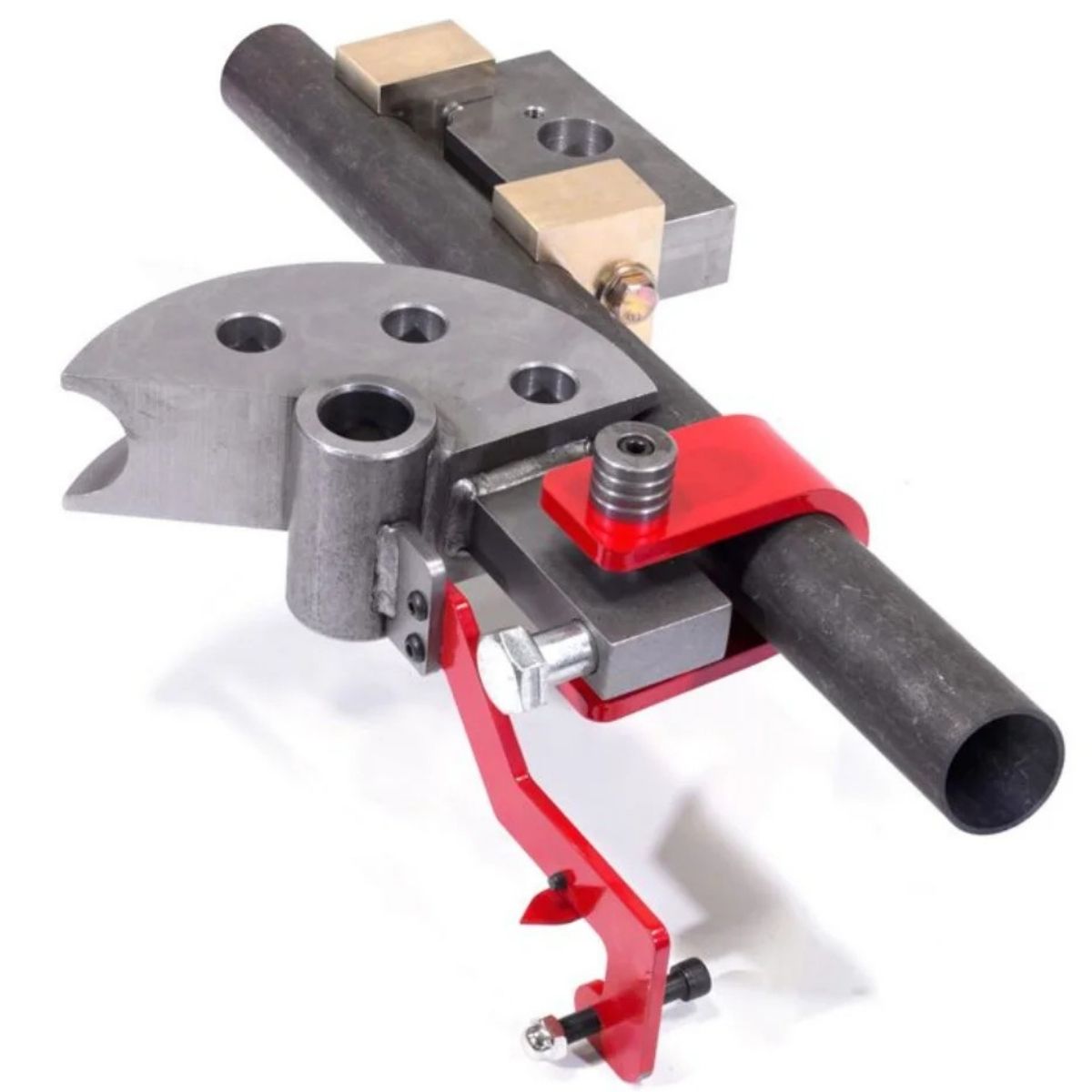

Edwards 1-7/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1-7/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

The Edwards 1-7/8" Tube Bender Die fits the Edwards 10-Ton Tube & Pipe Bender for use with the PowerLink System on an Edwards Ironworker. It produces smooth, even bends up to 180° in tube stock. A brass follower supports the die and helps it hold up under repeated use.

• Bends tube up to 180°
• Brass follower extends die life
• Available in four radius sizes
• Precision machined for consistent bends

Specs

Edwards 1-7/8" Tube Bender Die Specifications

• Material Dimension: 1-7/8" (1.875") Tube OD
• Type: Tube Bender Die
• For Use With: Edwards 10-Ton Tube & Pipe Bender (PowerLink System required)
• Warranty: 1 Year

Specs by Configuration

• 6" Radius, 90° Bend (ED9-TD90/1.875X6): Net Weight 48 lb
• 6" Radius, 180° Bend (ED9-TD180/1.875X6): Net Weight 64 lb
• 6-1/2" Radius, 90° Bend (ED9-TD90/1.875X6.5): Net Weight 54 lb
• 6-1/2" Radius, 180° Bend (ED9-T180/1.875X6.5): Net Weight 72 lb
• 7" Radius, 90° Bend (ED9-TD90/1.875X7): Net Weight 56 lb
• 7" Radius, 180° Bend (ED9-TD180/1.875X7): Net Weight 74 lb
• 7-1/2" Radius, 90° Bend (ED9-TD90/1.875X7.5): Net Weight 59 lb
• 7-1/2" Radius, 180° Bend (ED9-T180/1.875X7.5): Net Weight 77 lb
