Edwards 1-5/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1-5/8" Tube Bender Die for 10-Ton Tube & Pipe Bender

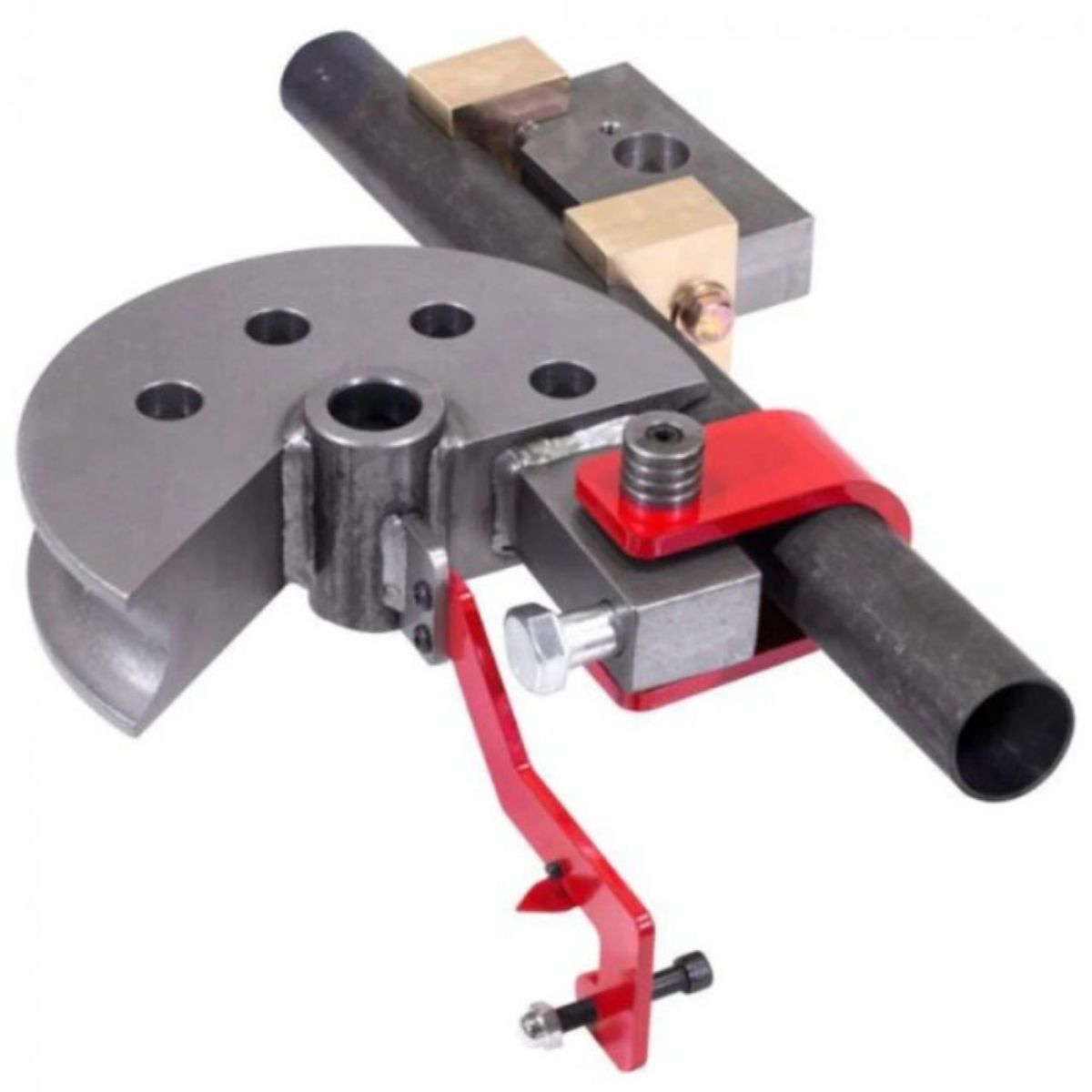

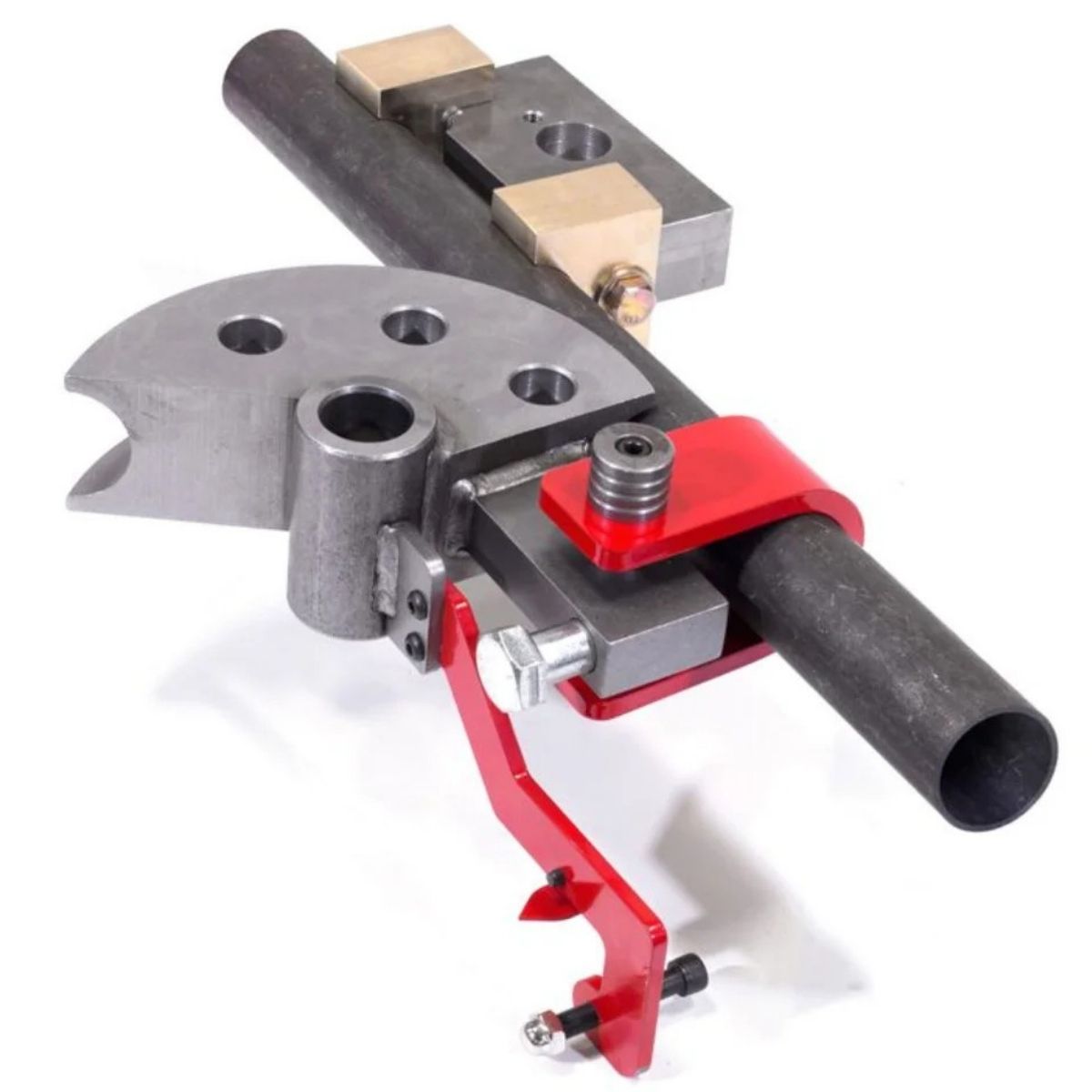

The Edwards 1-5/8" Tube Bender Die fits the Edwards 10 Ton Bender for use with an Edwards Ironworker running the PowerLink System. Its brass follower supports long die life and helps produce smooth, even bends in 1-5/8" tube stock. Available in radius sizes from 5-1/2" to 7-1/2" with 90° or 180° bend capacity, so you can match the die to the bend your job calls for.

• Bends 1-5/8" tube stock
• Brass follower extends die life
• Runs on the Edwards 10 Ton Bender
• Requires Ironworker with PowerLink System
• Choose 90° or 180° bend angle

Specs

Edwards 1-5/8" Tube Bender Die Specifications

• Material Dimension: 1-5/8"
• For Use With: Edwards 10 Ton Bender, requires Ironworker with PowerLink System
• Warranty: 1 Year
• Prop 65 Warning: Cancer

Specs by Radius & Bend Angle

• 5-1/2" Radius, 90° — Stock Number: ED9-TD90/1.625X5.5, Net Weight: 35 lb
• 5-1/2" Radius, 180° — Stock Number: ED9-T180/1.625X5.5, Net Weight: 46 lb
• 6" Radius, 90° — Stock Number: ED9-TD90/1.625X6, Net Weight: 41 lb
• 6" Radius, 180° — Stock Number: ED9-TD180/1.625X6, Net Weight: 54 lb
• 6-1/2" Radius, 90° — Stock Number: ED9-TD90/1.625X6.5, Net Weight: 46 lb
• 6-1/2" Radius, 180° — Stock Number: ED9-T180/1.625X6.5, Net Weight: 61 lb
• 7" Radius, 90° — Stock Number: ED9-TD90/1.625X7, Net Weight: 52 lb
• 7" Radius, 180° — Stock Number: ED9-TD180/1.625X7, Net Weight: 69 lb
• 7-1/2" Radius, 90° — Stock Number: ED9-TD90/1.625X7.5, Net Weight: 59 lb
• 7-1/2" Radius, 180° — Stock Number: ED9-T180/1.625X7.5, Net Weight: 77 lb
