Edwards 1-3/4" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1-3/4" Tube Bender Die for 10-Ton Tube & Pipe Bender

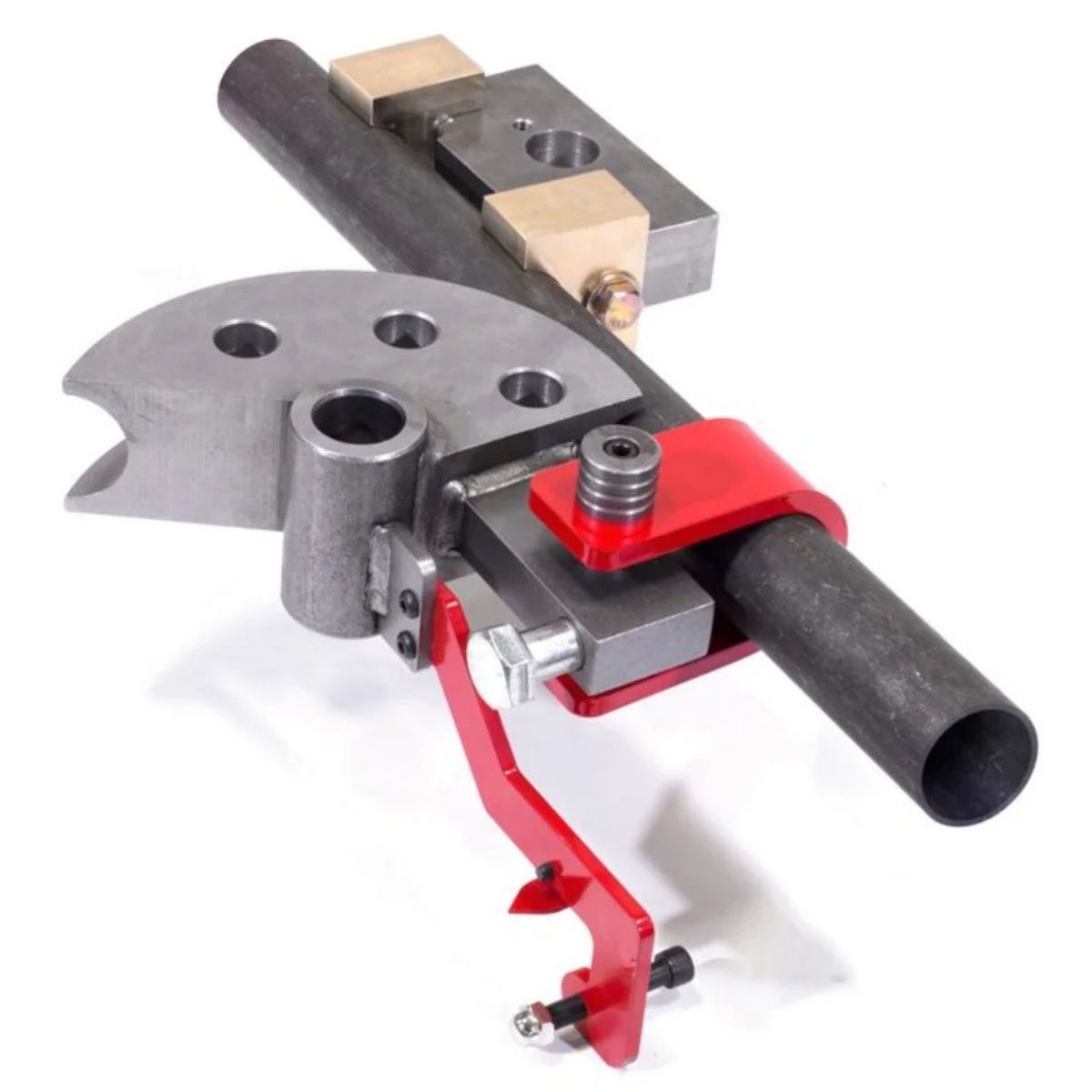

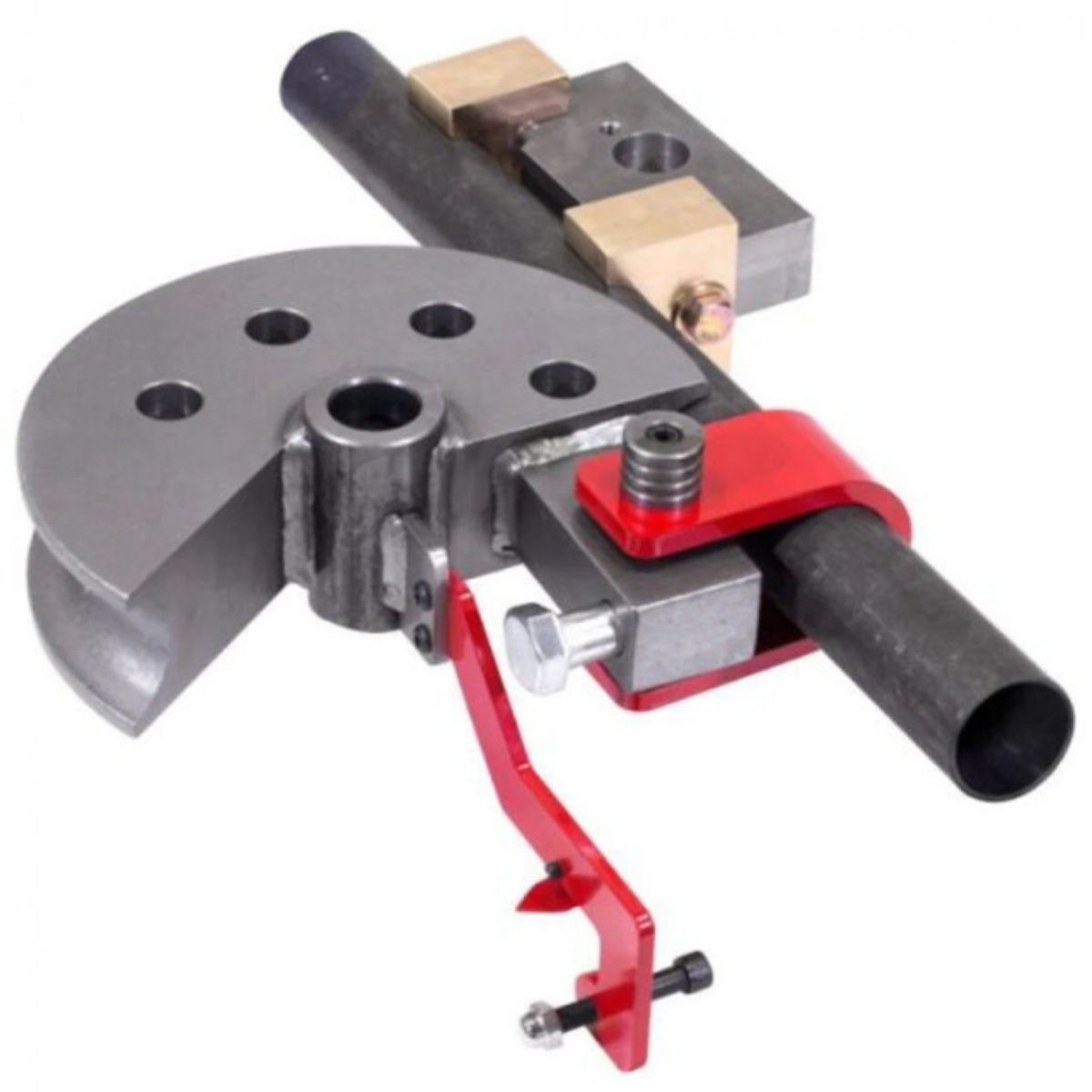

The Edwards 1-3/4" Tube Bender Die is built for the Edwards 10 Ton Bender running off an Edwards Ironworker with the PowerLink System. It produces smooth, even bends in tube and pipe without flattening or kinking the material. A durable brass follower rides against the tube to extend die life and keep bends consistent from part to part. This die is available in radius sizes from 5-1/2" to 7-1/2", each offered in a 90° or 180° bend option.

• Bends 1-3/4" tube and pipe cleanly
• Brass follower extends die life
• Built for the Edwards 10 Ton Bender with PowerLink
• Precision machined for repeatable results

Specs

Edwards 1-3/4" Tube Bender Die for 10-Ton Tube & Pipe Bender Specifications

• Material Dimension: 1-3/4 in
• Compatible With: Edwards 10 Ton Bender (PowerLink System)
• Warranty: 1 Year

Specs by Radius & Bend Angle

• 5-1/2" Radius 90° (ED9-TD90/1.75X5.5): Net Weight 36 lb
• 5-1/2" Radius 180° (ED9-TD180/1.75X5.5): Net Weight 48 lb
• 6" Radius 90° (ED9-TD90/1.75X6): Net Weight 38 lb
• 6" Radius 180° (ED9-TD180/1.75X6): Net Weight 50 lb
• 6-1/2" Radius 90° (ED9-TD90/1.75X6.5): Net Weight 54 lb
• 6-1/2" Radius 180° (ED9-TD180/1.75X6.5): Net Weight 72 lb
• 7" Radius 90° (ED9-TD90/1.75X7): Net Weight 56 lb
• 7" Radius 180° (ED9-TD180/1.75X7): Net Weight 74 lb
• 7-1/2" Radius 90° (ED9-TD90/1.75X7.5): Net Weight 61 lb
• 7-1/2" Radius 180° (ED9-TD180/1.75X7.5): Net Weight 80 lb
