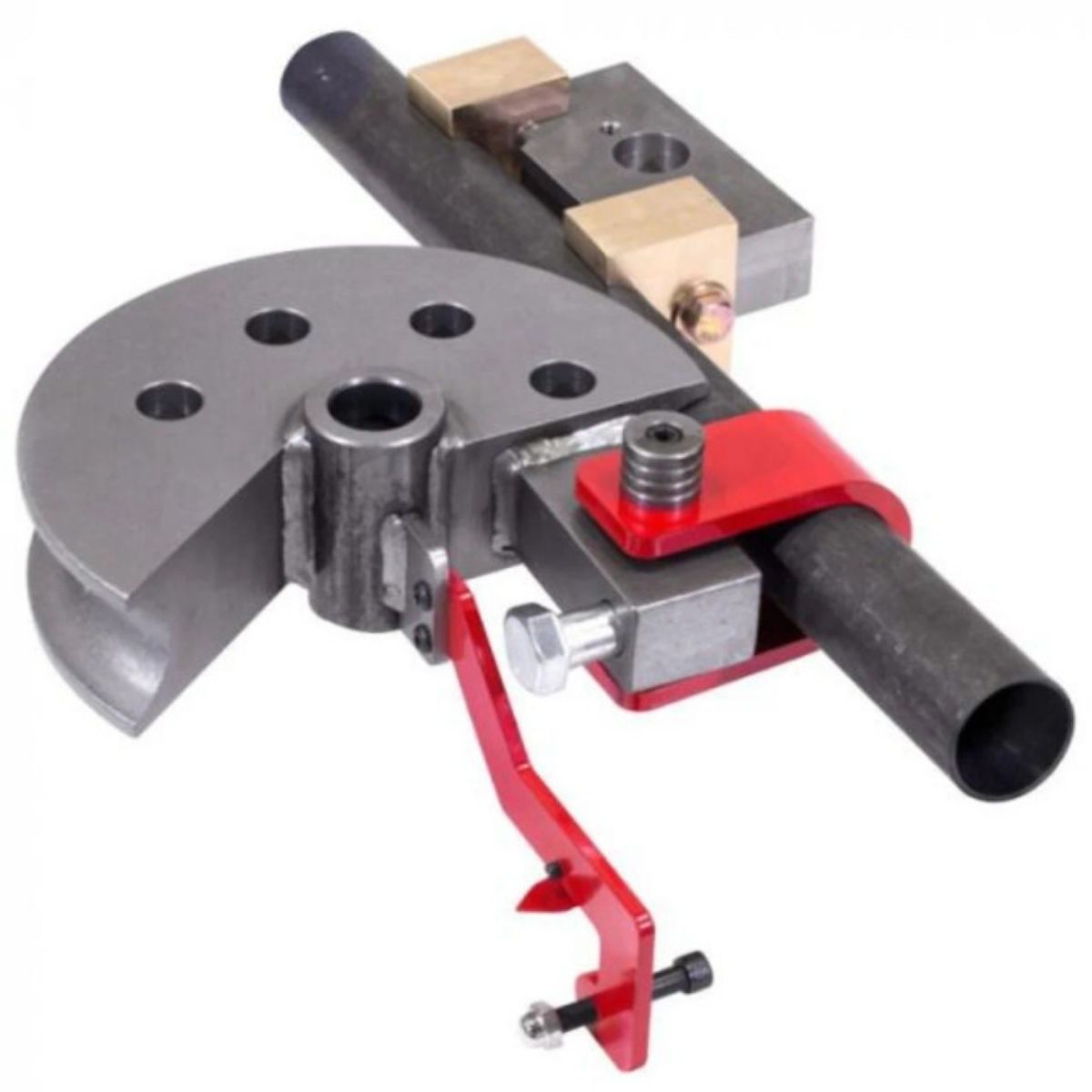

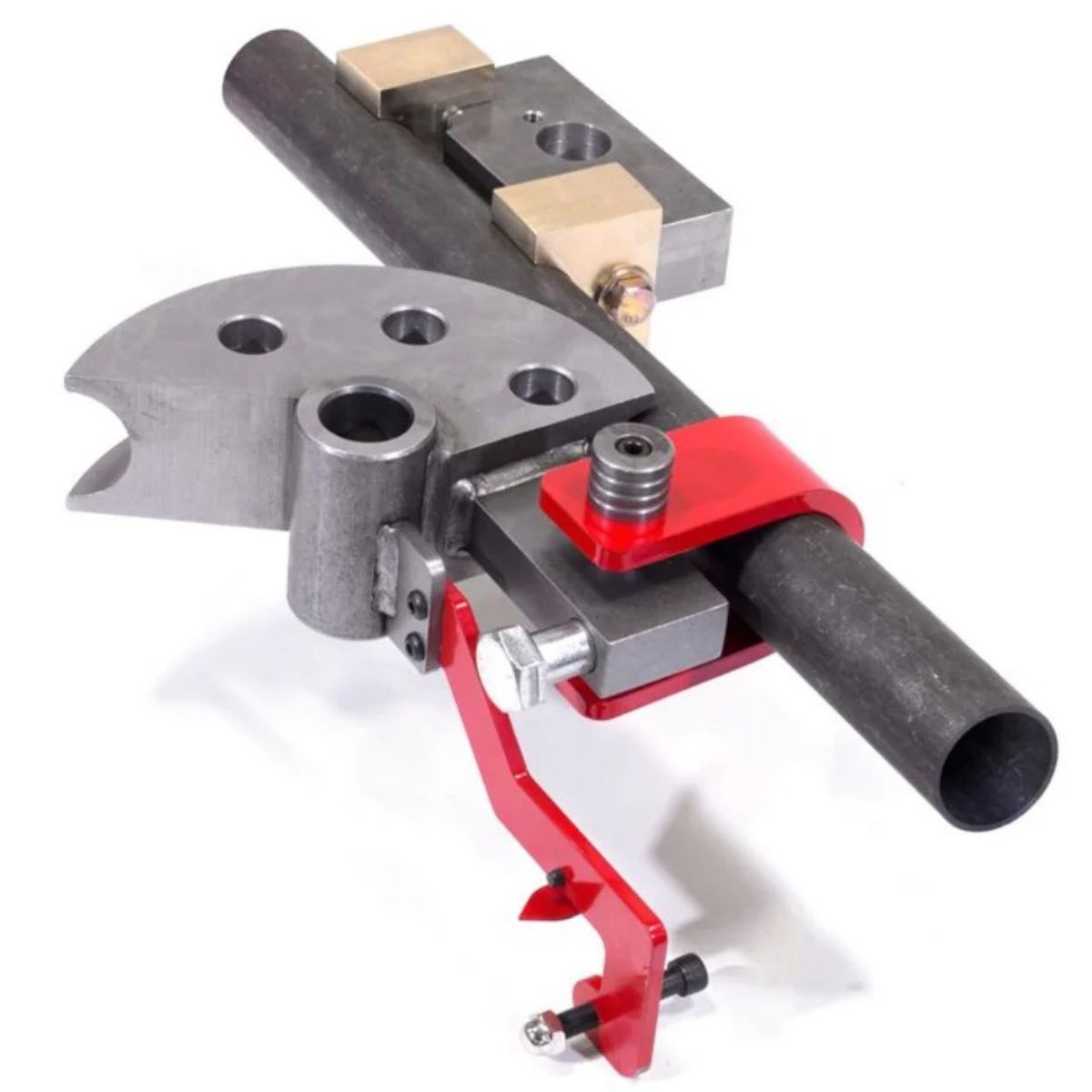

Edwards 1-1/2" Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1-1/2" Tube Bender Die for 10-Ton Tube & Pipe Bender

This die fits the Edwards 10 Ton Tube and Pipe Bender, run off an Edwards Ironworker with the PowerLink System. It bends 1-1/2 inch tube or pipe up to 180 degrees, producing smooth, even bends. A brass follower supports the die and extends its service life. It comes in a range of radius and bend angle options to match your bending job.

• Bends 1-1/2" tube up to 180°
• Brass follower extends die life
• Built for the Edwards 10 Ton Bender
• Precision machined for consistent bends
• Backed by Edwards 1-Year Parts Warranty

Specs

Edwards 1-1/2" Tube Bender Die Specifications

• Material Dimension: 1-1/2" tube
• Compatible Machine: Edwards 10 Ton Tube & Pipe Bender (PowerLink System)
• Warranty: 1 Year

Specs by Radius and Bend Angle

• 4-1/2" Radius, 90° Bend (ED9-TD90/1.5X4.5) — Net Weight: 23 lb
• 5" Radius, 90° Bend (ED9-TD90/1.5X5) — Net Weight: 26 lb
• 5" Radius, 180° Bend (ED9-TD180/1.5X5) — Net Weight: 34 lb
• 5-1/2" Radius, 90° Bend (ED9-TD90/1.5X5.5) — Net Weight: 28 lb
• 5-1/2" Radius, 180° Bend (ED9-TD180/1.5X5.5) — Net Weight: 38 lb
• 6" Radius, 90° Bend (ED9-TD90/1.5X6) — Net Weight: 36 lb
• 6" Radius, 180° Bend (ED9-TD180/1.5X6) — Net Weight: 48 lb
• 6-1/2" Radius, 90° Bend (ED9-TD90/1.5X6.5) — Net Weight: 39 lb
• 6-1/2" Radius, 180° Bend (ED9-TD180/1.5X6.5) — Net Weight: 52 lb
• 7" Radius, 90° Bend (ED9-TD90/1.5X7) — Net Weight: 46 lb
• 7" Radius, 180° Bend (ED9-TD180/1.5X7) — Net Weight: 61 lb
• 7-1/2" Radius, 90° Bend (ED9-TD90/1.5X7.5) — Net Weight: 53 lb
• 7-1/2" Radius, 180° Bend (ED9-TD180/1.5X7.5) — Net Weight: 71 lb
