Edwards 1-1/2" Square Tube Bender Die for 10-Ton Tube & Pipe Bender

Edwards 1-1/2" Square Tube Bender Die for 10-Ton Tube & Pipe Bender

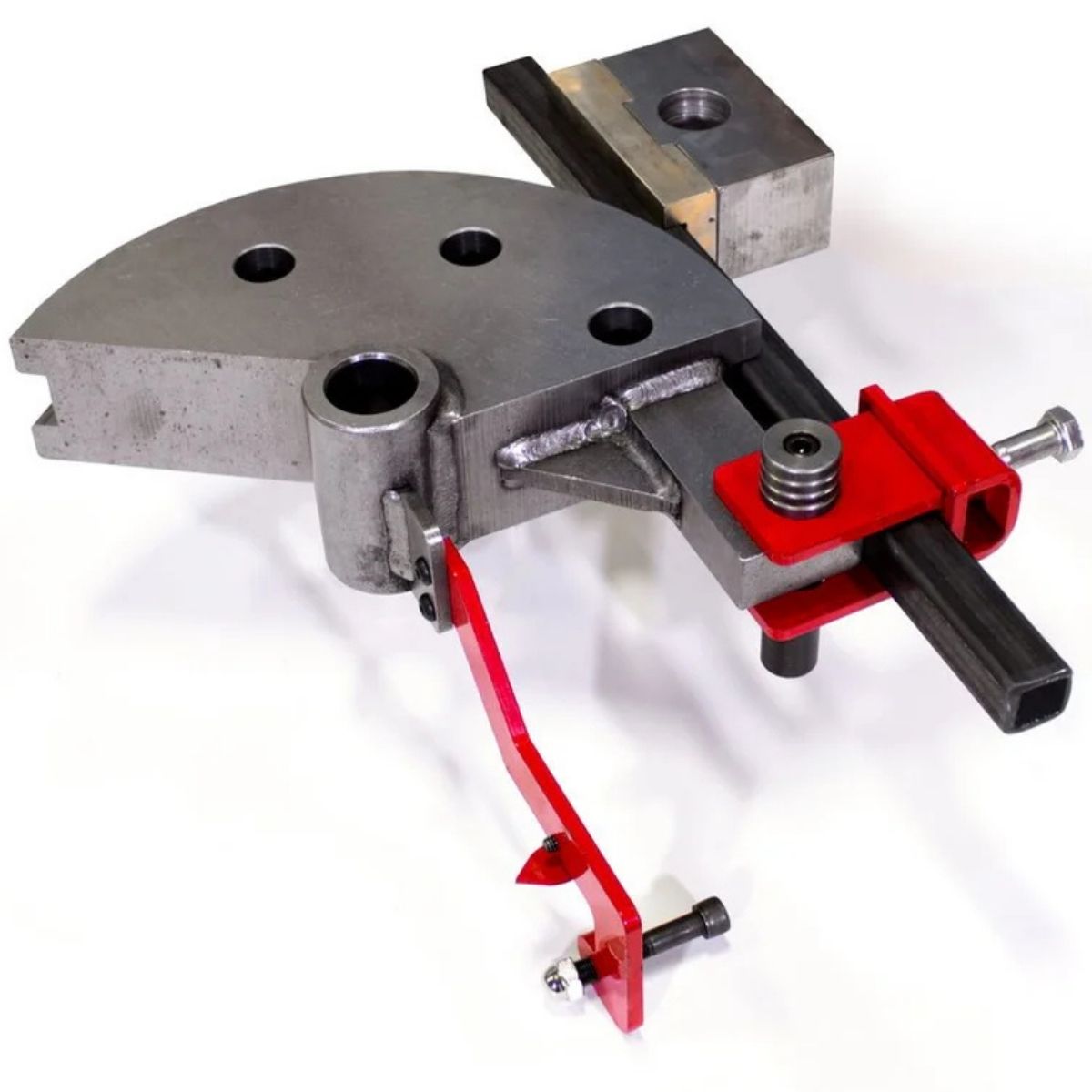

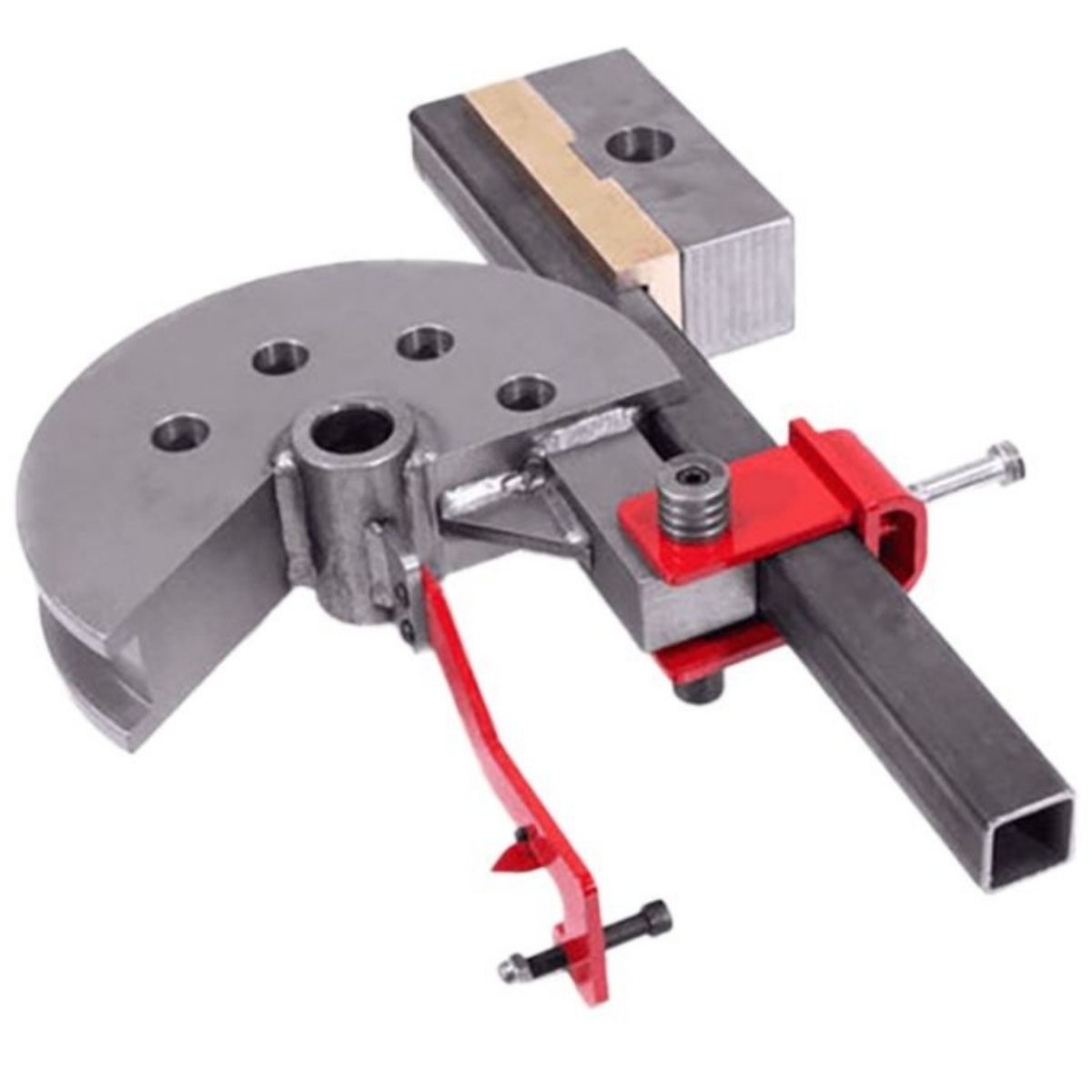

The Edwards 1-1/2" Square Tube Bender Die fits the Edwards 10 Ton Bender for clean square tube bends up to 90° or 180°. It runs off an Edwards Ironworker equipped with the PowerLink System. A brass follower supports the tube through the bend and helps the die hold up over time.

• Bends 1-1/2" square tube up to 90° or 180°
• Runs off the Edwards 10 Ton Bender with PowerLink
• Brass follower extends die life
• Precision machined for consistent bends
• Available in radius sizes from 4-1/2" to 7-1/2"

Specs

Edwards 1-1/2" Square Tube Bender Die Specifications

• Material Dimension: 1-1/2"
• For Use With: Edwards 10 Ton Bender (requires PowerLink System)
• Follower: Brass
• Warranty: 1 Year

Specs by Radius and Bend Angle

• 4-1/2" Radius, 90° — Stock Number ED9-SD90/1.5X4.5
• 4-1/2" Radius, 180° — Stock Number ED9-SD180/1.5X4.5
• 5-1/2" Radius, 90° — Stock Number ED9-SD90/1.5X5.5
• 5-1/2" Radius, 180° — Stock Number ED9-SD180/1.5X5.5
• 6" Radius, 90° — Stock Number ED9-SD90/1.5X6
• 6" Radius, 180° — Stock Number ED9-SD180/1.5X6
• 7" Radius, 90° — Stock Number ED9-SD90/1.5X7
• 7" Radius, 180° — Stock Number ED9-SD180/1.5X7
• 7-1/2" Radius, 90° — Stock Number ED9-SD90/1.5X7.5
• 7-1/2" Radius, 180° — Stock Number ED9-SD180/1.5X7.5
