Baileigh WP-1800F Cart-Mounted Welding Positioner — 8" 3-Jaw Chuck

Welding round tubing or pipe by hand often means stopping to reposition the piece for every pass. The Baileigh WP-1800F rotates the workpiece for you, keeping weld access steady from start to finish.

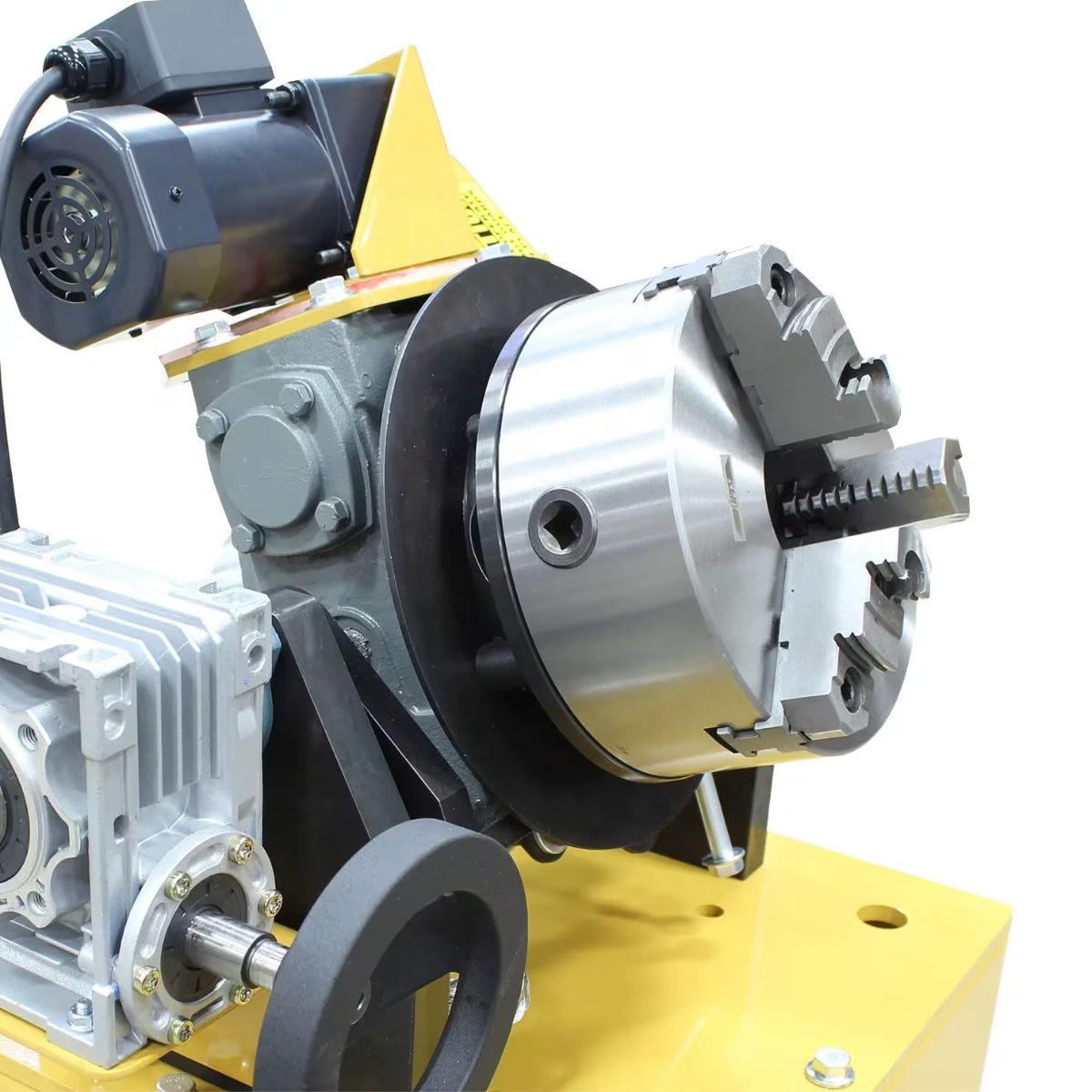

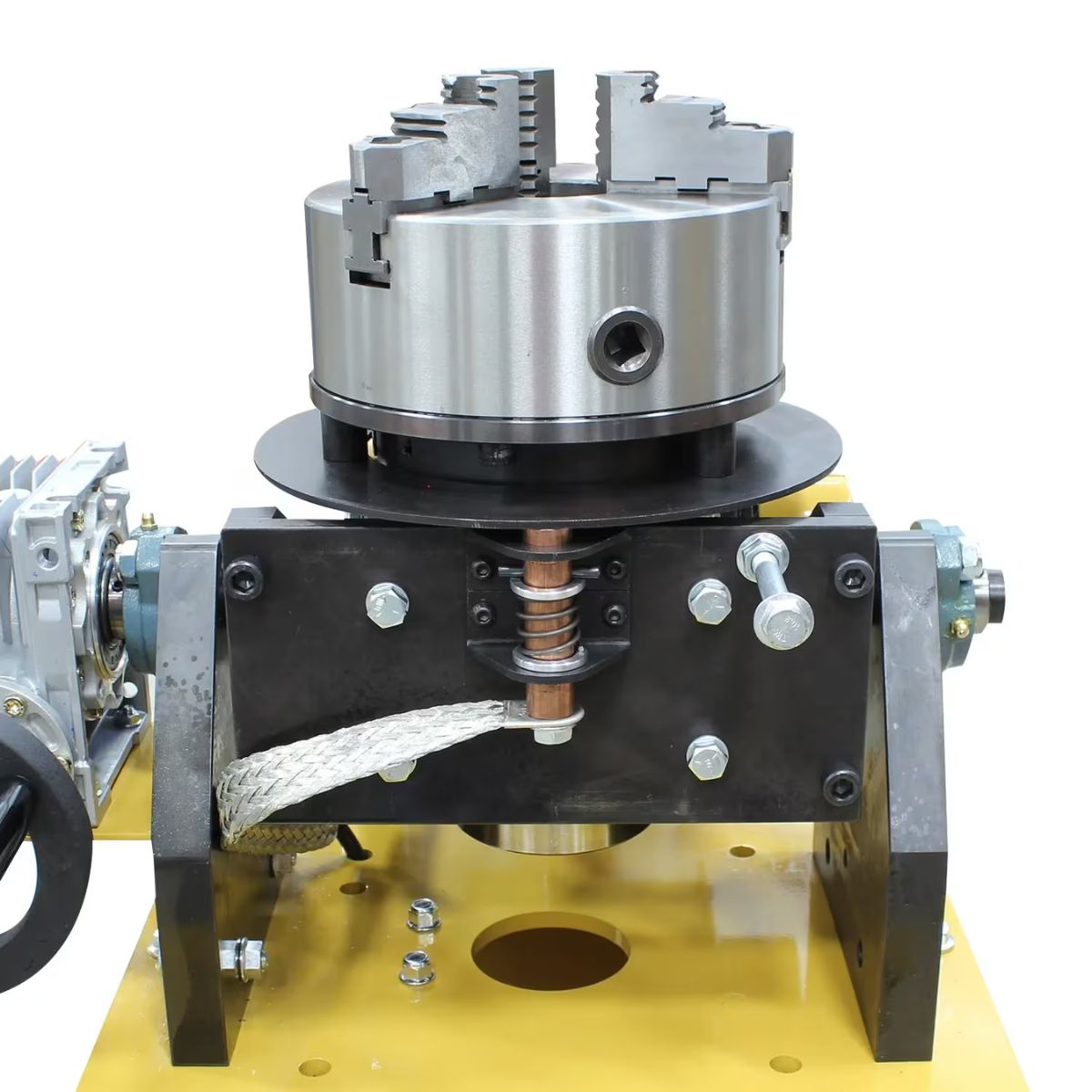

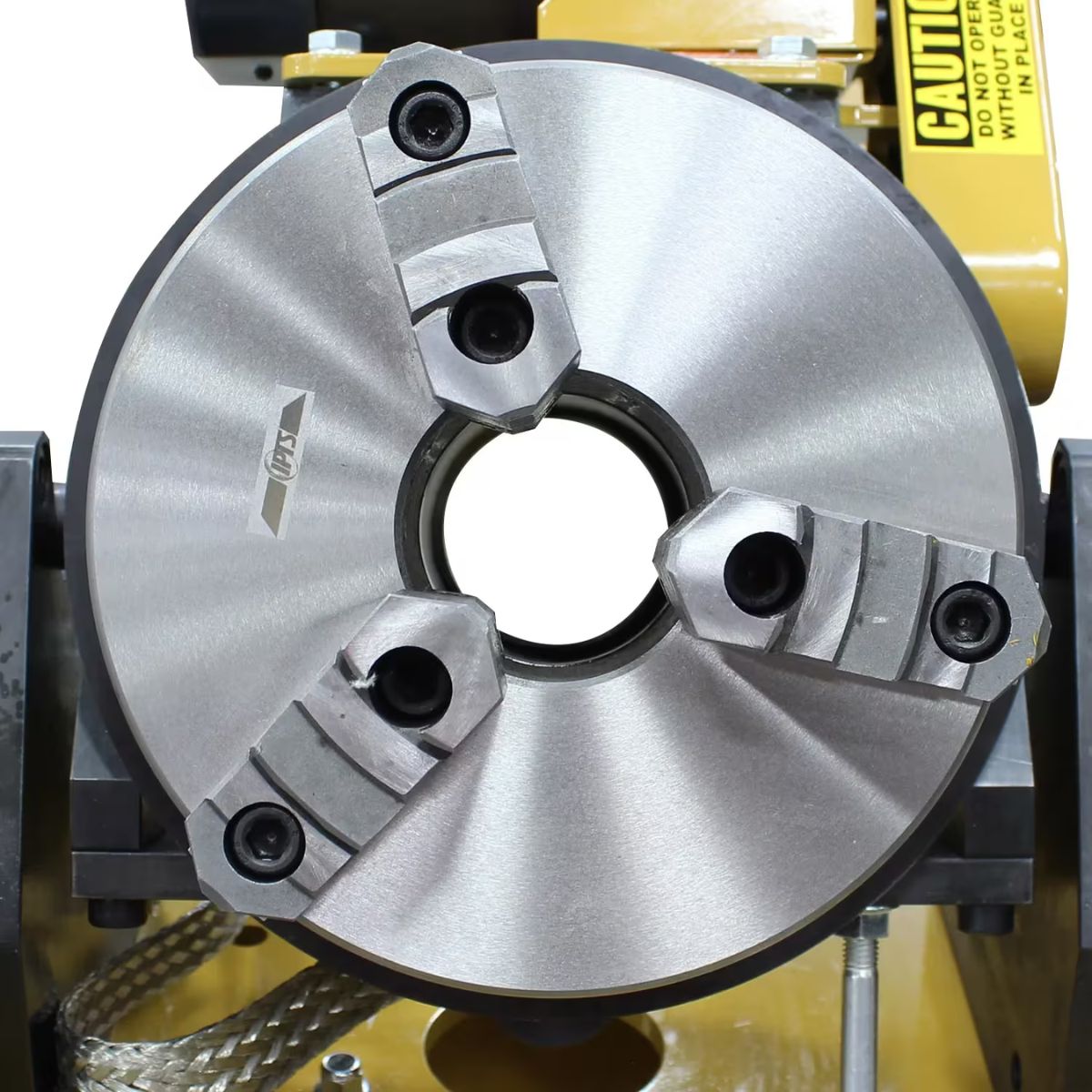

8" 3-Jaw Chuck Secures Round Stock - The three-jaw chuck grips pipe, tubing, and solid round parts, with a 2.25" through hole that lets longer pieces pass through for support.

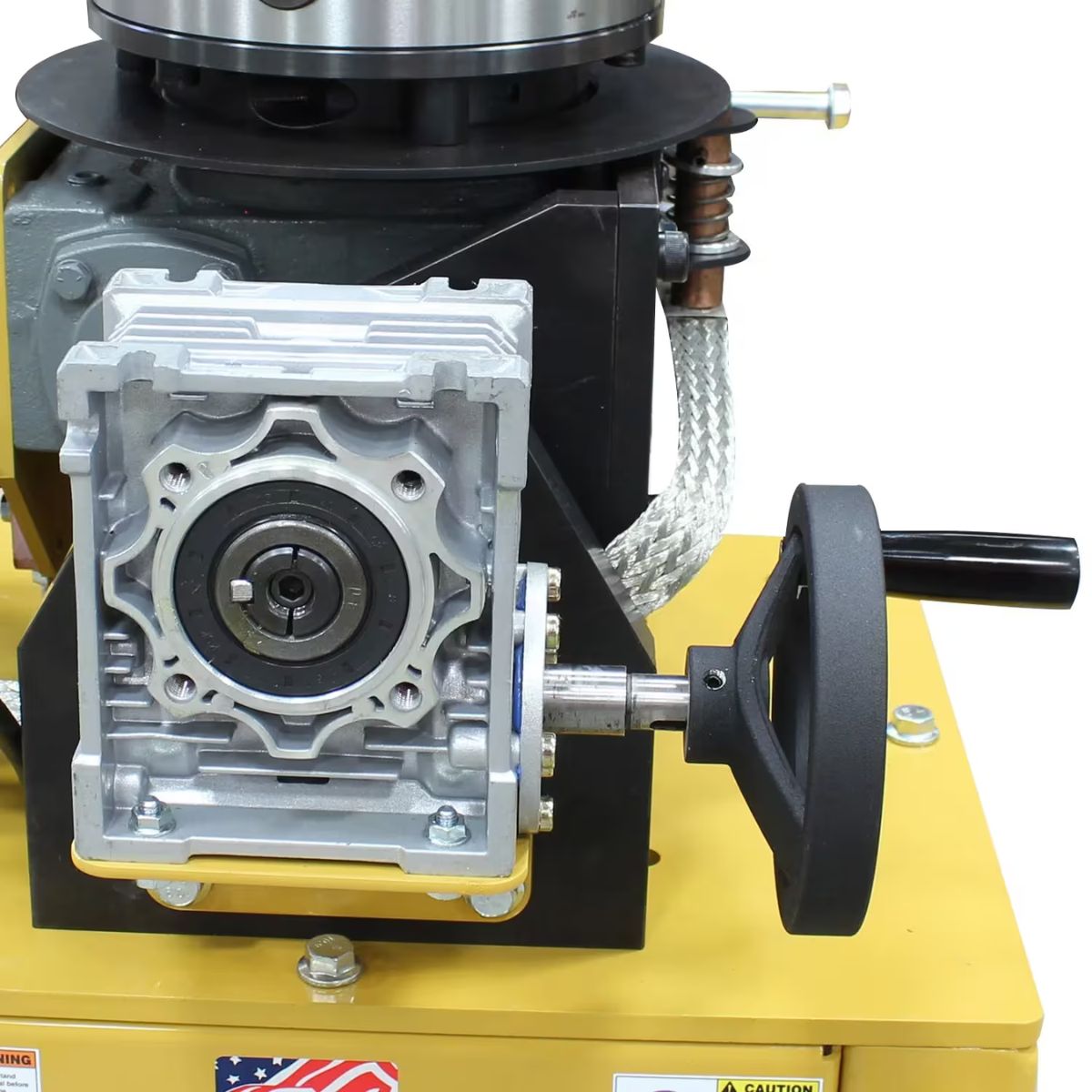

Handwheel Rotates Work from Horizontal to Vertical - A simple handwheel adjustment repositions the chuck between horizontal and vertical, so you can angle the work for the best weld position.

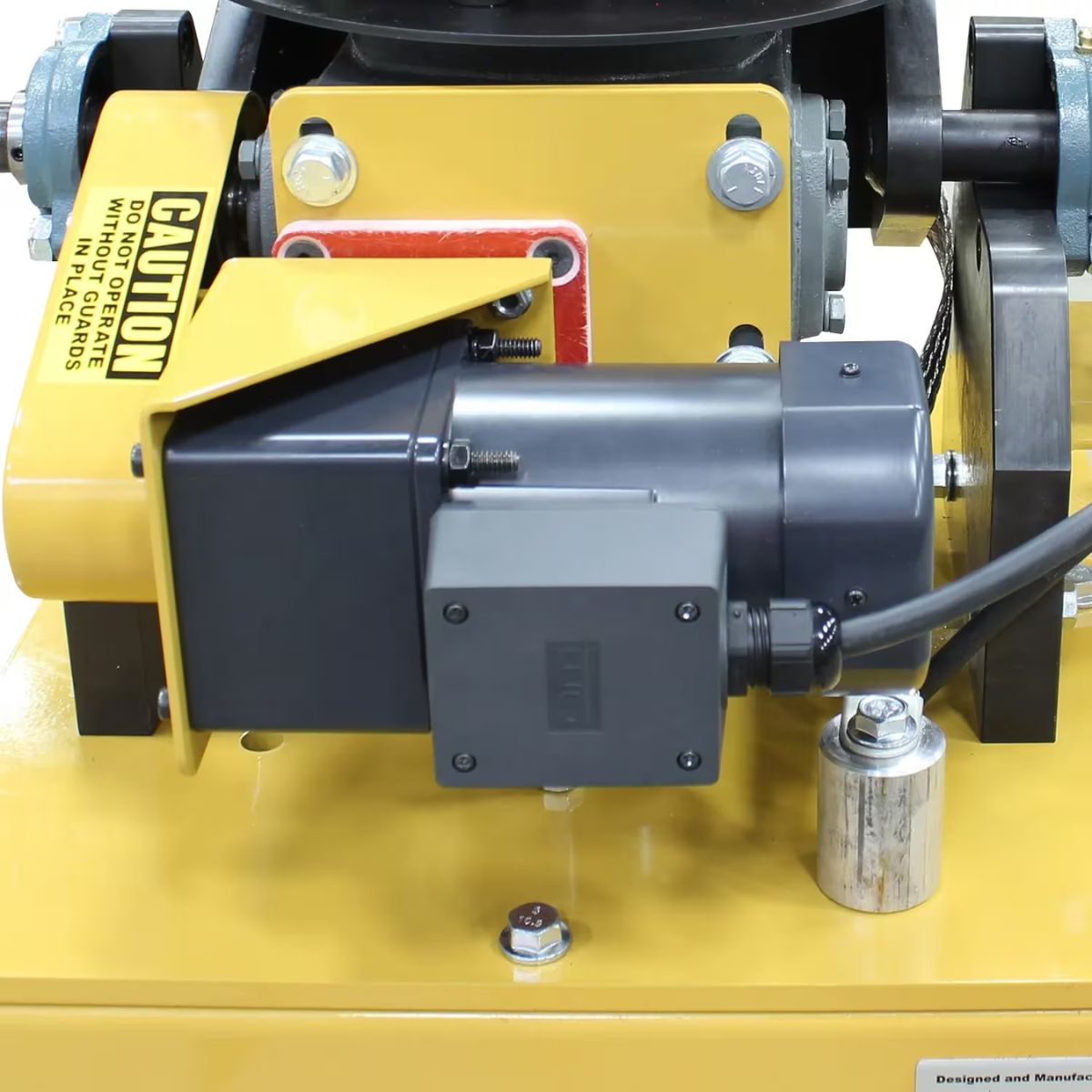

Variable Speed Motor Controls Rotation - The DC gear motor turns the workpiece from 0 to 6 RPM, so you can match rotation speed to the weld.

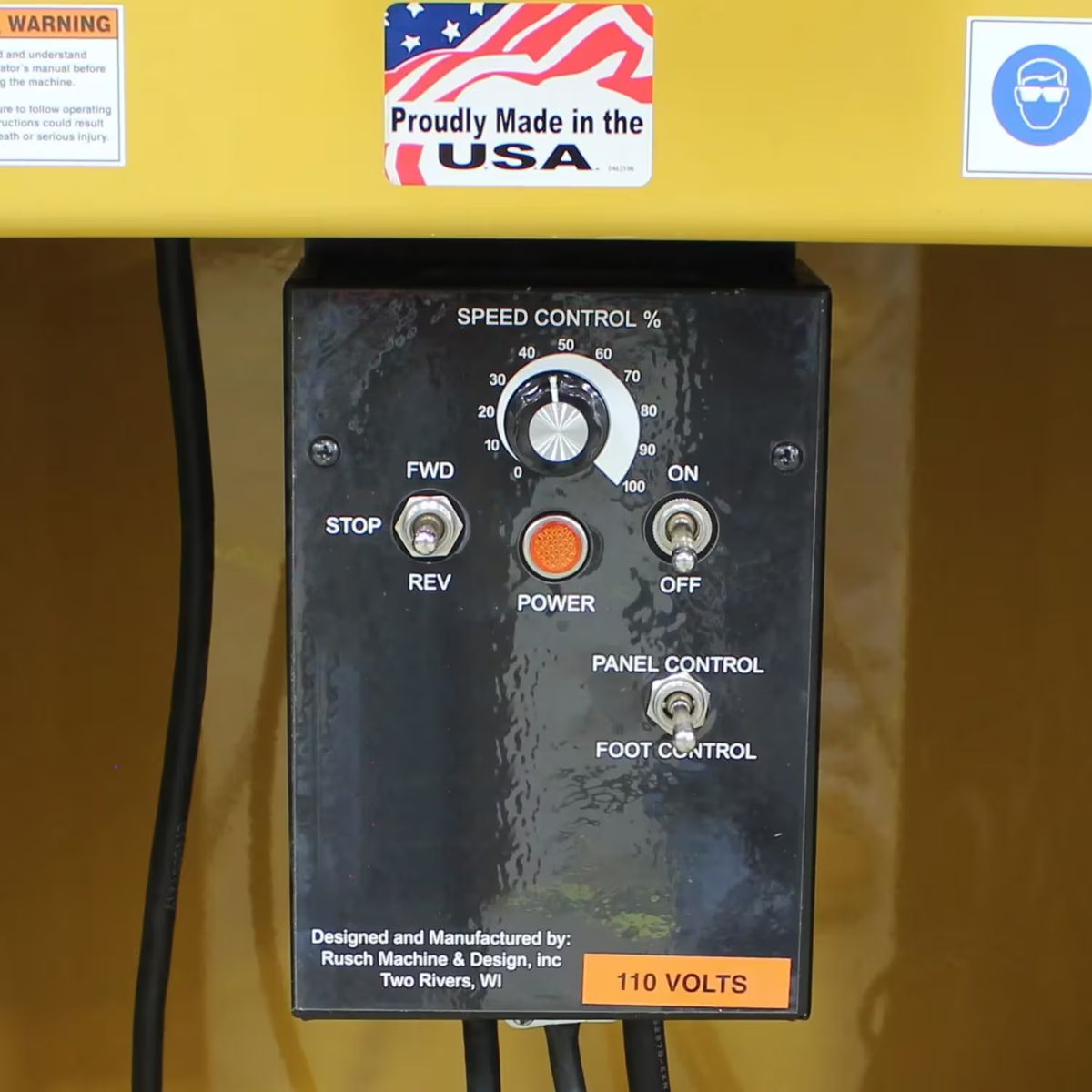

Foot Pedal Frees Your Hands for Welding - A foot pedal adjusts speed on the fly, or you can lock in a set speed from the control panel for grinding or brazing.

Load a length of pipe into the chuck and the WP-1800F keeps it turning steady while you lay down a clean, consistent weld.

Baileigh WP-1800F Cart-Mounted Welding Positioner — 8" 3-Jaw Chuck

What's Included

What's Included? Baileigh WP-1800F Cart-Mounted Welding Positioner — 8" 3-Jaw Chuck

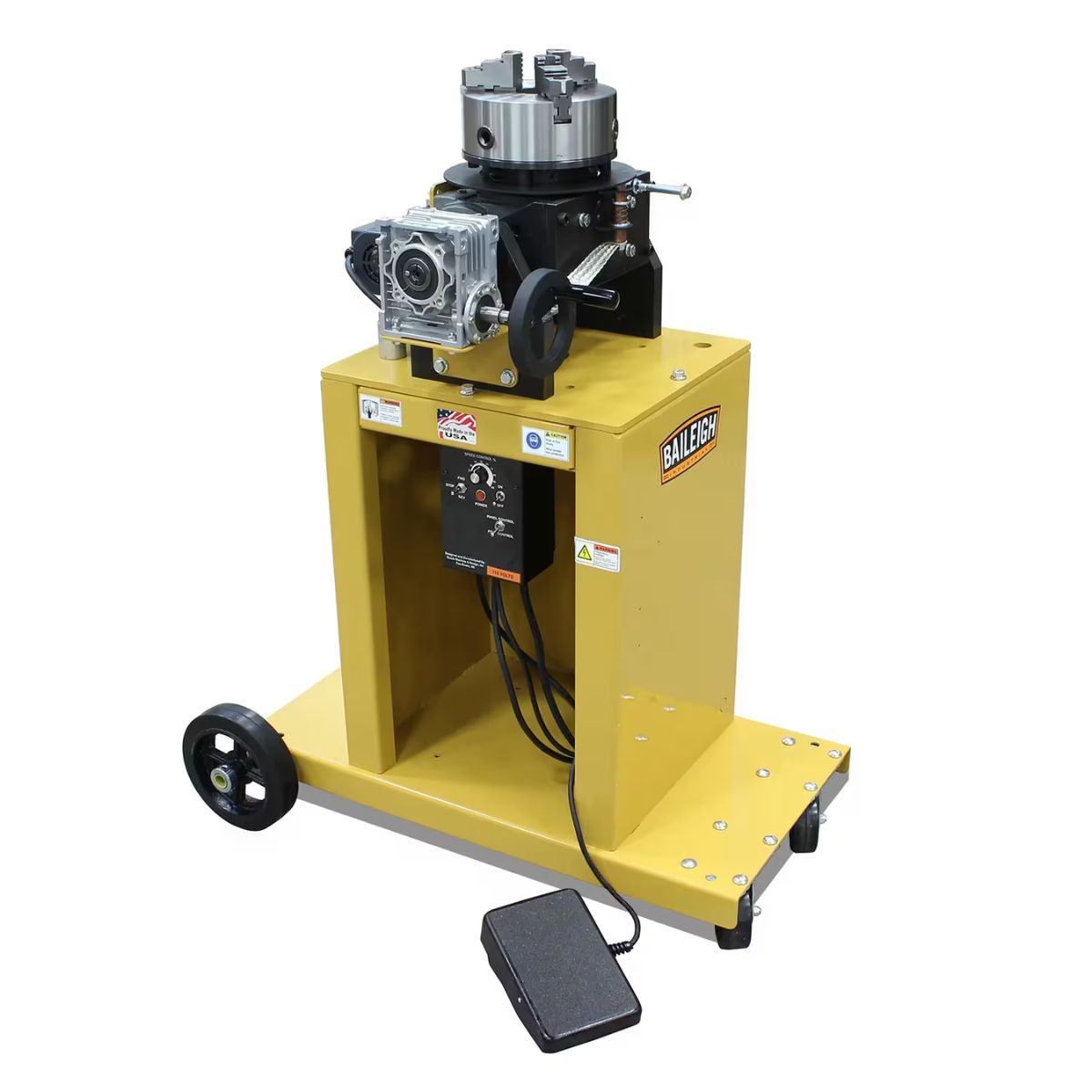

Baileigh WP-1800F Welding Positioner - Provides a cart-mounted rotation platform for welding round tubing, pipe, and solid parts.

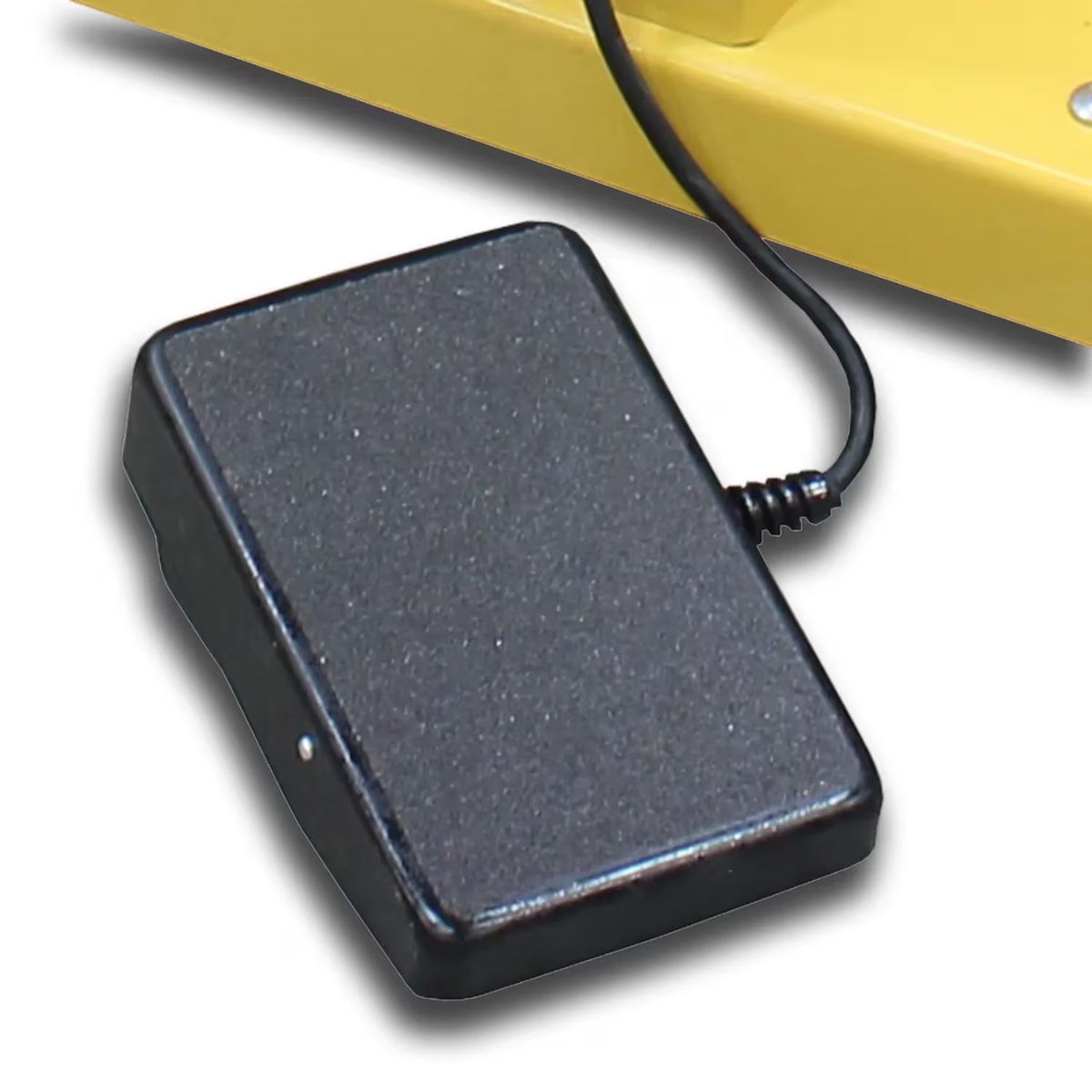

Foot Pedal - Lets you control rotation speed hands-free while you weld.

Specs

Baileigh WP-1800F Cart-Mounted Welding Positioner — 8" 3-Jaw Chuck Specifications

Model: WP-1800F
Stock Number: BA9-WP1800F
Product Type: Machines
Chuck Size: 8" Three Jaw
Chuck Capacity: 1/4" OD to 12" ID

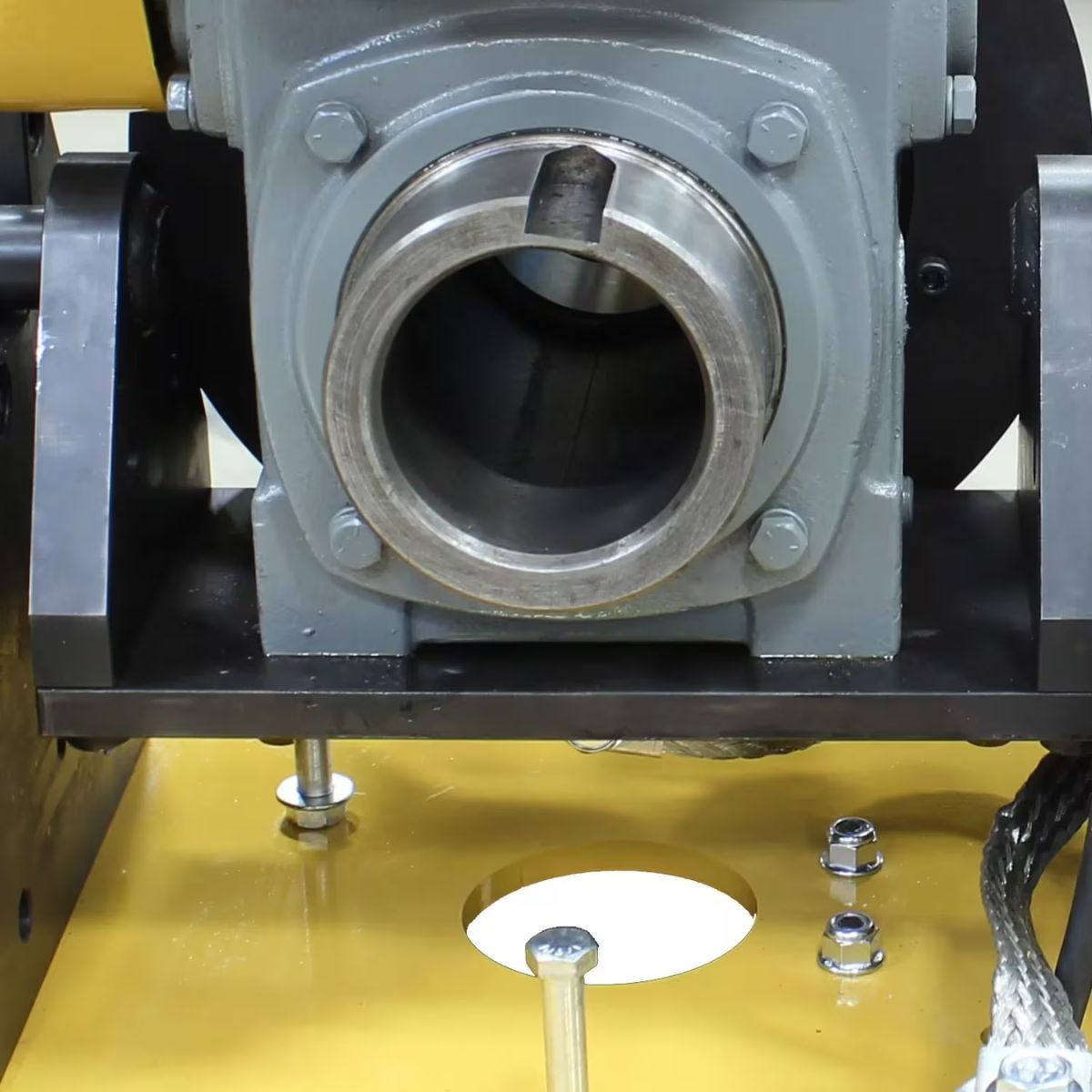

Thru Hole: 2.25"
Weight Capacity, Vertical: 250 lb
Weight Capacity, Horizontal: 200 lb (6" from chuck)
Weight Capacity, Angled: 150 lb (6" from chuck)
Drive: Automatic / Manual
Speed: 0 to 6 RPM (Variable)
Motor: 1/8 HP DC Gear Motor
Input Power: 110V, Single Phase, 60Hz, 15A
Maximum Current: 300 Amps
Net Weight: 396 lb
Shipping Weight: 400 lb
Shipping Dimensions: 60" x 44" x 68"
Warranty: 1 Year
