Baileigh VM-836E-1 8" × 36" Step Pulley Vertical Milling Machine
Are you running a light to medium-duty fabrication shop or machine room that needs a compact vertical mill with a wide speed range on standard 120V power?
What if that mill gave you 8 selectable spindle speeds from 80 to 2,720 RPM, a 90-degree tilting headstock, an integrated coolant system, and a 750 lb. table load capacity?

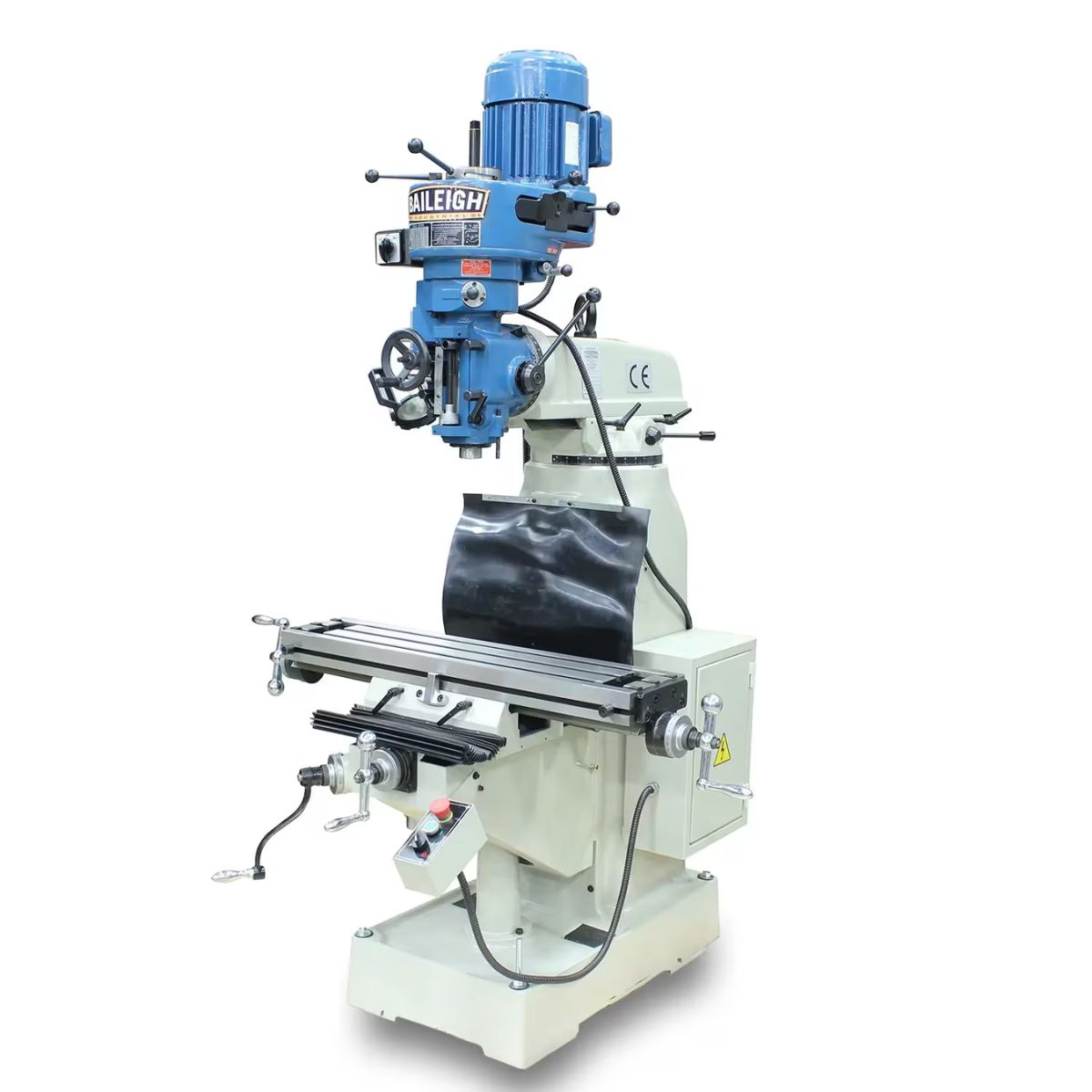

Meet the Baileigh VM-836E-1, an 8-inch by 36-inch step pulley vertical milling machine built for light to medium-duty fabrication and machine shop environments that need industrial-grade milling in a compact footprint.
With the VM-836E-1, you get a 2 HP motor on 120V single-phase power, an R8 spindle taper, 8 step pulley speeds, and a built-in work light and coolant system that support precise machining work.
When the VM-836E-1 is set up for your job, you get reliable milling, drilling, tapping, boring, and reaming capability from a machine built to hold up to daily shop use.
Baileigh VM-836E-1 for Step Pulley Vertical Milling and Drilling Work

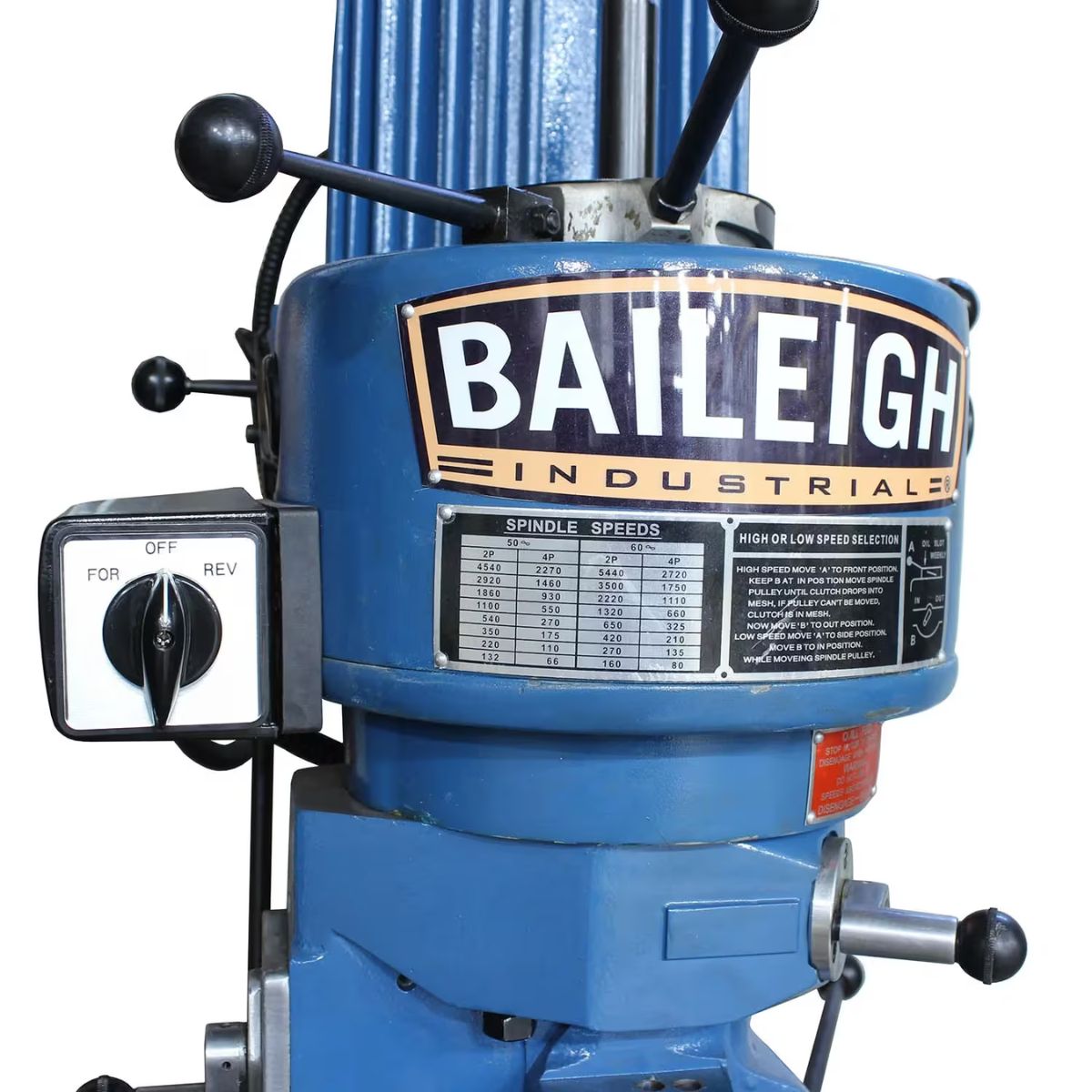

8 Spindle Speeds Cover 80 to 2,720 RPM

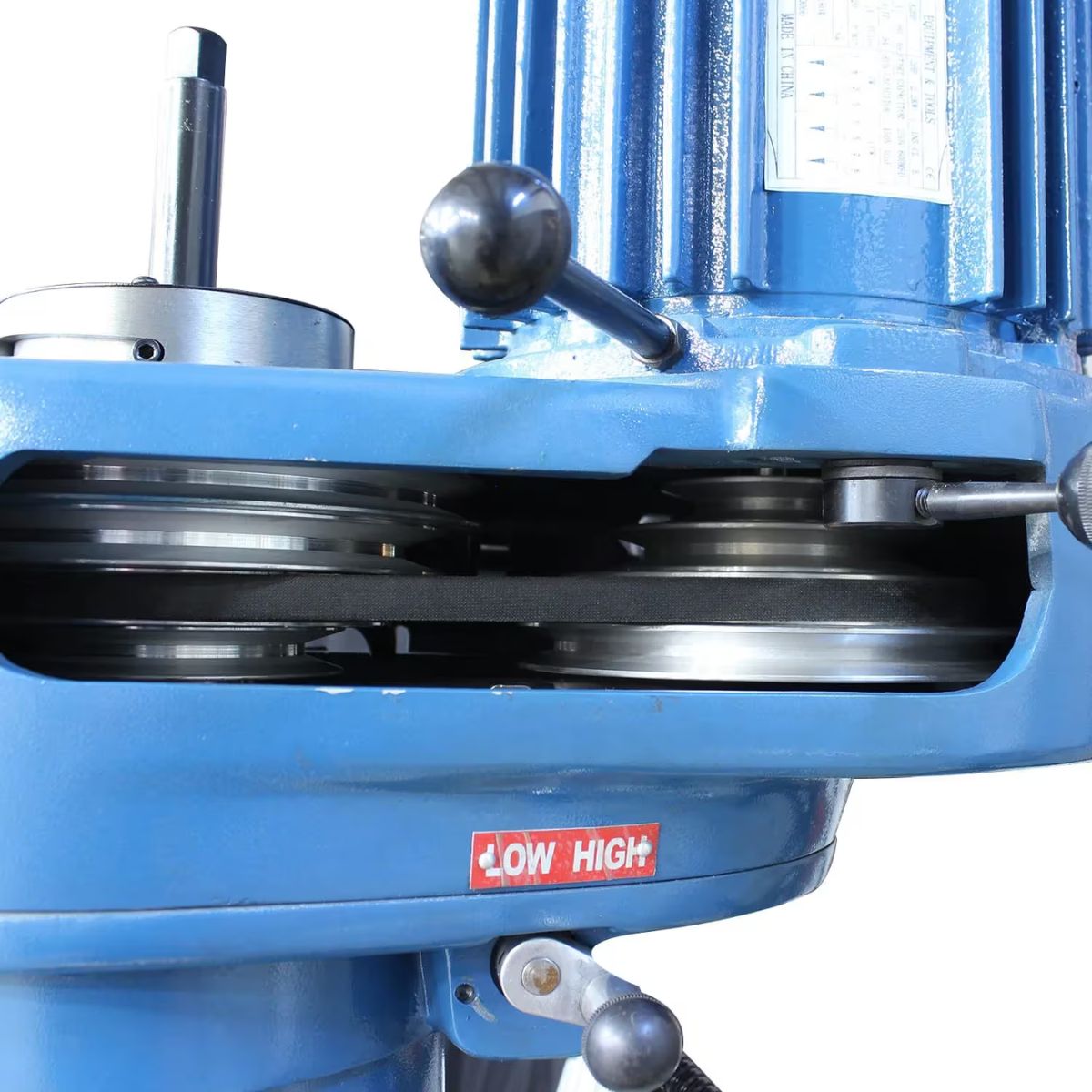

The step pulley drive delivers 8 selectable spindle speeds from 80 to 2,720 RPM, giving operators the range to match cutting conditions across milling, drilling, tapping, boring, and reaming operations on a variety of materials. This speed range suits both slower heavy cuts on steel and faster light passes on aluminum and softer stock.
R8 Spindle Accepts a Wide Range of Common Tooling
The standard R8 spindle taper accepts a wide variety of common milling and drilling tooling without requiring specialty adapters. This makes the VM-836E-1 compatible with the tooling most fabrication shops and machine rooms already stock, keeping tooling costs low and setup straightforward.

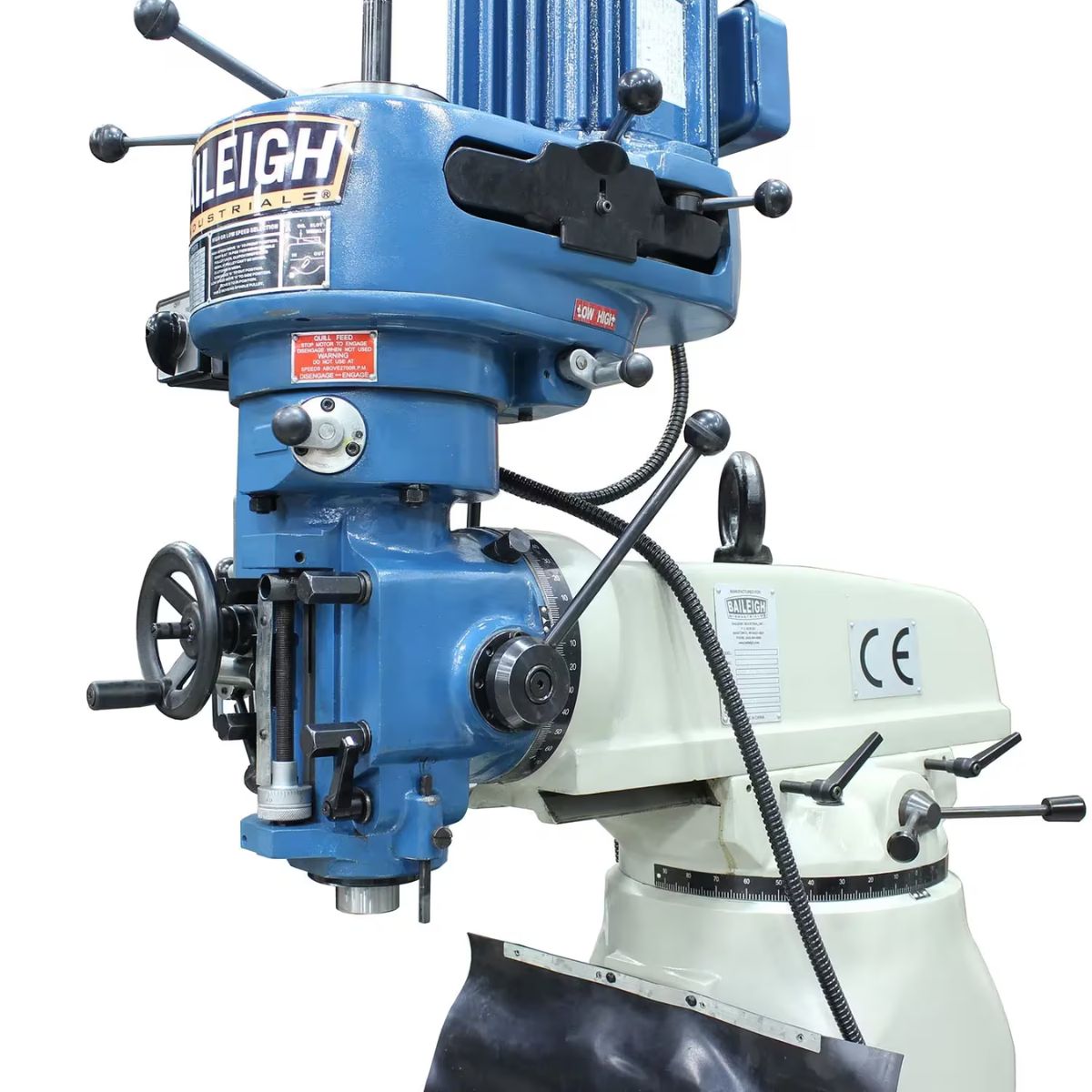

90-Degree Tilting Headstock Handles Angled Machining Work

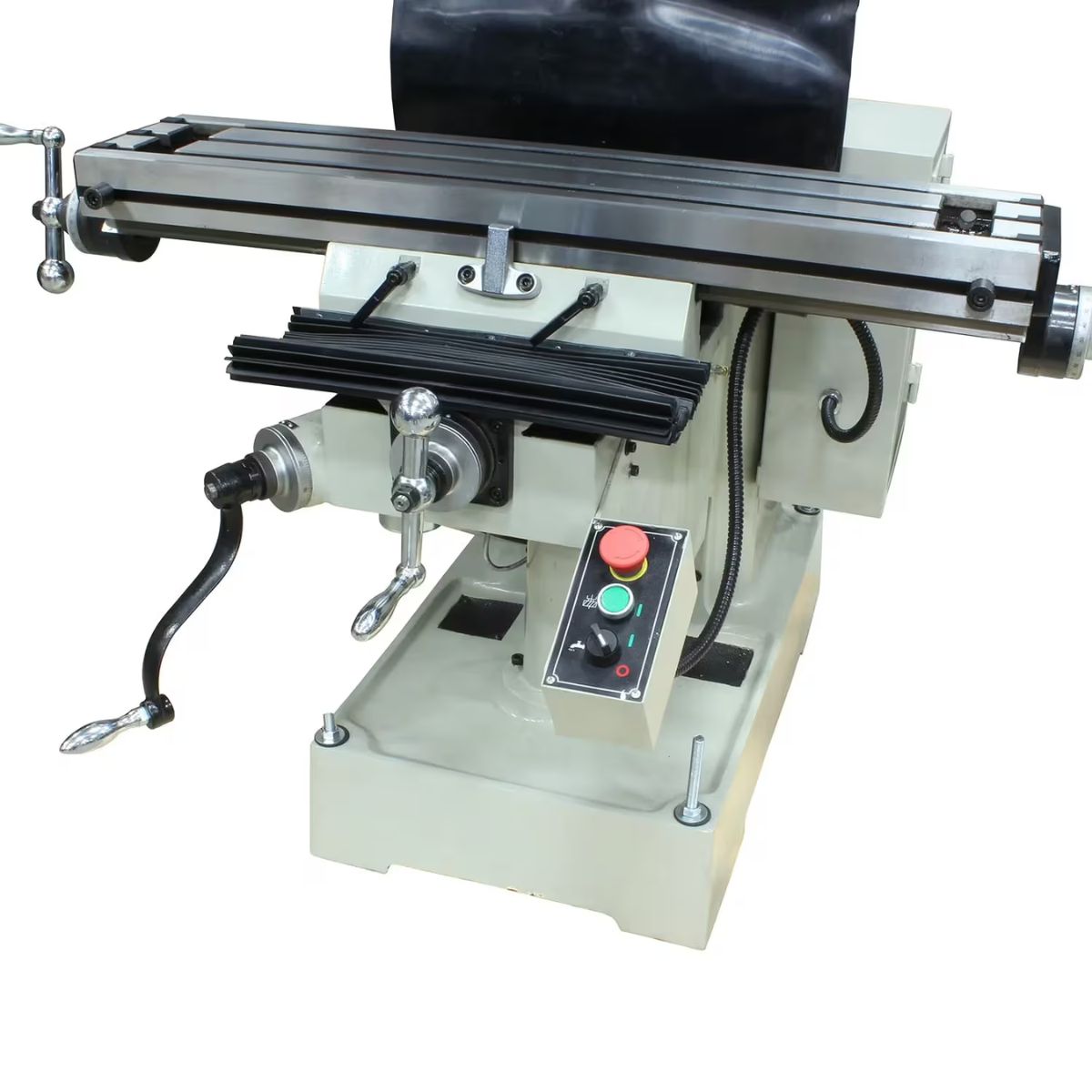

The headstock tilts 90 degrees for angled milling and drilling work without repositioning the workpiece on the table. The 8-inch by 36-inch working table supports up to 750 lbs., giving the machine the capacity to hold larger and heavier workpieces during cutting operations.
Integrated Coolant System and Work Light Support Precision Machining
The built-in coolant system manages heat and chip control during cutting, protecting tool life and improving surface finish on longer machining runs. The integrated work light illuminates the cutting zone so operators can follow layout lines and monitor the cut without straining to see the work area.
What's Included
What's Included? Baileigh VM-836E-1 8" × 36" Step Pulley Vertical Milling Machine
-
Integrated Coolant System — manages heat and chip control during cutting to protect tool life and improve surface finish.
-
Work Light — illuminates the cutting zone for improved visibility during machining operations.
Specs
Baileigh VM-836E-1 8" × 36" Step Pulley Vertical Milling Machine Specifications
-
Model Number: VM-836E-1
-
Stock Number: BA9-1020694
-
Motor: 2 HP
-
Power Requirement: 120V, single-phase
-
Table Size: 8" x 36"
-
Table Load Capacity: 750 lb.
-
Spindle Taper: R8
-
Number of Spindle Speeds: 8
-
Spindle Speed Range: 80–2,720 RPM
-
Headstock Tilt: 90°
-
Net Weight: 1,750 lb.
-
Warranty: 1 Year
