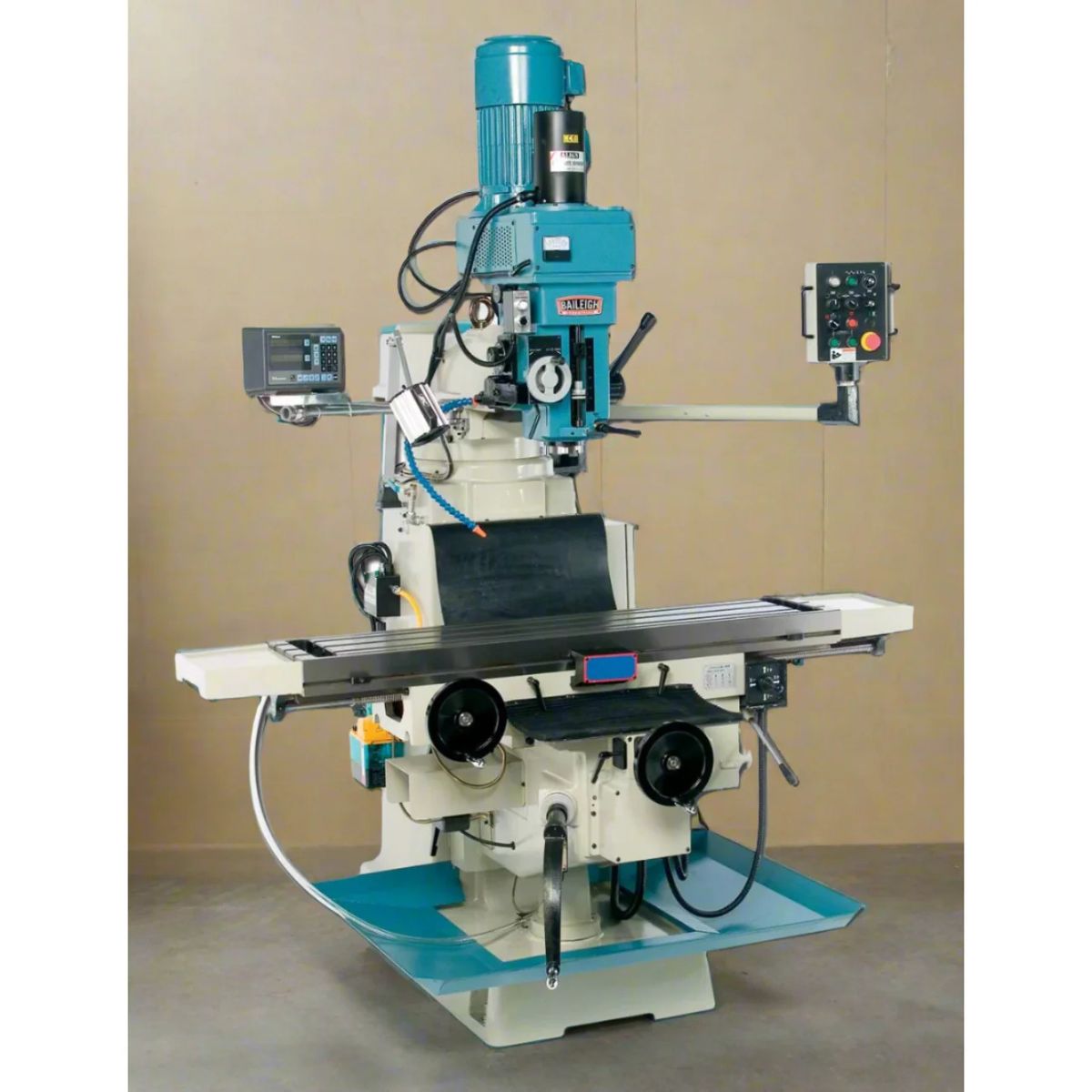

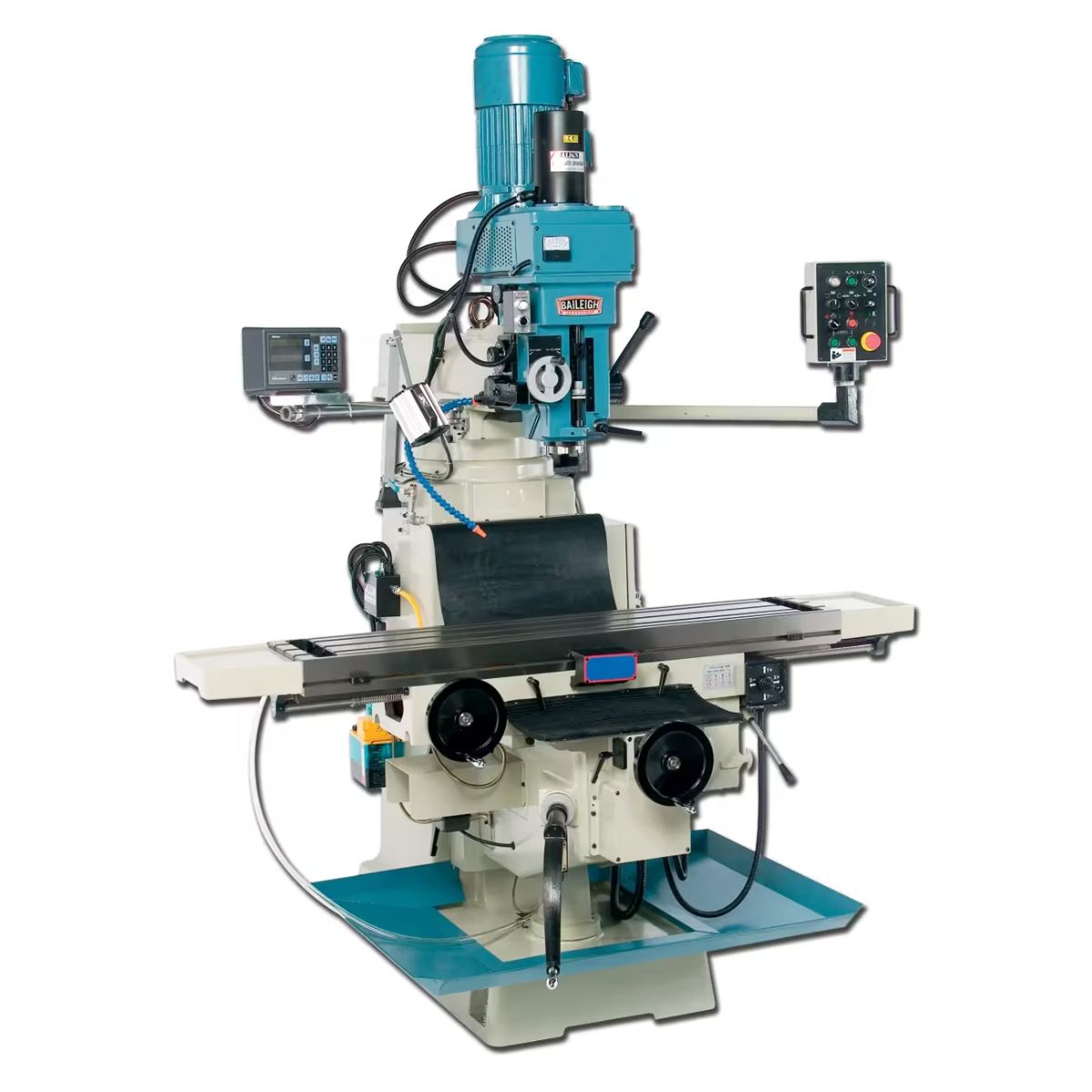

Baileigh VM-1258-3 12" × 58" EVS Vertical Milling Machine
Are you running an industrial shop, fabrication facility, or tool room that needs a heavy-duty vertical knee mill with a large table, 5 HP Yaskawa inverter-driven variable speed, and ball screws on 220V 3-phase power?
What if that mill gave you 80 to 3,800 RPM, a Mitutoyo 2-axis DRO, powered X/Y/Z axes, ball screws on X/Y, an air drawbar, flood coolant, and central lubrication on a 12-inch by 58-inch precision-ground table?
Meet the Baileigh VM-1258-3, a 12-inch by 58-inch EVS vertical milling machine built for demanding industrial shops and tool rooms that need heavy-duty milling performance on large workpieces with precision positioning.
With the VM-1258-3, you get a 5 HP motor on 220V 3-phase power, a Yaskawa inverter, robust machine castings with square ways and way covers, and a full factory-installed set of standard features ready for production work.
When the VM-1258-3 is set up for your job, you get accurate, repeatable heavy milling results on large stock with a machine built for demanding daily industrial use.
Baileigh VM-1258-3 for Heavy-Duty Industrial Vertical Knee Milling Work
5 HP Yaskawa Inverter Delivers Variable Speed from 80 to 3,800 RPM
The 5 HP Yaskawa inverter drive adjusts spindle speed from 80 to 3,800 RPM, providing smooth power and consistent torque across heavy milling, drilling, and tapping operations on a wide range of materials. This inverter-driven system handles the demanding cutting conditions that industrial shops and tool rooms require on a daily basis.
Mitutoyo DRO, Ball Screws, and Powered Axes Support Precision Work
The Mitutoyo 2-axis DRO provides accurate X/Y positioning for precise and repeatable machining setups on close-tolerance work. Ball screws on the X and Y axes deliver smooth, backlash-reduced movement, and powered X/Y/Z axis feeds reduce operator fatigue on longer milling and facing operations.
12" × 58" Precision Table and NT40 Spindle Handle Large Industrial Setups
The 12-inch by 58-inch precision-ground table supports workpieces up to 770 lbs. and accommodates the large fixtures and long stock that heavy industrial milling requires. The NT40 spindle taper with air drawbar provides broad tooling compatibility and fast tool changes between operations without manual spindle locking.
Flood Coolant, Central Lubrication, and Square Ways Support Daily Production
The flood coolant system manages heat and chip control during cutting to protect tool life on heavy production runs. Central lubrication simplifies way maintenance and keeps slide movement smooth through extended daily use. Square ways with way covers provide durable, accurate slide guidance and protect the ways from chips and coolant during demanding machining sessions.
What's Included
What's Included? Baileigh VM-1258-3 12" × 58" EVS Vertical Milling Machine
-
Mitutoyo 2-Axis DRO — provides accurate X/Y positioning for precise and repeatable machining setups.
-
Air Drawbar — simplifies tool changes on the NT40 spindle for faster tooling changeover.
-
Flood Coolant System — manages heat and chip control during cutting to protect tool life.
-
Central Lubrication System — simplifies way maintenance and keeps slide movement smooth during daily use.
Specs
Baileigh VM-1258-3 12" × 58" EVS Vertical Milling Machine Specifications
-
Model Number: VM-1258-3
-
Stock Number: BA9-1008169
-
Motor: 5 HP (Yaskawa inverter-driven)
-
Power Requirement: 220V, 3-phase
-
Table Size: 12" x 58"
-
Table Load Capacity: 770 lb.
-
Spindle Taper: NT40
-
Spindle Speed Range: 80–3,800 RPM (variable)
-
Axis Feeds: Powered X, Y, and Z
-
Ball Screws: X and Y axes
-
Digital Readout: Mitutoyo 2-axis DRO
-
Slide Ways: Square with way covers
-
Net Weight: 4,300 lb.
-
Warranty: 1 Year
-
Product Manual: VM-1258-3 Operator Manual (Part 1 of 2) | VM-1258-3 Operator Manual (Part 2 of 2)
