Baileigh SR-5016M 50" Manual Slip Roll
Are you looking for a slip roll that handles wide sheet metal work without needing a power source?
What if your shop had a 50 inch manual roll that forms clean cylinders and cones from 16 gauge mild steel with steady, even pressure?

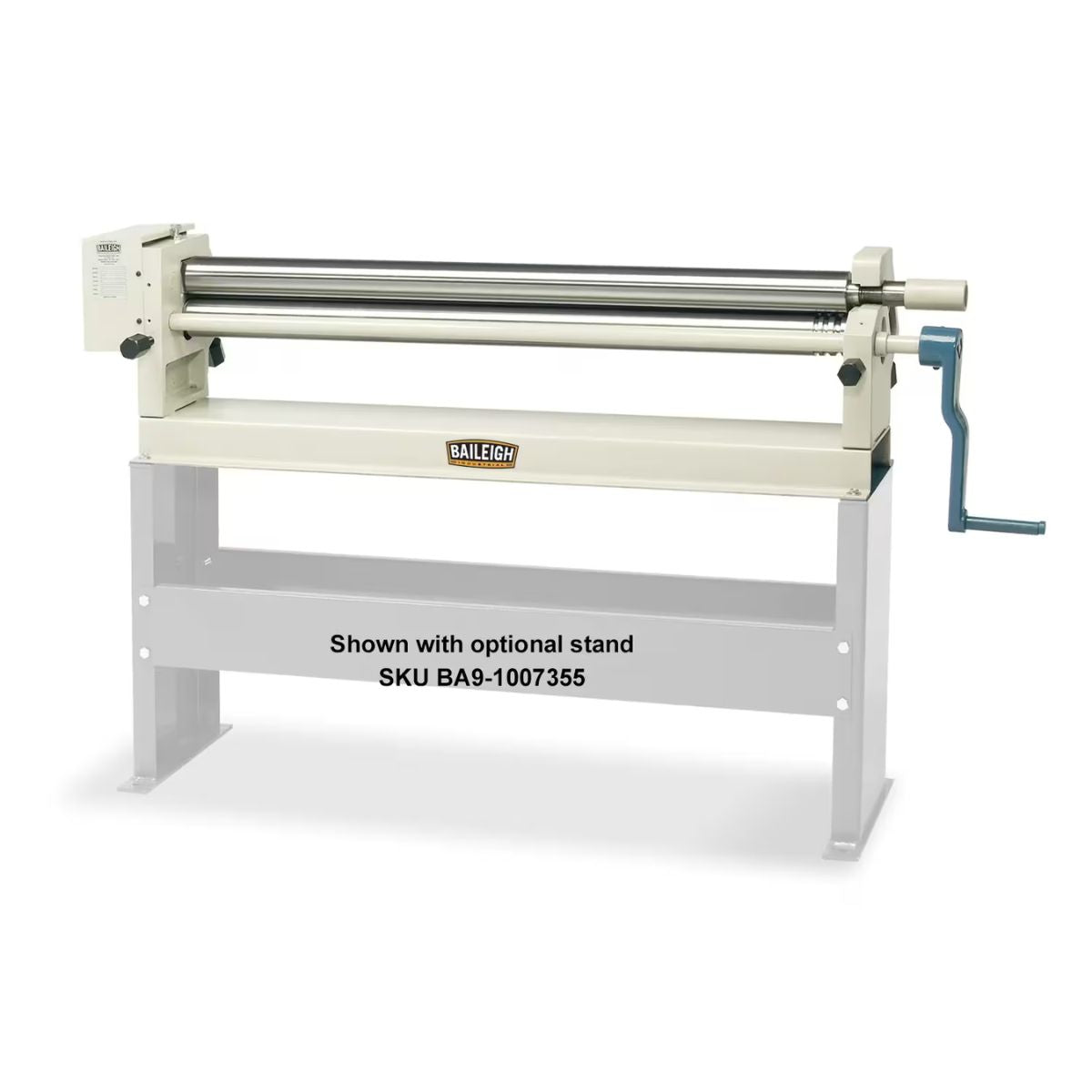

Meet the Baileigh SR-5016M 50" Manual Slip Roll, a heavy-duty three-roll machine built for reliable sheet metal forming.
With a gear-driven system, hardened polished rolls, and an adjustable back roll, the SR-5016M handles a wide range of forming tasks across the full 50 inch width.
When the rolls track smooth and the frame holds rigid, you can shape consistent curves and cylinders with confidence.
Baileigh SR-5016M for Wide Sheet Metal Forming
Heavy-Duty Welded Frame Holds Precision Across Full Width
The SR-5016M is built on a fully welded heavy-duty steel frame that resists deflection during forming. A rigid frame keeps the rolls aligned across the full 50 inch working width so results stay consistent from edge to edge.

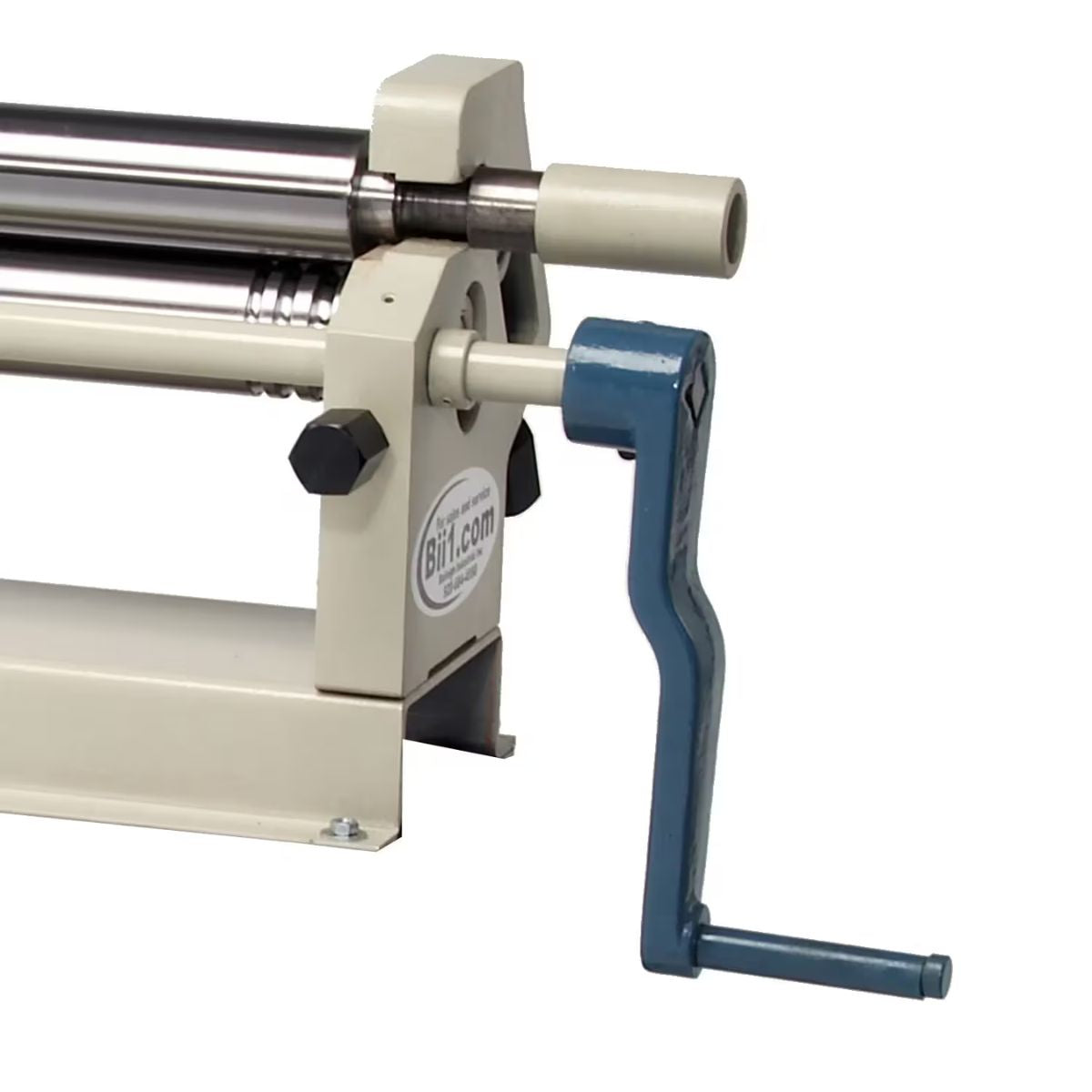

Gear-Driven Rolls Deliver Even Pressure Through the Material
A manual gear-driven system transfers power evenly across both driven rolls for controlled, smooth roll action. Even pressure distribution helps prevent distortion and keeps the material feeding straight through the forming zone.

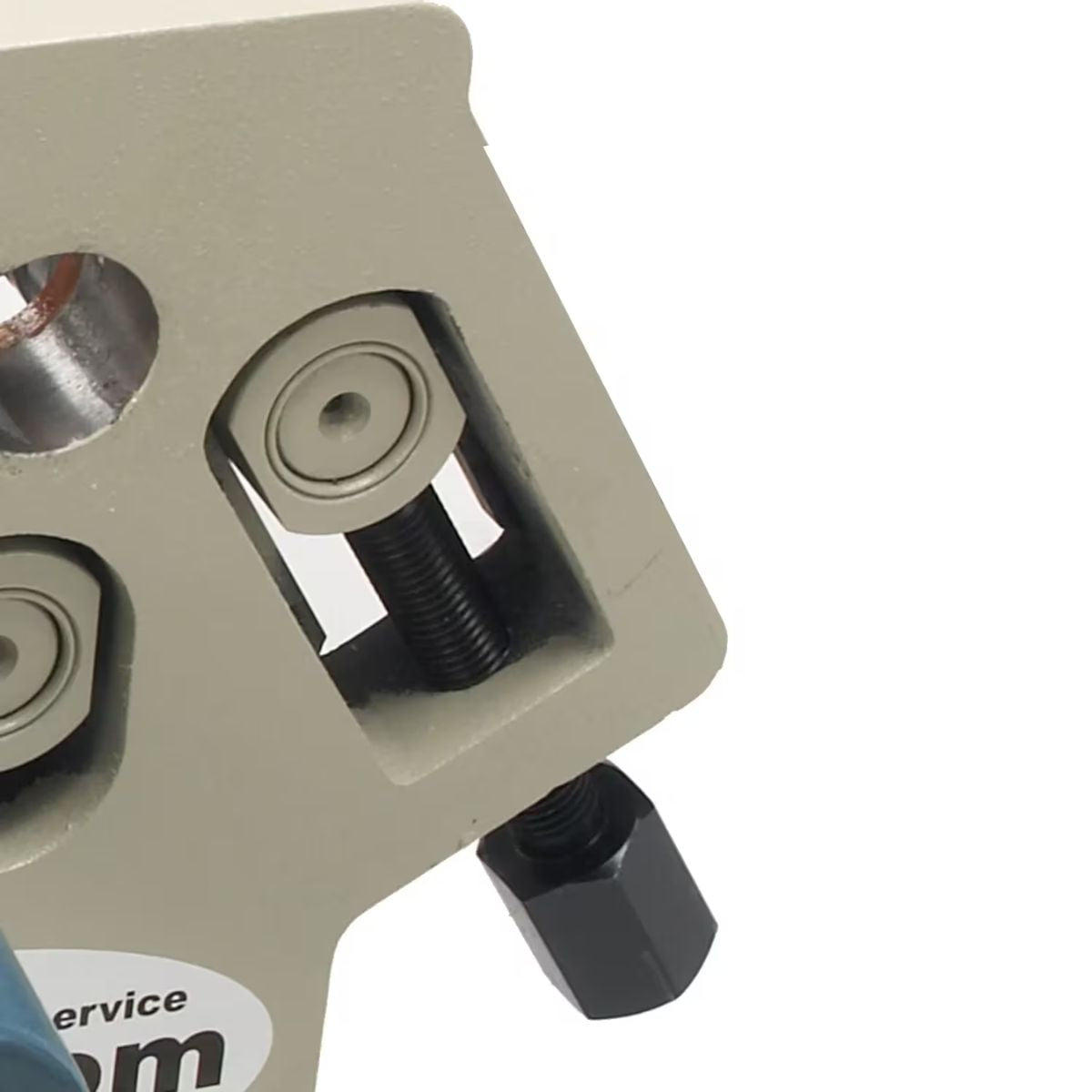

Adjustable Back Roll Handles Tighter Radii and Cone Work
The back roll adjusts independently to allow tighter radius forming and cone rolling when the work calls for it. This adjustability extends what the machine can produce without requiring additional tooling or setup.

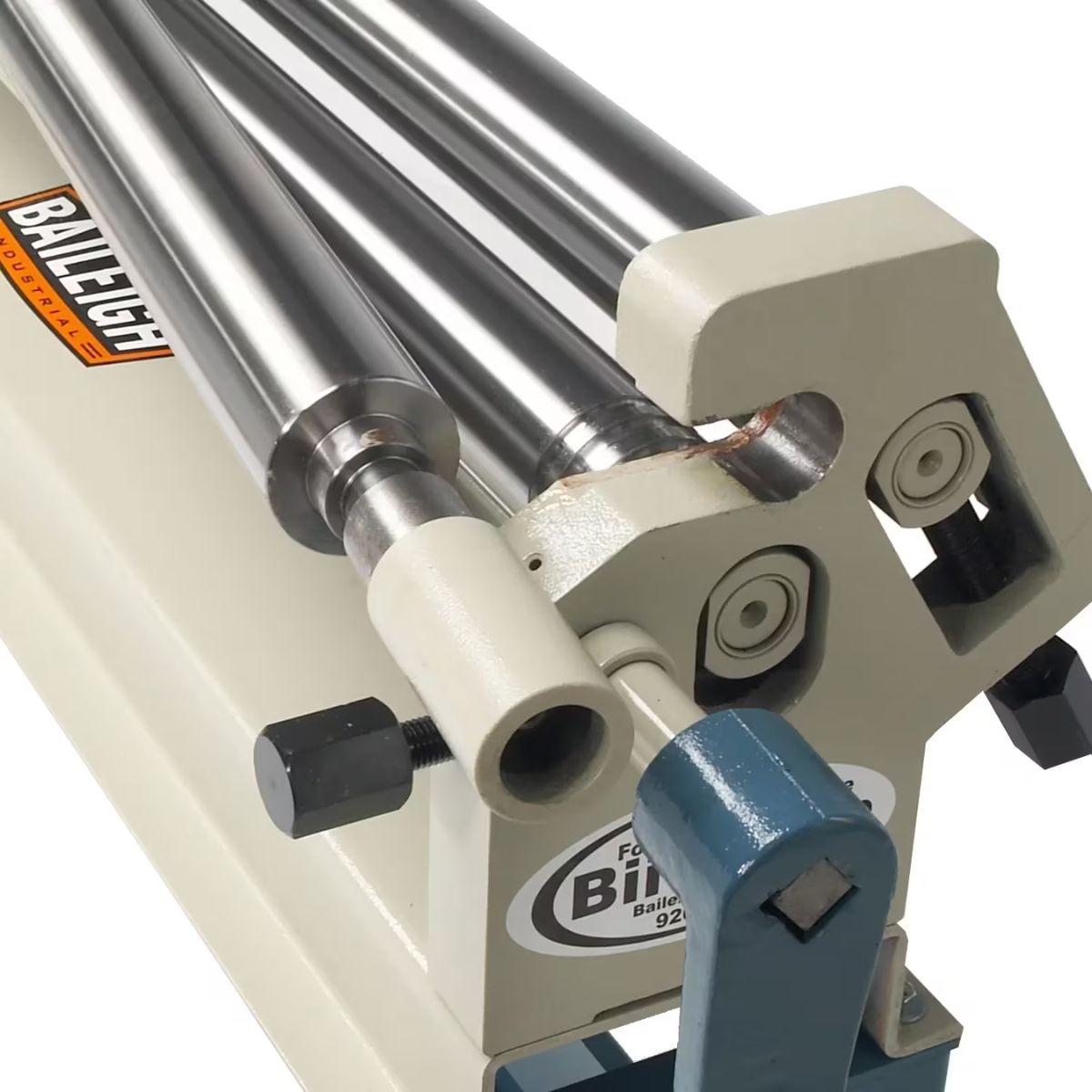

Hardened Polished Rolls and Wire Grooves Add Versatility

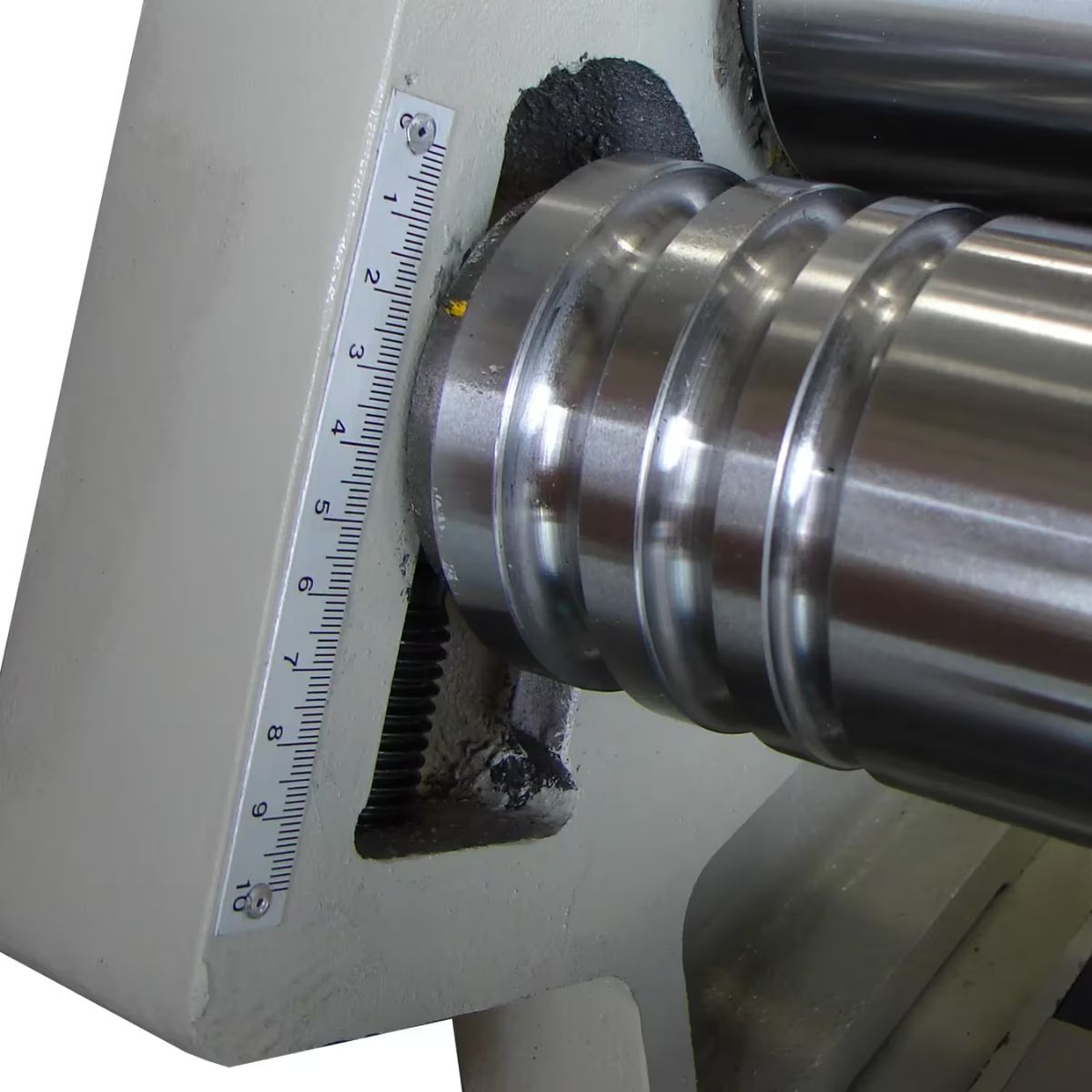

The rolls are hardened and polished to resist wear and leave a clean finish on formed material. Integrated wire grooves allow the machine to form wire-edged sheet when that work comes through the shop.
What's Included
What's Included? Baileigh SR-5016M 50" Manual Slip Roll
-
Baileigh SR-5016M 50" Manual Slip Roll — Provides a 50 inch manual three-roll forming platform for sheet metal cylinders, cones, and curved components.
Specs
Baileigh SR-5016M 50" Manual Slip Roll Specifications
- Model: SR-5016M
- Stock Number: BA9-1007348
- Maximum Forming Length: 50 in
- Mild Steel Capacity: 16 ga. (.060 in.)
- Input Power: Manual
- Roll Configuration: 3 rolls, 2 driven
- Roll Material: Polished carbon steel, hardened
- Net Weight: 590 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
