Baileigh SR-5016E 50" Electric Slip Roll — 110V Open Stand
Are you looking for an electric slip roll that handles standard sheet sizes without fighting the machine?
What if your shop had a powered roll that gave you forward and reverse control without leaving the material?

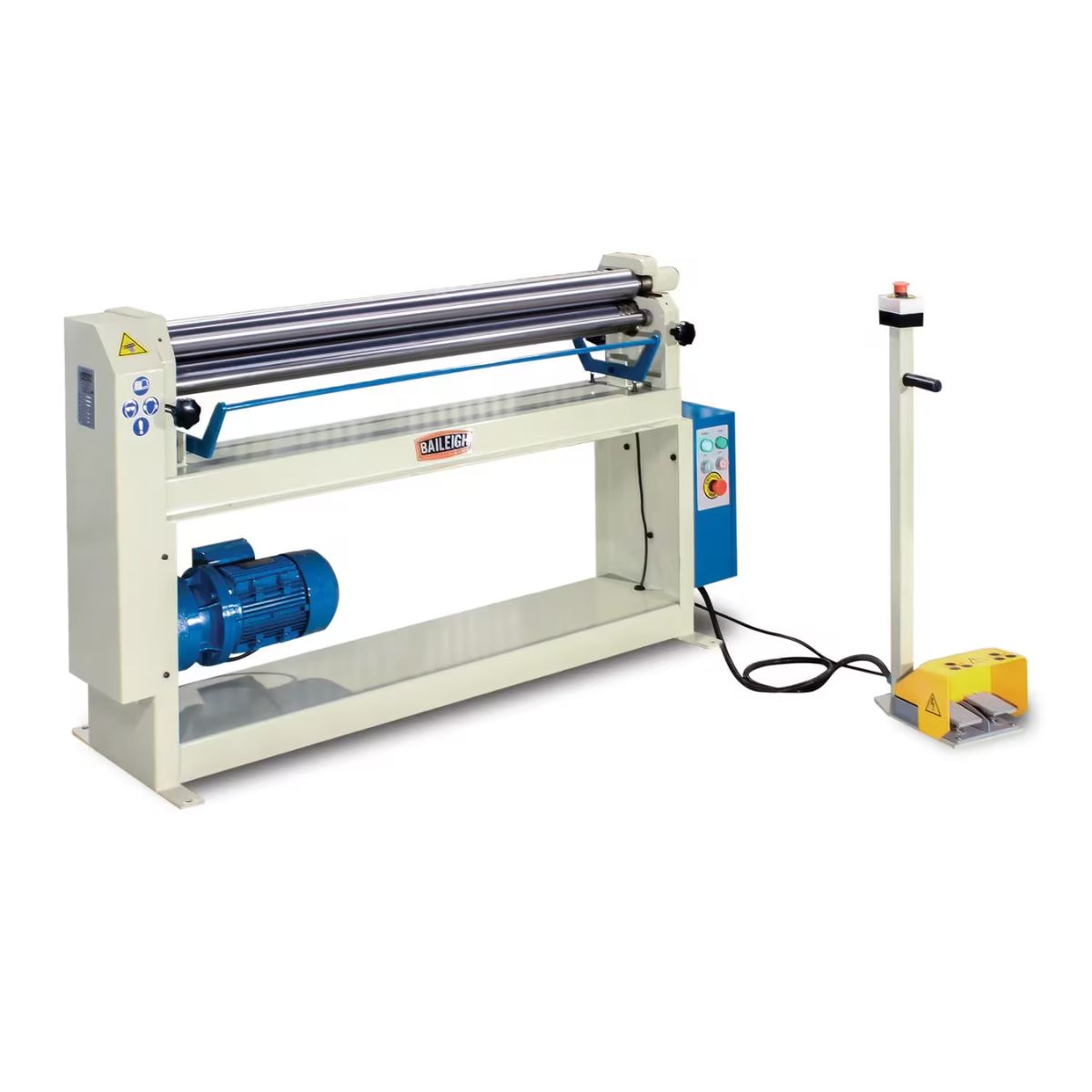

Meet the Baileigh SR-5016E 50" Electric Slip Roll, a 110V open-stand machine built for sheet metal forming in fabrication and HVAC shops.
With a 1 HP electric drive, foot pedal operation, and hardened rolls across a 50-inch working width, the SR-5016E rolls 16 gauge mild steel cleanly and consistently.
When the machine handles the drive, you can focus on guiding the material and getting the curve right the first time.
Baileigh SR-5016E for Sheet Metal Rolling and Forming
Electric Drive Delivers Smooth, Controlled Rolling Power

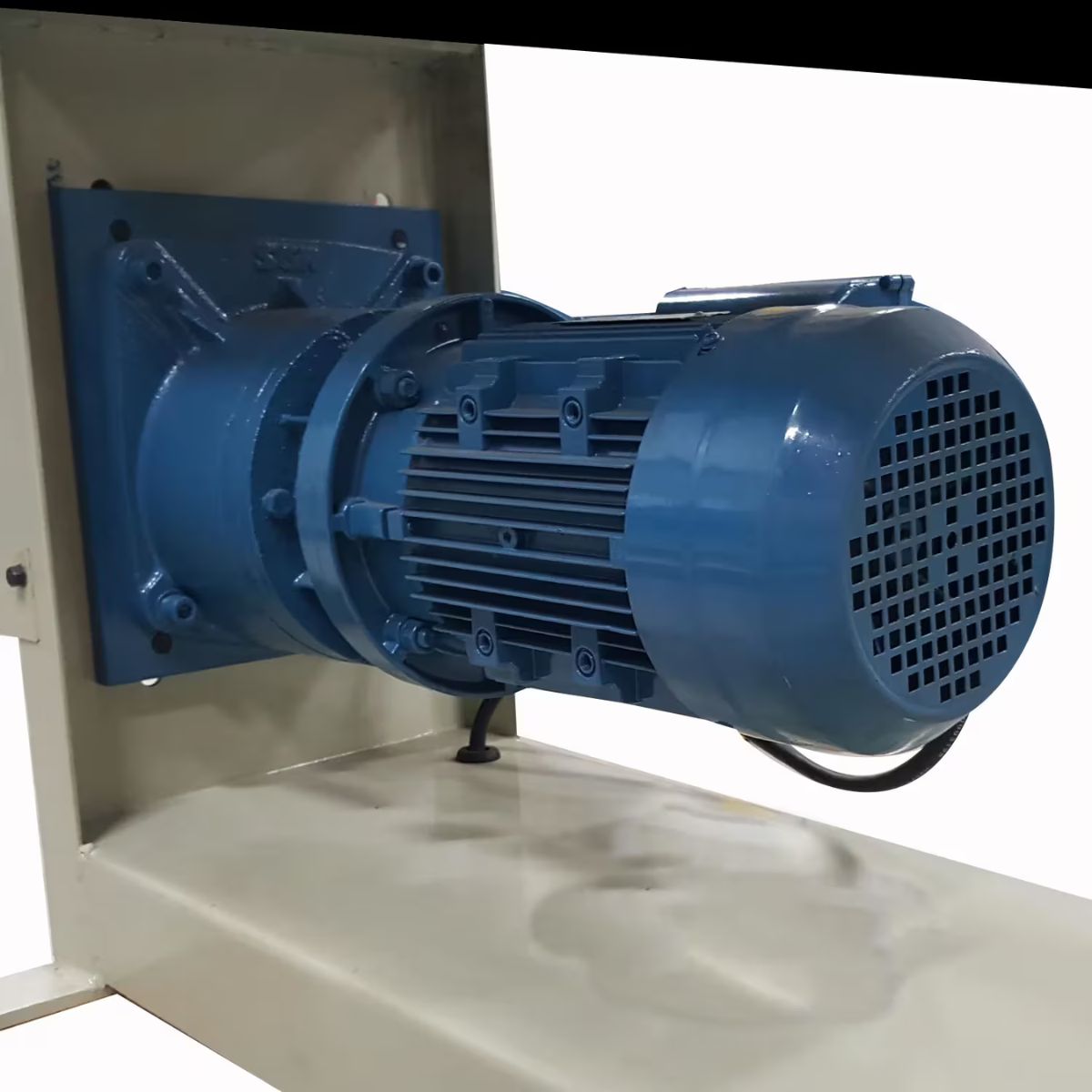

The SR-5016E runs on a 110V 1 HP electric motor that drives the rolls steadily across the full 50-inch working width. Consistent drive power helps produce even curves in 16 gauge mild steel without hesitation or stalling mid-pass.

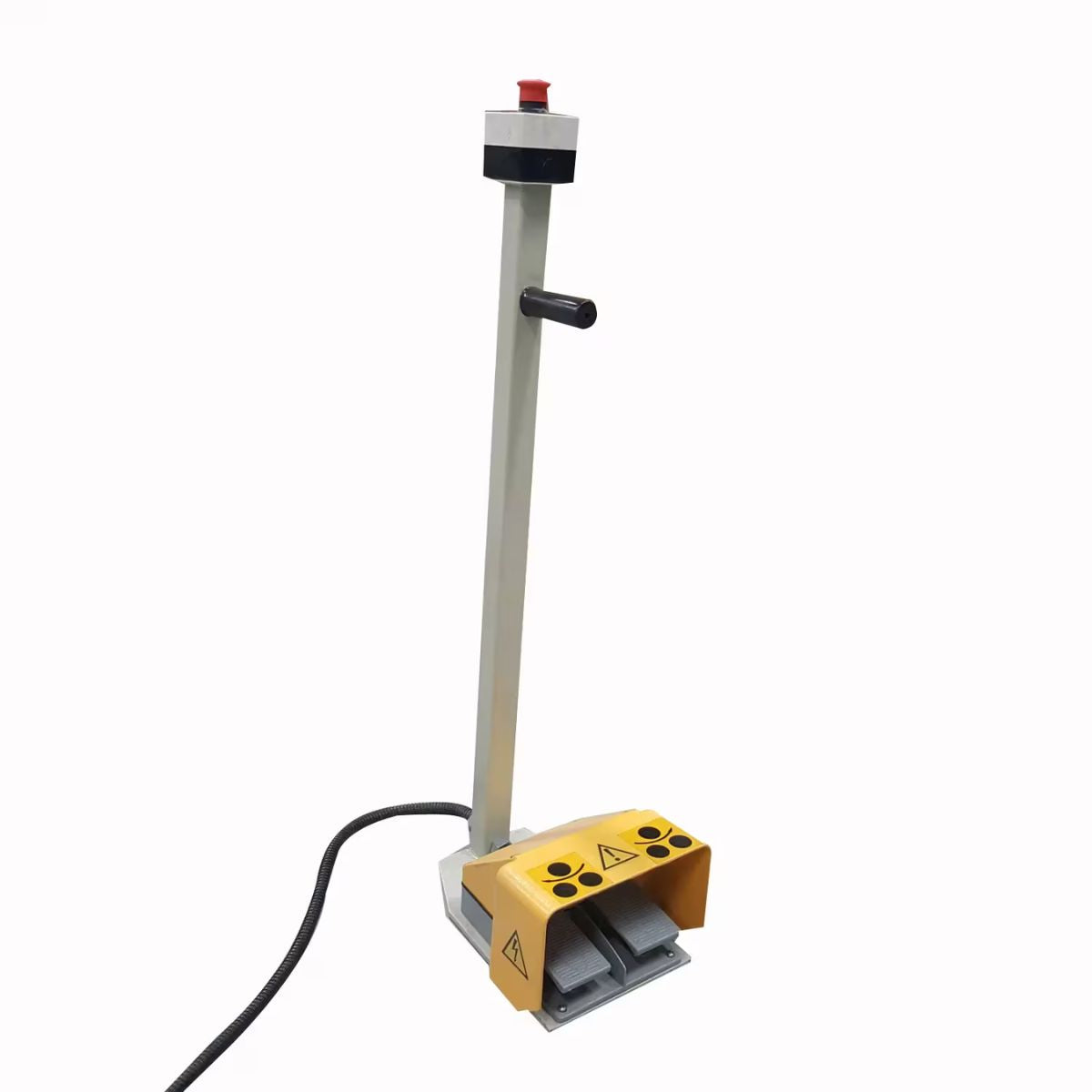

Foot Pedal Control Keeps Both Hands on the Material
Forward and reverse operation is managed by a foot pedal, so both hands stay on the sheet throughout the rolling pass. This setup improves material control and helps produce cleaner, more repeatable results.

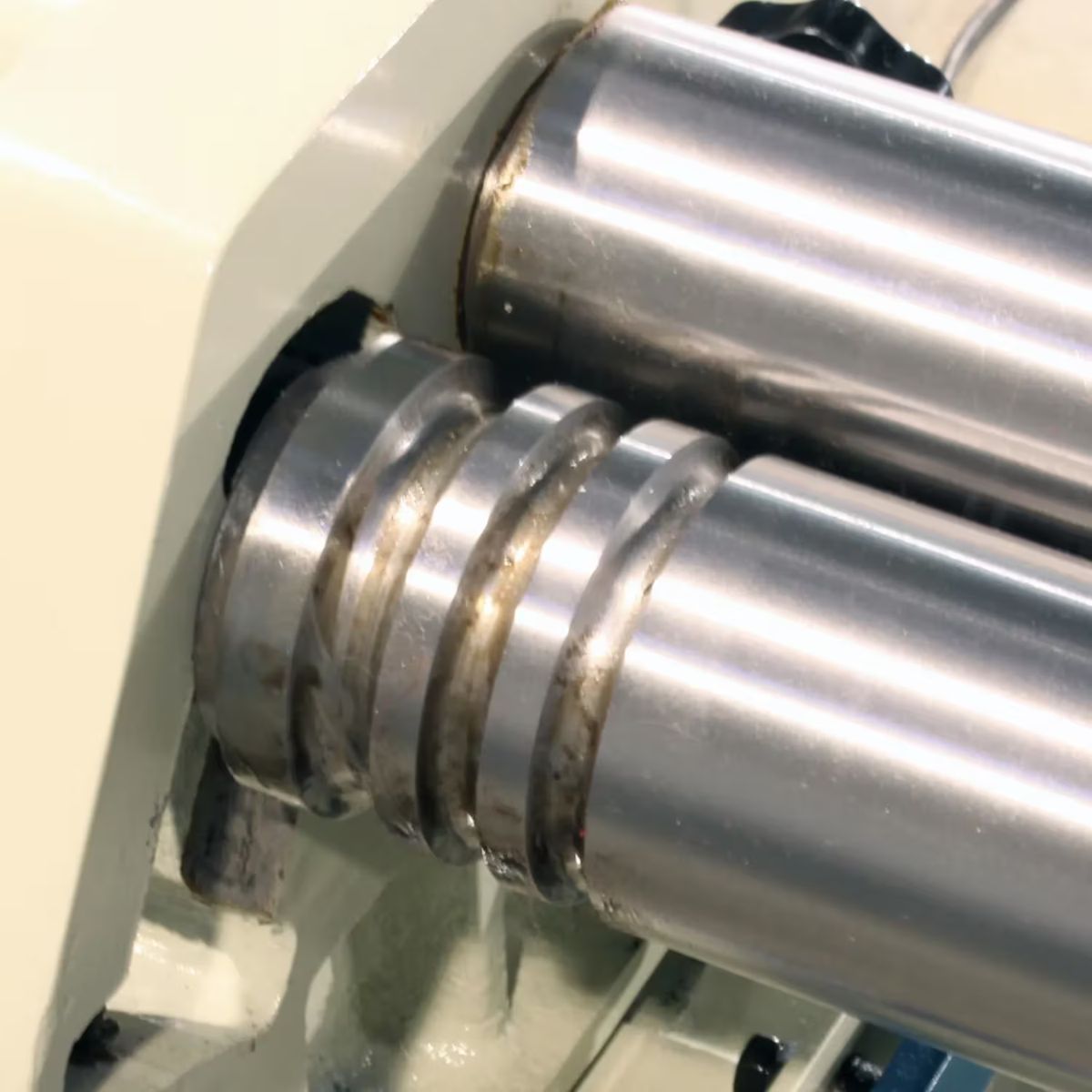

Hardened and Polished Rolls Protect the Finished Surface
The rolls are hardened and polished to resist wear and reduce surface marking on formed parts. A smooth roll surface helps maintain finish quality on sheet metal that will be visible in the final assembly.

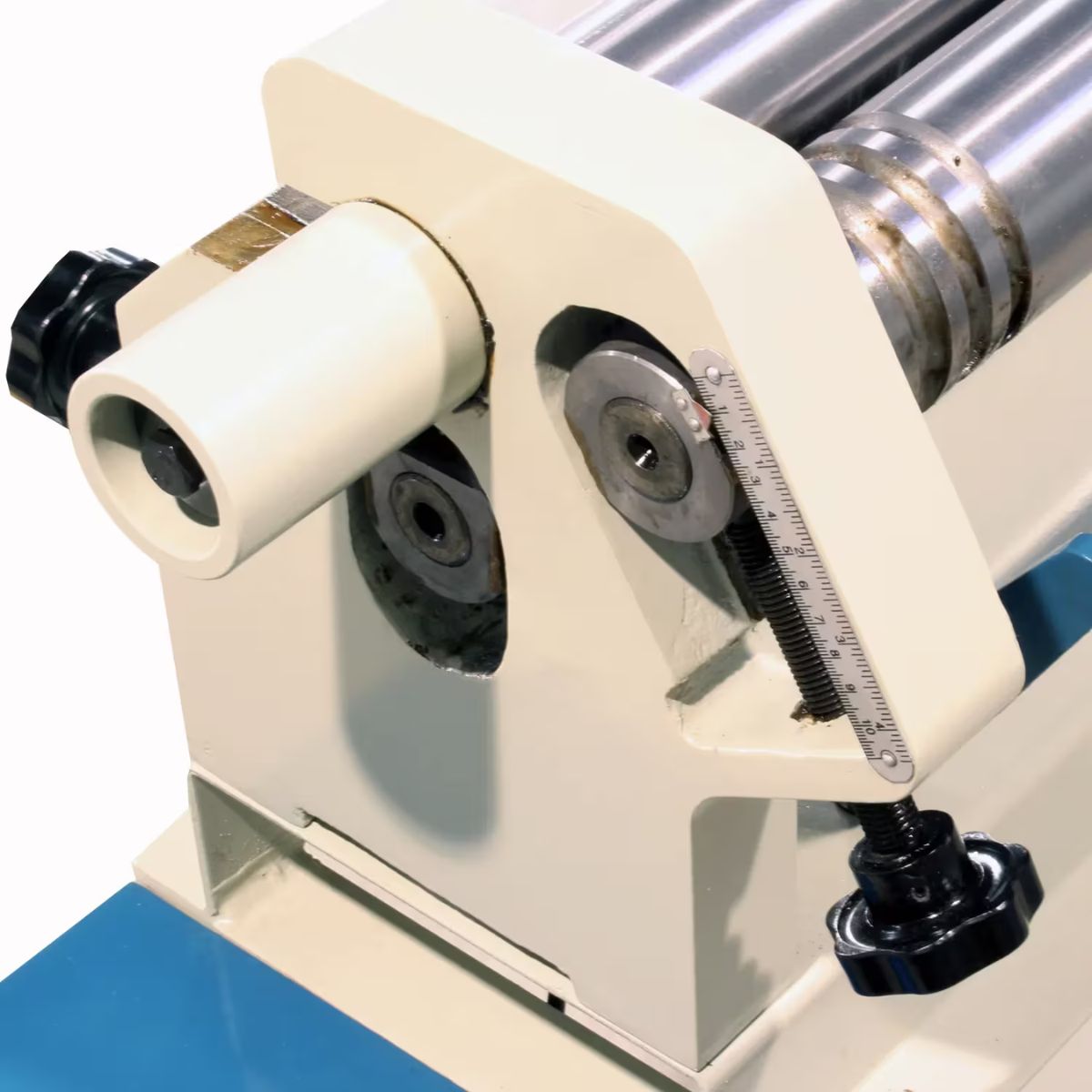

Adjustable Back Roll Expands Forming Range
The back roll adjusts to allow tighter radii for more versatile part shaping. Combined with the open stand design, this makes loading, adjusting, and removing material straightforward at any stage of the roll.
What's Included
What's Included? Baileigh SR-5016E 50" Electric Slip Roll — 110V Open Stand
-
Baileigh SR-5016E 50" Electric Slip Roll — 110V Open Stand — Provides a powered 50-inch slip rolling platform for sheet metal forming on 110V shop power.
Specs
Baileigh SR-5016E 50" Electric Slip Roll — 110V Open Stand Specifications
- Model: SR-5016E
- Stock Number: BA9-1007336
- Working Width: 50 in
- Maximum Forming Length: 51 in
- Mild Steel Capacity: 16 ga. (.060 in.)
- Motor: 1 HP
- Input Power: 110V
- Driven Rolls: 2
- Operation: Foot pedal, forward and reverse

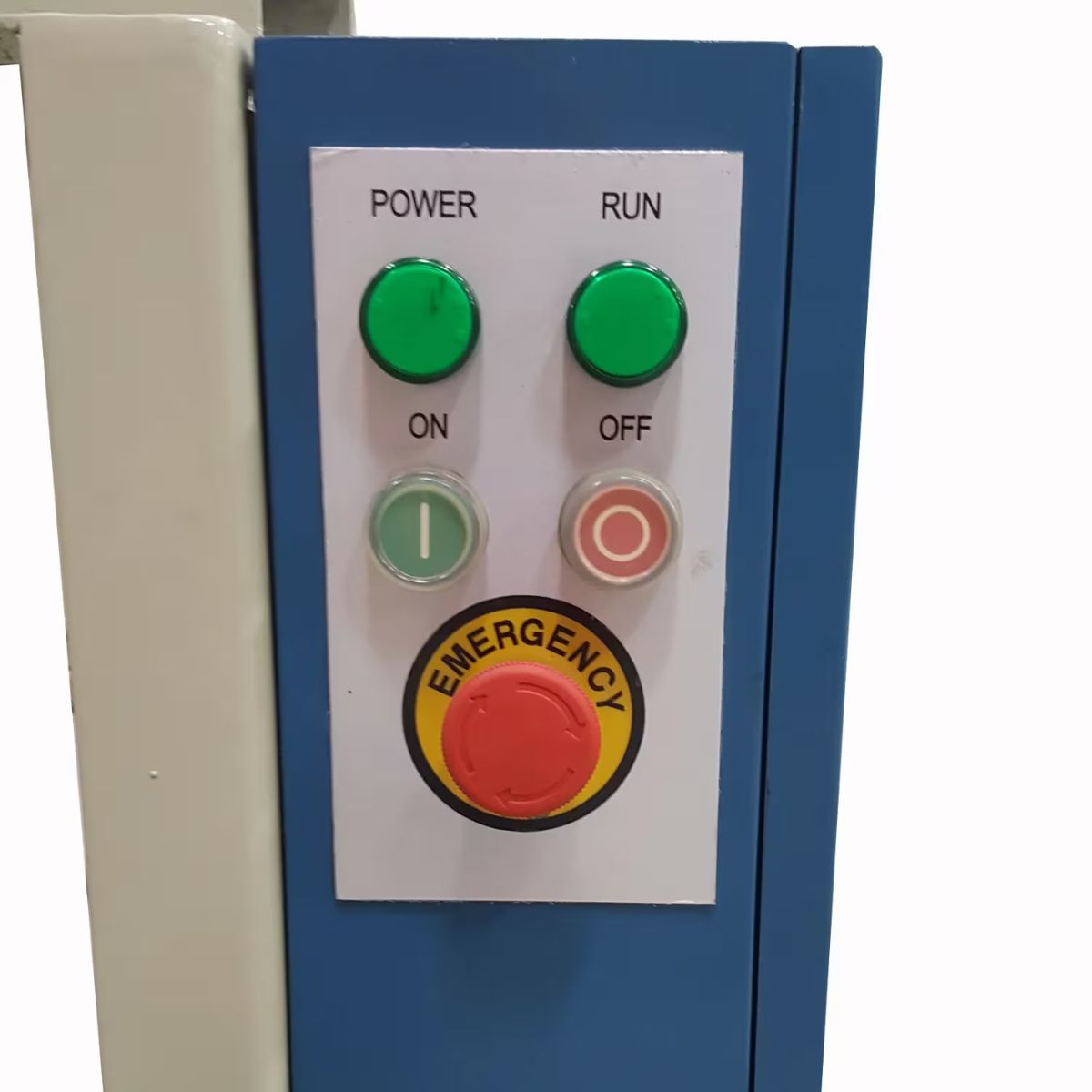

- Emergency Stop Controls: 3
- Frame: Heavy-duty welded steel
- Net Weight: 790 lb
- Warranty: 1 Year parts, lifetime technical support
