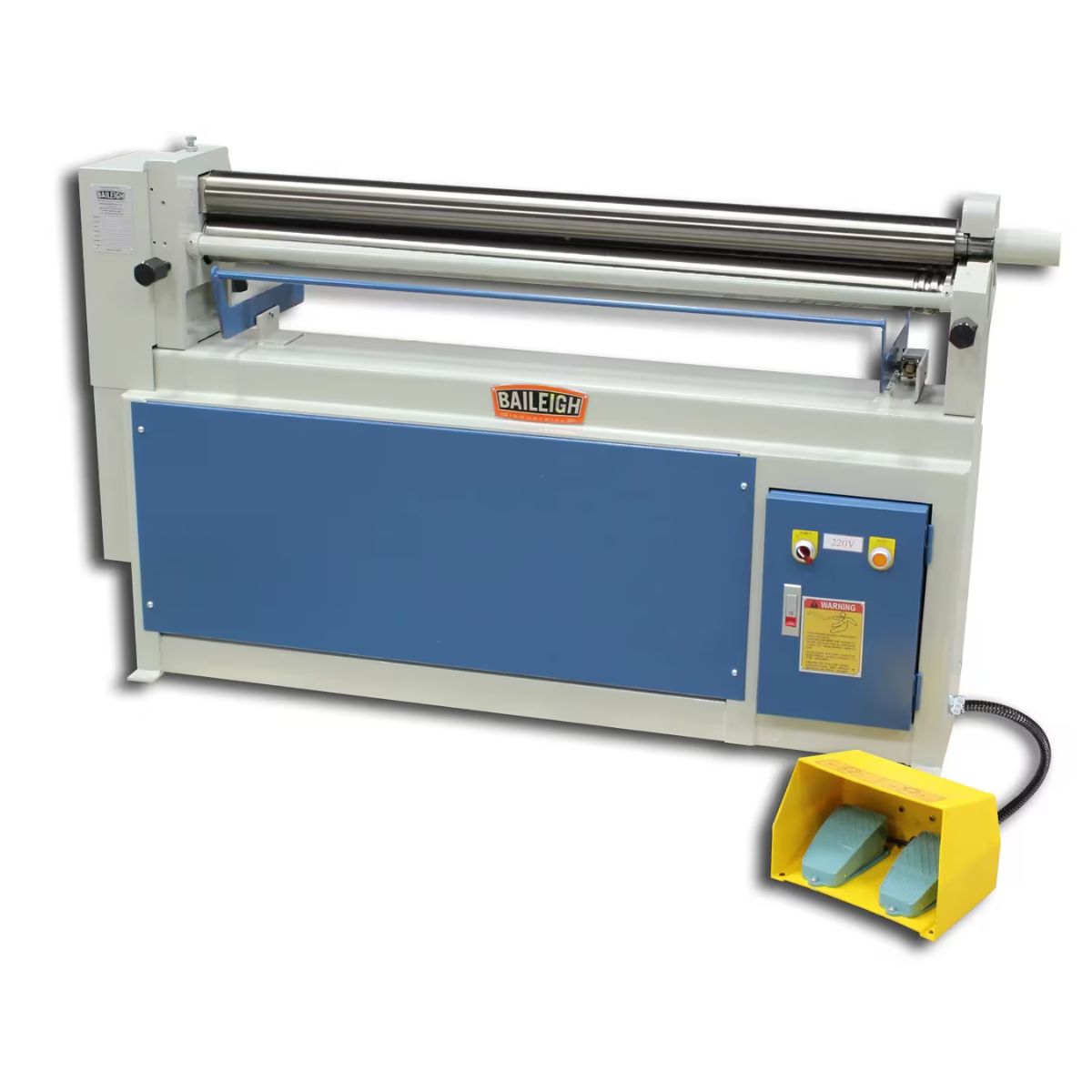

Baileigh SR-5016 50" Electric Slip Roll — 220V Closed Stand
Are you tired of slip rolls that lose accuracy across wide sheet metal work?
What if your shop had a 50 inch electric slip roll that holds true from edge to edge on every pass?
Meet the Baileigh SR-5016 50" Electric Slip Roll, a heavy-duty forming machine built for fabrication shops and HVAC work.
With hardened and polished rolls, a gear-driven system, and an adjustable back roll, the SR-5016 handles cylinders, cones, and curved parts with consistent results.
When the machine holds its accuracy across the full width, you can work through a long forming run without stopping to re-check your results.
Baileigh SR-5016 for Sheet Metal Forming and HVAC Fabrication
Hardened and Polished Rolls Deliver Consistent Results
The front and rear rolls are hardened and polished to resist wear and maintain a clean surface finish on formed parts. Roll quality directly affects the finish of every cylinder and cone you produce, and these rolls hold up through long production runs.
Gear-Driven System Transfers Power Evenly Across Full Width
The gear-driven system moves power evenly across the full 50 inch forming width so the sheet feeds at the same rate from side to side. Even power transfer reduces distortion and keeps formed parts accurate across the entire length of the material.
Adjustable Back Roll Allows Radius and Cone Control
The back roll adjusts independently to fine-tune the roll radius or set up cone formations. This gives you control over the curve without changing out tooling or resetting the machine from scratch.
Wire Grooves and Emergency Stop Increase Versatility and Safety
Front and rear wire grooves let you form wire-edged material without additional tooling. Integrated emergency-stop controls give the operator a fast shutdown when conditions require it.
What's Included
What's Included? Baileigh SR-5016 50" Electric Slip Roll — 220V Closed Stand
-
Baileigh SR-5016 50" Electric Slip Roll — 220V Closed Stand — Provides a full 50 inch electric slip roll platform on a closed stand for fabrication and HVAC forming work.
Specs
Baileigh SR-5016 50" Electric Slip Roll — 220V Closed Stand Specifications
- Model: SR-5016
- Stock Number: BA9-1007306
- Maximum Forming Length: 50 in
- Mild Steel Capacity: 16 ga. (.060 in)
- Driven Rolls: 2
- Motor: 1 HP
- Input Power: 220V Single Phase
- Net Weight: 850 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
