Baileigh SR-3622M 36" Manual Slip Roll — 22 Gauge
Are you looking for a manual slip roll that handles full-width sheet metal forming without needing a power source?
What if your shop had a hand-crank slip roller that gave you clean, controlled results on cylinders, cones, and arches?

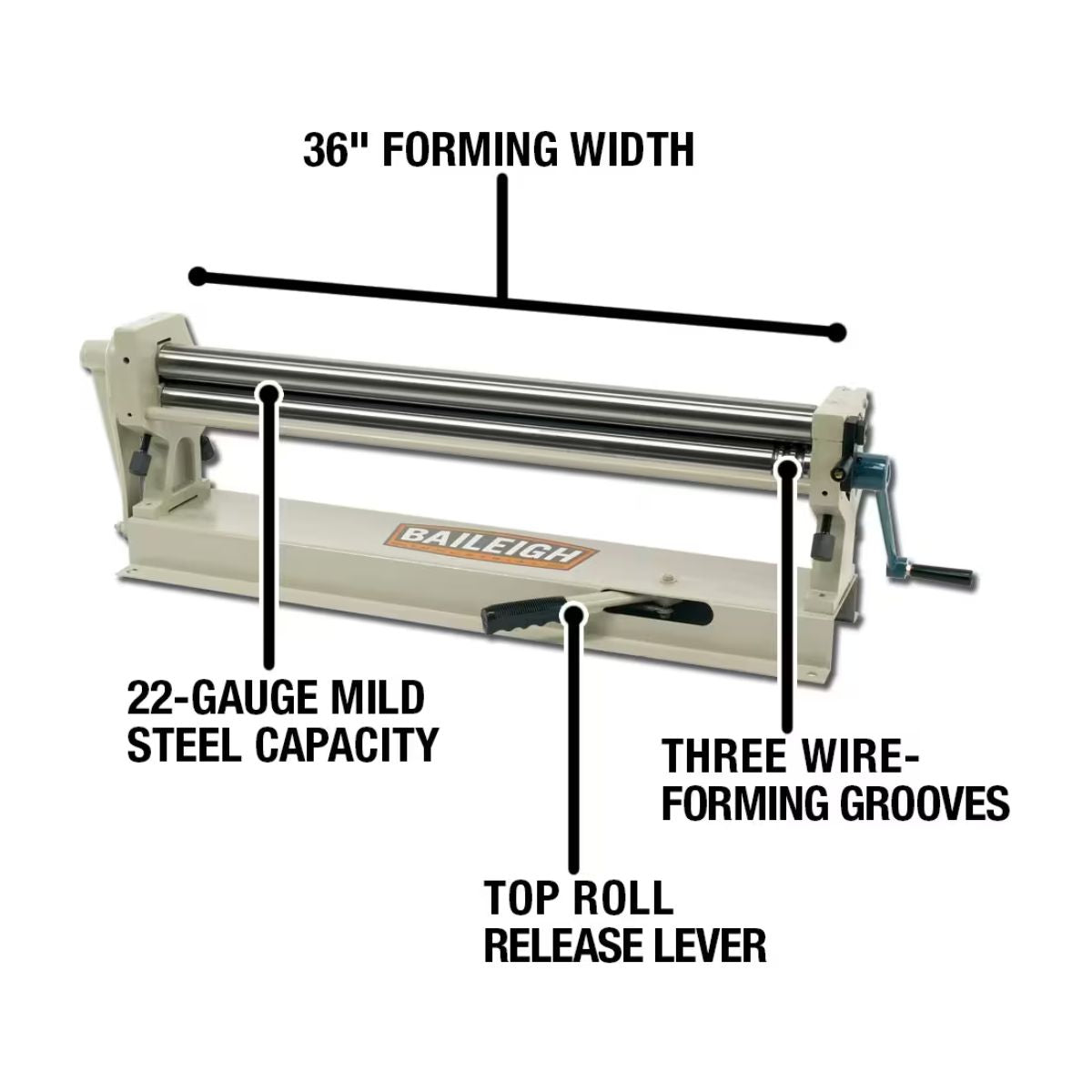

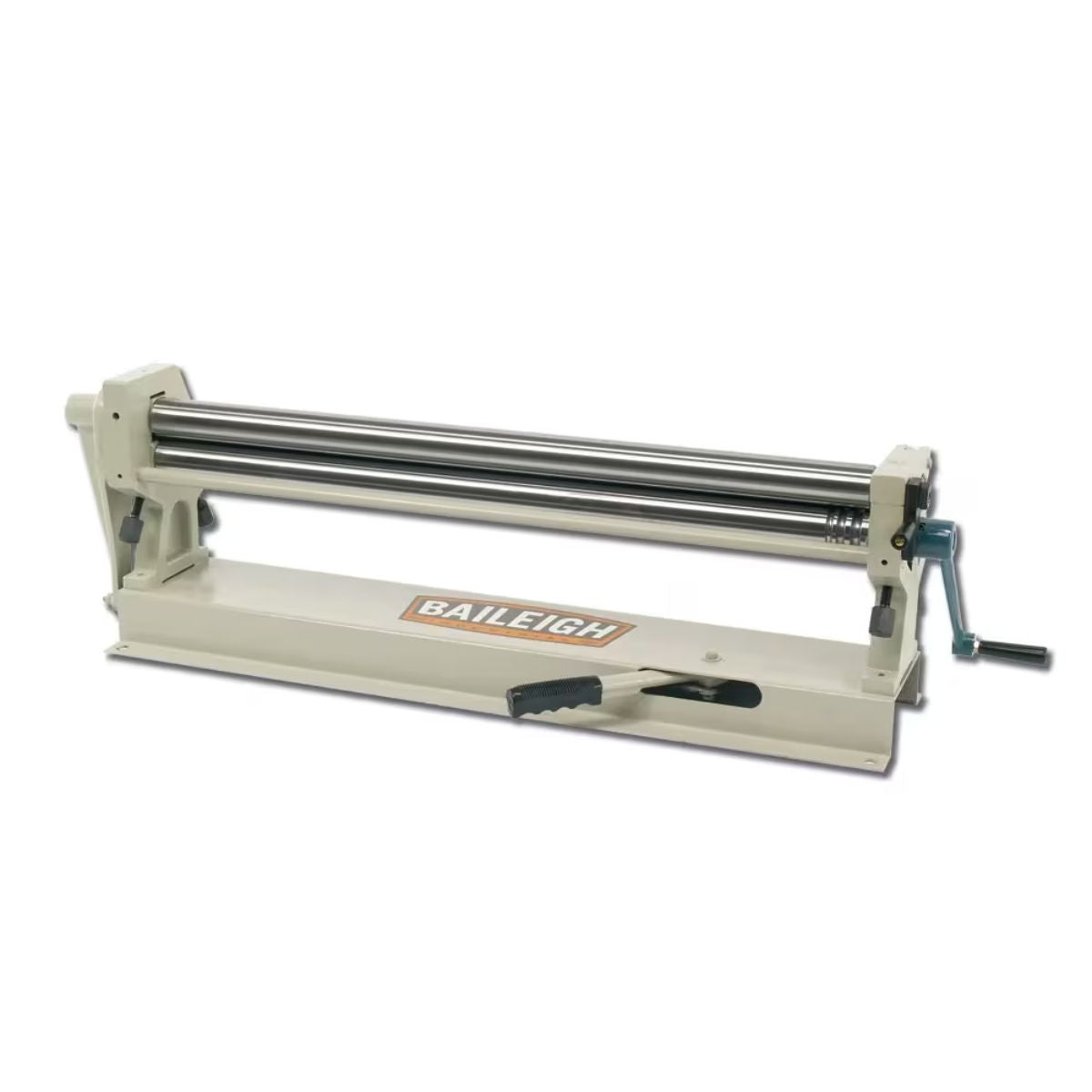

Meet the Baileigh SR-3622M 36" Manual Slip Roll, a plate steel slip roller built for light to medium fabrication work.
With a machined plate steel frame, hardened and polished rolls, and a 36 inch working width, the SR-3622M handles 22 gauge mild steel across its full forming length.
When the rolls are dialed in and the frame holds true, you can work through a forming run with steady, repeatable results.
Baileigh SR-3622M for Sheet Metal Cylinder and Arch Forming
Machined Plate Steel Frame Holds Alignment Under Load
The frame is built from rigid plate steel and machined to exacting tolerances. This construction keeps the rolls in alignment during full-width forming tasks so results stay consistent from the first pass to the last.
Hardened and Polished Rolls Support Consistent Forming
The rolls are hardened and polished for durability and a clean surface finish on formed parts. This construction supports long service life and reduces wear even during repeated forming runs.
Top Roll Release Lever Speeds Part Removal
A lever system moves the top roll out of the way so finished parts can be removed without struggle. This keeps workflow moving in a fabrication environment where part removal often slows the process down.
Wire Grooves Allow Specialty Rod and Bend Work
Three wire grooves are machined into the rolls for forming rod and handling specialty bends beyond standard sheet forming. This makes the SR-3622M useful for a wider range of light fabrication tasks in one machine.
What's Included
What's Included? Baileigh SR-3622M 36" Manual Slip Roll — 22 Gauge
-
Baileigh SR-3622M 36" Manual Slip Roll — Provides a 36 inch manual slip rolling platform for sheet metal cylinder, cone, and arch forming.
Specs
Baileigh SR-3622M 36" Manual Slip Roll — 22 Gauge Specifications
- Model: SR-3622M
- Stock Number: BA9-1007304
- Forming Width: 36 in
- Mild Steel Capacity: 22 gauge
- Minimum Forming Diameter: 3 in
- Wire Grooves: 3
- Input Power: Manual
- Net Weight: 240 lb
- Warranty: 1 Year
