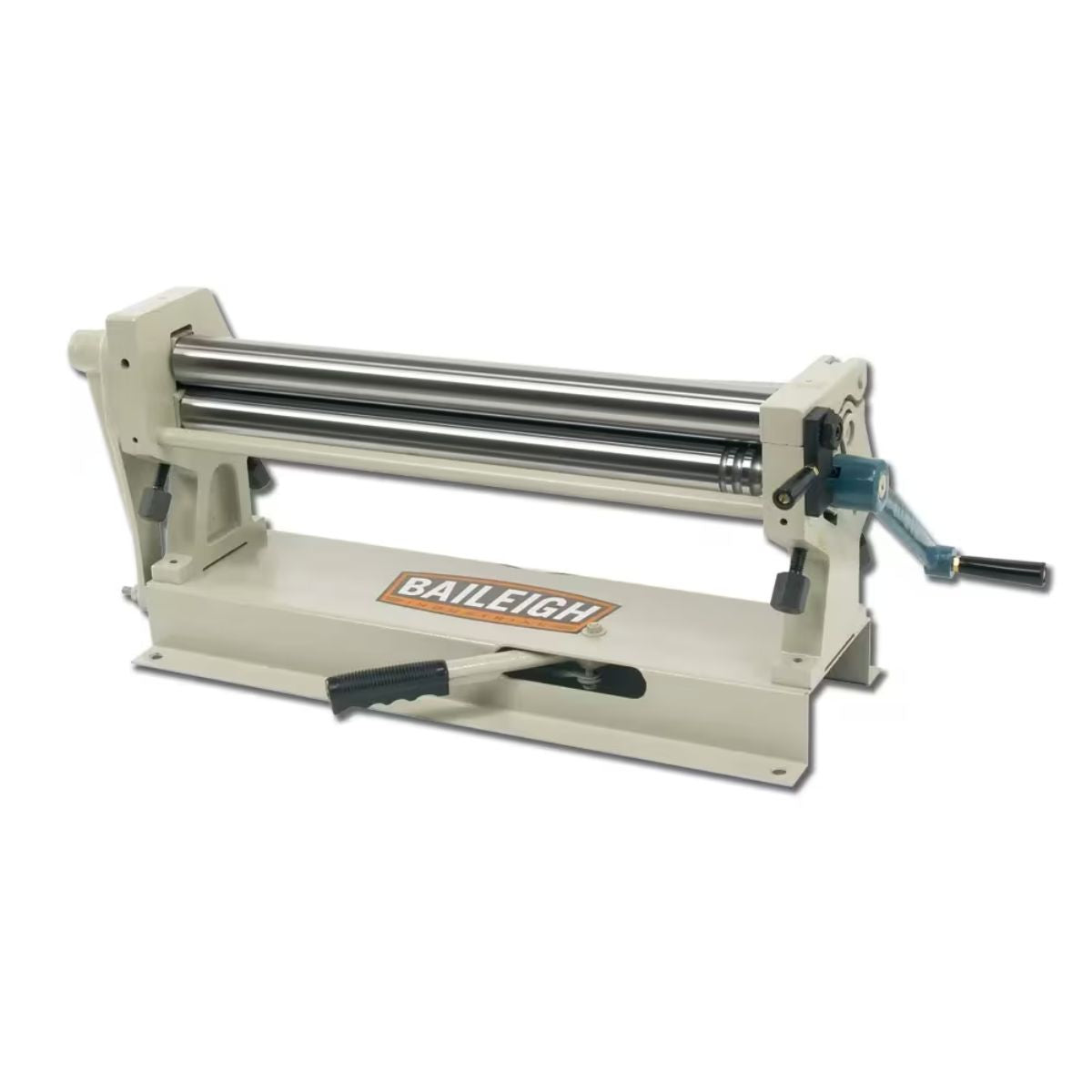

Baileigh SR-2420M 24" Manual Slip Roll — 20 Gauge
Are you looking for a reliable manual slip roll that handles sheet metal forming without extra complexity?
What if your shop had a straightforward 24 inch slip roll that forms clean, consistent curves from the first pass?
Meet the Baileigh SR-2420M 24" Manual Slip Roll, a benchtop forming tool built for steady sheet metal work up to 20 gauge.
With a 24 inch forming width, a lever-release top roll, three wire grooves, and a 1:1 gear drive, the SR-2420M handles cylinders, cones, and curved panels with direct manual control.
When the roll holds its setting and the frame stays aligned, you can shape material with confidence and move through forming work at a steady pace.
Baileigh SR-2420M for Manual Sheet Metal Forming
Integrated Steel Frame Keeps All Three Rolls Aligned
The fully integrated steel frame holds all three rolls in alignment throughout the forming operation. Consistent roll geometry helps produce even curves across the full 24 inch width without drift or deflection.

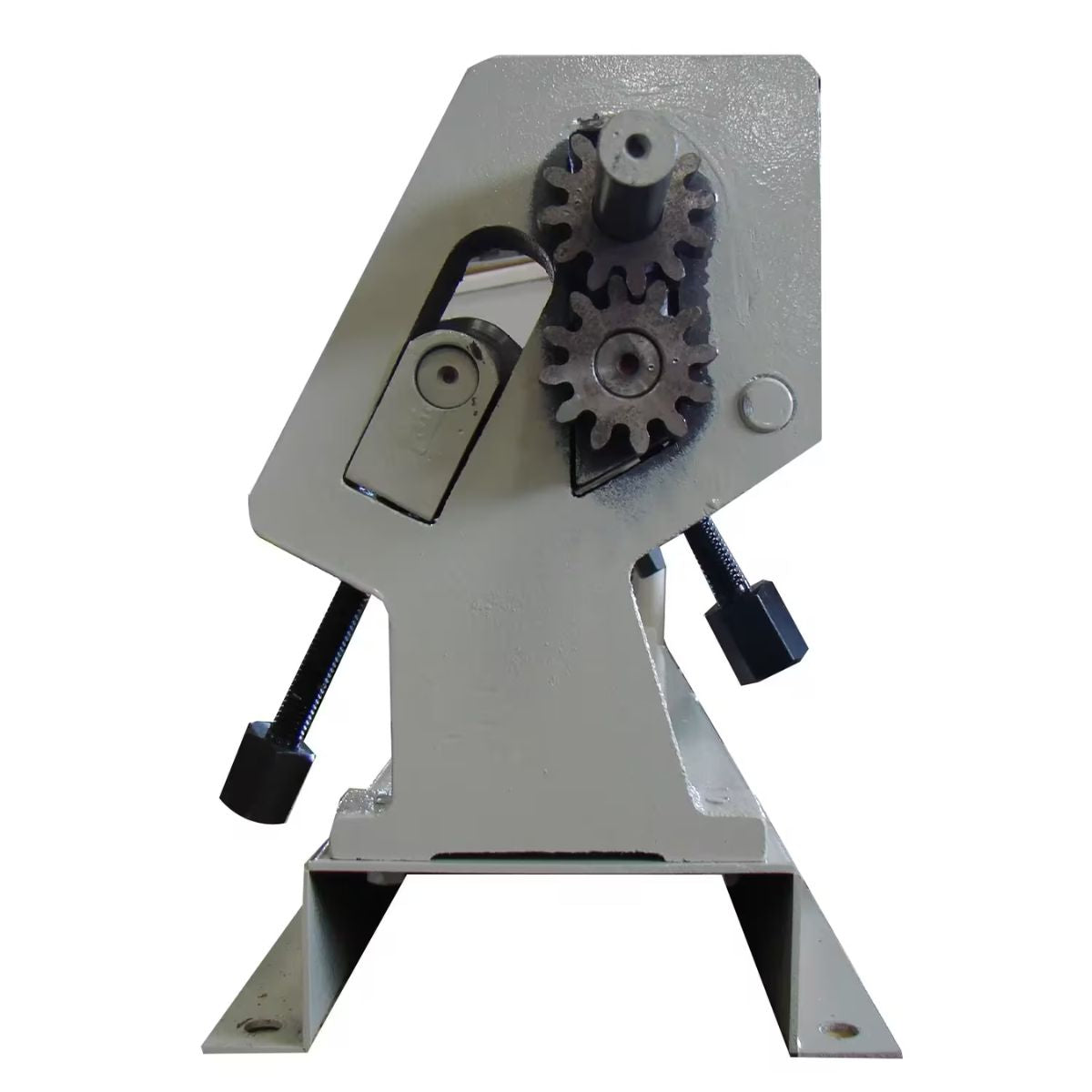

1:1 Gear Ratio Gives Precise Feed Control
The manual 1:1 gear drive puts feed speed directly in the operator's hands. Accurate gear engagement gives you steady control through tighter forming radii without motor lag or foot control.

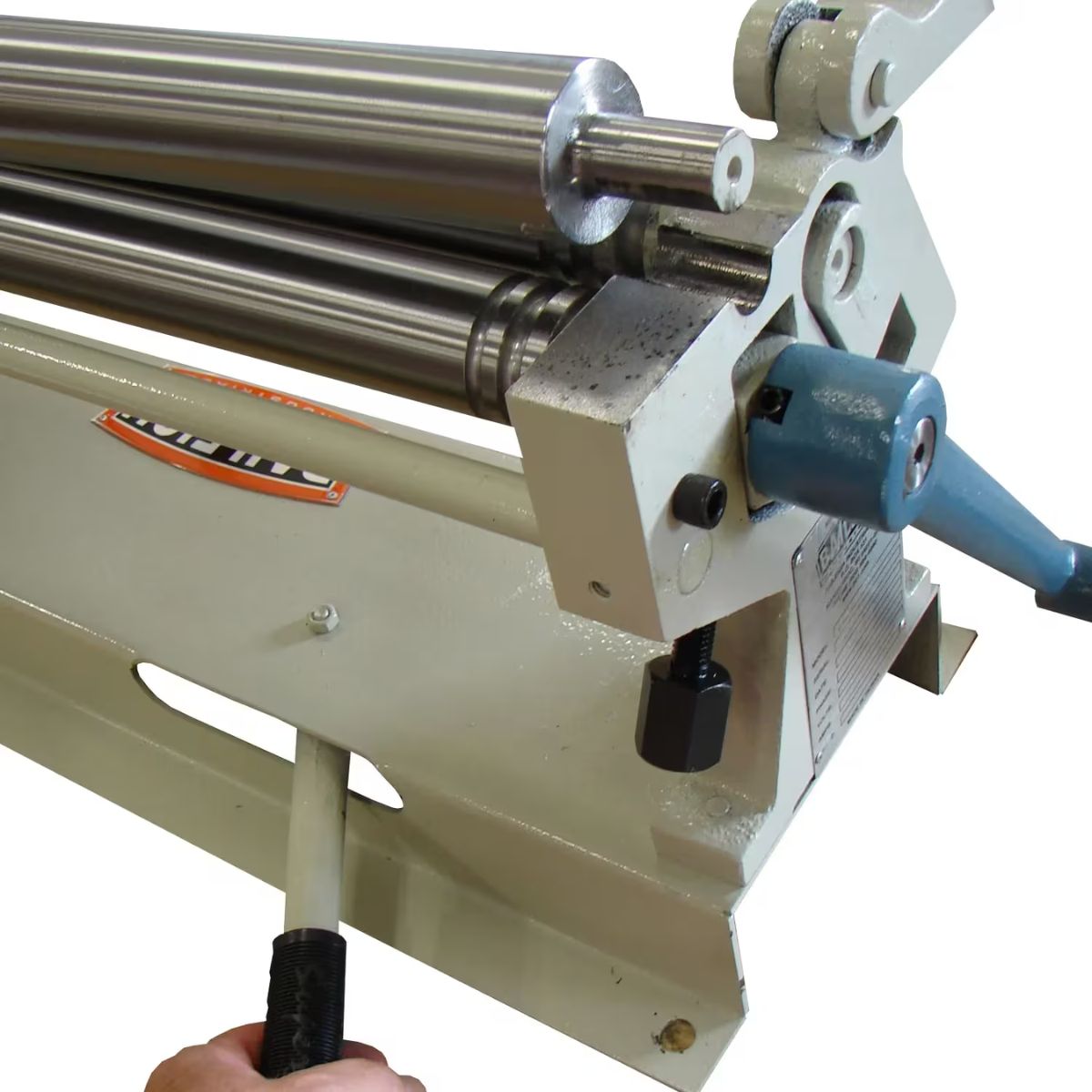

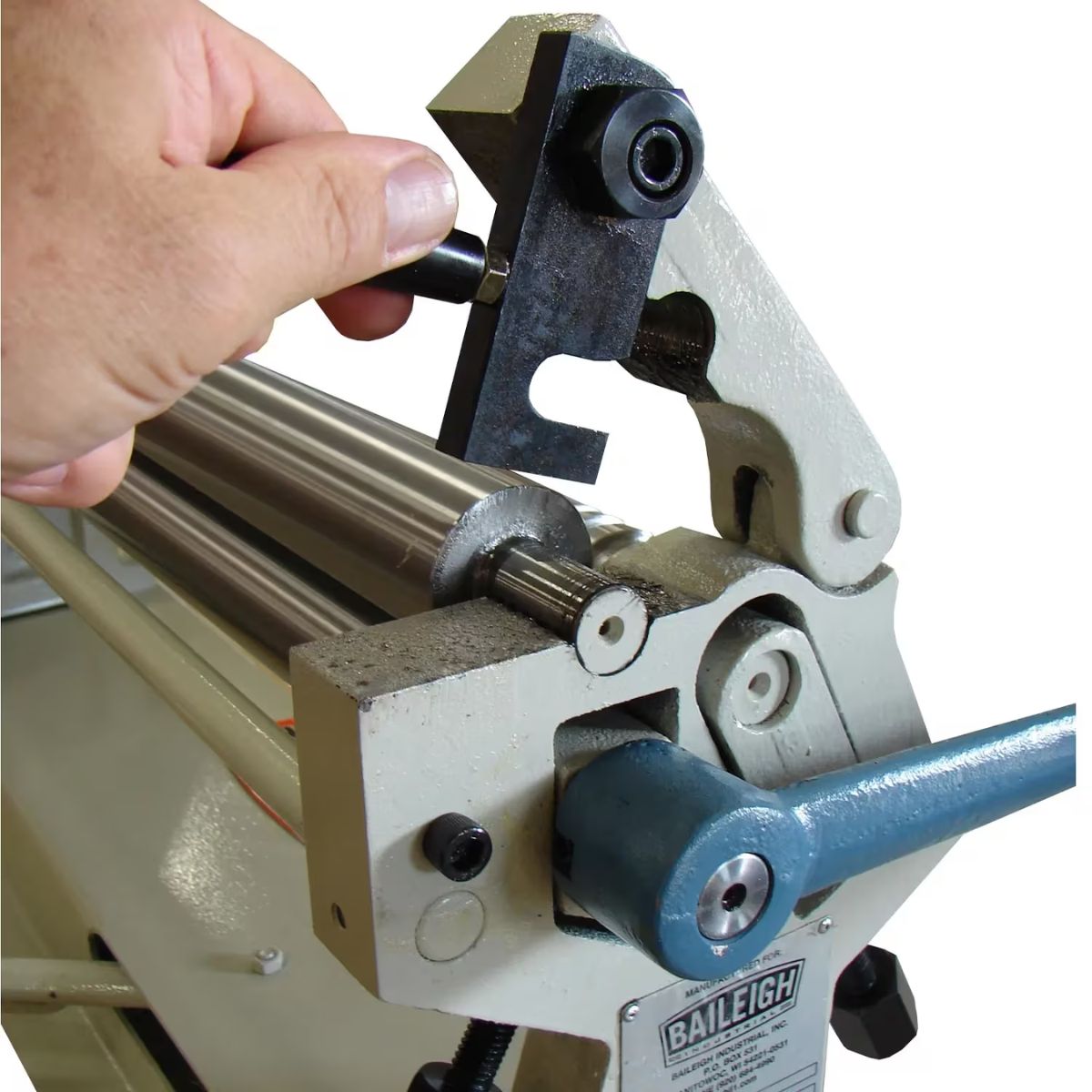

Lever-Release Top Roll Speeds Part Removal
A lever mechanism opens the top roll so finished parts can be removed without unwinding. This keeps the workflow moving between pieces and reduces handling time on small to medium forming runs.

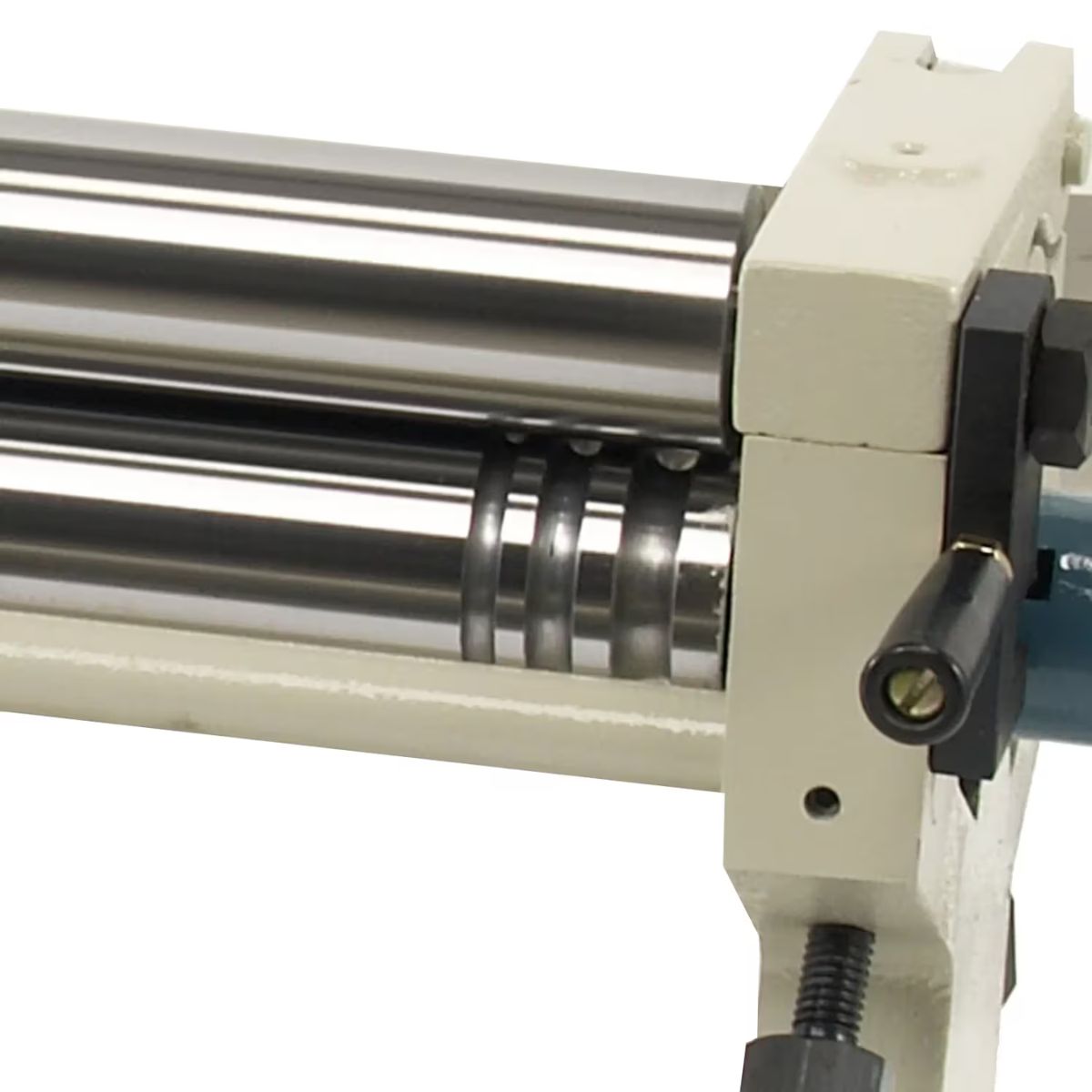

Three Wire Grooves Support Specialty Bends
Three integrated wire grooves are built into the rolls for specialty forming tasks beyond flat sheet. The grooves let you work with wire and rod stock without a separate tooling setup.
What's Included
What's Included? Baileigh SR-2420M 24" Manual Slip Roll — 20 Gauge
-
Baileigh SR-2420M 24" Manual Slip Roll — Provides a 24 inch manual benchtop slip roll platform for sheet metal forming up to 20 gauge.
Specs
Baileigh SR-2420M 24" Manual Slip Roll — 20 Gauge Specifications
- Model: SR-2420M
- SKU: BA9-1007297
- Maximum Forming Width: 24 in
- Mild Steel Capacity: 20 Gauge
- Roll Diameter: 2 in
- Minimum Forming Diameter: 3 in
- Wire Grooves: 3
- Drive: Manual, 1:1 Gear Ratio
- Input Power: Manual
- Net Weight: 170 lb
- Warranty: 1 Year
