Baileigh SR-1220M 12" Manual Slip Roll — 20 Gauge
Are you looking for a compact slip roll that handles small sheet metal forming without taking up a full bench?
What if your shop had a manual slip roll that gives you clean, controlled curves on 20 gauge mild steel without power or complex setup?

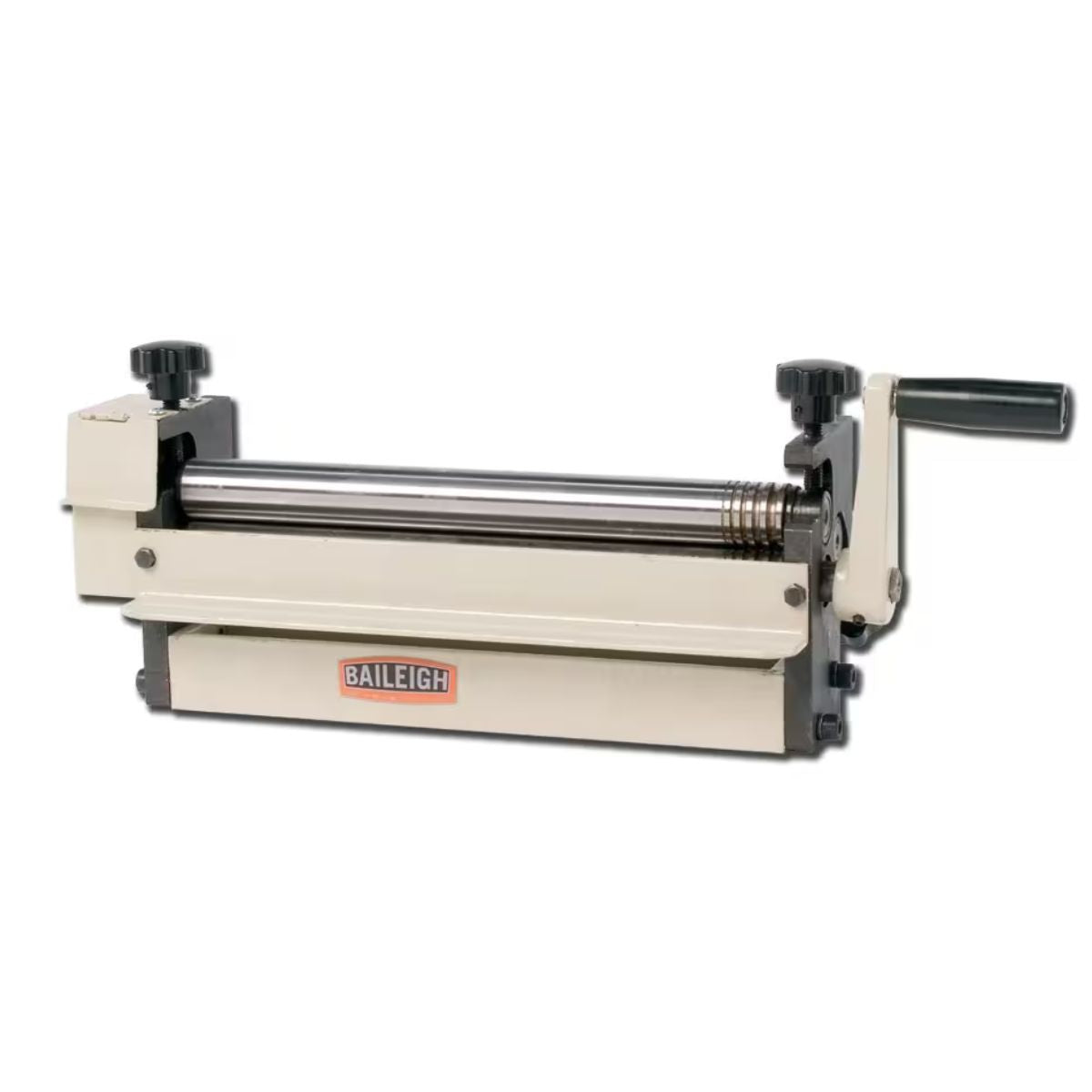

Meet the Baileigh SR-1220M 12" Manual Slip Roll, a bench or vise-mounted forming machine built for fabrication shops and garages.
With a 12 inch forming width, a 1:1 gear ratio, and an independently adjustable back roll, the SR-1220M handles cylinders and cone shapes with steady, repeatable control.
When the machine holds its setting through a run of parts, you can focus on forming the work accurately.
Baileigh SR-1220M for Small Sheet Metal Forming

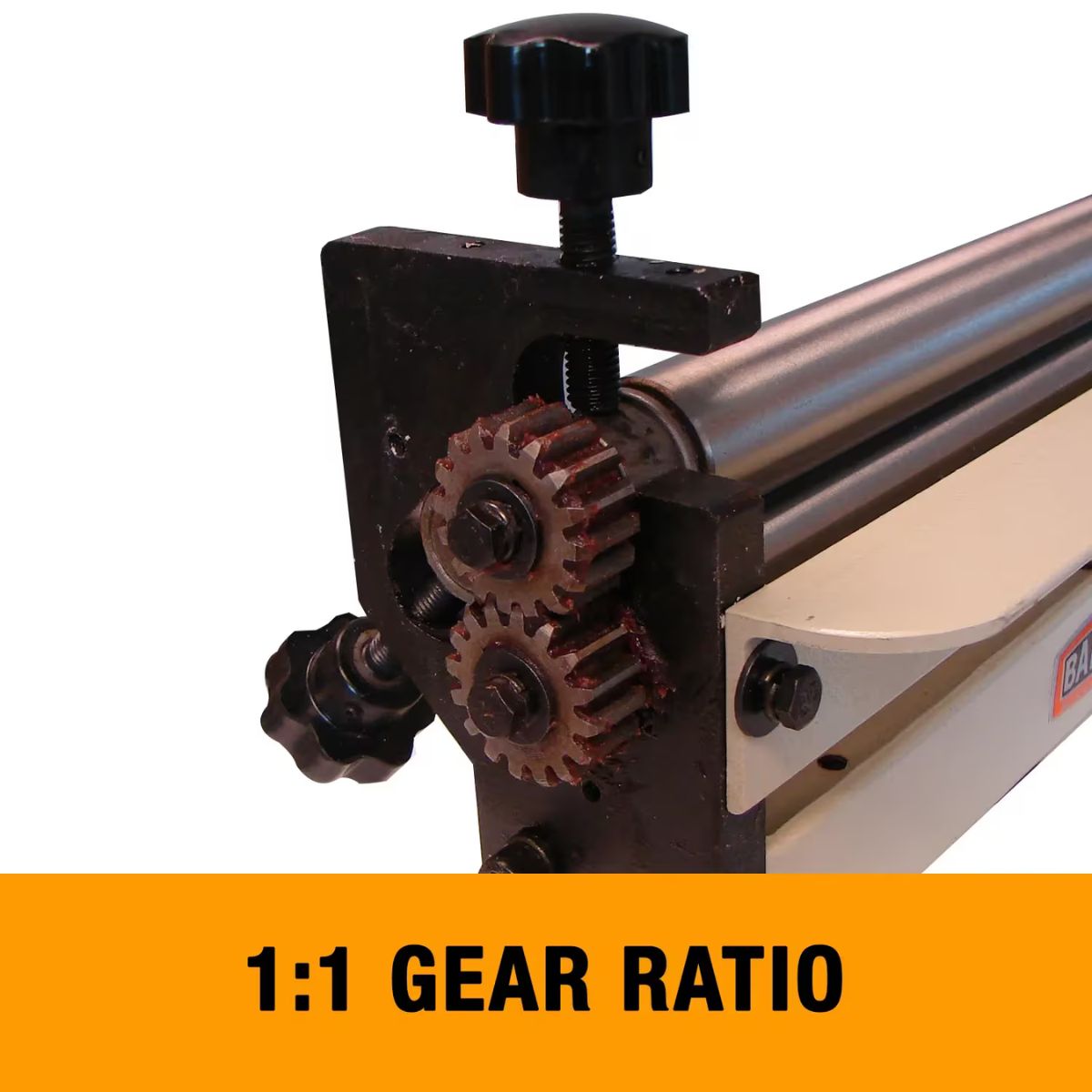

1:1 Gear Ratio Gives You Accurate Manual Control
The manual drive system runs at a 1:1 gear ratio, so every turn of the handle moves the roll at a predictable rate. That direct connection gives you accurate control when forming smaller diameter cylinders where precision matters.
Adjustable Back Roll Allows Cone Shaping
The back roll adjusts independently to set a taper for cone rolling. This lets you form tapered shapes without a separate setup or additional tooling.
Top Roll Swings Out for Easy Part Removal
The top roll swings away from the machine once a form is complete, so you can remove the finished part without unwinding it back through the rolls. This keeps the workflow moving cleanly from one piece to the next.

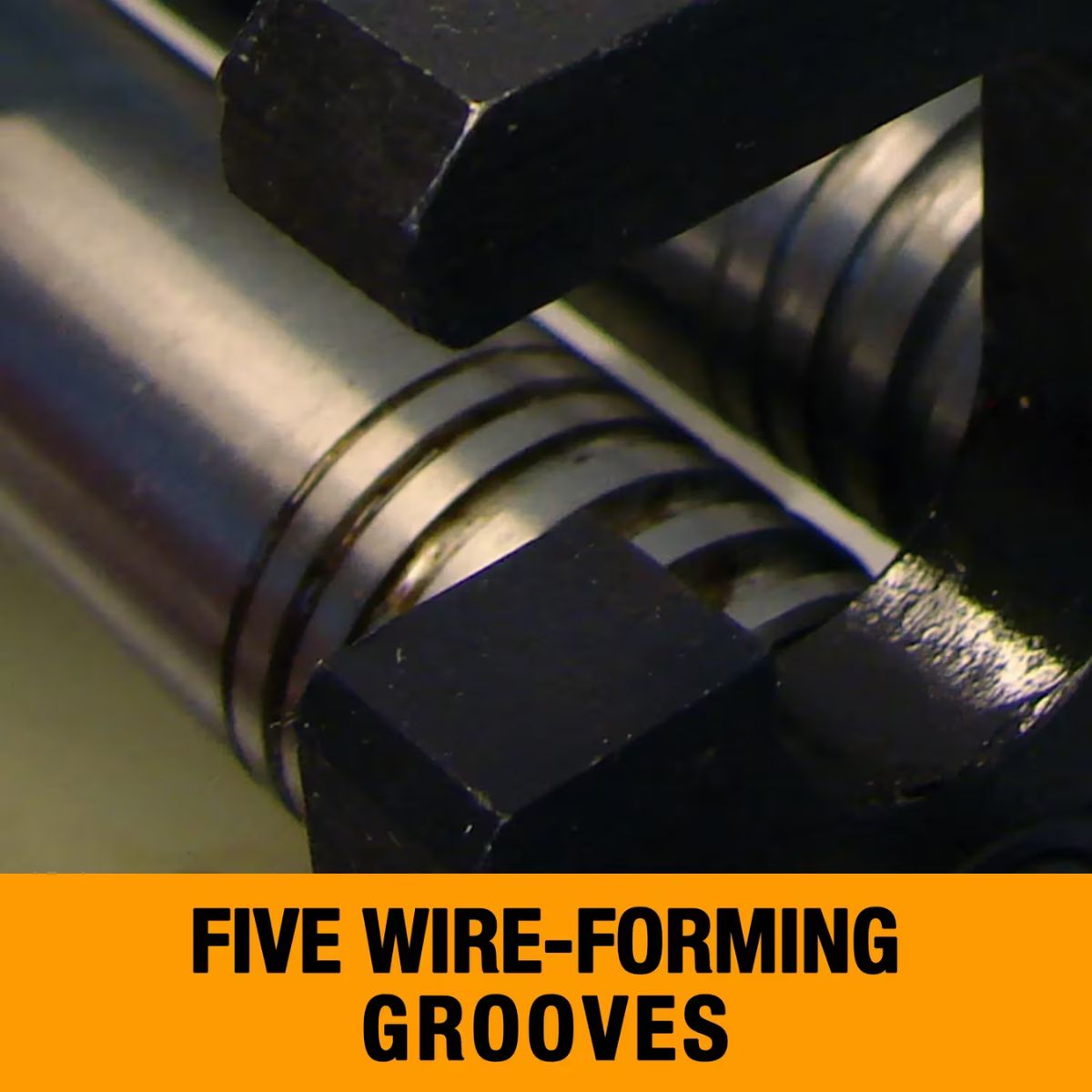

Wire Grooves Handle Specialty Forming Work
Five wire grooves of varying sizes are built into the rolls for forming wire edges and specialty bends. They give the machine a wider range of use beyond basic cylinder forming.
What's Included
What's Included? Baileigh SR-1220M 12" Manual Slip Roll — 20 Gauge
-
Baileigh SR-1220M 12" Manual Slip Roll — 20 Gauge — Provides a compact bench or vise-mounted platform for manual sheet metal forming up to 20 gauge mild steel.
-

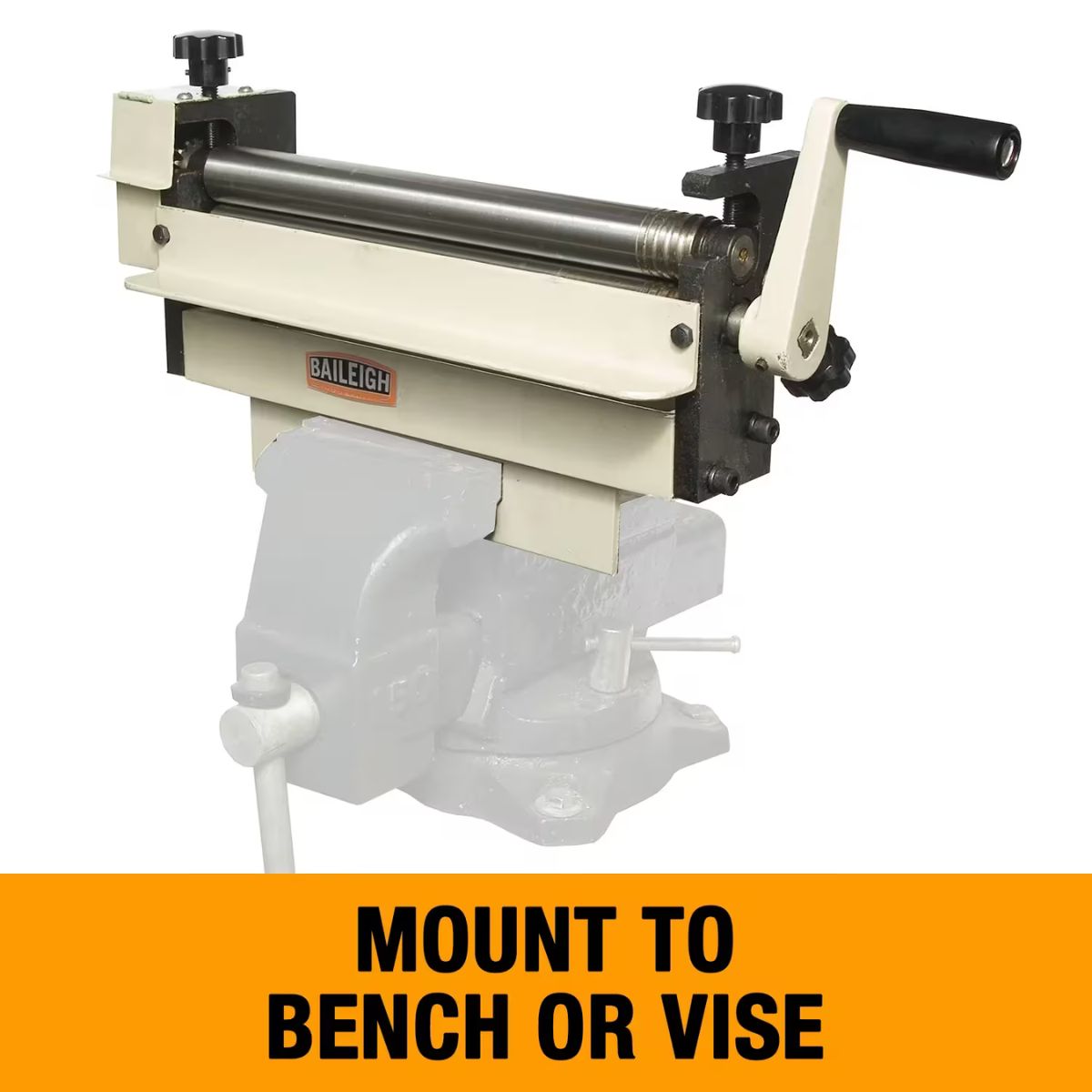

Mounting Bracket — Allows the roll to be secured to a bench or vise for stable operation.
Specs
Baileigh SR-1220M 12" Manual Slip Roll — 20 Gauge Specifications
- Model: SR-1220M
- Stock Number: BA9-1007290
- Forming Width: 12 in
- Mild Steel Capacity: 20 gauge
- Input Power: Manual
- Drive: 1:1 gear ratio
- Wire Grooves: 5 (varying sizes)
- Mounting: Bench or vise mount
- Net Weight: 31 lb
- Gross Weight: 31 lb
- Warranty: 1 Year
